USER MANUAL KG154E.9 KRESS

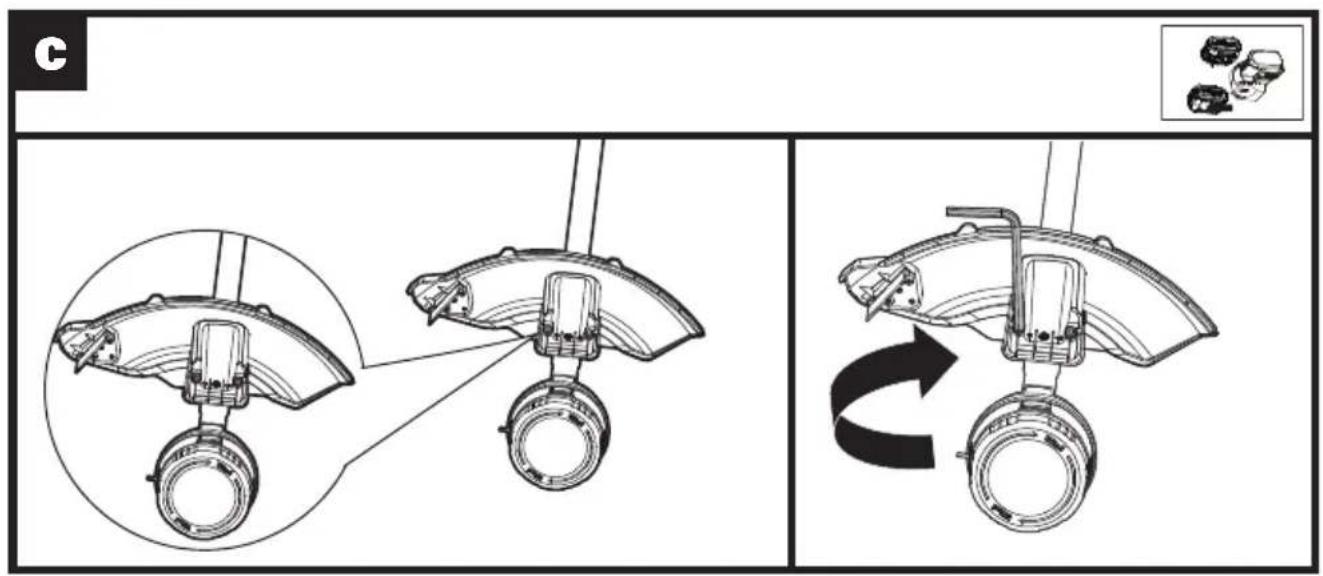

Remove the tube plugC

Remove the tube plugC

Remove the tube plugC

The machine is intended for the cutting of grass and weeds under bushes, as well as on slopes and edges that cannot be reached with the lawn mower.8

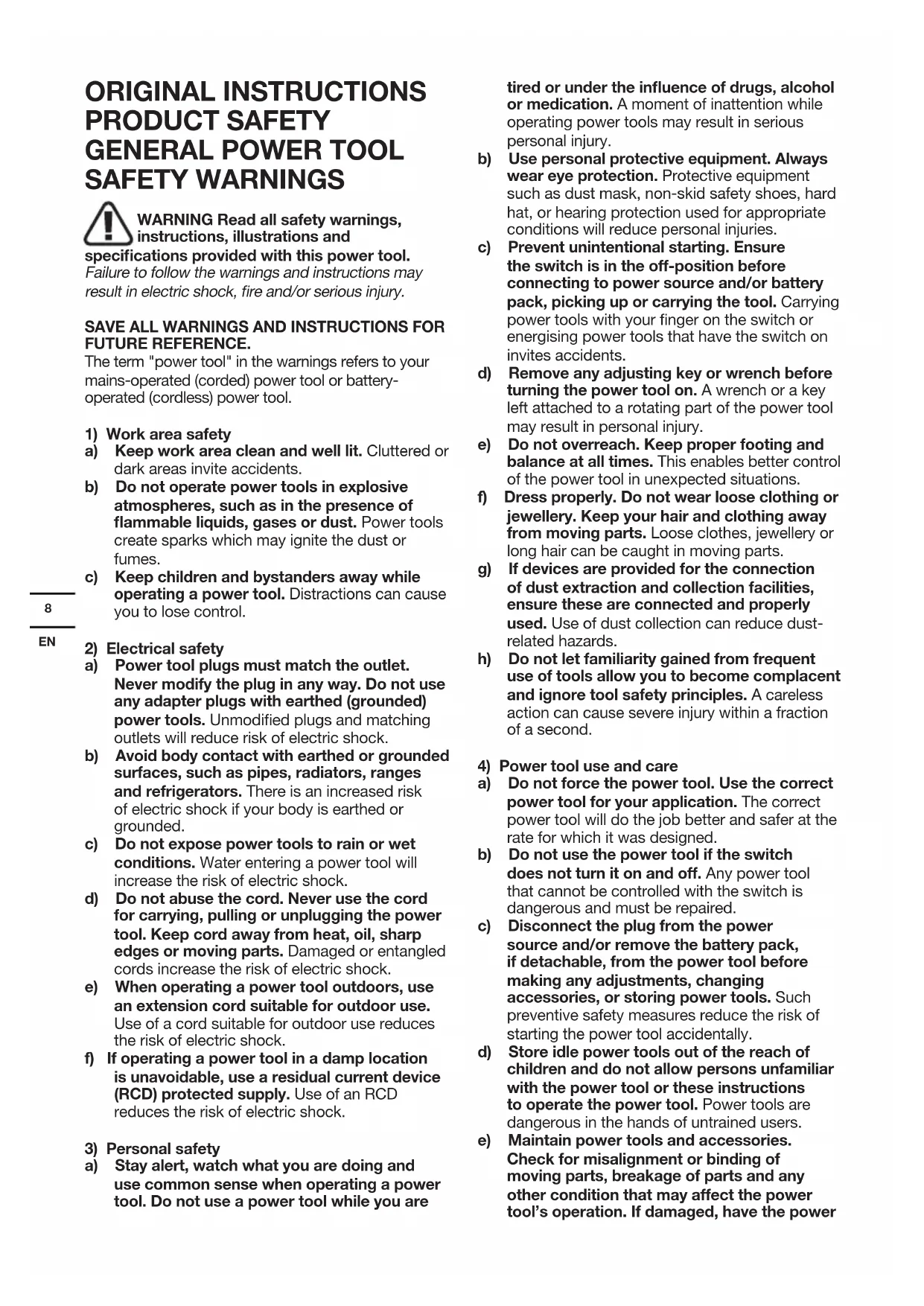

SAFETY WARNINGS WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow the warnings and instructions may result in electric shock, re and/or serious injury.

SAVE ALL WARNINGS AND INSTRUCTIONS FOR

FUTURE REFERENCE. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery- operated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your nger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust- related hazards. h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power9

tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of re when used with another battery pack. b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and re. c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a re. d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. e) Do not use a battery pack or tool that is damaged or modified. Damaged or modied batteries may exhibit unpredictable behaviour resulting in re, explosion or risk of injury. f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to re or temperature above 130 °C may cause explosion. g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specied range may damage the battery and increase the risk of re.

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers. Grass trimmer safety warnings a) Do not use the machine in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning. b) Thoroughly inspect the area for wildlife where the machine is to be used. Wildlife may be injured by the machine during operation. c) Thoroughly inspect the area where the machine is to be used and remove all stones, sticks, wires, bones, and other foreign objects. Thrown objects can cause personal injury. d) Before using the machine, always visually inspect to see that the cutter or blade and the cutter or blade assembly are not damaged. Damaged parts increase the risk of injury. e) Follow instructions for changing accessories. Improperly tightened blade securing nuts or bolts may either damage the blade or result in it becoming detached. f) The rated rotational speed of the blade must be at least equal to the maximum rotational speed marked on the machine. Blades running faster than their rated rotational speed can break and y apart. g) Wear eye, ear, head and hand protection. Adequate protective equipment will reducepersonal injury by ying debris or accidental contact with the cutting line or blade. h) While operating the machine, always wear safety footwear. Do not operate the machine when barefoot or wearing open sandals. This reduces the chance of injury to the feet from contact with a moving cutter, line or blade.

i) While operating the machine, always wear

long trousers. Exposed skin increases the likelihood of injury from thrown objects. j) Keep bystanders away while operating the machine. Thrown debris can result in serious personal injury. k) Always use two hands when operating the machine. Holding the machine with both hands will avoid loss of control. l) Hold the machine by the insulated gripping surfaces only, because the cutting line or blade may contact hidden wiring. Cutting line or blades contacting a "live" wire may make exposed metal parts of the machine "live" and could give the operator an electric shock. m) Always keep proper footing and operate the machine only when standing on the ground. Slippery or unstable surfaces may cause a loss of balance or control of the machine. n) Do not operate the machine on excessively steep slopes. This reduces the risk of loss of control, slipping and falling which may result in personal injury. o) When working on slopes, always be sure of your footing, always work across the face of slopes, never up or down and exercise extreme caution when changing direction. This reduces the risk of loss of control, slipping and falling which may result in personal injury.10

p) Keep all parts of the body away from the cutter, line or blade when the machine is operating. Before you start the machine, make sure the cutter, line or blade is not contacting anything. A moment of inattention while operating the machine may result in injury to yourself or others. q) Do not operate the machine above waist height. This helps prevent unintended cutter or blade contact and enables better control of the machine in unexpected situations. r) When cutting brush or saplings that are under tension, be alert for spring back. When the tension in the wood bres is released, the brush or sapling may strike the operator and/or throw the machine out of control. s) Use extreme caution when cutting brush and saplings. The slender material may catch the blade and be whipped toward you or pull you off balance. t) Maintain control of the machine and do not touch cutters, lines or blades and other hazardous moving parts while they are still in motion. This reduces the risk of injury from moving parts. u) Carry the machine with the machine switched off and away from your body. Proper handling of the machine will reduce the likelihood of accidental contact with a moving cutter, line or blade.

v) When transporting or storing the machine,

always fit the cover on metal blades. Proper handling of the machine will reduce the likelihood of accidental contact with the blade. w) Only use replacement cutters, lines, cutting heads and blades specified by the manufacturer. Incorrect replacement parts may increase the risk of breakage and injury.

x) When clearing jammed material or servicing

the machine, make sure the switch is off and the battery pack is removed. Unexpected starting of the machine while clearing jammed material or servicing may result in serious personal injury.

SAFETY WARNINGS FOR BATTERY PACK

a) Do not dismantle, open or shred cells or battery pack. b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight. d) Do not subject battery pack to mechanical shock. e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice. f) Keep battery pack clean and dry. g) Wipe the battery pack terminals with a clean dry cloth if they become dirty. h) Battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure.

i) Do not maintain battery pack on charge when

not in use. j) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance. k) Recharge only with the charger specified by Kress. Do not use any charger other than that specifically provided for use with the equipment. l) Do not use any battery pack which is not designed for use with the equipment. m) Keep battery pack out of the reach of children. n) Retain the original product literature for future reference. o) Remove the battery from the equipment when not in use. p) Dispose of properly. q) Do not use battery packs of different manufacture, size or type. r) Keep the battery away from microwaves and high pressure. SYMBOLS To reduce the risk of injury, user must read instruction manual Wear eye protection Wear ear protection Wear eye and ear protection Keep bystanders away11

Do not burn Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste. Do not expose to rain WARNING – The distance between the machine and bystanders shall be at least 15 m (50 ft)" WARNING – Beware of thrown objects. Do not use metal blades. WARNING – Disconnect battery before maintenance. Li-Ion battery This product has been marked with a symbol relating to ‘separate collection’ for all battery packs and battery pack. It will then be recycled or dismantled in order to reduce the impact on the environment. Battery packs can be hazardous for the environment and for human health since they contain hazardous substances. Trimming Wear protective gloves Wear dust mask Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice. Make sure the battery is removed prior to changing accessories. COMPONENT LIST

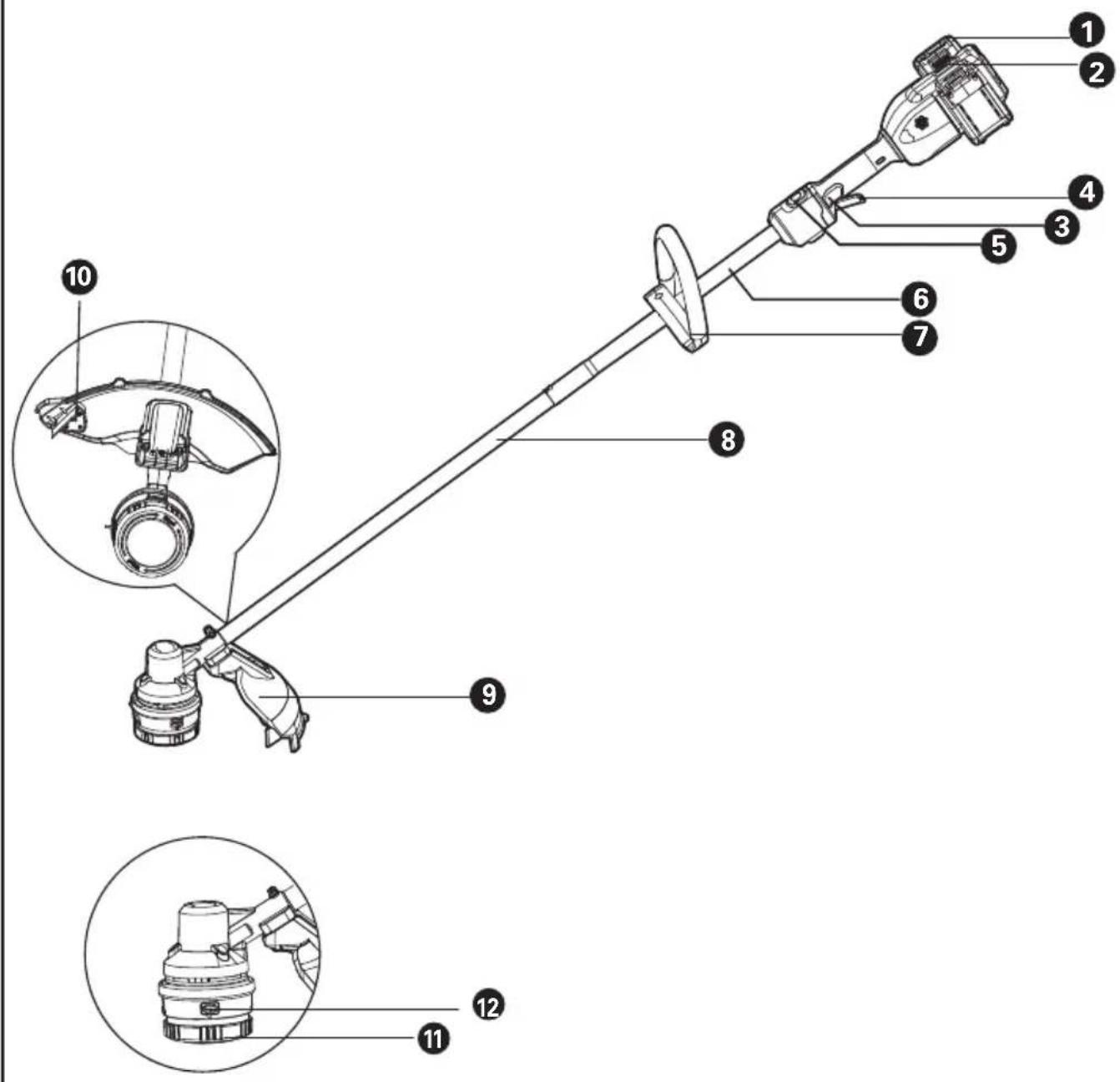

• Not all the accessories illustrated or described are included in standard delivery. TECHNICAL DATA Type Designation: KG154E KG154E.X (1-designation of machinery, representative of Cordless Grass Trimmer) KG154E KG154E.X ** Voltage 40V MAX (2x20V MAX) *** No Load Speed 6000/min Cutting Diameter for grass trimmer 38cm Line Diameter Recommended 2.4mm twist line Line Length Recommended 4m (Dual-Exit) Machine weight (bare tool)

** X=1-999,A-Z,M1-M9 they are only used for different customers, there are no safe relevant changes 15m (50ft)12

between these models *** Voltage measured without workload. Initial battery voltage reaches maximum of 20 volts. Nominal voltage is 18 volts. SUGGESTED BATTERIES AND CHARGERS Category Model Capacity 20V Battery KAB04 4.0Ah 20V Charger KAC04 4.0A We recommend that you purchase your accessories from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice. NOISE INFORMATION A weighted sound pressure L

WARNING: The vibration emission value during

actual use of the power tool can differ from the declared value depending on the ways in which the tool is used dependant on the following examples and other variations on how the tool is used

How the tool is used and the materials being cut or drilled. How the tool is used and the materials being cut or drilled. The tool being in good condition and well maintained Using the correct accessory for the tool and ensuring it is sharp and in good condition. The tightness of the grip on the handles and if any anti vibration accessories are used. And the tool is being used as intended by its design and these instructions. This tool may cause hand-arm vibration syndrome if its use is not adequately managed.

WARNING: To be accurate, an estimation of

exposure level in the actual conditions of use should also take account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle but not actually doing the job. This may signicantly reduce the exposure level over the total working period. Helping to minimise your vibration exposure risk. ALWAYS use sharp chisels, drills and blades Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate) If the tool is to be used regularly then invest in anti vibration accessories. Avoid using tools in temperatures of 10

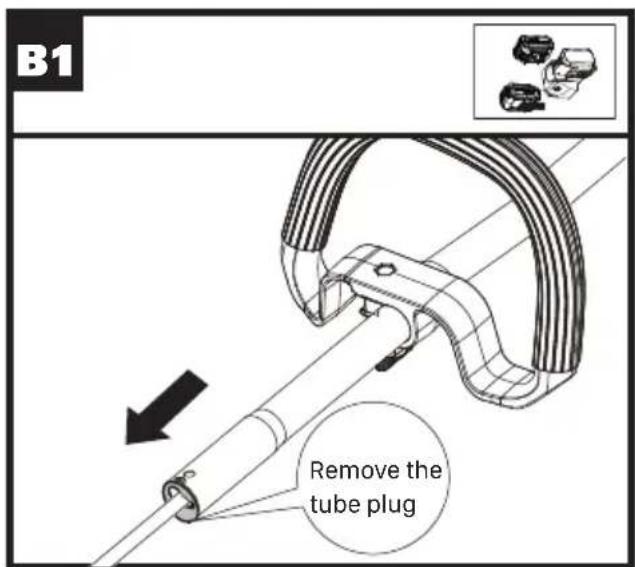

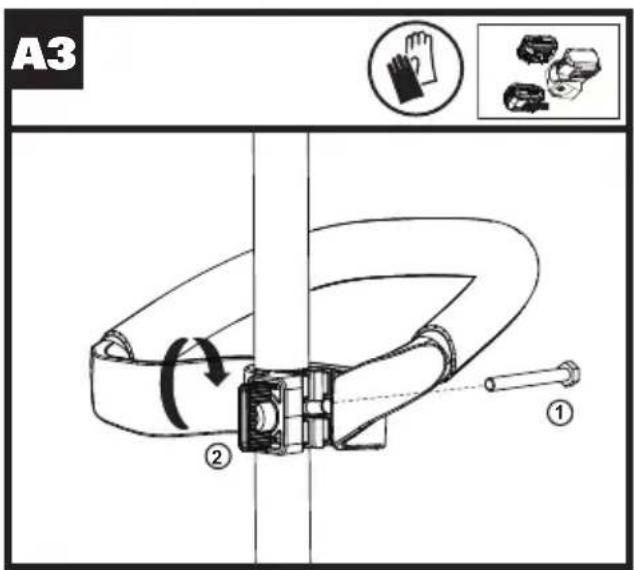

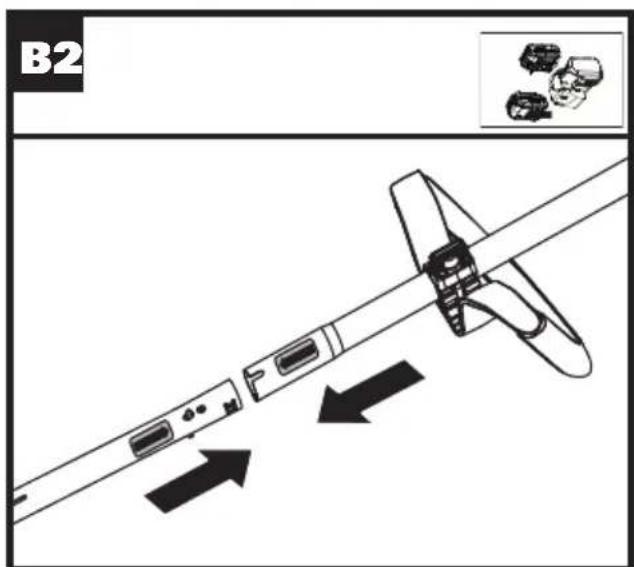

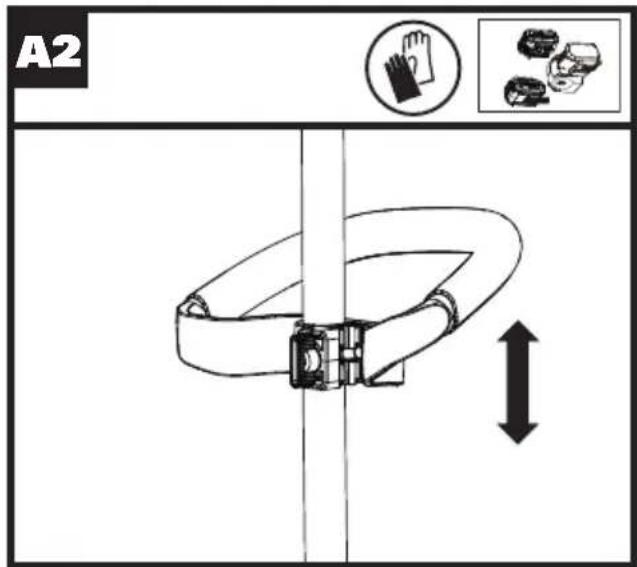

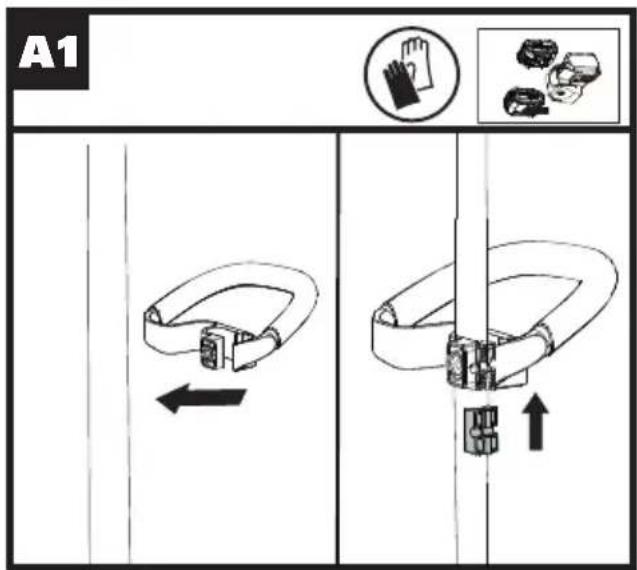

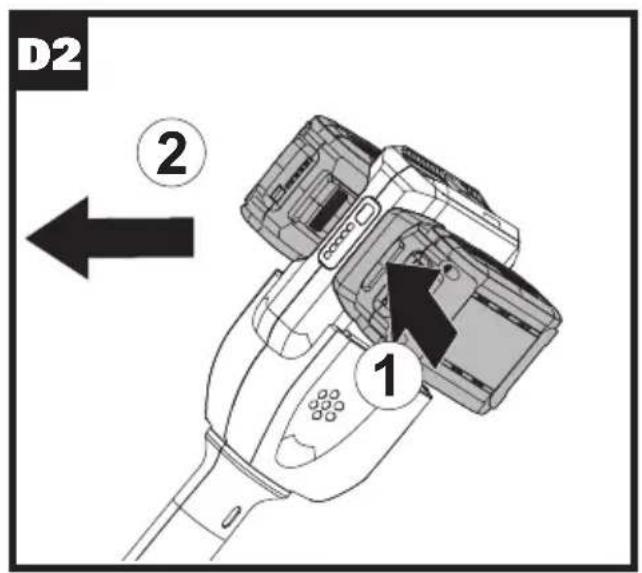

C or less Plan your work schedule to spread any high vibration tool use across a number of days. ASSEMBLY & OPERATION NOTE: Before using the tool, read the instruction book carefully. ASSEMBLY: Assembling the Auxiliary Handle(See Fig. A1,A2,A3) Removing the tube plug(See Fig.B1) NOTE:Before assembling the pole, Please remove the tube plug. Assembling the pole(See Fig.B2) Assembling the Safety Guard. (See Fig. C) Insert the metal bracket into the slot on the safety guard, then secure the guard in place using the screw and hex key. Installing and Removing the Battery Pack(See Fig. D1, D2) NOTE:

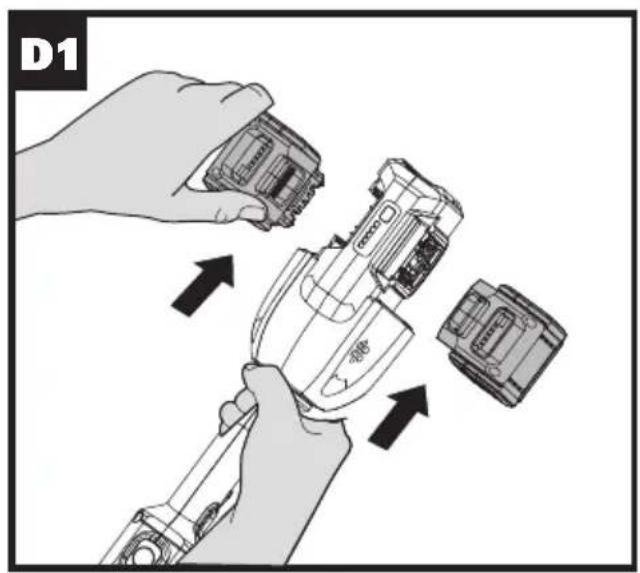

• This machine will only run when 2 batteries are installed. It is recommended to use the same two batteries and charge the two batteries at the same time.

• When two batteries are used with different amp hours or charge level, the machine will run to the lowest common denominator.

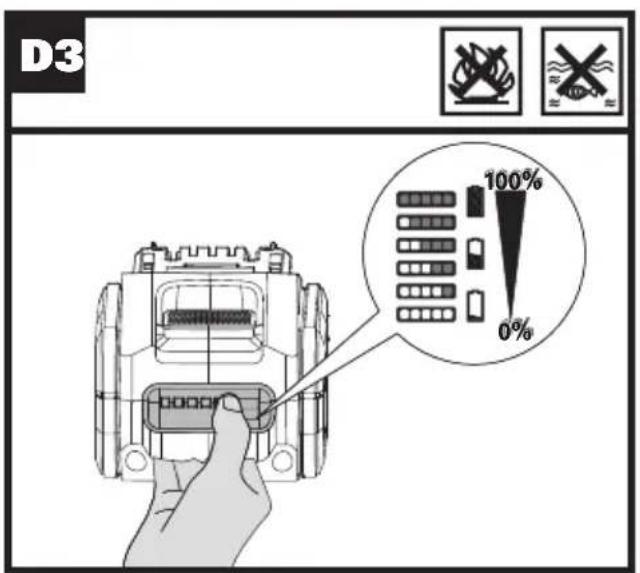

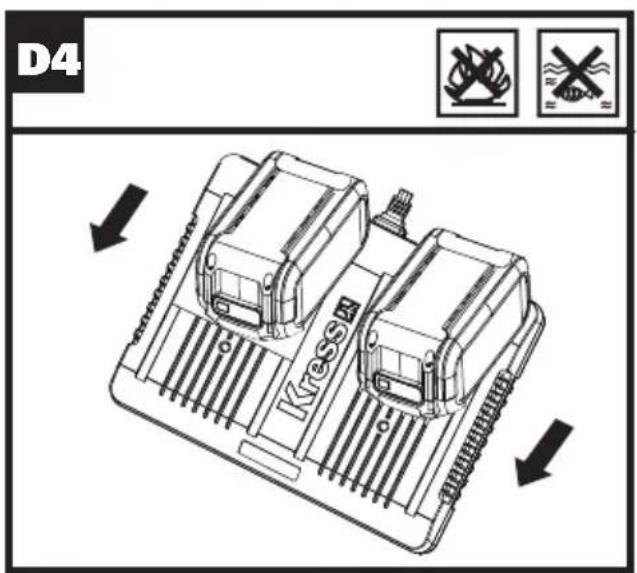

• It is recommended that using 4.0Ah or above battery pack for better performance and longer run time. Checking the battery charge condition(See Fig. D3) NOTE: Fig. D3 only applies for the battery pack with battery indicator light. Charging the battery pack(See Fig. D4) NOTE:

• The batteries are shipped uncharged. Each battery must be fully charged before the rst use.

• Always fully charge the two batteries at same time.13

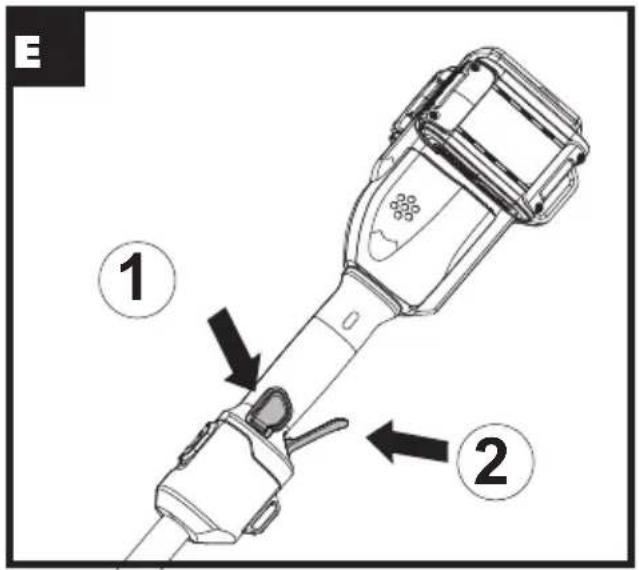

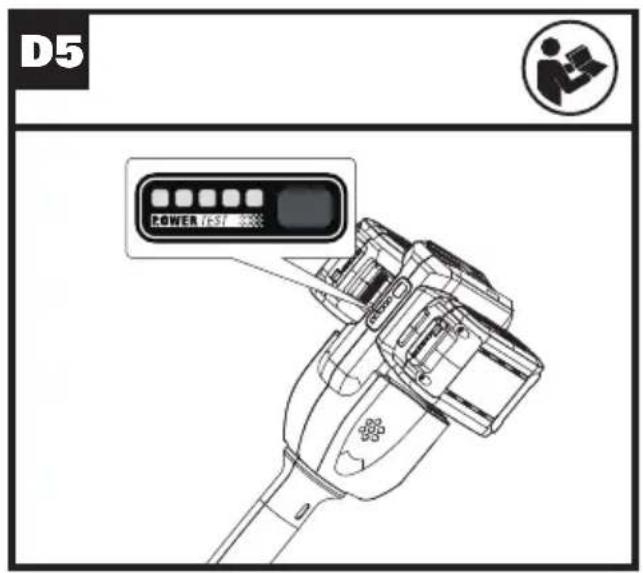

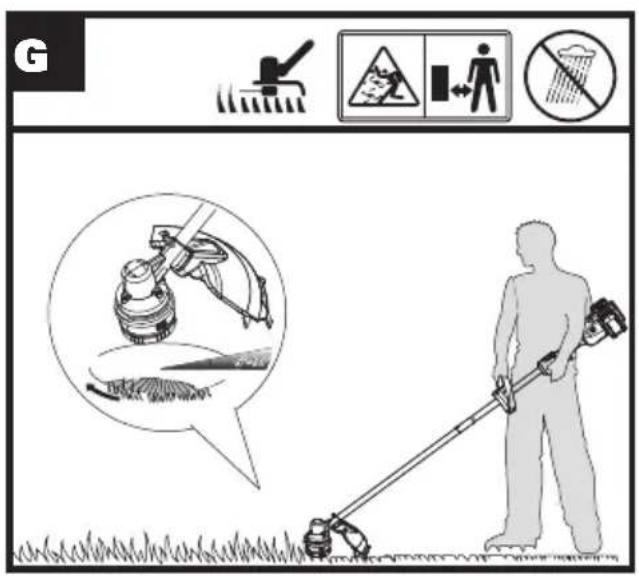

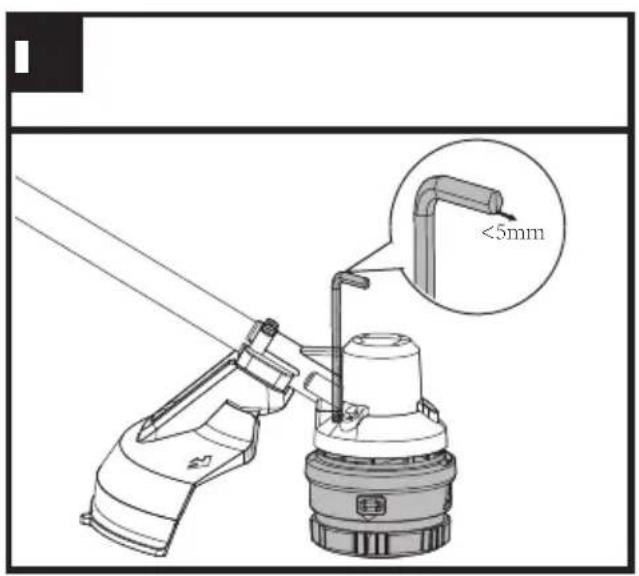

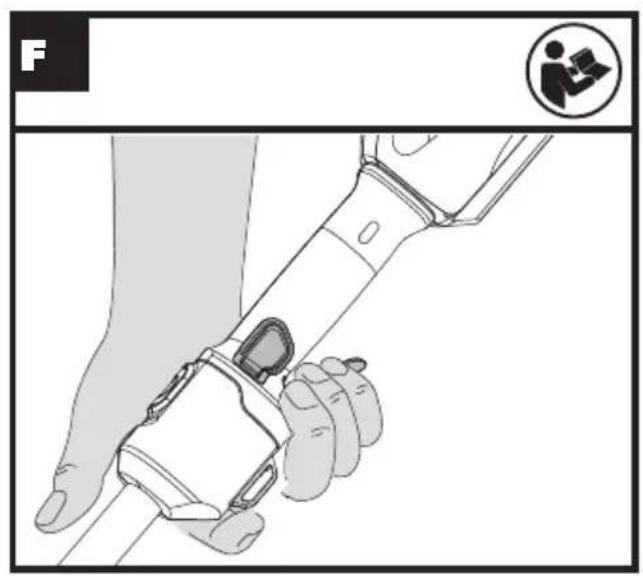

More details can be found in charger’s manual. Battery power indicator on the machine(See Fig. D5) See details in BATTERY STATUS section OPERATION: To start (See Fig. E) WARNING! The cutting head continues to rotate after the trimmer has been switched off; wait until it has completely stopped then lay down the tool. Press the lock-off button rst, then press the switch trigger to start the machine. ECO Speed (See Fig. F) For longer run time, press the ECO button and switch trigger, then your machine will operate at a low speed Trimming (See Fig.G) Bump feed(See Fig. H) Assembling and removing the trimmer head (See Fig. I) Insert the hex key into the hole and rotate the trimmer head until it stops in a locked position. Then, rotate counterclockwise to remove it, and clockwise to assemble it Winding the trimmer line (See Fig. J1,J2) NOTE: The spool must be wound while inside the trimmer head. The spool cannot be wound with line, then installed into the trimmer head BATTERY STATUS (See Fig. D5) Before starting or after use, press the button beside the power indicator light on the machine to check the battery capacity. During operation, the battery capacity will be indicated automatically by the battery power indicator. The indicator constantly senses and displays the battery condition as follows. For the machine with 2 battery packs with different power, the power indicator light displays the battery condition with the lower one of the two batteries. Battery power indicator status Battery condition Five green lights ( ) are illuminated. The two batteries are in a highly charged condition. Two, three or four green lights are illuminated. The two batteries have a remaining charge. The more lights are illuminated, the more battery capacity. Only one green light ( ) is illuminated. At least one battery is almost depleted and needs to be charged. No light is illuminated. At least one battery is not fully installed or battery may be defective. Only one light is ashing twice per cycle At least one battery is over discharged (please refer to the battery charge condition), please recharge the two batteries at once before use again or storage. Only one light is ashing three times per cycle. At least one battery is hot, wait for them cool down before start again. Only one light is ashing four times per cycle. The machine is over load. Raise the cutting height or push slowly OPERATION INSTRUCTIONS Warning! The charger and battery pack are specially designed to work together so do not attempt to use any other devices. Never insert or allow metallic objects into your charger or battery pack connections because of an electrical failure and hazard will occur.

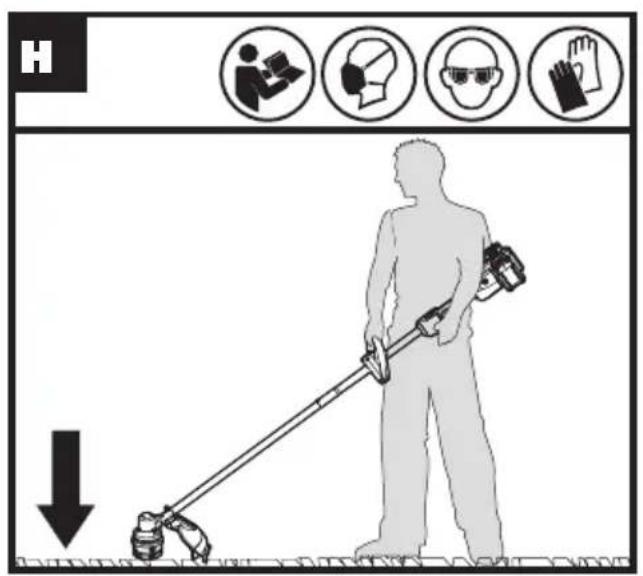

1. Bump-line feed system (See Fig. H)

The trimmer is equipped with a bump-line system. Just bump the trimmer head while the machine is running, new line will feed out.

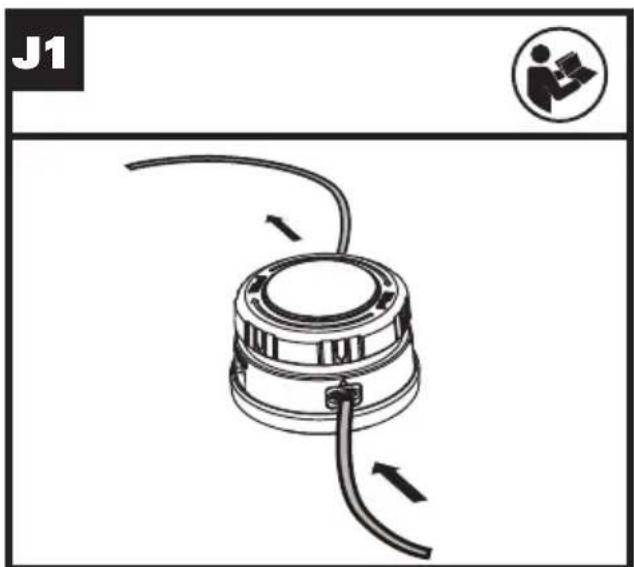

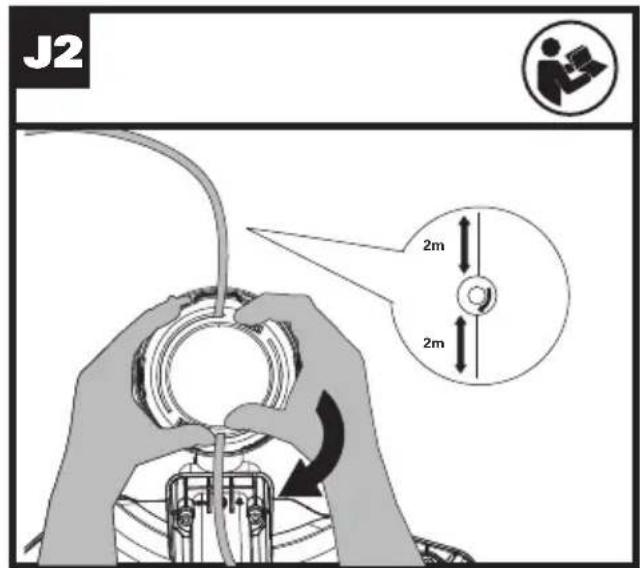

2. Winding the trimmer line (See Fig.J1,J2)

Insert the replacement line through the eyelet and feed it through the other side. Ensure both ends of the line are even on each end of the trimmer head (recommended 7’) and cut the line. Turn the dial clockwise to wind the line around the spool until about 7.5” remains on either side.

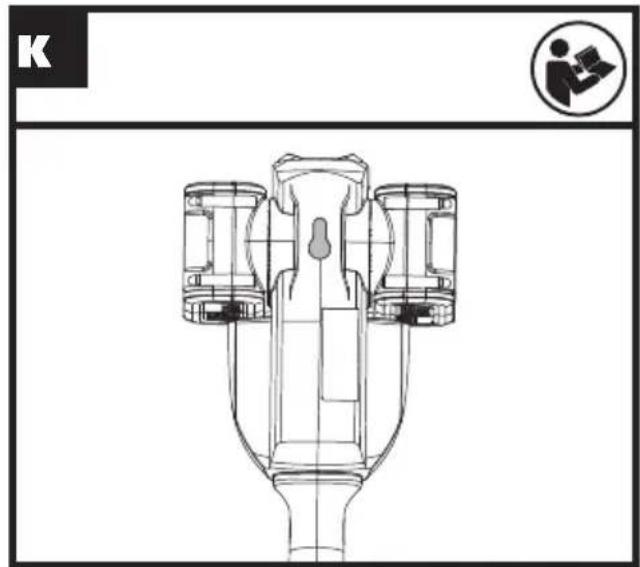

TRIMMER Always remove the battery pack from your trimmer after use. To store your GRASS trimmer The trimmer is provided with a hanging slot for storing the trimmer on the wall. (See Fig. K) Store in a dry place where the trimmer and battery can be protected from damage.14

MAINTENANCE Always remove the battery pack from your trimmer after use. Always check the product prior to being used for any damage. After use, disconnect the battery from the tool and check for damage. Your power tool requires no additional lubrication or maintenance. There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry room temperature location. Keep the motor ventilation slots clean. Keep all working controls free of dust. TROUBLESHOOTING The following table gives problems and actions that you can perform if your machine does not operate correctly.

Warning: Switch the machine off and remove the battery prior to any troubleshooting

Problems Possible Causes Corrective Action Trimmer fails to operate. Battery discharged. Battery too hot/cold. Motor is broken. Internal wiring of machine damaged. Recharge battery; also see the content in charger manual. Allow to cool/warm. Contact Service Agent. Contact Service Agent. Trimmer runs intermittently. Motor is broken. Battery not fully charged. On/Off switch defective. Contact Service Agent. Recharge battery. Contact Service Agent. Excessive vibrations/noise. Machine defective. Line spool is not wound well. Contact Service Agent. Rewind the line. See ’’ To t spool and line assembly.’’ Cutting time per battery charge too short. Battery has not been used for long period or only charged for short term. Grass too high. Battery defective. Fully charge battery; also see the content in charger manual. Cut in stages. Replace the battery. Machine does not cut Line broken. Battery not fully charged. Motor is broken (speed is too low). Grass entangled around cutting head Replace the line. Recharge battery; also see the content in charger manual. Contact Service Agent. Remove grass. Continuous lighting of the battery charge indicator. No charging procedure possible. Battery not (properly) inserted. Battery contacts contaminated. Battery defective. Properly insert battery into battery charger. Clean the battery contacts or replace the battery. Replace the battery. Battery charge indicator does not light up. Plug of battery charger not plugged in (properly). Socket outlet, mains cable or battery charger defective. Insert mains plug (fully) into the socket outlet. Check the mains voltage; have the battery charger checked by an authorized after-sales service agent.15

ENVIRONMENTAL PROTECTION Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice. DECLARATION OF CONFORMITY We, Positec Germany GmbH Postfach 32 02 16, 50796 Cologne, Germany On behalf of Positec declare that the product, Description Cordless BL Grass Trimmer Type KG154E KG154E.X (1-designation of machinery, representative of Cordless Grass Trimmer) Function cutting grass and similar soft vegetation and for trimming grass edges Complies with the following Directives: 2006/42/EC, 2014/30/EU, 2011/65/ EU&(EU)2015/863, 2000/14/EC amended by 2005/88/EC 2000/14/EC amended by 2005/88/EC: - Conformity Assessment Procedure as per Annex

The person authorized to compile the technical le, Name Marcel Filz Address Positec Germany GmbH Postfach 32 02 16, 50796 Cologne, Germany 2022/01/26 Allen Ding Deputy Chief Engineer, Testing & Certication Positec Technology (China) Co., Ltd 18, Dongwang Road, Suzhou Industrial Park, Jiangsu 215123, P. R. China16
