TH387452 - Turntable THOMSON - Free user manual and instructions

Product Type	Belt-drive turntable with auto-stop
Brand	Thomson
Model	TH387452
Dimensions (W x D x H)	395 x 343 x 100 mm
Weight	2.47 kg
Power Supply	External power adapter 12 V DC / 200 mA (2.4 W), input 100-240 V AC, 50/60 Hz
Playback Speeds	33 1/3 and 45 rpm
Drive Method	Belt drive
Signal-to-Noise Ratio	≥ 40 dB
Phono Cartridge Type	MM (moving magnet)
Stylus	Audio Technica AT3600L
Output Selector	PHONO / LINE (built-in preamp on/off)
Audio Output	RCA (L/R) + 3.5 mm jack adapter included
Features	Auto-stop, pause, tonearm lever, 45 rpm adapter
Box Contents	Main unit, slipmat, 45 rpm adapter, dust cover, RCA cables, power adapter, manual
Maintenance	Clean with a soft cloth; do not lubricate; unplug before cleaning
Safety	Do not open the casing; avoid moisture; use indoors; keep at 20 cm from body
Repairability	Have any repairs carried out by a qualified technician
Environmental Protection	Respect the WEEE directive; do not dispose of with household waste
Customer Service	Bigben Interactive – Cristal No. 09 69 39 79 59 – [e-mail]
Manufacturer	Made in China by Bigben Interactive

Frequently Asked Questions - TH387452 THOMSON

How to install the drive belt?

Remove the slipmat and the E-ring from the spindle, free the platter. Place the belt on the inner edge of the platter, thread it through the hole and position it on the motor pulley. Replace the ring and slipmat. Ensure the belt is not twisted or greasy.

Why doesn't the record spin?

Check that the On/Off switch (16) is on. Make sure the tonearm is moved toward the record (the platter starts automatically). If the problem persists, check the drive belt.

How to choose between PHONO and LINE outputs?

Use PHONO if you connect the turntable to an amplifier with a built-in phono input. Use LINE if you connect directly to active speakers or a standard line input. The selector is on the back.

What to do if the record stops before the end?

Press the Auto-Stop button (6) to disable the function. This prevents early stop for long records. The platter will start turning; press again to stop.

How to connect the turntable to speakers?

Depending on your equipment: use the male RCA to RCA cable (for amp) or the female RCA to 3.5 mm jack cable (for jack speaker). Set the PHONO/LINE selector to LINE if the speaker does not have a phono input.

Can I play 45 rpm records?

Yes. Use the provided 45 rpm adapter. Place it in the center of the platter. Set the speed selector (8) to 45 rpm.

How to maintain the stylus?

Always replace the stylus guard when not in use. Clean the stylus with a soft brush, from front to back. Avoid any contact with liquids.

What to do in case of humming or noise?

In PHONO mode, use the grounding cable (terminal on the back) if available. Make sure the RCA cables are properly connected. Keep the turntable away from sources of electromagnetic interference.

How to clean the turntable?

Always unplug the device. Clean with a soft, dry cloth. Do not use abrasive products or alcohol. Do not lubricate any parts.

Where to find after-sales service?

Contact Bigben Interactive at Cristal No. 09 69 39 79 59 (toll-free call) or by email at [e-mail]. Service available Monday to Friday from 9:00 to 18:00 (excluding public holidays).

USER MANUAL TH387452 THOMSON

Line drawing of a vintage rotary dial with open lid and base plate (no text or symbols)

MODE D'EMPLOI

AVANT D'UTILISER CET APPAREIL, VEUILLEZ LIRE ATTENTIVEMENT CE MODE D'EMPLOI ET LE CONSERVER AFIN DE POUVOIR LE CONSULTER ULTÉRIEUREMENT.

Diagram of a vintage rotary disc with base and top components, showing mechanical parts and mounting points (no text or labels)

Diagram of a radio receiver with numbered parts for identification

Diagram of a device rear panel with numbered labels pointing to ports and control buttons

Illustration of a hand using a compass to measure a curved object (no text or symbols present)

Attention

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu

TT300 and its derivatives

AUTO-STOP RECORD PLAYER

Line drawing of a vintage rotary dial with open lid and base plate (no text or symbols)

OPERATING INSTRUCTIONS

BEFORE USING THIS DEVICE, PLEASE CAREFULLY READ THESE INSTRUCTIONS FOR USE, AND KEEP THEM IN A SAFE PLACE FOR FUTURE CONSULTATION.

Getting started 11

Safety warning and notice 11

What is in the box 13

Precautions for use 13

Description of parts 14

Features and functions 15

Warning 15

Record player characteristics 16

External power adapter characteristics 17

Care of the environment 17

Additional information 17

Declaration of conformity 17

Getting started

• Take the device out of the box
- Remove all the packaging from the product.
- Place the packaging inside the box and either keep or dispose of properly in compliance with the waste sorting instructions shown on the product packaging.

Safety warning and notice

You must read and understand all the instructions before using this device. The warranty will not apply if damage is caused by failure to follow the instructions.

1. Never remove the device casing.
2. Never place this device on other electrical equipment.
3. Protect the power cord from being walked on or pinched, particularly at the plugs, sockets, and the point where it exits the device. Make sure that the power voltage corresponds to the voltage shown on the rating plate at the rear of the device. Always pull the plug from the socket when disconnecting from the mains. Never pull on the cord. Ensure you have completed all the other connections before connecting the plug.
4. Only use attachments/accessories that are recommended by the manufacturer.

5. Entrust all device repairs to qualified repairers. A repair is needed when the device has been damaged in any fashion, and in particular:

6. if the power cord is damaged;

7. in the event of a liquid spill or objects being inserted into the device;
8. if the device is exposed to rain or humidity;
9. if the device does not operate normally;

10. or if the device has been dropped or impacted.

11. The series panel is located on the bottom of the device.

12. Never block the air vents.
13. Ensure you have sufficient stable space around the device for ventilation.
14. This device must be used in a moderate climate, away from direct sunlight, naked flames or heat, heating devices, cookers or any other device (including amplifiers) that generates heat. Do not install near a heat source.

15. Always unplug the device before cleaning it. Never lubricate any part of this device. Clean it using a soft cloth. Do not use abrasives or aggressive cleaning products. Cleaning and user maintenance must not be carried out by children without supervision.

16. Ensure that you always have easy access to the power cord, plug or adaptor to disconnect this device from the mains if necessary.

17. Do not use this device near a water point. It must not be dripped on or splashed. Do not use this device in a damp or wet environment.
18. Disconnect this device in the event of a storm or if you are not going to use it for a long period of time.
19. This device can be used by children aged 8 and over, and by persons with a physical or sensory disability, learning difficulties or a lack of experience and knowledge, provided they are supervised or have received instructions on the safe use of the device, and they understand the risks involved. Children must not play with the device or cord (risk of strangulation).
20. This device must only be supplied with very low safety voltage corresponding to the marking on the device.
21. The battery should be removed from the device before disposal. The device must be disconnected from the power supply when removing the battery.
22. The product must be at a minimal distance of 20 cm from human body when working.
23. Risk of suffocation: Small parts are not intended for children under 3 years old or for people with a tendency to put inedible objects in their mouths.
24. This device is for household use only; do not use outdoors.
25. The mains adaptor acts as a disconnect. As such, the device's mains adaptor must remain free from obstruction OR be easily accessible when in use. To fully disconnect the power supply, the mains adaptor must unplugged from the mains socket.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN ATTENTION RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR

The lightning bolt symbol within an equilateral triangle alerts users to the presence of dangerous uninsulated electrical voltages inside the device that are strong enough to present a risk of electric shock.

The exclamation mark within a triangle indicates the presence of important instructions for operation and maintenance (repair) in the documentation that accompanies the device.

Class II material
Direct current
Alternating current
For indoor use only

What is in the box

Check and identify the contents of your box:

• Main unit
• Platter mat
  • 45 tr/min. adapter
  • Dust cover for the main unit
  • Double male RCA to double male RCA cable
• Double female RCA cable to 3.5 mm jack stereo connector
  • External power adapter
• User guide

Precautions for use

• Once play has started you are free to lift and move the tone arm by hand, but always use the stop control to cease play.
• Do not put anything on top of the record player cover. Objects placed on the cover may generate noises caused by the vibrations, or they may fall, notably when the record player is in use.
• Do not move or lift the product during use. Effectively, during use, the vinyl disc turns and you may damage the record, the needle, the headshell or the unit, or even cause a malfunction. Always remove the vinyl disc before moving this unit.
• You can adjust the speed of 33 or 45 rpm vinyls underneath the product.

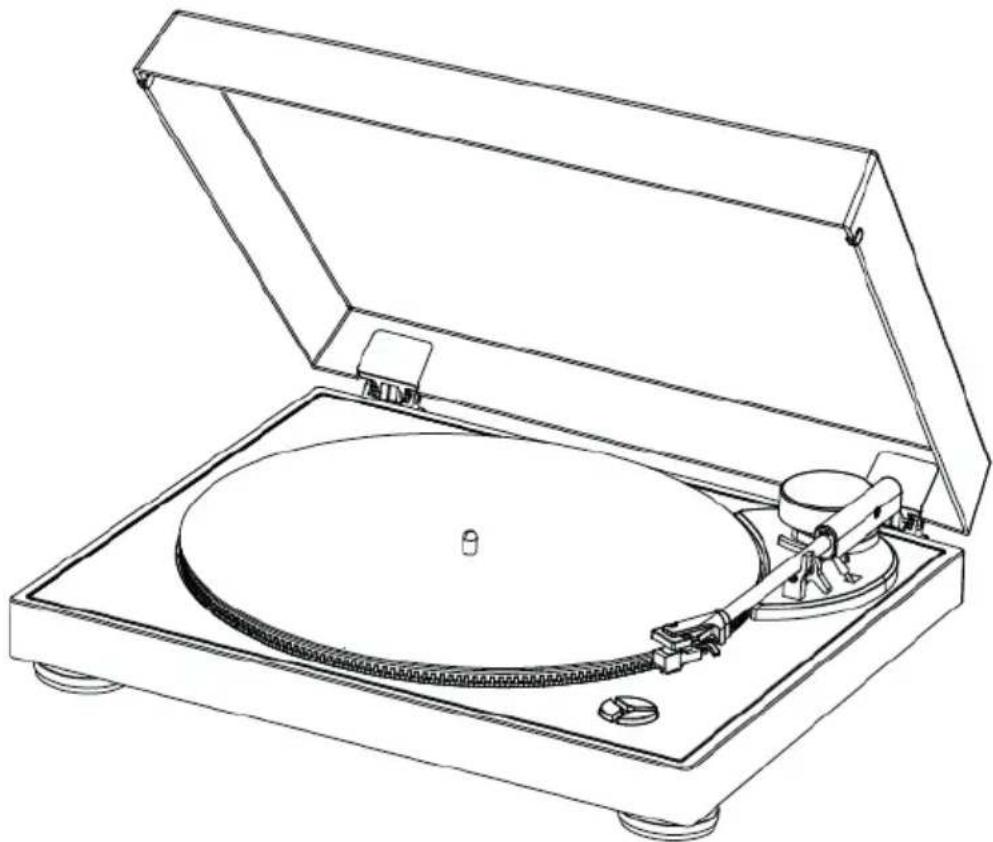

Diagram of a vintage CD or DVD disc with an open lid and base mount (no text or symbols)

Diagram of a radio receiver with numbered parts for identification

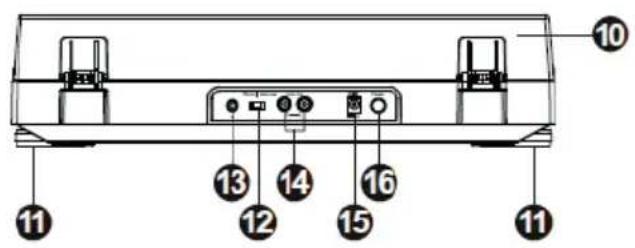

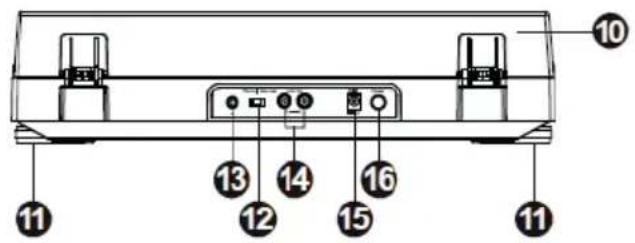

Technical diagram of a device rear panel with numbered labels pointing to ports and control buttons

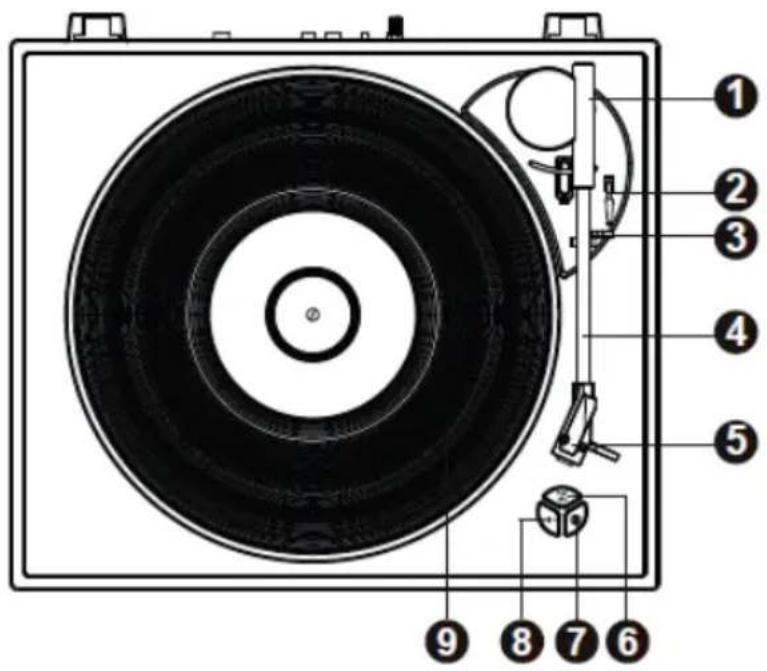

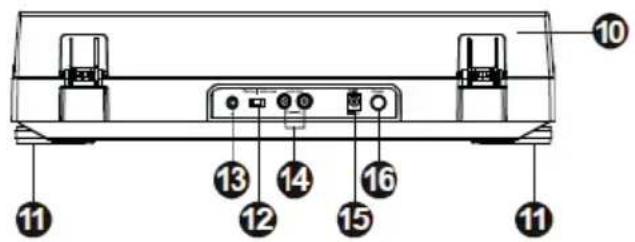

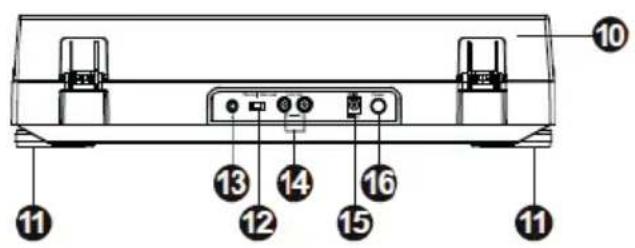

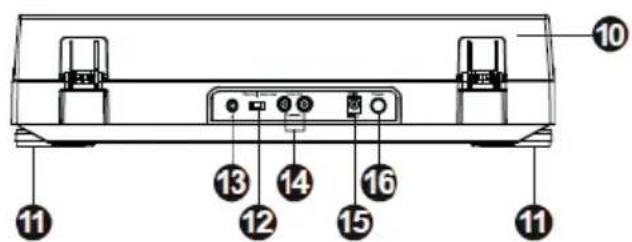

1. Arm base 9. Record player turntable
2. Tone arm lever 10. Dust cover
3. Arm rest 11. Record player feet
4. Tone arm 12. PHONO/LINE selector
5. Headshell 13. Earthing
6. Auto stop 14. RCA line output
7. Pause 15. External power adapter input
8. 33/45 turns speed selector 16. On/Off switch

Features and functions

Drive belt:

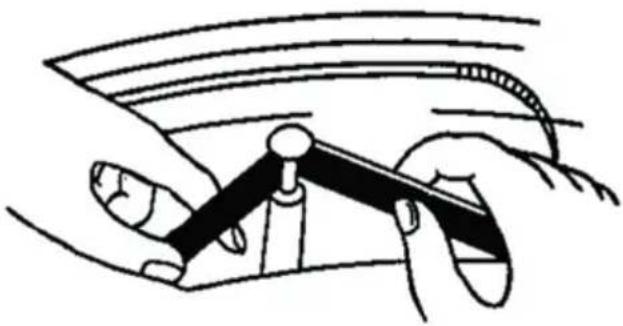

The belt and the record player turntable (9) are installed in the factory, but the drive belt may loosen during transport. If this happens, follow the procedure below to install it yourself.

A. Remove the rubber mat from the record player turntable (9) and E-ring of the record player axis, then release the turntable from the axis.
B. Place the drive belt on the inner edge of the record player turntable (9) and pass it through the hole.
C. Hold the belt between your fingers and place it on the motor pulley, as shown in the diagram.
D. Attach the E-ring onto the rubber mat on the record player turntable.

Illustration of a hand using a compass to measure a tool, with no visible text or symbols

Warning

1. Make sure that the drive belt isn't misshapen or twisted.
2. Avoid getting oil on the belt. Oil splashed could make the belt slip.

Connection:

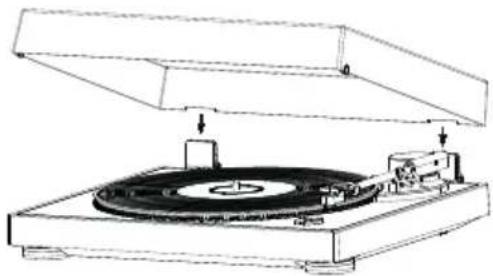

1. Place the dust cover (10) on top of the device by gently inserting the hinges into the dedicated spaces.
2. Insert the power cable into the appliance's socket, then connect the other end to the mains socket.
3. Turn on the record player using the On/Off button (16) on the unit.

Phono/line selector:

• The phono/line selector (12) is located on the rear panel.
• By selecting "PHONO", the audio signal bypasses the internal pre-amplifier, without being processed. The record player must therefore be connected to an external pre-amplifier in order to play the music. Please also note that you may need to connect a separate earth wire to the earthing points on the turntable and the amplifier if you hear a noise.
• By selecting "LINE", the audio signal is processed by the internal pre-amplifier. The record player can be directly connected to active speakers to play the music.

Phono I Line out

Use:

• Place a record on the record player turntable (9) and select the appropriate playback speed: 33 or 45 rpm (8). (The default playback speed is 33 rpm for 12 inch (30.48 cm) records. Press the speed selector (8) to switch to 45 rpm for 7 inch (17.78 cm) records.
• Remove the stylus protector and release the tone arm (4). Push the lever (2) up to raise the tone arm (4), then gently move the tone arm to the desired position on the record. The turntable will begin to spin as the tone arm approaches the record.
• The deck will stop automatically when the record has finished. Press the Turntable auto-stop button (6) if you don't want the record to stop automatically at the end.
  NOTE: this action is only necessary if your record is particularly long and stops automatically before the end of the playback. You will normally not need to use this function.
• Please also note that as soon as you press the Auto-stop button (6), the turntable will start rotating. This is completely normal. Press the Auto-stop button again to stop the rotation.
• When the record has finished playing, push the lever (2) back to raise the tone arm and gently place it back on the arm rest (3), then lock the tone arm to protect it from any unexpected movement.

Please note:

To avoid damaging the stylus, make sure the stylus protector provided is in place when installing, moving or cleaning the turntable.

When you play a 45 rpm record, use the 45 rpm adapter supplied with the device.

Line output:

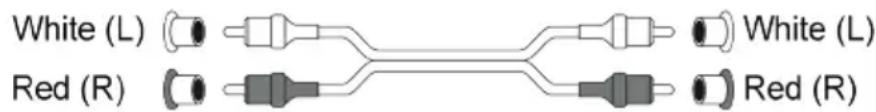

• This system can be connected to an external device (e.g. amplifier or active speakers) via the RCA line output (15) which is located at the rear of the product.
• Use the double male RCA to double male RCA cable to connect to an external device.

White (L) Red (R) White (L) Red (R)

- If necessary, use the Double female RCA to 3.5 mm jack stereo cable to connect the 3.5 mm jack connector of the external device.

Record player characteristics:

Operating voltage 12 V mains/200 mA
Power consumption 2.4 W
Consumption on standby 0.3 W
Dimensions (LxWxH) 395 x 343 x 100 mm
Unit weight 2.47 kg
Drive method By belt
Speeds 33- 1/ 3 and 45 tr/min.
S/B ratio ≥40 dB
Type of headshell MM
Needle Audio Technica AT3600L

External power adapter characteristics:

Name of manufacturer of the adapter or registered trademark	Ruiguan Technology (Dongguan) Co., Ltd.
Adapter model reference HP05A-1200200-DE
Input voltage and frequency 100-240V c.a., 50/60 HZ
Voltage, current and output power 12 V 0.2 A	2.4 W
Average active efficacy 72.88%
Power consumption without load 0.1 W

Care of the environment

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

Attention should be drawn to the environmental aspects of battery disposal.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste.

Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Additional information

- THOMSON is a registered trademark of TECHNICOLOR SA or its subsidiaries, used under licence by Bigben Interactive.

Declaration of conformity

- Bigben Interactive hereby declares that the TT300 radio equipment and its derivatives are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following web address: https://www.bigben-interactive.co.uk/support/

Made in China

Manufactured by BIGBEN INTERACTIVE SA

396, Rue de la Voyette

CRT2 - FRETIN

CS 90414

59814 LESQUIN Cedex - France

www.bigben.eu

Fabricant : Bigben Interactive FRANCE

396, Rue de la Voyette, C.R.T. 2, Fretin,

CS90414 - 59814 Lesquin Cedex, France

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPANA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu

Line drawing of a vintage rotary dial with open lid and base plate (no text or symbols)

Technical line drawing of a vintage rotary disc with base mount and clamped mechanism (no text or symbols)

Diagram of a radio receiver with numbered parts for identification

Diagram of a device rear panel with numbered labels pointing to ports and control buttons

Illustration of a hand using a compass to measure a curved object, with no visible text or symbols.

Advertencia

Selector PHONO/LINE:

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu

Line drawing of a vintage rotary dial with open lid and base plate (no text or symbols)

ISTRUZIONI PER L'USO

PRIMA DI UTILIZZARE L'APPARECCHIO, LEGGERE ATTENTAMENTE LE ISTRUZIONI PER L'USO E CONSERVARLE PER UN'EVENTUALE CONSULTAZIONE FUTURA.

Diagram of a vintage CD or DVD disc with an open lid and base mount (no text or symbols)

Diagram of a radio receiver with numbered parts for identification

Diagram of a device front panel with numbered labels pointing to ports and control buttons

Illustration of a hand using a compass to measure a curved object, with no visible text or symbols.

Attenzione

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu

TT300 e derivados

GIRA-DISCOS DE PARAGEM AUTOMÁTICA

Line drawing of a vintage rotary dial with open lid and base plate (no text or symbols)

Diagram of a vintage rotary disc with base and top components, showing mechanical assembly (no text or labels)

Diagram of a radio receiver with numbered parts for identification

Technical diagram of a device rear panel with numbered labels pointing to ports and control buttons

Illustration of a hand using a tool to interact with a curved object (no text or symbols present)

Atenção

Branco (L) Vermelho(R) Branco (L) Vermelho(R)

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu

TT300 und Serie

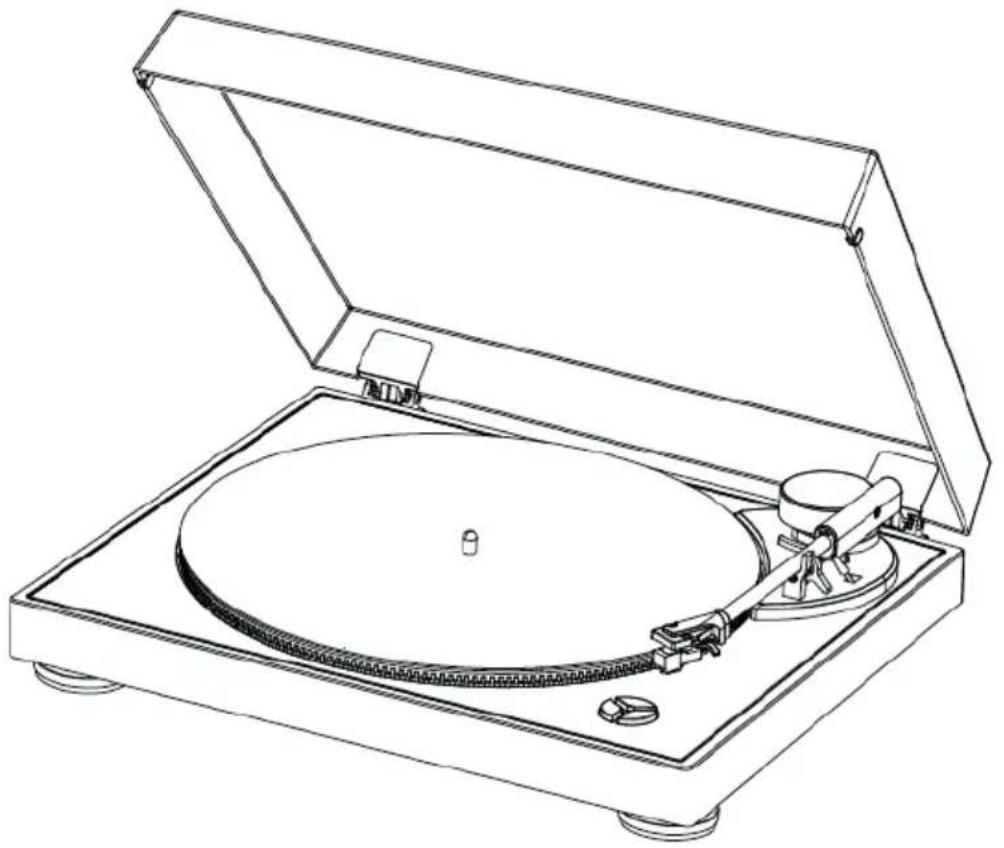

Line drawing of a vintage rotary dial with open lid and base plate (no text or symbols)

BEDIENUNGSANLEITUNG

Diagram of a vintage rotary disc with a flat top and base, showing mechanical components (no text or symbols)

Diagram of a radio receiver with numbered parts for identification

Technical diagram of a device rear panel with numbered labels pointing to ports and control buttons

Illustration of a hand using a compass to measure a curved object, with no visible text or symbols.

Achtung

Weiss (L) Rot (R) Weiss (L) Rot (R)

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPANA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu

TT300 en derivaten

VOLLEDIG GEAUTOMATISEERDE PLATENSPELER

Line drawing of a vintage rotary dial with open lid and base plate (no text or symbols)

GEBRUIKSHANDLEIDING

ALVORENS DIT APPARAAT TE GEBRUIKEN, LEES DEZE INSTRUCTIES AANDACHTIG DOOR EN BEWAAR DEZE VOOR TOEKOMSTIGE RAADPLEGING.

Diagram of a vintage CD or DVD disc with an open lid and base mount (no text or symbols)

Diagram of a radio receiver with numbered parts for identification

Technical diagram of a device rear panel with numbered labels pointing to ports and control buttons

1. Basis van de toonarm 9. Draaitafel van de platenspeler
2. Hendel van de toonarm 10. Stofkap
3. Steun toonarm 11. Poten van de platenspeler
4. Toonarm 12. Schakelaar PHONO/LINE
5. Leeskop 13. Aarding
6. Automatische stop 14. RCA-kabeluitgang
7. Pauze 15.
8. Snelheidskeuzeschakelaar 33/45 toeren 16. Aan-/Uit-knop

Illustration of a hand using a compass to measure a curved object, with no visible text or symbols.

Let op

Wit (L) Rood (R) Wit (L) Rood (R)

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu
