Product type	Digital weather station with wireless outdoor sensor
Brand	Thomson (licensed by Technicolor, distributed by Avidsen)
Model	513631
Station dimensions	108 x 185 x 29 mm
Outdoor sensor dimensions	92 x 40 x 23 mm
Station power supply	2 LR06 (AA) batteries (not included) and/or 4.5 V mains adapter included
Sensor power supply	2 LR03 (AAA) batteries (not included)
Radio frequency	433.92 MHz
Range between station and sensor	60 m in open field
Indoor temperature measurement range	0 °C to 50 °C (32 °F to 122 °F)
Outdoor temperature measurement range	-20 °C to 60 °C (-4 °F to 140 °F)
Humidity measurement range	20% RH to 95% RH
Atmospheric pressure measurement range	600 hPa/mb to 1100 hPa/mb (17.72 inHg to 32.50 inHg)
Display	Colour screen with backlight
Main functions	Indoor/outdoor temperature and humidity, atmospheric pressure, weather forecasts (6 icons), moon phases, calendar, radio-controlled time (DCF77), daily alarm, comfort index, temperature alerts
Adjustable measurement units	Temperature in °C or °F, pressure in hPa/mb or inHg
Housing material	ABS
Kit contents	Weather station, outdoor temperature sensor, mains adapter, user manual
Warranty	2 years parts and labour (upon presentation of proof of purchase)
Technical support	0 892 701 369 (service €0.35/min + call charges), Monday to Friday 9am-12pm and 2pm-6pm
Maintenance and cleaning	Unplug before cleaning, use a soft slightly damp cloth. Do not use abrasive substances or aerosol.
Recycling	Do not dispose of with household waste. Use selective collection points. Used batteries to be taken to a recycling centre.

Frequently Asked Questions - 513631 THOMSON

How to quickly set up the weather station?

First insert 2 LR06 (AA) batteries into the station, then 2 LR03 (AAA) batteries into the outdoor sensor respecting polarity. Press SET to choose the language (FR, EN, etc.). The sensor pairing is automatic. To force, hold DOWN on the station for 5s then reinsert the sensor batteries nearby.

How to set the time and date manually?

Hold SET for 3s. Set the 12/24h format with UP/DOWN, confirm with SET. Set the time zone (00 for France), then hours, minutes. Then set the month/day order, year, month, and day. Press SET after each step.

How to activate automatic time reception (DCF77)?

Briefly press UP. The DCF77 indicator flashes and the station tries to receive the signal for 7 minutes. For better reception, place the station near a window and keep it at least 2.5 m away from interference sources (TV, WiFi, microwave). Press UP again to stop the search.

How to set the alarm (wake-up)?

Hold ALARM for 3s. The hours flash, set with UP/DOWN, confirm with ALARM. Set the minutes in the same way. A brief press on ALARM activates or deactivates the alarm (visible bell icon). During the alarm, SNOOZE/LIGHT turns it off for 5 min, ALARM stops the ringing.

How to pair or force the connection with the outdoor sensor?

Pairing is automatic when powering on. If necessary, hold DOWN on the station for 5s (the radio icon flashes). Remove and reinsert the sensor batteries within one metre of the station. The connection establishes automatically.

How to change the atmospheric pressure unit (hPa/inHg)?

Hold HPA/INHG for 3s. The unit flashes (hPa or inHg). Use UP or DOWN to choose. Confirm by briefly pressing HPA/INHG.

How to set the weather forecast manually?

Hold HPA/INHG for 3s. When the unit flashes, press HPA/INHG again. The forecast icons flash. Use UP/DOWN to scroll through the 6 icons (sunny, cloudy, rainy, etc.) and choose the one corresponding to the current weather. Confirm by pressing HPA/INHG.

How to activate and set temperature alerts?

Press ALERT to activate (visible icon). To set thresholds, hold ALERT for 3s: 'Hi' flashes, set the high temperature with UP/DOWN, confirm with ALERT. Then 'Lo' flashes, set the low temperature, confirm with ALERT. The alert triggers when the outdoor temperature exceeds or drops below the thresholds.

How does the backlight work?

When running on batteries only, the backlight is off by default. Press SNOOZE/LIGHT to turn it on for 5 seconds. With the mains adapter plugged in, the backlight is permanently on. Press HPA/INHG multiple times to adjust brightness or turn it off completely.

What to do if the display is inconsistent or the station does not respond?

First check the batteries (replace if necessary). Ensure the sensor is within range (max 60 m in open field). If the problem persists, perform a reset: remove batteries from the station and sensor for 30 seconds, then reinsert them following the quick-start procedure. Contact customer service at 0 892 701 369 if needed.

USER MANUAL 513631 THOMSON

FR Station meteo sans fi l

12h/24h

Calendar

Alarm clock

Backlight

FORECAST TBDENCY 10.95 PREMISTRY OUTDOOR CH I 30.6 TEMPERATURE INDOOR 23.4 TEMPERATURE 59 % HUMIDITY 40 % HEMISTRY 10:30 6:30 SUN SU KON PASE TIOMSON

White rectangular electronic device with ventilation slots and indicator lights (no visible text or symbols)

_

| _

一

1

SOMMAIRE

A - CONSIGNES DE SÉCURITÉ 05

1 - PRÉCAUTIONS D'UTILISATION 05
2 - ENTRETIEN ET NETTOYAGE 05
3 - RECYCLAGE 05

B - DESCRIPTION DU PRODUIT 06

1 - CONTENU DU KIT 06
2 - STATION MÉTÉO 06
3 - FONCTIONS PRINCIPALES 07

Simple line drawing of a rectangular book or document with no visible text, numbers, or symbols.

1 Station météo

2 x 1

Simple line drawing of a device casing with a light bulb and labeled part 32 (no text or symbols beyond label)

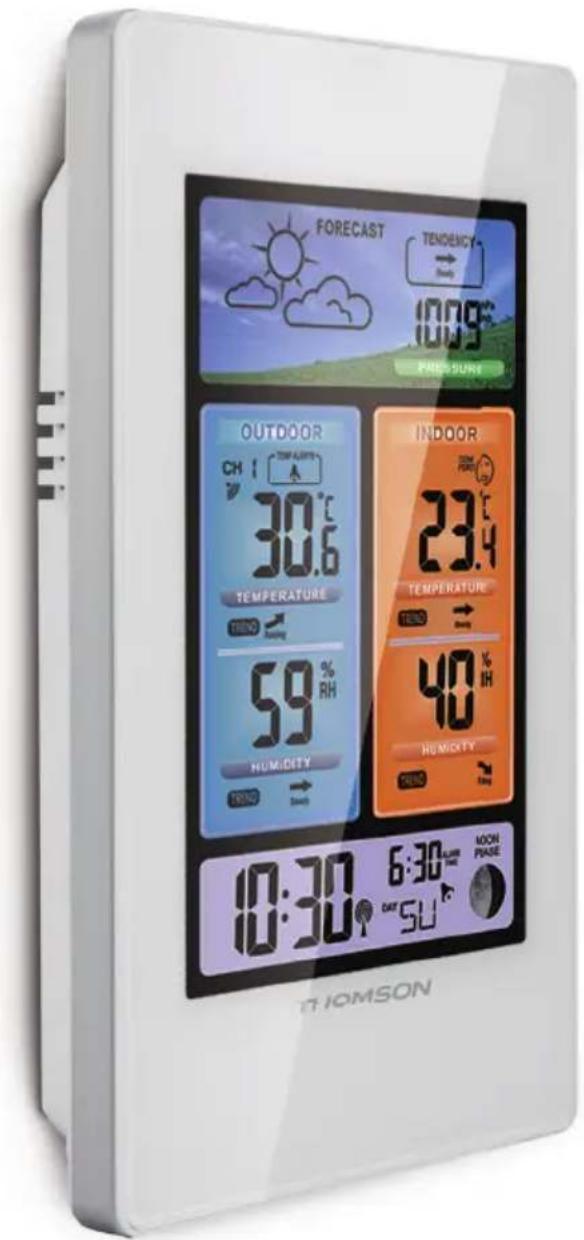

EN Wireless weather station

12h/24h

Calendar

Alarm clock

Backlight

FORECAST TENDENCY 1009° PRESSURE OUTDOOR CH I 30.6 TEMPERATURE TREND 59 % HUMICITY TREND INDOOR 23.4 TEMPERATURE TREND 40 % HUMICITY TREND 10:30 6:30 MAYND DAY SU MOON PHASE TOMSON

White rectangular electronic device with ventilation slots and ports, no visible text or symbols on body

TABLE OF CONTENTS

A - SAFETY INSTRUCTIONS 05

1 - OPERATING PRECAUTIONS 05
2 - MAINTENANCE AND CLEANING 05
3 - RECYCLING 05

B - PRODUCT DESCRIPTION 06

1 - CONTENTS OF THE KIT 06
2 - WEATHER STATION 06
3 - MAIN FUNCTIONS 07

• The weather station must not be installed where the screen may be vulnerable to scratching and dirt.
• The weather station is not designed for outside use and should not be installed in locations that are subject to extremes of humidity or temperature.
• Do not expose the sensor to direct sunlight or any reflected light source.
• Do not daisy-chain extension cords and/or multi-socket adapters.
• Do not install near acidic chemicals, ammonia or sources of toxic gases.

2 - MAINTENANCE AND CLEANING

• Always unplug the product from the mains before carrying out any maintenance.
- Never use abrasive or corrosive substances to clean the products.
• Use a soft, slightly damp cloth.
- Never use an aerosol to spray the product as this may damage the internal workings.

3 - RECYCLING

This logo indicates that electrical and electronic waste must not be disposed of with household waste. They are likely to contain hazardous substances which are dangerous to both health and the environment. Return the equipment to your local distributor or use the recycling collection service provided by your local council.

A - SAFETY INSTRUCTIONS

It is forbidden to throw used batteries into the dustbin. Batteries/accumulators containing harmful substances are marked with symbols (shown opposite) which indicate that they cannot be thrown away as ordinary waste. The corresponding heavy metals are referred to as follows: Cd = cadmium, Hg = mercury, Pb = lead. You can dispose of these batteries/accumulators at local recycling amenities (centres for sorting recyclable materials) which are required to accept them. Keep batteries/button cells/accumulators out of reach of children and store them in a safe place not accessible to them. as they could be swallowed by children or pets. May be fatal if swallowed! In the event that a battery is swallowed, consult a doctor or go to A&E immediately. Never short-circuit the batteries, and do not burn or recharge them. They may explode!

B - PRODUCT DESCRIPTION

1 - CONTENTS OF THE KIT

1 × 1

Simple line drawing of a closed book or notebook with a blank cover (no text or symbols)

1 Weather station

2 × 1

Simple line drawing of a rectangular device with three horizontal lines and two labeled buttons at the bottom (no text or symbols)

2 Temperature sensor

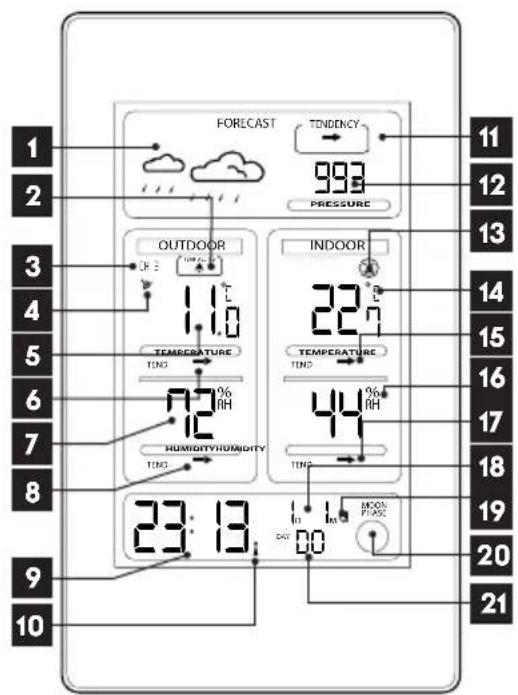

2 - WEATHER STATION

FORECAST TENDENCY 993 PRESSURE 11 12 13 OUTDOOR INDOOR 227 TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREAH TEMPEREAH TEMPEREAH TEMPEREAH TEMPEREAH TEMPEREAH TEMPEREAH TEMPEREAH TEMPEREAH TEMPEREAH TEMPEREAH TEMPEREAH TEMPEREAH TEMPEREAH TEMPEREAH TEMPEREAH TEMPEREAH

22 23 DOWNUPSETALARIN PLANTY PAININGALARY PROXIDUS 26 27 24 25 28 29 30 31 30 45A

Simple line drawing of a device panel with a light bulb and indicator lights, labeled with number 32 (no text or symbols on the diagram itself)

1	Weather forecast
2	Temperature alert indicator
3	Channels for the sensor
4	Radio transmission icon
5	Outside temperature
6	Outside temperature progression
7	Inside humidity
8	Inside humidity progression
9	Time
10	DCF77 indicator
11	Atmospheric pressure progression

12	Atmospheric pressure indicator
13	Comfort indicator
14	Inside temperature
15	Inside temperature progression
16	Inside humidity
17	Inside humidity progression
18	Date
19	Alarm indicator
20	Moon phase
21	Day of Week
22	UP button

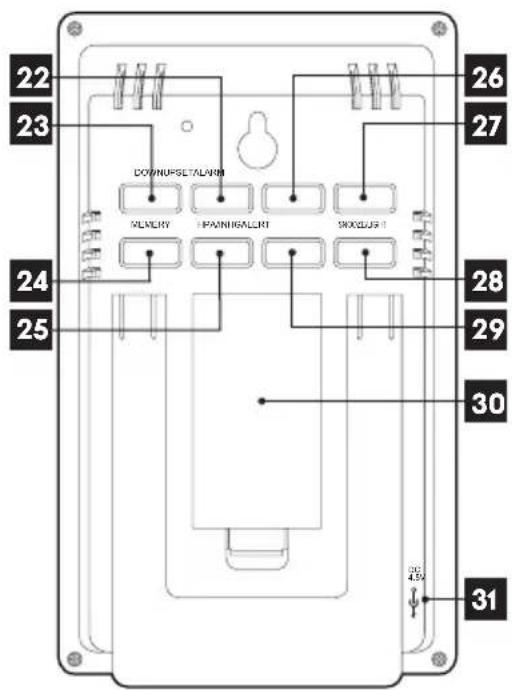

B - PRODUCT DESCRIPTION

23	DOWN button
24	MEMORY button
25	HPA/INHG button
26	ALARM button
27	SET button

28	SNOOZE/LIGHT button
29	ALERT button
30	Battery compartment (2 x LR06 AA)
31	Socket for mains adaptor plug
32	Battery compartment (2 x LR03 AAA)

3 - MAIN FUNCTIONS

• Coloured backlit screen
• Temperature and indoor/outdoor humidity display
• "Current/MIN/MAX/Pattern" indoor/outdoor temperature display
• Atmospheric pressure display
• Displays the time in 12 and 24-hour format
• Radio clock (DCF77)
• Daily alarm
• Calendar
• Weather forecast
• Moon phases display
• Wireless external sensor

C - CONFIGURATION

1 - QUICK START-UP

These steps must be followed in order.

Insert 2 AAA LR06 batteries (not supplied) into the station 30. Then insert the 2 AAA LR03 batteries (not supplied) into the outdoor sensor, ensuring that the polarity is respected 32.

Information: the use of batteries and the mains transformer for the station is preferable: in the event of a power failure or if the mains transformer is unplugged, the weather station will keep its configuration.

PAIRING THE SENSOR TO THE STATION

Pairing is automatic once the batteries are inserted. To force pairing, if required:

• On the station, press and hold the
  DOWN button for 5 seconds. The indicator ⚪ (4) starts to flash
• On the outdoor sensor, remove then reinsert the batteries, positioning yourself near the weather station.

TIME AND DATE SETTING

• Press and hold the SET button for 3 seconds. 24h or 12h fl ashes. Set the time display format using the UP and DOWN buttons.
• Press the SET button to confirm. The two figures: 00 flash. Set the time zone using the UP and DOWN buttons.
• Press the SET button to confirm then set the hour using the UP and DOWN buttons.
• Press the SET button to confirm then set the minutes using the UP and DOWN buttons.
• Press the SET button to confirm. The letters M and D flash on the lower right side of the screen. Set the display order using the UP and DOWN buttons (month/day or day/month)
• Press the SET button to confirm. Set the year using the UP and DOWN buttons.
• Press the SET button to confirm. The figure to the left of M flashes on the lower right side of the screen. Set the month using the UP and DOWN buttons.
• Press the SET button to confirm. The figure to the left of D fl ashes on the lower right side of the screen. Set the day using the UP and DOWN buttons.
• Press the SET button to confirm. The two letters

(27) flash. Set the language of the calendar sing the UP and DOWN buttons (GE = German / EN = English / FR = French / IT Italian / Sp = Spanish / DU = Netherlands / DA = Danish)

- Press the SET button again to confirm the settings.

Information: Pressing briefly on the SET button enables you to scroll through 3 display options. Date display, seconds display and hour display for the alarm.

ALARM SETTING

• Press and hold the ALARM button for 3 seconds: The hour of the alarm fl ashesSet the hour of the alarm using the UP and DOWN buttons.
• Press the ALARM button to confirm. The minutes flash. Set the minutes of the alarm using the UP and DOWN buttons.
• Finish the configuration by pressing quickly on the ALARM button When the alarm goes off, pressing the SNOOZE/LIGHT button pauses the alarm and postpones it for 5 minutes.
  When the alarm goes off, pressing the ALARM button stops the alarm tone.
• To set the alarm, press once on the ALARM button. A bell 🔥9) appears between the hour and the minutes.
• To turn off the alarm, press once on the ALARM button. The bell (19) disappears.

Information: The tone lasts for approximately 1 minute.

AUTOMATIC TIME SETTING

To launch the automatic time setting for the station, press the UP button once. The LED (10) fl ashes (the backlight is switched off temporarily). The station switches to radio reception (for 7 minutes) and attempts to pick up the DCF77 time signal to automatically update the time and date.

Information: the time zone must be set correctly for a correct display. If reception is insufficient, please set the station near a window.

Ensure that you leave a gap of 2.5 m between the station and any source of interference (television, WiFi, microwaves, etc.)

The signal search can be cut off at any point by pressing the UP button, if the signal is not available.

C - CONFIGURATION

ATMOSPHERIC PRESSURE AND WEATHER FORECAST

The weather station is equipped with an atmospheric pressure sensor to display this value and its progression:

- This value can be expressed in hPa or in inHg. To change the unit of measure, press and hold for 3 seconds on the HPA/INGH button, until the unit fl ashes. Press DOWN or UP to change it.

Following the progression of the atmospheric pressure:

3 statuses are possible:

Raising:

Steady:

Falling:

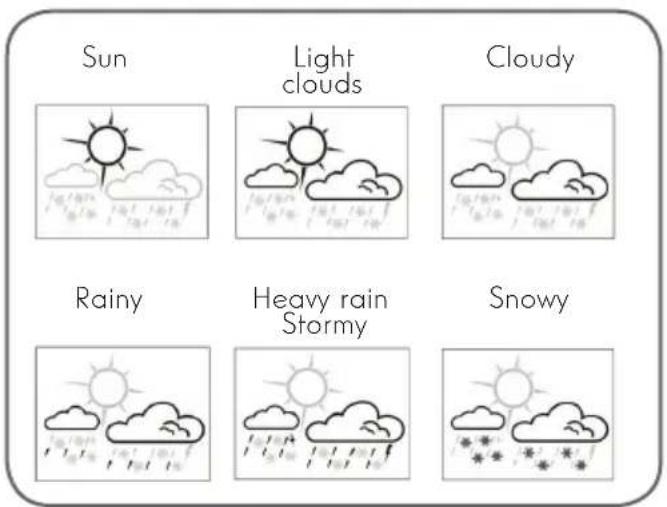

The weather station also has a weather forecast function: It can display 6 different statuses:

Sun Light clouds Cloudy Rainy Heavy rain Stormy Snowy

It is possible to adjust this forecast depending on the current weather:

- Press and hold the HPA/INHG button for

3 seconds, until the hPa mb or inHG unit fl ashes press the HPA/INHG button again.

- Once the forecast logo fl ashes, using the UP and DOWN buttons, you can scroll through the forecasts, and set the weather station to the actual weather where you are.

- Press the HPA/

INHG button again to confirm this setting.

TEMPERATURE AND HYGROMETRY

This weather station allows you to simultaneously display the indoor and outdoor temperature as well as the indoor and outdoor humidity.

The weather station also displays the progression of these values:

3 statuses are possible:

Raising:

Steady:

Falling:

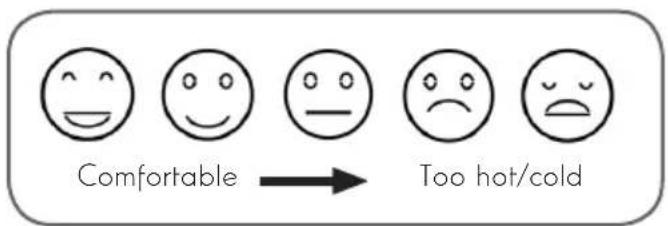

A comfort indication is symbolised by smiley displays (13), depending on the indoor readings.

Comfortable → Too hot/cold

SETTING THE MEASUREMENT UNIT/MIN-MAX MEMORY/SENSOR

• Press the Up button to alternate between Celsius and Fahrenheit
• Press the MEMORY button to confirm. Scroll through the Max/Min/Current value
• Press and hold MEMORY for 3 seconds to erase the MIN/MAX values saved.

Information: this weather station can display up to 3 channels for outdoor sensors. It will only use channel no.1 (3). You can scroll through the different channels by pressing the DOWN button briefly to display your outdoor sensor.

TEMPERATURE ALERT SETTING

• To activate the outdoor temperature alert function, press the ALERT button once. The
  LED is displayed for you to confirm the
• To deactivate the ALERT function, press

C - CONFIGURATION

the ALERT button once. The LED disappears

- To set the top and bottom value for alerts, press and hold the ALERT button for 3 seconds. The Hi [TEMP ALERT] LED flashes. Using the UP and DOWN button, set the max temperature that will trigger the alert. Confirm this setting by pressing once on the ALERT button. The Lo LED then flashes. Using the UP and DOWN buttons, you can set the low temperature that will trigger the temperature alert.

To fi nish, press once more on the ALERT button.

BACKLIGHT SETTING

• If operated from a battery supply, the backlight is switched off by default. You can switch it on by pressing the SNOOZE/LIGHT button. The weather station will be backlit for 5 seconds.
• If operated from the mains supply, the backlight is switched on by default, without a time limit. You can adjust the brightness or switch it off completely by pressing briefly and repeatedly on the HPA/INHG button.

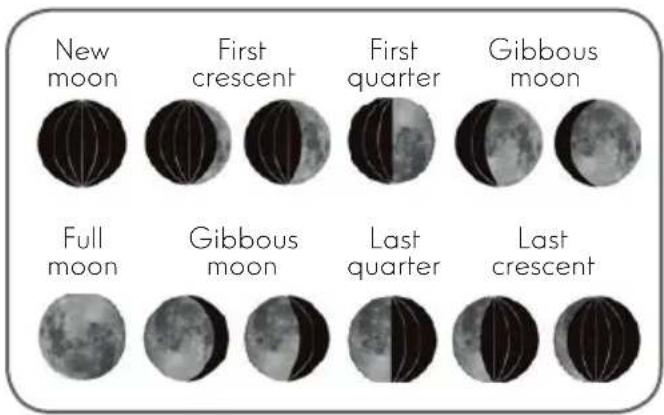

MOON PHASE

The moon phase is calculated and displayed automatically according to the date and year. It is therefore essential that the date and year are correct. (See DATE and TIME SETTING)

New moon First crescent First quarter Gibbous moon Full moon Gibbous moon Last quarter Last crescent

1 - TECHNICAL CHARACTERISTICS

Weather station
Power supply	- The station operates with 2 LR6 batteries (not included) and/or a 4.5 V mains transformer (included)- The sensor operates with 2 LR3 batteries (not included)
Frequency	433.92 MHz
Range between the sensor and the station	60 m in open air.
Range of indoor temperatures	0°C (32°F) ~ 50°C (122°F)
Range of outdoor temperatures	-20°C (-4°F) ~ 60°C (140°F)
Humidity measurement range	20% RH ~ 95% RH
Atmospheric pressure measurement range	600 hPa/mb~100 hPa/mb & 17.72 inHg 82.50 inHg
Temperature measurement unit	Celsius (°C) or Fahrenheit (°F).
Choice of atmospheric measurement unit	Hectopascals (hPa mb) or inches of mercury (inHG).
Station dimensions	108 x 185 x 29 mm
Sensor dimensions	92 x 40 x 23 mm
Materials	ABS

2 - REPLACING THE BATTERIES

The battery life is one to two years under normal operation. Use 2 alkaline LR06 AA batteries for the station and 2 alkaline LR03 AAA batteries for the outdoor sensor, ensuring that the indicated polarity is respected.

3 - WARRANTY

• This product is under warranty for parts and labour for 2 years from the date of purchase. Proof of purchase must be retained for the duration of the warranty period.
• The warranty does not cover damage caused by negligence, knocks or accidents.
  • to be opened or replaced by non-Avidsen employees.
• The warranty will be void if the device is tampered with.

4 - HELP AND ADVICE

• If, despite the care we have taken in designing our products and drafting these instructions, you do encounter difficulties when installing your product or you have any questions, we recommend you contact one of our specialists who will be glad to help.
• If you encounter operating problems during the installation or a few days afterwards, it is essential that you are in front of your installation when contacting us, so that one of our technicians can diagnose the source of the problem, as it will probably be the result of a setting that is incorrect or an installation that is not to specification. If the problem is caused by the product itself, the technician will give you an RMA number so that you can return the unit to the shop. Without this RMA number, the shop may refuse to exchange the product.

D - TECHNICAL AND LEGAL INFORMATION

Contact our After Sales Service team technicians on:

0 892 701 369

Monday to Friday, 9AM to 12PM and 2PM to 6PM.

Avidsen undertakes to keep a stock of spare parts for this product throughout the contractual warranty period.

5 - DECLARATION OF CONFORMITY

Per the RED directive

Avidsen declares that the following equipment:

Weather station 513631

Complies with the 2014/53/EU directive and its conformity has been assessed pursuant to the applicable standards in force:

EN62479:2010

EN301 489-1 V1.9.2:2011-09

EN301 489-3 V1.6.1:2013-08

EN300 220-1 V2.4.1:2012-05

EN300 220-2 V2.4.1:2012-05

Chambray les Tours, date: 01/03/2017 Alexandre Chaverot, CEO

Handwritten signature or scribble on white background, possibly a signature or artistic mark

THOMSON is a TECHNICOLOR S.A. brand used under licence by:

Avidsen France S.A.S - 32, rue Augustin Fresnel

37170 CHAMBRAY LES TOURS - France

513631

NL Draadloos weerstation

12h/24h

Calendar

Alarm clock

Backlight

FORECAST TENDENCY 1009° PRESSURE OUTDOOR CH I 30.6 TEMPERATURE TREND 59 % HUMICITY TREND INDOOR 23.4 TEMPERATURE TREND 40 % HUMICITY TREND 10:30 6:30 MAYND DAY SU MOON PHASE TOMSON

White rectangular electronic device with ventilation slots and ports, no visible text or symbols on body

INHOUDSOPGAVE

A - VEILIGHEIDSVOORSCHRIFTEN 05

1 - GEBRUIKSVOORSCHRIFTEN 05
2 - ONDERHOUD EN REINIGING 05
3 - RECYCLAGE 05

B - BESCHRIJVING VAN HET PRODUCT 06

1 - INHOUD VAN DE KIT 06
2 - WEERSTATION 06
3 - BELANGRIJKSTE FUNCTIES 07

C - CONFIGURATIE 08

1 - SNELLE INGEBRUIKNEMING 08
VERBINDING VAN DE SONDE MET HET STATION 08
INSTELLING DATUM EN TIJD 08
INSTELLING WEKKER 08
AUTOMATISCHE TIJDINSTELLING 08
ATMOSFERISCHE DRUK EN WEERSVOORSPELLING 09
TEMPERATUUR ET HYGROMETRIE 09
INSTELLING MEETEENHEID / MIN-MAX GEHEUGEN / SONDE 09
INSTELLING TEMPERATUURALERT 10
INSTELLING ACHTERGRONDVERLICHTING 10
MAANFASEA 10

D - TECHNISCHE EN WETTELIJKE INFORMATIE 11

1 - TECHNISCHE EIGENSCHAPPEN 11
2 - BATTERIJEN VERVANGEN 11
3 - GARANTIE 11
4 - HULP EN TIPS 11
5 - CONFORMITEITSVERKLARING 12

1 - GEBRUIKSVOORSCHRIFTEN

Simple line drawing of a closed book or notebook with a blank cover (no text or symbols)

1 Weerstation

2 × 1

Simple line drawing of a rectangular device with three horizontal lines and two labeled buttons at the bottom (no text or symbols)

2 Temperatuursonde

2 - WEERSTATION

FORECAST TENDENCY 993 PRESSURE 11 12 13 OUTDOOR INDOOR 227 TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPERCD 13:00 TEMPERCD 13:00 TEMPERCD 13:00 TEMPERCD 13:00 TEMPERCD 13:00 TEMPERCD 13:00 TEMPERCD 13:00 TEMPERCD 13:00 TEMPERCD 13:00 TEMPERCD 13:00 TEMPERCD 13:05 TEMPERCD 13:05 TEMPERCD 13:05 TEMPERCD 13:05 TEMPERCD 13:05 TEMPERCD 13:05 TEMPERCD 13:05 TEMPERCD 13:05 TEMPERCD 13:05 TEMPERCD 13:05 TEMPERCD 13:06 TEMPERCD 13:06 TEMPERCD 13:06 TEMPERCD 13:06 TEMPERCD 13:06 TEMPERCD 13:06 TEMPERCD 13:06 TEMPERCD 13:06 TEMPERCD 13:06 TEMPERCD 13:06 TEMPERCD 13:07 TEMPERCD 13:07 TEMPERCD 13:07 TEMPERCD 13:07 TEMPERCD 13:07 TEMPERCD 13:07 TEMPERCD 13:07 TEMPERCD 13:07 TEMPERCD 13:08 TEMPERCD 13:08 TEMPERCD 13:08 TEMPERCD 13:08 TEMPERCD 13:08 TEMPERCD 13:08 TEMPERCD 13:08 TEMPERCD 13:08 TEMPERCD 13:08 TEMPERCD 13:08 TEMPERCD 13:09 TEMPERCD 13:09 TEMPERCD 13:09 TEMPERCD 13:09 TEMPERCD 13:09 TEMPERCD 13:09 TEMPERCD 13:09 TEMPERCD 13:09 TEMPERCD 13:09 TEMPERCD 13:09 TEMPERCD 13:08

22 23 DOWNUPSETALARIN PLANTY PAININGALARY PROXIDUS 26 27 24 25 28 29 30 31 30 45°

Simple line drawing of a device panel with a light bulb and indicator lights, labeled with number 32 (no text or symbols on the diagram itself)

Handwritten signature or scribble on white background, possibly a signature or artistic mark

White rectangular electronic device with ventilation slots and ports, no visible text or symbols on body

INHALT

Simple line drawing of a closed book or notebook with a blank cover (no text or symbols)

1 Wetterstation

2 ×1

Simple line drawing of a rectangular device with three horizontal lines and two labeled buttons at the bottom (no text or symbols)

2 Temperatursonde

2 - WETTERSTATION

FORECAST TENDENCY 993 PRESSURE 11 12 13 OUTDOOR INDOOR 227 TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREDURE TEMPEREAH TEMPEREAH TEMPEREAH TEMPEREAH TEMPEREAH TEMPEREAH TEMPEREAH TEMPEREAH TEMPEREAH TEMPEREAH TEMPEREAH TEMPEREAH TEMPEREAH TEMPEREAH TEMPEREAH TEMPEREAH

22 23 DOWNUPSETALARIN PLANTY PAININGALARY PROXIDUS 26 27 24 25 28 29 30 31 30 45k

Simple line drawing of a device panel with a bulb and indicator light, labeled with number 32 (no text or symbols on the diagram itself)

Handwritten signature or scribble on white background, possibly a signature or artistic mark

513631

White rectangular electronic device with ventilation slots and ports, no visible text or symbols on body

ÍNDICE

Simple line drawing of a closed book or notebook with no text or symbols visible

Simple line drawing of a rectangular device with two horizontal lines and a base, no text or symbols present.

2 Sonda de temperatura

Simple line drawing of a device panel with a light bulb and indicator lights, labeled with number 32 (no text or symbols on the diagram itself)

White rectangular electronic device with ventilation slots and ports, no visible text or symbols on body

ÍNDICE

A - INSTRUÇÕES DE SEGURANÇA 05

Simple line drawing of a closed book or notebook with no text or symbols visible

Simple line drawing of a rectangular device with two horizontal lines and a small base (no text or symbols)

2 Sonda de temperatura

Simple line drawing of a device panel with a light bulb and indicator lights, labeled with number 32 (no text or symbols on the diagram itself)

De segunda a sexta-feira entre as 9h e as 12h e entre as 14h e as 18h.

Handwritten signature or scribble on white background, possibly a signature or artistic mark

513631

White rectangular electronic device with ventilation slots and ports, no visible text or symbols on body

INDICE

Simple line drawing of a closed book or notebook with a blank cover (no text or symbols)

Simple line drawing of a rectangular device with three horizontal lines and two labeled buttons at the bottom (no text or symbols)

2 Sonda temperatura

Simple line drawing of a device panel with a light bulb and indicator lights, labeled with number 32 (no text or symbols on the diagram itself)
