Product Type	Micro ATX Motherboard
Brand	ASRock
Model	Z490M Pro4
Chipset	Intel Z490
CPU Socket	LGA 1200
Supported Processors	Intel Core 10th Gen (i9/i7/i5/i3, Pentium, Celeron)
Form Factor	Micro ATX (24.4 x 24.4 cm)
Memory	4 x DDR4 DIMM, max 128 GB, DDR4-4500+(OC), supports XMP 2.0
Expansion Slots	2 x PCIe 3.0 x16 (x16/x4), 2 x PCIe 3.0 x1
Storage	4 x SATA3 6 Gb/s, 2 x M.2 (PCIe Gen3 x4 & SATA), supports Intel Optane
Integrated Graphics	Yes (with integrated CPU), outputs: D-Sub, HDMI 1.4, DisplayPort 1.4
Audio	Realtek ALC1200 7.1 channel HD, Nahimic Audio
Networking	Intel I219V Gigabit LAN, supports Wake-on-LAN, PXE
USB (rear panel)	1 x USB 3.2 Gen2 Type-A, 1 x USB 3.2 Gen2 Type-C, 4 x USB 3.2 Gen1
Power Connectors	24-pin ATX, 8-pin +12V, 4-pin +12V
BIOS	UEFI AMI with multilingual graphical interface
Supported Operating System	Windows 10 64-bit
Special Features	Support for AMD CrossFireX, RGB LED and Addressable headers, Thunderbolt AIC
Protection	Audio overvoltage, USB electrostatic discharge, LAN lightning protection
Maintenance and Cleaning	Use a dry, soft cloth. Avoid any liquid. Disconnect before cleaning.
Safety	Follow ESD precautions (antistatic wrist strap). Do not touch gold contacts.

Frequently Asked Questions - Z490M Pro4 ASROCK

Which processors are compatible with the ASRock Z490M Pro4?

The motherboard supports Intel 10th Gen Core processors (Comet Lake-S) on LGA 1200 socket, including i9, i7, i5, i3, Pentium, and Celeron series. Unlocked processors (K-series) are also supported for overclocking.

How to install the motherboard in the case?

Screw the motherboard onto the case standoffs corresponding to the Micro ATX form factor. Connect the power cables (24-pin ATX, 8/4-pin CPU), SATA cables, front panel connectors (Power, Reset, LED), and fans. Make sure the I/O shield is in place.

How to update the BIOS of the Z490M Pro4?

Download the latest BIOS version from the ASRock website for this model. Extract the file to a USB drive formatted as FAT32. Boot and press F2 or Del to enter the UEFI BIOS. Use the Instant Flash tool in the Tool tab to select and flash the file. Do not turn off power during the update.

How to configure RAID with this motherboard?

Connect the SATA or M.2 drives. Enter the BIOS, enable Intel Rapid Storage technology and set the SATA mode to RAID. Save and restart. During POST, press Ctrl+I to enter the Intel RAID utility. Create a RAID volume (0, 1, 5, or 10) and select the drives. Then install the RAID drivers during Windows installation.

How to connect the front panel LEDs and switches?

Locate the PANEL1 header (9 pins) on the board. Connect the case cables respecting polarity: PWRBTN (switch), RESET, HDLED (HDD LED), PLED (power LED). The layout is printed on the board and in the manual. Use tweezers if necessary.

What types of RAM are supported?

The board supports DDR4 unbuffered non-ECC (or UDIMM ECC functioning as non-ECC) with frequencies up to 4500 MHz via overclocking. Four dual-channel DIMM slots, maximum capacity of 128 GB. Check the compatibility list on the ASRock website for validated modules. Enable XMP 2.0 in the BIOS to reach the advertised frequencies.

How to use the RGB LED headers?

The board has two RGB LED headers (4-pin, 12V) and two addressable headers (3-pin, 5V). Connect your LED strips respecting the arrow (polarity). Use ASRock Polychrome RGB software to customize effects. Do not exceed 3A/36W for 12V and 3A/15W for 5V. Never connect a 5V strip to a 12V header.

What to do if the motherboard does not boot?

Check that all power cables are properly connected (24-pin and 8/4-pin CPU). Test with a single RAM stick in slot A2 (second from the CPU). Verify that the processor is correctly installed. Try clearing the CMOS (CLRMOS1 jumper or battery removal) to reset the BIOS. Check the case diagnostic LEDs if present.

How to overclock the CPU on this motherboard?

Use an unlocked processor (K-series) and good cooling. Enter the BIOS, go to OC Tweaker. Gradually increase the CPU ratio (multiplier) and Vcore voltage. Monitor temperature with software. Enable XMP profiles for memory. Test stability with Prime95 or Cinebench. Overclocking is done at the user's own risk.

Where to download drivers for the Z490M Pro4?

Go to the ASRock website (www.asrock.com), search for the model Z490M Pro4, then go to the Support tab. Download drivers for Windows 10 64-bit: chipset, audio, LAN, Intel graphics, etc. Install them in the recommended order. You can also use the included CD, but online versions are newer.

USER MANUAL Z490M Pro4 ASROCK

Copyright©2020 ASRock INC. All rights reserved.

Copyright Notice:

No part of this documentation may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this documentation may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.

Disclaimer:

Specifications and information contained in this documentation are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose.

In no event shall ASRock, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Practices (BMP) regulations passed by the California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance.

"Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/perchlorate"

ASRock Website: http://www.asrock.com

AUSTRALIA ONLY

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage caused by our goods. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. If you require assistance please call ASRock Tel: [phone] ext.123 (Standard International call charges apply)

The terms HDMI ^® and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

HIGH-DEFINITION MULTIMEDIA INTERFACE

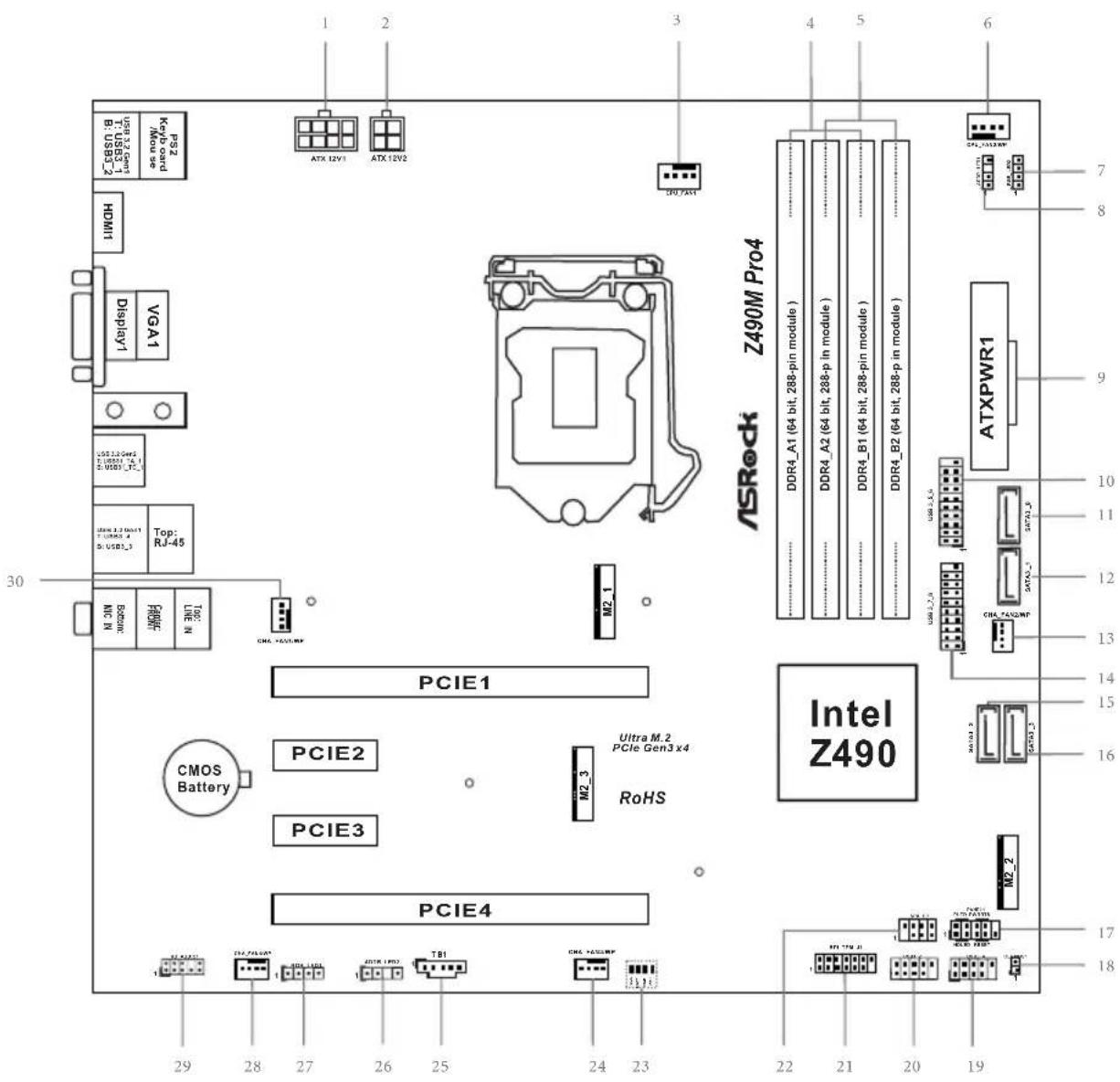

Motherboard Layout

No. Description

1 ATX 12V Power Connector (ATX12V1)
2 ATX 12V Power Connector (ATX12V2)
3 CPU Fan Connector (CPU_FAN1)
4 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)
5 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2)
6 CPU/Water Pump Fan Connector (CPU_FAN2/WP)
7 RGB LED Header (RGB_LED2)
8 Addressable LED Header (ADDR_LED1)
9 ATX Power Connector (ATXPWR1)
10 USB 3.2 Gen1 Header (USB3_5_6)
11 SATA3 Connector (SATA3_0)
12 SATA3 Connector (SATA3_1)
13 Chassis/Water Pump Fan Connector (CHA_FAN2/WP)
14 USB 3.2 Gen1 Header (USB3_7_8)
15 SATA3 Connector (SATA3_2)
16 SATA3 Connector (SATA3_3)
17 System Panel Header (PANEL1)
18 Clear CMOS Jumper (CLRMOS1)
19 USB 2.0 Header (USB3_4)
20 USB 2.0 Header (USB1_2)

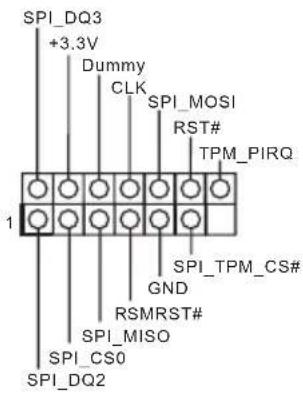

21 SPI TPM Header (SPI_TPM_J1)
22 Chassis Intrusion and Speaker Header (SPK_CI1)
23 Post Status Checker (PSC)
24 Chassis/Water Pump Fan Connector (CHA_FAN3/WP)
25 Thunderbolt AIC Connector (TB1)
26 Addressable LED Header (ADDR_LED2)
27 RGB LED Header (RGB_LED1)
28 Chassis/Water Pump Fan Connector (CHA_FAN4/WP)
29 Front Panel Audio Header (HD_AUDIO1)
30 Chassis/Water Pump Fan Connector (CHA_FAN1/WP)

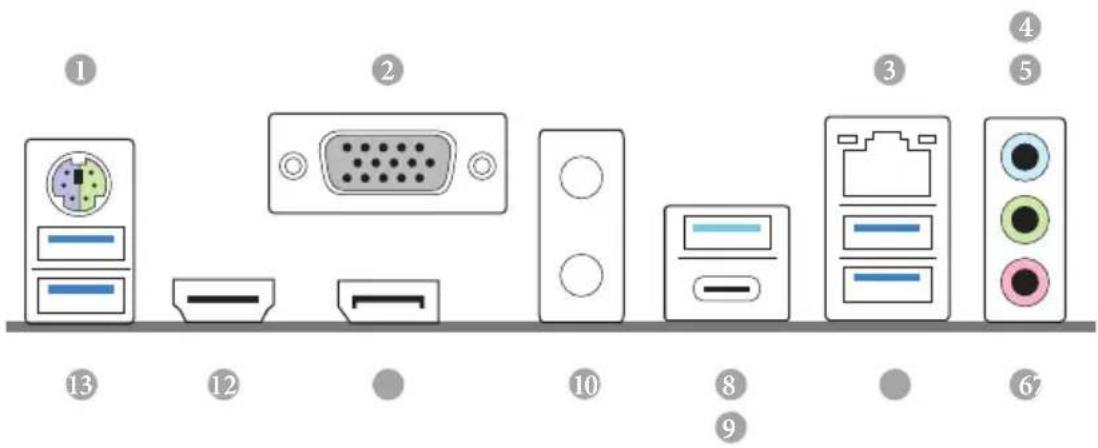

I/O Panel

No. Description No. Description

1 PS/2 Mouse/Keyboard Port 8 USB 3.2 Gen2 Type-A Port (USB31_TA_1)

2 D-Sub Port 9 USB 3.2 Gen2 Type-C Port (USB31_TC_1)

3 LAN RJ-45 Port* 10 Antenna Bracket

4 Line In (Light Blue)** 11 DisplayPort 1.4

5	Front Speaker (Lime)**	12	HDMI Port
6	Microphone (Pink)**	13	USB 3.2 Gen1 Ports (USB3_1_2)
7	USB 3.2 Gen1 Ports (USB3_3_4)

* There are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications.

ACT/LINK LED

Activity / Link LED		Speed LED
Status	Description	Status	Description
Off	No Link	Off	10Mbps connection
Blinking	Data Activity	Orange	100Mbps connection
On	Link	Green	1Gbps connection

** Function of the Audio Ports in 7.1-channel Configuration:

Port	Function
Light Blue (Rear panel)	Rear Speaker Out
Lime (Rear panel)	Front Speaker Out
Pink (Rear panel)	Central /Subwoofer Speaker Out
Lime (Front panel)	Side Speaker Out

Chapter 1 Introduction

Thank you for purchasing ASRock Z490M Pro4 motherboard, a reliable motherboard produced under ASRock's consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock's commitment to quality and endurance.

Because the motherboard specifications and the BIOS software might be updated, the content of this documentation will be subject to change without notice. In case any modifications of this documentation occur, the updated version will be available on ASRock's website without further notice. If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. You may find the latest VGA cards and CPU support list on ASRock's website as well. ASRock website http://www.asrock.com.

1.1 Package Contents

• ASRock Z490M Pro4 Motherboard (Micro ATX Form Factor)
• ASRock Z490M Pro4 Quick Installation Guide
• ASRock Z490M Pro4 Support CD
• 2 x Serial ATA (SATA) Data Cables (Optional)
• 3 x Screws for M.2 Sockets (Optional)
- 1 x I/O Panel Shield

1.2 Specifications

Platform

• Micro ATX Form Factor
  • Solid Capacitor design

CPU

• Supports 10 ^th Gen Intel ^ Core ^TM Processors (Socket 1200)
• Digi Power design
• 10 Power Phase design
• Supports Intel™ Turbo Boost Max 3.0 Technology
• Supports Intel ^® K-Series unlocked CPUs

Chipset

- Intel® Z490

Memory

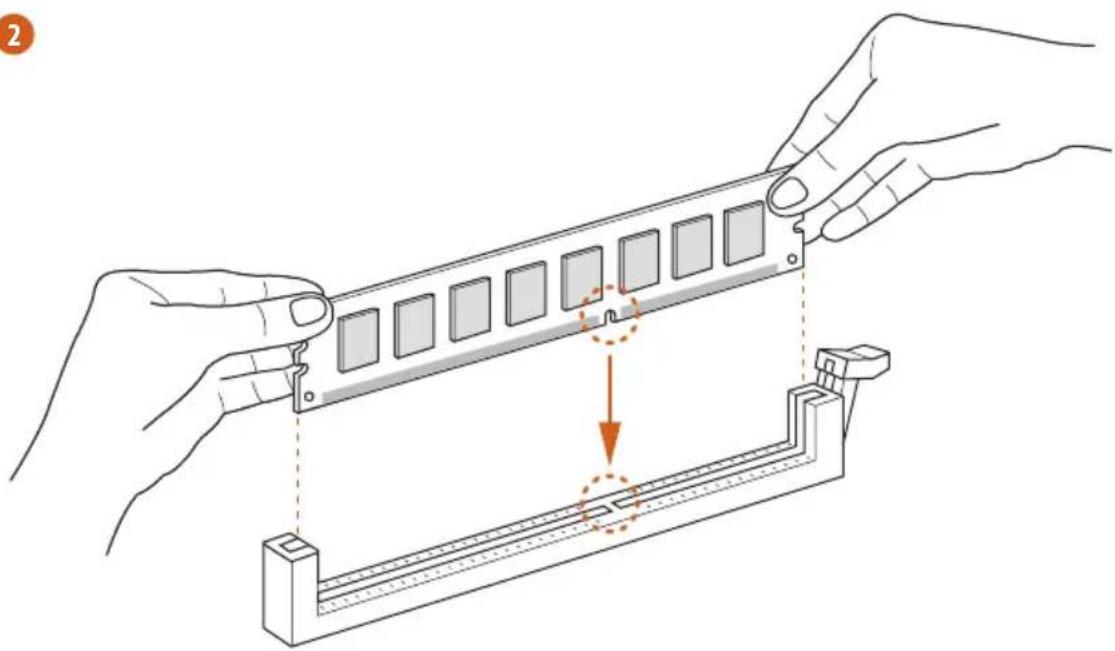

• Dual Channel DDR4 Memory Technology
• 4 x DDR4 DIMM Slots
- Supports DDR4 4300+(OC)*/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/3600(OC)/3200(OC)/2933/2800/2666/2400/2133 non-ECC, un-buffered memory

* Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)

* Core ^TM (i9/i7) support DDR4 up to 2933; Core ^TM (i5/i3), Pentium® and Celeron® support DDR4 up to 2666.

• Supports ECC UDIMM memory modules (operate in non-ECC mode)
  • Max. capacity of system memory: 128GB
  • Supports Intel ^® Extreme Memory Profile (XMP) 2.0
  • 15μ Gold Contact in DIMM Slots

Expansion Slot

- 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE4: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE4))

* Supports NVMe SSD as boot disks

- 2 x PCI Express 3.0 x1 Slots - Supports AMD Quad CrossFireX ^TM and CrossFireX ^TM

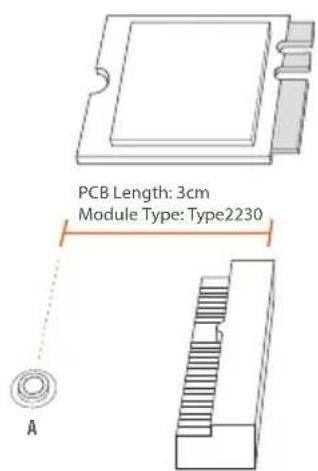

- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel® CNVi (Integrated WiFi/BT)

Graphics

* Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

- Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1

* VP9 10bit and VC-1 are for decode only.

* VP8 and VP9 encode are not supported by Windows OS.

- Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1

- Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, Intel® SGX Content Protection, UHD/HDR Blu-ray Disc

- Three graphics output options: D-Sub, HDMI and DisplayPort 1.4

• Supports Triple Monitor

- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz

- Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz

- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz

- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)

- Supports HDCP 2.3 with HDMI 1.4 and DisplayPort 1.4 Ports

• Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.4 Ports

Audio

- 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)

• Premium Blu-ray Audio support

• Supports Surge Protection

• PCB Isolate Shielding

• Individual PCB Layers for R/L Audio Channel

- Nahimic Audio

LAN

• Gigabit LAN 10/100/1000 Mb/s
• Giga PHY Intel® I219V
• Supports Wake-On-LAN
• Supports Lightning/ESD Protection
• Supports Energy Efficient Ethernet 802.3az
• Supports PXE

Rear Panel

I/O

• 2 x Antenna Ports
  • 1 x PS/2 Mouse/Keyboard Port
• 1 x D-Sub Port
• 1 x HDMI Port
• 1 x DisplayPort 1.4
• 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
• 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
  • 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  • HD Audio Jacks: Line in / Front Speaker / Microphone

Storage

- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 17), NCQ, AHCI and Hot Plug*

* If M2_1 is occupied, SATA3_3 will be disabled.

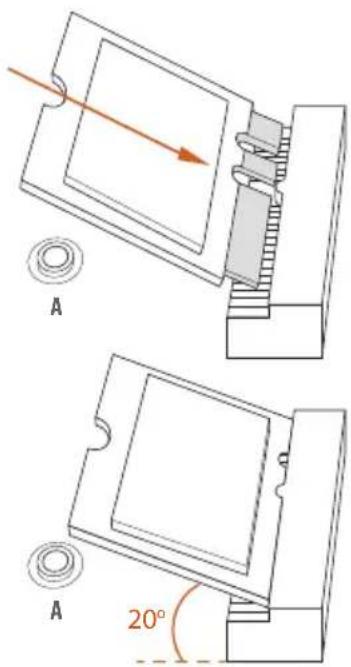

- 2 x Ultra M.2 Sockets (M2_1 and M2_2), support M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) ^**

** Supports Intel® Optane™ Technology

** Supports NVMe SSD as boot disks

** Supports ASRock U.2 Kit

Connector

• 1 x SPI TPM Header
• 1 x Chassis Intrusion and Speaker Header

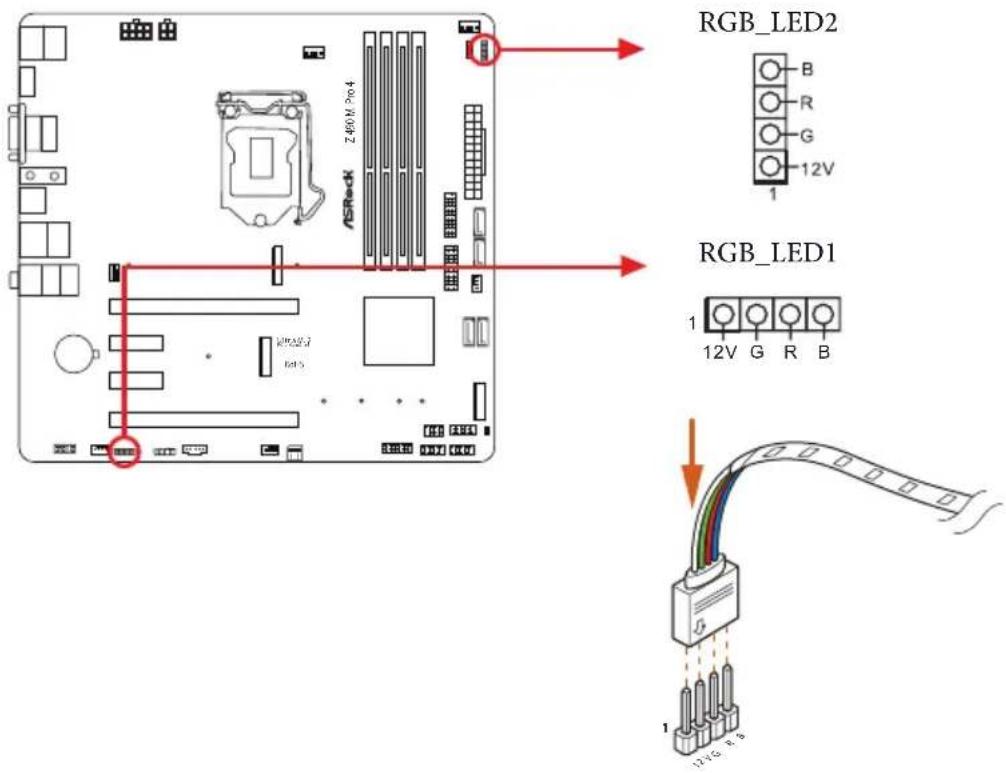

- 2 x RGB LED Headers

* Support in total up to 12V/3A, 36W LED Strip

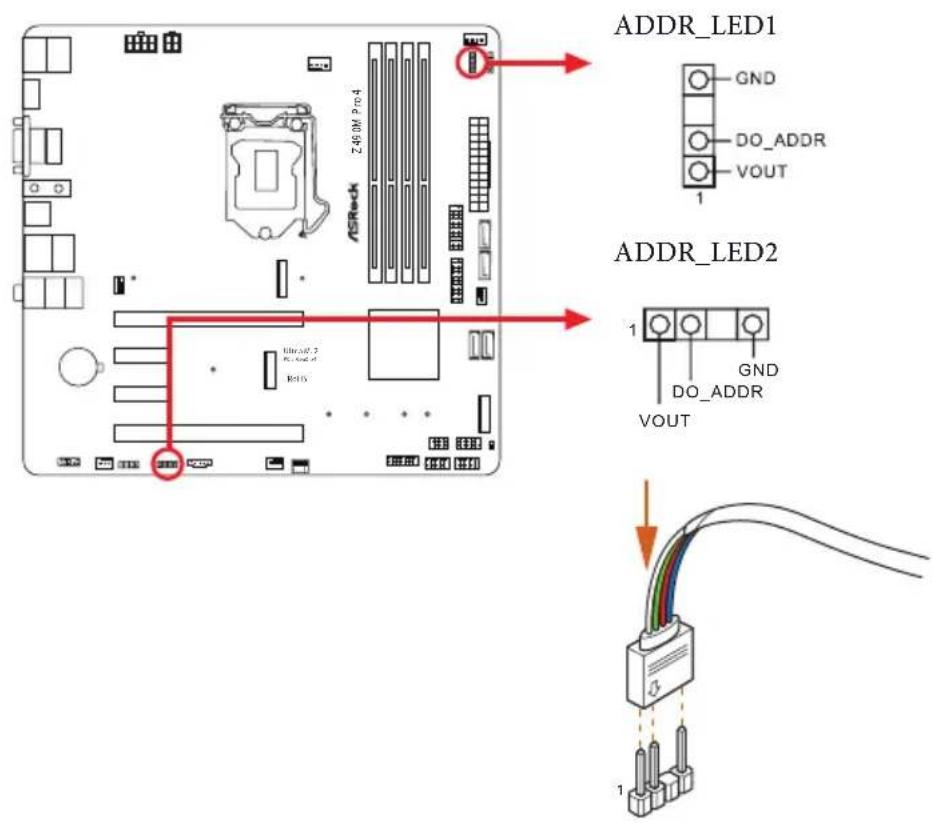

• 2 x Addressable LED Headers

* Support in total up to 5V/3A, 15W LED Strip
• 1 x CPU Fan Connector (4-pin)

* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)

* The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)

* The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

* CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in use.

• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 1 x 4 pin 12V Power Connector
• 1 x Front Panel Audio Connector
- 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 3 AIC R2.0 Card only)
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Intel® Z490) (Supports ESD Protection)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)

BIOS

Feature

• AMI UEFI Legal BIOS with multilingual GUI support
• ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, GT, DRAM, PCH 1.05V, VCCIO, VCCST, VCCSA, CPU Internal PLL, GT PLL Voltage Multi-adjustment

Hardware Monitor

• Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
• Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
• Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
• Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
  • CASE OPEN detection
• Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH 1.05V, VCCSA, VCCST, VCCIO

os

• Microsoft® Windows® 10 64-bit

Certifications

- FCC, CE

- ErP/EuP Ready (ErP/EuP ready power supply is required)

* For detailed product information, please visit our website: http://www.asrock.com

Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools. Overclocking may affect your system's stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.

Chapter 2 Installation

This is a Micro ATX form factor motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard components or change any motherboard settings.

• Make sure to unplug the power cord before installing or removing the motherboard components. Failure to do so may cause physical injuries and damages to motherboard components.
• In order to avoid damage from static electricity to the motherboard's components, NEVER place your motherboard directly on a carpet. Also remember to use a grounded wrist strap or touch a safety grounded object before you handle the components.
• Hold components by the edges and do not touch the ICs.
• Whenever you uninstall any components, place them on a grounded anti-static pad or in the bag that comes with the components.
• When placing screws to secure the motherboard to the chassis, please do not over-tighten the screws! Doing so may damage the motherboard.

2.1 Installing the CPU

1. Before you insert the 1200-Pin CPU into the socket, please check if the PnP cap is on the socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force to insert the CPU into the socket if above situation is found. Otherwise, the CPU will be seriously damaged.
2. Unplug all power cables before installing the CPU.

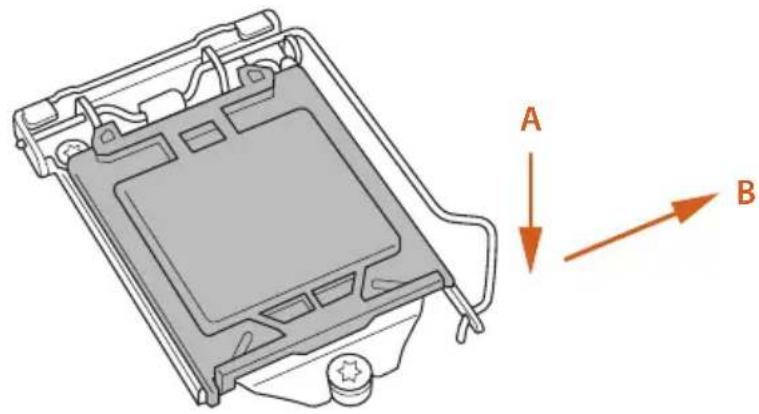

1

Technical line drawing of a mechanical component with labeled arrows A and B (no text or symbols beyond labels)

2

Technical line drawing of a mechanical component with an arrow indicating rotation or assembly (no text or symbols present)

3

Technical diagram of a computer processor internal structure showing mounting holes and internal components (no text or labels)

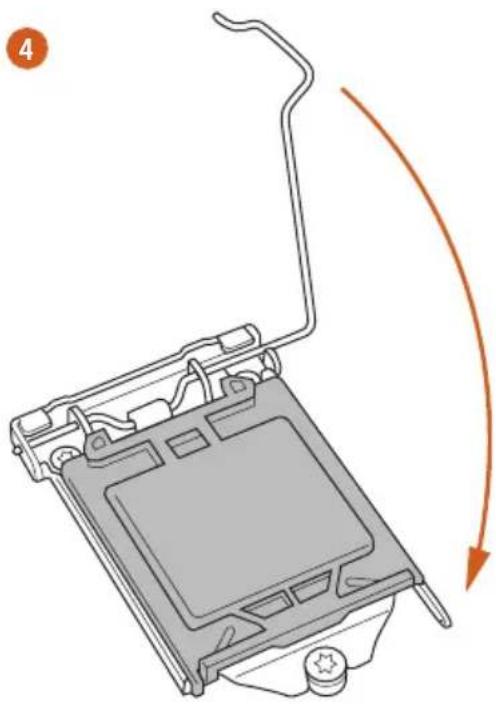

Diagram of a computer monitor with an orange curved arrow indicating motion or rotation (no text or symbols present)

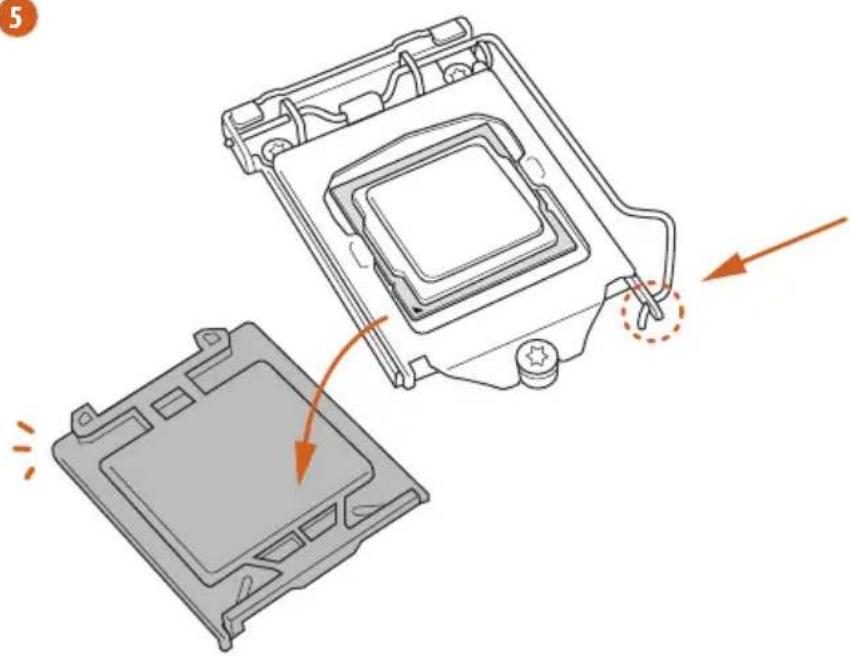

5

Diagram showing a computer processor's internal structure and mounting point, with no text or symbols present.

Please save and replace the cover if the processor is removed. The cover must be placed if you wish to return the motherboard for after service.

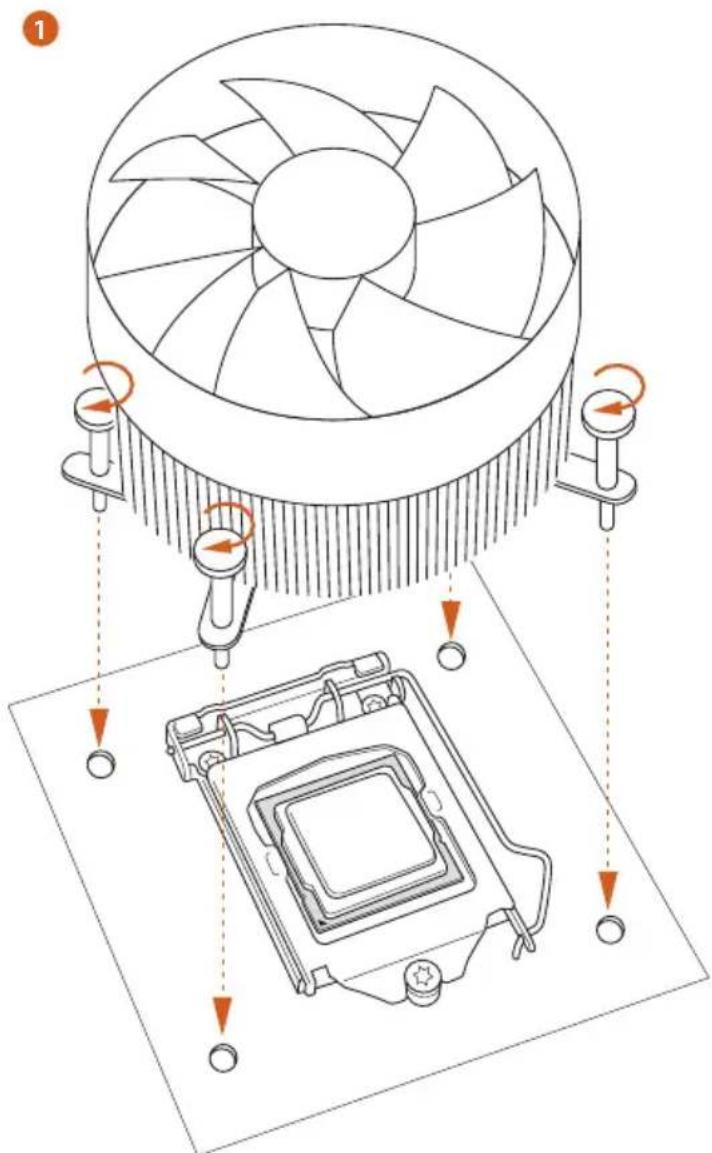

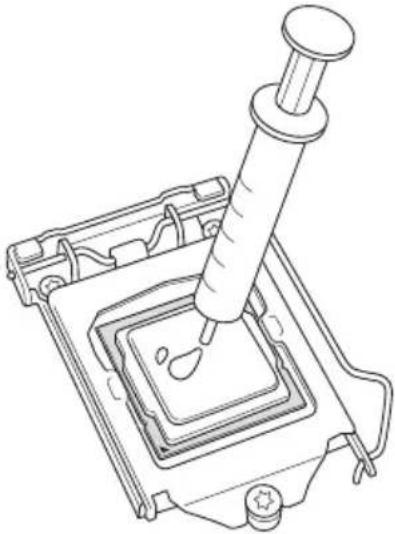

2.2 Installing the CPU Fan and Heatsink

Line drawing of a mechanical device with a pipette inserted into a square component (no text or symbols)

2.3 Installing Memory Modules (DIMM)

This motherboard provides four 288-pin DDR4 (Double Data Rate 4) DIMM slots, and supports Dual Channel Memory Technology.

1. For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) DDR4 DIMM pairs.
2. It is unable to activate Dual Channel Memory Technology with only one or three memory module installed.
3. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4 slot; otherwise, this motherboard and DIMM may be damaged.

Dual Channel Memory Configuration

Priority DDR4_A1 DDR4_A2 DDR4_B1 DDR4_B2

1 Populated Populated
2 Populated Populated Populated Populated

The DIMM only fits in one correct orientation. It will cause permanent damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.

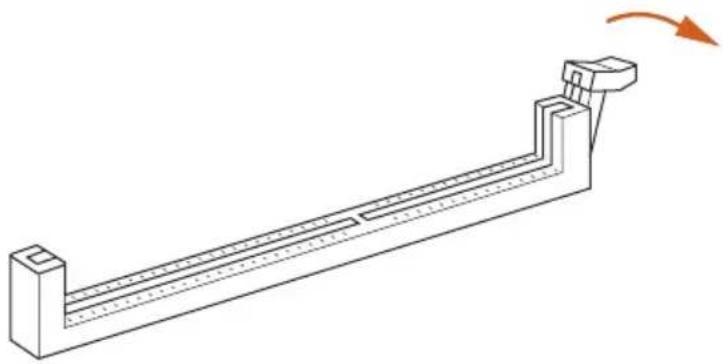

1

Technical line drawing of a mechanical support structure with an orange arrow indicating rotation (no text or symbols)

2

Illustration of hands installing a component into a mechanical bracket with an arrow indicating the process (no text or symbols present)

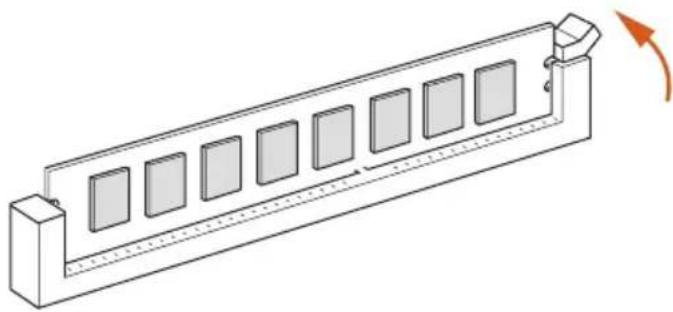

3

Isometric line drawing of a rectangular device with multiple square panels and a curved arrow indicating rotation (no text or symbols)

2.4 Expansion Slots (PCI Express Slots)

There are 4 PCI Express slots on the motherboard.

Before installing an expansion card, please make sure that the power supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.

PCIe slots:

PCIE1 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards.

PCIE2 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards.

PCIE3 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards.

PCIE4 (PCIe 3.0 x16 slot) is used for PCI Express x4 lane width graphics cards.

PCIe Slot Configurations

PCIE1 PCIE4

Single Graphics Card x16 N/A

Two Graphics Cards in

CrossFireX ^TM Mode

x16 x4

For a better thermal environment, please connect a chassis fan to the motherboard's chassis fan connector (CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP or CHA_FAN4/WP) when using multiple graphics cards.

2.5 Jumpers Setup

The illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is "Short". If no jumper cap is placed on the pins, the jumper is "Open".

Short

Open

Clear CMOS Jumper (CLRMOS1)

(see p.1, No. 18)

2-pin Jumper

CLRMOS1 allows you to clear the data in CMOS. To clear and reset the system parameters to default setup, please turn off the computer and unplug the power cord from the power supply. After waiting for 15 seconds, use a jumper cap to short the pins on CLRMOS1 for 5 seconds. However, please do not clear the CMOS right after you update the BIOS. If you need to clear the CMOS when you just finish updating the BIOS, you must boot up the system first, and then shut it down before you do the clear-CMOS action. Please be noted that the password, date, time, and user default profile will be cleared only if the CMOS battery is removed. Please remember to remove the jumper cap after clearing the CMOS.

If you clear the CMOS, the case open may be detected. Please adjust the BIOS option "Clear Status" to clear the record of previous chassis intrusion status.

2.6 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard.

System Panel Header (9-pin PANEL1) (see p.1, No. 17)

Connect the power switch, reset switch and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables.

PWRBTN (Power Switch):

Connect to the power switch on the chassis front panel. You may configure the way to turn off your system using the power switch.

RESET (Reset Switch):

Connect to the reset switch on the chassis front panel. Press the reset switch to restart the computer if the computer freezes and fails to perform a normal restart.

PLED (System Power LED):

Connect to the power status indicator on the chassis front panel. The LED is on when the system is operating. The LED keeps blinking when the system is in S1/S3 sleep state. The LED is off when the system is in S4 sleep state or powered off (S5).

HDLED (Hard Drive Activity LED):

Connect to the hard drive activity LED on the chassis front panel. The LED is on when the hard drive is reading or writing data.

The front panel design may differ by chassis. A front panel module mainly consists of power switch, reset switch, power LED, hard drive activity LED, speaker and etc. When connecting your chassis front panel module to this header, make sure the wire assignments and the pin assignments are matched correctly.

Chassis Intrusion and Speaker Header (7-pin SPK_CI1) (see p.1, No. 22)

Please connect the chassis intrusion and the chassis speaker to this header.

Serial ATA3 Connectors

(SATA3_0:

see p.1, No. 11)

(SATA3_1:

see p.1, No. 12)

(SATA3_2:

see p.1, No. 15)

(SATA3_3:

see p.1, No. 16)

These four SATA3

connectors support SATA data cables for internal

storage devices with up to

6.0 Gb/s data transfer rate.

If M2_1 is occupied,

SATA3_3 will be disabled.

USB 2.0 Headers

(9-pin USB1_2)

(see p.1, No. 20)

(9-pin USB3_4)

(see p.1, No. 19)

There are two USB

2.0 headers on this motherboard.

USB 3.2 Gen1 Headers

(19-pin USB3_5_6)

(see p.1, No. 10)

(19-pin USB3_7_8)

(see p.1, No. 14)

There are two USB 3.2

Gen1 headers on this motherboard. Each USB

3.2 Gen1 header can support two ports.

Front Panel Audio Header

(9-pin HD_AUDIO1)

(see p.1, No. 29)

This header is for

connecting audio devices to the front audio panel.

1. High Definition Audio supports Jack Sensing, but the panel wire on the chassis must support HDA to function correctly. Please follow the instructions in our manual and chassis manual to install your system.
2. If you use an AC'97 audio panel, please install it to the front panel audio header by the steps below:

A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for the HD audio panel only. You don't need to connect them for the AC'97 audio panel.
E. To activate the front mic, go to the "FrontMic" Tab in the Realtek Control panel and adjust "Recording Volume".

Chassis/Water Pump Fan Connectors

(4-pin CHA_FAN1/WP)

(see p.1, No. 25)

(4-pin CHA_FAN2/WP)

(see p.1, No.13)

(4-pin CHA_FAN3/WP)

(see p.1, No.24)

(4-pin CHA_FAN4/WP)

(see p.1, No.28)

CPU Fan Connector

(4-pin CPU_FAN1)

(see p.1, No. 3)

This motherboard provides four 4-Pin water cooling chassis fan connectors. If you plan to connect a 3-Pin chassis water cooler fan, please connect it to Pin 1-3.

This motherboard provides a 4-Pin CPU fan (Quiet Fan) connector. If you plan to connect a 3-Pin CPU fan, please connect it to Pin 1-3.

CPU/Water Pump Fan Connector

(4-pin CPU_FAN2/WP)

(see p.1, No. 6)

This motherboard provides a 4-Pin water cooling CPU fan connector. If you plan to connect a 3-Pin CPU water cooler fan, please connect it to Pin 1-3.

ATX Power Connector (24-pin ATXPWR1) (see p.1, No. 9)

This motherboard provides a 24-pin ATX power connector. To use a 20-pin ATX power supply, please plug it along Pin 1 and Pin 13.

ATX 12V Power Connector (8-pin ATX12V1) (see p.1, No. 1)

This motherboard provides a 8-pin ATX 12V power connector. To use a 4-pin ATX power supply, please plug it along Pin 1 and Pin 5.

ATX 12V Power Connector (4-pin ATX12V2) (see p.1, No. 2)

Please connect an ATX 12V power supply to this connector.

*Connecting an ATX 12V 4-pin cable here is optional. *The power supply plug fits into this connector in only one orientation.

SPI TPM Header (13-pin SPI_TPM_J1) (see p.1, No. 21)

This connector supports SPI Trusted Platform Module (TPM) system, which can securely store keys, digital certificates, passwords, and data. A TPM system also helps enhance network security, protects digital identities, and ensures platform integrity.

Thunderbolt AIC Connector (5-pin TB1) (see p.1, No. 25)

Please connect a Thunderbolt™ add-in card (AIC) to this connector via the GPIO cable. *Please install the Thunderbolt™ AIC card to PCIE4 (default slot).

RGB LED Headers

(4-pin RGB_LED1)

(see p.1, No. 27)

(4-pin RGB_LED2)

(see p.1, No. 7)

RGB LED headers are used to connect RGB LED extension cables which allow users to choose from various LED lighting effects.

Caution: Never install the RGB LED cable in the wrong orientation; otherwise, the cable may be damaged.

*Please refer to page 29 for for further instructions on this header.

Addressable LED Header

(3-pin ADDR_LED1)

(see p.1, No. 8)

(3-pin ADDR_LED2)

(see p.1, No. 26)

The headers are used to connect Addressable LED extension cables which allow users to choose from various LED lighting effects.

Caution: Never install the Addressable LED cable in the wrong orientation; otherwise, the cable may be damaged.

*Please refer to page 30 for further instructions on this header.

2.7 Post Status Checker

Post Status Checker (PSC) diagnoses the computer when users power on the machine. It emits a red light to indicate whether the CPU, memory, VGA or storage is dysfunctional. The lights go off if the four mentioned above are functioning normally.

2.8 M.2 WiFi/BT Module and Intel® CNVi (Integrated WiFi/BT) Installation Guide

The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The M.2 Socket (Key E) supports type 2230 WiFi/BT module and Intel® CNVi (Integrated WiFi/BT).

* The M.2 socket does not support SATA M.2 SSDs.

Before you install Intel ^® Integrated Connectivity (CNVi) module, be sure to turn off the AC power.

Installing the WiFi/BT module or Intel ^® CNVi (Integrated WiFi/BT)

Pure technical line drawing of a mechanical component with no text or symbols

Step 1

Prepare a type 2230 WiFi/BT module or Intel ^® CNVi (Integrated WiFi/BT) and the screw.

Step 2

Find the nut location to be used.

Step 3

Gently insert the WiFi/BT module or Intel ^® CNVi (Integrated WiFi/BT) into the M.2 slot. Please be aware that the module only fits in one orientation.

Diagram of a mechanical setup with a spring scale and downward force arrow (no text or symbols)

Step 4

Tighten the screw with a screwdriver to secure the module into place. Please do not overtighten the screw as this might damage the module.

2.9 M.2\_SSD (NGFF) Module Installation Guide (M2\_1 and M2\_2)

The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The Ultra M.2 Sockets (M2_1 and M2_2) support M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s).

* Please be noted that if M2_1 is occupied, SATA3_3 will be disabled.

Installing the M.2\_SSD (NGFF) Module

Pure electrical circuit lines without any symbols

Step 1

Prepare a M.2_SSD (NGFF) module and the screw.

Technical line drawing of a mechanical assembly with a component labeled A, showing no text or symbols.

Step 2

Gently insert the M.2 (NGFF) SSD module into the M.2 slot. Please be aware that the M.2 (NGFF) SSD module only fits in one orientation.

Technical line drawing of a mechanical component with a 20-degree angle标注 and a small inset view labeled A (no text or symbols beyond basic geometry)

No. 1

Nut Location A

PCB Length 8cm

Module Type Type 2280

Simple line drawing of a mechanical setup with a tool and a rectangular block, no text or symbols present.

Step 3

Tighten the screw with a screwdriver to secure the module into place. Please do not overtighten the screw as this might damage the module.

M.2\_SSD (NGFF) Module Support List

Vendor Interface P/N
ADATA SATA3 AXNS381E-128GM-B
ADATA SATA3 AXNS381E-256GM-B
ADATA SATA3 ASU800NS38-256GT-C
ADATA SATA3 ASU800NS38-512GT-C
Crucial SATA3 CT120M500SSD4
Crucial SATA3 CT240M500SSD4
Intel SATA3 Intel SSDSCKGW080A401/80G
Kingston SATA3 SM2280S3
Kingston PCIe2 x4 SH2280S3/480G
Plextor PCIe PX-G256M6e
Plextor PCIe PX-G512M6e
Samsung PCIe x4 XP941-512G (MZHPU512HCGL)
Team SATA3 TM8PS4128GMC105
Team SATA3 TM8PS4256GMC105
Transcend SATA3 TS512GMTS800
V-Color	SATA3 VLM100-120G-2280B-RD
V-Color	SATA3 VLM100-240G-2280RGB
V-Color	SATA3 VSM100-240G-2280
V-Color	SATA3 VLM100-240G-2280B-RD
WD	SATA3 WDS100T1B0B-00AS40
WD	SATA3 WDS240G1G0B-00RC30

For the latest updates of M.2_SSD (NFGG) module support list, please visit our website for details: http://www.asrock.com

2.10 ASRock Polychrome SYNC

ASRock Polychrome SYNC is a lighting control utility specifically designed for unique individuals with sophisticated tastes to build their own stylish colorful lighting system. Simply by connecting the LED strip, you can customize various lighting schemes and patterns, including Static, Breathing, Strobe, Cycling, Music, Wave and more.

Connecting the LED Strip

Connect your RGB LED strips to the RGB LED Headers (RGB_LED1 / RGB_LED2) on the motherboard.

1. Never install the RGB LED cable in the wrong orientation; otherwise, the cable may be damaged.
2. Before installing or removing your RGB LED cable, please power off your system and unplug the power cord from the power supply. Failure to do so may cause damages to motherboard components.

1. Please note that the RGB LED strips do not come with the package.
2. The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

Connecting the Addressable RGB LED Strip

Connect your Addressable RGB LED strips to the Addressable LED Headers (ADDR_LED1 / ADDR_LED2) on the motherboard.

1. Never install the RGB LED cable in the wrong orientation; otherwise, the cable may be damaged.
2. Before installing or removing your RGB LED cable, please power off your system and unplug the power cord from the power supply. Failure to do so may cause damages to motherboard components.

1. Please note that the RGB LED strips do not come with the package.
2. The RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V) and length within 2 meters.

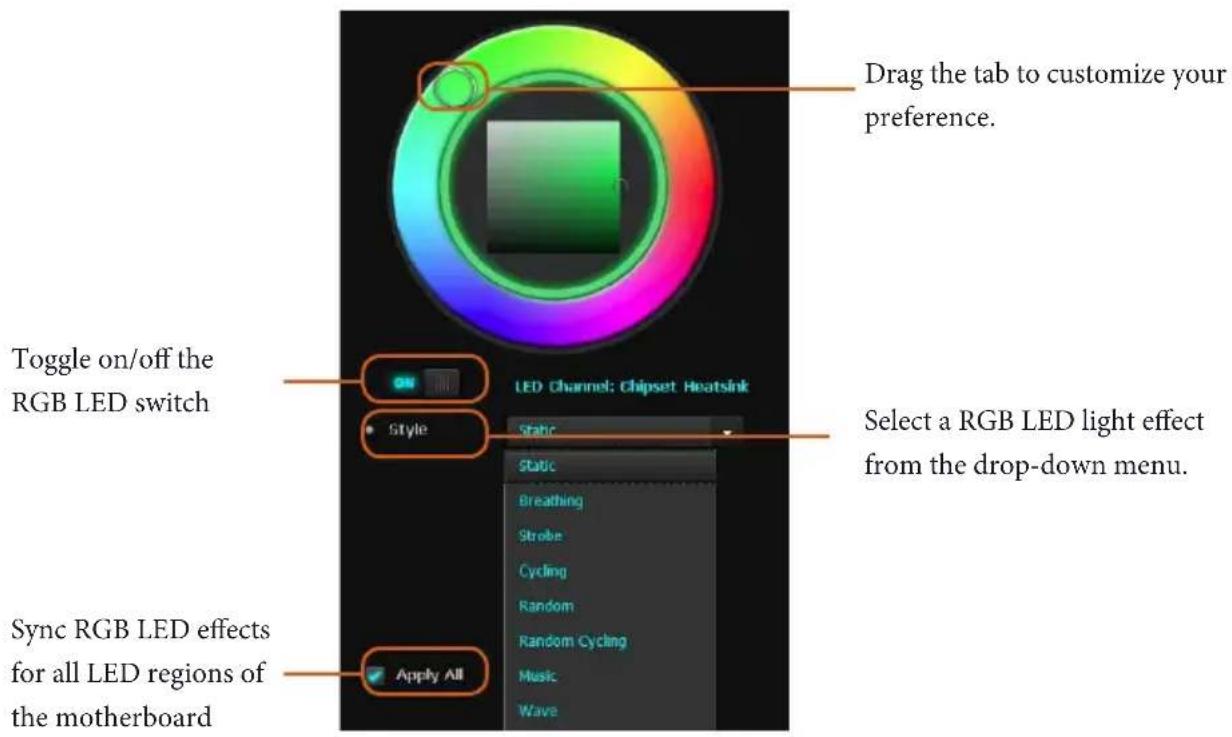

ASRock Polychrome SYNC Utility

Now you can adjust the RGB LED color through the ASRock Polychrome SYNC Utility. Download this utility from the ASRock Live Update & APP Shop and start coloring your PC style your way!

1 Einleitung

Serial-ATA-III-Anschlüsse

(SATA3_0:

siehe S. 1, Nr. 11)

(SATA3_1:

siehe S. 1, Nr. 12)

(SATA3_2:

siehe S. 1, Nr. 15)

(SATA3_3:

siehe S. 1, Nr. 16)

(4-polig, CHA_FAN1/WP)

(4-polig, CHA_FAN2/WP)

(4-polig, CHA_FAN3/WP)

(4-polig, CHA_FAN4/WP)

(4-polig, CPU_FAN2/WP)

(siehe S. 1, Nr. 6)

- Réglage de la tension CPU Core/Cache, GT, DRAM, VPPM, VT'DDDR, PCH 1,05V, VCCIO, VCCST, VCCSA, VCCPLL, VCCPLL_OC, CPU Internal PLL, GT PLL, Ring PLL, System Agent PLL, Memory Controller PLL Voltage Multi-adjustment

Embases USB 3.2 Gen1

- 4 x connettori SATA3 6,0 Gb/s, supportano RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 17), NCQ, AHCI e Hot Plug*

** Supporta kit ASRock U.2

Connettore

(CHA_FAN1/WP a 4 pin)

(CHA_FAN3/WP a 4 pin)

(CHA_FAN4/WP a 4 pin)

Apagar o Jumper CMOS (CLRMOS1)

(ver p.1, N.° 18)

Jumper de 2 pinos

- Codec Yang Dipercepat Hardware: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit, MPEG2, MJPEG, VC-1

If you need to contact ASRock or want to know more about ASRock, you're welcome to visit ASRock's website at http://www.asrock.com; or you may contact your dealer for further information. For technical questions, please submit a support request form at https://event.asrock.com/tsd.asp

ASRock Incorporation

2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District,

Taipei City 112, Taiwan (R.O.C.)

ASRock EUROPE B.V.

Bijsterhuizen 11-11

6546 AR Nijmegen

The Netherlands

Phone: [phone]

Fax: [phone]

ASRock America, Inc.

13848 Magnolia Ave, Chino, CA91710

U.S.A.

Phone: [phone]

Fax: [phone]

DECLARATION OF CONFORMITY

Per FCC Part 2 Section 2.1077(a)

Responsible Party Name: ASRock Incorporation

Address: 13848 Magnolia Ave, Chino, CA91710

Phone/Fax N o: [phone]/[phone]

hereby declares that the product

Product Name : Motherboard

Model Number : Z490M Pro4

Conforms to the following specifications:

☒ FCC Part 15, Subpart B, Unintentional Radiators

Supplementary Information:

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Representative Person's Name: James

Signature:

Date : May 12, 2017

EU Declaration of Conformity

ASRock

For the following equipment:

Motherboard

(Product Name)

Z490M Pro4 / ASRock

(Model Designation / Trade Name)

ASRock Incorporation

(Manufacturer Name)

2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District, Taipei City 112, Taiwan (R.O.C.)

(Manufacturer Address)

☒ EMC — Directive 2014/30/EU (from April 20th, 2016)

□ EN 55022:2010/AC:2011 Class B

EN 55024:2010/A1:2015

EN 55032:2012+AC:2013 Class B

EN 61000-3-3:2013

EN 61000-3-2:2014

☐ LVD — Directive 2014/35/EU (from April 20th, 2016)

□ EN 60950-1:2011+A2:2013 □

EN 60950-1:2006/A12:2011

☒ RoHS — Directive 2011/65/EU

☒ CE marking

(EU conformity marking)

CE

ASRock EUROPE B.V.

(Company Name)

Bijsterhuizen 1111 6546 AR Nijmegen The Netherlands

(Company Address)

Person responsible for making this declaration:

(Name, Surname)

A.V.P

(Position / Title)

May 15, 2020

(Date)

P/N: 15G062196001AK V1.1
