USER MANUAL Ninebot KickScooter F2 Pro E SEGWAY

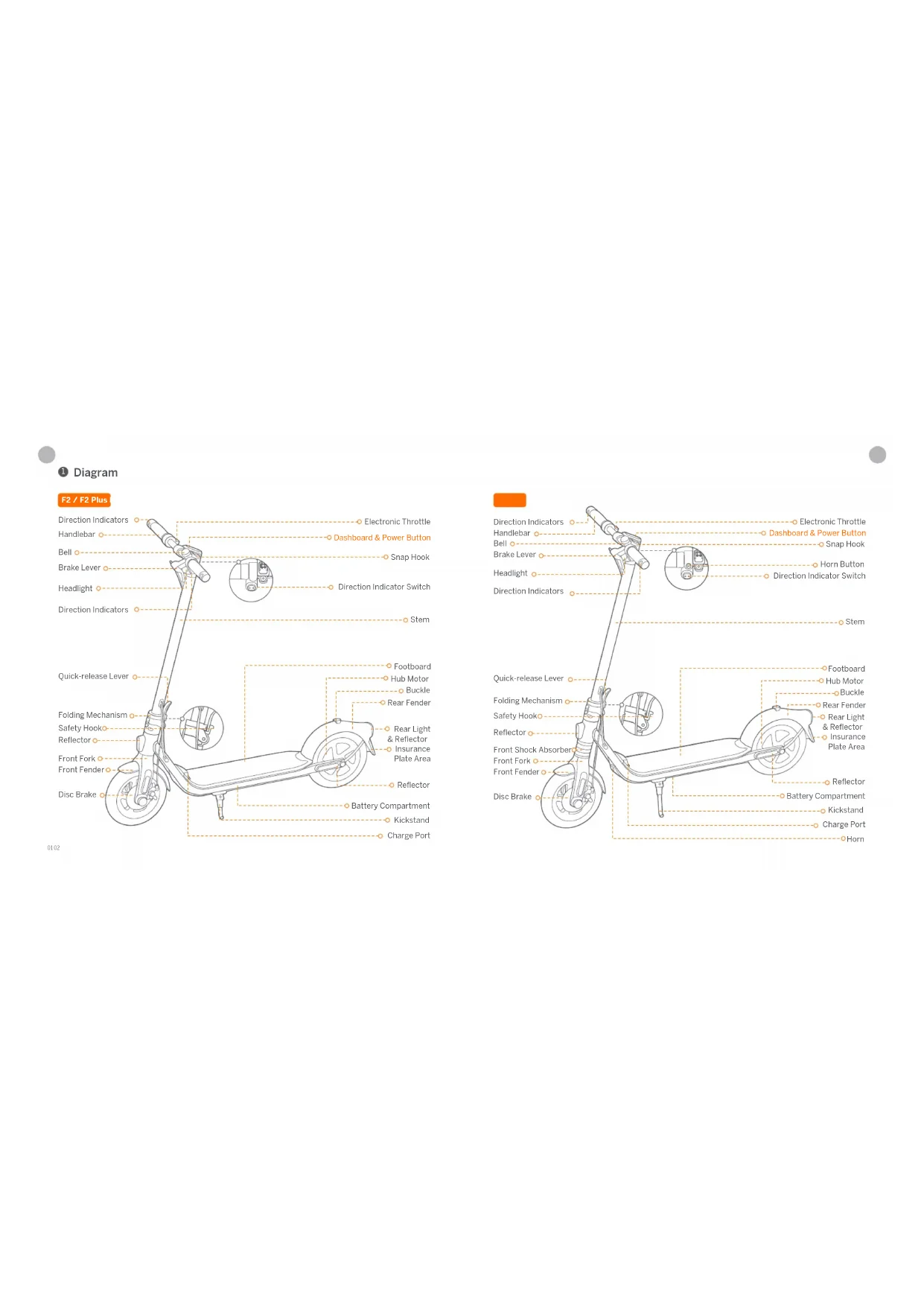

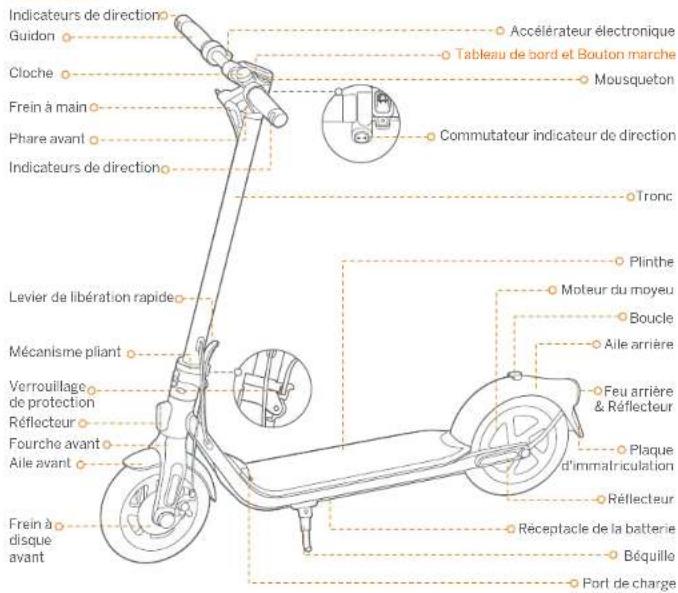

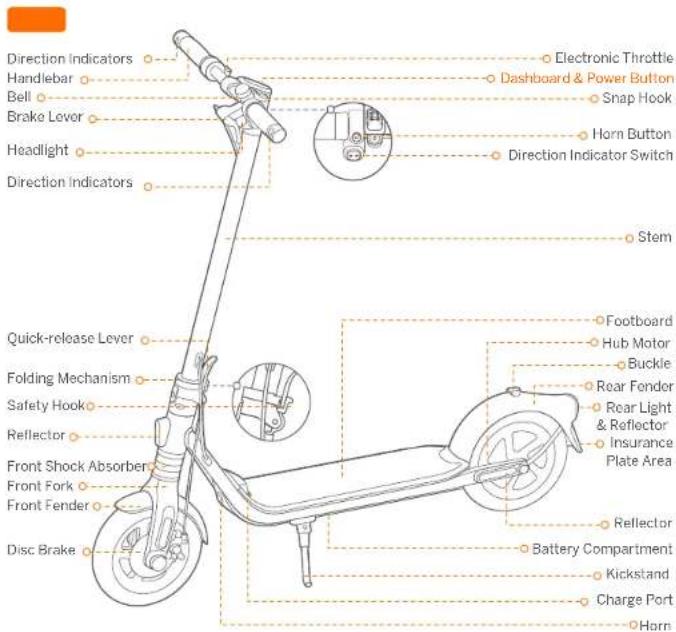

Bell Handlebar Electronic Throttle Snap Hook Direction Indicator Switch Dashboard & Power Button Safety Hook Brake Lever Headlight Direction Indicators Direction Indicators Stem Folding Mechanism Quick-release Lever Front Fork Front Fender Disc Brake Charge Port Footboard Buckle Hub Motor Rear Fender Rear Light & Reflector Reflector Reflector Kickstand Battery Compartment Insurance Plate Area F2 / F2 Plus F2 Pro Bell Handlebar Electronic Throttle Snap Hook Direction Indicator Switch Horn Button Dashboard & Power Button Safety Hook Brake Lever Headlight Direction Indicators Direction Indicators Stem Folding Mechanism Quick-release Lever Front Fork Front Shock Absorber Front Fender Disc Brake Charge Port Horn Footboard Buckle Hub Motor Rear Fender Rear Light & Reflector Reflector Reflector Kickstand Battery Compartment Insurance Plate Area

ENEN ENEN 140mmApprox. 1143.5 × 570 × 1214 mm (45 × 22.4 × 47.8 in) Approx. 1143.5 × 570 × 484 mm (45 × 22.4 × 19.1 in) Approx. 17.5 kg (38.6 lbs) Specifications

Product Rider Machine Battery Motor Charger Ninebot KickScooter F2 051201E Item Parameter Name Model Length × Width × Height Folded: Length × Width × Height Net Weight Max. Payload Recommended Age Required Height Max. Speed Theoretical Range [1] Max. Slope Traversable Terrain Operating Temperature Storage Temperature IP Rating Duration of Charging Nominal Voltage Max. Charging Voltage Nominal Energy Nominal Capacity Charging Ambient Temperature Battery Management System Input Voltage Max. Output Voltage Rated Output Output Power Tires Tire Pressure 10-inch Self-sealing tubeless tires 42-48 psi 100-240V ～ 50-60Hz 42 V 41 V 1.7 A

0–45°C (32–113°F) Over-heating, short circuit, over-current, over-discharge and over-charge protection Approx. 25 km/h (15.5 mph) Approx. 40 km (24.9 miles) Approx. 18% Most of the flat road conditions and typical Belgian roads -10–40°C (14–104°F) -10–50°C (14–122°F); recommended： 10~30°C: (50–86°F) IPX5 Approx. 6.5 h 120 kg (265 lbs) 16-55 years old 120–200 cm (3’11”–6’6”) [1] Theoretical Range: Tested while riding with a full battery, 75 kg （165 lbs） load, 25°C (77°F), 70% of max. speed on average on pavement.

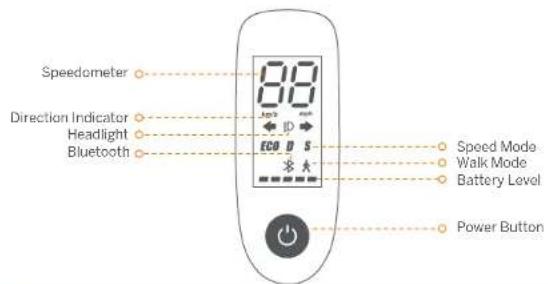

• Some of the factors that affect range include speed, load, number of starts and stops, ambient temperature, etc. Tire Power Button: Press the button to turn on; press and hold the button for 3 seconds to turn off. When the KickScooter is on, press the button to turn on/off the headlight and the rear light, and press twice to switch between the speed modes. Direction Indicator: When turning left or right, press the “←” (left) or “→” (right) switch on the direction indicator switch. Then the direction indicator will flash regularly which can be turned off by pressing the corresponding switch again. Speedometer: It displays the current speed of the scooter, as well as error codes. Walk Mode: Max. speed is 5 km/h (3.1 mph). 051201E / 051202E / 051203E: The headlight and rear light keep flashing and can't be turned off. 051201D / 051202D / 051203D: The headlight and rear light are always on and can't be turned off.

• How to enable it in the Segway-Ninebot app: Tap the sidebar menu > Settings > Walk Mode. Speed Mode: There are three modes. The top speed is as follows: Bluetooth: It indicates that the scooter has been successfully connected to the mobile device. Battery Level: The total battery level equals 5 bars.

• The battery power is very low when the first battery bar is red. Please charge your KickScooter immediately. Dashboard & Power Button Speedometer Bluetooth Headlight Speed Mode Walk Mode Battery Level Power Button Direction Indicator Model Name Mode 051201E 051202E 051203E051201D 051202D F2 F2 Plus F2 Pro 051203D 15 km/h (9.3 mph) 20 km/h (12.4 mph) ECO (Energy-saving mode) D (Standard mode) S (Sport mode) 25 km/h (15.5 mph) 25 km/h (15.5 mph) 20 km/h (12.4 mph) 20 km/h (12.4 mph) 25 km/h (15.5 mph) 20 km/h (12.4 mph) 051201D Approx. 20 km/h (12.4 mph) ENEN ENEN[1] Theoretical Range: Tested while riding with a full battery, 75 kg （165 lbs） load, 25°C (77°F), 70% of max. speed on average on pavement.

• Some of the factors that affect range include speed, load, number of starts and stops, ambient temperature, etc. [1] Theoretical Range: Tested while riding with a full battery, 75 kg （165 lbs） load, 25°C (77°F), 70% of max. speed on average on pavement.

• Some of the factors that affect range include speed, load, number of starts and stops, ambient temperature, etc. Approx. 1143.5 × 570 × 1214 mm (45 × 22.4 × 47.8 in) Approx. 1143.5 × 570 × 484 mm (45 × 22.4 × 19.1 in) Approx. 17.7 kg (39 lbs) Product Rider Machine Battery Motor Charger Ninebot KickScooter F2 Plus 051202E Item Parameter Name Model Length × Width × Height Folded: Length × Width × Height Net Weight Max. Payload Recommended Age Required Height Max. Speed Theoretical Range [1] Max. Slope Traversable Terrain Operating Temperature Storage Temperature IP Rating Duration of Charging Nominal Voltage Max. Charging Voltage Nominal Energy Nominal Capacity Charging Ambient Temperature Battery Management System Input Voltage Max. Output Voltage Rated Output Output Power Tires Tire Pressure 10-inch Self-sealing tubeless tires 42-48 psi 100-240V ～ 50-60Hz 42 V 41 V 1.7 A

0–45°C (32–113°F) Over-heating, short circuit, over-current, over-discharge and over-charge protection Approx. 25 km/h (15.5 mph) Approx. 55 km (34.2 miles) Approx. 20% Most of the flat road conditions and typical Belgian roads -10–40°C (14–104°F) -10–50°C (14–122°F); recommended: 10~30°C: (50–86°F) IPX5 Approx. 8 h 120 kg (265 lbs) 16-55 years old 120–200 cm (3’11”–6’6”) Tire 051202D Approx. 20 km/h (12.4 mph) Approx. 1158.5 × 570 × 1252 mm (45.6 × 22.4 × 49.3 in) Approx. 1158.5 × 570 × 529 mm (45.6 × 22.4 × 20.8 in) Approx. 18.5 kg (40.8 lbs) Product Rider Machine Battery Motor Charger Ninebot KickScooter F2 Pro 051203E Item Parameter Name Model Length × Width × Height Folded: Length × Width × Height Net Weight Max. Payload Recommended Age Required Height Max. Speed Theoretical Range [1] Max. Slope Traversable Terrain Operating Temperature Storage Temperature IP Rating Duration of Charging Nominal Voltage Max. Charging Voltage Nominal Energy Nominal Capacity Charging Ambient Temperature Battery Management System Input Voltage Max. Output Voltage Rated Output Output Power Tires Tire Pressure 10-inch Self-sealing tubeless tires 42-48 psi 100-240V ～ 50-60Hz 42 V 41 V 1.7 A

0–45°C (32–113°F) Over-heating, short circuit, over-current, over-discharge and over-charge protection Approx. 25 km/h (15.5 mph) Approx. 55 km (34.2 miles) Approx. 22% Most of the flat road conditions and typical Belgian roads -10–40°C (14–104°F) -10–50°C (14–122°F); recommended: 10~30°C: (50–86°F) IPX5 Approx. 8 h 120 kg (265 lbs) 16-55 years old 120–200 cm (3’11”–6’6”) Tire 051203D Approx. 20 km/h (12.4 mph)

ENENRecommended Maintenance Schedule

To ensure safe riding, day to day care and regular maintenance are essential. You, the owner, havecontrolandknowledgeof howoftenyouuseyourscooter,howhardyouuseitandwhereyouuseit. It is the owner's responsibility to perform regular checks and bring your scooter to authorized service center for inspection and service. Please refer to the maintenance schedule below. Note: This maintenance schedule charges a service fee. Item Component Mainframe parts Use a soft, wet cloth to wipe the mainframe clean. Mainframe maintenance Function Inspection Maintenance method Every 3 months Every 6 months or every 500 km (310 miles)

Tire pressure Inflate tires to 50-55 psi

Tire wear Check if the tires are cracked, deformed, or significantly worn. Screws on the stem top Screws on the folding mechanism Disc brake base Hub motor Front wheel maintenance Tighten the screws fixed with the handlebar and the stem. The suggested torque is 5.5±0.5 N·m. Tighten the screw on the throttle. The suggested torque is 3.5±0.1 N·m. Tighten the screws on the brake lever. The suggested torque is 5.5±0.1 N·m. Tighten the screws on the stem top. The suggested torque is 10±0.5 N·m. Tighten the screw fixed with the front fork and screw in the core position of the folding structure (visible after folding). The suggested torque is 10±1 N·m. Tighten the screws on both sides. The suggested torque is 12.5±1 N·m. Tighten screws to fix disc brake base. The suggested torque is 7.7±0.2 N·m. To accelerate and decelerate, check if the hub motor is stalled or has abnormal sounds. Check if the front wheel is stalled or gets shaky, or the axis shaft is unbalanced.

Item Component Brake adjustment Brake pads If the brake is too tight/loose, use the 4 mm Allen key to loosen the screw on the caliper. Then slightly adjust the brake line (decrease/increase the exposed length), and tighten the screw again. Spin the wheels, the caliper should be aligned with the rotor and they shouldn't rub on the brake pads. Taillight Squeeze the brake lever, the tail light works normally. Headlight Check the headlight and see if it lights brightly. Direction indicators Toggle the direction indicator button to the left/right respectively, check if the direction indicators on the left/right side flash normally. Dashboard Power on the scooter, the dashboard works properly. Buzzer Power on/off the scooter, the buzzer sound is normal. Horn（Only for F2 Pro） Press the horn button and the sound is loud. Bell Ring the bell and the sound is loud. Throttle Press and hold the throttle then release it, checking for acceleration and deceleration. Note: Release it, check if the throttle will back to the position. Fault detection Charging After connecting with the Segway-Ninebot app: 1) Update the firmware to the latest version. 2) Check if the notification of the corresponding error code and possible causes will prompt when the scooter detects an error Charge the scooter: 1) Check if the current battery power displays on the dashboard. 2) Check the LED indicator on the battery charger. Charging: red, Fully charged: green. Function Inspection Maintenance method Every 3 months Every 6 months or every 500 km (310 miles) Every 12 months or every 1,000 km (621 miles) Every 36 months or every 15,000 km (9,320 miles) Every 12 months or every 1,000 km (621 miles) Every 36 months or every 15,000 km (9,320 miles)

European Union Compliance Statement Waste Electrical and Electronic Equipment (WEEE) Directive This symbol on the product or on its packaging indicates that used electrical and electronic products should not be mixed with unsorted municipal waste. For proper treatment, it is your responsibility to dispose of your waste equipment by arranging to return it to designated collection points. Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling. Penalties may be applicable for incorrect disposal of this waste, in accordance with your national legislation. Please contact your local authority for further details of your nearest designated collection point. Battery recycling information for Users This symbol means that batteries and accumulators, at their end-of-life, should not be mixed with unsorted municipal waste. Your participation is an important part of the effort to minimize the impact of batteries and accumulators on the environment and on human health. For proper recycling you can return this product or the batteries or accumulators it contains to your supplier or to a designated collection point. Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling. Penalties may be applicable for incorrect disposal of this waste, in accordance with your national legislation. there are separate collection systems for used batteries and accumulators. Please, dispose of batteries and accumulators correctly at your local community waste collection/recycling center. Radio Equipment Directive Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of the Radio Equipment Directive 2014/53/EU. Restriction of the use of certain hazardous substances (RoHS) Directive Ninebot (Changzhou) Tech Co., Ltd. hereby declares the whole product including parts (cables, cords, and so on) meets the requirements of RoHS Directive 2011/65/EU and amendment Commission Delegated Directive (EU) 2015/863 on the restriction of the use of certain hazardous substances in electrical and electronic equipment ("RoHS recast" or "RoHS 2.0"). Machinery Directive Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of the Machinery Directive 2006/42/EC. Item Component Control buttons Press or toggle the button 3 times without failure. Turning Test with left turns and right turns (the steering angle is 60). No resistance or lag when turning. Function Inspection Battery assembly Controller Hub motor Front wheel assembly Throttle & Brake lever Front fork assembly Folding mechanism Brake disc Disc brake base Dashboard Cover The battery need to be replaced when it is charged and discharged for 500 times or the total mileage is more than 10,000 km (6,213 miles). Note: It is recommended to charge once every 60 days for long-term storage. Important parts Functional parts Maintenance method Every 3 months Every 6 months or every 500 km (310 miles)

After 3 years' or 15,000 km's (9,320 miles') riding, the abnormal parts of the kickscooter have to be repleced immediately. Every 12 months or every 1,000 km (621 miles) Every 36 months or every 15,000 km (9,320 miles) ENENEU Authorised Representative: Segway-Ninebot Europe Dynamostraat 7, 1014 BN Amsterdam, The Netherlands. Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product model: 051201D / 051202D / 051203D / 051201E / 051202E / 051203E comply with the essential requirements and other relevant provisions of the Radio Equipment Directive 2014/53/EU，the machinery directive 2006/42/EC, and the RoHS Directive 2011/65/EU and amendment Commission Delegated Directive (EU) 2015/863. The declaration of conformity can be viewed at the following address: http://eu-en.segway.com/support-instructions UK Compliance Statement Radio Equipment Regulations 2017 Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of Radio Equipment Regulations 2017. The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 Ninebot (Changzhou) Tech Co., Ltd. hereby declares the whole product including parts (cables, cords, and so on) meets the requirements of The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012. Supply of Machinery (Safety) Regulations 2008 Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of The Safety of Supply of Machinery (Safety) Regulations 2008. UK Authorised Representative： UKCA Experts Ltd. Dept 302, 43 Owston Road Carcroft, Doncaster, DN6 8DA, United Kingdom Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product model: 051201E. 051202E, 051203E comply with the essential requirements and other relevant provisions of the Radio Equipment Regulations 2017，Supply of Machinery (Safety) Regulations 2008 and the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012. The declaration of conformity can be viewed at the following address: www.segway.com Bluetooth Frequency Band(s) Max. RF Power 2.4000-2.4835 GHz 20 mW

Trademark Ninebot is the trademark of Ninebot (Beijing) Tech Co., Ltd; Segway and the Rider Design are the registered trademarks of Segway Inc., App Store, Apple Logo, Apple, Apple Find My, Apple Watch, Find My, iPhone, iPad, iPadOS, Mac, macOS and watchOS are trademarks of Apple Inc. IOS is a trademark of Cisco and is used under license. Google Play and the Google Play logo are trademarks of Google LLC.The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Segway-Ninebot is under license. Other trademarks and trade names are those of their respective owners. The KickScooter is covered by relevant patents. For patent information, go to http://www.segway.com We have attempted to include descriptions and instructions for all the functions of the KickScooter at the time of printing. However, due to constant improvement of product features and changes of design, your KickScooter may difer slightly from the one shown in this document. Scan the QR code or visit the Apple App Store (iOS) or the Google Play Store (Android) to download and install the App. Please note that there are multiple Segway and Ninebot models with different functions, and some of the functions mentioned herein may not be applicable to your unit. The manufacturer reserves the right to change the design and functionality of the KickScooter product and documentation without prior notice. © 2023 Ninebot (Beijing) Tech Co. Ltd. All rights reserved. （※The Segway-Ninebot App can support KickScooter with built-in Bluetooth) Use of the Works with Apple badge means that a product has been designed to work specifically with the technology identified in the badge and has been certified by the product manufacturer to meet Apple Find My network product specifications and requirements. Apple is not responsible for the operation of this device or use of this product or its compliance with safety and regulatory standards.

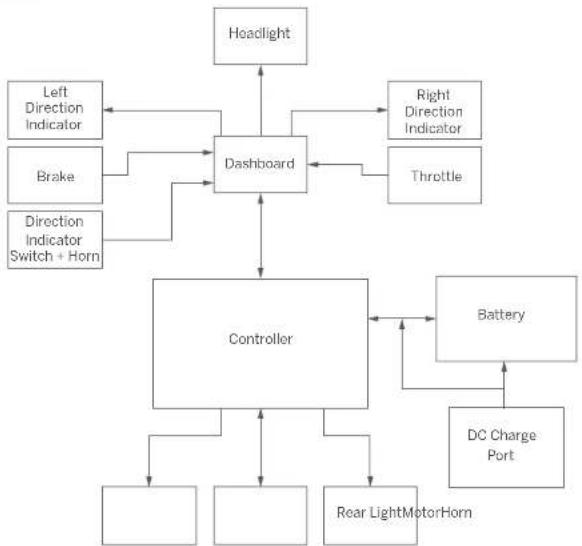

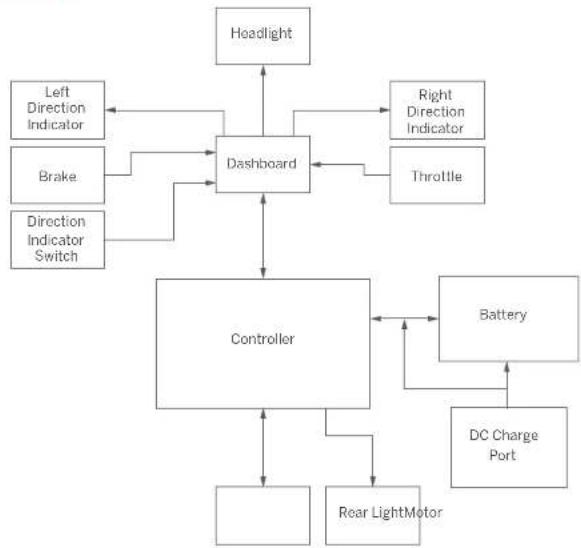

Wiring Diagram Headlight Left Direction Indicator Brake Direction Indicator Switch Dashboard Controller Right Direction Indicator Throttle Battery DC Charge Port Rear LightMotor

Common Failures Possible causesError code Solution 10 Bluetooth communication failure Check the connection of dashboard communication wire and control cable, or contact after-sales service or an authorized dealer.

Abnormal 1A phase current sampling of motor Please contact after-sales service or an authorized dealer.

Abnormal 1B phase current sampling of motor Please contact after-sales service or an authorized dealer.

Abnormal 1C phase current sampling of motor Please contact after-sales service or an authorized dealer. 14 Abnormal throttle hall sampling Check whether the throttle is pressed when powered on, or contact after-sales service or an authorized dealer. 15 Abnormal brake hall sampling Check whether the brake lever is squeezed when powered on, or contact after-sales service or an authorized dealer. 18 Abnormal motor hall signal Check whether the hall socket is loose, or contact after-sales service or an authorized dealer. 23 Default battery SN Please contact after-sales service or an authorized dealer. 24 Abnormal default voltage Check whether the connection wire of battery to controller is loose, or contact after-sales service or an authorized dealer. 26 Abnormal data writing/reading Please contact after-sales service or an authorized dealer. 31 Incorrect FLASH operation Please contact after-sales service or an authorized dealer. 35 Default KickScootery SN Check whether KickScooter still keeps default SN. 39 Abnormal battery temperature Check the working environment of battery, or contact after-sales service or an authorized dealer. 40 Abnormal controller NTC 41 Abnormal motor NTC

Abnormal mother wire current sampling Please contact after-sales service or an authorized dealer. 21 Battery communication failure Check whether the wire connected with the battery communication wire and controller is loose, or contact after-sales service or an authorized dealer. An open-circuit or short circuit happens in controller NTC (only for products with controller NTC) An open-circuit or short circuit happens in motor NTC (only for products with motor NTC)
