USER MANUAL S_CG501DC Vonroc

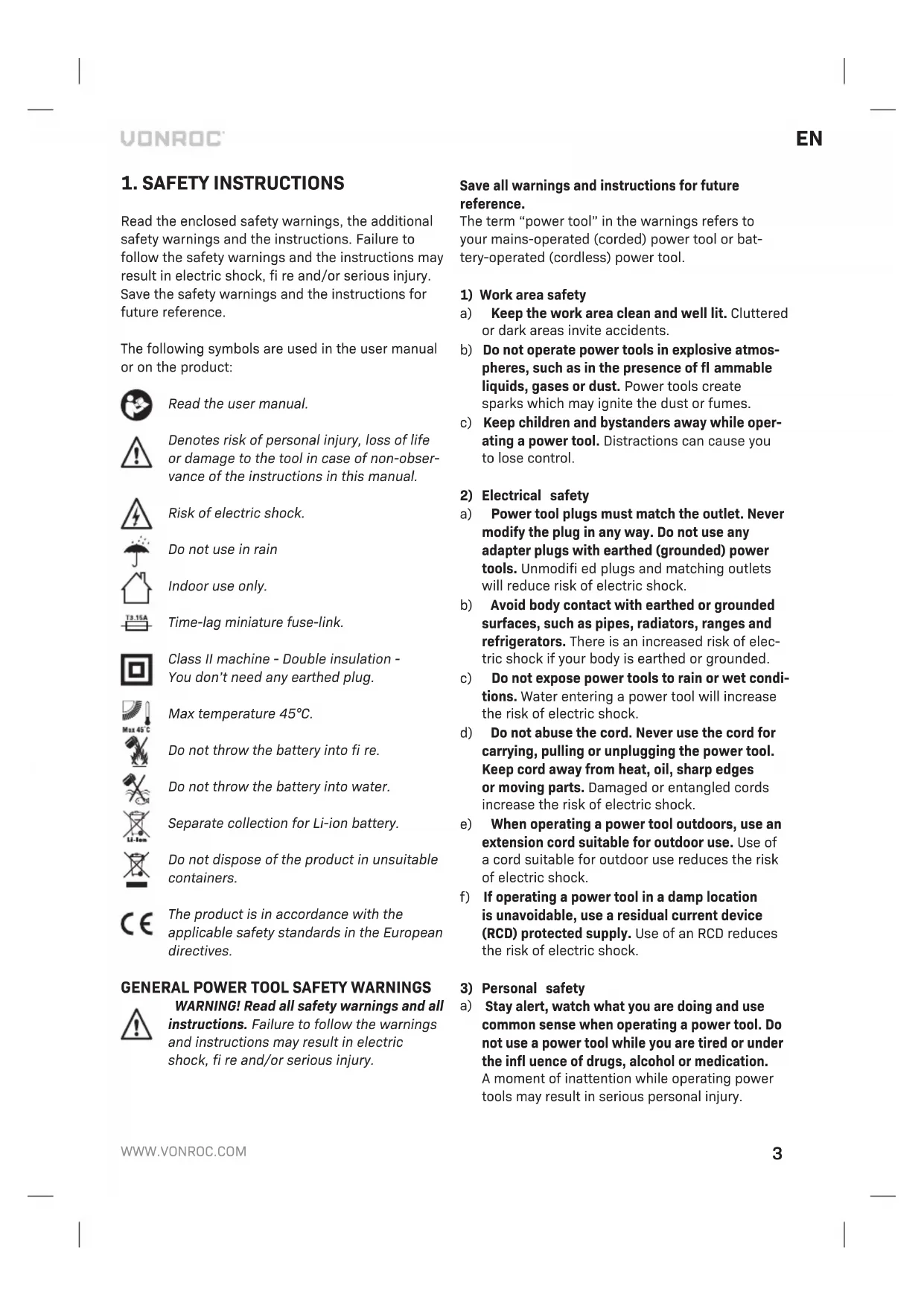

Read the enclosed safety warnings, the additional safety warnings and the instructions. Failure to follow the safety warnings and the instructions may result in electric shock, fi re and/or serious injury. Save the safety warnings and the instructions for future reference. The following symbols are used in the user manual or on the product: Read the user manual. Denotes risk of personal injury, loss of life or damage to the tool in case of non-obser- vance of the instructions in this manual. Risk of electric shock. Do not use in rain Indoor use only. Time-lag miniature fuse-link. Class II machine - Double insulation - You don’t need any earthed plug. Max temperature 45°C. Do not throw the battery into fi re. Do not throw the battery into water. Separate collection for Li-ion battery. Do not dispose of the product in unsuitable containers. The product is in accordance with the applicable safety standards in the European directives.

GENERAL POWER TOOL SAFETY WARNINGS

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fi re and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or bat- tery-operated (cordless) power tool.

a) Keep the work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmos- pheres, such as in the presence of fl ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while oper- ating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodifi ed plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of elec- tric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet condi- tions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the infl uence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.4

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your fi nger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewel- lery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust related hazards.

Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

Disconnect the plug from the power source and/ or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of chil- dren and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, tak- ing into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Battery tool use and care

a) Recharge only with the charger specifi ed by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fi re when used with another battery pack. b) Use power tools only with specifi cally design- ated battery packs. Use of any other battery packs may create a risk of injury and fi re.

When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fi re.

Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, fl ush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. e) Do not use a battery pack or tool that is damaged or modifi ed. Damaged or modifi ed batteries may exhibit unpredictable behaviour resulting in fi re, explosion or risk of injury.

Do not expose a battery pack or tool to fi re or excessive temperature. Exposure to fi re or temperature above 130 °C may cause explosion. NOTE The temperature „130 °C“ can be replaced by the temperature „265 °F“.EN

Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specifi ed in the instructions. Charging improperly or at temperatures outside the specifi ed range may damage the battery and increase the risk of fi re.

a) Have your power tool serviced by a qualifi ed repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

• Do not continue to press the On/Off switch after the caulking gun has been automatically switched off. This can damage the battery.

• When working with the cordless caulking gun, use personal protective equipment recommend- ed by the manufacturer of the consumable. You can fi nd information about this in the safety data sheet for the consumable.

• Always wear safety goggles and gloves that are suitable for handling chemical substances. Depending on the material, further protective measures may be necessary.

• This power tool may only be used to dispense sealants and adhesives from standard cartridg- es. Dispensing other types of materials or using customer-specifi c packaging systems is strictly prohibited.

• When working with volatile or hazardous sub- stances, ensure that the workplace is suffi - ciently ventilated and that suitable breathing apparatus is worn if necessary.

• Ensure that the cartridges are the right size for this power tool. Ensure that the cartridges fi t well in the cartridge holder and that this holder is securely attached to the power tool. Only then should you begin to dispense material.

• Never try to dispense material from an incor- rectly aligned or blocked cartridge.

• Never point the power tool at yourself or anyone else during use.

• In case of damage and improper use of the battery, vapours may be emitted. The battery can set alight or explode. Ensure the area is well ventilated and seek medical attention should you experience any adverse effects. The vapours may irritate the respiratory system.

• Do not open the battery. There is a risk of short-circuiting.

• The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit may occur, causing the battery to burn, smoke, explode or overheat.

2. MACHINE INFORMATION

Intended use The caulking gun is suitable for applying sealants and adhesive compounds of various viscosities to dry surfaces that are free from dust and grease or for fi lling joints with the material used. The caulking gun can also be used outdoors in areas protected against splashing water. TECHNICAL SPECIFICATIONS This manual has been drawn up for different sets / article numbers. Check the corresponding article number in below specifi cations table for the correct composition and contents of your set. Model No. Batteries included Chargers included CG501DC

Model No. CD801AA Battery Type Lithium-IonVoltage 20V Capacity 2.0 AhRecommended charger CD802AAWeight 0.3 kg Model No. CD802AA Charger input 220-240V, 50Hz 0.4ACharger output 21V 2.5ACharging time 2Ah battery 60 minutesCharging time 4Ah battery 120 minutesRecommended batteries CD801AA, CD803AAWeight 0.36 kg Model No. CD803AA Battery Type Lithium-IonVoltage 20V Capacity 4.0 AhRecommended charger CD802AAWeight 0.65 kg Only use the following batteries of the VONROC VPOWER 20V battery platform. Using any other bat- teries could cause serious injury or damage the tool. CD801AA 20V, 2Ah Lithium-Ion CD803AA 20V, 4Ah Lithium-Ion The following charger of the can be used to charge these batteries. CD802AA Quick charger The batteries of the VONROC VPOWER 20V battery platform are interchangeable with all the VONROC VPOWER 20V battery platform tools. DESCRIPTION The numbers in the text refer to the diagrams on pages 2.

Remove the battery before carrying out any work on the power tool. The battery must be charged before fi rst use. Inserting the battery into the machine (Fig. B-1) Ensure that the exterior of the battery is clean and dry before connecting to the charger or machine.

1. Insert the battery (9) into the base of the ma-

chine as shown in Fig. B-1.

2. Push the battery further forward until it clicks

into place. Removing the battery from the machine (Fig. B-1)

1. Push the battery unlock button (10).

2. Pull the battery out of the machine like shown

in Fig. B-1. Checking the battery charging status (Fig. B-2)

• To check the battery charge status, push the button (11) on battery shortly.

• The battery has 3 lights indicating the charge level, the more lights that burn, the more charge the battery has left.

When the lights are not burning it means the bat- tery is empty and must be charged immediately. Charging the battery with the charger (Fig. B-2)

1. Take the battery (9) from the machine.

2. Turn the battery (9) to upside down position and

slide it onto the charger (13) as shown in Fig. B-2.

3. Push the battery until it is fully pushed into the

4. Plug the charger plug into an electrical outlet

and wait for a while. The LED indicators on the charger (14) will lighten up and show the charg- er status.EN

The charger has 2 LED indicators (12) which indi- cate the status of the charging process: Red LED Status Green LED status Charger status Off Off No power Off On Standby mode: - No battery is inserted or, - Battery inserted but charging has fi nished On Off Battery charging in progress Inserting the Cartridge

• Pull the rack (3) backwards using the rack handle (7).

• Cut open the front side of the cartridge and screw on a dispensing nozzle.

• Insert the cartridge into the cartridge holder (1).

• Slide the unlocked rack (3) forwards until the plunger (2) comes into contact with the cartridge.

• If necessary, cut the dispensing nozzle to size, so that it ideally meets your requirements.

Adjusting the Feed Rate

• You may adjust the feed rate of the rack (3) by pressing the (+) or (-) buttons (5/6) while simul- taneously pressing the trigger switch (8).

• Four different speeds can be selected, the selected speed is shown by the indicator lights (4). Note that the amount of material squeezed out depends on two factors: The size of the opening in the dispensing nozzle and the se- lected feed rate. Switching On and Off

• To switch on the caulking gun, press the trigger switch (8). The rack (3) will start moving for- wards.

• To switch off the caulking gun, release the trigger switch (8). The rack (3) will move back- wards slightly into a parking position to stop unwanted dripping. Working Advice

• Comply with the manufacturer's instructions regarding the material to be applied. Certain materials can only be used within a certain temperature range or can only be applied to specifi c surfaces.

• Open and use the cartridges in accordance with the manufacturer's specifi cations.

• Only trim the dispensing nozzle if the material is securely within the cartridge holder.

• Adjust the feed rate to ensure a smooth and consistent application of material in one appli- cation.

• Ensure that the surface onto which the material is to be applied is clean, dry and free from grease.

Maintenance and Cleaning Remove the battery from the power tool before carrying out work on the power tool (e.g. maintenance, changing tool, etc.). The battery should also be re-moved for transport and storage. There is risk of injury from unintentionally pressing the on/off switch.

• To ensure safe and effi cient operation, always keep the power tool and the ventilation slots clean.

• Clean the dispensing nozzles, the cartridge holder and the rack with he press thoroughly after each use in accordance with the speci- fi cations provided by the manufacturer of the consumable. The battery and the handle can be cleaned using a damp cloth.

• The caulking gun is maintenance-free and does not contain any parts that need to be replaced or maintained. ENVIRONMENT Faulty and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations. Only for EC countries Do not dispose of power tools into domestic waste. According to the European Guideline 2012/19/EC for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.8

WARRANTY VONROC products are developed to the highest quality standards and are guaranteed free of defects in both materials and workmanship for the period lawfully stipulated starting from the date of original purchase. Should the product develop any failure during this period due to defective material and/or workmanship then contact VONROC directly. The following circumstances are excluded from this guarantee:

• Repairs and or alterations have been made or attempted to the machine by unauthorized service centers;

• Normal wear and tear;

• The tool has been abused, misused or improp- erly maintained;

• Non-original spare parts have been used. This constitutes the sole warranty made by compa- ny either expressed or implied. There are no other warranties expressed or implied which extend beyond the face hereof, herein, including the im- plied warranties of merchantability and fi tness for a particular purpose. In no event shall VONROC be liable for any incidental or consequential damages. The dealers remedies shall be limited to repair or replacement of nonconforming units or parts. The product and the user manual are subject to change. Specifi cations can be changed without further notice.

DECLARATION OF CONFORMITY
