VP100 - Vacuum Cleaner NILFISK - Free user manual and instructions

Brand	Nilfisk
Model	VP100
Product type	Vacuum cleaner
Power supply	Mains, 220-240 V (estimated)
Power	Not specified
Tank capacity	Not specified
Filtration type	Dust bag, motor pre-filter, main basket filter, exhaust filter
Included accessories	Suction hose, suction tube, round brush nozzle, angled nozzle, conversion connector
Main functions	Dry vacuuming, suction force adjustment, automatic shut-off (level sensor)
Maintenance and cleaning	Check and replace dust bag, clean filters regularly, store in dry, ventilated place
Safety	Do not vacuum hot materials, liquids, or flammable substances; check cord before use; unplug before maintenance
Spare parts and repairability	Dust bag, motor pre-filter, main basket filter, exhaust filter; contact authorized dealer
Warranty	12 months against manufacturing defects

Frequently Asked Questions - VP100 NILFISK

How to start the Nilfisk VP100 vacuum cleaner?

Plug in the power cord, then press the red switch located on the machine head. To stop, press the switch again.

How to install the dust bag?

Insert the latex ring of the bag into the suction opening of the container, then place the bag flat inside the container. Make sure the main basket filter is correctly positioned (side 'Back' towards the back of the machine).

What to do if suction is weak?

First check if the dust bag is full. If not, inspect the main basket filter, motor pre-filter, and exhaust filter; clean or replace them if necessary.

How to clean the main basket filter?

After use, remove the filter and dust it off or brush it. It must be completely dry before reinstalling.

What types of waste should not be vacuumed?

Never vacuum hot materials (ashes, chimney), liquids, flammable gases, or explosive dust. The machine is designed only for dry vacuuming of non-hazardous dust.

How to adjust the suction force?

Use the suction force regulator located on the hose handle. Turn it to adjust the suction as needed.

What to do if the suction hose is blocked?

Unplug the device, remove the hose and visually check for a blockage. If necessary, use a long object to gently clear it.

Where to find spare parts?

Contact your retailer or an authorized Nilfisk dealer. Use only recommended accessories from the manufacturer.

How to maintain the exhaust filter?

Check it at least once a month (or more depending on usage). Clean or replace it if damaged. It is located behind the exhaust shutter.

What is the vacuum's warranty?

The machine has a 12-month warranty against manufacturing defects. In case of any issues, contact your point of sale or an authorized Nilfisk dealer.

USER MANUAL VP100 NILFISK

V Dry Vacuum Cleaner

Instruction for use

6/29 REV D Form

No.VA81568

TABLE OF CONTENTS

ENGLISH OPERATING INSTRUCTIONS 1-8

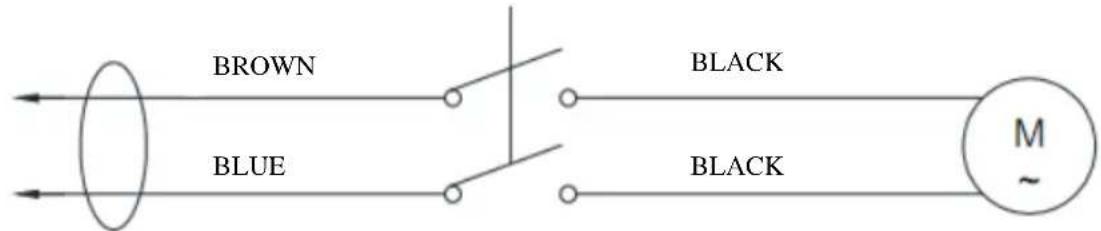

VP100 10L Dry Vacuum Cleaner Circuit Connection Diagram

SWITCH

220-240V 50/60Hz

POWER CORD

Product Specification Parameter (F8)

Model No.	Capacity (L)	Voltage (V)	Frequency (Hz)	Power (W)	Vacuum (mmH20)	Air Flow (ltr/min)	Noise (dBA)	Weight (Kg)	Size (LxWxH)mm
VP100	1 0	220~240	50/60	880	2200	1834	75	5.2	340x325x340

Instrucon:

• This machine is typically used in hotels, schools, oces, hospitals and commercial buildings
• This manual should be read thoroughly before operaoa.
• Please use the recommended accessories when operang the machine.

Before operang this machine:

• Make sure that all components including cable, plug and switch, are in good working order and ensure that the operacon voltage is in accordance with the required voltage rang of the machine.

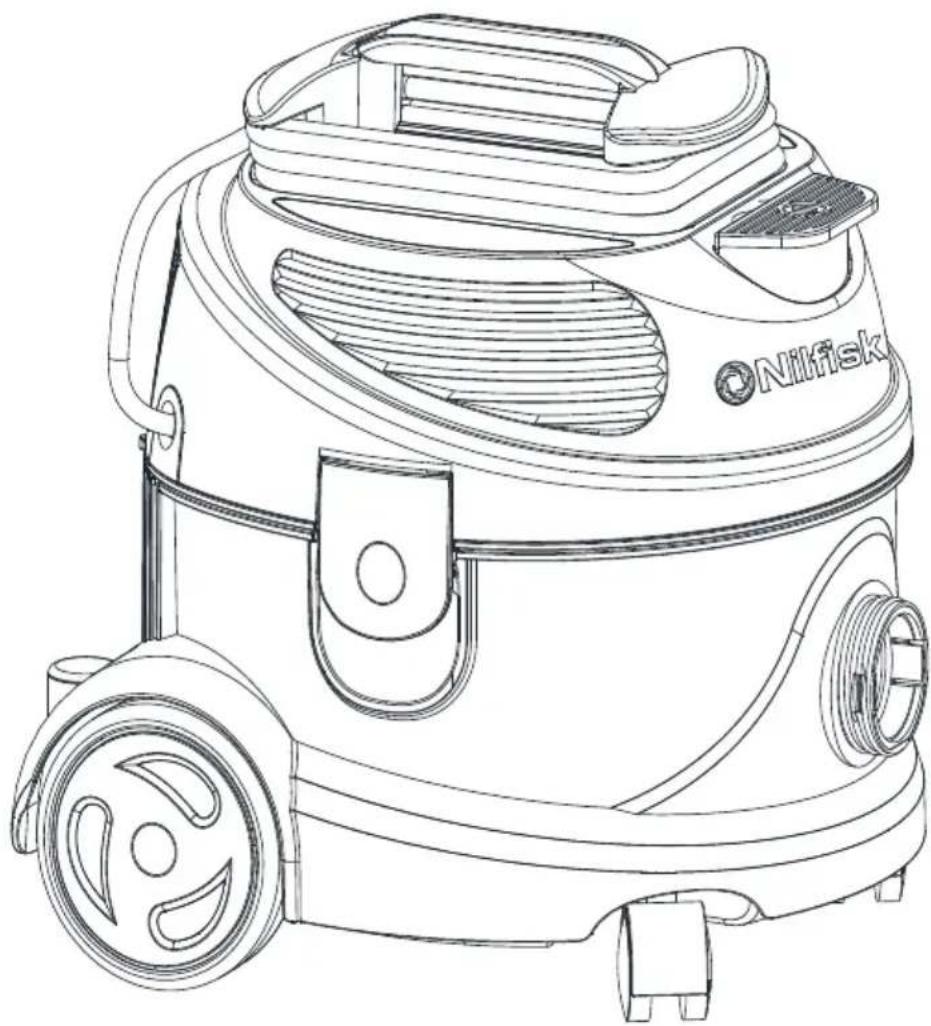

Descrizon of the construcon of the device. For parts diagrams of construcon, refer to "F1" Diagram on page 3.

1. Power cord, 2. Latch, 3. Rear wheel, 4. Handle, 5. Power switch, 6. Logo, 7. Hose connecn, 8. Caster wheel, 9. Serial number label, 10. Exhaust cover, 11. Exhaust liter sponge,
2. Accessory storage 13. Combinaon tool storage posion, 14. Motor head assembly, 15. Motor preIter (coon), 16. Main Iter basket, 17. Dust bag, 18. Container, 19. Inlet, 20. Adapter coupling, 21. Sucon hose connector, 22. Sucon hose, 23. Bent end, 24. Pressure regulator, 25. Hard/so oor switch, 26. Combinaon nozzle, 27. Steel tube, 28. Dusng tool, 29. Crevice tool Remark: the parts or accessories are subject to change without prior noce.

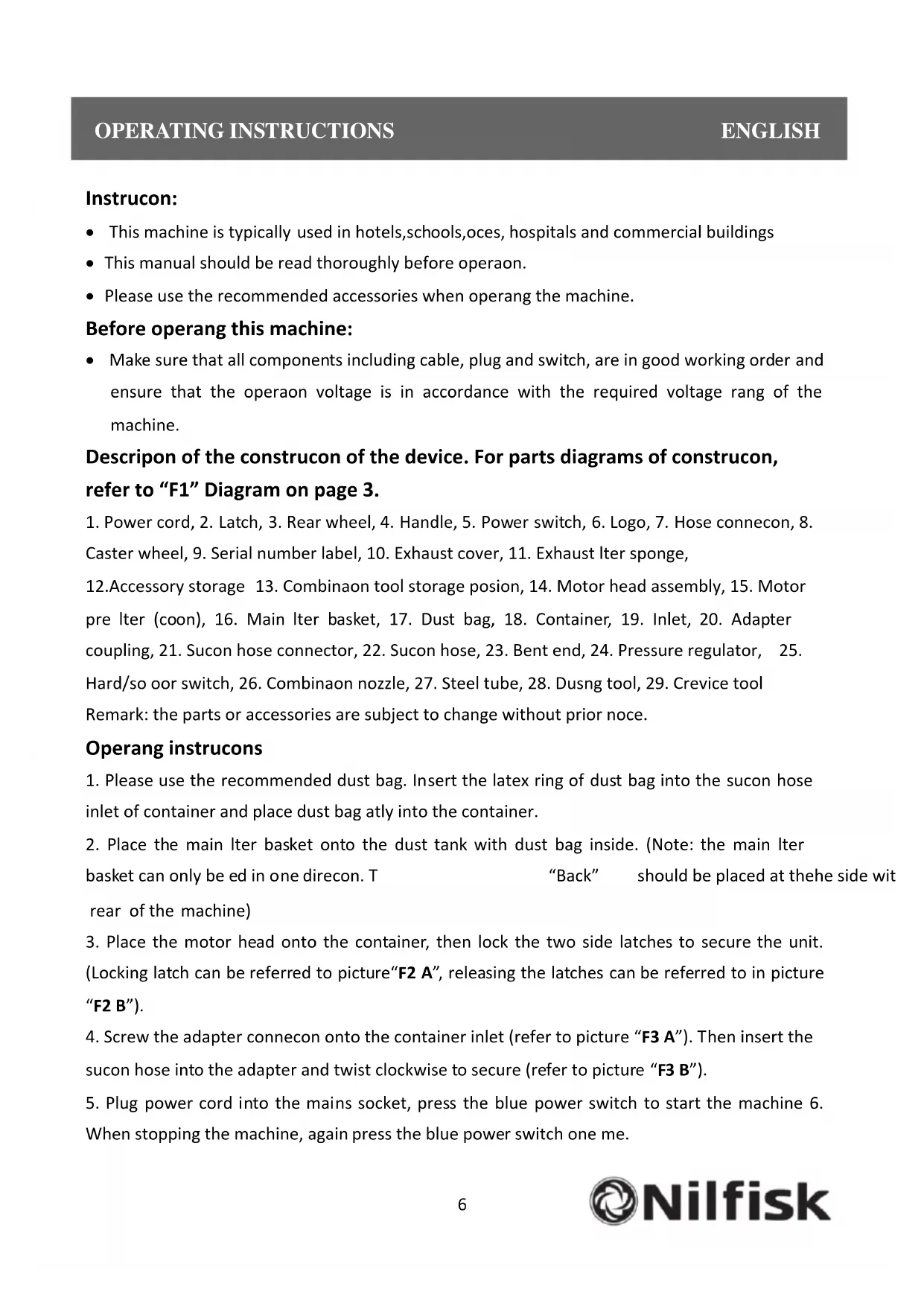

Operang instrucons

1. Please use the recommended dust bag. Insert the latex ring of dust bag into the sucon hose inlet of container and place dust bag atly into the container.

2. Place the main Iter basket onto the dust tank with dust bag inside. (Note: the main Iter basket can only be ed in one direcon. T "Back" should be placed at the he side wit rear of the machine)

3. Place the motor head onto the container, then lock the two side latches to secure the unit. (Locking latch can be referred to picture "F2 A", releasing the latches can be referred to in picture "F2 B").

4. Screw the adapter connecion onto the container inlet (refer to picture "F3 A"). Then insert the sucon hose into the adapter and twist clockwise to secure (refer to picture "F3 B").

5. Plug power cord into the mains socket, press the blue power switch to start the machine 6. When stopping the machine, again press the blue power switch one me.

6. The crevice tool can be used for cleaning narrow and hard to reach areas, the dusting brush can be used for cleaning softer surfaces such as upholstery or curtains.

Warranty

This product has been designed to provide trouble free operation for a number of years with the correct maintenance. The machine comes with a 12 month manufactures warranty against component defects.

In the unlikely event that your Nilfisk product develops a fault please contact the place of purchase or your nearest authorised Nilfisk dealer.

The warranty does not cover:

1. Incorrect or improper operation of the machine
2. Parts damaged by improper use or neglect
3. Machine structure damaged due to improper use or neglect

Care and Maintenance

1. Aer using, place the machine in dry and venlated place
2. Before using this product please check the condion of the pre Iter, dust bag and main Iter and replace as required
3. Remove the sucon hose and check for obstrucons or damage
4. If during use the machine suers from a lack of sucon, rstly check that the dust bag is not full, then check the main liter basket, motor pre liter are not blocked
5. Periodically you should clean the main iter
6. If water is used to clean the main liter, the liter must be completely dry before using the machine again

Warning

As with all electrical equipment care and aenon must be exercised at all mes during its use. In addition ensure that roune and preventave maintenance is carried out periodically in order to maintain safe and ecient operaoon. Failure to carry out maintenance as necessary, including the replacement of parts to the correct standard could render this equipment unsafe and the manufacturer cannot accept responsibility or liability in this respect.

This machine is not suitable for hazardous materials such as hazardous or ammable dust or other explosive materials. It is the customers' responsibility to carry out a thorough risk assessment before using this product.

• Do not clean hot materials such as replaces, roasters and other objects containing hot materials
  Do not vacuum water, liquids or ammable gasses.
• If the power cord or plug has any damage, do not use this machine. Before using the machine, check the power cord and plug is not damaged or shows signs of ageing. If any damage is found to the power cord or plug, please contact the nearest authorised service center.
• Don't touch the power cord and plug when your hand is wet. When you need to remove the plug, always hold the plug (not the cable), then pull the plug out of the power socket. Before carrying out any maintenance on the machine you should turn o the power and remove the plug from the power socket.
  This machine is only to be used by persons who have been trained and have read this manual.

Storage

1. Storage mode of cleaner accessories (crevice tool,dusng brush) can be referred to in picture F3.
2. For the correct way to carry the machine with accessories, refer to picture F4. The incorrect way to carry the machine is referred to in picture F5
3. For machine stacking storage, refer to picture F6.

Circuit connecdiagram:

Circuit connecdiagram is referred to in F7.

Product specicaon parameter

For specicaon parameters F8efer to "

Anleitung:

YpeIbT He e IIOxOJa3a IIOuHCTBaHe Ha OIIaCHMaTePHaJIi KaTO: OIIaceH IIpaX, 3aIIaJIIMn IJIN B3pHBOONacHN MaTePHaJIi. OIIeHBAHeTo Ha pNcKa, IIpeIi H3IOJI3BaHe Ha ypeHa, e OTROBOPHOCT Ha KJIHeHTa.
He noHCTBaIte ropeIIIN IOBbpxHOCTH, KOMHHN, IeIIIN HIN dpYTH N3TOHHIIHN Ha TOnJIHa.
He 3acMyKbaIte BOda, TeHHoCTH HJIN JIEcHOaIIaJIHMn Ra3OBe.

Ako 3axpaHbaIHHaJI HJIN IeIcCEJIbT ca IOBpeHn, He H3IOJI3BaHTe ypeHa. IIpeHn yIOTpe6a npOBepraBaHTe JaJIN 3axpaHbaIIHHaJIH nJIN IeIcCEJIbT ca IOBpeHn HJIN B JIOIIIO cbCTOAHHe. Ako e Taka, CbByPKeTe ce c HaJ-6JIH3KnOΦHIIHaJIeH cepBn3.
He IOKocBaIte Ka6eJa HJIN IIeIcEJa c MOKpn PbIe. 3a Ja H3KJIIOHTe OT KOHTaKTa, IpBIIHeTe IIeIceJa a He Ka6eJa. IpeiHa H3BbPbIBaTe KaKBHTo H Ja e JeIHOCTH IO IIOIpBjKKaTa, H3KJIIOUeTe ypeJa OT KOHTaKTa.
YpeIbT TpI6Ba Ia ce H3IOJI3Ba cAmO oT o6yHe IepcoHaJI HJIH cJIeI IIpoHTaHe Ha pIbKOBoIcTBOTO 3a yIIOTppe6a.

CbxpaHHe

1. NaHHbT 3a cBxpaHЯBaHe Ha IOuHcTBaIIHTe HApaiHHIi (HaKpaHHK 3a bIi, HApaiHHK 3a IIoHcTBaHe Ha Iipax) e IOKa3aH Ha φHypa F3.
   2.ПраВиЛнгТ haunH 3a HocHe Ha IIpaXOCMyKaUkAta H IIprHJIeKaIIHTe H akceCoapH e IOKa3aH Ha ФИгур a F4, a HeIIpaВиЛнгT -Ha ФИгур F5.
2. IIO3HIIHOHHpaHETo H cbXpaHeHHeTo Ha ypeJa ca yka3aHn Ha qHpya F6.

EJIeKtpnuecka cxema

EJIeKtpnuecKaTaNHaRpaMa e IIOka3aHa Ha fHrypa F7.

TexHHueckn xapaKTepeHCTHKN

BnKTe Ta6JInIa"F8".

HnctpyKu:

• YcTpoIcTBO IIINpOKO HcIIIOJIb3yeTcB OTeJIax, IIKoJIax, MaRa3HHax, OΦHCax, 60JIbHHuaX, IJIa KOMMepuecko n IDOMaIIHeN y6OpKn.
  BHHMaTeJIbHO IpoUHTaIe HNCTpyKcHIO IpeEINcIOJIb3OBAHHem.
  IcnoJIb3yInTe peKomeHdyemBie KOMIIeKTyIOIIne npn pa6ore cyctpoICTBOM.

IepeHnCIOJb3OBaHHem ycTpoiCTBa:

• Y6eIITecb, YTO BBIOJIHHOTcB BCE Tpe6oBaHnTexHHKn 6e3OaCHocTH, y6eINTecb, YTO HAcToIIeC HaIPJKeHHe COBIIaJaT C Tpe6oBaHnMn HaIPJKeHn IJIaHHOrO yCTPOIcTba.

OIIHcAHHe KOHcTpkyKuHH ycTpoHcTBa. 3a IIOJpO6HbIM OIIHcAHHeM DeTaJIeH, o6paIaIteCb K dHaqrpaMMe "F1" Ha cTpaHnE 3.

1. IIHyp IIHTaIIH 2. 3aIbIXKa 3. 4.3 IIOIMOBoe o6paTHoe 6OJIbIIoe KOJIeCo 4. Puyka 5. BbIKJIIOuATEJIb IIHTaHH 6. JIoROTNI 7. OTBepCTHe pe3epByapa BCacbIBaHH 8. HeHaIIpaBJIeHHOE KOJIeCo 9. 3HaK cepHIHO rHOmepa 10. BbIXJIOIIH a KpbIIka 11. BbIXJIOIIH a ry6Ka NJIbTpTa
2. KoJIOHHa IIЯ xpaHeHHЯ IDIJIHNITeJIbHbIX qacTei 13. IcxOJHOe IIOJOKeHHe KOM6HHnpOBaHHOrO HnCTpyMeHTa 14. OCHOBHaj c6Opka 15. XJIOKOBbl ΦIIbTp MoTopa 16. Kop3HHa ochOBHoro _IIbTp 17. MeIok IIra IIbIIN 18. C6Opka IIJIec6OpHnKa 19.

HnctpyKuHHIO HcIIb30BaHHIO

1. Историяе рекомендуемы меник дя сбopa пьлн. Всторияе пьлдусоконе кеника в OTBERРСТHE BCASIBAHNY Пьлдусоконе КОТЕНЕРа, распОЛДКИТe MEПОК дя сбopa пьлду РВНОВ KОТЕНЕРс.
2. PacIOJIOKHTe cETky rJIaBHOrO fHJBtpa B IIbJIec6OpHOM pe3epByape, pIOM c IIbJIec6OpHbIM MeIIKOM. (IprHMeUaIIHe: pacIOJIOKeHHe cETKN fHJBtpa HMeet HaIIpaBJIeHHe, cTOpOHa c MapKnIpOBkOi "Ha3aI" IOJIgKa 6bITb HAnpabJIeHa K 3aIdHei cTOpOHe ycTPOiCTBa.)
3. PacnoIOJKeToIOBky yCTpoIcTba, 3aTeM 3aKpoIte 3aIIeJIky Ha roIOBKe yCTpoIcTba. (BIOKpyIOyIO 3aIIeJIky MOxHO yBnIeTB Ha pncyHke "F2 A", ocJa6JIIOyIO 3aIIeJIky MoXHO yBnIeTB Ha pncyHke "F2 B").

4.BCTaBbTe pa3bem BCacbIBaHOeIro ⅢJaHra B pa3bem Ipeo6pa3OBaTeJIbHOrO BnHTa, 3aTeM 3a6IOKpyIte IIOTHO (cm. pncyHOK "F3 A"), 3aTeM IocoeINHITe BnHT rOΦpnpoBaHHORO IIIJaHra B c6ope K BnHTy C pe3b60I NbJIec6OpHNka (cm. pncyHOK "F3 B").
5. ПОДКЛЮЧNTe IIIHyp пHTaHHЯ K pa3bemy, НжмTe КpacHBи NepeKJIIOUaTeJIb ДЛЯ 3aIycka yctpoiCTBa.
6. Ipn ocTaHOBKe ycToPiCtBa, eHIOKJbHaKMHTe KpaCHbI IIpeKJIIOHaTeJIb.
7. IIeJIeBaHa hacaIka MoKeT HcIOJIb3OBAtbcra IJIa OChCTKN B y3KHX N TpyJHOIOCTyIHbIX paHOHax, KHe TB c6opa IIJIIM MoKeT 6bITb HcIOJIb3OBAHa IJIa OChCTKN IIITOP.

TapaHTn

3TOT IpoIyKT 6bJI pa3pa6OtaH IIJI IpeIOCTaBJIeHHN 6ecIIpO6JIeMHOrO o6cJIyKHNHa IIpoTJKeHHN HeCKoJIbKHX JET IIprn YcJIOBHH IIpaBNIbHO rCIOJIb3OBAHHN. YcTPOIcTB0 HMeet 12-MecIHyIO 3aBOJcKyo rapaHTHIO Ha cJIyau Na HaxOJdeHHN JeΦeKTOB.
B MaIOBepoTHom cIyue, yTo BaI IpoIyKT Nilfisk BbIaet HeNCIIpaBHOCTb IooKaJIyIcTa, CBXHTecb C MeCTOM IOKyIKN IIIN O6paTHTeCB K 6JIHKaIIMeMy aBTOpH3OBaHHOMy IJIepy Nilfisk
1. HeIIpaBnJIbHOe HJIN HeKOppeKTHoe HcIOJIb3OBaHHe ycTpOcTBA.
2. DeTaJIH, IOBpeKJdeHHbIe Iprn HeIIpaBUNJBHom HcIOJIb3OBaHHN JIn XaJIaTHOM o6paIeHHN.
3. OchOBHa a ctpyKtpa, IOBpeJdeHna IIprn HeIIpaBbHOM HcIOJIb3ObaHHN HJIaTHOM oBaIeHH.

YxOДи 06cIyXuBaHne

EU Declaration of Conformity

We,

Hereby solely declare,that the product:

Product Description Type
Vacuum cleaner VP100 Vacuum Cleaner VP100 series

Is in compliance with the following standards:

Id and Version Title
EN 60335-1:2012	Household and similar electrical appliances-Safety-Part 1:General requirements
EN 60335-2-69:2012	Household and similar electrical appliances-safety-Part 2-69:Particular requirements for wet and dry vacuum cleaners,including power brush for commercial use
EN55014-1:2006+A1:2009+A2:2011	Electromagnetic compatibility-Requirements for household appliances,electric tools and similar apparatus-Part 1:Emission
EN55014-2:1997+A1:2001+A2:2008	Electromagnetic compatibility-Requirements for household appliances,electric tools and similar apparatus-Part 2:Immunity-Product family standard
EN61000-3-2:2014	Electromagnetic compatibility(EMC)-part3-2:Limits-Limits for harmonic current emissions(equipment input current≤16 A per phase)
EN61000-3-3:2013	Electromagnetic compatibility(EMC)-Part3-3:Limits-Limitation of voltage changes,voltage fluctuations and flicker in public low-voltage supply systems,for equipment with rated current≤16 A per phase and not subject to conditional connection

Following the provisions of :

Machinery Directive 2006/42/EC

EMC Directive 2004/108/EC

Energy labelling of vacuum cleaners 665/2013/EC

Ecodesign requirements for vacuum cleaners 666/2013/EC

Dongguan 03-07-2015

Alex Sin

Vice President

Place Date Name&Title Signature

Nilfisk A/S

Kornmarksvej 1DK-2605 Brøndby Denmark

Tel.:[phone] Fax:[phone]

www.nilfisk.com
