USER MANUAL Ninebot KickScooter E2 Plus SEGWAY

0102

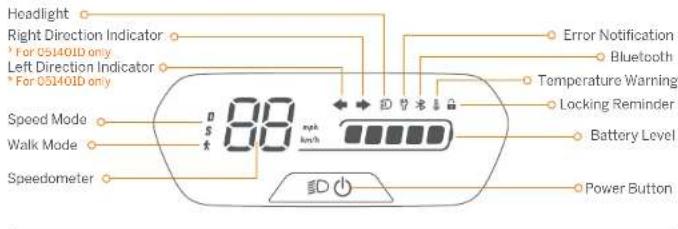

Dashboard & Power Button

Power Button: Press the button to power on the scooter press and hold the button for 2 seconds to power it off. When the scooter is on press the button to burn out off the headlight and the taillight, and press lever to switch between the speed mode.
Spandometer: It displays the current speed of the vccaler as well as emp codes.
Walk Mode: Max. speed is 5 km/h (3.1 mp)
The headlight and ball (g) are always on and can be turned off.
* How to enter in The Segway-Ninecol space: Sellings > Wall Monte.
Speed Mode. There are two modes available. The top speed is as follows:

Mode\Model	E2 Speed limit E2 Plus Speed limit
D (Standard mode)	15 km/h (9.3 mph)	20 km/h (12.4 mph)
S (Sport mode)	20 km/h (12.4 mph)	25 km/h (15.5 mph)

Left Direction Indicator: When this can bines, it indicates that the direction indicators on the left side are turned on.
Right Direction Indicator: When his own clinics, it indicates that the direct or medicalian on the right side are L-rated at
Error Notification: It indicates that the same or more selected error
Temperature Warning: Indicates that the salinity temperature has reached 55°C (31°F) or is below 0°C (37°F).
* At this point, the scooter cannot accelerate normally and may not be charged. Do not use until the temperature has reverted to the
the range
Bluetooth that calls that the scooter has been successfully connected to the mobile device
Battery Level: The total battery power equals 1 bar.
The battery power is very low when the first battery can be red. Please charge your scooter immediately.
Locking Reminder: When the icon lights up, it means the scooter is locked. If abnormal movements are detected, the scooter will start, beeping and the tail light will vanish.

② Specifications

	Item Parameter
Product	Name	Ninehot KickScoter C2
	Model	051401E	051401D 051401D
	Length × Width × Height	Approx. 1070 × 845 × 1740 mm(42.1 × 17.5 × 44.9 in)		Approx. 1070 × 473 × 1740 mm(42.1 × 18.6 × 44.9 in)
	Folded length × Width × Height	Approx. 1070 × 445 × 504 mm(42.1 × 17.5 × 19.8 in)		Approx. 1070 × 473 × 504 mm(42.1 × 18.6 × 19.8 in)
		Approx. 14.2 kg (31.3 lbs)/Net Weight
Rider	Max. Payload	90 kg (198 lbs)
	Recommended Age	14-60 years old
	Required Height	(50-90 cm (4.5-6.2))
Machine	Max. Speed	Approx. 20 km/h (12.4 min)
	Theoretical Range ^1	Approx. 25 km (15.5 miles)
	Typical Range ^n	Approx. 20 km (12.4 miles)
	Max. Slope	Approx. 12%
	Traversible Terrain	Mostly smooth roads or no malasphalt, tarmac roads
	Operating Temperature	-10~10°C (24~134°)
	Storage Temperature	-10~50°C (24~122°)
	P Rating	FXA
	Duration of Charging	Approx. 7.5 h
Battery	Nomine Voltage	21.5 V=
	Max. Charge Voltage	25.2 V=
	Charging Temperature	0°C~41°C (32~111°)
	Nomine Energy	220 Wt
	Nomine Capacity	10.2 Ah
	Battery Management System	Protection against overvoltage/undervoltage/short circuit/overcurrent/even temperature
Motor	Nomine Power 0.25 kW 250 W
	Max. power 0.75 kW 750 W
Charger	Model	NEW250VOLI-A-U NEW25 VOLIN-E-NW25 VOLIN-A-US
	Output Power	36.3 W
	Input Voltage	100-240 V~30-60 Hz
	Max. Output Voltage	25.2 V=
	Rated Output	24.2 V=1.5 A
Tire	Tires	8.1-inch inner hollow shock-absorbing tires
Other	Direction Indicators	N/A		Front and rear direct on indicators

1) Theoretical Range included range with and battery (the b-jung) and, 77°F (25°C), 70% or max rates or average or payment. 03 (4) Typical Range: listed while riding with a full battery, 1.55 bar (76 kg) load, 77°F (25°C), as the max speed or average on payment. * Some of the factors that affected range include speed loss, number of stars and overlaps, ambient temperature, etc.

	Item Parameter
Product	Name	N robot kickScooter (2 Plus
	Model	0514022	0514023
	Length × Width × Height	Approx. 1070 × 4/5 × 1/40 mm (42.1 × 17.5 × 44.9 in)
	Follow Length × Width × Legnt	Approx. 1070 × 445 × 504 mm (42.1 × 17.5 × 19.6 in)
	Net Weight	Approx. 16.4 kg (31.1/oz)
Rider	Max. Payload	50 kg (98 lbs)
	Recommended Age	14-60 years old
	Required Height	130-150 cm (43" - 07")
Machine	Max. Speed	Approx. 25 km/1 (15.5 mph)
	Theoretical Range	Approx. 25 km (15.5 miles)
	Typical Range	Approx. 20 km (12.4 miles)
	Max. Slope	Approx. 12%
	Traverscale Terrain	Mostly smooth roads or normal asphalt termac roads
	Operating Temperature	-10~40°C (14~104°F)
	Storage Temperature	-10~50°C (14~122°F)
	IP Rating	IP-X
	Duration of Charging	Approx. 7.5 h
Battery	Nominal Voltage	21.6 V = =
	Max. Charging Voltage	25.2 V = =
	Charging Temperature	0°C ~10°C (32~111°F)
	Nominal Energy	220 Wh
	Nominal Capacity	10.2 Ah
	Battery Management System	Protection against overvoltage/underwage/short circuit/overcuri-rem/over temperature
Motor	Nominal Power 0.5 kW 300 W
	Max. power 0.50 kW 500 W
Charger	Model NRW25201DSN FL	N&W250201DSN US
	Output Power	36.3 W
	Input Voltage	109/240 V~50/60 Hz
	Max. Output Voltage	25.2 V = =
	Rated Output	24.2 V = =1.5 A
Tire	Lires	8.1 inch inner hollow shock absorbing tires

[1] Theoretical Range, bested while riding with a full battery, 165 lbs (75 kg) load, 77°F (25°C), 70% of max. speed on average on pavement. [2] Typical Range, bested while riding with a full battery, 165 lbs (75 kg) load, 77°F (25°C) at the max. speed on average on pavement. * Some of the factors that affect range induce speed, load, number or starts and stops ambient temperature, etc.

EN EN

③ Certifications

This product is certified to ANSI/CAN/UL-2272 by TUV Rheinland.

The battery complies with UN/DOT 38.3.

The battery complies with ANSI/CAN/UL-2271.

European Union Compliance Statement

Important WEEE information

This symbol on the product or on its packaging indicates that used electrical and electronic products should not be mixed with unsorted municipal waste. For proper treatment, it is your responsibility to dispose of your waste equipment by arranging to return it to designated collection points. Dispensing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling. Penalties may be applicable for incorrect disposal of this waste, in accordance with your national legislation. Please contact your local authority for further details of your nearest designated collection point.

Battery recycling information for Users

This symbol means that batteries and accumulators, at their end-of-life, should not be mixed with unsorted municipal waste. Your participation is an important part of the effort to minimize the impact of batteries and accumulators on the environment and on human health. For proper recycling you can return this product or the batteries or accumulators it contains to your supplier or to a designated collection point. Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling. Penalties may be applicable for incorrect disposal of this waste, in accordance with your national legislation, there are separate collection systems for used batteries and accumulators. Please dispose of batteries and accumulators correctly at your local community waste collection/recycling center.

Radio Equipment Directive

Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of the Radio Equipment Directive 2014/53/EU.

Restriction of the use of certain hazardous substances (RoHS) Directive

Ninebot (Changzhou) Tech Co., Ltd. hereby declares the whole product including parts (cables, cords, and so on)

05.06

meets the requirements of RoHS Directive 2011/65/EU and amendment Commission Delegated Directive (EU) 2015/863 on the restriction of the use of certain hazardous substances in electrical and electronic equipment ("RoHS recast" or "RoHS 2.0").

Machinery Directive

Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of the Machinery Directive 2006/42/EC.

CE

EU Authorised Representative:

Segway-Ninebot Europe

Dynastraat 7, 1014 BN Amsterdam, The Netherlands. Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product model: 051401E, 051401B, 051401D, 051402E, 051402B comply with the essential requirements and other relevant provisions of the Radio Equipment Directive 2014/53/EU, the machinery directive 2006/42/EQ, and the ReHS Directive 2011/65/EU and amendment Commission Delegated Directive (EU) 2015/863.

The declaration of conformity can be viewed at the following address:

https://eu-en.segway.com/instruction-manuals

UK Compliance Statement

Radio Equipment Regulations 2017

Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of Radio Equipment Regulations 2017.

The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 Ninebot (Changzhou) Tech Co., Ltd. hereby declares the whole product including parts (cables, cords, and so on) meets the requirements of The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012.

Supply of Machinery (Safety) Regulations 2008

Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of The Safety of Supply of Machinery (Safety) Regulations 2008.

UK

UK Authorised Representative:

UKCA Experts Ltd.

Dept 302, 43 Owston Road Carcroft, Doncaster, DN6 8DA, United Kingdom

EN EN

Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product model: 051401B. 051402B comply with the essential requirements and other relevant provisions of the Radio Equipment Regulations 2017, Supply of Machinery (Safety) Regulations 2008 and the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012.

The declaration of conformity can be viewed at the following address: www.segway.com

Bluetooth	Frequency Band(s)	2.4000-2.4835GHz
	Max. RF Power	≤1mW

4 Trademark

Ninebot is the trademark of Ninebot (Beijing) Tech Co., Ltd; Segway and the Rider Design are the registered trademarks of Segway Inc., App Store and Apple Logo are trademarks of Apple Inc. Google Play and the Google Play logo are trademarks of Google LLC. The Bluetooth ^® word mark and logos are registered trademarks owned by Bluetooth 5iG, Inc. and any use of such marks by Segway-Ninebot is under license. Other trademarks and trade names are those of their respective owners.

The KickScooter is covered by relevant patents. For patent information, go to http://www.segway.com

We have attempted to include descriptions and instructions for all the functions of the KickScooter at the time of printing. However, due to constant improvement of product features and changes of design, your KickScooter may differ slightly from the one shown in this document. Scan the QR code or visit the Apple App Store (iOS) or the Google Play Store (Android) to download and install the App.

Please note that there are multiple Segway and Ninebot models with different functions, and some of the functions mentioned herein may not be applicable to your unit. The manufacturer reserves the right to change the design and functionality of the KickScoter product and documentation without prior notice.

© 2023 Ninebot (Beijing) Tech Co. Ltd. All rights reserved.

(※ The Segway-Ninebot App can support KickScooter with built-in Bluetooth)

⑤ Common Failures

	Possible causesError code Solution
10	Bluetooth communication failure	Check the connection of the dashboard communication wire and the control cable or contact after-sales service or an authorized dealer.
11	Abnormal 1A phase current sampling of motor	Please contact after-sales service or an authorized dealer.
12	Abnormal 1B phase current sampling of motor
13	Abnormal 1C phase current sampling of motor
14	Abnormal throttle rail sampling	Check whether the throttle is pressed when powered on, or contact after-sales service or an authorized dealer.
15	Abnormal brake rail sampling	Check whether the brakes lever is squeezed when powered on, or contact after sales service or an authorized dealer.
24	Abnormal default voltage	Check whether the wire connected with the battery cable and the control air is loose, or contact after sales service or an authorized dealer.
26	Abnormal data writing/reading	Please contact after-sales service or an authorized dealer.
31	Incorrect FL ASH operation
35	Default S/N	Check whether the KickScooter's S/N is the default S/N.
39	Abnormal battery temperature	Check the working environment of battery, or contact after-sales service or an authorized dealer.
40	Abnormal controller temperature	Controller temperature is too high, please contact after-sales service or an authorized dealer.
41	Abnormal motor temperature	Please contact after-sales service or an authorized dealer.
42	Motor not calibrated
45	Abnormal bus current sampling
50	Motor phase loss	Check whether the wire connected with the motor and the controller is loose, or contact after sales service or an authorized dealer.
52	Motor stalled	Check whether the KickScooter is overload or contact after sales service or an authorized dealer.

EN EN

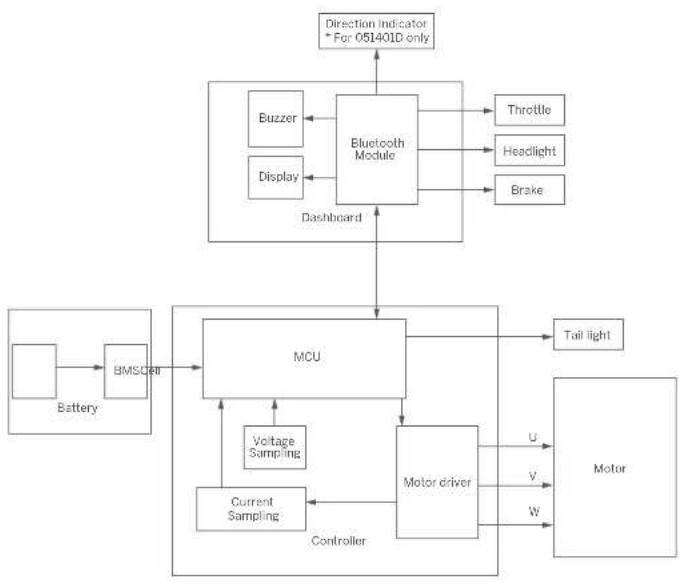

⑤ Wiring Diagram

⑦ Recommended Maintenance Schedule

To ensure safe riding, day to day care and regular maintenance are essential. You, the owner, have control and knowledge of how often you use your scooter, how hard you use, stand where you get. It is the owner's responsibility to perform regular checks and bring your scooter to authorized service center for inspection and service. Please refer to the maintenance schedule below.

Note: This maintenance schedule changes a service fee.

Item Component		Maintenance Method	Every 3 months	Every 6 months or every 300 miles (0-500 km)	After 2 years of the total mileage > 500/ miles (5000 km)
Mainframe maintenance	Mainframe arcs	Beas soft-wet cut to wipe the mainframe arc.	√	√	√
	Tire wear	Check if the tire are knocked, delivered, or significantly worn.		√	√
	Screen on the screen top	Ignen the six screws load with the handlebar and the screen. The suggested torque is 5.5 ± 0.3 Nm	√	√	√
		Ignen the screw on the throttle. The suggested torque is 2 ± 0.1 Nm.Tignen the screw on the brass lever. The suggested torque is 5 0.4 Nm.Tignen the screw on the screen top. The suggested torque is 2 ± 0.1 Nm.		√	√
Function inspection	Hub motor	To accelerate and decelerate check if the hub motor is sealed or has abnormal sounds.		√	√
	Rear where mainframe curve	Check if the rear wheel is stalled or gehar victory, or the axis shafts unbalanced.		√	√
	Onurn Brain	1)Spent a weather wheel, it pains naturally. The rear wheel shall not stuck or move abnormal sounds.Note: Slight nose does not affect doing safety. But if the drum brake makes a loud noise when you apply brakes, please correct customer service for support.2) Squeeze the brake lever, the rear whole stops moving.		√	√

EN EN

Item: Cornex and Maintenance: Mel Next			Poetry 3 (no.1)	Poetry 5 (no.1)	After 2 years of the last mileage >3007 miles (6000 km)
Function Inspection	Headlight Check	The headlight and sea still lights slightly		√	√
	Direct on indicators* For 054000 only	Toggle the direction indicates one or the left/right upper livery, check if the direction indicates one, the left/right side flash normally		√	√
	Dashboard Power on the scooter, the dashboard works proccry.			√	√
	Trollie	Press and note the throttle, then releases it checking for acceleration and deceleration.		√	√
	Fearl selection	After commencing with the Scokey Minirot app.2 Update the firmware to the latest version.2)Check if the notification of the corresponding error code and possible causes will prompt when the scooter detects an error.		√	√
	Changing	Charge the scooter.3)Check if the current battery power displays on the dashboard.2)Check the LCD indicator on the battery charger Charging grid, fully charged green.		√	√
	Buttons	Press or toggle the button 2 times without failure.		√	√
	Steaming	Test with off turns and right turns (the steering engine is 600+ no resistance or leg when turning).		√	√
Impair and parts	Battery assembly	The battery need is not replaced when it is changed and changes for 500 miles or the total mileage more than 625 miles (30000 km).Note it is recommended to charge once every 60 days for long-term storage.			√
	Controller	It is required that original Scokey Mini set parts shall be used for repairs and top accounts.

Item Component	Main entrance Method	Every 3 months	Every 6 months or every 310 miles (400 km)	After 2 years or first total mileage > 3107 miles (5000 km)
Functional parts	Rear wheel assembly	It is required that original Seaway Xnobot parts shall be used for repairs and replacements
	Front lift & blade levers
	Front fork assembly
	Fulcing mechanism
	Drum brake assembly
	East board

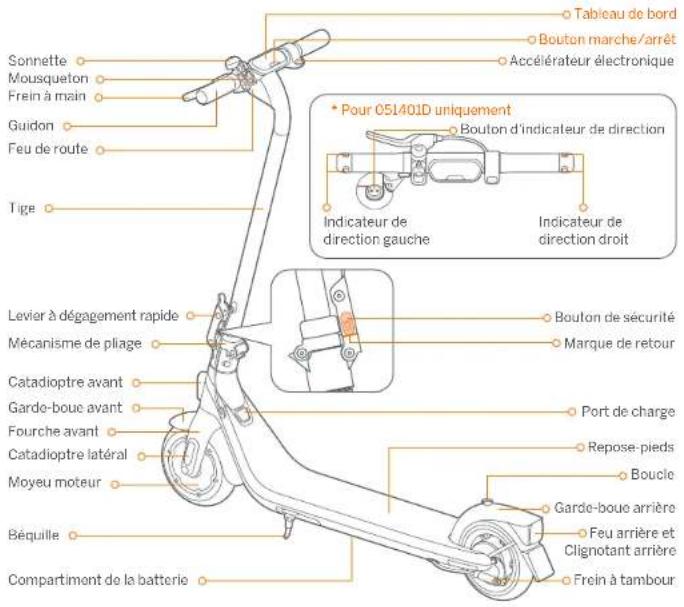

① Diagramme
