USER MANUAL Ninebot KickScooter E2 E II SEGWAY

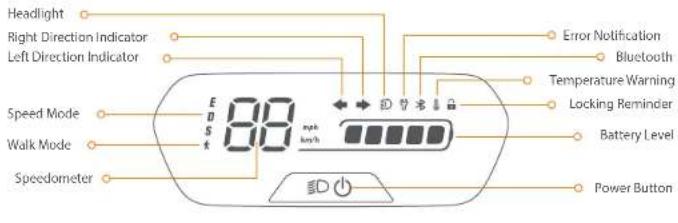

Dashboard & Power Button

Power Button Press the button to power on the scooter: press and hold the button for 2 seconds to power it off. When the scooter is on, press the button to turn off the headlight and the tail lights; and press twice to switch between the speed modes.

Speedometer it displays the current speed of the scooter, as well as error covariance.

Walk Mode: The headlight and tail lights are always on and can't be turned off.

Signed Media: There's arg 3 p

Mode	Model	C2 II Speed limit	C2 Plus II Speed limit	C2 II Ranges*	C2 Plus II Ranges*
E (energy saving mode)	15 km/h (9.3 mph)	15 km/h (9.3 mph)	25 km (15.5 miles)	25 km (15.5 miles)
D (standard model)	20 km/h (12.4 mph)	20 km/h (12.4 mph)	20 km (12.4 miles)	25 km (15.5 miles)
S (sport mode)	20 km/h (12.4 mph)	25 km/h (15.5 mph)	20 km (12.4 miles)	20 km (12.4 miles)

• Changes of Speed Modes: Tested while riding with a full battery, 75 ± 5 kg (165 ± 11) Ibs load, 25 ± 5°C (177 ± 41°F), at the max. speed of each speed mode on average on pavement.

Left Direction Indicator When this icon blinks it indicates that the direction indicators on the left side are turned on.

Right Direction Indicators: When this icon blinks, it indicates that the direction indicators on the right side are turned on.

Error Notification: It indicates that the scroller has detected

Ternatralnre Warrin, Itindicates that the atalry temperature has reached 55oC/131oC or is below 0oC/132oF.

• At this point, the scooter cannot accelerate normally and may not be charged. Do not use until the temperature has reverted to the normal range, asphyxiation indicates that the scooter has been successfully connected to the mobile device.

Equity level: The total battery power equals 5 bars.

The battery power is very low when the first battery bar is red. Please charge your scooter immediately.

Locking limnber when the icon light up, it means the stover is locked. If abnormal movements are detected, the scatter will start peeling and the tail light will fall.

Specifications

	Item Parameter
Product	Name	Ninobot eKickScooter E2 II	Ninobot eKickScooter E2 Plus II
	Model	051401D0	051402ET
	Length x Width x Height	Approx. 1081 x 475 x 1177 mm(42.6 x 18.7 x 46.3 in)	Approx. 1081 x 475 x 1177 mm(42.6 x 18.7 x 46.3 in)
	Folded: Length x Width x Height	Approx. 1091 x 475 x 548 mm(42.6 x 18.7 x 21.6 in)	Approx. 1091 x 475 x 548 mm(42.6 x 18.7 x 21.6 in)
		Approx. 16.2 kg (35.7 lbs)Net Weight	Approx. 16.8 kg (57.0 lbs)
Rider	Max. Payload	90 kg (198 lbs)
	Recommended Age	14-60 years old
	Required Height	130-150 cm (43"~62")
Machine	Max. Speed	Approx. 20 km/h (12.4 mph)	Approx. 25 km/h (15.5 mph)
	Range at Max. Speed	Approx. 20 km (12.4 miles)
	Max. Slope	Approx. 12%
	Troughable Terrain	Mostly smooth roads or normal asphalt, terrain roads
	Operating Temperature	-10-40°C (14-104°F)
	Storage Temperature	-10-50°C (14-122°F)
	IP Rating	IPX4
	Duration of Charging	Approx. 7.5 h
Battery	Nominal Voltage	21.6V =
	Max. Charging Voltage	25.2V =
	Charging Temperature	0°C -44°C (32-111°F)
	Nominal Energy	220 Wh
	Nominal Capacity	10.2 Ah
	Battery Management System	Protection against overvoltage/undervoltage/short circuit/overcurrent/over temperature
Motor	Nominal Power 0.25 kW, 250 W		0.3 kW, 300 W
	Max. power 0.45 kW, 450 W		0.50 kW, 500 W
Charger	Model	NBW250201DSN-EU
	Output Power	36.3 W 100-240
	Input Voltage	V~50-60 Hz
	Max. Output Voltage	25.2 V =
	Rated Output	24.2 V =L.5 A
Tire	Tires	8.1-inch inner hollow shock-absorbing tires
Other	Direction Indicators	Front and rear direction indicators

11: Ringo at Mab, Spacc tailed while riding with a full battery. 73 ± 5 kg (65 ± 11 lit) load; ambient temperature, 25^ (77 - 41 °C), at the max. speed on average on pavement. 03 Reference of the factors that affect range include speed, load, number of turns and steps, ambient temperature,

Certifications

This product is certified to ANSI/CAI/UL-2272 by TUV Rheinland.

The battery complies with UN/DO T 38.3

The battery complies with ANSI/CAN/UL 2271.

European Union Compliance Statement

Important WEEE information

This symbol on the product or on its packaging indicates that used electrical and electronic products should not be mixed with unsorted municipal waste. For proper treatment, it is your responsibility to dispose of your waste equipment by arranging to return it to designated collection points.

Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriately waste handling.

Penalties may be applicable for incorrect disposal of this waste, in accordance with your national legislation.

Please contact your local authority for further details of your nearest designated collection point.

Battery recycling Information for Users

This symbol means that batteries and accumulators, at their end of life, should not be mixed with unsorted municipal waste. Your participation is an important part of the effort to minimize the impact of batteries and accumulators on the environment and on human health. For proper recycling you can return this product or the batteries or accumulators it contains to your supplier or to a designated collection point.

Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling.

Penalties may be applicable for incorrect disposal of this waste, in accordance with your national legislation.

there are separate collection systems for used batteries and accumulators.

Please, dispose of batteries and accumulators correctly at your local community waste collection/recycling center.

Radio Equipment Directive

Nineobot (Changzhou) Tech Co., Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of the Radio Equipment Directive 2014/53/EU.

Restriction of the use of certain hazardous substances [RoHS] Directive

Ninobot (Changzhou) Tech Co., Ltd. hereby declares the whole product including parts (cables, cords, and so on) meets the requirements of RoHS Directive 2011/65/EU and amendment Commission Delegated Directive (EU) 2015/63 on the restriction of the use of certain hazardous substances in electrical and electronic equipment ("RoHS recast" or "RoHS 2.0").

Machinery Directive

Ninobot (Changzhou) Tech Co., Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of the Machinery Directive 2006/42/E.C.

vised Representative:

Segway-Ninebot Europe

Dynamosstraat 7, 1014 BN Amsterdam, The Netherlands.

Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product model: 051401DD, 051402EE comply with the essential requirements and other relevant provisions of the Radio Equipment Directive 2014/53/EU, the machinery directive 2006/42/EC, and the RohIS Directive 2011/65/EU and amendment Commission Delegated Directive (EU), 2015/863.

The declaration of conformity can be viewed at the following address: https://eu-en.segway.com/instruction-manuals

Bluetooth	Frequency Band(s)	2.4000-2.4835GHz
	Max. RF Power	20 mW

Trademark

Ninebot is the trademark of Ninebot (Beijing) Tech Co., Ltd, Segway and the Rider Design are the registered trademarks of

Segway Inc., App Store and Apple Logo are trademarks of Apple Inc. Google Play and the Google Play logo are trademarks of Google

T

We have attempted to include descriptions and instructions for all the functions of the KickScooter at the time of printing. However, due to

constant improvement of product features and changes of design, your KickScooler may differ slightly from the one shown in this

document. Scan the OR code or visit the Apple App Store (iOS) or the Google Play Store (Android) to download and Install the App.

Please note that there are multiple Segway and Ninebot models with different functions, and some of the functions mentioned herein may not be applicable to your unit. The manufacturer reserves the right to change the design and functionality of the KickScooter product and documentation without prior notice.

2024 Ninebot (Beijing) Tech Co. Ltd. All rights reserved.

The Segway-Ninebot App can support KickScoaster with built-in Bluetooth

Common Failures

	Possible causes/Error code Solution
10	Bluetooth communication failure	Check the connection of the dashboard communication wire and the control cable, or contact after-sales service or an authorized dealer.
11	Abnormal 1A phase current sampling of motor	Please contact after-sales service or an authorized dealer.
12	Abnormal 1B phase current sampling of motor
13	Abnormal 1C phase current sampling of motor
14	Abnormal throttle hall sampling	Check whether the throttle is pressed when powered on, or contact after-sales service or an authorized dealer.
15	Abnormal brake hall sampling	Check whether the brake lever is squeezed when powered on, or contact after-sales service or an authorized dealer.
24	Abnormal default voltage	Check whether the wire connected with the battery cable and the controller is loose, or contact after-sales service or an authorized dealer.
26	Abnormal data writing/reading	Please contact after sales service or an authorized dealer.
31	Incorrect FLASH operation
35	Default S/N	Check whether the KickScooter's S/N is the default S/N.
39	Abnormal battery temperature	Check the working environment of battery, or contact after-sales service or an authorized dealer.
40	Abnormal controller temperature	Controller temperature is too high, please contact after-sales service or an authorized dealer.
41	Abnormal motor temperature	Please contact after sales service or an authorized dealer.
42	Motor not calibrated
45	Abnormal bus current sampling
50	Motor phase loss	Check whether the wire connected with the motor and the controller is loose, or contact after-sales service or an authorized dealer.
52	Motor stalled	Check whether the KickScouter is overload, or contact after sales service or an authorized dealer.

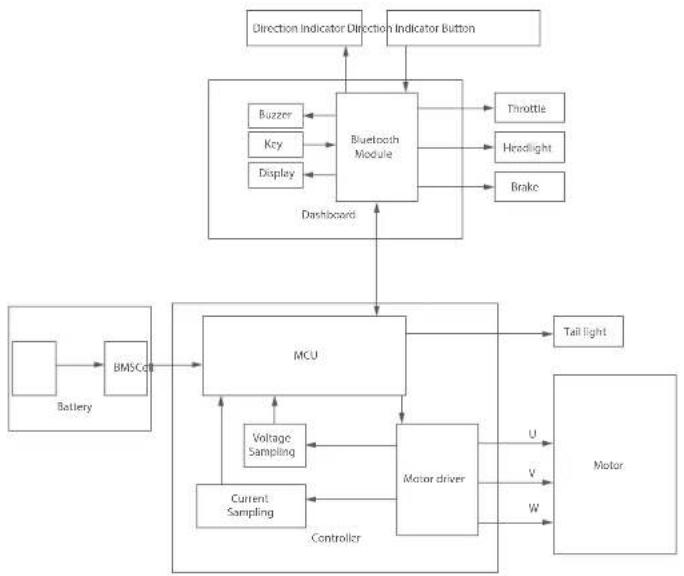

Wiring Diagram

Recommended Maintenance Schedule

To ensure safe riding, day to day care and regular maintenance are essential. You, the owner, have control and knowledge of how often you use your scooter, how hard you use it and where you use it. It is the owner's responsibility to perform regular checks and bring your scooter to authorized service center for inspection and service. Please refer to the maintenance schedule below.

Note: This maintenance schedule charges a service fee.

Item Component		Maintenance Method	Every 3 months	Every 6 months of every 2001km (3.11 miles)	After 2 years or the total mileage ≥5,000 km (4.109 miles)
Mainframe maintenance	Mainframe parts Use a soft, wet cloth to wipe the mainframe clean.	√	√	√	√
	Tire wear	Check if the tires are cracked, deformed, or significantly worn.	√	√	√
	Screws on the stem top	Tighten the tire screws fixed with the handlebar and the stem. The suggested torque is 5.5+0.8 N-m.	√	√	√
		Tighten the screw on the throttle. The suggested torque is 2-0.1 N-m. Tighten the screws on the brake levers. The suggested torque is 5-0.1 N-m. Tighten the screws on the stem top. The suggested torque is 2-0.1 N-m.	√	√	√
Function Inspection	Hub motor	To accelerate and decelerate, check if the hub motor is stalled or has abnormal sounds.	√	√	√
	Rear wheel maintenance	Check if the rear wheel is stalled or gets shaky, or the axis shall be unbalanced.	√	√	√
	Drum Brake	1) Spin the rear wheels; it spins normally. The rear wheel shall not shuck or make abnormal sounds. Note: 'Slight noise does not affect riding safety. But if the drum brake makes a loud noise when you apply brakes, please contact customer service for support. 2) Squeeze the brake lever, the rear wheel stops moving.	√	√	√
Item Component	Maintenance Method	Every 3 months	Every 6 months or every 500 km (1310 miles)	After 2 years or the total mileage >5000 km (3,107 miles)
Function Inspection	Headlight Check: the headlight and soot if it lights brightly.		✓	✓
	Direction Indicators	Toggle the direction indicator switch to the left/right respectively, check if the direction indicators on the left/right side flash normally.		✓
	Dashboard Power: on the scooter, the dashboard works properly.		✓	✓
	Throttle	Press and hold the throttle, then release it, checking for acceleration and deceleration.		✓
	Fault detection	After connecting with the Segway Ninebot app:1) Update the firmware to the latest version.2) Check if the notification of the corresponding error code and possible causes will prompt when the scooter detects an error.		✓
	Charging	Charge the scooter:1) Check if the current battery power displays on the dashboard.2) Check the LED indicator on the battery charger. Charging red, fully charged green.		✓
	Builts	Press or toggle the button 3 times without failure.		✓
	Steering	Test with left turns and right turns (the steering angle is 55). No resistance or lag when turning.		✓
Important parts	Battery assembly	The battery need to be replaced when it is charged and discharged for 500 times or the total mileage is more than 10,000 km (6,213 miles).Note: It is recommended to charge once every 60 days for long-term storage.
	Controller	It is required that original Segway-Ninebot parts shall be used for repairs and replacements.
	Hub motor

Item Component	Maintenance Method	Every 3 months	Every 6 months or every 50km (510 miles)	After 2 years or the total mileage >5000 km [5,107 miles]
Functional parts	Rear wheel assemblyIt is required that original Signway Ninebot parts shall be used for repairs and replacements.			√1
	Throttle & Brake levers
	Front fork assembly
	Folding mechanism
	Drum brake assembly
	Dashboard

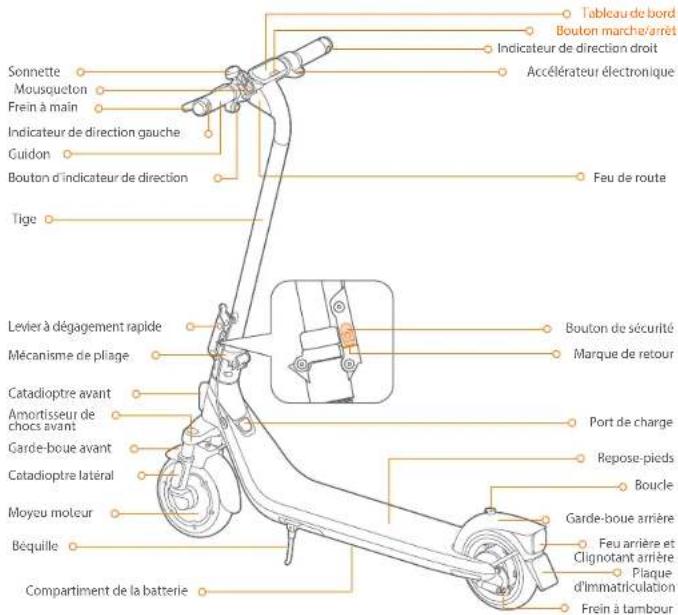

1 Diagramme

01

Segway-Ninebot Europe

Segway-Ninebot Europe

Dynamostraat 7,1014 BN Amsterdarn Paesi Bassi.

Segway-Ninebot Europe

Dynamostraat 7,1014 BN Amsterdam,Niderlandy.

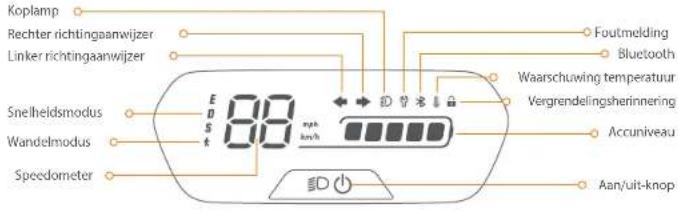

[ \text{Dashboard} ]
