Product Type	Multi-stroller
Brand	Gaggle
Model	Jamboree 6
Number of seats	6 (front and back configuration)
Maximum weight per child	15 kg (European standard) / 50 lb (American standard)
Maximum child height	114 cm (45 inches)
Frame material	Metal (steel or alloy)
Seat and canopy material	Fabric
Wheel types	2 rear wheels with half-axle, 2 front double swivel wheels
Brake	Parking brake on rear axle
Front wheel swivel lock	Yes, swivel lock for rough terrain
Canopy	Rear canopy and removable front canopies
Safety harness	5-point harness with adjustable shoulder straps, waist belt, and crotch strap
Seat recline	2 positions for each seat (front and rear)
Footrest	Front footrest adjustable to 3 positions
Storage basket	Rear fabric basket, max capacity 6.7 kg (15 lb)
Arm bar	Removable arm bar
Folding	Folding mechanism with retaining strap
Cleaning	Surface clean with water and mild soap; rinse with clean water
Assembly required	Yes, by an adult. Required tool: Phillips head screwdriver
Included accessories	Screws, nuts, washers, canopy tubes, fabric basket
Customer service	Gaggle®: phone [phone] (US) or 1 330 722-5033

Frequently Asked Questions - Jamboree 6 Gaggle

What is the maximum weight per child for the Gaggle Jamboree 6 stroller?

The maximum weight is 15 kg (European standard) or 50 lb (American standard).

How to clean the Jamboree 6 stroller?

Clean the frame, plastic parts, and fabric with a solution of water and mild soap. Rinse with water and air dry.

How to fold and unfold the stroller?

To unfold: release the retaining straps, pull the handlebar, and push to lock. To fold: recline the seats, fold the canopies, then press the red unlock button and push the handlebar forward. Secure with the folding strap.

How to adjust the safety harness?

Place the crotch strap between the child's legs. Adjust the shoulder straps and waist belt. Pull the free end of the straps to tighten. The shoulder strap height can be changed by passing the attachments through the slots in the seat back.

Can I use the stroller for jogging or skating?

No, this product is not suitable for jogging or skating. It is designed for walking only.

How to lock the front wheels for rough terrain?

Turn the front wheels forward, align the swivel lock with its guide, then push the lock until it clicks. Check that the wheels are locked.

What is the maximum weight of the storage basket?

The storage basket can hold up to 6.7 kg (15 lb). Do not exceed this limit and distribute the load evenly.

How to adjust the seat recline?

For the front seats: pull the recline handle at the back of the seat and recline to the desired position. For the rear seats: unfasten the seat back loops, recline, then refasten the loops.

Can I machine wash the seats?

No, only surface cleaning is recommended: use water and mild soap, rinse, and air dry.

How to contact Gaggle customer service?

In the US, call 1 877 716-2757. For other regions, dial 1 330 722-5033. Address: 5216 Portside Dr, Medina, OH 44256 USA.

USER MANUAL Jamboree 6 Gaggle

5216 Portside Dr, Medina, OH 44256 USA

• PH: 1 330.722.5033 • FAX: [phone]

www.gagglestrollers.com

IMPORTANT - READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

JAMBOREE 6

Model Covered: 9909103

FOR CUSTOMER SERVICE CALL 1-877-716-2757 (outside of U.S. 330-722-5033). DO NOT CALL RETAILER OR RESELLER FOR SERVICE AS THEY ARE NOT AUTHORIZED TO RESOLVE ANY SERVICE ISSUES.

FOR WARRANTY AND FEDERAL SAFETY STANDARD COMPLIANCE CERTIFICATES, PLEASE VISIT OUR WEBSITE AT www.gagglestrollers.com

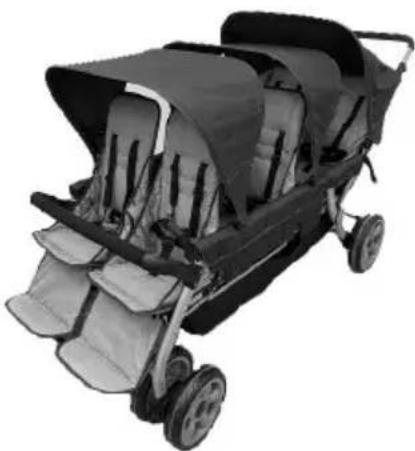

Black and white photo of a two-wheeled baby stroller with front panels and wheels (no text or symbols visible)

ASSEMBLY INSTRUCTIONS

• Adult assembly required.
- Read all instructions BEFORE assembly and use.
- Unpack carton, remove packing materials, safely dispose of properly or recycle where possible.

Record product information here found on the frame tube.

Manufacture Date: ____

Model Number:

Purchase Order:

WARNING

This stroller is for use of not more than 1 child for each seat. For use with children whose weight is 50lbs max. as tested per US requirement 16 CFR 1227, and 15 kg max as tested per EU requirement BS EN 1888. For use with children whose height is 45 inches, (114 cm) or less. Children MUST be buckled in the seats with harness properly adjusted.

Table of Contents

Table of Contents....2

Warnings....3

Assembly instructions

Tools and parts....4

Step 1- Rear Axle and Brake Assembly....5

Step 2 - Rear Wheel Assembly....5

Step 3 - Front Wheel Assembly......6

Step 4 - Rear basket Tube assembly....7

Step 5 - Arm Bar Operations....7

Step 6 - Canopy Operations....8

Stroller Operation and Use

Unfolding and Folding Stroller....10

Securing Children in Stroller....12

Seat Back Recline Adjustment....13

Footrest Adjustment....13

Brake Operation....14

Front Wheel Swivel Lock Operation....15

Stroller maintenance

Cleaning....15

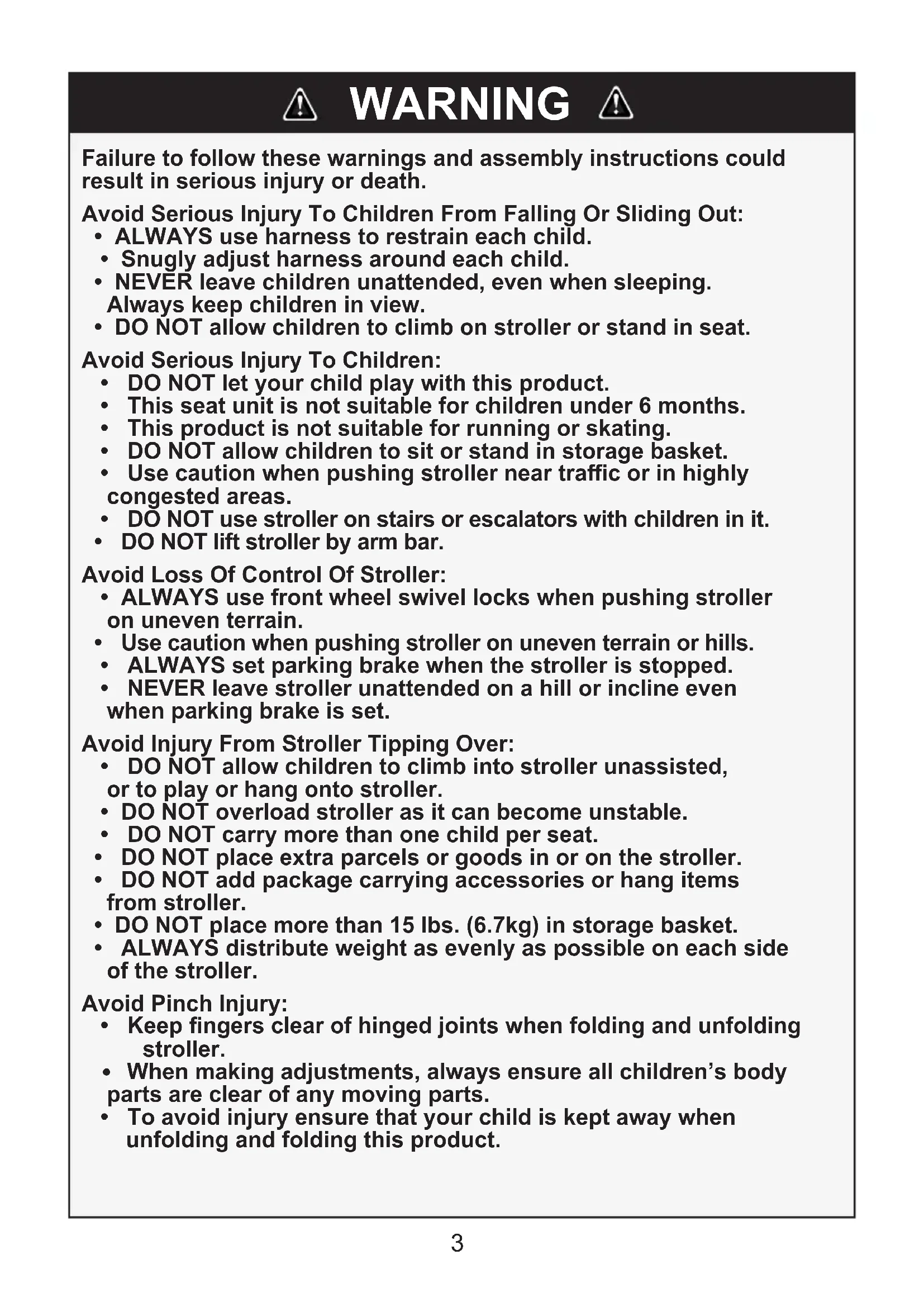

WARNING

Failure to follow these warnings and assembly instructions could result in serious injury or death.

Avoid Serious Injury To Children From Falling Or Sliding Out:

• ALWAYS use harness to restrain each child.
- Snugly adjust harness around each child.
- NEVER leave children unattended, even when sleeping. Always keep children in view.
- DO NOT allow children to climb on stroller or stand in seat.

Avoid Serious Injury To Children:

• DO NOT let your child play with this product.
• This seat unit is not suitable for children under 6 months.
• This product is not suitable for running or skating.
• DO NOT allow children to sit or stand in storage basket.
- Use caution when pushing stroller near traffic or in highly congested areas.
- DÔ NOT use stroller on stairs or escalators with children in it.
• DO NOT lift stroller by arm bar.

Avoid Loss Of Control Of Stroller:

• ALWAYS use front wheel swivel locks when pushing stroller on uneven terrain.
- Use caution when pushing stroller on uneven terrain or hills.
• ALWAYS set parking brake when the stroller is stopped.
- NEVER leave stroller unattended on a hill or incline even when parking brake is set.

Avoid Injury From Stroller Tipping Over:

• DO NOT allow children to climb into stroller unassisted, or to play or hang onto stroller.
• DO NOT overload stroller as it can become unstable.
• DO NOT carry more than one child per seat.
• DO NOT place extra parcels or goods in or on the stroller.
- DO NOT add package carrying accessories or hang items from stroller.
- DO NOT place more than 15 lbs. (6.7kg) in storage basket.
- ALWAYS distribute weight as evenly as possible on each side of the stroller.

Avoid Pinch Injury:

• Keep fingers clear of hinged joints when folding and unfolding stroller.
• When making adjustments, always ensure all children's body parts are clear of any moving parts.
  • To avoid injury ensure that your child is kept away when unfolding and folding this product.

Assembly Instructions

TOOLS REQUIRED: Phillips screwdriver

• Read all instructions before ASSEMBLY and USE of Stroller.
• Unpack carton, remove packing materials, including polybag. Identify and check all parts. If parts are missing or damaged, call Gaggle® for assistance at 877.716.2757 (USA Only) or 330.722.5033.
• Discard all packing materials after assembly.

WARNING

• Choking Hazard - Stroller assembly hardware includes small parts. Keep small parts away from children.
• Plastic bags can cause suffocation. Keep plastic bag away from children. Remove and discard plastic bags.
• Pinch Hazard - Keep hands clear of moving parts during assembly, folding and unfolding.

Parts ( Color and Style may vary)

A Stroller Frame Assembly (1)

Mechanical component diagram showing a wheel and axle assembly (no text or symbols on the diagram itself)

C Rear Axle Tube Assembly (1)

Diagram of front wheel assembly (2), showing two components with no text or symbols

E Arm Bar (1)

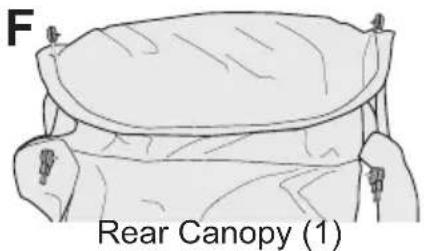

F Rear Canopy (1)

G Rear Basket Tube (1)

H Screw [M6 x 34 mm] (2)

K Shoulder Screw [M6 x 25 mm] (2)

M Flat Washer [6.2x20x1 mm] (2)

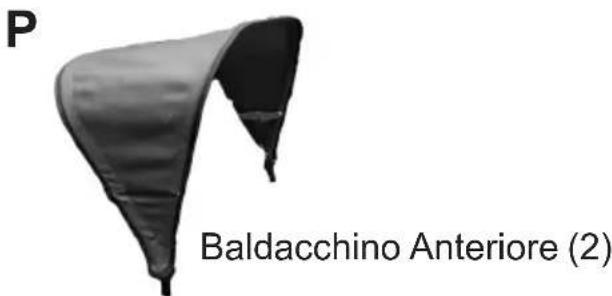

P Front Canopy (2)

STEP 1 - Rear Axle and Brake Assembly

1. Lay folded Stroller Frame Assembly (A) on clean floor with handle tube (1) on top and front footrests (2) contacting floor (Fig. 1).

2. Assemble Rear Axle Tube Assembly (C) to stroller (Fig. 2).

3. Position Rear Axle Tube Assembly (C) with brake tube (3) up and open end of rear axle assemblies toward rear legs.

4. Slide rear axle tube assembly (C) onto the lower ends of rear legs (4) until contacting spring pins. Press spring pins and slide rear axle assembly (C) onto rear leg (4) until spring pins snap into holes in rear axle tube assembly (C).
5. Pull on Rear Axle Tube Assembly (C) to check that it is secured onto rear legs.

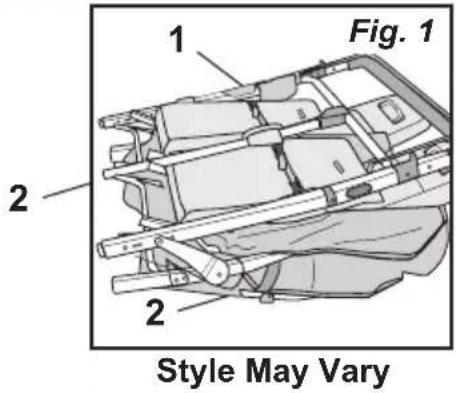

Fig. 1 1 2 2 Style May Vary

Fig. 2 3 C 4

STEP 2 - Rear Wheel Assembly

1. Align hole in Rear Wheel axle rod (B) with holes in Rear Axle Tube Assembly (C). Slide rear wheel with axle B into Rear Axle Tube Assembly (C) until hole in rear axle rod aligns with hole in rear axle tube (Fig. 1).

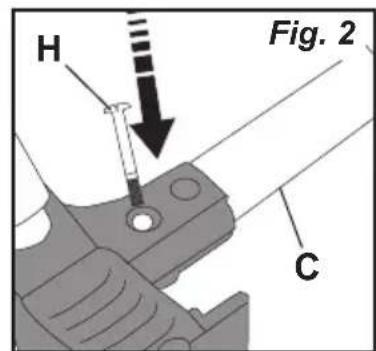

2. Insert M6 x 34 mm Screw (H) through Rear Axle Tube Assembly (C) and rear axle rod until screw comes out bottom of Rear Axle Tube Assembly (C) (Fig. 2).

NOTE: If end of screw does not slide into hole, check alignment of hole in axle. If hole in axle is not aligned, remove rear wheel and start over.

1. Insert M6 Nut (I) into 6-sided recess on bottom of rear axle tube and using phillips screwdriver, secure Screw (H) by turning into nut until tight (Fig. 3).

Repeat steps 2 thru 3 for opposite rear wheel.

Fig. 1 B C

H Fig. 2 C

Fig. 3 H I

STEP 3 - Front Wheel Assembly

1. Unfold stroller (see "Operation and Use" section).
2. Tip stroller back on rear wheels until handle contacts floor (Fig. 1).
3. Gather all parts required for assembly. Locate M6 x 25 Shoulder Screw (K), Lock Washer (L), and Flat Washer (M) in parts bag. Locate Front Wheel Assembly (D).

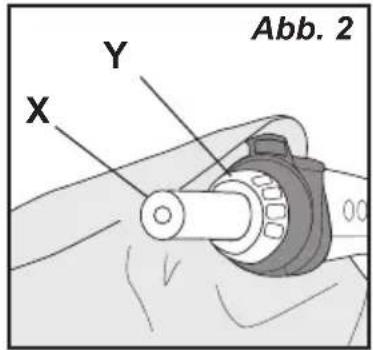

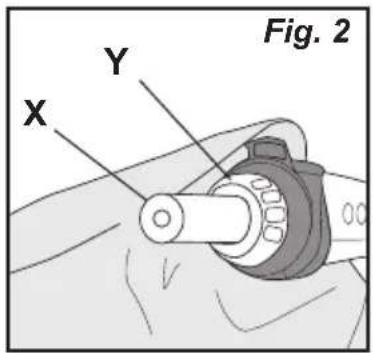

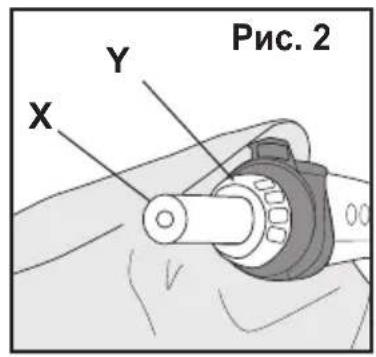

4. Remove protective packaging material from Front Wheel Post (Fig. 2).

NOTE: Hold bearing (Y) on front wheel post (X) while removing protective packaging materials and parts bag.

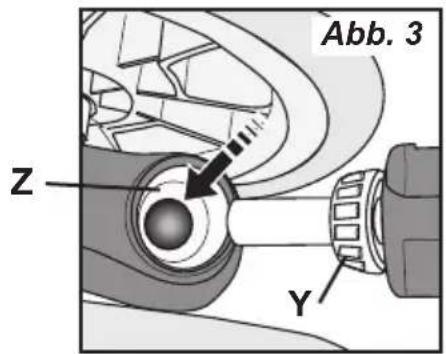

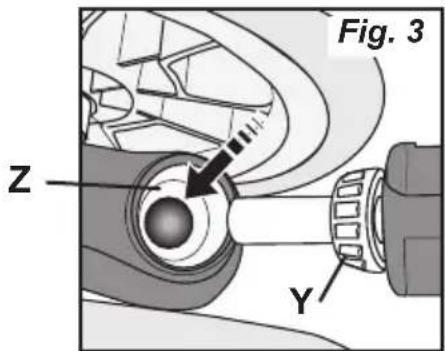

1. While holding bearing on front wheel post, position Front Wheel Assembly (D) so bearing race (Z) is facing front wheel post (X) and bearing (Y) inside Front Wheel Assembly is on opposite side, slide Front Wheel Assembly onto front wheel post and bearing (Fig. 3).

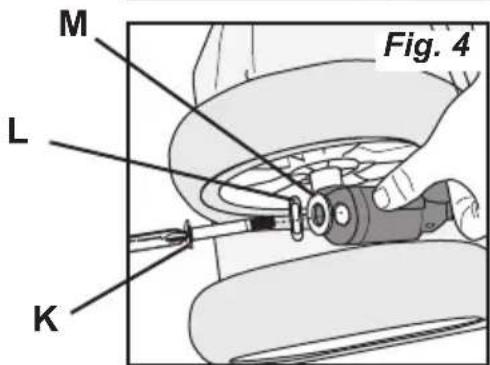

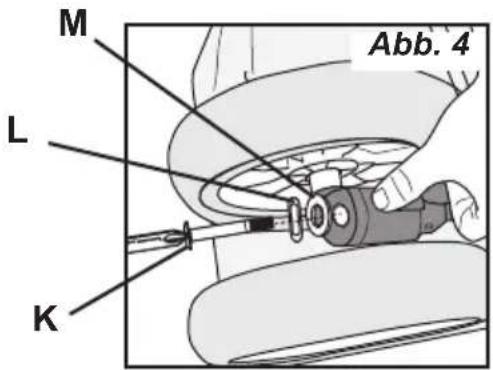

2. Slide Lock Washer (L) and Flat Washer (M) onto M6 x 25 mm Shoulder Screw (K) and then insert screw into bottom of front wheel post and tighten securely (Fig. 4).

Repeat steps 2 thru 6 to assemble front wheel on other side of stroller.

Technical line drawing of a wheeled cart with wheels and a handle, labeled 'Fig. 1' (no text or symbols on the diagram itself)

Fig. 2 X Y

Fig. 3 Z Y

M L K Fig. 4

STEP 4 - Rear Basket Tube Assembly

1. Position Rear Basket Tube (G) with curved bend (W) pointing down (Fig. 1).

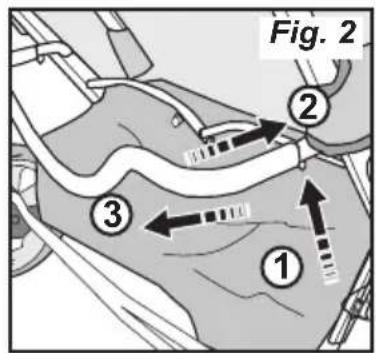

2. Secure the Rear Basket Tube onto the stroller by sliding the ends of the Rear Basket Tube onto the tubes at the side of the stroller frame until the ends contact the spring buttons (Fig. 1).
3. Press the spring buttons ① and slide the Rear Basket Tube onto the tubes ② until the spring buttons lock into the holes in the Rear Basket Tube (Fig. 2).
4. Pull out on the Rear Basket Tube to check that it is securely attached (Fig. 2).
5. Attach fabric basket to Rear Basket Tube.

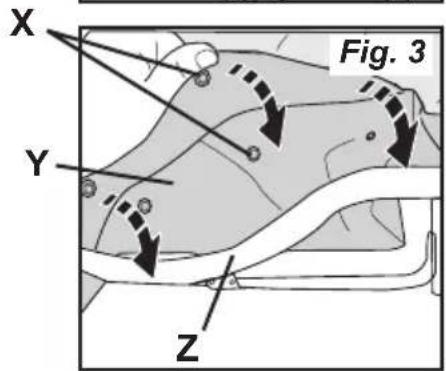

- Unsnap snaps (X) on fabric basket (Y), wrap fabric basket over the top of the basket tube (Z) and reattach snaps on fabric basket (Fig. 3).

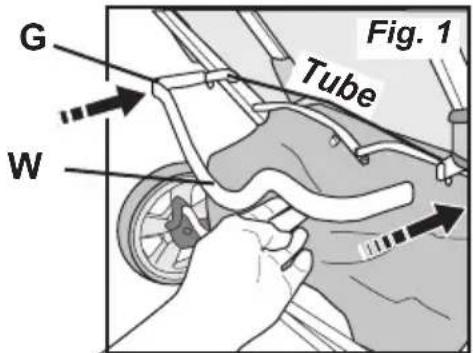

G W Tube Fig. 1

Fig. 2 ① ② ③

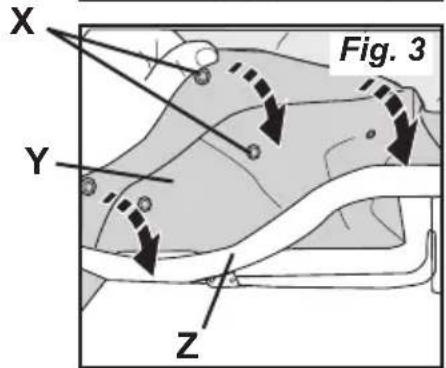

X Fig. 3 Y Z

STEP 5 - Arm Bar

Arm Bar Attachment:

Push arm bar post (1) into the hole in the arm bar base (2) until it clicks into place. Repeat on other side (Fig. 1).

Arm Bar Removal:

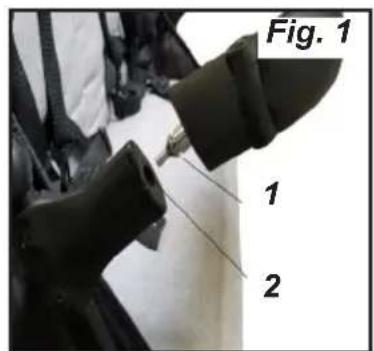

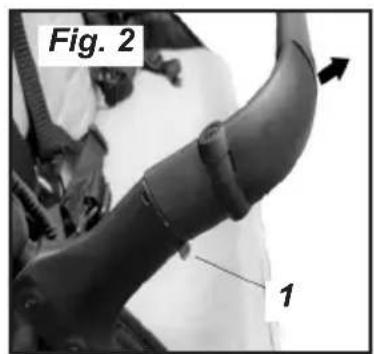

1. Push and hold release button (1) located on the bottom of the arm bar. While holding release button, pull arm bar out to remove it from one side of the stroller (Fig. 2).
2. To remove arm bar completely, repeat step 1 on the opposite side of the stroller.

Fig. 1 1 2

Close-up of a mechanical device with labeled parts, showing a curved arm and belt (no text or symbols visible)

STEP 6 - Canopies

To attach Rear Canopy:

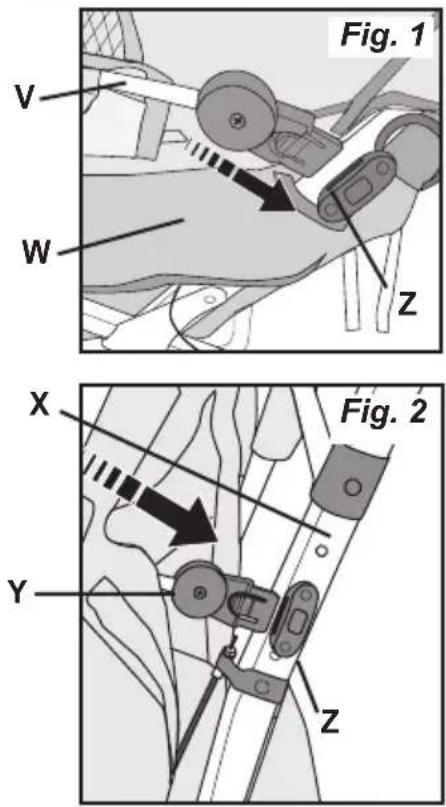

1. Position Rear Canopy (F) with rounded front section on top and place canopy in rear seat area and over top of front seats.
2. Secure Main Canopy Tube (V) by pushing end of Main Canopy Tube into Canopy Retainer (Z) slot located on outside of Handle (X) near the Armrest (W) (Fig. 1).

3. Secure short Rear Canopy Tube (Y) by pushing end of Canopy Tube into Canopy Retainer (Z) slot located on outside of the handle near the top of the back seat (Fig. 2). Repeat steps 2 and 3 to secure canopy tubes on other side of stroller.

4. Secure back of Rear Canopy (F).

5. Fold back panel of canopy forward ① bull rear canopy tube rearward and attach canopy fabric over handle support tube with fabric hook and loop fasteners (Fig. 3).

6. Slide back panel of canopy (T) down between handle support tube (U) and stroller handle (Fig. 4).
7. Secure canopy sides around stroller handle support tube by securing hook & loop fasteners on each side (Fig. 4).
8. Repeat on other side of canopy.

Note: To remove Rear Canopy, follow steps above in reverse order.

Fig. 1 V W Z X Fig. 2 Y Z

Fig. 3 ① ② ② ② ① T U Style May Vary

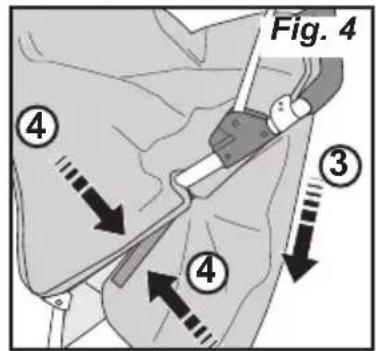

Fig. 4 ④ ③ ④

To attach Front Canopies (P):

Align spring tab (2) of Front Canopy (P) through opening in the cloth armrest and into canopy retainer (3). Canopy locks into place with a click. Repeat for both sides (Fig. 1).

Note: To remove Front Canopies, depress spring tab (2) until it releases from the canopy retainer (3). If tab does not release easily you may use a straight screwdriver or equivalent tool to depress the tab (Fig. 1).

Fig. 1 2 3

To engage Front Canopy lock:

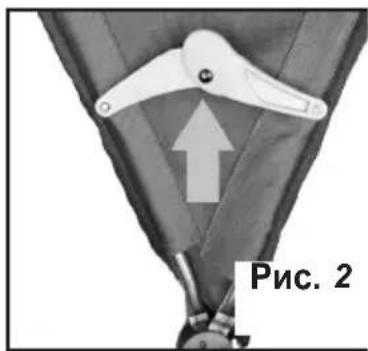

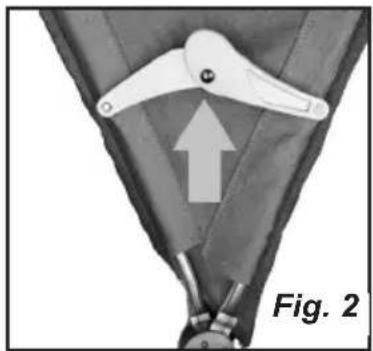

1. Once canopy is attached and unfolded you will need to press down (1) on canopy lock to make sure it is in the locked position (Fig. 1). To release canopy lock, simply push back up.
2. To fold the front canopies, make sure the canopy lock is in the unlocked position and then fold. (Fig. 2).

Mechanical component with downward arrow and labeled Fig. 1 (no text or symbols on the diagram itself)

Diagram of a mechanical device with an upward arrow indicating motion or force, labeled Fig. 2 (no text or symbols on the diagram itself)

WARNING

• Pinch Hazard - Keep hands clear of moving parts during assembly, folding and unfolding.
• Ensure that all the locking devices are engaged before use.

To unfold stroller:

1. Lay stroller on floor with front wheels and front footrests down, contacting the floor (Fig. 1).

NOTE: Always check that floor is clean and dry before laying stroller on floor.

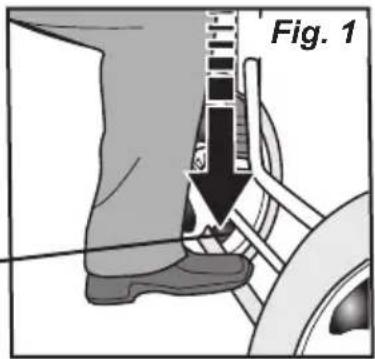

1. Lock parking brake.

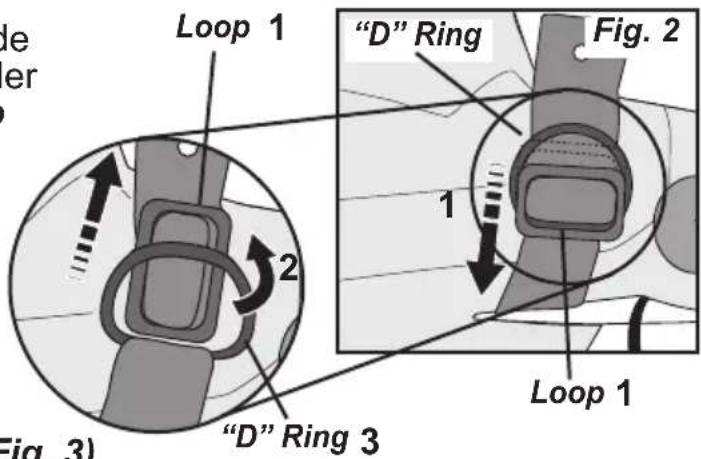

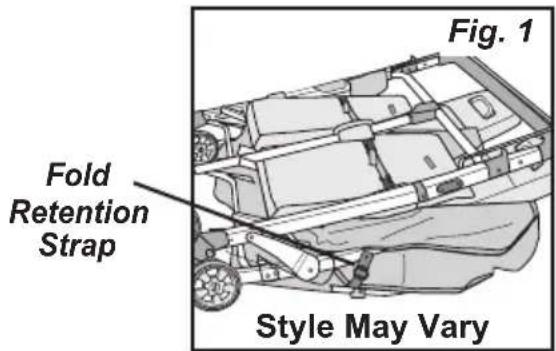

2. Locate Fold Retention Strap on one side of the stroller (Fig. 1). Push down on stroller handle and unhook Fold Retention Strap by pulling up on the loop (1) and then turn (2) and slide the loop through the "D" Ring (3) (Fig. 2 and 3).
3. Repeat step 2 on opposite side to unhook Fold Retention Strap.

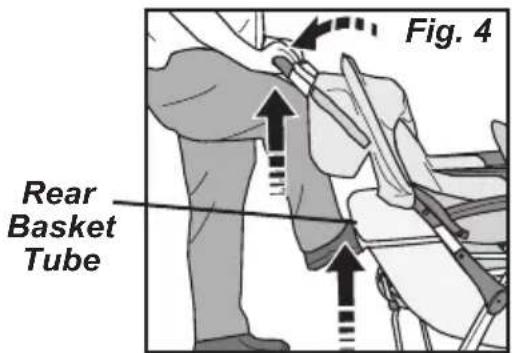

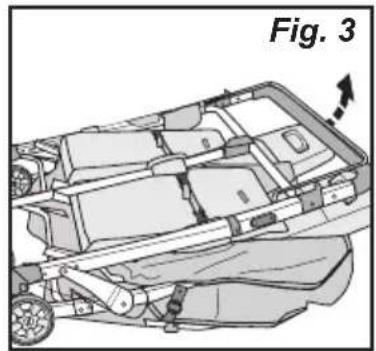

4. Pull up on handle to unfold the stroller (Fig. 3) and then with a quick snap, push down on handle to lock in unfolded position (Fig. 4).

Push down on side frame to ensure stroller is in locked open position.

Lift on handle to check that stroller handle is locked in the unfolded position on both sides.

Fig. 1 Fold Retention Strap Style May Vary

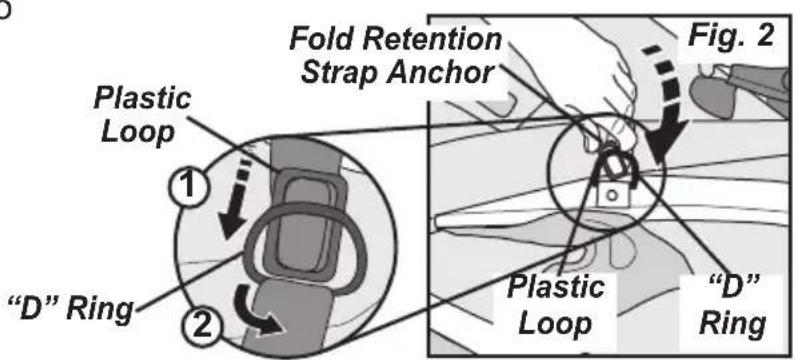

Loop 1 2 D" Ring Fig. 2 1 Loop 1 D" Ring 3 Fig. 3)

Diagram of a vehicle chassis with internal compartments and wheels, labeled Fig. 3 (no text or symbols on diagram itself)

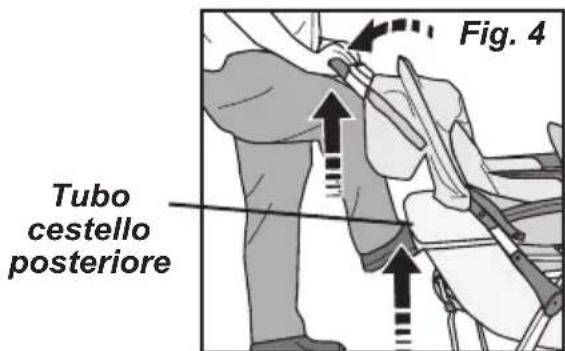

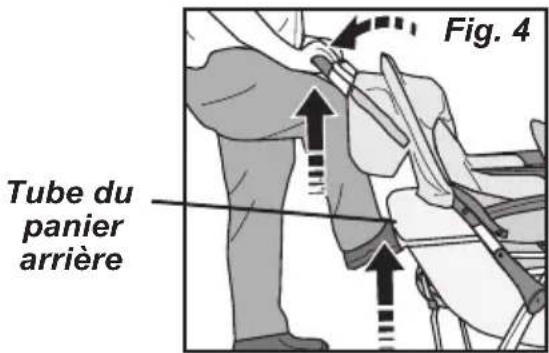

Fig. 4 Rear Basket Tube

Unfolding and Folding Stroller, Continued

To unfold stroller (continued):

1. Visually check that the stroller handle is securely locked into the fold Lock assembly on both sides of the stroller. (Fig. 5).

NOTE: If fold lock is not locked, fold lock can be locked by pressing down on front of armrests and then press down on top of stroller handle.

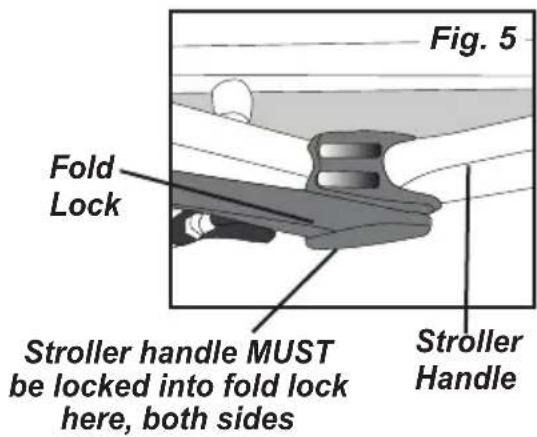

Fig. 5 Fold Lock Stroller handle MUST be locked into fold lock here, both sides Stroller Handle

To fold stroller:

1. Place seat back of front seats in the upright adjustment position. Fold Canopies into the closed position. (These two actions must be completed before stroller will be able to close.)

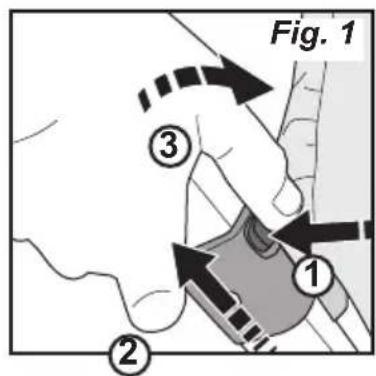

2. Push down on Red Release Button on right side and then slide both Fold Lock Release Button on both sides up toward the handle grip to unlock (Fig. 1).
3. While holding the Fold Lock Releases up, push forward on the stroller handle to fold (5g. 1).
4. Secure stroller in folded position by laying stroller on floor with front wheels and front footrests down. Push down on stroller handle and slide the plastic loop on the Fold Retention Strap through the "D" Ring and rotate to secure in place (Fig. 2).

Fig. 1 ③ ① ②

Fold Retention Strap Anchor Plastic Loop "D" Ring Fig. 2 Plastic Loop "D" Ring

WARNING

Avoid Serious Injury To Children From Falling Or Sliding Out:

• ALWAYS use a harness to restrain each child.
- Snugly adjust harness around each child.
- NEVER leave children unattended, even when sleeping. Always keep children in view.
• DO NOT allow children to climb on stroller or stand in seat.

1. With harness unbuckled, place child in seat.
2. Secure child with harness by positioning Crotch Strap between child's legs and placing Shoulder and Waist Belts over shoulders and thighs. Snap buckle tongues into crotch strap buckle (Fig. 1).
3. Snugly adjust each strap by pulling on the free end of the strap and moving plastic loop along strap (Fig. 2).

Shoulder Belt Height Adjustment:

Use shoulder belt slots that are closest to child's shoulders.

To change shoulder belt height:

1. Remove shoulder belt from seat back of seat - on back of seat, tip shoulder belt anchor in line with shoulder belt and then push belt anchor and shoulder belt through slot in seat back (Fig. 1).
2. Reattach shoulder belt to seat back - on front side of seat, tip shoulder belt anchor to contact shoulder belt, push belt anchor and shoulder belt through slot in seat back at desired height. Rotate belt anchor to lay flat on back of seat (Fig. 2). Repeat for opposite shoulder belt.

Crotch Belt Adjustment:

1. To lengthen crotch belt - slide plastic loop up on crotch belt (Fig. 2).
2. To shorten crotch belt - slide plastic loop down on crotch belt (Fig. 2).

Shoulder Belts Fig. 1 Crotch Strap Buckle Crotch Strap Waist Belts

Plastic Loop Fig. 2 Crotch Strap Buckle Plastic Loop

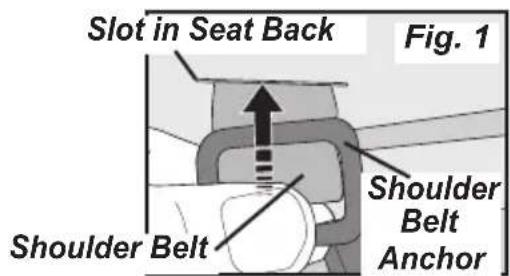

Slot in Seat Back Fig. 1 Shoulder Belt Anchor

Slot in Seat Front Fig. 2 Shoulder Belt Anchor Shoulder Belt

Seat Back Recline Adjustment

Seat Back Recline Adjustment:

The seat backs have two recline positions.

Front seat adjustment:

NOTE: The seat back must be in the upright position when folding the stroller.

To recline seat back:

1. Pull up on seat back Recline Handle (Fig. 1).
2. Lower seat back to recline position and release seat back recline handle.

To raise seat back into upright position:

1. Pull up on seat Back Recline Handle (Fig. 1).
2. Pull seat back forward to upright position and release seat Back Recline Handle.
3. Check that seat back is locked.

Rear seat adjustment:

To recline seat back:

1. While holding seat back up, release both Seat Back Buckles (Fig. 2).
2. Lower seat back into reclined position.

To raise seat back into upright position:

1. Push seat back up and forward to upright position and fasten both Seat Back Buckles (Fig. 2).

Recline Handle Fig. 1

Seat Back Fig. 2 Buckles

Footrest Adjustment:

The front footrests have three adjustment positions.

To raise footrests:

1. Lift footrest up to one of the two raised positions and rotate support bar up (4) and place under support bar hooks on footrest (Fig. 1).

To lower footrests:

1. Lift up on footrest and allow support bar to drop down out from under support bar hooks.

Footrest Support Bar Hooks 3 Fig. 1 2 4 Support Bar 1

WARNING

Parking brake should be engaged when stroller is stopped and when loading and unloading children.

To lock parking brake:

1. Press down on parking brake lock bar on the rear axle assembly into locked position (Fig. 1).
2. Check that wheels are locked.

Parking Brake Lock Bar

Fig. 1

To unlock parking brake:

1. Place toe under parking brake lock bar and lift up into unlocked position (Fig. 2).

Fig. 2

Always use front wheel swivel locks when pushing stroller on uneven ground.

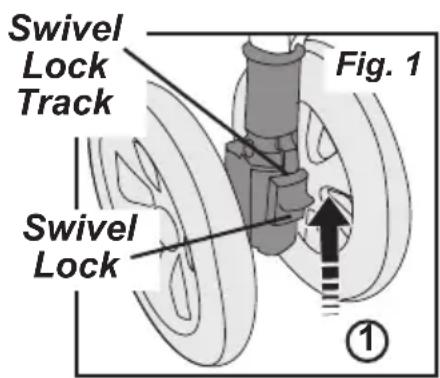

To lock front wheel swivel:

1. Rotate front wheel assembly until it is pointing forward and swivel lock is aligned with swivel lock track (Fig. 1).
2. Push swivel lock up over swivel lock track until it snaps into place (1) (Fig. 1).
3. Check that front swivel is securely locked by pushing side to side on front wheel assembly.
4. Repeat steps 1 through 3 for other wheel assembly.

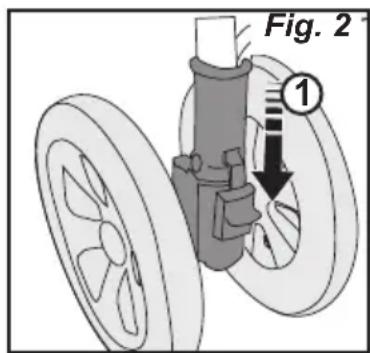

To unlock front wheel swivel:

1. Push swivel lock (1) down until it is free of the swivel lock track (Fig. 2).
2. Repeat step 1 for other other wheel assembly.

Swivel Lock Track Swivel Lock Fig. 1 ①

Fig. 2 ①

Stroller Maintenance

Cleaning seats, harness, armrests, arm bar and canopy:

1. Surface wash only with mild solution of soap and water.
2. Rinse with water to remove soap solution.

Cleaning Stroller:

1. Surface wash stroller frame, plastic parts and fabric with mild solution of soap and water. Wipe surfaces with water to remove soap solution.
2. Wipe or air dry.

Only use Gaggle provided or approved accessories for this stroller!

5216 Portside Dr, Medina, OH 44256 USA

• TEL: [phone] • FAX: [phone]

www.gagglestrollers.com

Black and white photo of a two-wheeled baby stroller with three seats and wheels (no text or symbols visible)

INSTRUCCIONES DE MONTAJE

Technical illustration of a mechanical assembly with no visible text or symbols

Simple line drawing of a mechanical linkage or suspension system with two vertical supports and a central oval component (no text or symbols)

Technical illustration of a mechanical component with two views: top shows a cylindrical housing, bottom shows a wheel assembly (no text or symbols)

Line drawing of a fabric or cushion with two side pockets and a central oval shape (no text or symbols)

G

Simple line drawing of a curved, ribbon-like shape with no text or symbols

Cesta trasera del tubo (1)

H

Technical line drawing of a bolt with threaded shaft (no text or symbols)

Tornillo [M6 x 34 mm] (2) Tuerca [M6] (2)
|

Simple diagram of two concentric circles with no text or symbols

Arandela Plana [6.2x20x1 mm] (2)

P

Black fabric garment with pointed tip and tassel, no visible text or symbols

Dosel Delantero (2)

Technical line drawing of a mechanical device with wheels and a handle, labeled Fig. 1 (no text or symbols on the diagram itself)

Fig. 2 X Y

G W Fig. 1 Tube

Fig. 2 ① ② ③

X Fig. 3 Y Z

Close-up of a black mechanical arm with a belt and attached cable, labeled with number 1 (no text or symbols on the main subject)

PASO 6 - Marquesinas

Close-up of a white mechanical component with a downward arrow and label 'Fig. 1' (no readable text or symbols)

Close-up of a mechanical component with an upward arrow indicating motion, labeled 'Fig. 2' (no text or symbols on the diagram itself)

ADVERTENCIA

Diagram of a car interior showing internal compartments and wheels, labeled Fig. 3 (no text or symbols on the diagram itself)

Fold Retention Strap Anchor Plastic Loop ① ② “D” Ring Fig. 2 Plastic Loop “D” Ring

ADVERTENCIA

Black and white photo of a two-wheeled baby stroller with three seats and wheels (no text or symbols visible)

INSTRUCTIONS DE MONTAGE

Technical illustration of a mechanical assembly with no visible text or symbols

Simple line drawing of two vertical supports connected by a horizontal line with a central oval (no text or symbols)

Technical illustration of two vehicle wheel components with no visible text or symbols

Line drawing of a fabric or cushion with a curved top and side connectors (no text or symbols)

Auvent arrière (1)

G

Simple line drawing of a curved, ribbon-like shape with no text or symbols

Technical line drawing of a bolt with threaded shaft (no text or symbols)

Vis [M6 x 34 mm] (2)
I

Écrous [M6] (2)

K

Panier arrière Tube [M6 x 25 mm] (2)

L

Bloquer rondelle (2)

M

Simple diagram of two concentric circles with no text or symbols

Rondelle [6.2x20x1 mm] (2)

P

Black fabric garment with pointed tip, labeled 'Auve' at bottom right (no other text or symbols)

Auvent Avant (2)

Technical line drawing of a stroller with wheels and handlebars, labeled Fig. 1 (no text or symbols on the diagram itself)

Fig. 2

Mechanical assembly diagram showing a shaft and housing component (no text or symbols)

Mechanical assembly diagram showing a hand operating a component with tool, labeled 'Fig. 4' (no text or symbols on diagram itself)

Close-up of a black mechanical component with labeled parts, no readable text or symbols present

Mechanical component with a downward arrow and labeled Fig. 1 (no text or symbols on the object itself)

Close-up of a mechanical component with a white handle and upward arrow, labeled Fig. 2 (no text or symbols on the diagram itself)

AVERTISSEMENTS

Diagram of a car stroller with internal compartments and wheels, labeled Fig. 3 (no text or symbols on the diagram itself)

Black and white photo of a two-wheeled baby stroller with front panels and wheels (no text or symbols visible)

MONTAGEANLEITUNG

Technical illustration of a mechanical assembly with no visible text or symbols

Simple line drawing of two vertical supports connected by a horizontal beam, with a central oval object at the base (no text or symbols)

Technical illustration of a wheel assembly with two views (top: front view, side: top-right), no text or symbols present.

Vorderrad (2)

E

Schiebegriff (1)

Line drawing of a fabric or cushion with two handles and a flat top, no text or symbols present

Simple line drawing of a curved, ribbon-like shape with no text or symbols

Hinten Korb Rohr (1)

H

Technical line drawing of a bolt with threaded shaft (no text or symbols)

Schrauben [M6 x 34 mm] (2)
|

Mutter [M6] (2)

K

Schulterschraube [M6 x 25 mm] (2)

Simple concentric circle diagram with two inner circles, no text or symbols present

Unterlegscheibe [6.2x20x1 mm] (2)

P

Black fabric garment with pointed tip and tapered skirt (no text or symbols)

Technical line drawing of a small wheeled cart with wheels and a handle, labeled 'Abb. 1' (no other text or symbols)

Abb. 2 X Y

Abb. 3 Z Y

M L K Abb. 4

SCHRITT 5: Armstange

Close-up of a mechanical component with a downward arrow and label 'Abb. 1' (no readable text or symbols on the object itself)

Close-up of a mechanical component with a white handle and upward arrow, labeled 'Abb. 2' (no readable text or symbols beyond label)

ACHTUNG

Technical line drawing of a car chassis with structural components and an arrow indicating direction (no text or symbols)

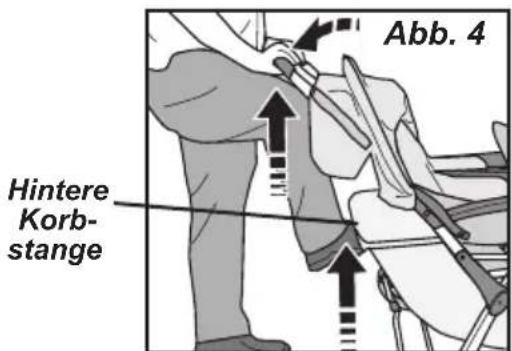

Abb. 4 Hintere Korb- stange

Black and white photo of a two-wheeled baby stroller with four seats (no text or symbols visible)

Two mechanical components: a cylindrical housing and a wheel assembly, labeled 'Gruppo ruota anteriore (2)' (no other text or symbols)

Line drawing of a fabric or garment with a circular top and side handles, no text or symbols present

G Basket posteriore del tubo (1)

H Vite [M6 x 34 mm] (2)

K Vite spalla [M6 x 25 mm] (2)

L Bloccare Rondella (2)

M Rondella Piatta [6.2x20x1 mm] (2)

P Baldacchino Anteriore (2)

Line drawing of a mechanical device with wheels and a handle, labeled Fig. 1 (no text or symbols on the diagram itself)

Fig. 2 X Y

Fig. 3 Z Y

M L K Fig. 4

Close-up of a person's arm and shoulder with labeled parts (no readable text or symbols)

FASE 6 - Baldacchini

Medical or technical diagram showing a mechanical component with an arrow indicating downward motion, labeled 'Fig. 1' (no readable text or symbols beyond label)

Diagram of a mechanical linkage or clamping device with an upward arrow, labeled Fig. 2 (no text or symbols on the diagram itself)

ATTENZIONE

Technical illustration of a car chassis with structural components and an arrow indicating direction (no text or symbols)

Fig. 4 Tubo cestello posteriore

Black and white photo of a two-wheeled baby stroller with three seats and four wheels (no text or symbols visible)

Simple line drawing of a mechanical linkage or suspension system with two vertical supports and a central oval component (no text or symbols)

Задняя ось в сборе

D

Technical illustration of a wheel assembly with two wheels and a separate wheel rim (no text or symbols)

(1)
(2)

E

Line drawing of a fabric or cushion with two handles and a flat top (no text or symbols)

задний навес (1)

G

Simple line drawing of a curved, ribbon-like shape with no text or symbols

Technical line drawing of a bolt with threaded shaft (no text or symbols)

Винты [M6 x 34 mm] (2)
|

Гайки [M6] (2)

K

Винт с буртиком
[M6 x 25 mm] (2)

Simple concentric circle diagram with two inner circles, no text or symbols present

Black fabric garment with pointed tip, no visible text or symbols

передний навес (2)

Technical line drawing of a mechanical device with wheels and a handle, labeled 'Рис. 1' (no readable text or symbols beyond label)

Prc. 2 X Y

G W Prc. 1 Tube

Рис. 2 ① ② ③

X Y Z Рис. 3

Mechanical component with a downward arrow and label 'Рис. 1' (no readable text or symbols beyond label)

Close-up of a mechanical component with a white handle and arrow indicating upward motion, labeled 'Рис. 2' (no other text or symbols)

ПРЕДУПРЕЖДЕНИЕ!

Diagram of a vehicle chassis with internal compartments and wheels, labeled 'Рис. 3' (no readable text or symbols beyond label)
