Product type	Oil-free fryer (Air fryer)
Brand	JAP
Model	Aspire
Capacity	5.7 L
Power	1700 W
Power supply	220-240 V, 50/60 Hz
Temperature range	80 - 200 °C
Timer	1 - 60 minutes
Cooking programs	Manual mode and presets (potatoes, meat, poultry, snacks, fish, etc.)
Display	Digital LED screen
Pause function	Yes, automatic when basket is removed
Included accessories	Basket, baking tray, user manual
Cleaning	Basket and drawer washable by hand with hot water and non-abrasive sponge
Safety	Automatic pause, hot surfaces, do not immerse
Warranty	2 years
After-sales service	[phone] (japproducts)
Product code	F-AS (Fusionesco Aspire)
Manufacturing	China, designed in the Netherlands
Usage	Domestic only

Frequently Asked Questions - Aspire JAP

How to clean the fryer after use?

Unplug the appliance and let it cool down. Remove the basket and wash it with hot water and dish soap using a non-abrasive sponge. Clean the inside of the appliance with a damp cloth. Never immerse the appliance in water.

How much food can I put in the basket?

Do not fill the basket beyond the MAX level. Follow the quantities indicated in the cooking chart for each food.

Can I use oil with the fryer?

You can add a few drops of oil to make foods crispier, especially for raw potatoes. Do not pour oil into the drawer.

What should I do if black smoke comes out of the appliance?

Unplug the appliance immediately. Wait until the smoke stops before opening the basket. This may indicate excess oil or a cooking problem.

How to set the temperature and cooking time?

Use the ▲ and ▼ buttons to set the temperature (80-200°C) and time (1-60 min). Press Ⓐ to start. The temperature indicator flashes during preheating.

Can I cook frozen fries?

Yes, select the preset or manually set 200°C for 18-25 min for thin fries, 20-25 min for thick ones. Shake the basket halfway through cooking.

Does the appliance turn off automatically at the end of cooking?

No, a beep sounds 15 seconds after the program ends. You must turn it off manually by holding down the power button.

What happens if I remove the basket during cooking?

The fryer automatically pauses. It resumes the program as soon as you put the basket back.

Can I use accessories not provided?

Only use accessories from japproducts to avoid malfunctions. Using unsuitable accessories may damage the appliance.

How to contact after-sales service?

Contact japproducts at [phone] for any questions or issues. Keep your proof of purchase for the 2-year warranty.

USER MANUAL Aspire JAP

Product reference: F-AS

Power supply: AC 220-240V; 50/60Hz.

Made in China - Designed in the Netherlands

www.japproducts.nl

CE √ RoHS

Index

English 4

Nederlands 15

Deutsch 26

Français 37

Italiano 48

Español 59

Svenska 70

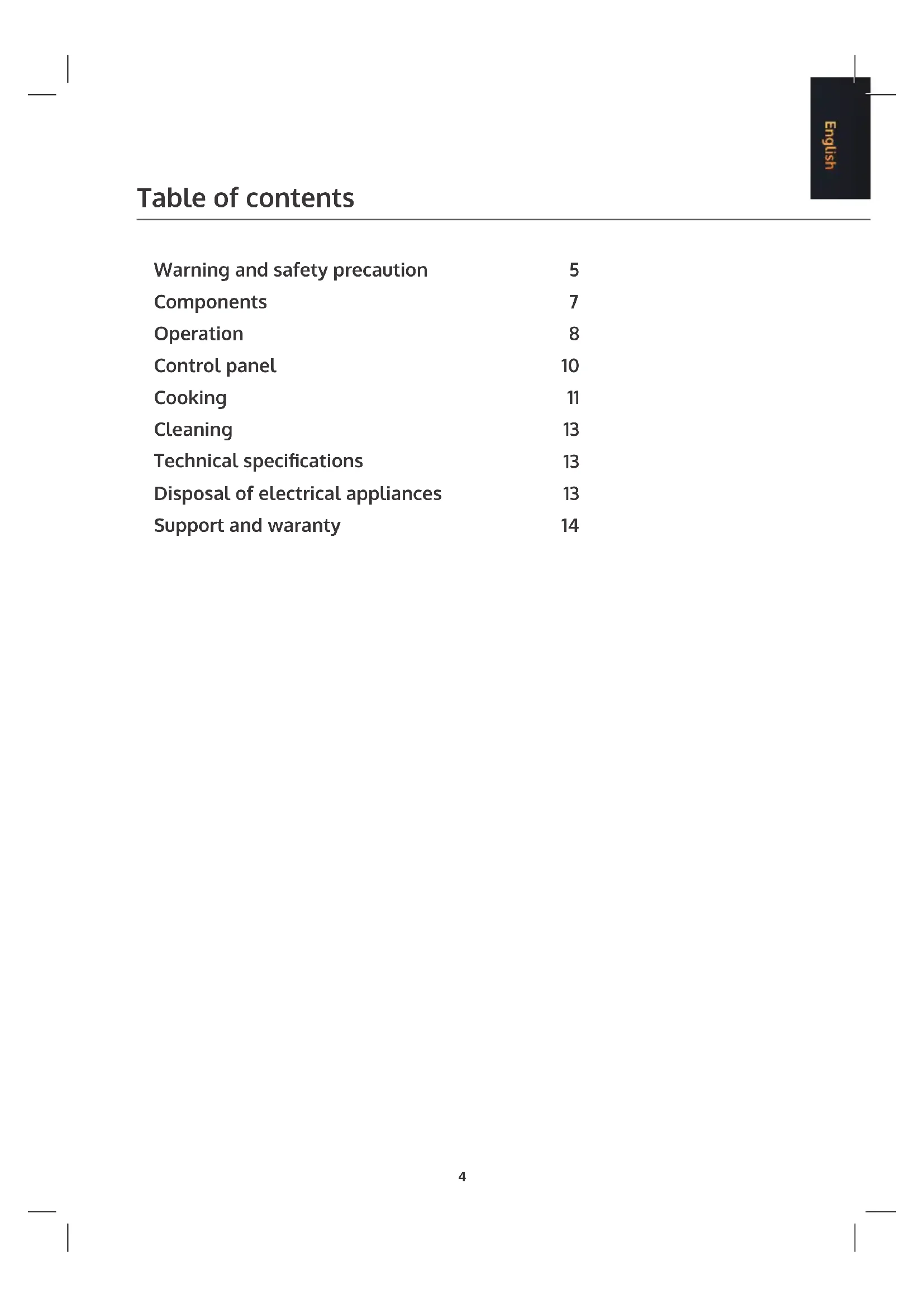

Table of contents

Warning and safety precaution 5

Components 7

Operation 8

Control panel 10

Cooking 11

Cleaning 13

Technical specifications 13

Disposal of electrical appliances 13

Support and warranty 14

Read these instructions carefully before using the appliance.

Keep this instruction manual for future use.

• When using electrical appliances, basic precautions must always be followed to reduce the risk of fire, electrical shock, and injury.
• Make sure the voltage of your mains supply matches the voltage requirements specified in the rating label of the appliance (220-240V).
• We recommend that the room where you intend to use the appliance is equipped with a working extractor fan or it is well ventilated.
• Use the device only for the purposes described in this instruction manual, any other use is not recommended by the manufacturer and could have a detrimental effect on the lifespan of the appliance and/or the safety of the user.
• This appliance is not intended to be used by persons with reduced physical sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision and/or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• The appliance is not intended to be used by children under the age of 8. It can be used by children aged 8 or over, as long as they are constantly supervised.
• Keep this product out of reach of children under 8 years old.
• The cleaning and maintenance of the appliance should not be carried out by children without supervision.
• Do not play with the appliance.
• Unplug the appliance from the mains supply before moving it, carrying out any cleaning or maintenance task or when not in use.
• Do not use outdoors.
• Do not twist, bend, strain or damage the power cord in any way. Protect it from sharp edges and heat sources. Do not let it touch hot surfaces. Do not let the power cord hang over the edge of table or countertop.
• Do not use extension cords, unless advised by a qualified electrician; using the wrong type could cause damages or injuries to the appliance or user.
• Do not use the appliance if its cord, plug or housing is damaged, nor after it malfunctions or has been dropped or damaged in any way.
• The appliance must not be used in potentially dangerous locations, such as flammable materials.

• Place the fryer on an even, heat-resistance surface. Do not place the fryer near heat sources, places with high humidity levels or combustible materials.

• Do not attempt to disassemble the appliance.

• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Do not insert or allow fingers or foreign objects to enter any ventilation or exhaust openings, as it could cause an electrical shock or fire.
• Do not fill the container with oil as this may cause a fire hazard.
• Do not touch the inside of the appliance while its operating.
• Temperature of accessible surfaces may be high when the appliance is operating. Be careful not to get burned.
• Do not immerse the cord, plug or any non-removable part of the device in water or any other liquid. Do not expose the electrical connections to water.
• Always place the ingredients to be fried inside the basket to prevent them from coming into contact with the heating elements.
• Make sure your hands are dry before handling the plug or switching on the appliance.
• Unplug from the electrical outlet when not in use and before cleaning. Allow it to cool down completely before attaching or removing parts and before cleaning the appliance.
• Do not leave the appliance unattended while connected to the mains supply.
• Do not lean over the device while in use.
• Be careful not to touch the surfaces of the fryer as they will become hot when in use.
• Cleaning and maintenance must be carried out according to this instruction manual to make sure the appliance functions properly. Turn off and unplug the appliance before moving it.
• Do not place the appliance against a wall or against any other appliance. Leave at least 10 cm of free space on the back and sides and 10 cm above the appliance.
• Do not place anything on top of the appliance.
• During operation hot-steam is released through the air outlet openings. Keep your hands and face at a safety distance from the steam and from the air-outlet openings. Hot-air may also come out when removing the basket from inside the device.
• Unplug the appliance immediately if you see black smoke coming out of the device. Wait until the smoke disappears to remove the basket from the device.
  • We recommend using gloves when touching the basket and grill.
• Do not use the appliance for other than intended use.
• This device is intended for household use only.
• Do not attempt to repair the device by yourself.
  • Always unplug the device after using it.

Components

1. Lid
2. Control panel
3. Housing
4. Basket
5. Gridiron
6. Basket handle
7. Air outlet
8. Power cord

id Control panel Housing Basket Gridiron Basket handle air outlet Power cord 1 2 3 4 5 6 7 8 PUSIONESCO ASPIRE

Carefully read the warning and safety precaution.

Check the product for any visible damage. If any, contact japproducts as soon as possible.

Operation

The oil-free fryer can prepare a wide variety of ingredients. The enclosed recipe booklet will help you to get to know the appliance.

Note: When opening the basket during a program the fryer will pause itself. The fryer will resume automatically when placed back.

Note: Fryer will start beeping after 15 seconds when finishing a program.

WARNING: When finishing / pausing a program let the fryer cooldown. Do not unplug until its finished cooling.

WARNING: This product gets hot while using. Only use the handle to open/close the basket.

1. Insert the plug in a suitable wall plug

2. Press ① to turn on the fryer. Press and hold ① to turn off the fryer.

3. Fryer starts by default in manual mode. Press ▲ to increase temperature or press ▼

to decrease the temperature. Hold ▲ or ▼ to increase/decrease faster.

1. Press ▲ to increase time or press ▼ to decrease time.

Hold ▲ no increase/decrease faster.

1. Press ☐☐ to switch between presets.

a. Note: Every preset can be adjusted slightly. These settings will reset once turned off.

b. Note: Press ☐ while fish preset is selected to select manual again.

1. Press ① to start the program, press ② again to pause the program.

2. Take the basket and grill out from the device carefully. Use the handle. (Fig. 1)

3. Place ingredients in the basket.

a. Note: Do not fill the basket beyond the MAX indication mark or exceed the amount of foodstuff indicated in the chart further in this manual as this could affect the quality of the result. Make sure you check the preparation time and the temperature required for the different ingredients before you start preparing them simultaneously. Potato cubes and schnitzel for example can be prepared simultaneously because they require the same settings. In that case please note that the maximum amount for each of the ingredients is half the normal amount.

1. Place the basket back in the device carefully. Use the handle. (Fig. 2)

2. Start the required program/settings. Enjoy your meal.

Line drawing of a French air fryer with a side panel showing internal mesh structure (no text or symbols)

fig. 1

Line drawing of a person's air fryer with a side panel showing internal mesh structure (no text or symbols)

Control panel

1. Menu display. (img A.)
2. Temperature status. (img D.)

a. Note: When blinking the fryer is warming up. When showing continuously the fryer is on temperature.

a. Note: When visible the fryer is in use and heating.

1. Temperature adjustment (80-200 °C). (img B & E.)
2. Power on/off (press and hold) and pause/resume. (img F.)
3. Time adjustment (1-60min). (img H & J.)
4. Display. (img I.)
5. Select preset. (Img K.)

a. Note: Press to navigate through presets, selected preset will start blinking. Press while fish preset is selected to select manual, none will be blinking.

A C B F E D H I K TIME MIN J TEMP 200

Cooking

Some ingredients may require sautéing during the frying process. To sauté the ingredients, pull the container out of the fryer by the handle and shake it. Then place it back in the device carefully.

1. When you hear an alarm beep it means that the preparation time has come to an end. Pull the container out of the device.
2. Check if the ingredients are ready. If not, put the container back inside the device and set the timer to a few more minutes.
3. To take the ingredients out of the container, place the device on a hot-resistant surface. Depending on the kind of ingredients, steam may come out.
4. Empty the basket into a bowl or plate. Use tongs to remove big or fragile ingredients. Be careful not to get burned.

	Min-max Amount (g)	Time (min.)	Temp (°C)	Sautéin (g)	Extra information
Potatoes & French fries
Thin frozen fries 500-600 18-25 200 Yes
Thick frozen fries 500-600 20-25 200 Yes
Potato gratin 600 20-25 200 Yes
Meat & Poultry
Steak 100-600 12-18	180	No
Pork chops 100-600 12-18 180	No
Hamburgers	100-600	10-20	180	No
Sausage rolls	100-600	13-15	200	No
Drumsticks	100-600 25-30 180	No
Chicken breast	100-600	18-25	180	No
Snacks
Spring rolls	100-600	8-10	200 Yes
Frozen chicken nuggets	100-600	8-12	180	Yes
Frozen fish fingers	100-500	6-10	200	No
Frozen bread crumbed cheese snacks	100-500	8-10	180	No
Stuffed vegetables 100-50	0 12-20 160 No
Baking
Cake 500 8-15 180 No Use baking-tray
Quiche 500 20-22 180 No Use baking-tray
Muffins 500 15-18 200 No Use baking-tray
Sweet snacks 500 20 160 No Use baking-tray
Shrimps 280-350 5	175 Stir
Fish	350-450 3-8 180		Stir

Tips

• Add extra minutes when the fryer is not yet warmed up at the correct temperature.
• Smaller ingredients usually require a slightly shorter preparation than larger ingredients.
• Sautéing ingredients halfway through the cooking process optimizes the result and prevents unevenly fried ingredients.
• Add some oil to fresh potatoes for a crispy result.
• Do not prepare extremely greasy ingredients such as sausages.
• Only use accessories from japproducts combined with this fryer to avoid any malfunction.
• Fryer can also be used to re-heat ingredients. To do so, set the temperature to 150°C for 10 minutes.

Cleaning and maintenance

• Unplug the device from the power supply and allow it to cool down before cleaning.
• Remove the basket to let the device cool down more quickly.
• Do not use metallic tools or abrasive products to clean the basket and grill. Use soft, dampened clean cloth to clean the appliance in water or other liquids.
• Do not immerse the device in water or other liquid.
• Do not use abrasive scouring pads, powders or cleaners.
• Use degreasing liquid to remove any remaining dirt.
• If any dirt remains inside the basket and grill fill the basket with hot water mixed with washing-up liquid and let the basket and grill dry for approximately 10 minutes.
• Clean inside parts of the device with hot water and a non-abrasive sponge.
• Clean the heating element with a soft cleaning brush to remove any food residue. Be careful not to damage the heating element.

Technical specifications

Fusionesco Aspire

Product reference: F-AS.

Power supply: AC 220-240V; 50/60Hz.

Wattage: 1700W.

Capacity: 5.7L.

Adjustable temperature: 80-200 °C.

Made in China, designed in the Netherlands.

Disposal of electrical appliances

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), specifies that old household electrical appliances must not be disposed of with the normal unsorted municipal waste. Old appliances must be collected separately, in order to optimise the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation to dispose of the appliance correctly. Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

This product is under warranty for 2 years from the date of purchase, proof of purchase is required. The product must be in perfect physical condition and has followed given guidelines.

The warranty will not cover the following situations:

• The product has been used for purposes other than those intended for it, misused, beaten, exposed to moisture, immersed in liquid or corrosive substances, as well as any other fault attributable to the customer.
• The product has been disassembled, modified, or repaired by persons, not authorised by japproducts.
• Faults deriving from the normal wear and tear of its parts, due to use.
• The warranty service covers every manufacturing defects of your appliance for 2 years, based on current legislation, except consumable parts. In the event of misuse, the warranty will not apply.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact japproducts at [phone].

Inhoudsopgave

Line drawing of a Japanese air fryer with a handle and mesh interior (no text or symbols)

fig. 1

Line drawing of a person's air fryer with a side panel showing internal mesh structure (no text or symbols)

Bedieningspaneel

A C B F E D H I K TIME MIN J TEMP 200

Koken

A C B F E D H I K K TIME MIN J TEMP 200

Kochen

A C B F E D H I K TIME MIN J TEMP 200

Cuisson

A C B F E D H I K K TIME MIN J TEMP 200

Cottura

A C B F E D H I K TIME MIN J TEMP 200

Cocción

Line drawing of a Pantheon electric air fryer with a side panel showing internal mesh structure (no text or symbols)

fig. 1

Line drawing of a French air fryer with a side panel showing internal mesh structure (no text or symbols)

Kontrolpanelen

A C B F E D H I K K TIME MIN J TEMP 200

Tillagning

Icon of a hand cursor clicking a button (no text or symbols)

TOUCH SCREEN

Simple circular icon with a diamond shape and sparkles, no text or symbols present.

EASY CLEANING

Gray circular icon with four white arrows pointing in different directions (no text or symbols)

BIG CAPACITY

Gray circular icon with a white shield and checkmark symbol (no text or numbers)

SAFE USE

Simple line icon of a bowl with two leaves inside, enclosed in a circular frame (no text or symbols)

HEALTHY NUTRITION

Simple 3D cube icon inside a circular frame (no text or symbols)

SQUARE-SHAPED DESIGN

Gray circular icon with a shopping cart and plus sign (no text or symbols)

ADD & EXPAND

Fusionesco Aspire

Product reference: F-AS.

Power supply: AC 220-240V; 50/60Hz.

Wattage: 1700W.

Capacity: 5.7L

Adjustable temperature: 80-200 °C

Made in China, designed in the Netherlands.

FUSIONESCO

ASPIRE

Fusionesco Aspire

Product reference: F-AS.

Power supply: AC 220-240V; 50/60Hz.

Made in China - Designed in the Netherlands

www.japproducts.nl
