USER MANUAL Tornado JAP

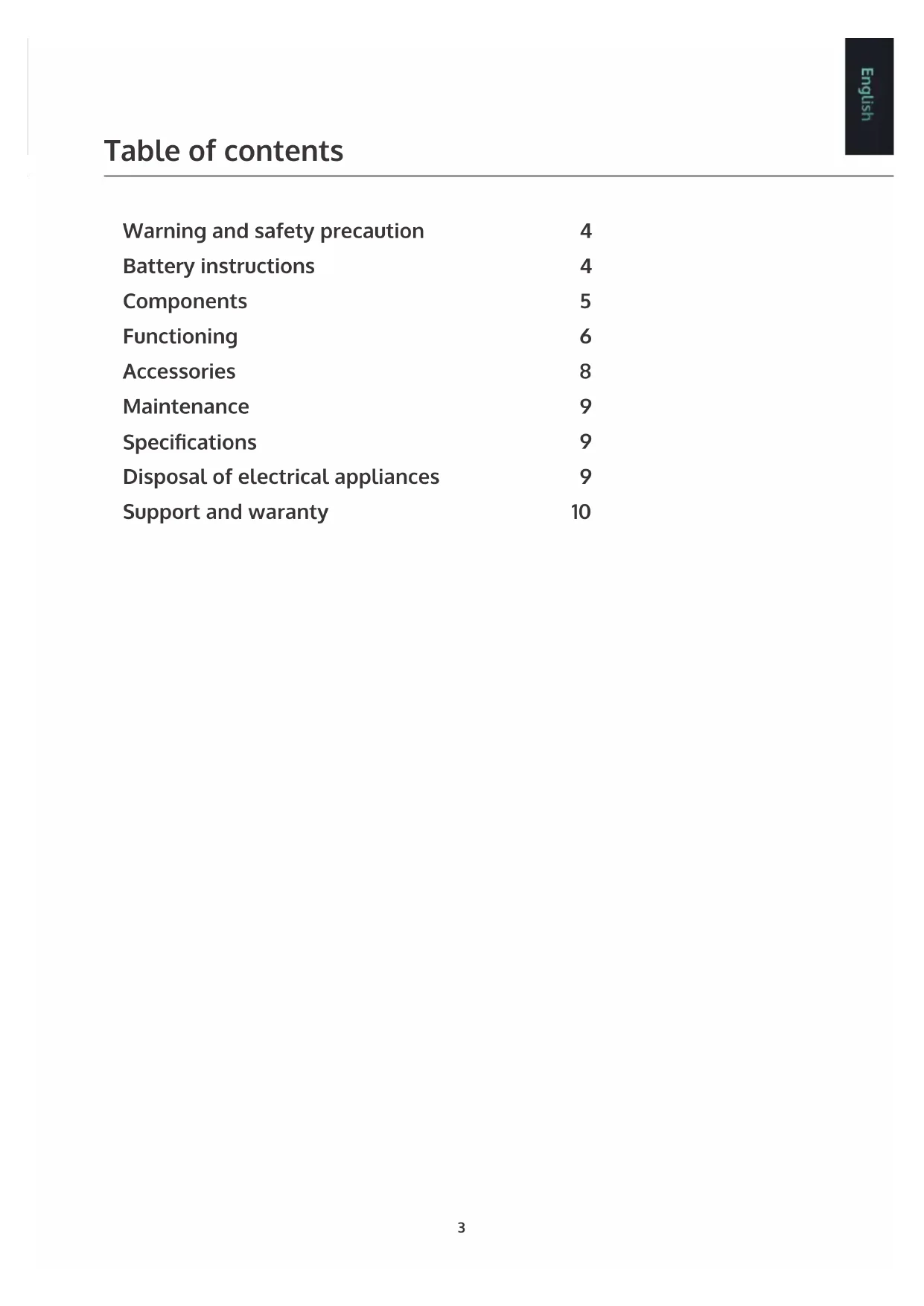

English Table of contents Warning and safety precaution Battery instructions Components Functioning Accessories Maintenance Specications Disposal of electrical appliances Support and waranty

English Warning and safety precaution Battery instructions Read these instructions carefully before using the appliance. Keep this instruction manual for future use.

• Children should be supervised to ensure that they do not play with the appliance.

• This appliance is designed for domestic use only.

• Pull from the plug, not the cord, to disconnect it from the wall plug.

• Do not leave the appliance unattended while in use.

• Do not use the device if it has been dropped or if there are any signs of damage.

• Do not attempt to repair any part of the product by yourself.

• Only use the device with the accessories supplied.

• Make sure your hands are dry before handling the plug or switching on the appliance.

• Do not place the appliance close to heat sources or ammable substances.

• This appliance incorporates batteries which contain materials that are hazardous to the environment. The batteries must be removed from the appliance before it is disposed of.

• Do not point the vacuum cleaner at persons or animals when operating.

• When vacuuming liquids, make sure not to overll the tank, as this will block the lters and may cause seriously damage to the appliance.

• Do not vacuum large or sharp broken glasses.

• Do not vacuum reactive liquids (solvent, corrosive,detergent…).

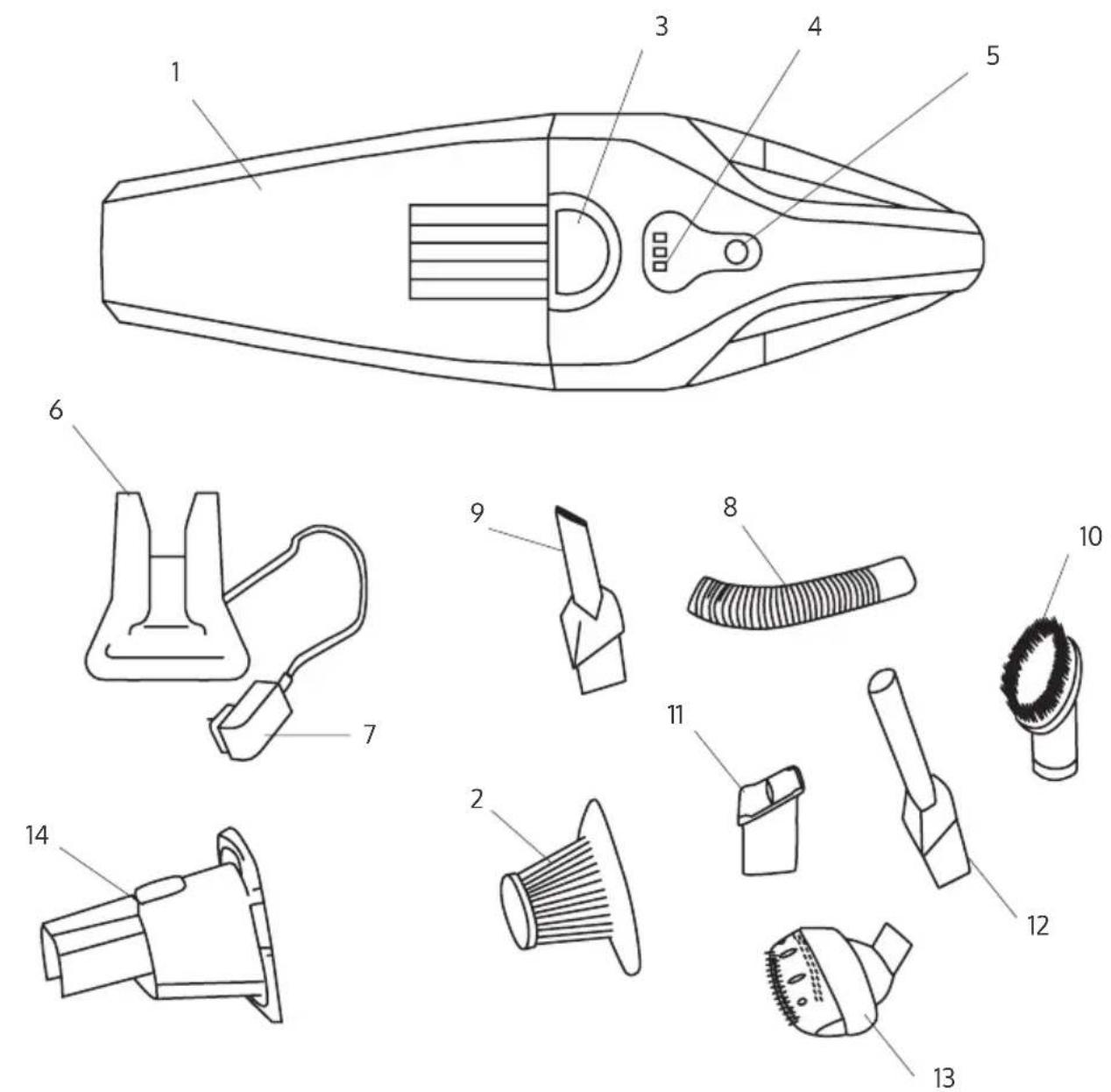

• Do not vacuum inammable or explosive substances such as gasoline or alcohol. This appliance includes Li-ion batteries, do not incinerate or expose them to high temperatures, as they may explode. Leaks from the battery or battery cells can occur under extreme conditions. Do not touch any liquid that leaks from the battery. If the liquid gets into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, ush them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of immediately in accordance with local regulations. Avoid contact between the battery and small metallic objects such as paper clips, coins, keys, nails or screws. Before a new battery is used or the battery is used for the rst time after long-term storage, fully charge the battery. When the device is stored and not used for long periods of time, ensure that the battery pack is fully charged.5 English Components

3. Dust tank release button

9. Accessory for corners

10. Accessory for car/furniture

11. Accessory for liquid

13. Accessory for pets

g. 16 English Read before use Functioning Carefully read the warning and safety precaution. Check the product for any visible damage. If any, contact japproducts as soon as possible.

• Occasionally check that the nozzle is clean from any object, it may scratch sensitive surfaces

• Insert the needed accessory into the main unit when cleaning tables, cars, corners, sofas, carpets, etc.

• Insert the rubber nozzle into the main unit when vacuuming liquids.

• Turn on/o the device by pushing the power button.

• Do not exceed the MAX mark on the dust tank when vacuuming liquids.

• Do not connect the adapter while using the product.

• Insert the adapter into a socket. Always make sure that the vacuum cleaner is turned o before connecting it to the power adapter.

• The light indicator will turn on blue and ash once the device has made contact with the adapter.

• When using the appliance, the light indicator will turn steady blue.

• To ensure it is always ready for use, the device should be kept charging with the adapter while not in use.

• The adapter may become warm during charging.

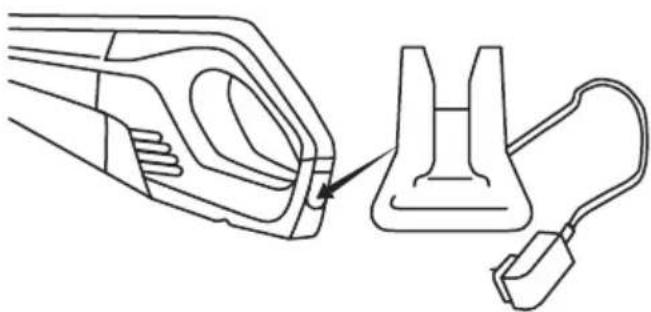

• The blue light indicator will ash again when battery is low.7 English Fig. 2 - Warning Fig. 3 - Cleaning the dust tank

• The vacuum cleaner should not be used during the charging process.

• The battery provided is the only one suitable for the vacuum cleaner. Do not use the charger for a non-rechargeable battery.

• Unplug the vacuum cleaner if it is not going to be used during long periods of time. You can charge the product from its charging base or by plugging it directly.

• Remove the whole dust tank by pressing the release button and taking it out.

• Take out the lters and the plastic protector and empty the contents of the dust tank.

• The lter can be shaken clean or cleaned and rinsed with warm water (no detergents). Make sure all the parts are completely dry before reinstalling them.

• Wash and rinse the tank if necessary.

• Place the tank back into its position. A click will be heard, indicating it is properly xed. Note: make sure all the parts are dry before place them back in their position. Place the lter in the dust tank. Assemble the dust tank in the motor unit following the opposite procedures as for detaching the dust tank. g. 2 g. 38 English Accessories Accessory for corners; used for vacuuming corners and less accessible areas. (Fig. 1 – 9) Accessory for car/furniture; used for vacuuming cars and less accessible areas. (Fig. 1 – 10) Accessory for liquids; used for vacuuming liquids. (Fig. 1 – 11) Accessory for pets; used for vacuuming animal hair. (Fig. 1 – 13) Connector; used for vacuuming furniture and connecting hose accessory. (Fig. 1 – 12) Hose; used for connecting other accessories. (Fig. 1 – 8) Charging station; used for charging the vacuum cleaner. (Fig. 1 – 6)

g. 19 English Maintenance Specications Disposal of electrical appliances Use soft, dampened clean cloth to clean the vacuum. Wash the dust tank with water and dry before using. Model: Bionic Blast Tornado S3 (22,2V) Product reference: T-S3 Power supply: 220-240V, 50Hz Made in China, Designed in the Netherlands. The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), species that old household electrical appliances must not be disposed of with the normal unsorted municipal waste. Old appliances must be collected separately, in order to optimise the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation to dispose of the appliance correctly. Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.10 English Support and waranty This product is under warranty for 2 years from the date of purchase, proof of purchase is required. The product must be in perfect physical condition and has followed given guidelines. The warranty will not cover the following situations:

• The product has been used for purposes other than those intended for it, misused, beaten, exposed to moisture, immersed in liquid or corrosive substances, as well as any other fault attributable to the customer.

• The product has been disassembled, modied, or repaired by persons, not authorised by japproducts.

• Faults deriving from the normal wear and tear of its parts, due to use.
