H2F-385WD - Freezer HAIER - Free user manual and instructions
Find the device manual for free H2F-385WD HAIER in PDF.
| Product Type | Upright Freezer |
| Brand | Haier |
| Model | H2F-385WD |
| Dimensions (H x W x D) | 172.5 cm x 70.5 cm x 69.1 cm |
| Net Volume | 386 L |
| Energy Efficiency Class | D (according to product sheet) |
| Annual Energy Consumption | 228 kWh/year (for model D) |
| Freezing Capacity | 19.5 kg/24h |
| Power Failure Autonomy | 11.5 hours |
| Noise Level | 39 dB(A) |
| Climate Class | SN-T (10 °C to 43 °C) |
| Electrical Supply | 220-240 V ~, 50 Hz, 1.5 A |
| Refrigerant | R600a (isobutane) |
| Defrost System | Automatic (No Frost) |
| Lighting | LED |
| Control Panel | Touch screen with Super Freeze, Daily, Holiday, Auto Set functions |
| Freezer Temperature Range | -14 °C to -24 °C |
| Door Reversibility | Yes (left/right) |
| Alarms | Door open and high temperature alarm |
| Supplied Accessories | Ice maker, ice scoop, removable door balconies, glass shelves |
| Maintenance and Cleaning | Clean interior with warm water and mild detergent; no hard brushes or solvents; automatic defrost |
| Spare Parts Availability | Thermostats, sensors, electronic boards and lighting available for 7 years; handles, hinges, trays for 7 years; door gaskets for 10 years after last unit |
| Warranty | 2 years (EU), varies by country |
| Weight | Not specified in manual (estimated ~80 kg) |
Frequently Asked Questions - H2F-385WD HAIER
User questions about H2F-385WD HAIER
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Freezer in PDF format for free! Find your manual H2F-385WD - HAIER and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. H2F-385WD by HAIER.
USER MANUAL H2F-385WD HAIER


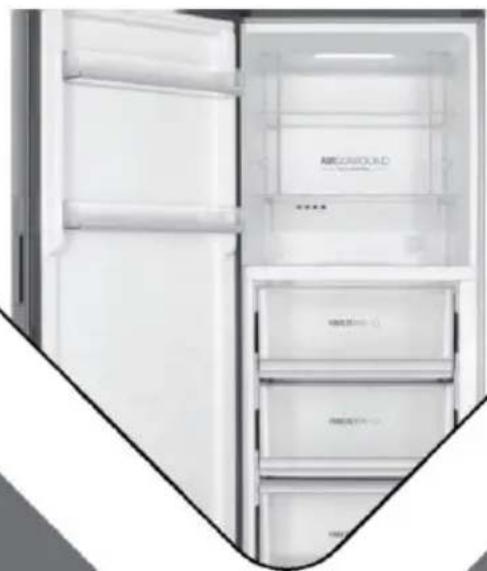

Interior view of a modern refrigerator with open door and side compartments (no visible text or symbols)| Upright freezerUser Manual |
| GefrierschrankBedienungsanleitung |
| Congélateur verticalManuel de l’utilisateur |
| Freezer VerticaleManuale d’uso |
| Skříňová mrazničkaNávod k obsluze |
| Congelador verticalManual del usuario |
| Vrijstaande vriezerGebruikershandleiding |
| Zamražarka pionowainstrukcja obsługi |
| Congelador verticalManual do utilizador |
| Vertikálna mrazničkaNávod na použitie |
EN
DE
FR
IT
CZ
ES
NL
PL
PT
SK
User Manual
H2F385\*F
H2F385\*D
* - Colour code
EN
Thank you for purchasing a Haier Product.
Please read these instructions carefully before using this appliance. The instructions contain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance.
Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance.
If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass this manual so that the new owner can become familiar with the appliance and safety warnings.
WARNING: Risk of fire/flammable material. The symbol indicates there is a risk of fire since flammable materials are used. Take care to avoid causing a fire by ingniting flammable material.
Legend
General information and tips
Warning – Important Safety information
Environmental information
Disposal
Help protect the environment and human health. Put the packaging in applicable containers to recycle it. Help to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with this symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.
Warning!
Risk of injury or suffocation!
Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before being properly disposed of. Disconnect the appliance from the mains supply. Cut off the mains cable and dispose of it. Remove the door, the door catch and seals, to prevent children and pets to get closed in the appliance.
1 - Safety 4
2 - Intended Use.... 11
3 - Product Description....12
4 - Use....13
5 - Equipment 17
6 - Care and Cleaning....18
7 - Troubleshooting....20
8 - Installation 23
9 - Technical Data 27
Before switching on the appliance for the first time, read the following safety hints!
WARNING!
Before first use
▶ Make sure there is no transport damage.
Remove all packaging and keep out of children's reach.

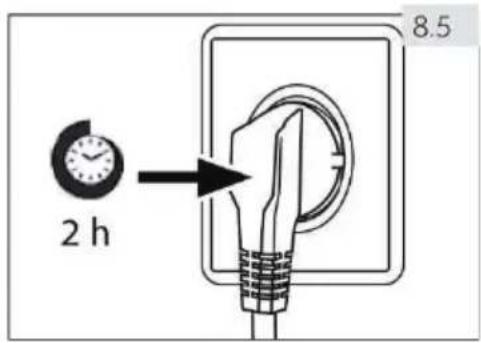

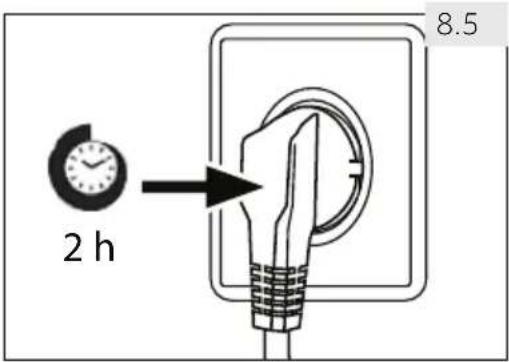

▶ Wait at least 2 hours before installing the appliance in order to ensure the refrigerant circuit is fully efficient.
▶ Handle the appliance always with at least two persons because it is heavy.
Installation
The appliance should be placed in a well-ventilated place. Ensure a space of at least 5 cm above and around the appliance.
▶ WARNING: Keep ventilation openings in the appliance or in the in-built structure clear of obstruction.
▶ Never place the appliance in a damp area or location where it might be splashed with water. Clean and dry water splashes and stains with a soft clean cloth.
▶ Do not install the appliance in direct sunlight or in the near of heat sources (e.g. stoves, heaters).
▶ Install and level the appliance in an area suitable for its size and use.
▶ Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician. The appliance is operated by a 220-240 VAC/50 Hz power supply.
▶ Abnormal voltage fluctuation may cause the appliance to fail to start, or damage to the temperature control or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted.
▶ Do not use multi-plug adapters and extension cables.
▶ WARNING: Do not locate multiple portable socket outlets or portable power supplies at the rear of the appliance.
▶ WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
▶ Do not step on the power cable.
▶ Ensure that the power cable is not trapped by the freezer.
▶ Do not cover air vent openings.
▶ Use a separate earthed socket for the power supply which is easy accessible. The appliance must be earthed.
On refrigerating mode without a 4-star compartment: this refrigerating appliance is not suitable for freezing foodstuffs; on freezing mode with a 4-star compartment: this freezing appliance is not suitable for refrigerating foodstuffs.
WARNING!
▶ WARNING: Do not damage the refrigerant circuit.
Daily use
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
▶ Children shall not play with the appliance.
Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances, but not allowed to clean and install the refrigerating appliances.
▶ Keep away children under 3 years of age from the appliance unless they are constantly supervised.
▶ Cleaning and user maintenance shall not be made by children without supervision.
The appliance must be positioned so that the plug is accessible.
If coal gas or other inflammable gas is leaking into vicinity of the appliance, turn off the valve of the leaking gas, open the doors and windows and do not unplug or plug in the power cable of the freezer or any other appliance.
▶ Notice that the appliance is set for operation at the specific ambient range between 10°C and 43°C. The appliance may not work properly if it is left for a long period at a temperature above or below the indicated range.
▶ Do not place unstable articals (heavy objects, containers filled with water) on top of the freezer, to avoid personal injury caused by falling or electric shock caused by contact with water.
▶ Do not store or use inflammable, explosive or corrosive materials in the appliance or in the vicinity.
▶ Do not lift the appliance by its handles.
▶ Never place the appliance horizontally on the ground when moving it.
Before any operation, first unplug the appliance from the mains.

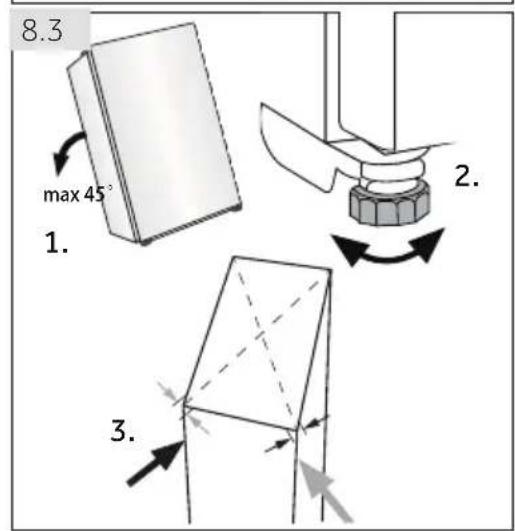

Do not tilt the appliance more than 45° to prevent damage of the cooling system when moving the appliance.
▶ Unplug the appliance in the event of a power interruption or before cleaning. Allow at least 7 minutes before restarting the appliance, as frequent starting may damage the compressor.
▶ Check the condition of food if a warming in the freezer has taken place.
WARNING!
▶ Do not pull on the door shelves. The door may be pulled slant, the door shelves , may be pulled away, or the appliance may topple.
▶ Open and close the door only with the handles. The gap between the door and the cabinet is very narrow. Do not put your hands in these areas to avoid pinching your fingers. Open or close the appliance doors only when there are no children standing within the range of door movement.
▶ Never store bottled beer or beverages in the freezer, as these will burst during freezing.
▶ Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
▶ Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance. It is not recommended to store materials that require strict temperatures.
▶ Never store liquids in bottles or cans (besides high percentage spirits) especially carbonated beverages in the freezer as these will burst during freezing.
▶ Do not set unnecessarily low temperature in the freezer compartment. Minus temperatures may occur at high settings. Attention: Bottles can burst.
▶ Do not touch frozen goods with wet hands (wear gloves). Especially do not eat ice lollies immediately after removal from the freezer compartment. There is the risk to freeze or the formation of frost blister. FIRST aid: keep immediately under running cold water. Do not pull away!
▶ Do not touch the inside surface of the freezer storage compartment when in operation, especially with wet hands, as your hands may freeze onto the surface.
▶ WARNING: Do not use electrical devices inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
▶ WARNING: The lamps can only be replaced by manufacturer, together with a part of the appliance.
▶ WARNING: If you are unsure of the refrigerant type check the rating plate in the unit. It is hazardous for anyone other than an Authorized Service Person to service this appliance. In Queensland – the authoriz – ed Service Person MUST hold a Gas Work Authorization for hydro -carbon refrigerants, to carry out Servicing or repairs which involve the removal of covers.
WARNING!
Maintenance / cleaning
▶Make sure children are supervised if they carry out cleaning and maintenance.
▶ Disconnect the appliance from the electrical supply before undertaking any routine maintenance. Allow at least 7 minutes before restarting the appliance, as frequent starting may damage the compressor.
▶Hold the plug, not the cable, when unplugging the appliance.
▶ Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with freezer detergent to avoid damage.
▶Do not scrape off frost and ice with a sharp objects. Do not use sprays, electric heaters like heater, hair dryer, steam cleaners or other sources of heat in order to avoid damage parts.
▶ WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
▶If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
▶ Do not try to repair, disassemble or modify the appliance by yourself. In case of repair please contact our customer service.
▶Eliminate the dust on the back of the unit at least once in the year to avoid hazard by fire, as well as increased energy consumption.
▶Do not spray or flush the appliance during cleaning.
▶Do not use water spray or steam to clean the appliance.
▶ Do not clean the cold glass shelves or glass door with hot water. Sudden temperature change may cause the glass to break.
▶ Disconnect the appliance from the power supply before cleaning.
▶▶In case of heating check the condition of frozen goods.
▶Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
Electrical equipment should be serviced only by qualified electrical experts, because improper repairs can cause considerable consequential damages.
Refrigerant gas information
WARNING!
The appliance contains the flammable refrigerant ISOBUTA (R600a). Make sure the refrigerant circuit is not damage transportation or installation. Leaking refrigerant may cause injuries or ignite. If a damage has occurred, keep away sources, thoroughly ventilate the room, do not plug or unplug the power cords of the appliance or any other appliance. customer service.
In case of eyes get into contact with the refrigerant, rinse it immediately under running water and call immediately the eye specialist.
WARNING: The refrigeration system is under high pressure. Do not tamper with it. Since the flammable refrigerants are used, please, install, handle and service the appliance strictly according to the instruction and contact the professional agent or our after-sales service to dispose of the appliance.
WARNING!
▶Taking care to avoid causing a fire by igniting flammable material.
▶WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
▶WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
▶Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
▶For flammable refrigerants is used in the freezer, please be careful when installing, handling, serving and recycling the appliance.
▶Please contact to the service agent to dispose the appliance because the flammable blowing gas was used.
Intended use
This appliance is intended to be used in household and similar applications such as
-staff kitchen areas in shops, offices and other working environments;
- farm houses and by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
▶ If the appliance is not used for an extended period of time.
- Take out the food.
- Unplug the power cord.
- Clean the appliance as described above.
- Keep the doors open to prevent the creation of bad odours inside.
▶ To ensure the safe preservation of foodstuffs, please comply with this instruction for use.
The details on the most appropriate part in the compartment of the appliance where specific types of food shall be stored, considering the distribution of temperature that can be present in the different compartments of the appliance are in the other part of the manual.
▶ To avoid contamination of food, please respect the following instructions:
- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. - Clean regularly surfaces that can come in contact with food and accessible drainage systems.
- S to r v emeat and fish in suitable containers in the freezer, so that it is not in contact with or drip onto other food.
- Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
On refrigerating mode without a 4-star compartment: this refrigerating appliance is not suitable for freezing foodstuffs.
1 - Safety
- One-, two- and three-star compartments are not suitable for the freezing of fresh food.
- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
Disposal
The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the appliacable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
Since the flammable insulation blowing gases are used, please contact the professional agent or our after-sale service to dispose of the appliance.
WARNING!
Risk of injury of suffocation!
Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before being properly disposed of. Disconnect the appliance from the mains supply. Cut off the mains cable and dispose of it. Remove the trays and drawers as well as the door catch and seals to prevent children and pets to get closed in the appliance.
which
2.1 Intended Use
"This appliance is intended to be used in household and similar applications such as
– staff kitchen areas in shops, offices and other working environments;
– farm houses and by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments;
– catering and similar non-retail applications.
This appliance is intended for freezing food. It has been designed exclusively for use in dry interior house-holds. It is not intended for commercial or industrial use.
Changes or modifications to the device are not allowed. Unintended use may cause hazards and loss of warranty claims.
2.2 Accessories
Check the accessories and literature in accordance with this list:
2.2
Energy label
User manual Warranty card
Top left trim
end cover

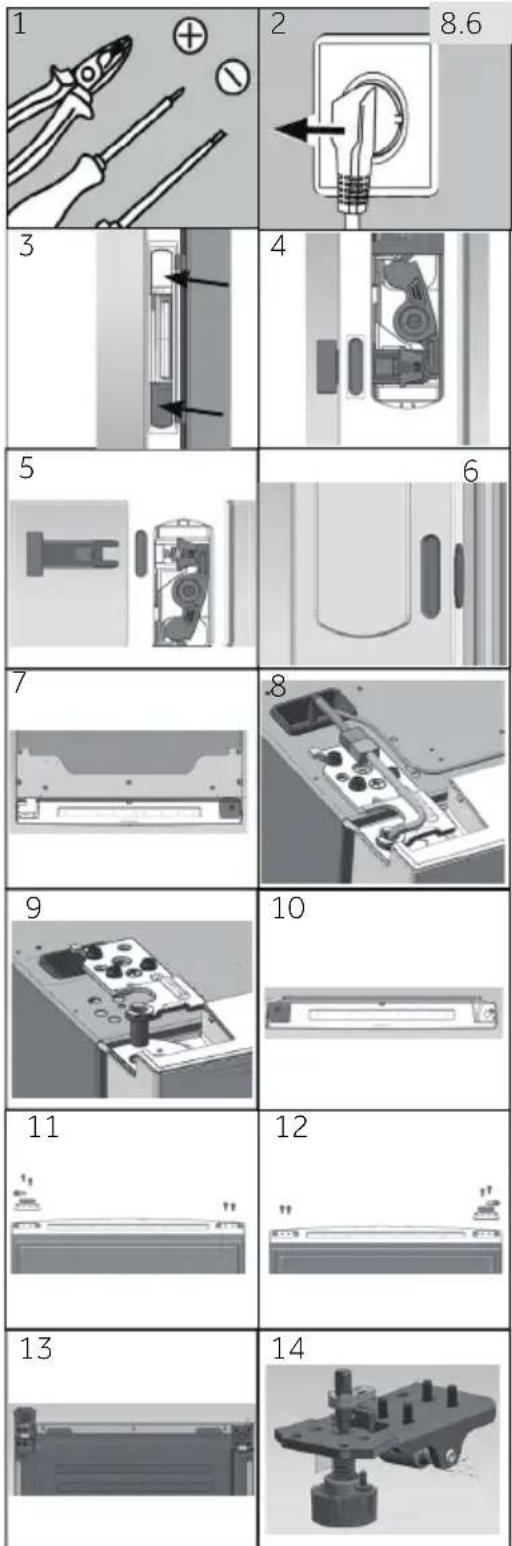

Upper right hinge for door reversibility
Upper right hinge cover
Notice: Difference
Due to technical changes and different models, some of the illustrations in this manual may differ from your model.

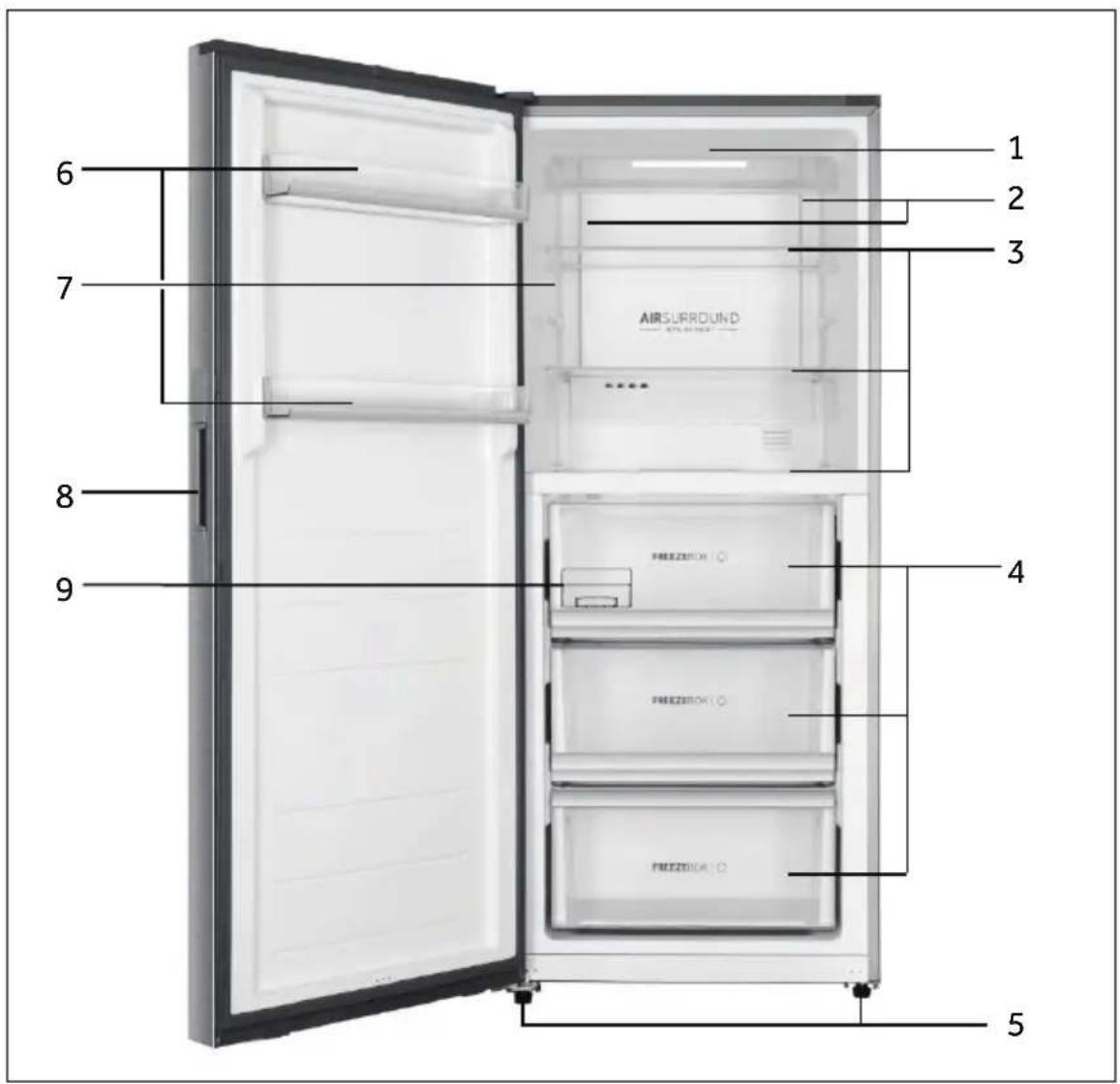

1 LED light
2 Air-duct cover
3 Glass shelves
4 Freeze storage bins
5 Adjustable feet
6 Adjustable door shelves
7 Rating plate
8 Door handle
9 Twist ice maker
Note : This product contains a light source of energy efficiency class
4.1 Before first use
Remove all packaging materials, keep them out of children reach and dispose them in an environmentally friendly manner.
▶ Clean the inside and outside of the appliance with water and a mild detergent before putting any food in it.
▶ After the appliance has been levelled and cleaned, wait for at least 2 hours before connecting it to the power supply. See Section INSTALLATION.
▶ Precool the compartment for 2 hours at high settings before loading with food. The function Super Freeze helps to cool down the compartment quickly.

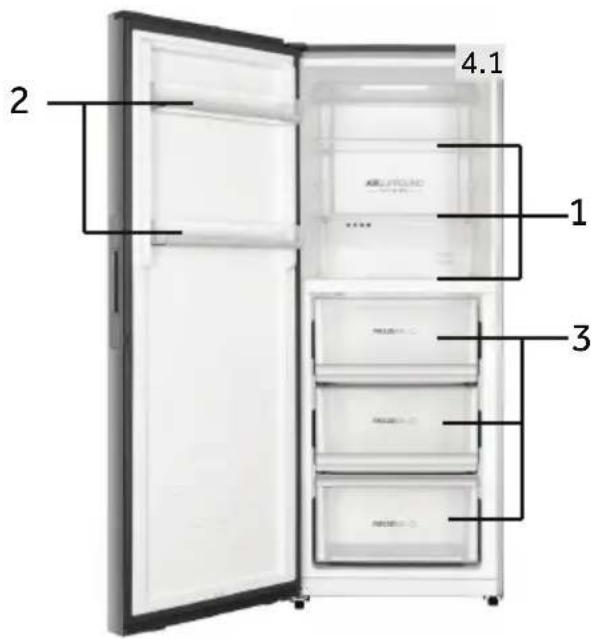

Different foods should be placed in different areas according to their properties (Fig: 4.1). The freezer box is recommended to store meat, fish, pizza and other frozen foods.
Food can be stored in the freezer at a temperature of at least -18 °C for 2 to 12 months, depending on its properties (e.g., meat: 3-12 months, vegetables: 6-12 months)
In order to avoid expiration of storage periods, please note the freezing date, time limit and name of the food on the packaging according to the storage periods of different foods.
4.2 Switching the appliance on /off
The appliance is in operation as soon as it is connected to the power supply.
The freezer temperature is automatically set to -18^ . This is the recommended setting and the ideal temperature for frozen goods. If desired, you can change the temperature manually. Please see ADJUSTING THE TEMPERATURE.
Notice: Presettings
- The appliance is preset to the recommended temperature of -18^ . Under normal ambient condition you don't need to change the temperature.
- When the appliance is switched on after being disconnected from the main power supply, it may take up to 12 hours for the correct temperature to be reached.
Empty the appliance before switching off. To switch off the appliance, pull the power cord out of the power socket.
4.3 Standby-mode of display
When the door is closed the display screen turns off automatically 30 seconds after without operation. The display locks automatically. It lights up automatically when pressing any key or opening the door.

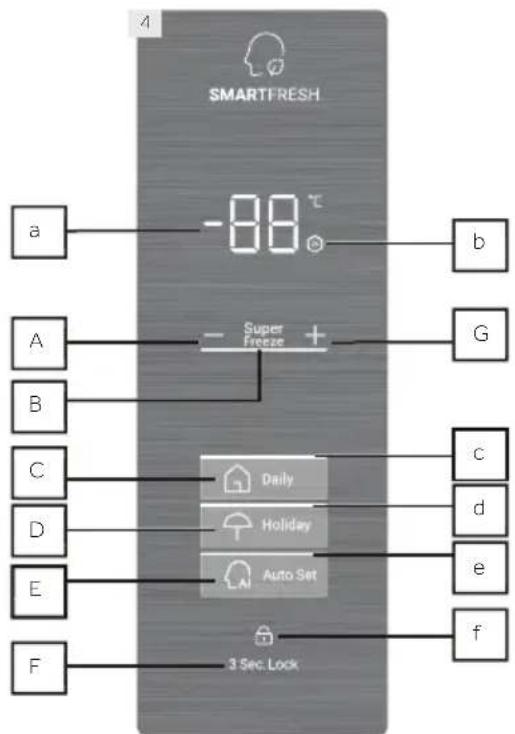

4.4 Control panel (Fig. 4)
Icons Description
a: Temperature display icon
b: Super Freeze icon
c: Daily function icon
d: Holiday icon
e: Auto Set icon
f: Lock icon
Key Description
A: Decreasing temperature setting key: Press to decrease the temperature
B: Super Freeze key: Press to active the Super Freeze function
C: Daily function key: Press to active Daily functions
D: Holiday key: Press to active Holiday function
E: Auto Set key : Press to active Auto Set function
F: Lock key: Press and hold for 3 seconds to lock or unlock
G: Increasing temperature setting key: Press to increase the temperature
4.5 Display lock and unlock
Automatic locking
The control panel can automatically enter theLock function. Display is automatically locked after 30 seconds without operation.
Manual locking
When the display is unlocked, press "Lock" (F) and hold for 3 seconds, after a beep, "Lock"(f) icon is light, display is locked. When the display is locked, press "Lock" (F) and hold for 3 seconds, after a beep, the "Lock" (f) icon is off, and the display is unlocked.
Notice: Display lock
When display is locked, functions such as temperature adjustment or function setting are disabled. When above operation is attempted, "Lock"(f) icon will blink for 3 times to remind that the display is locked.
4.6 Temperature setting
The temperature range of this freezer can be set between -14^ -24^ ;
When display is unlocked, in the daily function, press "Decreasing temperature setting"(A), after a beep, "Temperature display" icon (a) starts to flash and enters the temperature setting mode. And then every time you press the "Decreasing Temperature Setting" (A), the buzzer beeps, the temperature is lowered by 1 °C, and the lowest value is -24°C.
After the temperature is set, the temperature set value is determined and stops flashing after 5 seconds without operation.
After the display is unlocked, in the Daily function, press "Increasing temperature setting" (G), after a beep, the icon "Temperature display" (a) starts to flash and enter temperature setting mode, and then every time you press "Increasing temperature setting" (G), the buzzer beeps, the temperature increases by 1 °C, up to -14 °C. After the temperature is set, the temperature set value is determined and icon (a) stops blinking after 5 seconds without operation.
4.7 Daily function (C)
The appliance is under Daily function as soon as it is connected to the power supply for the first time, and "Daily" icon (c) lights up. Only under this function, the temperature can be set.
4.8 Super Freeze function (B)
Super Freeze mode is optimal for preserving food nutrition, it could freeze food in less time. Before putting lots of food inside the freezer, activate Super Freeze function to have lower temperature, to make sure better freeze result.
When display is unlocked, by touching "Super Freeze" (B), the Super Freeze icon (b) will be lig -ht, the freezer works in Super Freeze mode. To exit Super Freeze function manually repeat steps above. Otherwise, the function will exit automatically after 50 hours.
If you have a large amount of food to freeze at one time, it is recommended that the function be activated 24 hours before inserting food. Function will stop automatically after 50 hours or manually. Power consumption will increase when this function is on.
Under Super Freeze mode, freezer operating temperature varies depend on the amount of food load and ambient condition. Temperature inside freezer compartment could potentially be pulled down to -37^ C.
ce: Super Freeze
-
In Super Freeze mode, temperature could not be adjusted. If you do so, Super Freeze icon will flash for 3 times to remind that the freezer is in Super Freeze mode.
-
In the Super Freeze mode, if the Auto Set function or Holiday is set, "Super freeze" (b) is off, the Super Freeze function automatically exits, and the Auto Set or Holiday function is entered.
4.9 Holiday function (D)
When display is unlocked, by touching "Holiday" (D), the Holiday icon (d) will be light, the freezer works in Holiday function. In the Holiday mode, touching "Holiday" (D), the Holiday -ay icon (d) is off, and the freezer exits the Holiday function. In the Holiday mode, if the temperature before entering Holiday is higher than -18 °C, then after entering the Holiday function, the temperature is automatically set to -18 °C; if the temperature before entering Holiday is lower than -18 °C, then after entering the Holiday function, the temperature is unchanged.
Notice: Holiday function
- In Holiday mode, temperature could not be adjusted. If you do so, Holiday icon will blink for 3 times to remind that the freezer is in Holiday mode.
- In Holiday mode, if Auto Set, Daily or Super Freeze function is set, Holiday icon (d) is off, Holiday function automatically exits, and enters Auto Set, Daily or Super Freeze function.
4.10 Auto Set function (E)
When display is unlocked, by touching "Auto Set" (E), "Auto Set" icon (e) is light, the freezer works in Auto Set function. In Auto Set mode, by touching "Auto Set" (E), icon (e) is off, and the freezer exits the Auto Set function.
Under the Auto Set function, the freezer operates at -18°C setting.
Notice: Auto Set function
- In Auto Set mode, temperature could not be adjusted. If you do so, Auto Set icon will blink for 3 times to remind that the freezer is in Auto Set mode.
- In Auto Set mode, if the Holiday, Daily or Super Freeze function is set, "Auto Set" (e) is off, the Auto Set function automatically exits and enters Holiday, Daily or Super Freeze function.
4.11 Display control function
When the door is closed the display screen turns off automatically 30 seconds after without operation. The display locks automatically. It lights up automatically when touching any key or opening the door.
4.12 Power-off memory
This freezer has power-off memory, settings before power-off will be memorized. When power is back on, freezer will return to settings before power-off and continue to function. Lock is not memorized, after power is back on, display is unlocked.
4.13 Door open alarm
When freezer is kept open for more than 1 minute, beeper will make 3 beeps with interval of 0.5 second. The beeps will be repeated every 30 seconds if door is kept open. The beeps will stop until door is closed or after 7 mins of door opening. The beeper stops beeping and freezer light goes off.

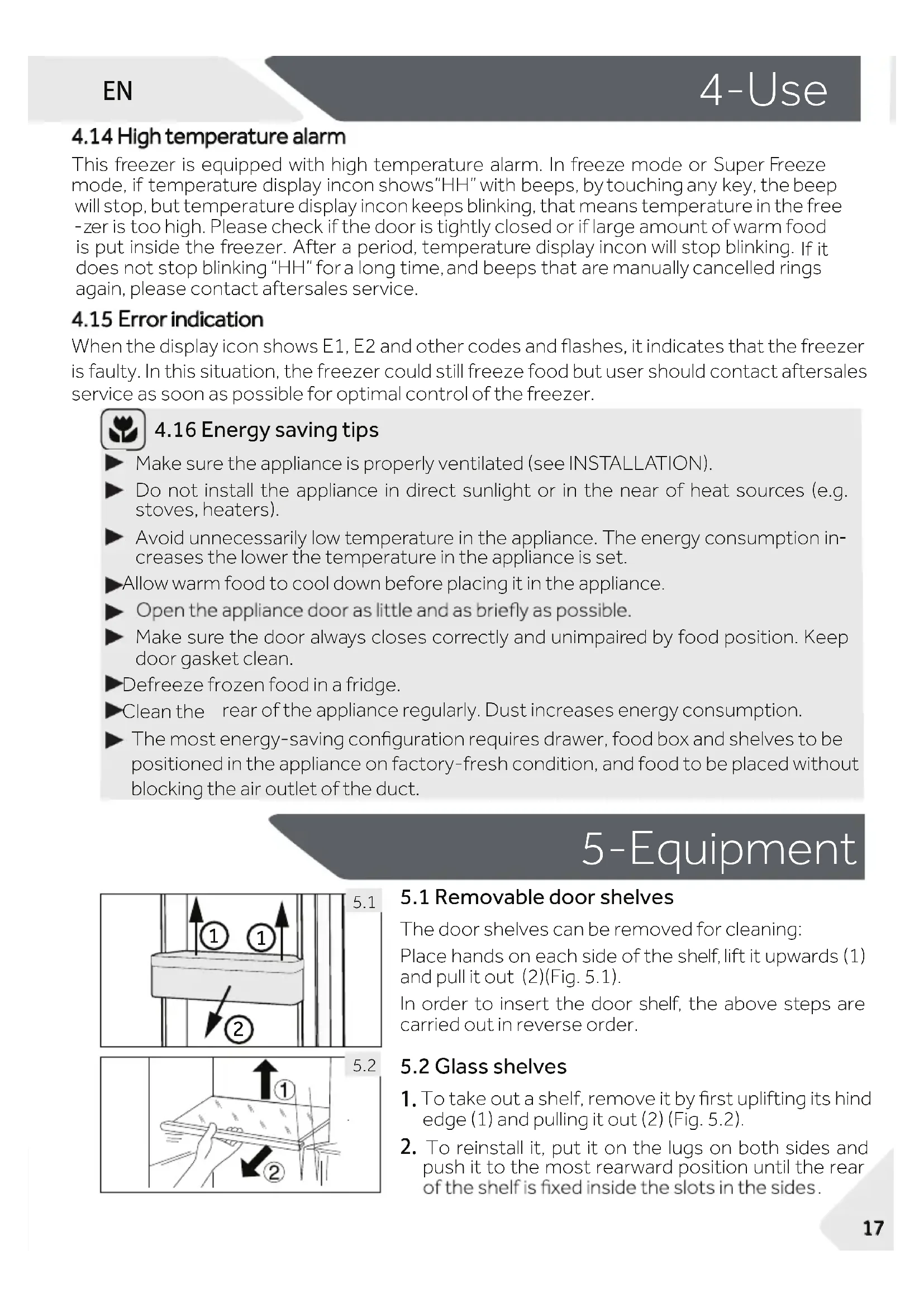

4.14 High temperature alarm
This freezer is equipped with high temperature alarm. In freeze mode or Super Freeze mode, if temperature display incon shows "HH" with beeps, by touching any key, the beep will stop, but temperature display incon keeps blinking, that means temperature in the free -zer is too high. Please check if the door is tightly closed or if large amount of warm food is put inside the freezer. After a period, temperature display incon will stop blinking. If it does not stop blinking "HH" for a long time, and beeps that are manually cancelled rings again, please contact aftersales service.
4.15 Error indication
When the display icon shows E1, E2 and other codes and flashes, it indicates that the freezer is faulty. In this situation, the freezer could still freeze food but user should contact aftersales service as soon as possible for optimal control of the freezer.
4.16 Energy saving tips
▶ Make sure the appliance is properly ventilated (see INSTALLATION).
▶ Do not install the appliance in direct sunlight or in the near of heat sources (e.g. stoves, heaters).
Avoid unnecessarily low temperature in the appliance. The energy consumption increases the lower the temperature in the appliance is set.
▶ Allow warm food to cool down before placing it in the appliance.
▶ Open the appliance door as little and as briefly as possible.
Make sure the door always closes correctly and unimpaired by food position. Keep door gasket clean.
▶Defreeze frozen food in a fridge.
▶Clean the rear of the appliance regularly. Dust increases energy consumption.
The most energy-saving configuration requires drawer, food box and shelves to be positioned in the appliance on factory-fresh condition, and food to be placed without blocking the air outlet of the duct.
5-Equipment

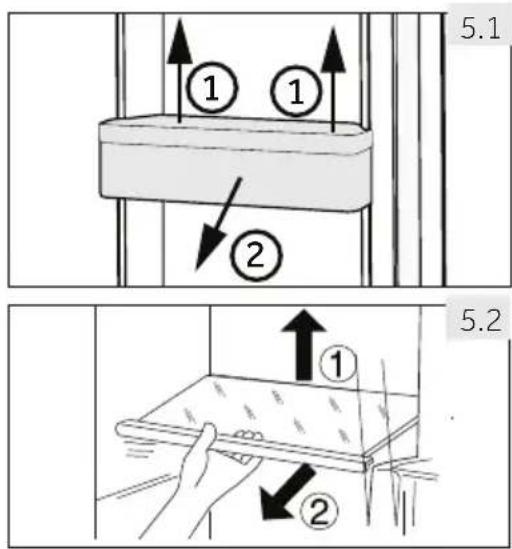

5.1 Removable door shelves
The door shelves can be removed for cleaning:
Place hands on each side of the shelf, lift it upwards (1) and pull it out (2)(Fig. 5.1).
In order to insert the door shelf, the above steps are carried out in reverse order.
5.2 Glass shelves
- To take out a shelf, remove it by first uplifting its hind edge (1) and pulling it out (2) (Fig. 5.2).
- To reinstall it, put it on the lugs on both sides and push it to the most rearward position until the rear of the shelf is fixed inside the slots in the sides.
6-Care and Cleaning
6.1 General
Clean the appliance when only little or no food is stored and unplug the appliance .
▶ Always keep the door gasket clean.
▶ Clean the inside and housing of the appliance with a sponge damped in warm water and neutral detergent.

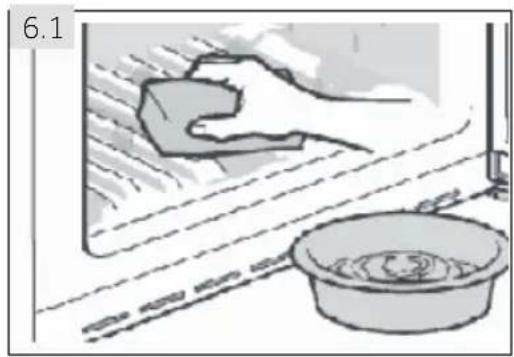

- Please scrub the interior and exterior of the freezer, including door gasket, door shelves, glass shelves, boxes and so on, with a soft
-
If there is liquid spilled, remove all the contaminated parts, directly rinse with the flow water, dry and place it back into the freezer.
-
If there is spilled cream (such as the cream, melting ice cream), please remove all the contaminated parts, put into the warm water with about 40^ C for some time, then rinse with the flow water, dry and place it back into the friezer.
-
In case some small part or component gets stuck inside of the freezer (between shelves or storage bins), use small soft brush to release it. If you could not reach the part, please contact Haier service.
6.2 Non-use for a longer period
If the appliance is not used for an extended period of time:
▶ Take out the food.
▶ Unplug the power cord.
▶ Clean the appliance as described above.
▶ Keep the door and freezer storage bins open to prevent the creation of bad odours inside.
Remove the door of the appliance (open the door and hold it before removing the screws) to avoid children entering into the appliance and getting locked in.
Notice: Switch off
To ensure the service life of the appliance, turn it off only if strictly necessary.
6.3 Moving the appliance
- Remove all food and unplug the appliance.
- Secure shelves and other moveable parts in the freezer with adhesive tape.
- Close the door and secure it with tape.
- Do not tilt the freezer more than 45^ to avoid damaging the refrigerating system.
- Wrap the feet of the freezer to avoid scratching the floor. Never move the freezer forcefully.
7-Troubleshooting
Many occurring problems could be solved by yourself without specific expertise. In case of a problem please check all shown possibilities and follow below instructions before you contact an after sales service.
The acoustic alarm can be switched of by pressing any button.
7.1 Troubleshooting
| Problem Possible Cause Possible Solution | ||
| The compressor does not work. | · Mains plug is not connected in the mains socket. | · Connect the mains plug. |
| The appliance runs frequently or for a too long period of time. | · The indoor or outdoor temperature is too high.· The appliance has been off power for a period of time.· The door of the appliance is not tightly closed.· The door has been opened too frequently or for too long.· The temperature setting is too low.· The door gasket is dirty, worn, cracked or mis-matched.· The required air circulation is not guaranteed.· The interior is covered in ice. | · In this case, it is normal for the appliance to run longer.· Normally, it takes 8 to 12 hours for the appliance to cool down completely.· Close the door and ensure the appliance is located on a level ground and there is no food or container jarring the door.· Do not open the door too frequently.· Set the temperature higher until a satisfactory temperature is obtained. It takes 24 hours for the temperature to become stable.· Clean the door gasket or replace them by the customer service.· Ensure adequate ventilation.· Defrost the appliance. |
| The appliance makes abnormal sounds. | · The appliance is not located on level ground.· The appliance touches an object close to it.· The appliance stands on a wooden floor or near wooden walls. | · Level the appliance.· Remove objects around the appliance.· Wood amplifies the sound. Set the appliance somewhere else. |
| The appliance makes a clicking sound | · This is normal. It is caused by the refrigeration unit switching on or off. | · - |
| A slight sound is to be heard similar to that of flowing water. | · This is normal. | · - |
| Problem Possible Cause | Possible Solution | Possible Solution |
| The appliance makes a motor sound | The refrigeration unit has just turned itself on. This is normal | - |
| It is not cold enough inside the appliance. | The temperature is set too high.Goods that are too warm have been stored.Too much food has been stored at a time.The goods are too close to each other.The door is not tightly closed.The door has been opened too frequently or for too long. | Reset the temperature.Always cool down goods before storing them.Always store small quantities of food.Leave a gap between several foods allowing air flowing.Close the door.Do not open the door too frequently. |
| It is too cold inside the appliance. | The temperature is set too low.The Super Freeze Super Freeze activated or has been running too long. | Reset the temperature.Switch off the function. |
| Moisture accumulates on the surface of the appliance. | The climate is too warm and too damp. | This is normal in damp climate and will change when the humidity decreases. Wipe dry with a cloth. |
| Strong ice and frost in the freezer compartment. | The goods were not adequately packaged.The door is not tightly closed.The door has been opened too frequently or for too long.The door gasket is dirty, worn, cracked or mis-matched.Something on the inside prevents the door from closing properly. | Always pack the goods well.Close the door.Do not open the door too frequently.Clean the door gasket or replace them by the customer service.Reposition the shelves, door racks, or internal containers to allow the door to close. |
| The cooling system does not work. | Mains plug is not connected to the mains socket.The power supply is not intact. | Connect the mains plug.Check the electrical supply to the room. Call the local electricity company! |
| The sides of the cabinet and door strip get warm. | This is normal. | - |
| You hear an alarm signal. | The door is openThe temperature inside product is too high | Close the door or silence the alarm manually. |
7- Troubleshooting
Problem Possible Cause Possible Solution
The door is difficult to open.
The door can't be closed properly. It always leaves a gap.
- Once the appliance runs, it has an internal vacuum.
- Because of the appliances's low temperature, the door seal can easily get hard and deformed.
- Open the door seal gently to let air enter the appliacne.
- Use a hair dryer or put a hot towel on the spot where the
- gasket is deformed. When the gasket is soft once again, close the door and compress it tightly.
7.2 Power Interruption
In the event of a power cut, food should remain safely cold for about 15 hours. Follow these tips during a prolonged power interruption, especially in summer:
▶Open the door as few times as possible.
▶ Do not put additional food into the freezer during a power interruption.
▶ If prior notice of a power interruption is given and the interruption duration is longer than 15 hours, make some ice and put it in a container in the top of the freezer compartment.
▶As temperature in the freezer will rise during a power interruption or other failure, the storage period and edible quality of food will be reduced. Any food that defrosts should be either consumed, or cooked and refrozen (where suitable) soon afterwards in order to prevent health risks.
bice: Memory function during power interruption
After restoration of power the appliance continues with the settings that were set before the power failure.
7.3 LED Lamp parameters and replacement
LED Lamp parameter: 12V, 6W
The is LED lamp, which has low energy consumption and long service life. If there is any abnormality, please do not disassemble by yourself. Please contact the after-sales staff for door-to-door service.
8.1 Unpacking
▶ Take the appliance out of the packaging.
▶ Remove all packaging materials.
8.2 Environmental conditions
The room temperature should always be between 18 °C and 43 °C, since it can influence the temperature inside the appliance and its energy consumption. Do not install the appliance near other heat-emitting appliances (ovens, refrigerators) without isolation.
8.3 Space requirements

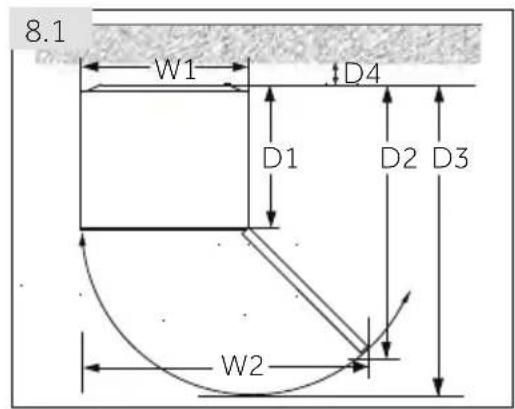

Required space to open the door (Fig. 8.1):
| Width in mmW1 W2 D1 D2 D3 D4 | Depth in mm | Distance to wall in mm |
| 705 1076 603 1243 1327 50 |
FOR a free standing appliance: this refrigerating appliance is not intended to be used as a built-in appliance.
8.4 Ventilation cross-section

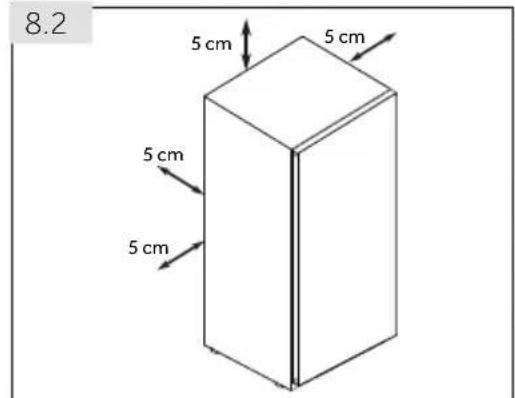

To achieve sufficient ventilation of the appliance for safety reasons, the information of the required ventilation cross sections must be observed (Fig. 8.2).
FOR a free standing appliance: this refrigerating appliance is not intended to be used as a built-in appliance.
8.5 Aligning the appliance

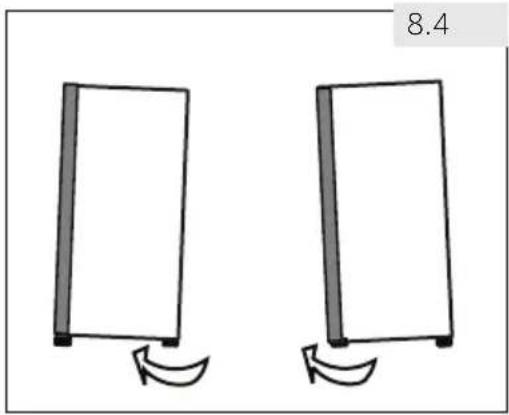

The appliance should be placed on a flat and solid surface. If the appliance is placed on a pedestal, strong and fire-resistant materials must be used. Never use the foam packing material as a pedestal.
- Tilt the appliance slightly backwards (Fig. 8.3).
- Set the feet to the desired level.
- The stability can be checked by alternately bumping on the diagonals. The slight swaying should be the same in both directions. Otherwise the frame can warp; possible leaking door seals are the result. A low tendency to the rear eases the closing of the door.
8.6 Using adjustable feet
If the freezer is unstable, the feet can be adjusted: Rotate the adjustable feet according to the direction of arrow (Fig. 8.4) to turn them up or down:
▶Turning the feet clockwise raises the appliance.
▶Turning the feet counterclockwise lowers it.
8.7 Waiting time
To the maintenance-free lubrication oil is located in the capsule of the compressor. This oil can get through the closed pipe system during slanting transport. Before connecting the appliance to the power supply you have to wait 2 hours (Fig. 8.5) so that the oil runs back into the capsule.
8.8 Electrical connection
Before each connection check if:
▶ Power supply, socket and fusing are appropriate to the rating plate.
The power socket is earthed and no multi-plug or extension.
The power plug and socket are strictly according.
Connect the plug to a properly installed household socket.

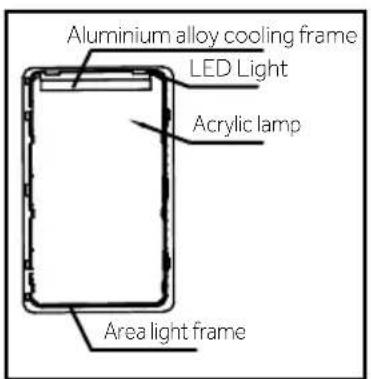

8.9 Diagram of Area Light Source

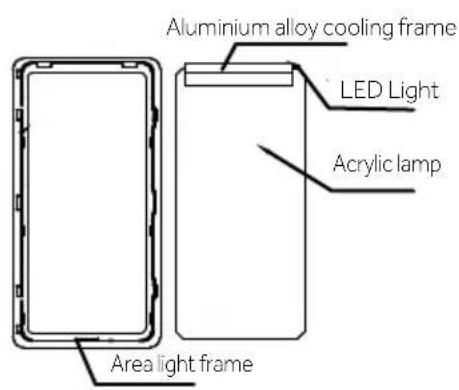

Press the buckle to split the Area light frame and Area light source
Remove the Aluminum Foil Tape on both sides of the Aluminum alloy cooling frame, and the Aluminum alloy cooling frame can be removed
Split the LED Light and Aluminum alloy cooling frame (double-sided adhesive connection)
8.10 Door Reversibility
Before connecting the appliance to the power supply you should check, whether the door swing must changed from left (as delivered) to right, if this is required by the installation location and the usability.
Assembly steps (Fig. 8.6):
- Provide necessary tool.
-
Unplug the appliance.
-
Open the upper and lower handle covers on the right side of the door.
-
Pry the white slider slightly.
-
Take out the 2 push rod, and put the handle cover back on.
- Remove the 2 rubber plugs on the left side of the door and put it with the removed push rods for step 20.
- Remove 7 screws and hinge cover. Be careful not to tear the door cable.
- Unplug the connection cable.
- Remove 3 hinge screws and the left upper hinge, and remove the door carefully.
- Place a cardboard box or cloth under the door and place the door horizontally. Remove the right door end cover, take the left end cover from the accessory bag. Install it on the topleft side of the door.
- Remove 2 screws on the right bottom of the door. Re -move 2 screws, door stopper and axe cover on the left bottom of the door.
- Take door stopper from last step and the right axe cover from the accessory bag, fix them with 2 screws. Fix 2 screws also on the other side of the door.
- Put the back of the cabinet down after placing thicker pads underground. Remove 4 screws and the lower hinge.
- Unscrew the axe cover.
8 - Installation
EN

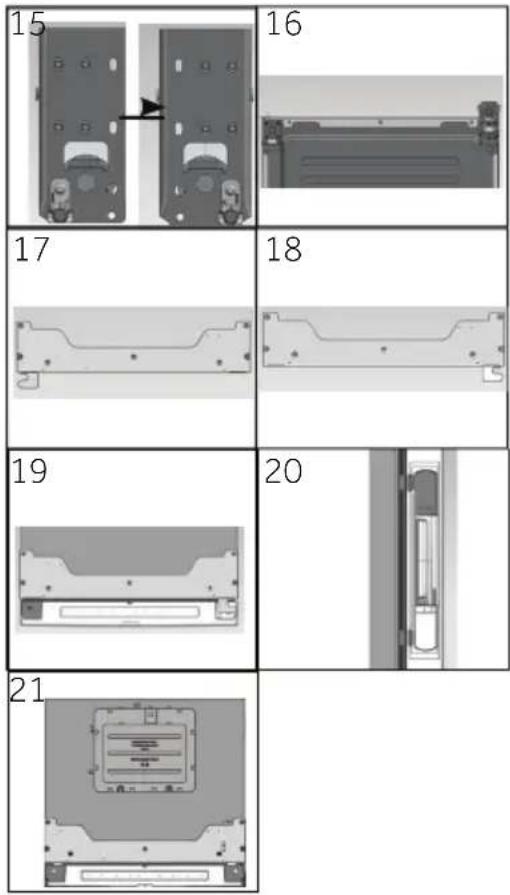

- Take the right axe cover from the accessory bag. Fix it with screw.
- Exchange position of caster plate and lower hinge after replacement.
- Disassemble the left small hinge cover and hinge lid from the hinge cover.
- Change the hinge lid to the other side and take the right small hinge cover from the accessory bag. Install it on the hinge cover.
- Mount the door, install the left hinge, plug the connection cable, and fix the hinge cover with screws.
- Install the removed push rod on the left side of the door, and then insert the rubber plugs into the handle push rod hole on the right side of the door.
- Finished.
Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, Tunisia no legal warranty required.
Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of seven years after placing the last unit of the model on the market. Door handles, door hinges, trays and baskets for a minimum period of seven years and door gaskets for a minimum period of 10 year, after placing the last unit of the model on the market.
For further information about the product, please consult
https://eprel.ec.europa.eu/ or scan the QR on the energy label supplied with the appliance.
To contact the technical assistance, visit our website:
https://corporate.haier-europe.com/en/
Under the section "website", choose the brand of your product and your country.
You will be redirected to the specific website where you can find the telephone number and form to contact the technical assistance.
| Trade mark | Haier | |
| Model identifier | H2F385*F | H2F385*D |
| Category of the model Upright freezer | ||
| Energy efficiency class | F | D |
| Annual energy consumption(kWh/year)1) | 356 | 228 |
| Storage volume cooling (L) | not applicable | |
| Storage volume freezing (L) **** | 386 | |
| Star rating **** | ||
| Temperature of other compartments > 14 °C | not applicable | |
| Frostfree system yes | ||
| Power cut safe (h) | 11.5 | 11.5 |
| Freezing capacity (kg/24h) | 19.5 | 19.5 |
| Clima te classThis appliance is intended to be used at an ambient temperature between 10 °C and 43 °C. | SN-T | |
| Airborne acoustical noise emissions (dB(A)) | 39 | |
| Construction type | freestanding | |
1) based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located.
Regarding specification details, please consult the rating plate and energy label inside the product.
This appliance is intended to be used at an ambient temperature indicated below:
| SN | +10°C~+32°C |
| N | +16°C~+32°C |
| ST | +16°C~+38°C |
| T | +16°C~+43°C |
11.2 Additional Technical Data
| Voltage / Frequency | 220-240V ~/ 50Hz |
| Rated current (A) | 1.5 |
| Coolant | R600a |
| Dimensions (H/W/D in cm) | 172,5/70,5/69,1 |
Haier
Bedienungsanleitung
H2F385\*F
H2F385\*D
* - Colour code
DE
Technical line drawing of two mechanical clamping components (no text or symbols)natural_image
Illustration of a hand cleaning a window with a washing bowl nearby (no text or symbols)natural_image
Two identical rectangular panels with curved arrows indicating rotation, no text or symbols present
Haier
Two identical line drawings of mechanical clamps or brackets, no text or symbols present.Couvre-goupille
Two identical rectangular panels with curved arrows indicating rotation, no text or symbols present
Haier
Manuale d'uso
H2F385\*F
H2F385\*D
* - Colour code
Smaltimento
Technical line drawing of two mechanical clamping components (no text or symbols)Copri-perniCerniera s
Two identical rectangular panels with curved arrows indicating rotation, no text or symbols present
Haier
Návod k obsluze
H2F385*F
H2F385*D
* - Colour code
Illustration of a hand cleaning a window with a bowl nearby (no text or symbols)natural_image
Abstract geometric design with four gray parallelograms and a white central line (no text or symbols)H2F385*F/*D_CZ
Haier
Manual del usuario
H2F385\*F
H2F385\*D
* - Colour code
Technical line drawing of two mechanical clamping components (no text or symbols)Cubre-pernosBisagra sup
Two identical rectangular panels with curved arrows indicating rotation, no text or symbols present
Haier
H2F385*F
H2F385*D
* - Colour code
NL
Technical line drawing of two mechanical clamp components (no text or symbols)AsafdekkingenScharnier r
Scharnierafdekking
rechtsboven
Abstract geometric design with four gray rounded rectangles and a white central cross (no text or symbols)H2F385*F/*D_NL
Haier
Instrukcja obsługi
H2F385\*F
H2F385\*D
* - Colour code
PL
Two technical line drawings of mechanical clamps or brackets (no text or symbols)Pokrywy osi
3 - Opis produktu
Uwaga: Różnica
Two identical rectangular panels with curved arrows indicating rotation, no text or symbols present
Haier
Manual do utilizador
H2F385\*F
H2F385\*D
* - Colour code
Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)https://corporate.haier-europe.com/pt/
Haier
0070516587A
Návod na použitie
Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)natural_image
Two identical rectangular objects with curved arrows pointing downward, no text or symbols present8.7 Doba čakania
