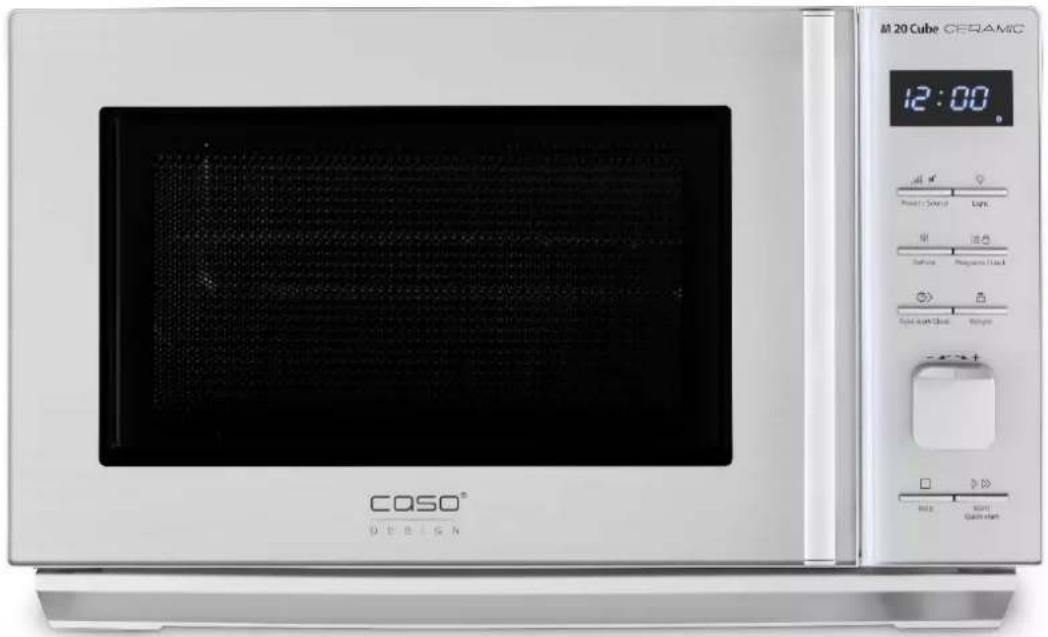

M 20 Cube Ceramic - Oven CASO - Free user manual and instructions
Find the device manual for free M 20 Cube Ceramic CASO in PDF.
| Product type | Microwave oven |
| Brand | CASO |
| Model | M 20 Cube Ceramic |
| Oven capacity | 20 liters |
| External dimensions (W x H x D) | 47 x 27.5 x 38.5 cm |
| Compartment dimensions (W x H x D) | 28.7 x 18 x 29.5 cm |
| Net weight | 11.9 kg |
| Power supply | 230-240 V, 50 Hz |
| Microwave power | 800 W |
| Power consumption (microwave) | 1200 W |
| Operating frequency | 2450 MHz |
| Operating modes | Microwave, quick defrost, defrost by weight, 8 automatic menus, quick start, delayed cooking |
| Display | LED screen |
| Interior lighting | LED strip |
| Child safety | Key lock |
| Door lock | Yes (safety switch) |
| Plate material | COSOTEK (heat-resistant) |
| Cleaning | Damp cloth, mild detergents. Do not use steam cleaner. |
| Warranty | 24 months |
| Spare parts and repairability | Repairs by authorized service; original spare parts required |
Frequently Asked Questions - M 20 Cube Ceramic CASO
User questions about M 20 Cube Ceramic CASO
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Oven in PDF format for free! Find your manual M 20 Cube Ceramic - CASO and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. M 20 Cube Ceramic by CASO.

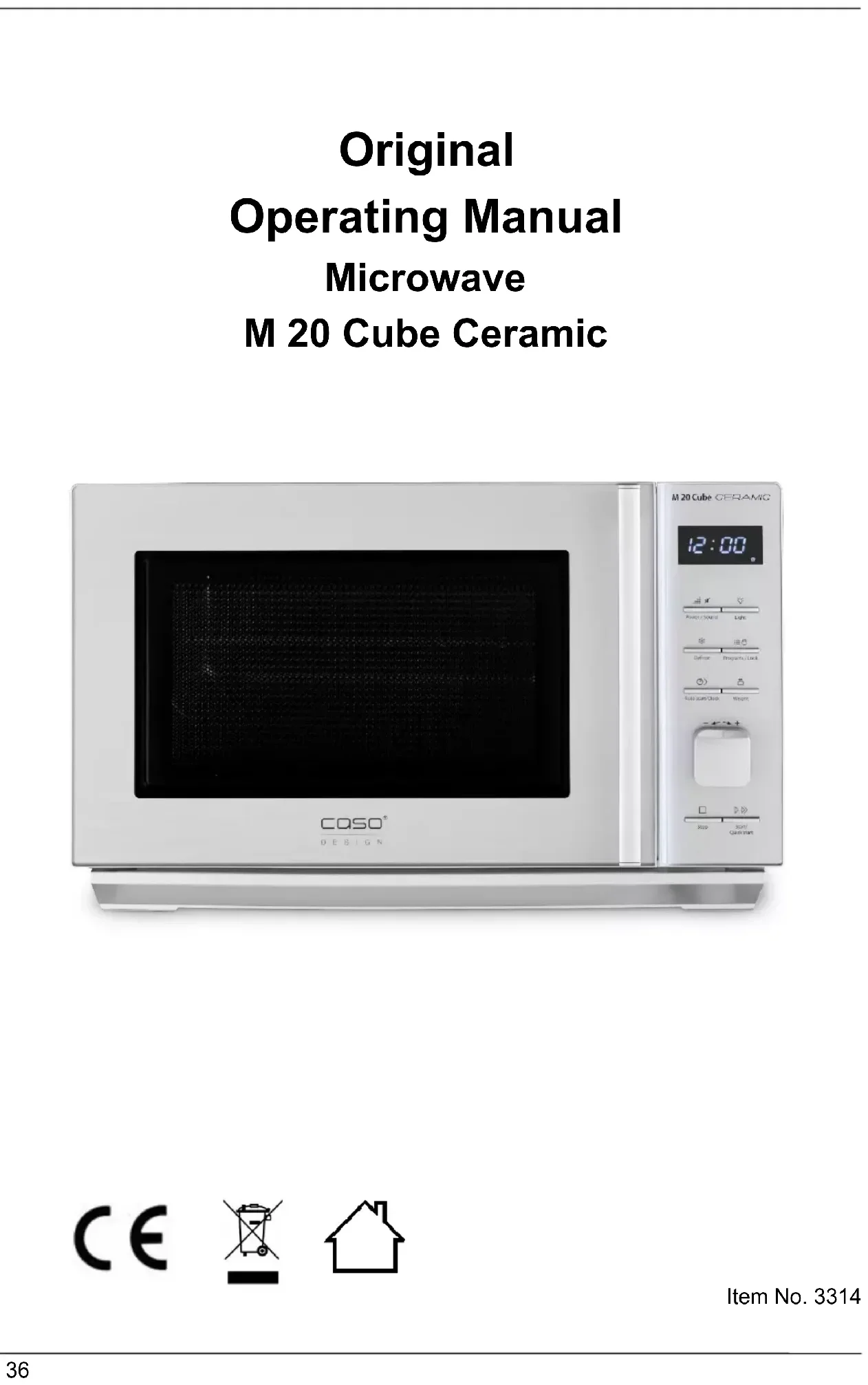

USER MANUAL M 20 Cube Ceramic CASO
10.3 Warning notices .... 37
10.4 Limitation of liability 38
10.5 Copyright protection....38
11 Safety 38
11.1 Intended use....38
11.2 General Safety information ....39
11.3 Sources of danger....41
11.3.1 Danger due to microwaves 41
11.3.2 Danger of burns 42
11.3.3 Danger of fire 42
11.3.4 Danger of explosion....43
11.3.5 Dangers due to electrical power....44
11.4 Commissioning 44
11.5 Safety information....44
11.6 Delivery scope and transport inspection....45
11.7 Unpacking....45
11.8 Disposal of the packaging....45
11.9 Setup....46
11.9.1 Setup location requirements: 46
11.9.2 Avoiding radio interference 46
11.10 Electrical connection....46
12 Design and Function......47
12.1 Complete overview ....47

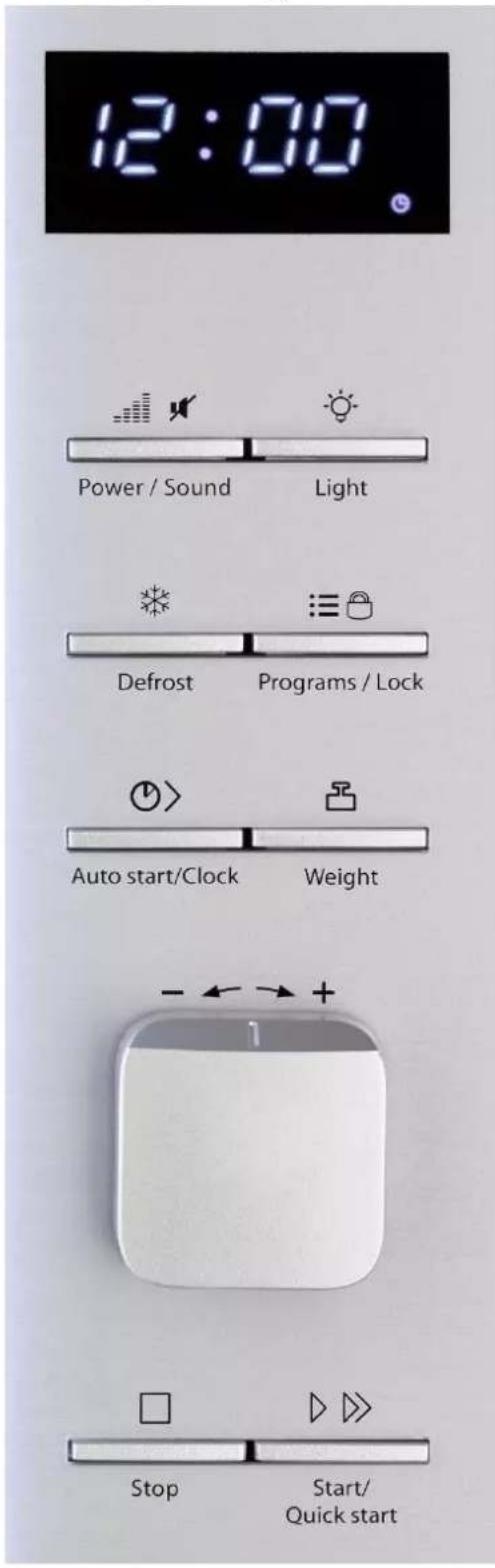

12.2 Operating elements and display 48
12.3 Signal tones....48
12.4 Safety equipment 49
12.4.1 Warning notices on device....49
12.4.2 Door latch....49
12.5 Rating plate....49
13 Operation and Handing....49
13.1 Principles of microwave cooking ....49
13.2 Operating modes: 50
13.3 Information on microwave cookware 50
13.4 Opening / closing door 51
13.5 Set the clock....51
13.6 Turn the sound on / off....51
13.7 Turn the light on / off 51
13.8 Child-proof lock....51
13.9 Quick start 52
13.10 Microwave Mode 52
13.11 Rapid defrost based on time....52
13.12 Defrost by weight....52
13.13 Automatic cooking programs ....53
13.14 Delayed Cooking....54
14 Cleaning and Maintenance....54
14.1 Safety information....54
14.2 Cleaning....55
15 Troubleshooting....55
15.1 Safety notices....56
15.2 Causes and rectification of faults....56
16 Disposal of the Old Device....56
17 Guarantee....57
18 Technical Data....57
52.9 Snelstart....149
Your microwave will serve you for many years if you handle it and care for it properly.
We wish you a lot of pleasure in using it!
10.2 Information on this manual
These Operating Instructions are a component of the microwave (referred to hereafter as the Device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every
person who is instructed to work with the device: • Commissioning, • Operation • Troubleshooting and/or • Cleaning Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.
10.3 Warning notices
The following warning notices are used in the Operating Manual concerned here.
AGEFAHR DANGER
A warning notice of this level of danger indicates a potentially dangerous situation. If the dangerous situation is not avoided, this can lead to death or serious injuries.
▶ Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.
▲WARNUNG WARNING
A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to serious injuries.
▶ Observe the instructions in this warning notice in order to avoid the personal injuries.
▲VORSICHT ATTENTION
A warning notice of this level of danger indicates a possible dangerous situation.
If the dangerous situation is not avoided, this can lead to slight or moderate injuries.
▶ Observe the instructions in this warning notice in order to avoid the personal injuries.
HINWEIS PLEASE NOTE
A notice of this kind indicates additional information, which will simplify the handling of the machine.
10.4 Limitation of liability
All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration. No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following: • Non-observance of the manual • Uses for non-intended purposes
- Improper repairs
- Technical alterations, modifications of the device
- Use of unauthorized spare parts
Modifications of the device are not recommended and are not covered by the guarantee.
All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.
10.5 Copyright protection
This document is copyright protected. CASO GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes.
11 Safety
This chapter provides you with important safety notices when handling the device. The device corresponds with the required safety regulations. Improper use can result in personal or property damages.
11.1 Intended use
This device is only intended for use in households in enclosed spaces for
- Defrosting, warming up and cooking of foods and beverages.
This device is intended for use in the household and for similar applications such as:
- in kitchens for employees in shops, offices, and other commercial areas; • in B&Bs,
• in agricultural estates;
- by customers in hotels, motels and other residential establishments.
Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.
▲WARNUNG WARNING
Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.
▶ Use the device exclusively for its intended use.
▶ Observe the procedural methods described in this Operating Manual.
Claims of all kinds due to damages resulting from unintended uses are excluded.
The User bears the sole risk.
11.2 General Safety information
HINWEIS
Please note
Please observe the following general safety notices with regard to the safe handling of the device.
Read all these instructions before using the device.
▶ Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
▶ The device is not intended for drying, warming up or heating up living animals.
This device may be used by children aged 8 and above, if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards.
▶ Cleaning and maintenance by the user must not be performed by children unless they are at least 8 years old and are supervised.
▶ Children are not allowed to play with the device.
▶ The device and its connecting cable must be kept away from children who are less than 8 years old.
The device may be used by individuals with reduced physical, sensory or mental capabilities or a lack of experience and / or knowledge of their use if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards.
▶ Only customer service departments authorized by the manufacturer may carry out repairs on the device, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. Improperly performed repairs can cause considerable dangers for the user.
▶ Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.
HINWEIS
Please note
▶ Only use utensils that are suitable for use in microwave ovens.
▶ Use this device only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this device. This type of device is specifically designed for defrosting, warming up and cooking of foods. It is not designed for industrial or laboratory use.
▶ Food thermometers are unsuitable to be used when the microwave is in operation.
This product is a Group 2 Class B ISM equipment. The definition of Group 2 which contains all ISM (Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. For Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purpose. for domestic purpose.
▶ The microwave oven is only used when it is freestanding. The microwave oven must not be placed in a cabinet. The device shall be placed against a wall.
▶ Warning: Do not install the oven over a range cooktop or other heat-producing device. If it is installed it could be damaged and the warranty would be void.
▶ The device is not intended to be operated by means of an external timer or separate remote-control system.
▶ The microwave oven is for household use only and not for commercial use.
HINWEIS
Please note
▶ Never remove the distance holder in the back or on the sides, as it ensures a minimum distance from the wall for air circulation.
▶ The microwave oven is intended for defrosting, warming up and cooking of foods only.
▶ The device must not be cleaned with a steam cleaner.
11.3 Sources of danger
11.3.1 Danger due to microwaves
⚠️WARNUNG
Warning
Exposure to microwaves on the human body can result in injuries.
Please observe the following safety notices in order not to expose yourself or others to microwaves.
▶ Never operate the device when the door is open. Having a faulty or manipulated safety switch results in the danger of exposing oneself directly to the microwaves.
▶ If the door or door seals are damaged, the device must not be operated until it has been repaired by an authorized person.
▶ WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
11.3.2 Danger of burns
⚠️WARNUNG
Warning
The culinary items being heated up in this device as well as the cookware that being used and the surface of the device can become very hot. Please observe the following safety notices in order not to burn or scald yourself or others.
- Microwave heating of beverages can result in delayed eruptive boiling (boiling retardation), therefore care must be taken when handling the container.
▶ Do not fry food in the device. Hot oil can damage device parts and utensils and even result in skin burns.
▶ In particular, the contents of baby bottles and baby food jars must be stirred or shaken, and the temperature must be checked before consumption to prevent scolding.
▶ Cooking utensils may become hot because of heat transferred from the heated food. Use pot holders or oven gloves as protection when removing the food.
▶ The door or the outer surface may get hot when the device is operating. The accessible surface may be hot during operation. The temperature of accessible surfaces may be high when the device is operating.
▶ Caution! Steam will escape, when opening lids or wrapping foil.
11.3.3 Danger of fire
⚠️WARNUNG
Warning
There is a danger of fire due to the ignition of the content in the event the device is not used properly.
Observe the following safety notices to avoid dangers of fire:
▶ Never use the device to store or dry flammable materials.
▶ Do not warm up any alcohol in an undiluted state.
⚠️WARNUNG
Warning
▶ Do not operate the device when empty.
▶ To reduce the risk of fire in the device cavity:
a) When heating food in plastic or paper container, keep an eye on the device due to the possibility of ignition.
b) Remove wire twist-ties from paper or plastic bags before placing bag in oven.
c) If smoke is emitted turn off the device or unplug the device and keep the door closed to extinguish any flames.
d) Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use.
▶ Never the leave the device unsupervised if you are warming up or cooking foods in disposable containers made of plastic, paper or other flammable materials.
▶ Disposable containers made of plastic must have the properties shown under the heading “Notices on microwave cookware”.
The microwave is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.
▶ Always remove grease residues in the device, as these residues can otherwise ignite.
11.3.4 Danger of explosion
⚠️WARNUNG
Warning
There is a danger of explosion due to excess pressure that is created in the event the device is not used properly.
Observe the following safety notices to avoid dangers of an explosion:
▲WARNUNG Warning
▶ Liquids and other food must not be heated in closed vessels as these may explode.
▶ Do not cook eggs in the shell or extremely hard boiled eggs in the device as they can still explode, even after the microwave operation has been completed.
▶ Pierce foods with heavy skins such as potatoes, whole squashes, apples and chestnuts before cooking.
11.3.5 Dangers due to electrical power
▲GEFAHR Mortal danger due to electrical power!
Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power:
▶ Do not operate this device if it has a damaged cable or plug, if it is not working properly or if it has been damaged or dropped. If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard.
▶ Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.
11.4 Commissioning
This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:
11.5 Safety information
▲WARNUNG Warning
▶ Packaging materials may not be used for playing. There is a danger of suffocation.
▶ Transport, unpack and use two persons to set down the device because of the heavy weight of the device.
11.6 Delivery scope and transport inspection
As a rule, the M 20 Cube Ceramic is delivered with the following components:
• M 20 Cube Ceramic
- Operating Instructions
HINWEIS
Please note
▶ Examine the shipment for its completeness and for any visible damages.
▶ Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.
11.7 Unpacking
To unpack the device, proceed as follows:
- Remove the device out of the carton and remove the packaging material.
- Remove the accessories located in the cooking chamber and remove the packaging material.
- Remove the red coloured safety adhesive strip on the floor of the cooking chamber.
- Remove the blue protective film on the device itself.
HINWEIS
Please note
▶ Only remove the blue protective film shortly before setting up the device in the location where it will be used, to prevent scratches and dirt accumulations.
▶ Please don't remove the protective film from the inside of the door (if equipped), since this makes the cleaning of the device easier.
11.8 Disposal of the packaging
The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled.
Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to “Green Dot” recycling collection points for disposal.
HINWEIS
Please note
▶ If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.
11.9 Setup
11.9.1 Setup location requirements:
In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:
- The device must be set up on a firm, flat, horizontal and heat-resistant surface with sufficient load-bearing capacity for the device and the maximum weight of the expected food that is to be prepared in the oven.
- Choose the setup location in such a way that children cannot reach any hot surfaces on the device.
- The device is not intended to be installed in a wall or a built-in cupboard.
- Do not set up the device in a hot, wet or extremely damp environment or near flammable material.
- The device requires an adequate flow of air in order to operate correctly. Leave a clearance of 20 cm above the oven, 10 cm around the back and 5 cm on both sides.
- Do not cover up any openings on the device and do not block these off.
- Do not remove the device's adjustable feet.
- The electrical socket must be easily accessible so that the power lead can be disconnected easily, in the case of an emergency.
- The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.
11.9.2 Avoiding radio interference
The device can cause the occurrence of interference in radios, televisions or similar devices.
Such faults can be rectified or reduced as a result of employing the following measures:
- Clean the door and the sealing surfaces of the device.
- Set the radio, the television, etc as far as possible away from the device.
- Connect the device to a different electrical outlet, so that various power circuits are used for the device and the receiver with the interference.
- Use a properly installed antenna for the receiver, to ensure good reception.
11.10 Electrical connection
In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:
- Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device. If in doubt, ask your qualified electrician.
-
The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 ~mm^2 . The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.
-
Make sure that the power cable is undamaged and has not been installed under the device or over hot or sharp surfaces.
- The electrical outlet must be protected by a 16A safety cut-out switch, separately from other electricity consumers.
- The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. If in doubt, have the house installation checked over by a qualified electrician. The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.
12 Design and Function
This chapter provides you with important safety notices on the design and function of the device.
12.1 Complete overview
(2) Device window
(3) base plate □ T E K
(4) Device ventilation opening
(5) Operating panel / rotary knob 6) LED-strip
▲VORSICHT ATTENTION
The COSOTEK base plate can be hot following the cooking time. Do not touch the COSOTEK base plate!
HINWEIS
PLEASE NOTE
▶ The ventilator can continue running afterwards to cool down the device.
▶ Do not use the device, when it is empty. It could be damaged.
12.2 Operating elements and display
Power/Sound: To set the desired microwave power (in %)
To switch the sound of the buttons on/ off.
Light: To switch the LED strip on / off.
Defrost: For the setting of the defrost functions
Programs/Lock: To select the automatic cooking programs & to activate / deactivate the child lock
Auto start / Clock: To activate the delayed cooking & to set the clock
Weight: To set the weight / the serving units
Rotary knob: Turn / hold to set the selected function
The time is set up to 5 minutes in 10 second steps, from 5 minutes in 30 second steps and from 10 minutes in 1 minute steps
Stop: Press once to interrupt a cooking program. Press twice to end a cooking program
Start/Quick start: To start the cooking program or to set the quick start cooking program.
12.3 Signal tones
The device transmits the following signal sounds as an acoustic feedback signal:
- Two signal tones: The action you requested cannot be performed. You are in another setting step.
- Four signal tones: The end of the cooking time has been reached and "End" is shown on the display. The "End" only disappears when the door is opened or Stop is pressed.
12.4 Safety equipment
12.4.1 Warning notices on device
▲VORSICHT ATTENTION: Danger due to hot surface!
There is a warning notice referring to dangers due to hot surfaces located on the back upper side of the housing. The surfaces of the device can become extremely hot.
▶ Do not touch the hot surfaces of the device. Danger of burns!
▶ Do not set or lay any items on the device.
12.4.2 Door latch
A safety switch is installed in the door latch of the device, which prevents the device from being operated when the door is open.
▲VORSICHT ATTENTION: Danger due to microwaves!
If this safety device is defective or if this safety device is bypassed, you can directly expose yourself and others to microwave radiation.
▶ Do not operate the device if the safety switch is defective.
▶ Do not disable this safety device.
12.5 Rating plate
The rating plate with the connection and performance data can be founded on the back of the device.
13 Operation and Handing
This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:
⚠️WARNUNG Warning
▶ Do not leave the device unsupervised when it is in operation, so that you can intervene quickly in the event of dangers.
13.1 Principles of microwave cooking
- The power levels and time required for cooking / warming up food items depends on the starting time, the quantity and the type and consistency of the food, etc. Use the shortest indicated cooking time and extend the cooking procedure as necessary.
- Arrange the food carefully. Position the thickest areas on the external edge of the bowl.
- Cover the food while it is cooking. Lids suitable for use in microwaves protect against spatters and also contribute towards cooking/warming up the food evenly.
- During warming, the food should be turned, rearranged or stirred repeatedly, in order for the temperature to be distributed evenly.
-
Any existing germs in the food are only killed off if the temperature is sufficiently high enough (> 70°C) and if the time used is sufficiently long enough (> 10 min).
-
Foods with a firm skin or shell, such as tomatoes, sausages, potatoes in the skin, eggplants must be pierced or punctured repeatedly so that any developing steam can escape and so that the food does not burst.
- Eggs without their shell may only be cooked in the microwave if the skin of the egg yoke has been pierced repeatedly first. Otherwise, the egg yoke can squirt out with excessive pressure after cooking.
- Rearrange layers of foods such as meat balls from top to the bottom and from the middle to the outside edge.
13.2 Operating modes:
The unit is to be operated in various operating modes. The following list shows the operating modes that are possible with the device:
◆ “Microwave” mode
This operation mode is suitable for defrosting, heating and cooking.
◆ Automatic cooking programs
This mode allows you to select the cooking program from 8 different menus.
◆ “Defrost” mode
This operation mode is suitable for defrosting of frozen food.
13.3 Information on microwave cookware
The ideal material for microwave cookware is permeable for microwaves and allows the energy to penetrate the container and warm up the food.
Please observe the following tips when selecting the correct cookware:
Microwaves cannot penetrate metal. Therefore, you should not use utensils made of metal or cookware with metal trim.
▶ Do not use any products made from recycled paper, as they could contain tiny metal fragments, which could cause sparks and/or result in fire.
The following table is intended as a basis for selecting the correct cookware:
| Cookware Microwave | |
| heat-resistant glass dishes | √ |
| non heat-resistant glass dishes | ✕ |
| heat-resistant Ceramic dishes | √ |
| microwave-resistant plastic container | √ |
| kitchen roll | √ |
| baking plate/baking sheet | ✕ |
| metal rack, metal container | ✕ |
| aluminium foil and container | ✕ |
13.4 Opening / closing door
◆ Open the door
Pull the door handle with a slight tug to open the door of the device. If the device is switched on, the current cooking programme will be interrupted.
HINWEIS
Please note
▶ Leave the door open for a moment before reaching into the cooking chamber, to allow the accumulated heat to escape.
◆ Close door
Close the door until the door latch audibly locks in place. If a current cooking programme was interrupted as a result of opening the door, then you have to press Start/Quick start to continue the program.
13.5 Set the clock
- In standby mode, press the button Autostart/Clock once
- Turn the rotary knob forwards or backwards to set the required hour.
- Confirm with Autostart/Clock.
- Turn the rotary knob forwards or backwards to set the required minute.
- Confirm with Autostart/Clock.
HINWEIS
Please note
▶ The clock is displayed in 24-hour system.
▶ You can display the clock at any time during cooking operation by pressing the Autostart/Clock button.
13.6 Turn the sound on / off
In standby mode, press the Power / Sound button for three seconds to switch off the sound (button tones). With this function, only the button tones are turned off, other tones such as end signals are not affected.
To reactivate the sound / button tones in standby mode, press the Power / Sound button again for three seconds.
13.7 Turn the light on / off
In standby mode, press the Light button to turn the LED strip on or off.
13.8 Child-proof lock
Use the child-proof lock to prevent unattended operation of the device by children.
Activation of child-proof lock
In standby mode, press the Programs/Lock button for 3 seconds.
A signal tone is emitted and the display indicates proof lock. The buttons are now deactivated.
for the activation of the child-
Deactivation of child-proof lock
Press the Programs/Lock button for 3 seconds. A signal tone is emitted and the indicator in the display switches off.
13.9 Quick start
With this function you can use the device with 100% microwave power.
To do this, press Start / Quick start in quick sequence in standby mode to set the cooking time.
The device starts the cooking process automatically.
The maximum cooking time that can be set for the Quick start function is 12 minutes.
13.10 Microwave Mode
- In standby mode, press the Power/Sound button as often as necessary to set the required microwave power (100%-10% in steps of 10)
-
Set the required time by turning the rotary knob accordingly. The maximum cooking time is 95 minutes.
-
Press the Start / Quick start button to start the operation.
| Press Power/Sound | 1x | 2x | 3x | 4x | 5x | 6x | 7x | 8x | 9x | 10x |
| Power(Display) | 100 % (100) | 90 % (90) | 80 % (80) | 70 % (70) | 60 % (60) | 50 % (50) | 40 % (40) | 30 % (30) | 20 % (20) | 10 % (10) |
HINWEIS
Please note
▶ During the cooking operation, you can display the set power level at any time by pressing the Power / Sound button.
13.11 Rapid defrost based on time
- In standby mode, press Defrost button once.
- Set the desired defrosting time by turning the rotary knob accordingly. The maximum defrost time is 95 minutes.
- Press the Start / Quick start button to start the operation.
HINWEIS
Please note
The device will beep 3 times after 2/3 of the defrosting time and pauses the operation so that you can stir or turn the food. Then press Start/Quick start to continue the operation.
13.12 Defrostbyweight
The defrost time and power leverl are automatically set as soon the seired weight of 100 g – 1.800 g has been set.
- In standby mode, press Defrost button twice.
-
Press the Weight button to set the desired weight.
-
Press the Start / Quick start button to start the operation.
HINWEIS
Please note
The device will beep 3 times after 2/3 of the defrosting time and pauses the operation so that you can stir or turn the food. Then press Start/Quick start to continue the operation.
▶ Stop the device occasionally to remove the unthawed frozen food or to separate it. If the frozen food has not been defrosted at the end of the estimated defrosting time, proceed as follows:
▶ Program the device in 1 minute steps, until the frozen food is completely defrosted.
▶ When using plastic containers out of the deep-freeze, the defrosting process should only last long enough to be able to remove the frozen food out of the container, after which it can be placed into a microwave-resistant container.
13.13 Automatic cooking programs
You can choose from 8 different automatic cooking programs.
- In standby mode, press the Programs/Lock button to select the desired program.
-
Press Weight button, to set the desired weight / serving unit. Alternatively press Weight button once and then turn the rotary knob to set the desired weight / serving unit.
-
Press the Start / Quick start button to start the operation.
| Automatic menu Rotary knob | ||||||||
| Prog. | menu 1 2 3 4 5 6 | 7 | ||||||
| 1 | Tea / hot drinks (200 ml/cup) | 1 2 3 | ||||||
| 2 | Rice | 150 g | 300 g | 450 g | 600 g | |||
| 3 | Pasta | 100 g | 200 g | 300 g | ||||
| 4 | Potato (230 g each) | 1 2 | ||||||
| 5 | Heating | 200 g | 300 g | 400 g | 500 g | 600 g | 700 g | 800 g |
| 6 | Fish | 200 g | 300 g | 400 g | 500 g | 600 g | ||
| 7 Popcorn 99g | ||||||||
| 8 | Reheat Pizza | 150 g | 300 g | 450 g | ||||
HINWEIS
Please note
▶ During some menus the device beeps 3 tims and pauses the operation after 2/3 of the cooking time so that you can stir or turn the food. Then press Start/Quick start to continue the operation.
For Pasta add water before cooking. 100 g pasta – 800 ml water. 200 g pasta – 1600 ml water. 300 g pasta – 2400 ml water.
13.14 Delayed Cooking
With this function you can start the microwave mode or the automatic cooking programs with a time delay. Delayed cooking cannot be used for the defrosting functions or for quick start.
- In standby mode, press the corresponding buttons to set the power/ program which you want to start later (step 1 + 2 of the respectice function).
- Press the Autostart/Clock button once.
- Turn the rotary knob to set the required hour for the start time of the delayed cooking.
- Confirm with Autostart/Clock.
- Turn the rotary knob to set the required minute for the start time of the delayed cooking. Confirm with Autostart/Clock again.
HINWEIS
Please note
▶ When the set start time is reached, then the device beeps and starts the cooking operation.
▶ If the function has been activated, then you can display the set start time at any time by pressing the Autostart / Clock button. Then you can press the Stop button to deactivate the operation.
14 Cleaning and Maintenance
This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.
14.1 Safety information
▲VORSICHT
Attention
Please observe the following safety notices, before you commence with cleaning the device:
The device must be cleaned regularly and any food residues must be removed. Insufficient cleanliness of the device can lead to the destruction of the surface, which for its part can have a negative impact upon the service life of the device and can lead to a dangerous condition of the device as well as fungal and bacterial contamination.
▶ Switch the device off prior to cleaning it and unplug the plug from the wall power outlet.
The cooking chamber is hot after it is used. There is a danger of burns! Wait until the device has cooled down.
▶ Clean the cooking chamber after use as soon as it has cooled down. Extended waiting unnecessarily complicates cleaning and can make it impossible in extreme cases. Excessive accumulations of dirt can even damage the device under certain circumstances.
▶ If dampness penetrates into the device, this can damage the electronic components. Please ensure that no liquid can enter the interior of the device through the ventilation slots.
▶ Do not use any aggressive or abrasive cleaning agents or solvents.
▶ Do not scrape off stubborn dirt with hard items.
14.2 Cleaning
◆ Cooking chamber and inside of door
▲WARNUNG Danger of fire
▶ Always remove grease residues in the device, as these residues can otherwise ignite.
- Keep the cooking chamber of the device clean. Wipe off any spattered or spilt food from the walls of the cooking chamber with a damp cloth. If the device is excessively dirty, you can use a mild cleaning agent.
- Wipe the door, window and the door gaskets with a damp cloth, to remove any spatters and spilt food. Residues on the door gasket can mean that the door does not close properly any more, which will cause the microwaves to escape.
- Wipe off any steam, which has settled on the device door, with a soft cloth. This may be the case if the device is used in an extremely damp environment and is normal.
- Smells can be removed from the device by mixing a cup of water with the juice and the skin of a lemon, pouring this into a deep microwave-proof bowl and allowing it to cook in Microwave mode for five minutes. Then, dry off the device thoroughly with a soft cloth.
- After cleaning the interior space, leave the device door open until the interior of the device is completely dry.
◆ Front of device and operating panel
- Clean the front of the device and the operating panel with a soft, slightly damp cloth.
- Please bear in mind that the operating panel does not get wet. Use a soft, damp cloth for cleaning.
HINWEIS Please note
Leave the device door open to prevent the device from being re-started accidentally.
◆ Exterior housing
- Clean the exterior surfaces of the device with a damp cloth.
◆ base plate K
Wipe the bottom of the device with a mild cleaning agent. If the floor of the device is excessively dirty, you can also use a mild cleaning agent.
15 Troubleshooting
This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:
15.1 Safety notices
▲VORSICHT Attention
▶ Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs on electrical equipment.
▶ Improperly performed repairs can cause considerable dangers for the user and damages to the device.
15.2 Causes and rectification of faults
The following table assists in localizing and rectifying minor faults.
| Error | Possible cause | Action |
| The selected program will not start. | Device door is not closed Close device door | |
| Power plug is not plugged in Plug in mains plug! | ||
| Fuse is not activated Activate fuse | ||
| Food is not sufficiently defrosted, warmed up or cooked after preset time has elapsed. | Incorrectly selected time or power level | Re-set time and power level Repeat process |
| The device functions but the cooking chamber lighting does not work. | Defective cooking chamber light. | Have Service dept repair cooking chamber light. |
| Abnormal noises can be heard during operation of microwave. | Food is covered with aluminium foil | Remove aluminium foil |
| The cookware contains metal and sparks are being created within the cooking chamber | Observe information on cookware! | |
HINWEIS Please note
▶ If you are unable to solve the problem with the steps shown above, please contact Customer Service.
16 Disposal of the Old Device
Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances.
HINWEIS Please note
- Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
▶ Ensure that your old device is stored safely away from children until it is taken away.
17 Guarantee
We provide a 24-month guarantee for defects caused by production or material faults, beginning on the date of purchase. Our guarantee is valid for Germany, Austria and the Netherlands. For all other countries, please contact us. Your legal guarantee claims as per Art. 437 ff. German Civil Code (BGB) will remain unaffected by this. You may exercise your statutory guarantee rights free of charge. The guarantee does not cover damage caused by improper handling or use of the product or defects which have only a minor impact on the product's functionality or value. In addition to this, the guarantee also excludes parts which are subject to wear and tear; transport damages insofar as we are not responsible for them and damages caused by repairs which were not carried out by us.
This product has been constructed for non-commercial use (domestic use) and its performance is designed to meet the corresponding needs. The guarantee only covers commercial use insofar as it is comparable to domestic use. The product is not intended for any other type of commercial use.
In the case of legitimate complaints we may either repair the defective product or replace it with a defect-free product at our discretion. Obvious defects must be notified to us within 14 days of the product's delivery. Any further claims are excluded.
When making a guarantee claim please contact us before you return the product (always with the purchase receipt!). Our contact details ("Guarantor") are provided at the beginning of this instruction manual.
18 Technical Data
| Device Microwave | |
| Name M 20 Cube Ceramic | |
| Item No.: 3314 | |
| Mains data 230 V – 240 V; 50 Hz | |
| Power consumption | 1200 W (Microwave)≤ 1 W (Standby) |
| Nominal output of microwave 800 W | |
| Operating frequency 2450 MHz | |
| External measurements (W x H x D): 47 x 27,5 x 38,5 cm | |
| Cooking chamber dimensions (W x H x D): 28,7 x 18 x 29,5 cm | |
| Capacity Ca. 20 L | |
| Net weight 11,9 kg |
Micro-onde M 20 Cube Ceramic
N°. d'art. 3314
19 Mode d'emploi
19.1 Généralités
Technical diagram of a microwave oven with numbered parts for identificationtext_image
Technical diagram of a microwave oven with numbered parts for identificationtext_image
M 20 Cube CERAMIC 12:00. coso® DESIGN coso® Design Light Light Defence Frequency/Load 5 Free snow/Drink Weight 40% Map Ride Cash sheetCE
Artikelnummer 3314
