Original Operating Manual

AF 660 Duplex

Air fryer

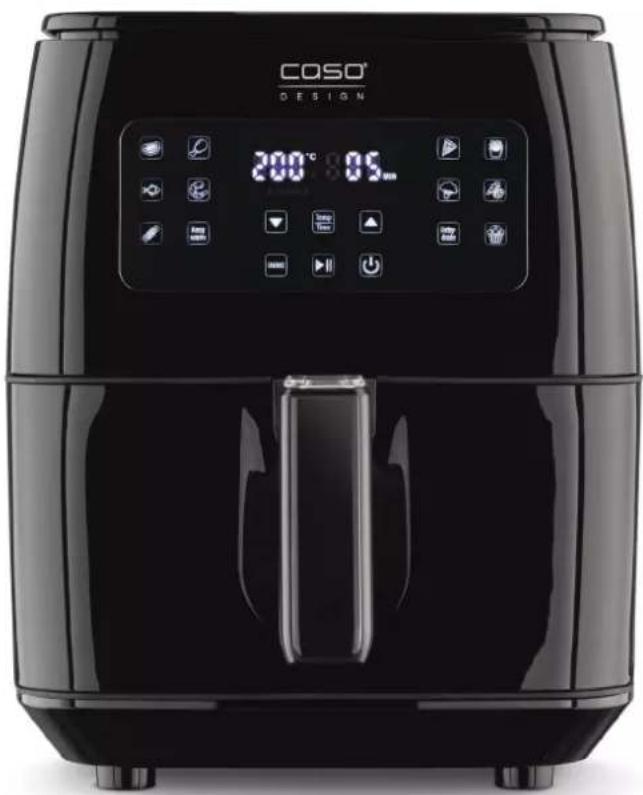

Black COSO air fryer with digital display and control buttons (no visible text or symbols on device body)

11 Operating Manual

11.1 General

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.

Your air fryer will serve you for many years if you handle it and care for it properly.

We wish you a lot of pleasure in using it!

11.2 Information on this manual

These Operating Instructions are a component of the fryer (referred to hereafter as the Device) and provide you with important information for the initial commissioning, safety, intended use and care of the device.

The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device:

- Commissioning

- Operation

- Troubleshooting and/or

- Cleaning

Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

11.3 Warning notices

The following warning notices are used in the Operating Manual concerned here.

⚠GEFAHR

Danger

A warning notice of this level of danger indicates a potentially dangerous situation.

If the dangerous situation is not avoided, this can lead to death or serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.

⚠️WARNUNG

Warning

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

▲VORSICHT

Attention

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to slight or moderate injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

HINWEIS

Please note

A notice of this kind indicates additional information, which will simplify the handling of the machine.

11.4 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration.

No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following:

• Non-observance of the manual
- Uses for non-intended purposes
- Improper repairs
- Use of unauthorized spare parts
- Technical alterations, modifications of the device

Modifications of the device are not recommended and are not covered by the guarantee. All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

11.5 Copyright protection

This document is copyright protected.

CASO GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially.

Subject to content and technical changes.

12 Safety

This chapter provides you with important safety notices when handling the device. The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

12.1 Intended use

This device is only intended for use in households in enclosed spaces for Heating, defrosting, keeping warm, fat-free frying, cooking, roasting, baking, grilling or drying of food. This device is intended for use in the household and for similar applications such as:

• in kitchens for employees in shops, offices, and other commercial areas; • in B&Bs,
  • in agricultural estates;
• by customers in hotels, motels and other residential establishments.

Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.

▲WARNUNG Warning

Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.

▶ Use the device exclusively for its intended use.
▶ Observe the procedural methods described in this Operating Manual.

Claims of all kinds due to damages resulting from unintended uses are excluded. The User bears the sole risk.

12.2 General Safety information

HINWEIS

Please note

Please observe the following general safety notices with regard to the safe handling of the device.

▶ Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
▶ If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard.
▶ This device may be used by children aged 8 and above, if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards.
▶ The device and its connecting cable must be kept away from children who are less than 8 years old.
▶ Cleaning and maintenance by the user must not be performed by children unless they are at least 8 years old and are supervised.
▶ Children are not allowed to play with the device.
▶ The device may be used by individuals with reduced physical, sensory or mental capabilities or a lack of experience and / or knowledge of their use if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards.
▶ Do not leave the device unsupervised when it is in operation.
▶ Do not use accessories which are not recommended by the manufacturer, as this can cause damage to your device or personal injury.
▶ Do not use outdoors.
▶ Only customer service departments authorized by the manufacturer may carry out repairs on the device, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. Improperly performed repairs can cause considerable dangers for the user.

HINWEIS

Please note

▶ Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.
▶ Do not let the cord hang over the end of a table or do not place it on a hot surface.
▶ Do not place the device on or near by a gas oven, electronic oven or into a heated oven.
▶ Do not put anything on top of the appliance. This disrupts the airflow and affects the hot air frying result.
▶ The device automatically changes to standby mode after the cooking time is over or after 5 min. without using it. Unplug the device then to turn it off completely.
▶ Use the device only for frying, baking and re-heating.
▶ Make sure that the handle was properly secured to the basket and anchored.
▶ Do not submerge the heating unit, cord or plug in water or other liquids to prevent electrical shock.
▶ Make sure that the vents on the cover are not covered with other items.
▶ Unplug the device after use. Then you can move, clean or maintain it.
▶ Do not unplug the device by pulling the cord.
▶ In case of professional use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will be void.

12.3 Sources of danger

12.3.1 Danger of Burning

⚠️WARNUNG

Warning: The device can become very hot.

▶ Do not touch the frying basket, frying pot and the air outlet during the frying or when the unit is still hot!
▶ Do not touch the inside of the device during operation or when the unit is still hot.
▶ Do not move the device if it contains hot food.

▲WARNUNG Warning

▶ Use cooking gloves or pot holders when you come into contact with the hot device.
▶ Do not move the appliance during use.
▶ Fry only in the enclosed frying pot. Use this frying pot exclusively with this fryer. Use the frying pot never otherwise.
▶ Unplug the device after use. After that you can move, clean or maintain it.
▶ Let the appliance cool down before you remove items, add or clean them.
▶ Do not put wet food into the device.
▶ Remove all ice from frozen food to be fried.
▶ Look for the hot steam rising from the air outlet.

12.3.2 Danger of Fire

▲WARNUNG Warning

There is a risk of fire if the appliance is used incorrectly.

Adhere to the following safety instructions in order to avoid a risk of fire:

▶ This device produces high temperatures, which can lead to burns.
▶ This device works on hot air. Do not fill it with oil or fat! Danger of burns!

▶ Make sure that no flammable objects are above or near the device.

▶ If the oil catches fire, immediately pull the plug from the socket and close the lid of the device.

▶ Do not install unless the frying basket is completely free of water.

▶ Place the food into the frying basket and avoid that they touch the heating elements.

▶ If the device catches fire, immediately remove the plug out of the outlet (if possible) and extinguish the flames.

12.3.3 Dangers due to electrical power

⚠GEFAHR

Danger

Mortal danger due to electrical power!

Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power:

▶ Avoid any liquid getting into the device to avoid an electrical shock or short circuit.
▶ Do not operate this device if it has a damaged cable or plug, if it is not working properly or if it has been damaged or dropped. If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard.
▶ Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.
▶ Do not submerge the heating unit, cord or plug in water or other liquids to prevent electrical shock.

13 Commissioning

This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

13.1

Safety

information

⚠️WARNUNG

Warning

▶ Packaging materials may not be used for playing. There is a danger of suffocation.

13.2 Delivery scope and transport inspection

As a rule, the Fryer is delivered with the following components:

• AF 660 Duplex
• Frying pot
• Duplex-divider

• Inner Frying basket with handle
- Operating Instructions

HINWEIS

Please note

▶ Examine the shipment for its completeness and for any visible damages.
▶ Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

13.3 Unpacking

To unpack the device, proceed as follows:

• Place the box containing the unit on a countertop or table.
• Remove the device from the box and remove the packaging.

13.4 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled.

Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to “Green Dot” recycling collection points for disposal.

HINWEIS

Please note

▶ If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.

13.5 Setup location requirements

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:

• The device must be set up on a firm, flat, horizontal and heat resistant surface with sufficient load-bearing capacity for the device.
• Choose the setup location in such a way that children cannot reach the device.
• The device is not intended to be installed in a wall or a built-in cupboard.
• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.
• WARNING! Do not close the ventilation openings in the device housing.
• The device requires an adequate flow of air in order to operate correctly. Make sure that the back of the device is at least 10 cm away from the wall. Keep 10 cm free space at the other sides of the device.
• The electrical socket must be easily accessible so that the power lead can be disconnected easily, in the case of an emergency.
• The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

13.6 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

- Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device. If in doubt, ask your qualified electrician.

Do not use an extension lead. If you accept liability for doing so, only use an extension lead which is in good condition and is suited to the power of the appliance.

• The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.
• Make sure that the power cable is undamaged and has not been installed under the ice maker or over hot or sharp surfaces.
• The electrical outlet must be protected by a 16A safety cut-out switch.
• The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. If in doubt, have the house installation checked over by a qualified electrician.
  The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.

14 Design and Function

This chapter provides you with important safety notices on the design and function of the device.

14.1 Complete overview

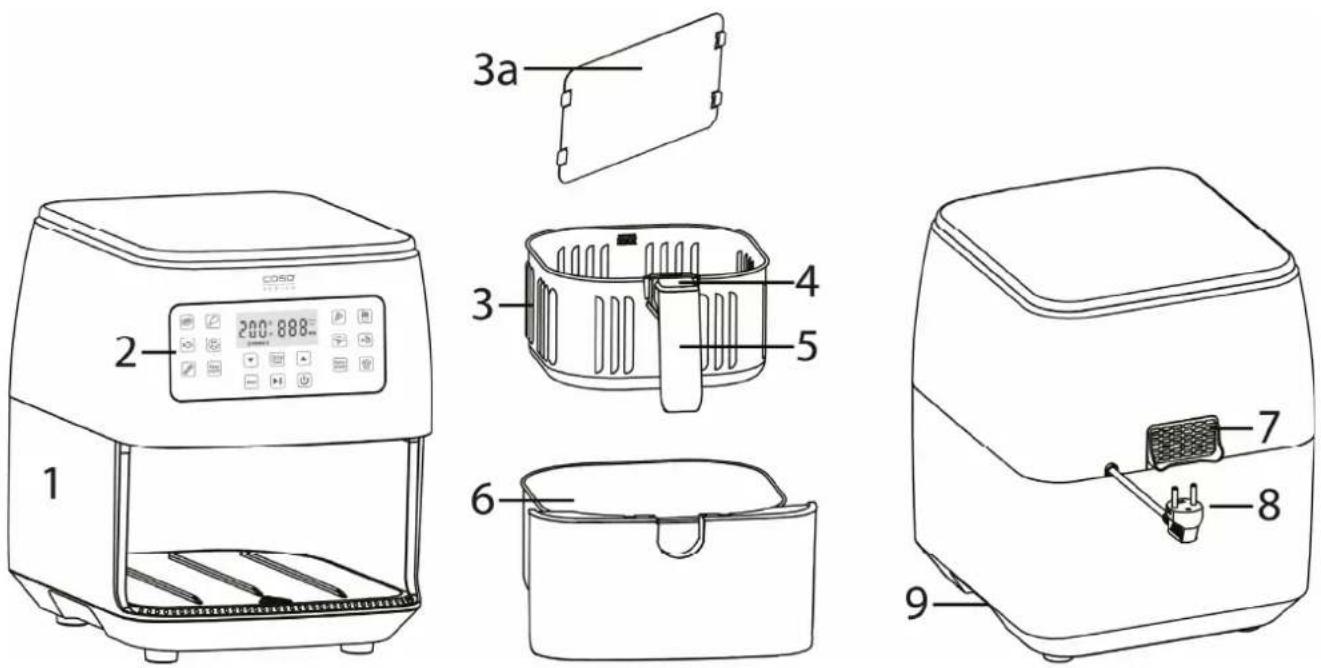

1. Housing
2. Control panel
3. Inner Frying basket
   3a.Removable Duplex-divider

4. Button for release of frying basket (with cover)

5. Handle

6. Frying pot for frying basket
7. Air outlet
8. Powercord
9. Recessed handle

14.2 Control panel

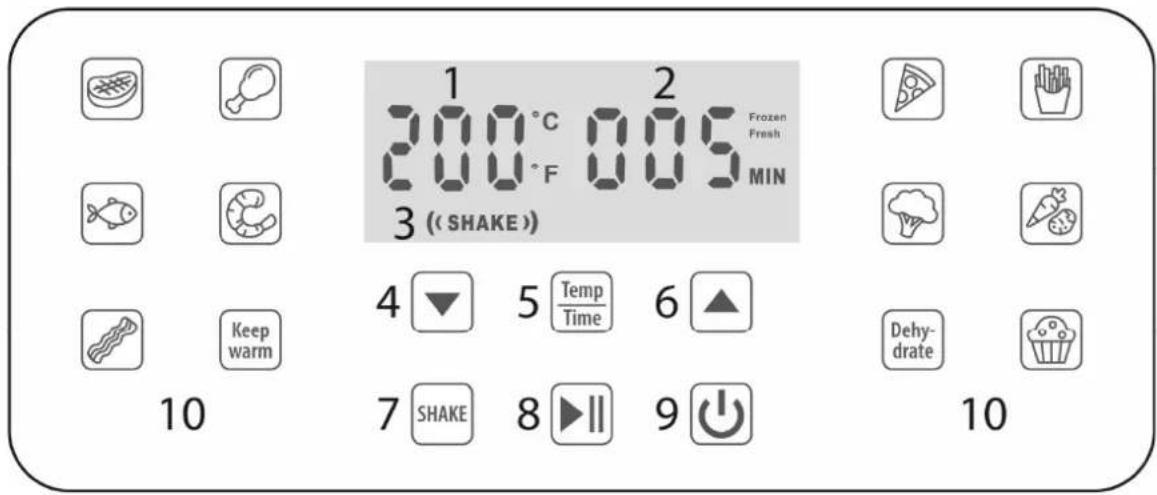

1 200°C 005 Frozen 200°F MIN 3 (SHAKE) 4 ▼ 5 Temp Time 6 ▲ 7 SHAKE 8 ▶ 9 ⏻ 10 Keep warm Dehydrate

1. Display of temperature (in °C/°F)
2. Display of SHAKE-Reminder
3. Select time/temperature; Change of °C/°F
4. Activate the SHAKE-Reminder

5. On/off button

6. Display of time (in min.)

7. Reduce of time / temperature
8. Increase of time/ temperature
9. Start/pause button
10. Automatic programs

14.3 Automatic programs

	Program	Temp. in °C (Range)	Time in min. (Range)
	Steak	200(50-200)	10(1-60)
	Chicken	180(50-200)	10(1-60)
	Fish	180(50-200)	15(1-60)
	Schrimps	190(50-200)	10(1-60)
	Bacon	160(50-200)	9(1-60)
	Snacks	180(50-200)	10(1-60)
	Frozen fries(FROZEN)	200(50-200)	30(1-60)
	Homemade fries(FRESH)	200(50-200)	35(1-60)
	Vegetables	170(50-200)	20(1-60)
	Root vegetables	200(50-200)	25(1-60)
	Cakes	160(50-200)	20(1-60)
	Keep warm	60(50-90)	30(1-60)
	Dehydrate	40(40-70)	180(1-480)*

* in 10 min. steps

14.4 Warning notices on device

▲VORSICHT ATTENTION

Danger due to hot surface! The surfaces of the device can become extremely hot.

▶ Do not touch the hot surfaces of the device. Danger of burns!
▶ Do not set or lay any items on the device.

14.5 Rating plate

The rating plate with the connection and performance data can be founded beneath the device.

14.6 Assembling / Deassembling

The cover over the frying basket release button protects against accidentally unlocking it. Flip the cover open, hold the button down and remove the frying basket from the container by pulling the handle upwards.

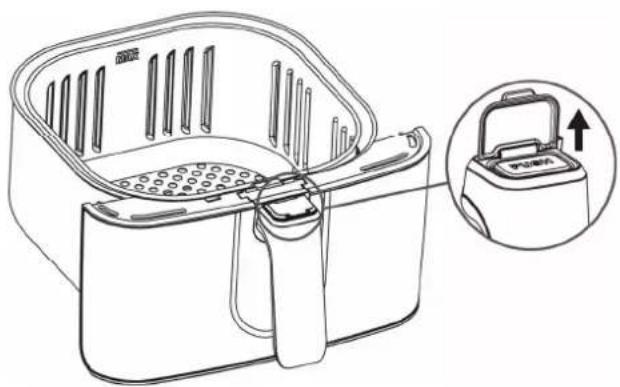

Assembling: Place the inner frying basket into the pot until it latches. Close the cover above the button for release of frying basket.

Line drawing of a square oven with a side panel and an inset showing the lid (no text or symbols)

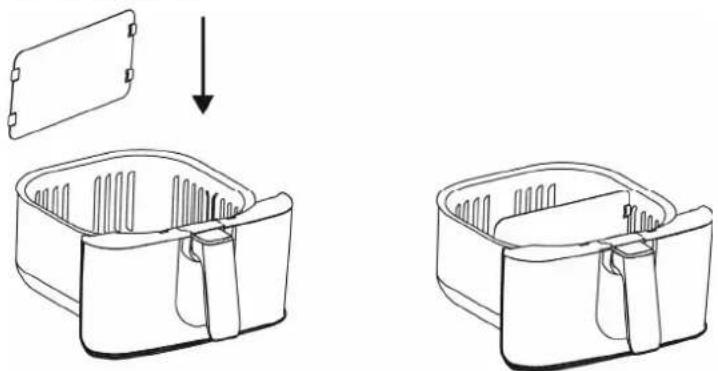

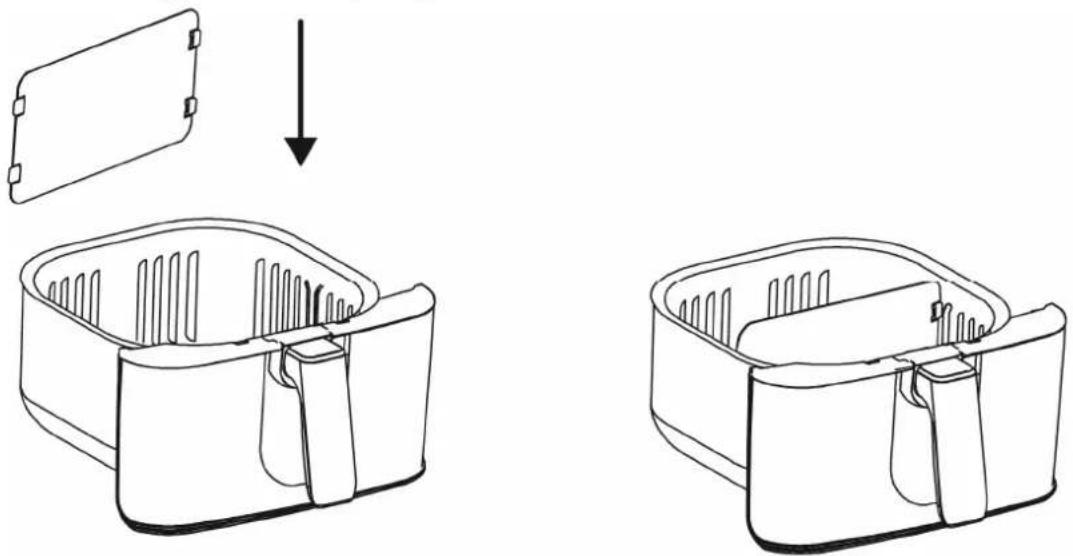

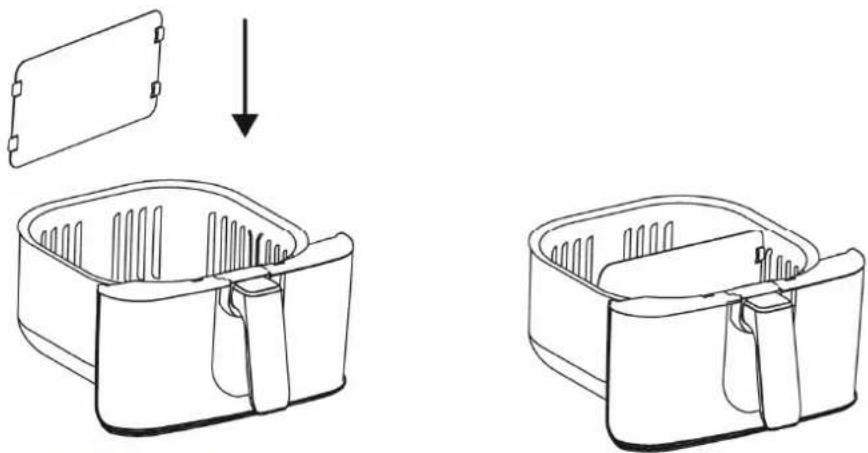

If necessary, slide the duplex partition into the inner basket.

Line drawing of a device interior showing a component being cut (no text or symbols)

HINWEIS

Please note

▶ The handle is attached to the inner frying basket, not to the outer container.
▶ Only press the basket release button when the container with the basket is standing flat on a level, heat-resistant surface.
▶ Never press the release button while carrying the container with the frying basket, otherwise the container could fall.
▶ Remove the frying basket from the container only for taking out the cooked food or for cleaning.

15 Operation and Handling

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

15.1 Before initial use

• Thoroughly clean the basket and the pot with hot water, some washing-up liquid and a non-abrasive sponge. The inner frying basket can also be washed in the dishwasher.
• Wipe the inside and outside of the appliance with a moist cloth.
• Dry the parts thoroughly after you have been flushed and put the unit back together
• For further cleaning instructions, please refer to the chapter "Cleaning and Maintenance".

15.2 Security switch

This appliance is equipped with a secure switch. When pulling the pot out of the fryer during it's working, the fryer will stop heating and timer on hold automatic until the pot is put back.

HINWEIS

Please note

It's better to pull out the pot not longer than 30s, to make sure the stable temperature inside the pot to have better result.

15.3 Overheating protection

The device has an overheating protection. In case of too high temperature inside the device close to electronic components the device will switch off automatically. Pull the plug and let the device cool down at least for half an hour.

15.4 Operation

1. Connect the main plug into a socket. The device beeps and the panel lights up once. Then the on/off button lights up constantly.
2. Put your food into the inner frying basket and slide the container with the frying basket into the appliance.
3. Press the on/off button to switch on the appliance.

4. Select one of the 12 automatic programmes. The symbol of the programme starts flashing and the preset temperature and time appear in the display.

5. You can also adjust the temperature individually by pressing the Temp-Time button.

The temperature flashes in the display. You can now adjust it with the buttons.

1. Press the Temp Time button a second time to adjust the time. The time flashes on the

display. You can now adjust it with the

buttons.

1. Press the button to start the process.

2. Pause/continue: To pause the process, press the ▶ button. Press the button again to continue.

Cancel/Switch off: To cancel the operation and switch off the unit, press the button.

1. After the set time has elapsed, a beep sounds and "End" appears in the display.

HINWEIS

Please

note

▶ If you keep the 📄 or ▼ button pressed, the value increases/decreases faster.

▶ Press and hold the Temp-Time button for 3 seconds to switch between the temperature in °C and °F.

▶ Never fill the basket exceed the MAX-amount indicated in the table, as this could affect the quality of the end result.

▶ After the fryer has started its program you will still be able to adjust the time and temperature at any moment by pressing the appropriate buttons.

⚠️WARNUNG

Warning

▶ Never use the frying pot without the frying basket in it.
▶ Hold the container by the handle only, as the appliance and the container may become hot during cooking.
▶ Do not press the basket release button during shaking of the ingredients or when removing the frying pot out of the device. Risk of burns!
▶ When removing the container, be aware of the hot steam that may escape.
▶ The frying basket and the food are very hot!

Quick Start:

If you directly press the button after point 3. without selecting a program, the device immediately starts frying in the Quick Sart mode (Temperature: 200^ , cooking time: 5 min.). While frying you can still adjust the time and temperature (see above).

SHAKE- Reminder:

To ensure that even large quantities or overlapping foods (such as chips) are cooked evenly, they should be shaken 1-3 times during the process, depending on the quantity

and cooking time. The "SHAKE-Reminder" can be activated manually for each programme (minimum cooking time 11 min.) and notifies you when you should turn over your food.

You can activate the "SHAKE-Reminder" by pressing the button before starting the cooking programme. When the "SHAKE-Reminder" is activated, ((SHAKE)) lights up in the display. The "SHAKE-Reminder" can be deactivated or reactivated again at any time during the cooking programme by pressing the button.

The notification sounds every 10 minutes (maximum 3 times) if it is activated. If the "SHAKE- Reminder" sounds and (flashes) on the display, please proceed as follows:

1. To shake or turn over the ingredients, pull the frying pot with basket out of the appliance by the handle (make sure that you do not press the basket release button). The appliance stops automatically as soon as the container is pulled out and does not continue until it is put back in.
2. Shake or turn over the ingredients by fork or tongs.
3. Then put the frying pot back into the device.

The "SHAKE-Reminder" sounds for 1 minute. During this time, the operation continues normally. If no action has been taken after 1 minute, the notification ends and the appliance continues the hot air process.

After frying:

1. Pull out the frying pot with frying basket using the handle and put it on a heat-resistant surface.
2. Check, whether the food is cooked through. If not you can slide the frying pot back into the fryer and continue the process for a few minutes.
3. To remove the ingredients, press the basket release button and lift the inner frying basket out of the frying pot.
4. The frying basket and the ingredients are hot. You can use a fork (or tongs) to take out the ingredients. To remove large or fragile ingredients, use a pair of tongs to lift the ingredients out of the basket.
5. Alternatively, you can keep your cooked food warm with the KEEP-WARM programme. To do this, press the corresponding button and adjust the keep-warm time if necessary.

Fries-program:

By pressing the button again, you can choose between two preset values for the chips programme. The respective selection is shown in the display next to the time.

FROZEN: Preset for deep-frozen (frozen) chips

FRESH: Preset for homemade, fresh chips

15.5 Advices for frying

• Smaller ingredients usually require a slightly shorter preparation time than larger ingredients.
• A larger amount of ingredients requires a slightly longer preparation time, a smaller amount of ingredients only requires a slightly shorter preparation time.

• Shaking the ingredients optimises the end result and can help prevent unevenly fried ingredients.

• To make fresh fries, use floury potatoes and cut them into 10 x 10 cm thick strips. Soak them in water for about 30 minutes and then dry them well. Coat the potatoes with a bit of oil for a crispy result.

• Adding a small amount of oil to your food will make it crispier. Do not use more than 30 ml of oil.
• Oil sprays are great for spreading small amounts of oil evenly over food.
• Do not prepare extremely greasy ingredients such as sausages in the fryer.
• Some snacks that can be prepared in an oven can also be prepared in the fryer.

We recommend the following quantities and settings:

Food	Quantity (max.)	Progr.	Temp. (°C)	Time (min.)	Note	SHAKE
French fries (frozen)	500 g1000 g1200 g		200	253035		Yes
Homemade fries	500 g1000 g		200	3035	Cut potatoes into strips approx. 10 x 10 mm thick; soak in water for 30 min., dry and brush with oil	Yes
Stuffed courgettes	2 halves		160-170	15-20	Cut the courgettes in half and hollow them out, fill with meat, couscous, cheese, etc. as desired
Stuffed peppers	4 pcs		170	15-20	Cut off the top of the peppers and remove the seeds, fill with quinoa, meat, vegetables, etc. as desired
Baked vegetables (sweet potato, courgette, beetroot, carrots)	750-1000g		200	25	Chop and mix with oil and spices	Yes
Burger patty	4 pcs à approx. 150 g		200	10-12
Chicken nuggets	1000 g		180	10-12
Grilled chicken	1300 g		200	50
Lasagne	400-500 g		170	20-25	Place in a 20 x 8 x 15 cm ovenproof dish
Pizza baguette 3	pcs		175	10
Homemade croutons	750 g		180	8	Dice the toast, mix with oil and spices
Bacon 6 pcs			160	8-10
Buns 4-6 pcs			190	8-10
Bread	Dough for 1 loaf		180	30	In an ovenproof dish (max. 20 x 20 cm)
Muffins 9 pcs			160	15-20
Cake	Dough for 1 cake		160	45-50	Line a frying basket with baking paper and a cake ring (∅ approx. 20 cm)
Homemade apple chips	1 apple		40	200	Cut into slices approx. 2 mm thick

HINWEIS

Please note

▶ When using the duplex divider, we recommend halving the maximum filling quantity to avoid excessive stacking and consequently bad cooking results.
▶ After half of time you can check the browning level and turn/ shake the food.
▶ Please note that a different quantity can require an adjustment of time and temperature.
▶ Keep in mind that these settings are indications. As ingredients differ in origin, size, shape as well as brand, we cannot guarantee the best setting for your ingredients.

⚠️WARNUNG

Warning

▶ Only use heat-resistant accessories in the appliance. The accessories used may be very hot after cooking.
▶ Never place baking paper or parchment paper in the deep fryer without putting food on it. The air circulation may cause the paper to lift up and touch the heating coils.

16 Cleaning and Maintenance

This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

16.1 Safety information

▲VORSICHT

Attention

Please observe the following safety notices, before you commence with cleaning the device:

The device must be cleaned at regular intervals. If the device is not maintained in a clean condition, this will have a detrimental effect on the service life of the device and can also result in a dangerous condition in the device as well as in the growth of fungus and bacteria.
▶ Clean the device directly after use. Extended waiting unnecessarily complicates cleaning and can make it impossible in extreme cases. Excessive accumulations of dirt can even damage the device under certain circumstances.
The frying basket and pot are anti stick coated. Do not use any aggressive or abrasive cleaning agents or solvents. Do not scrape off stubborn dirt with hard items.

16.2 Cleaning

• Remove the plug from the outlet and let the device cool down.
• The frying basket, duplex-divider and the frying pot can be washed in warm soapy water with a non-abrasive sponge. The inner frying basket can also be washed in the dishwasher.
• Dry the parts thoroughly after you have been flushed.
• If necessary, wipe the inside and outside of the appliance with a moist cloth.
  • After cleaning, put the unit back together.

17 Troubleshooting

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

17.1 Safety notices

▲VORSICHT Attention

▶ Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs on electrical equipment.
▶ Improperly performed repairs can cause considerable dangers for the user and damages to the device.

17.2 Causes and rectification of faults

The following table assists in localizing and rectifying minor faults.

Problem	Solution
The device is not functioning.	Please check whether the power plug is properly plugged.
The process doesn’t start when start / stop is pressed.	Make sure that the frying pot is placed inside the device correctly.
The food is not fully cooked or is cooked unevenly.	If the inner frying basket is overfilled, the food will not be cooked sufficiently. Put smaller quantities in the frying basket. Shake or turn the food several times during the cooking time. Increase the cooking temperature or the cooking time.
The food is not crispy after cooking.	Spraying or brushing the food with a small amount of oil can increase the crispiness.
The baskets do not slide securely into the appliance.	Make sure that the inner frying basket is not overfilled with food.Make sure that the inner frying basket is firmly seated in the outer container.
White smoke comes out of the appliance.	When you use the appliance for the first time, you may notice white smoke. This is normal.Make sure that the container, frying basket and the inside of the hot air fryer are well cleaned and not greasy.When cooking greasy food, oil may get into the container of the frying basket. This oil produces white smoke and the container and frying basket may be hotter than usual.This is normal and does not affect the cooking process. Handle the baskets with care.
Dark smoke comes out of the appliance.	Immediately unplug the appliance from the mains. Dark smoke means food is burning or there is a problem with the electrical circuit. Wait until the smoke has cleared before removing the baskets. If the cause was not burnt food, contact customer service.
E1 is shown in the display.	The connection to the temperature sensor in the appliance is broken. Contact customer service.
E2 is shown in the display.	The temperature sensor in the device is defective. Contact customer service.

HINWEIS

Please note

▶ If you are unable to solve the problem with the steps shown above, please contact Customer Service.

18 Disposal of the Old Device

Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances.

HINWEIS

Please note

▶ Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
▶ Ensure that your old device is stored safely away from children until it is taken away.

19 Guarantee

We provide a 24-month guarantee for defects caused by production or material faults, beginning on the date of purchase. Our guarantee is valid for Germany, Austria and the Netherlands. For all other countries, please contact us.

Your legal guarantee claims as per Art. 437 ff. German Civil Code (BGB) will remain unaffected by this. You may exercise your statutory guarantee rights free of charge. The guarantee does not cover damage caused by improper handling or use of the product or defects which have only a minor impact on the product's functionality or value. In addition to this, the guarantee also excludes parts which are subject to wear and tear; transport damages insofar as we are not responsible for them and damages caused by repairs which were not carried out by us.

This product has been constructed for non-commercial use (domestic use) and its performance is designed to meet the corresponding needs. The guarantee only covers commercial use insofar as it is comparable to domestic use. The product is not intended for any other type of commercial use.

In the case of legitimate complaints we may either repair the defective product or replace it with a defect-free product at our discretion. Obvious defects must be notified to us within 14 days of the product's delivery. Any further claims are excluded.

When making a guarantee claim please contact us before you return the product (always with the purchase receipt!). Our contact details ("Guarantor") are provided at the beginning of this instruction manual.

20 Technical Data

Device Air fryer
Name AF 660 Duplex
Item No.: 3181
Mains data 220-240V~, 50-60Hz
Power consumption 1700W
External measurements (W x H x D): 30 x 37 x 38,5 cm
Net weight 6,4 kg

Mode d'emploi

Black COSO air fryer with digital display and control buttons (no visible text or symbols on device body)

21 Mode d'emploi

21.1 Généralités

Line drawing of a square<|im_start|> Guy's air fryer with an inset showing the lid and handle (no text or symbols)

Line drawing of a two-step assembly of a rectangular device with internal compartments and a lid, showing structural change (no text or symbols)

HINWEIS Remarque

25.3 Système anti-surchauffe

COSO® DESIGN 200°C 8:05 pm

30 Istruzione d'uso

30.1 In generale

Line drawing of a kitchen air fryer with an inset showing the interior portion of the device (no text or symbols present)

HINWEIS Indicazione

Black COSO air fryer with digital display and control buttons (no visible text or symbols on device body)

- Duplex-pared divisoria

HINWEIS Nota

Line drawing of a square fryer with a close-up inset showing the interior and handle (no text or symbols)

Line drawing of a two-step assembly process: adding a component to form a closed container (no text or symbols)

HINWEIS

Nota

COSO DESIGN 200°C 80s...

Line drawing of a square fryer with an inset showing the interior portion of its tray (no text or symbols present)

Line drawing of a two-step assembly of a rectangular device with internal compartments and a lid, showing no text or symbols.

HINWEIS Tip

Line drawing of a square fryer with an inset showing the interior portion of its side (no text or symbols present)

Diagram showing two stages of a device with internal compartments and a close-up view of the interior (no text or symbols)

HINWEIS Примечание

Black COSO air fryer with digital display and control buttons (no visible text or symbols on device body)

Line drawing of a square fryer with a close-up inset showing the interior and handle (no text or symbols)

Line drawing of a mechanical component with an arrow indicating downward motion (no text or symbols)

Line drawing of a rectangular container with side handles and a handle (no text or symbols)

HINWEIS

NOTA

COSO® DESIGN 200°C 80S.m.

82.6 Montering/demontering

Line drawing of a square<|im_start|> Guy's air fryer with an inset showing the handle and lid (no text or symbols)

Line drawing of two views of a small container with internal compartments, showing a step-down process (no text or symbols)

HINWEIS OBS
