Original Operating Manual

Microwave, Grill and Convection Oven HCMG 25

P:100 HCMG 25 COSO DESIGN

CE

Item No. 3354

11 Operating Manual

11.1 General

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.

Your microwave will serve you for many years if you handle it and care for it properly.

We wish you a lot of pleasure in using it!

11.2 Warning notices

The following warning notices are used in the Operating Manual concerned here.

▲GEFAHR DANGER

A warning notice of this level of danger indicates a potentially dangerous situation.

If the dangerous situation is not avoided, this can lead to death or serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.

▲WARNUNG WARNING

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

▲VORSICHT ATTENTION

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to slight or moderate injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

HINWEIS PLEASE NOTE

A notice of this kind indicates additional information, which will simplify the handling of the machine.

11.3 General Safety information

HINWEIS Please note

Please observe the following general safety notices with regard to the safe handling of the device.

Read all these instructions before using the appliance.

▶ Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
▶ The device is not intended for drying, warming up or heating up living animals.

HINWEIS Please note

This appliance may be used by children aged 8 and above, if they are supervised or have been instructed at to the safe use of the appliance and have understood the resulting hazards.
▶ Cleaning and maintenance by the user must not be performed by children unless they are at least 8 years old and are supervised. Children are not allowed to play with the device.
The appliance and its connecting cable must be kept away from children who are less than 8 years old.
The appliance may be used by individuals with reduced physical, sensory or mental capabilities or a lack of experience and / or knowledge of their use if they are supervised or have been instructed at to the safe use of the appliance and have understood the resulting hazards.
▶ Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs that may be needed. Improperly performed repairs can cause considerable dangers for the user.
▶ Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.
▶ Only customer service departments authorized by the manufacturer may carry out repairs on the device during the guarantee period, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages.
▶ Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
▶ Do not use utensils that are not suitable for the use in microwave appliances.

HINWEIS

Please note

▶ Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
▶ Food thermometers are unsuitable to be used when the microwave is in operation.
This product is a Group 2 Class B ISM equipment. The definition of Group 2 which contains all ISM (Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. For Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purpose. for domestic purpose.
▶ The microwave oven is only used when it is freestanding.
▶ The microwave oven must not be placed in a cabinet.
▶ The appliance shall be placed against a wall.
▶ Warning: Do not install the oven over a range cooktop or other heat-producing appliance. If it is installed it could be damaged and the warranty would be void.
▶ The appliance is not intended to be operated by means of an external timer or separate remote-control system.
▶ The microwave oven is for household use only and not for commercial use.
▶ Never remove the distance holder in the back or on the sides, as it ensures a minimum distance from the wall for air circulation.
▶ Please secure the turn table before you move the appliance to avoid damages.

HINWEIS Please note

▶ The microwave oven is intended for defrosting, cooking and steaming of food only.
The appliance must not be cleaned with a steam cleaner.

11.4 Sources of danger

11.4.1 Danger due to microwaves

▲WARNUNG Warning

Exposure to microwaves on the human body can result in injuries.

Please observe the following safety notices in order not to expose yourself or others to microwaves.

▶ Never operate the device when the door is open. Having a faulty or manipulated safety switch results in the danger of exposing oneself directly to the microwaves.
▶ If the door or door seals are damaged, the device must not be operated until it has been repaired by an authorized person.
▶ WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy. This applies to changing the power cord or the lighting as well. Send the appliance in these cases to our service centre.

11.4.2 Danger of burns

▲WARNUNG Warning

The culinary items being heated up in this device as well as the cookware that being used and the surface of the device can become very hot.

Please observe the following safety notices in order not to burn or scald yourself or others.

▲WARNUNG Warning

▶ Warning: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.
▶ Microwave heating of beverages can result in delayed eruptive boiling (boiling retardation), therefore care must be taken when handling the container.
▶ Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin burns.
▶ In particular, the contents of baby bottles and baby food jars must be stirred or shaken, and the temperature must be checked before consumption to prevent scolding.
▶ Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed to handle the utensil.
▶ The door or the outer surface may get hot when the appliance is operating.
▶ The accessible surface may be hot during operation.
▶ The temperature of accessible surfaces may be high when the appliance is operating.
▶ Use gloves if you remove any heated food.
▶ Caution! Steam will escape, when opening lids or wrapping foil.
▶ WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

11.4.3 Danger of fire

⚠️WARNUNG Warning

There is a danger of fire due to the ignition of the content in the event the device is not used properly.

Observe the following safety notices to avoid dangers of fire:

▲WARNUNG Warning

▶ Never use the device to store or dry flammable materials.
▶ Do not warm up any alcohol in an undiluted state.
▶ Do not operate the oven when empty.
▶ To reduce the risk of fire in the oven cavity:
▶ a) When heating food in plastic or paper container, keep an eye on the oven due to the possibility of ignition.
▶ b) Remove wire twist-ties from paper or plastic bags before placing bag in oven.
▶ c) If smoke is emitted turn off the appliance or unplug the appliance and keep the door closed to extinguish any flames.
▶ d) Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use.
▶ Never the leave the device unsupervised if you are warming up or cooking foods in disposable containers made of plastic, paper or other flammable materials.
▶ Disposable containers made of plastic must have the properties shown under the heading “Notices on microwave cookware”.
The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.
▶ Always remove grease residues in the device, as these residues can otherwise ignite.

11.4.4 Danger of explosion

▲WARNUNG Warning

There is a danger of explosion due to excess pressure that is created in the event the device is not used properly.

Observe the following safety notices to avoid dangers of an explosion:

▲WARNUNG Warning

▶ Liquids and other food must not be heated in closed vessels as these may explode.
▶ Do not cook eggs in the shell or extremely hard boiled eggs in the device as they can still explode, even after the microwave operation has been completed.
▶ Pierce foods with heavy skins such as potatoes, whole squashes, apples and chestnuts before cooking.

11.4.5 Dangers due to electrical power

▲GEFAHR Mortal danger due to electrical power!

Mortal danger exists when coming into contact with live wires or subassemblies!

Observe the following safety notices to avoid dangers due to electrical power:

▶ Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.
▶ Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
▶ Caution: It is dangerous to repair or maintain the appliance by anyone other than a specialist because under these circumstances the cover would have to be removed which ensures protection against microwave radiation. This applies to changing the power cord or the lighting as well. Send the appliance in these cases to our service center.

11.5 Information on this manual

These Operating Instructions are a component of the microwave (referred to hereafter as the Device) and provide you with important information for the initial commissioning, safety, intended use and care of the device.

The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device: • Commissioning • Operation • Troubleshooting and/or • Cleaning Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

11.6 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration.

No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following:

• Non-observance of the manual

- Uses for non-intended purposes

- Improper repairs

- Technical alterations, modifications of the device

- Use of unauthorized spare parts

Modifications of the device are not recommended and are not covered by the guarantee.

All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

11.7 Copyright protection

This document is copyright protected.

Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes.

12 Safety

This chapter provides you with important safety notices when handling the device. The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

12.1 Intended use

This device is only intended for use in households in enclosed spaces for defrosting, warming up, cooking, grilling, reducing and baking foods and beverages.

This device is intended for use in the household and for similar applications such as:

• in kitchens for employees in shops, offices, and other commercial areas; • in B&Bs,
• in agricultural estates;
• by customers in hotels, motels and other residential establishments.

Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.

▲WARNUNG Warning

Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.

▶ Use the device exclusively for its intended use.
▶ Observe the procedural methods described in this Operating Manual.

Claims of all kinds due to damages resulting from unintended uses are excluded.

The User bears the sole risk.

13 Commissioning

This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

13.1 Safety information

▲WARNUNG Warning

Personal and property damages can occur during commissioning of the device!

Observe the following safety notices to avoid such dangers:

▶ Packaging materials may not be used for playing. There is a danger of suffocation.
▶ Transport, unpack and use two persons to set down the device because of the heavy weight of the device.

13.2 Delivery scope and transport inspection

As a rule, the HCMG 25 Microwave is delivered with the following components:

- HCMG 25 Microwave - Rolling ring

- Glass turntable - Grating - Operating Instructions

HINWEIS Please note

▶ Examine the shipment for its completeness and for any visible damages.
▶ Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

13.3 Unpacking

To unpack the device, proceed as follows:

• Remove all packaging and accessories.
• Check the appliance for possible damages (dents, damaged door etc.). Damaged appliances may not be used.
• Casing: Remove the protective film covering the outside surface of the appliance.

- The light brown/silver cover in the interior of the appliance protects the magnetron and must not be removed.

13.4 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled.

Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste.

Take any packaging materials that are no longer required to "Green Dot" recycling collection points for disposal.

HINWEIS Please note

▶ If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.

13.5 Setup

13.5.1 Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:

• The device must be set up on a firm, flat, horizontal and heat-resistant surface with sufficient load-bearing capacity for the oven and the maximum weight of the expected food that is to be prepared in the oven.
• Choose the setup location in such a way that children cannot reach any hot surfaces on the device.
• The device is not intended to be installed in a wall or a built-in cupboard. The device requires an adequate flow of air in order to operate correctly.
• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.
• Ensure that the power cable does not hang down over a table or counter edge.
• The electrical socket must be easily accessible so that the power lead can be disconnected easily, in the case of an emergency.
• The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

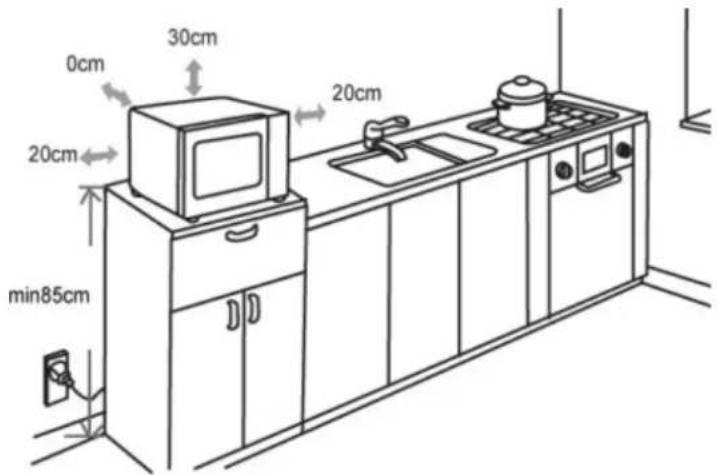

13.5.2 Installation of the appliance

0cm 30cm 20cm 20cm min85cm 20cm

1) Select a level surface providing enough distance between the ventilation slots and walls or other units.

a) The surface for placing the appliance must be at least 85 cm above the floor.

b) The rear of the appliance must be facing a wall. Above the appliance a

clearance of 30 cm is needed, and on the sides at least 20 cm distance to other walls or units are needed.

c) Do not remove the feet from the bottom of the appliance.
d) Do not cover or obstruct any openings in the appliance.
e) Covering the ventilation slots may cause damage to the appliance.
f) Place the microwave appliance as far away from radios of TVs to minimize any interference to radio and TV reception.
2) Insert the power plug into a normal household outlet; check that voltage and frequency of the appliance (see appliance rating label) matches that of the household electrical supply.

13.5.3 Avoiding radio interference

The device can cause the occurrence of interference in radios, televisions or similar devices.

Such faults can be rectified or reduced as a result of employing the following measures:

• Clean the door and the sealing surfaces of the device.
• Set the radio, the television, etc as far as possible away from the device.
• Connect the device to a different electrical outlet, so that various power circuits are used for the device and the receiver with the interference.
• Use a properly installed antenna for the receiver, to ensure good reception.

13.6 Assembling the accessories

13.6.1 Glass turntable

• 1 Hub (underside)
- 2 Glass turntable
- 3 Turntable drive
- 4 Rolling ring

1 2 3 4

Assemble the glass turntable as follows:

• Insert the rolling ring
• Place the glass turntable inside the appliance so that the grooves on the underside of the glass dish lock into the turntable drive.
• Never place the glass tray inside the appliance upside down; it must be able to revolve freely.
• When cooking always use the glass turntable and the matching rolling ring.
• Always place all food and containers on the glass turntable or the grating for grilling.
• In case the glass turntable or the rolling ring crack or break please contact your Service Centre.

13.6.2 Metal rack

- Place the metal rack on the glass turntable.

HINWEIS

▶ Use the metal rack only for grilling, convection and combination operation C3.

13.7 Electrical connection

▲GEFAHR DANGER

▶ Risk of electrocution
▶ Touching internal components may cause serious, severe and fatal injuries.
▶ Do not disassemble the appliance.
▶ Improper grounding can cause electrical shocks. Do not use a power outlet if it is not properly installed and grounded.

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device. If in doubt, ask your qualified electrician.
• The electrical outlet must be protected by a 16A safety cut-out switch, separately from other electricity consumers.
• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 mm ^2 . The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.
• Make sure that the power cable is undamaged and has not been installed under the oven or over hot or sharp surfaces.
• This appliance must be electrically grounded. In case of a short circuit grounding will protect against electric shocks because the electrical current is diverted through the grounding lead. The appliance is fitted with an appropriate cable with a ground lead and a grounded safety plug. The plug must be inserted into a properly installed and grounded outlet.

- The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. Operations using an electrical outlet without a protective conductor are prohibited. If in doubt, have the house installation checked over by a qualified electrician. The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.

13.7.1 Extension cables

• The power cable is kept intentionally short to reduce the risk of tangling or presenting a tripping hazard.
• If a longer cable or an extension cable is required:
• 1) The power rating of the cable or extension cable must be no less than the rating of the appliance.
  • 2) The extension cable must a three-lead (grounded) cable.
• 3) Arrange the long cable so that it does not hang down from table or counter tops where it can be pulled by children and that it does not present a tripping hazard.

14 Design and Function

This chapter provides you with important safety notices on the design and function of the device.

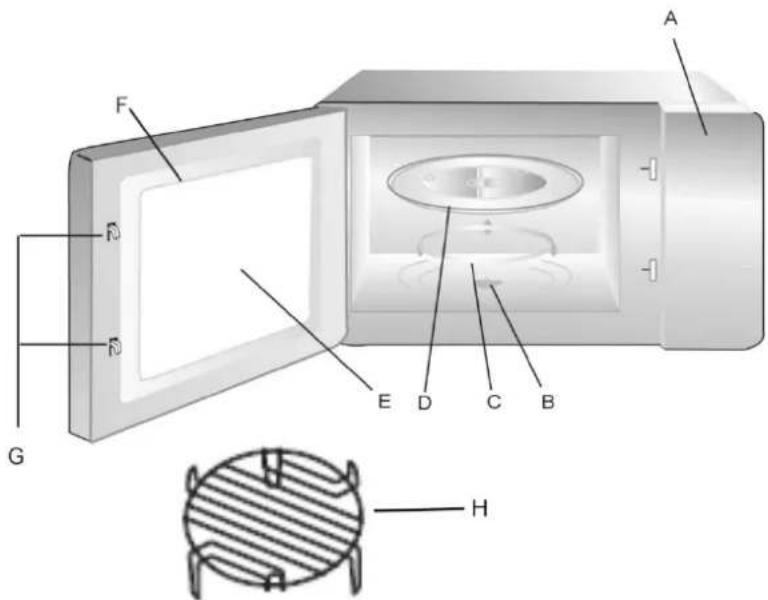

14.1 Complete overview

A F D B E D C B G H

A) Operating panel Cooking time, power, function and current time are displayed.

The ventilator can continue running afterwards to cool down the device.

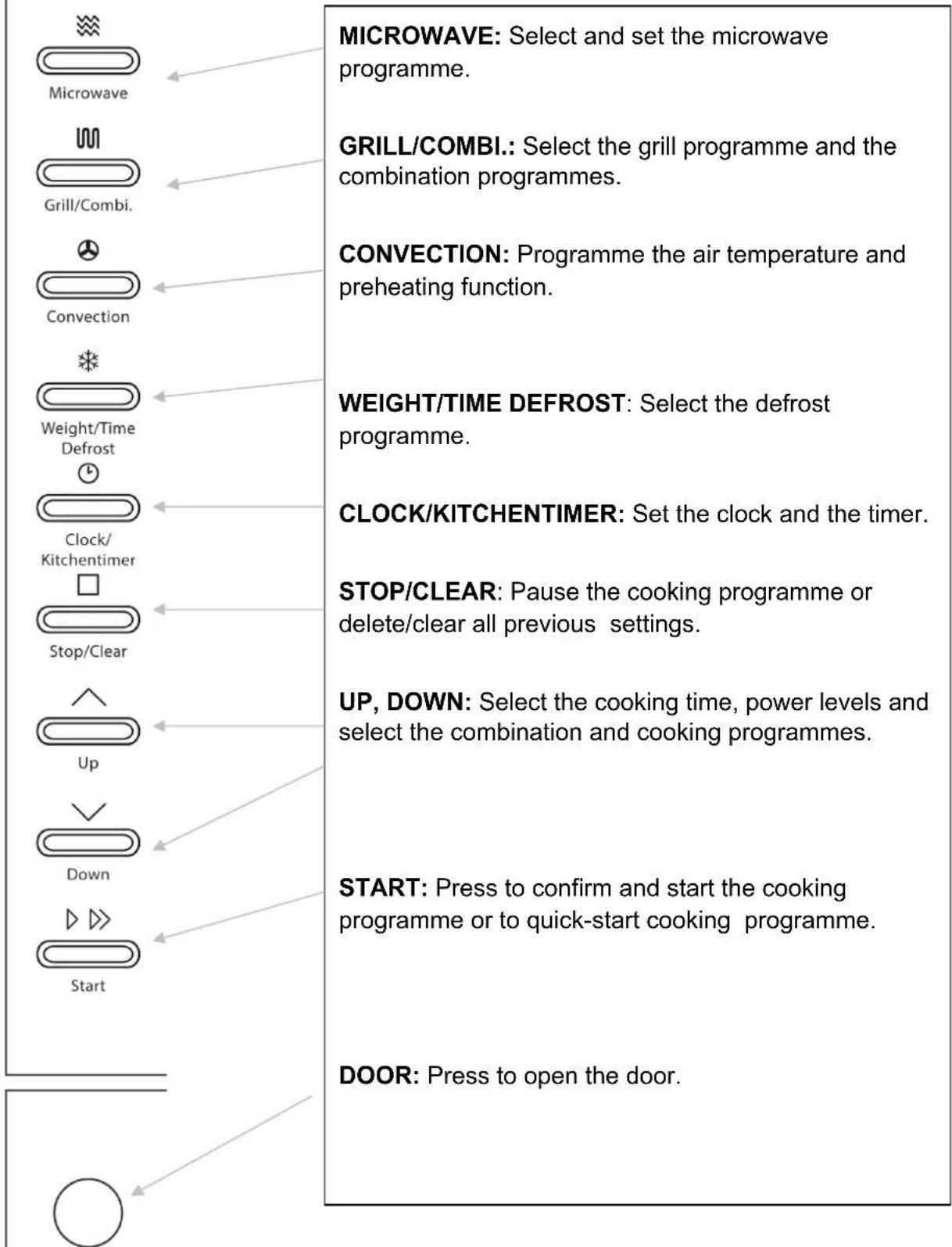

14.2 Operating elements and displays

    J["MICROWAVE: Select and set the microwave programme."] --> K["GRILL/COMBI.: Select the grill programme and the combination programmes."]
    K --> L["CONVECTION: Programme the air temperature and preheating function."]
    L --> M["WEIGHT/TIME DEFROST: Select the defrost programme."]
    M --> N["CLOCK/KITCHENTIMER: Set the clock and the timer."]
    N --> O["STOP/CLEAR: Pause the cooking programme or delete/clear all previous settings."]
    O --> P["UP, DOWN: Select the cooking time, power levels and select the combination and cooking programmes."]
    P --> Q["START: Press to confirm and start the cooking programme or to quick-start cooking programme."]
    Q --> R["DOOR: Press to open the door."]

14.3 Signal tones

The appliance will emit the following signal tones as acoustic feedback:

• One signal tone: The appliance has accepted the entry
• Two signal tones: Either you are requested to turn the cooking goods or, when preheating, to place the cooking goods into the oven.
• Five signal tones: End of the cooking time.
• No signal tone: The appliance has not accepted the entry, check and try again.

•

14.4 Safety equipment

14.4.1 Warning notices on device

▲VORSICHT ATTENTION

Danger due to hot surface!

There is a warning notice referring to dangers due to hot surfaces located on the back upper side of the housing. The surfaces of the device can become extremely hot.

▶ Do not touch the hot surfaces of the device. Danger of burns!
▶ Do not set or lay any items on the device.
▶ Do not place the microwave appliance above a cooker, hob or another devices producing heat, as this would damage the microwave appliance and render the warranty void.

14.4.2 Door latch

A safety switch is installed in the door latch of the device, which prevents the device from being operated when the door is open.

▲VORSICHT ATTENTION

Danger due to microwaves!

If this safety device is defective or if this safety device is bypassed, you can directly expose yourself and others to microwave radiation.

▶ Do not operate the device if the safety switch is defective.
▶ Do not disable this safety device.

14.4.3 Child-proof lock

The child-proof lock prevents children from using the device without supervision.

◆ Activating the child-proof lock:

Press the STOP/CLEAR button for three seconds until a signal tone is heard

and the function display are disabled.

lights up. In the locked state, all the buttons

◆ De-activating the child-proof lock:

Press the STOP/CLEAR button for three seconds until a signal tone is heard

and the illumination on the function display goes out. In the locked state, all the buttons are disabled.

14.5 Rating plate

The rating plate with the connection and performance data can be founded on the back of the device.

15 Operation and Handing

This chapter provides you with important notices with regard to operating the device.

Observe the following notices to avoid dangers and damages:

▲WARNUNG Warning

▶ Do not leave the device unsupervised when it is in operation, so that you can intervene quickly in the event of dangers.

15.1 Principles of microwave cooking

• The power levels and time required for cooking / warming up food items depends on the starting time, the quantity and the type and consistency of the food, etc. Use the shortest indicated cooking time and extend the cooking procedure as necessary.
• Arrange the food carefully. Position the thickest areas on the external edge of the bowl.
• Cover the food while it is cooking. Lids protect against spatters and also contribute towards cooking/warming up the food evenly.
• During warming, the food should be turned, rearranged or stirred repeatedly, in order for the temperature to be distributed evenly.
• Any existing germs in the food are only killed off if the temperature is sufficiently high enough ( >70^ ) and if the time used is sufficiently long enough ( >10 m in ).
• Foods with a firm skin or shell, such as tomatoes, sausages, potatoes in the skin, eggplants must be pierced or punctured repeatedly so that any developing steam can escape and so that the food does not burst.
• Eggs without their shell may only be cooked in the microwave if the skin of the egg yoke has been pierced repeatedly first. Otherwise, the egg yoke can squirt out with excessive pressure after cooking.
• Rearrange layers of foods such as meat balls from top to the bottom and from the middle to the outside edge.

15.2 Operating modes:

The unit is to be operated in various operating modes. The following list shows the operating modes that are possible with the device:

◆ “Microwave” mode

This operating mode is suitable for the normal reheating of food.

◆ “Grill and combination programmes” mode

The “Grill” (G1) mode is suitable for roasting and gratinating food.

The combination programmes are suitable for simultaneous microwaving, grilling and convection cooking.

The following combination programmes are available:

Display Combination programme
Microwave Grill Convection
C-1 X X
C-2 X X
C-3 X X
C-4 X X X

◆ “Convection” mode

In this operating mode, the hot air in the cooking chamber circulates in order to warm the food quickly and evenly.

◆ „Multi-Stage Cooking“ Mode

This mode allows you to program up to 2 automatic sequences. It is possible to set the sequence and duration of defrosting, microwave cooking and grilling or hot air mode.

◆ “Automatic cooking programme” mode

This mode allows you to select the cooking program from 10 different menus.

◆ Automatic defrost

This operating mode is suitable for defrosting frozen food. You can select whether to defrost by weight or time.

15.3 Information on microwave cookware

The ideal material for microwave cookware is permeable for microwaves and allows the energy to penetrate the container and warm up the food.

Please observe the following tips when selecting the correct cookware:

Microwaves cannot penetrate metal. Therefore, you should not use utensils made of metal or cookware with metal trim.
For microwave cooking, do not use any products made from recycled paper, as they could contain tiny metal fragments, which could cause sparks and/or result in fire.

▶ Use round or oval instead of square or rectangular cookware, as otherwise the food could tend to overheat in the corners.
▶ You can use narrow strips of aluminium foil to protect sensitive areas against excessive heating. But do not use too much foil and maintain a distance of approx 2.5 cm between the foil and the walls of the cooking chamber.
▶ Do not use any aluminium foil when using the microwave or combinations with the microwave (see following table).

The following table is intended as a basis for selecting the correct cookware:

Cookware	Micro-wave	Grill Convection Combination
Heat-resistant glass dishes	✓ ✓ ✓ ✓
Non heat-resistant glass dishes	×	×	×
Heat-resistant ceramic dishes	✓ ✓ ✓ ✓
Microwave-resistant plastic container	✓ × × ×
Kitchen roll	✓	×	×
Metal sheet	×	✓	✓
Metal rack, metal container	× ✓ ✓ ×
Aluminium foil and container	× ✓ ✓ ×

15.4 Opening / closing door

Open door

Push the door opener to open the door of the device. If the device is switched on, the current cooking programme will be interrupted.

HINWEIS Please note

Leave the door open for a moment before reaching into the cooking chamber, to allow the accumulated heat to escape.

◆ Close doors

Close the door until the door latch audibly locks in place. If a current cooking programme was interrupted as a result of opening the door, the current cooking programme will be continued after pressing the button START.

15.5 Activation after selecting the programme

After selecting the program, press START to start the preset cooking programme.

15.6 Quick start

1) Quick start of the microwave: You can start the mircrowave diectly with full power for any period of time.

Use to set the time and then press START directly to start the microwave on full power.

2) Press START in standby mode to heat food at full power for 30 seconds. Press START again to increase the time by 30 seconds which each pressing, the maximum is 95 minutes.
3) In all microwave, grill convection and combination programmes it is possible to increase the time in 30 second increments by pressing START (repeatedly) also after a programme has been selected and confirmed.

Attention: This function is not available for the defrosting and the automatic cooking programmes.

15.7 Stop / Pause

In order to interrupt an ongoing cooking programme, you can proceed as follows:

Pres the STOP/CLEAR button once. The cooking programme that is in use will be stopped.

Open the door of the device. The cooking programme that is in use will be stopped.

HINWEIS Please note

▶ To continue the interrupted cooking program, press the button START after closing the door.

To terminate the interrupted program, press the button STOP/CLEAR a second time.

HINWEIS Please note

▶ Before beginning a different cooking process you must delete the display and reset the system by pressing the button STOP/CLEAR.

15.8 Setting the clock

As soon as the appliance is connected to electrical power the display will show 0:00 and the buzzer will sound once.

1) Press CLOCK/KITCHENTIMER once, 00:00 is displayed.

Up or Down

2) Press Up or Down to set the hours in the range 0-23 (24 hour clock).
3) Press CLOCK/KITCHENTIMER and the minutes will flash.

4) Press or to set the minutes in the range 0-59.
5) Press CLOCK/KITCHENTIMER to conclude setting the clock. The colon in the clock display will flash.

Attention: If the clock has not been set it is not available later. In case you press STOP/CLEAR while setting the clock the appliance will return to the previous state.

15.9 Kitchen timer function

1) Press CLOCK/KITCHEN TIMER twice, 00:00 is displayed.

2) Press or to set the waking time (maximum 95 minutes).
3) Press START to confirm the setting.
4) When the waking time is reached the buzzer will sound five times. If the clock has been set, the current time is displayed. Attention: The timer is independent of the clock setting, it is simply a kitchen timer counting down the minutes.

15.10 "Microwave" mode

When microwaving you can adjust the power level and the cooking time (maximum 95 minutes).

1) Press MICROWAVE ans "P100" is displayed.

2) Press MICROWAVE repeatedly or the buttons or Up Down until the desired power level is displayed (P100, P80, P50, P30, P10).

3) Press START to confirm the setting.

4) Press Up or Down to set the cooking time between 0:05 (5 seconds) to 95:00 (95 minutes) Press START again to start the cooking process.

5) When the end of the cooking time has been reached the system will sound five signal tones.

Example: If you want to cook something for 20 minutes at 80 % power level proceed as follows:

1) Press MICROWAVE once, "P100" is displayed.

Up or to select

2) Press MICROWAVE again or press the microwave power level.

3) Press START to confirm the setting, "P80" is displayed.

4) Press Up or to set the cooking time until "20:00" is displayed.

5) Press START to start the cooking process.

6) When the end of the cooking time has been reached the system will sound five signal tones.

Attention: The increments for the cooking times are as follows:

0 – 1 minute: 5 seconds

1 – 5 minutes: 10 seconds

5 – 10 minutes: 30 seconds

10 – 30 minutes: 1 minute

30 – 95 minutes: 5 minutes

Microwave power levels:

Number of presses on the button 1	2 3 4	5
Microwave power level 100 % 80 %	50 %	30 % 10 %

15.11 “Grill” mode and combination programmes

The “Grill” operating mode is especially suitable for thin slices of meat, steaks, chops, kebabs, sausage and chicken pieces.

1) Select the cooking programme "Grill" by pressing GRILL/COMBI once. "G1" is displayed to indicate the grill function.

2) Press GRILL/COMBI. again or press or to select Down the desirect combination programme, "G-1", "C-1", "C-2", "C-3" or "C-4" is displayed.

3) Press START to confirm.

4) Press Up or Down to set the cooking time between 0:05 (5 seconds) and 95:00 (95 minutes).

5) Press START to start the cooking process.

6) When the end of the cooking time has been reached the system will sound five signal tones.

Example: If you want to grill something for 10 minutes proceed as follows: Press GRILL/COMBI. once, and "G1" is displayed. Press START to confirm.

Press Up or Down

Press START to start the cooking process.

HINWEIS Please note

▶ Half way through the grill time the buzzer will sound twice to request that you now turn the goods in the grill. Open the door, turn the food over, and close the door again. Press START to continue the grilling process.

▶ ATTENTION: The appliance will not stop after sounding the buzzer.

Attention: Instructions for combinations

Number of button presses	Display Microwave Grill Convection
1 C-1 X X
2 C-2 X X
3 C-3 X X
4 C-4 X X X

15.12 "Convection" mode

In this operating mode, the hot air in the cooking chamber circulates in order to warm and brown the food quickly and to cook it so it is crispy. This oven can be set to ten different cooking temperatures. The maximum cooking time is 95 minutes.

15.12.1 Mode "Convection" with preheating

1) Press CONVECTION once, "150" will flash on the display.

or up Down

2) Press CONVECTION repeatedly or press or to select the desired temperature between 150^ and 240^ .

3) Press START to confirm the temperature.

4) Press START again and the appliance will start preheating. When the preheating temperature has been reached the buzzer will sound twice request that you now place the food to be cooked into the oven. The preheating temperature will flash in the display. Place the food in the oven and close the door.

5) Press Up or Down to set the cooking time to a maximum of 95 minutes and confirm by pressing START.

6) When the end of the cooking time has been reached the system will sound five signal tones.

HINWEIS Please note

▶ You can only enter the cooking time when the preheating temperature has been reached. You must open the door once so the cooking time can be entered. If the cooking time is not entered within 5 minutes after the dual buzzing the appliance will switch to standby mode.
▶ You can check the convection temperature during the cooking process by pressing the button CONVECTION.

Button presses Temperature Button presses Temperature
1	150 °C	6	200 °C
2	160 °C	7	210 °C
3	170 °C	8	220 °C
4	180 °C	9	230 °C
5	190 °C	10	240 °C

15.12.2 Operating mode "Convection" without preheating

1) Press CONVECTION once, "150" will flash in the display.

2) Press CONVECTION repeatedly or press or to select the desired temperature between 150^ and 240^ C.
3) Press START to confirm the temperature.

4) Press Up or Down to set the cooking time to a maximum of 95 minutes.
5) Press START to start the cooking process.
6) When the end of the cooking time has been reached the system will sound five signal tones.

15.13 "Multi-stage Cooking" Mode

In this mode you can program up to up to 2 automatic cooking sequences. The sequence and duration of defrosting, microwaving, grill (combination) or convection cooking can be adjusted.

If you intend to use the defrost function, this must be programmed as the first function in the sequence.

HINWEIS Please note

The automatic cooking programmes and the preheating function cannot be used for multi-stage cooking.
- Example: If you want to defrost food for 5 minutes and then microwave the food at 80% power level for 7 minutes proceed as follows:

1) Press Defrost twice and "d-2" will be displayed to indicate defrosting by time.

2) Press or to set the defrosting time to 5 minutes.

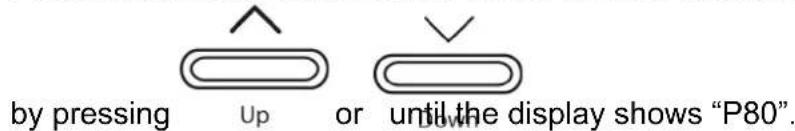

3) Press MICROWAVE and set the power level for microwaving to 80%

by pressing Up or until the display shows "P80".

4) Press START to confirm.

5) Adjust the cooking time by pressing minutes.
6) Press START to start the multi-stage cooking process.
7) When the end of the cooking time has been reached the system will sound five signal tones.

HINWEIS Please note

▶ Please do not confirm the time setting between programming the first and second cooking programme because that would automatically start the first programme. After setting the time for the first cooking programme directly enter the function for the second cooking programme.

15.14 "Cooking Program" Mode

In this operating mode, the cooking programme can be selected from 10 different menus. Please refer to the table on the next page for more detailed information.

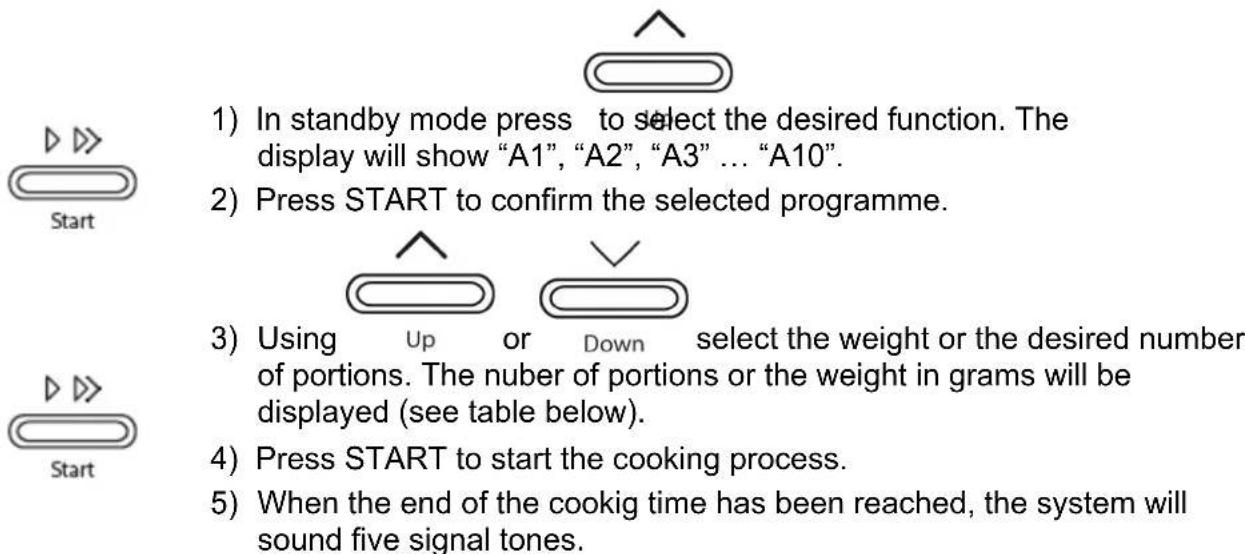

1) In standby mode press to select the desired function. The display will show "A1", "A2", "A3" ... "A10". 2) Press START to confirm the selected programme. 3) Using Up or Down select the weight or the desired number of portions. The nuber of portions or the weight in grams will be displayed (see table below). 4) Press START to start the cooking process. 5) When the end of the cookig time has been reached, the system will sound five signal tones.

Auto Menu Overview

Menu Weight (g) Display Power level
A1 Pizza	200 200 C-4
	300 300
	400 400
A2 Potatoes	1 (approx. 230g) 1 100 %
	2 (approx. 460g) 2
	3 (approx. 690g) 3
A3 Meat	150 150 100 %
	300 300
	450 450
	600 600
A4 Fish	150 150 80 %
	250 250
	350 350
	450 450
	650 650
A5 Vegetables	150 150 100 %
	350 350
	500 500
A6 Beverages / coffee	1 cup (240 ml) 1 100 %
	2 cups (480 ml) 2
	3 cups (720 ml) 3
A7 Pasta	50 (add 450 ml cold water)	50 80 %
	100 (add 800 ml cold water)	100
	150 (add 1200 ml cold water)	150
A8 Popcorn	50 50 100 %
	100 100
A9 Cake	475 475 Preheat at 180°
A10 Chicken	500 500 C-4
	750 750
	1000 1000
	1200 1200

HINWEIS

Please note: A9 Cake

▶ If you select the cake programme A9 the appliance will first preheat; do not place the cake into the iven right away, but wait for the buzzer to sound twice (the preheating

temperature of 180^ has been reached) and now place the cake in the oven. Close the door again and start baking by pressing START. The timer will continue and the cake is baked.

15.15 "Automatic defrost" mode

You can gently defrost frozen food with the help of the “Automatic defrost” menu.

15.15.1 Mode "Defrosting" by weight

1) Press WEIGHT/TIME DEFROST once, the display will show "d-1".

2) Use the or buttons to set the weight of the defrosting goods. The display will start with "100g". You can set the weight between 100 and 2000g.

3) Start defrosting by pressing START.

4) When the end of the defrosting time has been reached, the system will sound five signal tones.

15.15.2 Mode "Defrosting" by time

1) Press WEIGHT/TIME DEFROST twice, the display will show "d-2".

2) Use the or buttons to set the defrosting time to a maximum of 95 minutes.
3) Start defrosting by pressing START.
4) When the end of the defrosting time has been reached, the system will sound signal tones.

15.16 Function display

1) If during cooking you press CLOCK/KITCHEN TIMER the set time is displayed.
2) If during cooking you press MICROWAVE, GRILL/COMBI. or CONVECTION the current power level is displayed.

16 Cleaning and Maintenance

This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

16.1 Safety information

▲VORSICHT Attention

Please observe the following safety notices, before you commence with cleaning the device:

The appliance must be cleaned regularly and any food residues must be removed. Insufficient cleanliness of the device can lead to the destruction of the surface, which for its part can have a negative impact upon the service life of the appliance and can lead to a dangerous condition of the appliance as well as fungal and bacterial contamination.
▶ Switch the oven off prior to cleaning it and unplug the plug from the wall power outlet.
The cooking chamber is hot after it is used. There is a danger of burns! Wait until the device has cooled down.
▶ Clean the cooking chamber after use as soon as it has cooled down. Extended waiting unnecessarily complicates cleaning and can make it impossible in extreme cases. Excessive accumulations of dirt can even damage the device under certain circumstances.

▲VORSICHT Attention

▶ If dampness penetrates into the device, this can damage the electronic components. Please ensure that no liquid can enter the interior of the device through the ventilation slots.
▶ Do not use any aggressive or abrasive cleaning agents or solvents.
▶ Do not scrape off stubborn dirt with hard items.
▶ Because of the hazards involved in repair or maintenance work for which the radiation safety cover must be removed, any such work may only be carried out by a skilled and qualified specialist.

16.2 Cleaning

◆ Cooking chamber and inside of door

▲WARNUNG Danger of fire

▶ Always remove grease residues in the device, as these residues can otherwise ignite.

• Keep the cooking chamber of the oven clean. Wipe off any spattered or spilt food from the walls of the cooking chamber with a damp cloth. If the oven is excessively dirty, you can use a mild cleaning agent.
• Wipe the door, window and the door gaskets with a damp cloth, to remove any spatters and spilt food. Residues on the door gasket can mean that the door does not close properly any more, which will cause the microwaves to escape.
• Wipe off any steam, which has settled on the oven door, with a soft cloth. This may be the case if the device is used in an extremely damp environment and is normal.
• Smells can be removed from the oven by mixing a cup of water with the juice and the skin of a lemon, pouring this into a deep microwave-proof bowl and allowing it to cook in Microwave mode for five minutes. Then, dry off the oven thoroughly with a soft cloth.
• After cleaning the interior space, leave the oven door open until the interior of the device is completely dry.
• Cleaning hint – If there are cooked food residues stuck to the inside walls of the oven, there is an easy way to clean these: Place half a lemon into bowl, add 300 ml water and microwave this for 10 minutes at full power. Then simply wipe the inside of the appliance clean with a soft and dry cloth.

◆ Front of device and operating panel

- Clean the front of the device and the operating panel with a soft, slightly damp cloth.

- Please bear in mind that the operating panel does not get wet. Use a soft, damp cloth for cleaning.

HINWEIS Please note

Leave the oven door open to prevent the device from being re-started accidentally.

◆ Exterior housing

- Clean the exterior surfaces of the device with a damp cloth.

◆ Turntable, metal rack and rolling ring

• The accessories (turntable, metal rack and rolling ring) must occasionally be removed and cleaned. Wash the accessories in warm soapy water.
• The rolling ring should be cleaned regularly to prevent excessive noise development or a rotational malfunctions.
  The rolling ring can be washed in a mild soapy solution. Please remember to put the rolling ring back again properly after cleaning it.
• Wipe the bottom of the oven with a mild cleaning agent. If the floor of the oven is excessively dirty, you can use a mild cleaning agent.

17 Troubleshooting

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

17.1 Safety notices

▲VORSICHT Attention

▶ Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs on electrical equipment.
▶ Improperly performed repairs can cause considerable dangers for the user and damages to the device.

17.2 Causes and rectification of faults

The following table assists in localizing and rectifying minor faults.

Error Possible cause Action
The selected program will not start.	Device door is not closed Close device door
	Power plug is not plugged in Plug in mains plug!
	Fuse is not activated Activate fuse
The turntable turns jerkily.	Dirt between the turntable and the base of cooking camber	Remove dirt
	Dirt on rolling ring
	Cooking vessel too large Use different cooking vessel
Food is not sufficiently defrosted, warmed up or cooked after preset time has elapsed.	Incorrectly selected time or power level	Re-set time and power level Repeat process
The device functions but the cooking chamber lighting does not work.	Defective cooking chamber light.	Have Service dept repair cooking chamber light.
Abnormal noises can be heard during operation of microwave.	Food is covered with aluminium foil	Remove aluminium foil
	The cookware contains metal and sparks are being created within the cooking chamber	Observe information on cookware!
The time in the display field is not correct.	Power failure Re-set time

▲VORSICHT Attention

▶ If you are unable to solve the problem with the steps shown above, please contact Customer Service.

18 Disposal of the Old Device

Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety.

If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances.

HINWEIS Please note

• Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
  ▶ Ensure that your old device is stored safely away from children until it is taken away.

19 Guarantee

We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults.

Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this.

The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements.

This device is designed for use in domestic situations and has the appropriate performance levels.

Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use.

In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device.

Any pending faults must be reported within 14 days of delivery.

All further claims are excluded.

To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase).

20 Technical Data

Device Microwave, Grill and	Convection Oven
Name HCMG25
Item No.: 3354
Mains data 230V~ 50Hz
Power consumption	1450W (Microwave)
	2500W (Convection)
	1100W (Grill)
	≤ 1W (Standby)
Nominal output of microwave 900W
Operating frequency 2450MHz
External measurements (W x H x D): 515 x 305 x 465 mm
Cooking chamber dimensions (W x H x D): 325 x 200 x 335 mm
Oven capacity ca. 25 L
Net weight	18,74 kg

A F D R G E D C B H

Affichage Programme combiné
Micro-onde	Grill Convection
C-1 X X
C-2 X X
C-3 X X
C-4 X X X

◆ Mode «Air pulsé»

A F D D G E D C B H

Up O Down

O Up Down

Up O Down

Technical diagram of a microwave oven with labeled components and cross-sectional view

Up O Down

O Up Down

▲WARNUNG WAARSCHUWING

⚠️WARNUNG WAARSCHUWING

▲WARNUNG WAARSCHUWING

Up of Down

of Up Down

Up of opDown 80% in

Weight/Time Defrost Start

Weight/Time Defrost Start
