USER MANUAL Cocoon RK3610 TEFAL

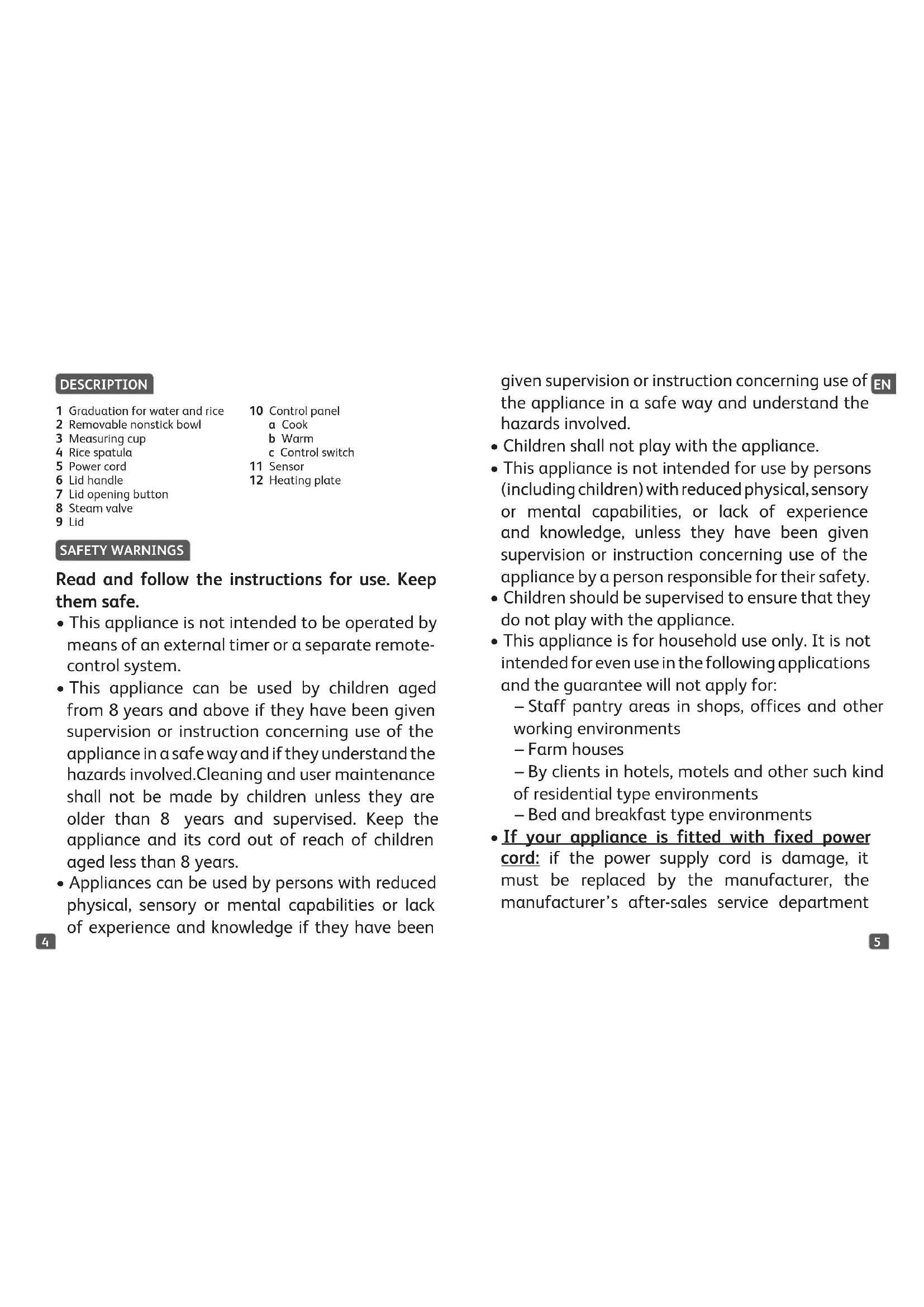

given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

• This appliance is for household use only. It is not intended for even use in the following applications and the guarantee will not apply for: – Staff pantry areas in shops, offices and other working environments – Farm houses – By clients in hotels, motels and other such kind of residential type environments – Bed and breakfast type environments

• If your appliance is fitted with fixed power cord: if the power supply cord is damage, it must be replaced by the manufacturer, the manufacturer’s after-sales service department SAFETY WARNINGS Read and follow the instructions for use. Keep them safe.

• This appliance is not intended to be operated by means of an external timer or a separate remote- control system.

• This appliance can be used by children aged from 8years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised. Keep the appliance and its cord out of reach of children aged less than 8years.

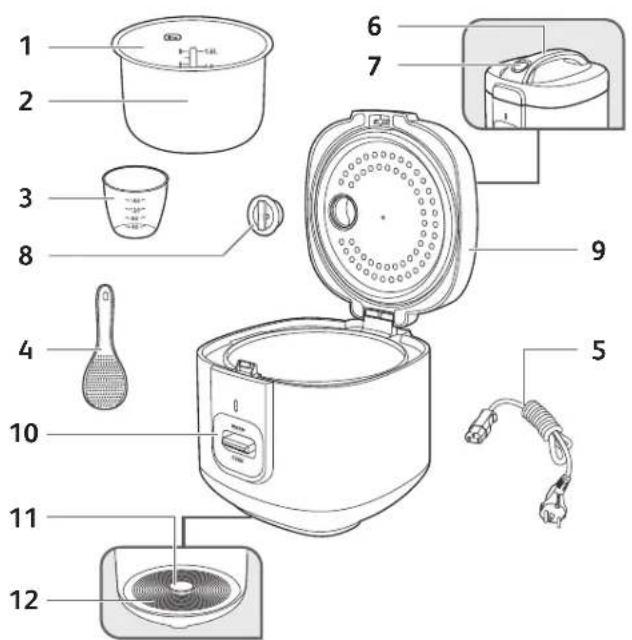

• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been 1 Graduation for water and rice 2 Removable nonstick bowl 3 Measuring cup 4 Rice spatula 5 Power cord 6 Lid handle 7 Lid opening button 8 Steam valve 9 Lid 10 Control panel a Cook b Warm c Control switch 11 Sensor 12 Heating plate DESCRIPTION76

• Do not obstruct the steam outlet.

• For any problems or queries please contact our After Sales Care or consult our website.

• The appliance can be used up to an altitude of 2000m.

• For your safety, this appliance complies with the safety regulations and directives in effect at the time of manufacture (Low-voltage Directive, Electromagnetic Compatibility, Food Contact Materials Regulations, Environment…).

• Check that the power supply voltage corresponds to that shown on the appliance (alternating current).

• Given the diverse standards in effect, if the appliance is used in a country other than that in which it is purchased, have it checked by an approved service centre.

CONNECTING TO THE POWER SUPPLY

• Do not use the appliance if: –the appliance or the cord is damaged. –the appliance has fallen or shows visible damage or does not work properly. –In the event of the above, the appliance must be sent to an approved service centre. Do not take the appliance apart yourself.

• Do not leave the cord hanging.

• Always plug the appliance into an earthed socket.

• Do not use an extension lead. If you accept liability for doing so, use only an extension lead which is in good condition, has an earthed plug and is suited to the power of the appliance.

• Do not unplug the appliance by pulling on the cord. or similarly qualified person in order to avoid any danger.

• The appliance must not be immersed in water or any other liquid.

• Use a damp cloth or sponge with washing up liquid to clean the accessories and parts in contact with food. Rinse with a damp cloth or sponge. Dry carefully.

• If the symbol is marked on the appliance, this symbol means “Caution: surfaces may become hot during use”.

• Caution: the surface of heating element is subject to residual heat after use.

• Caution: risk of injury due to improper use of the appliance.

• Caution: if your appliance has a removable power cord, do not spill liquid on the connector.

• Always unplug the appliance: – immediately after use – when moving it – prior to any cleaning or maintenance – if it fails to function correctly

• Burns can occur by touching the hot surface of the appliance, the hot water, steam or the food.

• During cooking, the appliance gives out heat and steam. Keep face and hands away.98

ENPROTECT THE ENVIRONMENT

• Your appliance has been designed to operate for many years. However, when you decide to replace it, remember to think about how you can contribute to protecting the environment.

• Before discarding your appliance you should remove the battery from the timer and dispose of it at a local civic waste collection centre (according to model). Environment protection first!

Your appliance contains valuable materials which can be recovered or recycled. Leave it at a local civic waste collection point.

• Open the lid by pressing the opening button on the lid. –Fig.1

• Remove the pot –Fig.2, and the steam valve. –Fig.3

• Clean the pot, the valve and the inner lid with a sponge and washing up liquid.

• Wipe the outside of the appliance and the lid with a damp cloth.

• Put all the elements back in their original position. Install the detachable cord into the socket on the cooker base. Measuring the ingredients - Max capacity of the bowl

• The graduated markings on the inside of the bowl are given in cups, these are used for measuring the amount of water when cooking rice and other cereals. The maximum quantity of water + rice should not exceed the 8 cups mark inside the bowl – Fig.4.

• The plastic cup provided with your appliance is for measuring rice.

• To cook 1 cup of white rice (serves 2 small or 1 large portion), use 1 measuring cup of white rice and then add 1 1/2 measuring cup of water. To cook other quantity of rice, refer to cooking guide below. USING

• Use a flat, stable, heat-resistant work surface away from any water splashes.

• Do not allow the base of the appliance to come into contact with water.

• Never try to operate the appliance when the pot is empty or without the pot.

• The cooking function/knob must be allowed to operate freely. Do not prevent or obstruct the function from automatically changing to the keep warm function.

• Do not remove the pot while the appliance is working.

• Do not put the appliance directly onto a hot surface, or any other source of heat or flame, as it will cause a failure or danger.

• The pot and the heating plate should be in direct contact. Ensure that no food or liquid is inserted between the pot and heating plate.

• Do not place the appliance near a heat source or in a hot oven, as serious damage could result.

• Do not put any food or water into the appliance until the pot is in place.

• Respect the levels indicated in the recipes.

• Should any part of your appliance catch fire, do not attempt to put it out with water. To smother the flames use a damp tea towel.

• Any intervention should only be made by an approved or authorized service centre with original spare parts.

• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.1110

over time. This does not affect the cooking performances but could damage its cosmetic.) Taking care of the pot For the pot, carefully follow the instructions below:

• To ensure the maintenance of pot quality, it is recommended not to cut food in it.

• Use the plastic spoon provided or a wooden spoon (avoid metal spoon), so as to avoid damaging the pot surface.

• To avoid any risk of corrosion, do not pour vinegar into the pot.

• Scouring powders and abrasive sponges are not recommended.

• If food has stuck to the bottom, you may put water in the pot to soak for a while before washing.

• Dry the pot carefully. Cleaning the steam valve

• To clean the steam valve, please remove it from the lid. – Fig. 10 Aftercleaning, please wipe dry and put it back to the lid. Cleaning and care of the other parts of the appliance

• Clean the outside of the Rice Cooker, the inside of the lid and the cord with a damp cloth and wipe dry. Do not use abrasive products.

• Do not use water to clean the interior of the appliance body as it could damage the heat sensor. NOTE

• Do not open the lid during cooking as steam will escape and this will affect the cooking time and the taste.

• On completion of cooking, when the light changes to green, stir the rice and then leave it in the rice cooker for a few minutes longer in order to get perfect rice with separate grains.

• Do not touch the heating element when the product is powered on.

• Carefully wipe the outside of the pot (especially the bottom). Make sure that there are no foreign residues or liquid underneath the pot and on the heating element

• Never place your hand on the steam vent during cooking, as there is a danger of burns Note: Always add the rice first otherwise you will have too much water. Rice

• Press downwards on the control switch, the cooking indicator light changes to red showing that the cooking has begun. –Fig.5

• At the end of cooking, it will turn to keep warm automatically, the cooking indicator light changes to green. –Fig.6

• Please maintain “Keep Warm” status for several minutes before serving for good taste of rice. Warm

• When you plug in the appliance, the indicator light will light up in green and the appliance will start to keep warm automatically

• At the end of cooking, the appliance will turn to keep warm automatically, the cooking indicator light changes to green

• The maximum keep warm time is 5 hours;

• Please ensure the rice cooker is unplugged and completely cooled down before cleaning and maintenance. –Fig.7

• It is strongly advised to clean the appliance after each use with a sponge. –Fig.8, 9

• The accessories (Spoon / Spatula / Steam Basket / Measuring Cup) are dishwasher safe. The cooking pot can be washed in the dishwasher, however to ensure its durability, we recommend you to use hand washing with soapy water and soft sponge. (Some dishwasher detergents are very corrosive and the edge of your pot could slightly change its aspect COOKING PROGRAM

CLEANING AND MAINTENANCE

COOKING GUIDE FOR WHITE RICE

Measuring cups of white rice Weight of white rice Water level in the bowl ( + the rice) Serves 2 300 g 2 cup mark 3per.-4p er. 4 600 g 4 cup mark 5per.-6per. 6 900 g 6 cup mark 8per.-10per. 8 1200 g 8 cup mark 13per.-14per.12 TROUBLESHOOTING Malfunction description Cause Solution Appliance light is off and appliance is not heating Rice cooker is plugged in, Send to authorised service center for repair. Rice cooker not plugged in. Ensure the appliance is plugged in correctly. The green light is on and appliance is not cooking rice Problem with the light. Send to authorised service center for repair. Control switch is not in the cooking position. Turn the control dial to the cooking position. Steam leakage during use Lid is not closed correctly. Open and close the lid. Steam valve not well positioned or incomplete. Stop the cooking (unplug the product) and check the valve is complete and well positioned. Lid or steam valve gasket is damaged. Send to authorised service center for repair. Rice half cooked or overcooked Too much or not enough water compared to rice quantity. Refer to Cooking Guide Table (Page 10) for water quantity. Automatic keep warm fails (appliance stays in cooking function). Send to authorised service center for repair.

• Only use the inner pot provided with the appliance.

• Do not pour water or put ingredients in the appliance without the pot inside. Caution: if inner bowl is deformed, do not use it anymore and get a replacement bowl from the authorised service center.13

: www.tefal.com This product is repairable by TEFAL/T-FAL*, during and after the guarantee period.Accessories, consumables and end-user replaceable parts can be purchased, if locally available, as described on the TEFAL/T-FAL internet site www.tefal.comThe Guarantee** TEFAL/T-FAL guarantees this product against any manufacturing defect in materials or workmanship during the guarantee period within those countries*** as stated in the attached country list, starting from the initial date of purchase or delivery date. The international manufacturer’s guarantee covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labour. At TEFAL/T-FAL’s choice, an equivalent or superior replacement product may be provided instead of repairing a defective product. TEFAL/T-FAL’s sole obligation and your exclusive resolution under this guarantee are limited to such repair or replacement.Conditions & Exclusions TEFAL/T-FAL shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase. The product can be taken directly in person or must be adequately packaged and returned, by recorded delivery (or equivalent method of postage), to a TEFAL/T-FAL authorised service centre. Full address details for each country’s authorised service centres are listed on TEFAL/T-FAL website (www.tefal.com) or by calling the appropriate consumer Service centre set out in the attached country list. In order to offer the best possible after-sales service and constantly improve customer satisfaction, TEFAL/T-FAL may send a satisfaction survey to all customers who have had their product repaired or exchanged in a TEFAL/T-FAL authorised service centre. This guarantee applies only for products purchased and used for domestic purposes and will not cover any damage which occurs as a result of misuse, negligence, failure to follow TEFAL/T-FAL instructions, or a modification or unauthorised repair of the product, faulty packaging by the owner or mishandling by any carrier. It also does not cover normal wear and tear, maintenance or replacement of consumable parts, or the following: – using the wrong type of water or consumable – ingress of water, dust or insects into the product (excluding appliances with features specifically designed for insects) – damage as a result of lightning or power surges – accidents including fire, flood, etc – professional or commercial use – mechanical damages, overloading – scaling (any de-scaling must be carried out according to the instructions for use) – damage to any glass or porcelain ware in the product – damages or poor results specifically due to wrong voltage or frequency as stamped on the product ID or specification Consumer Statutory Rights This international TEFAL/T-FAL guarantee does not affect the Statutory Rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This guarantee gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from State to State or Country to Country. The consumer may assert any such rights at his sole discretion. ***Where a product purchased in a listed country and then used in another listed country, the international TEFAL/T-FAL guarantee duration is the period for the country of usage, even if the product was purchased in a listed country with a longer guarantee duration. The repair process may require a longer time if the product is not locally sold by TEFAL/T-FAL in the country of usage. If the product is not repairable in the new country of usage, the international TEFAL/T-FAL guarantee is limited to a replacement by a similar or alternative product at similar cost, where possible. *TEFAL household appliances appear under the T-FAL brand in some territories like America and Japan. TEFAL/T-FAL are registered trademarks of Groupe SEB.Please keep this document for your reference should you wish to make a claim under the guarantee.**For Australia only: Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. **For India only: Your Tefal product is guaranteed for 2 years. The guarantee covers exclusively the repair of a defective product, but at TEFAL’s choice, a replacement product may be provided instead of repairing a defective product. It is mandatory that the consumer, to have his product repaired, has to log a service request on the dedicated Smartphone application TEFAL SERVICE APP or by calling TEFAL Consumer Care Center at 1860-200-1232, Opening hours Mon-Sat 09 AM to 06 PM. Products returned by Post will not be covered by the guarantee. As a proof of purchase consumer needs to provide both this stamped guarantee card and tax invoice. УСУНЕННЯ НЕСПРАВНОСТЕЙ Несправність Причина Рішення Світловий індикатор приладу не світиться, а прилад не нагрівається. Рисоварка підключена. Надішліть прилад на ремонт до вповноваженого сервісного центру. Рисоварка не підключена. Переконайтеся, що прилад підключено правильно. Світиться зелений індикатор, і прилад не
