Brand	Clatronic
Model	HL 3800
Product type	Electric fan heater
Power consumption	2000 W
Power supply	220-240 V~, 50-60 Hz
Protection class	II
Net weight	approx. 1.25 kg
Power levels	2 (1000 W and 2000 W)
Fan-only function	Yes
Oscillation	Yes (switch activation)
Adjustable thermostat	Yes
Overheat protection	Yes (automatic shut-off)
Tip-over safety switch	Yes (cuts off if tipped over)
Carrying handle	Yes
Protective grille	Yes
Minimum safety distance	1 m from flammable materials
Use	Indoor only (dry rooms)
Cleaning	Dry cloth, vacuum cleaner for grilles
Storage	In original packaging, dry and ventilated place
Included accessories	None (unit only)

Frequently Asked Questions - HL 3800 CLATRONIC

How do I set the desired temperature?

Turn the temperature regulator to the highest setting. Once the room temperature is reached, slowly turn the knob towards off until the heater audibly switches off. The indicator light goes out. The thermostat then maintains that temperature.

What should I do if the unit turns off by itself?

This may be due to overheat protection or the safety switch in case of a fall. Set the knob to 0, unplug, let it cool for 10 minutes, then reuse. If the problem persists, have the unit checked.

Can I use the heater in a bathroom?

No, never use it in the immediate vicinity of a bathtub, shower, or swimming pool. The unit is not designed for damp rooms.

How do I activate the oscillation function?

Oscillation is activated via a switch located on the back of the unit. Position I to activate, 0 to deactivate. Never force the mechanism manually.

What power levels are available?

The function control knob offers 4 positions: 0 Off, I 1000 W, II 2000 W, and a fan position (no heat).

How do I clean the unit?

Always unplug and wait for cooling. Use a dry cloth for the exterior. For grilles, gently brush or use the furniture nozzle of a vacuum cleaner. Never use water.

Is the unit safe if it falls over?

Yes, it is equipped with a safety switch that cuts the power if tipped over. It automatically resets once placed upright.

Can I use an extension cord?

Yes, but it must have a cable cross-section of at least 1.5 mm². Avoid power strips as the unit is powerful (2000 W). Do not plug other high-power devices into the same circuit.

How do I use the unit in fan-only mode?

Turn the function control knob to the fan icon and set the temperature control to the highest setting. Air will be blown without heating.

What safety distance should be observed?

Keep textiles, curtains, and any flammable material at least 1 meter away from the air outlet to reduce the risk of fire.

USER MANUAL HL 3800 CLATRONIC

0=Aus
I=1000Watt
I I=2000 Watt
= Ventilator

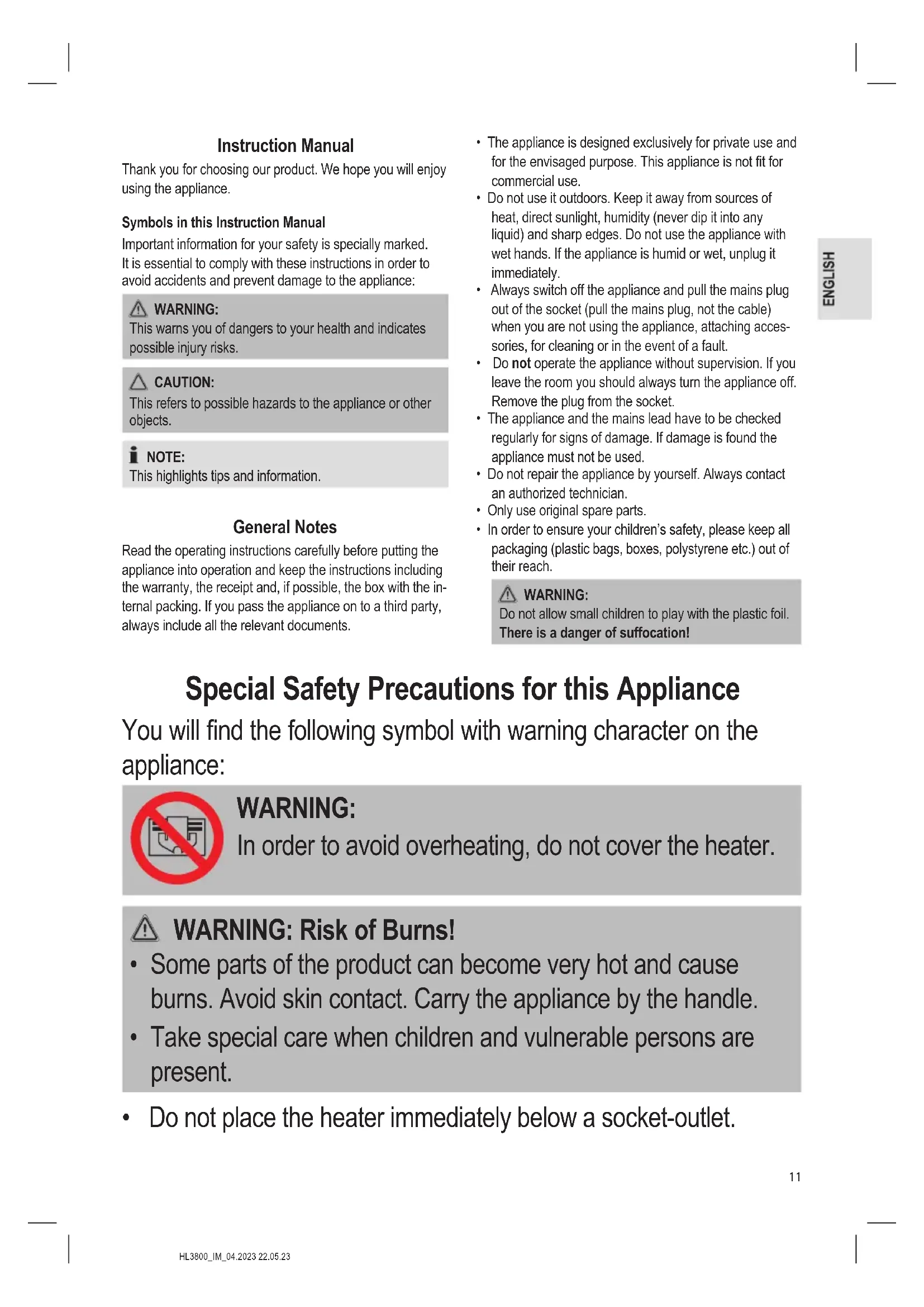

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in this Instruction Manual

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the appliance or other objects.

NOTE:

This highlights tips and information.

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you pass the appliance on to a third party, always include all the relevant documents.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• Always switch off the appliance and pull the mains plug out of the socket (pull the mains plug, not the cable) when you are not using the appliance, attaching accessories, for cleaning or in the event of a fault.
• Do not operate the appliance without supervision. If you leave the room you should always turn the appliance off. Remove the plug from the socket.
• The appliance and the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• Do not repair the appliance by yourself. Always contact an authorized technician.
• Only use original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the plastic foil.

There is a danger of suffocation!

Special Safety Precautions for this Appliance

You will find the following symbol with warning character on the appliance:

WARNING:

In order to avoid overheating, do not cover the heater.

WARNING: Risk of Burns!

• Some parts of the product can become very hot and cause burns. Avoid skin contact. Carry the appliance by the handle.
• Take special care when children and vulnerable persons are present.

• Do not place the heater immediately below a socket-outlet.

• Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

• Do not use this heater if it has been dropped.
• Do not use if there are visible signs of damage to the heater.
• Use this heater on a horizontal and stable surface.
• Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.
• To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1m from the air outlet.
• Children younger than 3 years of age should be kept away from the appliance, unless they are supervised at all times.
• Children from the age of 3 and younger than 8 years of age may only turn the appliance on and off if they are supervised, or have been instructed with regard to the safe use of the appliance, and if they have understood the risks resulting from it, provided that the appliance has been placed and installed in its normal position of use.
• Children from the age of 3 and younger than 8 years of age may not insert the plug into the socket, may not regulate the appliance, may not clean the appliance and / or may not perform the maintenance by the user.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children without supervision.

• Under no circumstances may the fan heater be used in rooms with explosive gas (e. g. petrol) or while work is being carried out with inflammable adhesives or solvents (e. g. when gluing or painting parquet, PVC etc.).

• Do not insert any objects into the fan heater.
• Ensure that a safety distance is maintained between the power cord and the housing.
• Do not use the fan heater in the open air.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Unpacking the Appliance

1. Remove the appliance from its packaging.
2. Remove all packaging material, such as foils, filling material, cable ties and cardboard packaging.
3. Check the appliance for possible transport damage to avoid hazards. Do not operate a damaged appliance. Return it to the dealer immediately.

NOTE:

There may still be dust or production residues on the appliance. We recommend that you clean the appliance as described under "Cleaning".

Overview of the Components

1 Temperature control
2 Handle
3 Function control knob 0= Off

$$ \begin{array}{l} I = 1 0 0 0 \text {W a t t} \ 1 \mathrm {I} = 2 0 0 0 \text {W a t t} \ \end{array} $$

$$ = \text {F a n} $$

4 On/Off switch for oscillation
5 Stand
6 Safety switch
7 Grille for heating elements
8 Indicator lamp

Notes for Use

Safety Switch

Your fan heater features a safety switch that disconnects the power supply in case the appliance falls over. The safety switch prevents hazards caused by overheating.

WARNING:

Place the appliance on a smooth, horizontal and stable surface. Avoid carpets in order to prevent failure of the safety switch.

NOTE:

The appliance turns on automatically once back in an upright position.

Connected Load

The appliance supports a power input of 2000 W.

CAUTION: Overload

• When using an extension cord, it must have a cable cross-section of at least 1.5mm^2
• Do not use a multiple socket as this appliance is too powerful.
• Do not connect any other powerful devices to the same electric circuit.

Operation

Electric Connection

1. Make sure the voltage of the appliance (see rating label) matches the mains voltage to be used.
2. Set the function control knob to 0.
3. Unwind the mains cable completely.
4. Only connect the mains plug with a properly installed earthed socket.

Setting the Temperature

The thermostat constantly switches the fan heater on and off, thereby keeping the temperature at the desired level. Set the desired temperature as followed:

1. Set the temperature control to its highest setting.
2. Once the desired temperature has been reached, slowly turn the temperature control back, until the fan heater switches off audibly. The indicator lamp turns off.

NOTE:

The audible position of the temperature control depends on the ambient temperature.

1. The fan heater will then keep the desired temperature level.

CAUTION:

When not using the appliance, disconnect the mains plug.

Oscillation

To achieve even heating or ventilation, the appliance is additionally equipped with an oscillation function.

There is a switch on the back of the appliance to switch the oscillation mode on or off.

0 = Oscillation switched off

I = Oscillation switched on

CAUTION:

Never adjust the swivel mechanism with your hand. The mechanism could be damaged.

Fan Operation

If you want to use the appliance as a fan, turn the function control knob to the fan icon and turn the temperature control to highest position.

End Operation

If you want to end the operation, set the function control knob to the position 0. The indicator lamp turns off. Then disconnect the mains plug from the socket.

Overheat Protection

The appliance features an overheat protection mechanism causing the appliance to switch off automatically in case of overheating.

1. Set the function control knob to position 0 and pull the mains plug out of the socket.
2. Let the appliance cool down for approx. 10 minutes before using it again.

NOTE:

If the overheat protection mechanism causes the appliance to switch off again after a short period, this might indicate a defect.

1. Switch off the appliance and disconnect it from the mains.
2. Have the appliance checked by your dealer or our customer service.

Cleaning

WARNING:

Always unplug the appliance from the mains before cleaning and wait until the appliance has cooled down.
- Never immerse the appliance in water to clean it. This may lead to electrical shock or fire.

CAUTION:

• Do not use wire brushes or other abrasive materials.

• Do not use caustic or scouring agents.

• Wipe away dust with a dry cloth.

• Flecks can be removed with a suitably damp cloth.

Dust on the Protective Grilles

Accumulation of dust on the protective grilles can lead to overheating.

• Remove the dust by careful brushing.

or
- Use the upholstery nozzle of your vacuum cleaner to remove the dust.

Storage

• Let the appliance cool down before putting it away!
• Wind the mains cable loosely.
• We recommend storing the appliance in its original packaging if you do not intend to use it for a long period of time.
  Always store the appliance out of the reach of children in a well-ventilated and dry place.

Technical Data

Model: HL 3800

Power supply: 220-240 V~, 50-60 Hz

Power consumption: 2000 W

Protection class: II

Net weight: approx. 1.25kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

Notice of Directive Conformity

The appliance meets the European standards and directives in the current version at delivery:

Low Voltage Directive (LVD) 2014/35/EC
- Electromagnetic Compatibility (EMC) Legislation Directive 2014/30/EC
RoHS-directive 2011/65/EU & (EU) 2015/863
Ecodesign-directive (ErP) 2009/125/EC
Commission Regulation (EU) 2015 / 1188 (Product Data Sheet see page 16)

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of re-utilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority. Your dealer and contractual partner is also obliged to take back the old appliance free of charge.

Product Data Sheet

ENGLISH

Model identifier HL 3800
Item Symbol Value Unit Item Unit
Heat output Type of heat input, for electric storage				local space heaters only
Nominal heat output P nom	2.0 kW manual			heat charge control, with integrated thermostat N.A.
Minimum heat output (indicative)	Pmin	1.0 kW		manual heat charge control with room and / or outdoor temperature feedback	N.A.
Maximum continuous heat output	Pmax,c	2.0 kW		electronic heat charge control with room and / or outdoor temperature feedback	N.A.
Auxiliary electricity consumption				fan assisted heat output	N.A.
At nominal heat output	eI max	0.000	kW Type	of heat output / room temperature control
At minimum heat output	eI min	0.000	kW	single stage heat output and no room temperature control	no
In standby mode	eI SB	0.000	kW	Two or more manual stages, no room temperature control	no
				with mechanic thermostat room temperature control	yes
				with electronic room temperature control	no
				electronic room temperature control plus day timer	no
				electronic room temperature control plus week timer	no
				Other control options
				room temperature control, with presence detection	no
				room temperature control, with open window detection	no
				with distance control option	no
				with adaptive start control	no
				with working time limitation	no
				with black bulb sensor	no
Contact details	Clatronic International GmbH, Industriering Ost 40, 47906 Kempen, Germany
N. A. = not applicable

Gebruiksaanwijzing

WAARSCHUWING: Verbrandingsgevaar!

Notification de accomplishment de directiva

CTC Clatronic Sp. z 0.0

Ul. Brzeska 1

45-960 Opole

Usuwanie

I=1000Watt
1 I=2000 Watt
= Ventilator

Yka3bIbaeT Ha BO3MOxHHyO ONaCHOCTb IJIy N3dEINN IN Dpynx OKpyKaIOxN ppeDMTOB.

ПРИМЕЧАнЯ:

Jaet COBtBu IN HOpopMaIIO.

067aHΦopMaζη

Ipeed Haayanom 3KcNpyataunn np6opba BHmameIbHO npouHTaTe npnaRaemyu HCTpykunno no 3KcNpyataunn coxpaHNTe ee BHaDexKHOM MeCTe, BMeCTe C rapaHTnHBIM TaHOHOM, KaccOBbIM YekOM N, NO BO3MOXHOCTN, KAPTOHHO KOp6KOc yNAKOBOyHM MaTePnAonm. Ecnn Bbl nepe-daeTe np6oBp TpeTbeMy LNuy, BCerda npNKlndlbaiTe K HEmy BCE COOTBeTCTByUOune DOKymeHTbl.

-Поьзуйтесь пибором только чаТьим образим и по ha3haЧeMu. Пибор He пpeДha3HaЧeн ДЯ КOMМерчecKOrO ИСпОьЗOBАИ.
He nonb3yntecb np6bopom noT OKpbITbIM he6bOM. Ppe doxpanHnTe np6bOp OT kapbl, prrMbIX COIHeuHbIX nyueh, BnaXHOCTN (HN B KOem Cnyuae He nOprpykaTe ero B Body) n yapob 06 ocTpble yrbl. He npKacaiTeCk np6bOpByBnaXHbIM pykam. Ecn np6bOp yBaJXHnICn IIN HAMOK, TY TZe BBInbTe BuIKy n3 po3eKn.
- Pocne 3KcnIpyataun, MOnTaKe npHaIeXHocTeuNCTke nn NIOJOMKe npBopa BcERda BbIHMaIte BnIKy n3 po3ETKn (TaNHTe 3a BnIKy, a He 3a Ka6eJIb).
He octabnTBe BkIoueHbIe 3NeKtpoPnp6Opbl 6e3 npn-CmToPa. BbIXOa n3 NOMEuEHNBaCERda BbIKIOUaHTe npnbop.BbIHbTe wTekep n3 po3eKn.
- Pn6b np KabeB cTeBO rntaHnHeoXoHmO peryIrpHo 06cneIOBaTb Ha Hauuue CneIOB NOpeKdHn. Pn6 OhapUkeHn IOpeXdHn IOnb3OBaTbcr np6bopom 3anpeuaetc.
He pemontnyte npnbop camoctoTbHo. Bcerda obpaaainTeCb K yIOnHomOeHHOMy TexHueckomy cneuaJInty.
- Icnoj3yTe ToIbKO opuHaHaIbHbe 3aHaCTN.
- IV3 coo6paXeHn 6e3oNaChOCTn dIy DeTe H e OCTaBJIaIte JExaTb ynaKOBky (PiNactNKOBbIe MeWKIn, KapTOH, neHONlact n T.D.) 6e3 npICMOTpa.

IPEDYIPPEKDEHNE:

He no3B0JnTe DeTm nIpaTb C nOIN3TNHeHOBOI nJIeHKO. OnachocTb ydyuBa!

CneuNbHbIe yka3aHnI NO 6e3ONaChOCTN DnI 3TOro npnbopa

Ha n3dennn nmeoTcra cneyuOu npedynpeKdaUOu cnmboI:

ПЕДУПЕЖДЕНЕ:

Bo n36exaHne nepepeBa He hakpbIbaiTe TePiIOBeHTnJIaTOp.

IpeoXpAHTeBHyBbIKJUOaTeB

BaI TeNIOBENTNIJTOP OChaIeH npeOxpaHNTbHbIM BbIKNoCTeIeM, KOTOpB I OTKIOUaET 3JIeKTPoNITaHHe B Cnyae naDeHn np6opa. PpeOxpaHNTbHbI BBIKIOUaTeIb ppeDTbPaUaET OnaCHOCTb, BbI3BaHHyI nepePebOM.

PDEyPExkEHHN:

UctaHOBtpe np6op Ha pOBHO, rOp3oHTaIbHOu I yCTOuHBOIOBepxHocTN. 36eRaTe KOBPOB, YTObI npedOTbpaNTb BbIXoD n3 cTPOR npedeoxpAHntelbHOrO BblIOyAteJIa.

I PIMMEUAHNIA:

Pnp6op BkIIOUaETcA ABtOMaTnueckn Nocne Bo3BpaueHnB BepTKaJIbHOe NOJIOKeHHe.

IopknUoyehnaHarpy3ka

Pn6op noDepKnaeT nOte6JReMyo MoUHocTb 2000 Bt.

BHIMAHHE: Neperpy3ka

-ПиИСЮЛБЗОВАнУДПИНТЕЯ,ОДДОЛЖЕНИМETb ceyeHne Ka6eNHe MeHee 1,5 MM2.
He nIIOJIb3yIte MHOrOmeCTHbIe po3eTKn, TaK KaK 3TOT np60p cINuIKOM MOUHbI.
He noKIOHouaIte dpyrme MOUHbIE np6Opbl K Toi Xe 3JIeKTPnuecko CEII.

3Kcnnyatauia

3NeKtpnueckoe noKnHoueHne

1. Y6eHITecb, yTO HApRJaKeHne npi6opa (cM. Ta6nHyC TexHnueCKMM XapaKTePncTnKaAM) COOTBeTCTByeTNCNoJIb3yEmOMy HApRJaKeHHo CETN.
   2.YctahOBHTe pyuKy ynpabJIeHnI cyHKUIMn Ha 0.
   3.Полноctью pa3moTaite ceteBOI ka6eIb.
   4.Подкнчаite ceTeByu BnIky ToIbko K npaBnIbHo yctahOBLeHHO 3a3eMneHHo po3eTke.

YcTaHOBka TemnepaTypbI

Tepmoctat NOCTOARHNO BKNIOUaET N BbIKNIOUaET TENIOBeHTnIaTOp, TEM CaMbIM NOIDepKINBaT EmpeAtypHa XeNaemOM yPoBHe. YcTaHOBInTe XeNaemyTo TMnePaTpy CNeDyUoMm Oba3OM:

1. YctaHOBInTe pepyIaTOp TempepaTypbI Ha MaKcImaJIbHoe 3HaueHne.
2. Nocne doctxkeHnaKeNaeMoT emepaTpybMeJeHNOBepHnTe peryIaTOp tempeaTpbyHa3aI, noka He npOn3oJET 3ByKOBoe OTKIOUeHHe TeNIOBEHTIaTopa. HndkaTOpHra lamna BbIKIOHITcR.

I PIMMEUAHNIA:

3BykoBoe noIoxKeHne peryIaTopa TempeaTypbl 3aBnCT OT TempeaTypbl OkpyKaIOuSe CpeDbI.

1. Nocne 3TOro TeNIOBENTnIaTOp 6yJeT noDJIepKINBaTb JeIaembI yPoBeHb TempePaTypbI.

BHIMAHNE:

Korda np6op He nCnoJIb3yETc, OTCoeDnHInTe cTeByo BnIKy.

OcuiJia

ДяdoctиженpaBHomepHOrHarpeBaIINBEHTINJIaI np6bOpdoonHnTeNbHO OchaueH cyHKuieN ocUInJIaIHa 3aJHe naneHn np6bopa IMeetcpeKluOaTeNb dIy BKIOUeHnI INBbIKNUOeHnpeXIMaOCUINJIaIIN.

0 = Ocuiinlaa BblkloqueHa
I = OcunnnnnaBkNIOUeHa

BHIMAHNE:

Hikorda He perynpyte nobopoTHbIM MexaHn3M pyKoMexaHN3MOKeT 6bITb NOBpeJxHe.

Pa6oTa BENTUNIaTopa

EcIn BbI XOTHe IcNoJIb3OBAbI npIbOp B KaueCTBe BeHTINJATOPa, NOBepHnTe pyKy ynpabJIeHnФyHKUJMaMn Ha 3HaQOK BEHTINJATOpA n NOBepHnTe peryJrTOp TEMpePaTypbI B BepxHee noIOKeHne.

Koneu paobtbl

Ecnn BbXOTHe 3aBepnTb pa60Ty, yCTaHOBtpe pyKy npabIeHna FyHKpIaMn B nOIOKeHne 0. HndkaTopHaJ lamna norachet. 3aTeM oTCoeDInHnte cTeByIO BUNKy OT pO3eTKn.

3aunta ot nepereba

Pn6bOp OcHaIeH MexaHn3MOM 3aIITbI OT nepepeBa, KOTOpBn ABTomATUeCKN OTKJIIOyAet Pn6bOp B Cnyyae nepepeBa.

1.YctahOBHTe pyKy ynpabHeHnA FyHKUaMn B NOJoxKeHne 0 N BBHbTe CeTEByIO BNky I3 PO3eTKN.
2.ДаTe np66py ocTbTB TeueHne npimepeHO 10 MmHyT, npexJe Yem NcNoJIb3OBA Tb erO CHOBA.

ПРИМЕЧАНО:

EcnmexaHm3 3aunTbOT nepepeBa 3actabnre Tnp6op CHOBA BkIOUaTbCyepe3 HEKOTOpoe Bpem, 3TO MOKeT yKa3bIBaTb Ha HcNpapBHOCTb.

1. BbiklouHTe npBop u oTcoeHNHTe erO cETN.
2. 06paTntecb K dIepe npn B hauy cepBnchHy cnky6y nnpoBepkn npn6opa.

UHCTka

IPEyIPEXDEHNE:

• Papei uCtKoBceIa OTKIOUaIte np6Op ot ceTn IdoKdITecb, noka OH OCTbIHET.
  Hikorda He norpyka Te np6op B Body dny ouhctkn. 3TO MOKET npBecTN K nopaxKeHHIO 3JIeKTPueckm TOKOM INI NOkApY.

BHIMAHINE:

He nnoB3yIte npoBOIOUHbIe 1eTkn nn npyrnne a6pa3nBhIe MaTePnaJIbl.
He nCnoJb3yIte eKne nnu cpeCTBa.

• BbItupaTne nbIb cyXoT TkaHbI.
• PⅡTHa MOXHO ydaJIntb C NOMOuBIO DOCTaTOUHO BIAKHOI TKAH.

• Vcnoj3yIte Hacaikky IaOBKn nbinecoca nn ydaJIeHnIbJIN.

XpaHeHne

JaTe np6bpy octb, npexJe yem ypaTb ero Ha xpaHHe!
- HamatbaiTe ceTeBOI Ka6eJIb Cbo6oJHO.
Mby pekomehnyem xpaHntb npnbop B opunHaHbHO ynapokBke,ecnBbl He cobnpaTeCb nCIOJIb30BaTb eTo B TeueHne nnIteNbHoro nepnoDa BpeMeH.
Bcerda xpaHnTe npnbop B HeoocTyHOM nIa DeTei, XopoIO npOBetpNaEMOM u cyXOM MeCTe.

TexHnueckne daHHbIe

Modelb: HL 3800
220-240B\~,50-60
IopTe6IeMaM MoUHocTb: 2000BT
Klacc 3aunTbI: II
Bec HeTTO: npu6J. 1,25 K

CoxpaHeNo npaBo Ha TexHnueckne I KOHCTpyKUHOHHbIe N3MeHeHnB pAMkAx npoDoJIkaUOuSeIcR pa3pa60TKI npOdykTa.

Даньий пибор 6ыл поТecntуров в COOTBETCTBIM CO BCEMN пимЕнмьIM DeIcTBUOUMM DnpeKTHBAMN CE ИИЗROTOВЕн B COOTBETCTBIM C NOCEДHIMM ПраВИАМN 6e3ОпаСноCTN.

YTNIN3aun

3HaueHne CmBOJa KOp3NuHa

3aunTa OkpykaIooien CpeBb: He donyckaetcyaTynnnaZy 3neKtpnpnbopOB BmecTe C bblTOBBIMN OTXODAMN.

Yttnn3auny yctapeBwei TexHnKn HncnnpaBHbIX 3JneKtpoPnp6OpOB npOn3BoDntc B rOpOcknx npIeMHbIX nyHKtax.

He donyckaIte HnnpaBnIbHoi yTuIN3auin OTxoOB.3To HAHOCT Bpek OkpykaIOe CpeE IN OKa3bBaET HeRaTINBHOE BO3DeIcTBne Ha 3DOpOBBe IIOJe.

Oka3bIaBte codeeCTBne nporpamme yTuIN3aunn npDpyTMMoepmampepepa60TKn 3NeKtpoHHoN 3NeKtpuueckoTeXHKn.

HOpMaIIO O NyHKTx yTNIN3aIIN 6bITOBOy TexNkMOxHO POJIyHTB B MeCTbIX OprAHax BnactN. BaI dIJIepI n IapTHeP NO DOROBOPY TAKKe O6ra3H 6ecPiATHO npInrTb CTapbI npIbOp.

aai 2

jglclao! jlaa1g aas 10d jslj s

.
9
. 1y

120 480g JgOJgol 30

.
:diolaiwglgj

joojjoo aygb

jgljgl jjgljgl 15s

.

A

HL 3800.

60-50 240-220

2000.

II

1.25

jaiuuiygbullgdua auaaaas gao 1y

.

gag aababagaggyy yab gacgag jgljol

jolai aobii 105gdo

jglgl jolgl

dolal guo jao

3a 1

a jil 1

JUdo aasbglg davall ayjyol jno valo

auiuueooublai

jaii jie aaiil alalai aaiail gaii jll i 3dlaui

aaoao xie aaybcbyulai jno

Joo 100

aagjygl aylglllulblll 1

jaoal jSe gull jSloIy aedakl llogkde Jgss

jaii jaii jia jw gail jao so lgl jaiil

S OBC = S COD + S_ BOC

gdo 1005 gdo aadol cdbl jgljzll jzly

1. = ( x1,y1) , = ( x2,y2)

S ADB = S ADE + S_ BDE

y1y2 = 90( lg( 3 + p) - lg( 3 - p) )

J 1

J 1

jolny

a 1

aJgElaJ Jc aJgl JbJgJ Eio JgJgJgJgJgJgJgJgJgJg

.0

salll jde aod g iipg jaiinog gaiig yolal pabse jlaill g

jolly lioo jooi

aennn ene 3 aen n e ane 3 neanne

2000 120

0g3o jg2j g2j 1

1311 1.5

山

10

ai = 1n( ai + a_i)

. 25y8s11 3j1w

山

1

gjglg (aiaill galsal) jglgl yll jn a 1

dolaiow 10g wll

0golllpssollieabol2.

1. .lale abll

2. ,,,5,20% .

.40

aJgJd

IaJg jag Jyauu dJzj dJzj zJzj zJzj zJzj

aagabgdo aegbdo gaae

y = l_2s

1. d sls|dsl

Soll 100000000000000000000000000000000000000

abisg. ggo yosw ygd ayg yd alld oyldo

2016年全国春季学业水平考试

aJyall aJy JyJy all aJy jay y 5y

aolol

. 1300 3

gally aol jie Jlilj

.（UJ log PVC gI,1g 1g

= 32,0 ( 0,34) ( 34,0)

joojoo

jg2j 3

.

.0

• 1

.

g jg 8 no g

61 p.12345

.

aJlal Jg 1 aJb jd

a0011 15d11s11g j4q

i j 1000000000000000000

jglj jgskj jabrrgdool

S OBC = S BOC + S_ BOC

gabll gog 4uSjg 420g pdd

doUdoUdoU

a 1

JSLJolg> ClllBglgdlj0g 2.

.5gab1 gajj 10 agaiab 1gaii

y. jali jie jilai guljgul jgal jgal jgalj.3

jglalde ggalgulgacblgacel.ali jge pdu

:ab

jglal jbiy ggi ljlgl dcll yll llaa g jlrjg j

《左拉》

aJyJ 1

2

3

山

1000=

2000 = 11

a_n + 2 = 12

J 4

5

jolé 6

aillol 7

8

1. 0g jw 3 jw j0 l w JlabW jy y

3 8

g/9 jlaa 1000 g y

. p 1234567890

j5g 8 jw j01y JbU jS

J 1

gAaDdAaI aai dai jn no n

a 1

aolal lalal g

1. 15.5 g aiof aoyjy jayy pl

an + 1 = an + b_n

.

aIoo 1 1ably pl pa c

.

gjgl jgjy

（204

pduu bdo ypaal 1g (jzjj)

iio jieoo 100

jlll l 10000000000000000000000000000

:Joo Joo Joo Joo Joo Joo

：

a

15 ÷ x = 2( x > 0)

！gjol j

diLw gbl jgJ J 5

aio 1

.ààb1 jolal lal

JabSg jic aol dlic g

.

aabj cdo jaw jwgl 0

.

y

.4olw1 plo 91 plaxiy1 g1 plaoiWU

.

aolg lolo 15 1

.

aai jw d jai w l iu puii

.

y

jllgogolgo gog jllloll oil llllgl

jgljy

：yoo

jolco 9g jyogd lao o jolce zo yoi jolil iio joi

a. lool ool

4

aai 1 g jiaolll a jao y d aoao o bdo g jao l i

S > 1

:aloo

clogabtgslalglgalljagllgals

aole Udo

g Lg Cldall hao1g jaoi jaojia jaojia jaojia jaojia jaojia
