USER MANUAL HL 3761 CLATRONIC

White commercial heat exchanger with black control knobs and a red indicator light (no visible text or symbols)

D Dieses Produkt ist nur für gut isolierte Räume oder für den gelegentlichen Gebrauch geeignet.
NL Dit product is alleen geschikt voor goed geïsoleerde ruimtes of voor incidenteel gebruik.
Ce produit est seulement adapté à une utilisation dans les pièces correctement isolées, ou pour les utilisations occasionnelles.
Este producto solo es adecuado para utilizarlo en habitaciones bien aisladas o para un uso ocasional.
① Questo prodotto è adatto solo per ambienti ben isolati o per l'uso occasionale.
GB This product is only suitable for well isolated rooms or for occasional use.
PL Ten produkt nadaje się tylko do dobrze izolowanych pomieszczeń lub do sporadycznego użytku.
H Ez a termék kizárólag jól szigetelt helyiségekben vagy alkalmanként használható.
RUS Этот прибор пригоден только для хорошо изолированных комнат или для нечастого применения.
AR هذا المنتج مناسب فقط للغرف المعزولة جيدأو للاستخدام العرضي.

Bedienungsanleitung

CE

Overview of the Components ...... Page 3

Instruction Manual......Page 11

Technical Data......Page 14

Product Data Sheet......Page 15

NEDERLANDS

Inhoud

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in this Instruction Manual

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the appliance or other objects.

NOTE:

This highlights tips and information.

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you pass the appliance on to a third party, always include all the relevant documents.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• Always switch off the appliance and pull the mains plug out of the socket (pull the mains plug, not the cable) when you are not using the appliance, attaching accessories, for cleaning or in the event of a fault.
• Do not operate the appliance without supervision. If you leave the room you should always turn the appliance off. Remove the plug from the socket.
• The appliance and the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• Do not repair the appliance by yourself. Always contact an authorized technician.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the plastic foil.

There is a danger of suffocation!

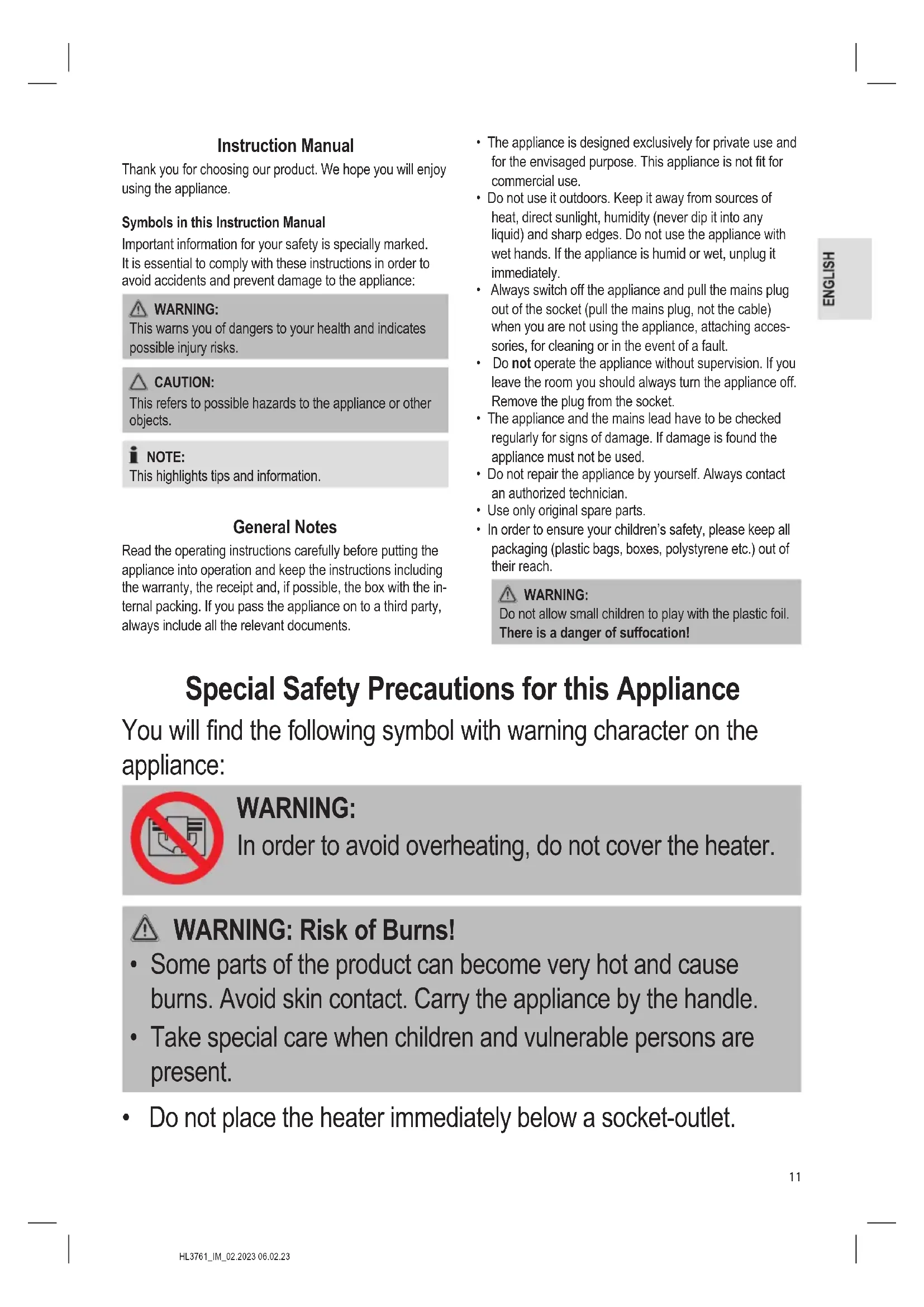

Special Safety Precautions for this Appliance

You will find the following symbol with warning character on the appliance:

WARNING:

In order to avoid overheating, do not cover the heater.

WARNING: Risk of Burns!

• Some parts of the product can become very hot and cause burns. Avoid skin contact. Carry the appliance by the handle.
  • Take special care when children and vulnerable persons are present.

- Do not place the heater immediately below a socket-outlet.

• Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
• Do not use this heater if it has been dropped.
• Do not use if there are visible signs of damage to the heater.
• Use this heater on a horizontal and stable surface.
• Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.
• To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1 m from the air outlet.
• Children younger than 3 years of age should be kept away from the appliance, unless they are supervised at all times.
• Children from the age of 3 and younger than 8 years of age may only turn the appliance on and off if they are supervised, or have been instructed with regard to the safe use of the appliance, and if they have understood the risks resulting from it, provided that the appliance has been placed and installed in its normal position of use.
• Children from the age of 3 and younger than 8 years of age may not insert the plug into the socket, may not regulate the appliance, may not clean the appliance and / or may not perform the maintenance by the user.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children without supervision.

• Under no circumstances may the fan heater be used in rooms with explosive gas (e. g. petrol) or while work is being carried out with inflammable adhesives or solvents (e. g. when gluing or painting parquet, PVC etc.).

• Do not insert any objects into the fan heater.
• Ensure that a safety distance is maintained between the power cord and the housing.
• Do not use the fan heater in the open air.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Unpacking the Appliance

1. Remove the appliance from its packaging.
2. Remove all packaging material, such as foils, filling material, cable ties and cardboard packaging.
3. Check the appliance for possible transport damage to avoid hazards. Do not operate a damaged appliance. Return it to the dealer immediately.

NOTE:

There may still be dust or production residues on the appliance. We recommend that you clean the appliance as described under "Cleaning".

Overview of the Components

1 Temperature control
2 Handle
3 Function control knob 0= Off

$$ \begin{array}{l} = \text { Fan } \ I = 1 0 0 0 \text { Watt } \ I I = 2 0 0 0 \text { Watt } \ \end{array} $$

4 Safety switch

5 Grille for heating elements

6 Indicator lamp

Notes for Use

Safety Switch

Your fan heater features a safety switch that disconnects the power supply in case the appliance falls over. The safety switch prevents hazards caused by overheating.

WARNING:

Place the appliance on a smooth, horizontal and stable surface. Avoid carpets in order to prevent failure of the safety switch.

NOTE:

The appliance turns on automatically once back in an upright position.

Connected Load

The appliance supports a power input of 2000 W.

CAUTION: Overload

• When using an extension cord, it must have a cable cross-section of at least 1.5 ~mm^2 .
• Do not use a multiple socket as this appliance is too powerful.
• Do not connect any other powerful devices to the same electric circuit.

Operation

Electric Connection

1. Make sure the voltage of the appliance (see rating label) matches the mains voltage to be used.
2. Set the function control knob to 0.
3. Unwind the mains cable completely.
4. Only connect the mains plug with a properly installed earthed socket.

Setting the Temperature

The thermostat constantly switches the fan heater on and off, thereby keeping the temperature at the desired level.

Set the desired temperature as followed:

1. Set the temperature control to its highest setting.
2. Once the desired temperature has been reached, slowly turn the temperature control back, until the fan heater switches off audibly. The indicator lamp turns off.

NOTE:

The audible position of the temperature control depends on the ambient temperature.

1. The fan heater will then keep the desired temperature level.

CAUTION:

When not using the appliance, disconnect the mains plug.

Fan Operation

If you want to use the appliance as a fan, turn the function control knob to the fan icon and turn the temperature control to highest position.

End Operation

If you want to end the operation, set the function control knob to the position 0. The indicator lamp turns off. Then disconnect the mains plug from the socket.

Overheat Protection

The appliance features an overheat protection mechanism causing the device to switch off automatically in case of overheating.

1. Set the function control knob to position 0 and pull the mains plug out of the socket.
2. Let the appliance cool down for approx. 10 minutes before using it again.

NOTE:

If the overheat protection mechanism causes the appliance to switch off again after a short period, this might indicate a defect.

1. Switch off the appliance and disconnect it from the mains.
2. Have the appliance checked by your dealer or our customer service.

Cleaning

WARNING:

• Always unplug the appliance from the mains before cleaning and wait until the appliance has cooled down.
- Never immerse the appliance in water to clean it. This may lead to electrical shock or fire.

CAUTION:

• Do not use wire brushes or other abrasive materials.

• Do not use caustic or scouring agents.

• Wipe away dust with a dry cloth.

• Flecks can be removed with a suitably damp cloth.

Dust on the Protective Grilles

Accumulation of dust on the protective grilles can lead to overheating.

• Remove the dust by careful brushing.
  or
• Use the upholstery nozzle of your vacuum cleaner to remove the dust.

Storage

• Let the appliance cool down before putting it away!
  • Wind the mains cable loosely.
• We recommend storing the appliance in its original packaging if you do not intend to use it for a long period of time.
• Always store the appliance out of the reach of children in a well-ventilated and dry place.

Technical Data

Model: HL 3761

Power supply: 220–240 V\~, 50–60 Hz

Power consumption: 2000 W

Protection class:....II

Net weight: .... approx. 0.95 kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

Notice of Directive Conformity

The appliance meets the European standards and directives in the current version at delivery:

• Low Voltage Directive (LVD) 2014/35/EC
- Electromagnetic Compatibility (EMC) Legislation Directive 2014/30/EC
• RoHS-directive 2011/65/EU & (EU) 2015/863
• Ecodesign-directive (ErP) 2009/125/EC
• Commission Regulation (EU) 2015 / 1188 (Product Data Sheet see page 15)

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of re-utilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority. Your dealer and contractual partner is also obliged to take back the old appliance free of charge.

Product Data Sheet

Model identifier HL 3761
Item Symbol Value Unit Item Unit
Heat output Type of heat input, for electric storage local space heaters only
Nominal heat output P	nom	2.0 kW	W manual	heat charge control, with integrated thermostat N.A.
Minimum heat output (indicative)	P_min	1.0 kW			manual heat charge control with room and / or outdoor temperature feedback	N.A.
Maximum continuous heat output	P_max,c	2.0 kW			electronic heat charge control with room and / or outdoor temperature feedback	N.A.
Auxiliary electricity consumption					fan assisted heat output N.A.
At nominal heat output	eI_max	0.000	kW Type of heat output / room temperature control
At minimum heat output	eI_min	0.000	kW		single stage heat output and no room temperature control	no
In standby mode	eI_SB	0.000	kW		Two or more manual stages, no room temperature control	no
					with mechanic thermostat room temperature control	yes
					with electronic room temperature control	no
					electronic room temperature control plus day timer	no
					electronic room temperature control plus week timer	no
					Other control options
					room temperature control, with presence detection	no
					room temperature control, with open window detection	no
					with distance control option	no
					with adaptive start control	no
					with working time limitation	no
					with black bulb sensor	no
Contact details	Clatronic International GmbH, Industriering Ost 40, 47906 Kempen, Germany
N. A. = not applicable

Gebruiksaanwijzing

WAARSCHUWING: Verbrandingsgevaar!

CTC Clatronic Sp. z o.o

Ul. Brzeska 1

45-960 Opole

Usuwanie
