Product type	Cordless joint cleaner
Brand	Gardol
Model	GAF-E 20 Li OA
Power supply	Li-Ion battery 20 V (Power-X-Change)
Rotation speed	1200 rpm
Max. brush diameter	100 mm
Sound pressure level (at ear)	64 dB(A)
Sound power level	77 dB(A)
Vibration (total value)	≤ 2.5 m/s²
Weight	1.85 kg
Protection class	III
Type of brushes supplied	Nylon and steel
Height adjustment	Yes, by union nut
Adjustable additional handle	Yes
Warranty	84 months (7 years)
Delivery contents	Cleaner, nylon brush, metal brush, fork wrench, bolt, nut, instruction manual, safety instructions
Wear parts	Battery, brushes
Applications	Joints of paving stones and slabs (not recommended on tiles)
Safety	Start lock, protective cover

Frequently Asked Questions - GAF-E 20 Li OA Gardol

How to change the brush?

Before any change, remove the battery. To remove the brush, push it inward and take it out through the opening. To install a new brush, plug it onto the drive shaft aligning the housing, then fix it with the nut using the fork wrench. Caution: remove the retaining bolt after tightening.

Which battery to use?

Use exclusively Li-Ion batteries from the Power-X-Change series in 20 V, available in capacities of 1.5 Ah, 3.0 Ah, or 4.0 Ah. Never use other batteries.

How long does it take to charge the battery?

With the Power-X charger, approximate charging times are: 1.5 Ah: 40 min, 3.0 Ah: 75 min, 4.0 Ah: 100 min. Fast charging reaches 85% in 30, 60, or 80 min respectively.

How to adjust the working height?

Loosen the union nut on the handle until you can slide the tube. Adjust the desired height, then retighten the nut firmly.

Can the device be used on tiles?

No, the device is designed only for joints between paving stones and slabs. Do not use it on sensitive surfaces like tiles, as this could damage them.

What to do if the device does not start?

First check that the battery is charged and correctly inserted. If the charger is plugged in and the device still does not work, contact customer service. A defective battery must be replaced.

How to clean the device?

Before cleaning, remove the battery. Clean the housing with a damp cloth and a little black soap. Do not use aggressive detergents. Blow the air slots with low-pressure compressed air. Remove deposits on the protective cover with a brush.

What is the warranty period?

The warranty is 84 months (7 years) from the date of purchase, for consumers. It covers manufacturing or material defects. Wear parts (battery, brushes) are not covered.

How to store the battery?

Store the battery in a dry, temperate place (ideally between 10 °C and 45 °C). Do not leave it on prolonged charging after full charge. Avoid deep discharges: recharge as soon as power drops.

What accessories are available?

You can order replacement brushes: steel brush (ref. 34.241.00) and nylon brush (ref. 34.241.10). For batteries and chargers, use the Power-X-Change series.

USER MANUAL GAF-E 20 Li OA Gardol

GB Original operating instructions Cordless Paving Scraper

Close-up of a mechanical component with a highlighted section and an arrow indicating motion (no text or symbols)

Close-up of a mechanical component with a tire and arrow indicating assembly (no text or symbols)

5 6 15 15

6a A B C

6b 12 11 10

7 5

Close-up of a mechanical device with a lever and handle, showing motion direction (no text or symbols)

Close-up of a hand holding a device with an arrow pointing to it, no visible text or symbols

Close-up of a mechanical component being processed with a tool, no visible text or symbols

13 14

11b B A

12 1 2 3 4 5 6 7

DE

Inhaltsverzeichnis

1. Safety information
2. Layout and items supplied
3. Intended use
4. Technical data
5. Before putting into operation
6. Operation
7. Cleaning, maintenance and ordering of spare parts
8. Disposal and recycling
9. Faults
10. Charger indicator

GB

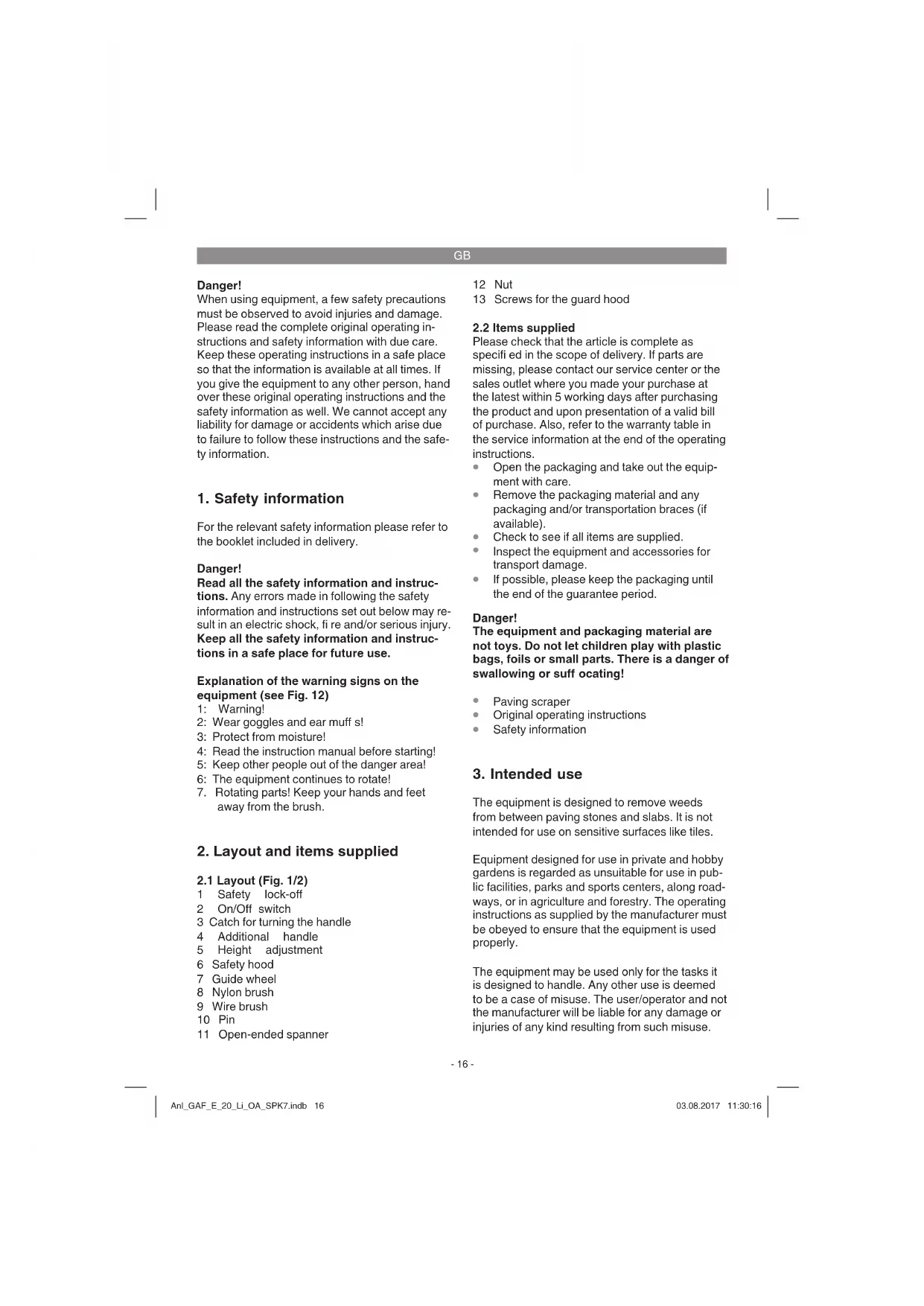

Danger!

When using equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete original operating instructions and safety information with due care. Keep these operating instructions in a safe place so that the information is available at all times. If you give the equipment to any other person, hand over these original operating instructions and the safety information as well. We cannot accept any liability for damage or accidents which arise due to failure to follow these instructions and the safety information.

1. Safety information

For the relevant safety information please refer to the booklet included in delivery.

Danger!

Read all the safety information and instructions. Any errors made in following the safety information and instructions set out below may result in an electric shock, fire and/or serious injury. Keep all the safety information and instructions in a safe place for future use.

Explanation of the warning signs on the equipment (see Fig. 12)

1: Warning!
2: Wear goggles and ear muff s!
3: Protect from moisture!
4: Read the instruction manual before starting!
5: Keep other people out of the danger area!
6: The equipment continues to rotate!
7. Rotating parts! Keep your hands and feet away from the brush.

2. Layout and items supplied

2.1 Layout (Fig. 1/2)

1 Safety lock-off
2 On/Off switch
3 Catch for turning the handle
4 Additional handle
5 Height adjustment
6 Safety hood
7 Guide wheel
8 Nylon brush
9 Wire brush
10 Pin
11 Open-ended spanner

12 Nut

13 Screws for the guard hood

2.2 Items supplied

Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

• Open the packaging and take out the equipment with care.
• Remove the packaging material and any packaging and/or transportation braces (if available).
• Check to see if all items are supplied.
• Inspect the equipment and accessories for transport damage.
• If possible, please keep the packaging until the end of the guarantee period.

Danger!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suff ocating!

• Paving scraper
  • Original operating instructions
• Safety information

3. Intended use

The equipment is designed to remove weeds from between paving stones and slabs. It is not intended for use on sensitive surfaces like tiles.

Equipment designed for use in private and hobby gardens is regarded as unsuitable for use in public facilities, parks and sports centers, along roadways, or in agriculture and forestry. The operating instructions as supplied by the manufacturer must be obeyed to ensure that the equipment is used properly.

The equipment may be used only for the tasks it is designed to handle. Any other use is deemed to be a case of misuse. The user/operator and not the manufacturer will be liable for any damage or injuries of any kind resulting from such misuse.

GB

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the equipment is used in commercial, trade or industrial businesses or for equivalent purposes.

4. Technical data

Speed n_0 1200 min ^-1
Max. brush diameter 100 mm
Protection class ....III
L_WA sound power level 77 dB
L_pA sound pressure level 57 dB
K uncertainty ....3 dB
Vibration ....≤ 2.5 m/s ^2
K uncertainty 1.5 m/s ^2
Weight 1.85 kg
Sound pressure level at the operator's ear 64 dB(A)
K uncertainty 3 dB

Important!

The equipment is supplied without batteries and without a charger is allowed to be used only with the lithium-ion batteries of the Power-X-Change series!

Power-X-Change

20 V, 1.5 Ah ....5 lithium-ion cells

20 V, 3.0 Ah .....10 lithium-ion cells

20 V, 4.0 Ah .....10 lithium-ion cells

The lithium-ion batteries of the Power-X-Change series are allowed to be charged only with the Power-X charger.

Charging unit

Mains voltage 200-250 V \~ 50-60 Hz

Output

Rated voltage 21 V d. c.

Rated current 3000 mA

The machine noise might exceed 85 dB (A). The operator will require noise protection measures if this is the case. The noise is measured in accordance with prEN ISO 10518. The value of the vibrations emitted by the handle was determined in accordance with prEN ISO 10518.

Important.

The vibration value changes according to the area of application of the electric equipment and may exceed the specified value in exceptional circumstances.

Reduce noise generation and vibration to a minimum!

• Use only equipment that is in perfect condition.
• Maintain and clean the equipment regularly.
  • Adapt your way of working to the equipment.
  • Do not overload the equipment.
  • Have the equipment checked if necessary.
• Switch off the equipment when not in use.
• Wear gloves.

Caution!

Residual risks

Even if you use this electric power tool in accordance with instructions, certain residual risks cannot be rules out. The following hazards may arise in connection with the equipment's construction and layout:

1. Lung damage if no suitable protective dust mask is used.
2. Damage to hearing if no suitable ear protection is used.
3. Health damage caused by hand-arm vibrations if the equipment is used over a prolonged period or is not properly guided and maintained.

5. Before putting into operation

The equipment is supplied without batteries and without a charger.

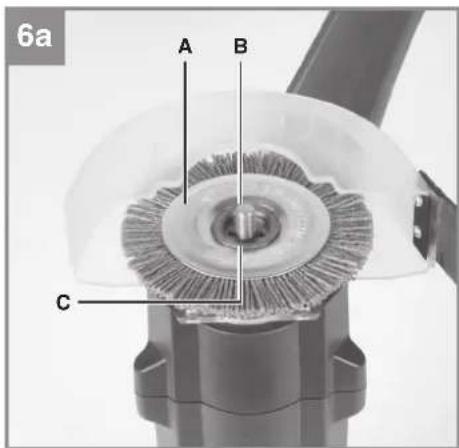

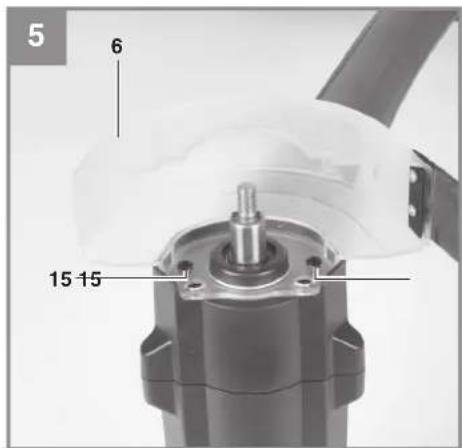

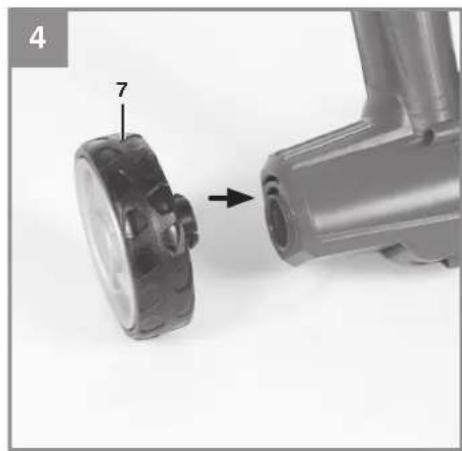

5.1 Assembly (Fig. 3-6b)

Connect the upper part of the housing and the bottom part of the housing together (Fig. 3). Slot the guide wheel (Fig. 4/Item 7) into the guide on the housing (Fig. 4/Item A). Make sure that there is an audible click when they engage. Fit the guard hood (Fig. 5/Item 6) as shown in Figure 5 and secure with 2 screws (Fig. 5/Item. 13). Fit the brush (Fig. 6a/Item A) onto the drive axle (Fig. 6a/Item B). Make sure that the brush fi is accurately into the mount (Fig. 6a/Item C). The shaft must be fi xed in order to fasten the brush. To do so, insert the pin (Fig. 2/Item 10) into the recess on the shaft (Fig. 6b) and hold with one hand.

GB

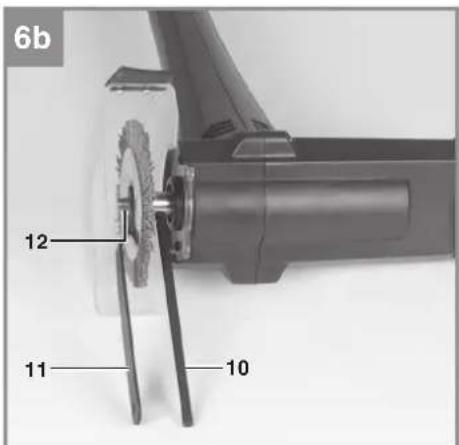

Using the open-ended wrench (Fig. 2/Item 11), tighten the nut (Fig. 6b/Item 12).

Important! Be sure to remove the pin again from the shaft.

To dismantle the equipment for changing the brush proceed in reverse order.

5.2 Height adjustment (Fig. 7)

Undo the union nut (Item 5) until the grass trim-mer handle can be moved in and out freely. Now set the required working height (Fig. 9) and secure the handle in this position by tightening the union nut again.

5.3 Adjusting the additional handle (Fig. 8)

Undo the adjustment lock (Item 3) for the additional handle until it can be moved forwards and backwards without any great resistance. Set the required position and tighten the adjustment lock again.

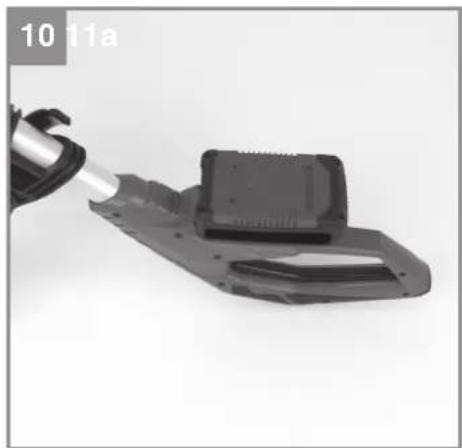

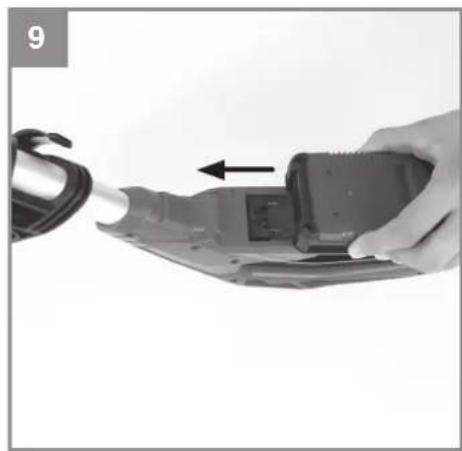

5.4 Installing the battery (Fig. 9/10)

Press the side pushlock buttons of the battery pack as shown in Fig. 9 and push the battery pack into the mount provided. When the battery pack is positioned as in Fig. 10, make sure that the pushlock buttons latch in place! To remove the battery pack, proceed in reverse order.

5.5 Charging the battery (Fig. 11)

1. Take the battery pack out of the equipment. Do this by pressing the side pushlock buttons.
2. Check that your mains voltage is the same as that marked on the rating plate of the battery charger. Insert the power plug of the charger (14) into the mains socket outlet. The green LED will then begin to fl ash.
3. Insert the battery pack (13) into the battery charger (14).
4. In section „Charger indicator“ you will find a table with an explanation of the LED indicator on the charger.

The battery pack can become a little warm during the charging. This is normal. If the battery pack fails to charge, check:

• whether there is voltage at the socket outlet
- whether there is good contact at the charging contacts

If the battery pack still fails to charge, send

• the charging unit
• and the battery pack

to our customer service center.

To ensure that the battery pack provides long service, you should take care to recharge it promptly. You must recharge the battery pack when you notice that the power of the cordless grass trimmer drops. Never fully discharge the battery pack. This will cause it to develop a defect.

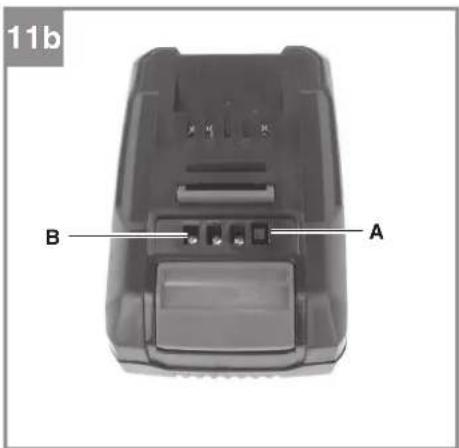

5.6 Battery capacity indicator (Fig. 11b)

Press the switch for the battery capacity indicator (Item A). The battery capacity indicator (Item B) shows the charge status of the battery using 3 LEDs.

All 3 LEDs are lit:

The battery is fully charged.

2 or 1 LED(s) are lit:

The battery has an adequate remaining charge.

1 LED fl ashes:

The battery is empty, recharge the battery.

All LEDs flash:

The battery pack has undergone exhaustive discharge and is defective. Do not use or charge a defective battery pack.

6. Operation

To obtain maximum performance from your paving scraper, please follow the instructions given below:

• Never use the paving scraper without the guard.
• To switch on your paving scraper press the safety lock-off (Fig. 2/Item 1) and then press the On/Off switch (Fig. 2/Item 2).
• To switch off your paving scraper, let go of the On/Off switch again (Fig. 2/Item 2).

One steel brush (Fig. 2/Item 9) and one nylon brush (Fig 2/Item 8) are supplied with the equipment. The wire brush is suited for use on robust surfaces and obstinate weeds. We recommend using the nylon brush for light vegetation and surfaces too sensitive for the steel brush.

Important! Always carry out a short trial run to check out possible effects on the surfaces of the paving stones or slabs before starting with your work. Never use the equipment on

GB

very sensitive surfaces, for example tiles.

Important! Only use brushes which are in fl awless condition. Replace excessively worn or damaged brushes immediately.

Always use both hands to operate the equipment. Guide the equipment along the joints at a walking pace. For uniform results carry out your work at a constant speed. If necessary, guide the equipment along the same joint several times.

7. Cleaning, maintenance and ordering of spare parts

Danger!

Before putting away or cleaning the grass trim-mer, switch off and remove the battery pack.

7.1 Cleaning

• Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it down with compressed air at low pressure.
  • We recommend that you clean the equipment immediately after you use it.
• Clean the equipment regularly with a damp cloth and some soft soap. Do not use cleaning agents or solvents; these may be aggressive to the plastic parts in the equipment. Ensure that no water can get into the interior of the equipment. The ingress of water into an electric tool increases the risk of an electric shock.
• Use a brush to remove deposits from the safety guard.

7.2 Replacing the blade

IMPORTANT! Be sure to remove the battery pack before replacing!

• To remove the blade, push the blade inwards and remove it through the larger opening as shown in Fig. 22.
• To fit the new blade, proceed in reverse order. Make sure the blade locks into place correctly as shown in Fig. 7.

7.3 Maintenance

There are no other parts inside the equipment which require maintenance.

7.4 Ordering spare parts

Please provide the following information on all orders for spare parts:

• Model/type of the equipment
• Article number of the equipment
• ID number of the equipment
- Spare part number of the required spare part For our latest prices and information please go to www.isc-gmbh.info

Steel replacement brush: Art. No.: 34.241.00 Nylon replacement brush Art. No.: 34.241.10

8. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council.

9. Faults

The equipment does not work:

Check that the battery is charged and whether the charging unit is working. If the equipment will not work in spite of the voltage supply being OK, please send it to the customer service address below.

GB

10. Charger indicator

Indicator status		Explanations and actions
Red LED Green LED
Off	Flashing	Ready for useThe charger is connected to the mains and is ready for use; there is no battery pack in the charger
On Off Charging		The charger is charging the battery pack in quick charge mode.
Off On The battery is 85% charged and ready for use.(Charging time for 1.5 Ah battery: 30 min)(Charging time for 3.0 Ah battery: 60 min)(Charging time for 4.0 Ah battery: 80 min)The unit then changes over to gentle charging mode until the battery is fully charged.(Total charging time for 1.5 Ah battery: approx. 40 min)(Total charging time for 3.0 Ah battery: approx. 75 min)(Total charging time for 4.0 Ah battery: approx. 100 min)Action:Take the battery pack out of the charger. Disconnect the charger from the mains supply.
Flashing Off	Adapted charging	The charger is in gentle charging mode.For safety reasons the charging is performed less quickly and takes more than 1 hour. The reasons can be:- The battery pack has not been used for a very long time or an already fl at battery was further discharged (exhaustive discharge).- The battery pack temperature is outside the ideal range (between 10^ C and 45^ C).Action:Wait for the charging to be completed; you can still continue to charge the battery pack.
Flashing Flashing Fault		Charging is no longer possible. The battery pack is defective.Action:Never charge a defective battery pack.Take the battery pack out of the charger.
On On Temperature fault		The battery pack is too hot (e.g. due to direct sunshine) or too cold (below 0^ C).Action:Remove the battery pack and keep it at room temperature (approx. 20^ C) for one day .

GB

For EU countries only

Never place any electric power tools in your household refuse.

To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the return request:

As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the iSC GmbH.

Subject to technical changes

This consignment contains lithium-ion batteries.

In accordance with special provision 188 this consignment is not subject to the ADR regulations. Handle with care. Danger of ignition in case of damage to the consignment package. If the consignment package is damaged: Check and if necessary repackage. For further information contact: 0049 1807 10 20 20 66 (fixed network 14 ct/min, mobile phone max. 42 ct/min) Outside Germany charges will apply instead for a regular call to a landline number in Germany.

GB

Service information

We have competent service partners in all countries named on the guarantee certificate whose contact details can also be found on the guarantee certificate. These partners will help you with all service requests such as repairs, spare and wearing part orders or the purchase of consumables.

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Category Example
Wear parts* Battery
Consumables* Wire brush, Nylon brush
Missing parts

* Not necessarily included in the scope of delivery!

In the effect of defects or faults, please register the problem on the internet at www.isc-gmbh.info. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:

• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.

GB

Warranty certifi cate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card or the sales outlet from where you bought the device. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms apply to consumers only, i.e. natural persons intending to use this product neither for their commercial activities nor for any other self-employed activities. These warranty terms regulate additional warranty services, which the manufacturer mentioned below promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory guarantee claims are not affected by this guarantee. Our guarantee is free of charge to you.
2. The warranty services cover only defects due to material or manufacturing faults on a product which you have bought from the manufacturer mentioned below and are limited to either the rectification of said defects on the product or the replacement of the product, whichever we prefer. Please note that our devices are not designed for use in commercial, trade or professional applications. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

3. The following are not covered by our guarantee:

4. Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by exposing the device to abnormal environmental conditions or by lack of care and maintenance.

5. Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for example by dropping it).

6. Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.

7. The guarantee is valid for a period of 84 months starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies if an on-site service is used.

8. To make a claim under the guarantee, please register the defective device at: www.isc-gmbh.info. Please keep your bill of purchase or other proof of purchase for the new device. Devices that are returned without proof of purchase or without a rating plate shall not be covered by the guarantee, because appropriate identification will not be possible. If the defect is covered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement.

Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions.

FR

Sommaire

Svetle sve 3 LE-diode:

20 V, 4,0 Ah ......10 Li-lon hücreleri

Hljóðafl sstig L _WA ....77 dB

Hljóðprýstingsstig L _pA ......57 dB

Óvissa K ....3 dB

20 V, 3,0 Ah ....10 Li-lon rafhlöður

20 V, 4,0 Ah .....10 Li-lon rafhlöður

20 V, 3,0 Ah ....10 Li-jon-celler

20 V, 4,0 Ah .....10 Li-jon-celler

Subject to change without notice

Archive-File/Record: NAPR016927

Documents registrar: Scheifl Alexander

Wiesenweg 22, D-94405 Landau/Isar

EH 07/2017 (01)
