21000-56 - Grill plate RUSSELL HOBBS - Free user manual and instructions

Brand	Russell Hobbs
Model	21000-56
Category	Raclette type grill plate
Cooking type	Grilling, crepe cooking, cheese melting
Plate material	Natural grilling stone and metal plate
Heating element	Heating element built into the base
Thermostat	Adjustable (positions 1 to 5)
Indicator light	On/off indicator
Included parts	Grilling stone, metal plate, 4 ramekins (dishwasher safe)
Ramekin capacity	Fill to 3/4 with cheese
Crepe preparation	Possible on the metal plate (large and small circles)
Cleaning	Removable parts dishwasher safe; surfaces wiped with a damp cloth
Safety	Use under supervision; keep out of reach of children under 8 years; do not use near water
Power supply	220-240 V ~ 50/60 Hz
Power	1400 W (estimated)
Dimensions (approx.)	40 x 30 x 15 cm
Weight (approx.)	3 kg

Frequently Asked Questions - 21000-56 RUSSELL HOBBS

What is the preheating time for the grilling stone?

The grilling stone requires a preheating of 25 to 30 minutes to reach optimal temperature.

Can I use aluminum foil or plastic wrap on the plate?

No, do not wrap food in plastic wrap, polyethylene bags, or aluminum foil. This could damage the grill and cause a fire.

How to clean the grilling stone?

Let the appliance cool down, then wash the removable parts by hand or in the dishwasher. Wipe other surfaces with a damp cloth. Note that natural cracks may appear on the stone due to heat, this is normal.

Can children use this appliance?

This appliance can be used by children aged at least 8 years under supervision. Cleaning must not be done by children under 8 without supervision.

Can I use low-fat margarine?

No, do not use low-fat margarine as it may burn in the grill. Use a little oil or butter instead.

How to make crepes on this appliance?

Pour a small amount of batter onto the preheated metal plate, spread with a plastic spatula, and flip gently when the surface is no longer liquid. Adjust temperature if crepes brown too much.

What is the power of the appliance?

The power is not specified in the manual, but it is generally around 1400 W for this type of appliance.

Can I leave the appliance plugged in unattended?

No, unplug the appliance when not in use. Never leave it unattended while operating.

What types of food can be cooked on the stone?

The grilling stone is ideal for vegetables, bread (crispy texture), and for searing the outside of meat. It retains heat to keep food warm.

What to do if the power cord is damaged?

If the cord is damaged, it must be replaced by the manufacturer, an authorized technician, or a qualified person to avoid hazards. Do not use the appliance.

USER MANUAL 21000-56 RUSSELL HOBBS

Black-and-white photo of a hot pot setup with shrimp and griddle on a grater (no text or symbols visible)

1 2

Line drawing of a stainless steel plate with a handle and a small inset showing a coiled spring (no text or symbols)

4 3 5 6 7 8

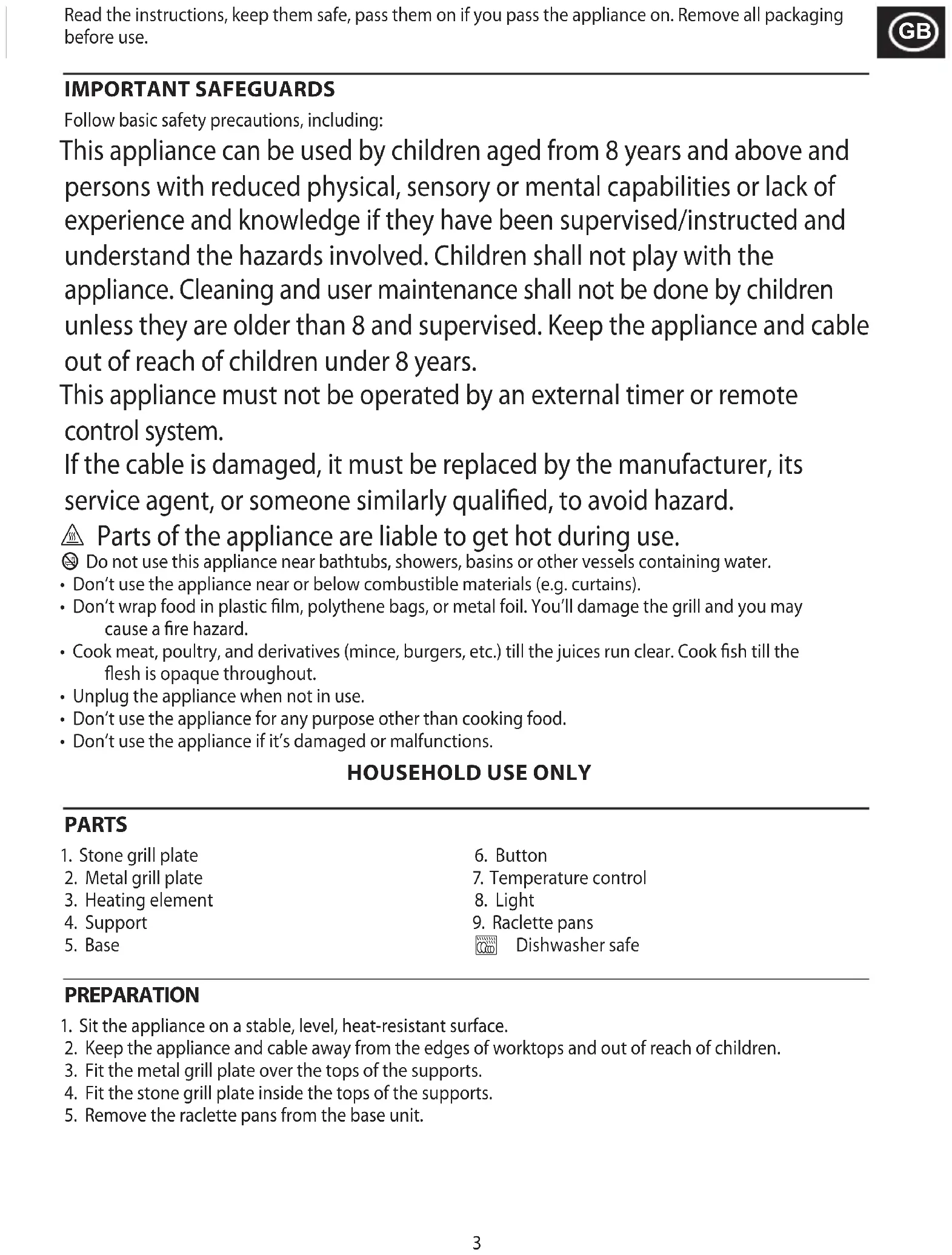

IMPORTANT SAFEGUARDS

Follow basic safety precautions, including:

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised. Keep the appliance and cable out of reach of children under 8 years.

This appliance must not be operated by an external timer or remote control system.

If the cable is damaged, it must be replaced by the manufacturer, its service agent, or someone similarly qualified, to avoid hazard.

Parts of the appliance are liable to get hot during use.

Do not use this appliance near bathtubs, showers, basins or other vessels containing water.
- Don't use the appliance near or below combustible materials (e.g. curtains).
- Don't wrap food in plastic film, polythene bags, or metal foil. You'll damage the grill and you may cause a fire hazard.
- Cook meat, poultry, and derivatives (mince, burgers, etc.) till the juices run clear. Cook fish till the flesh is opaque throughout.
- Unplug the appliance when not in use.
- Don't use the appliance for any purpose other than cooking food.
- Don't use the appliance if it's damaged or malfunctions.

HOUSEHOLD USE ONLY

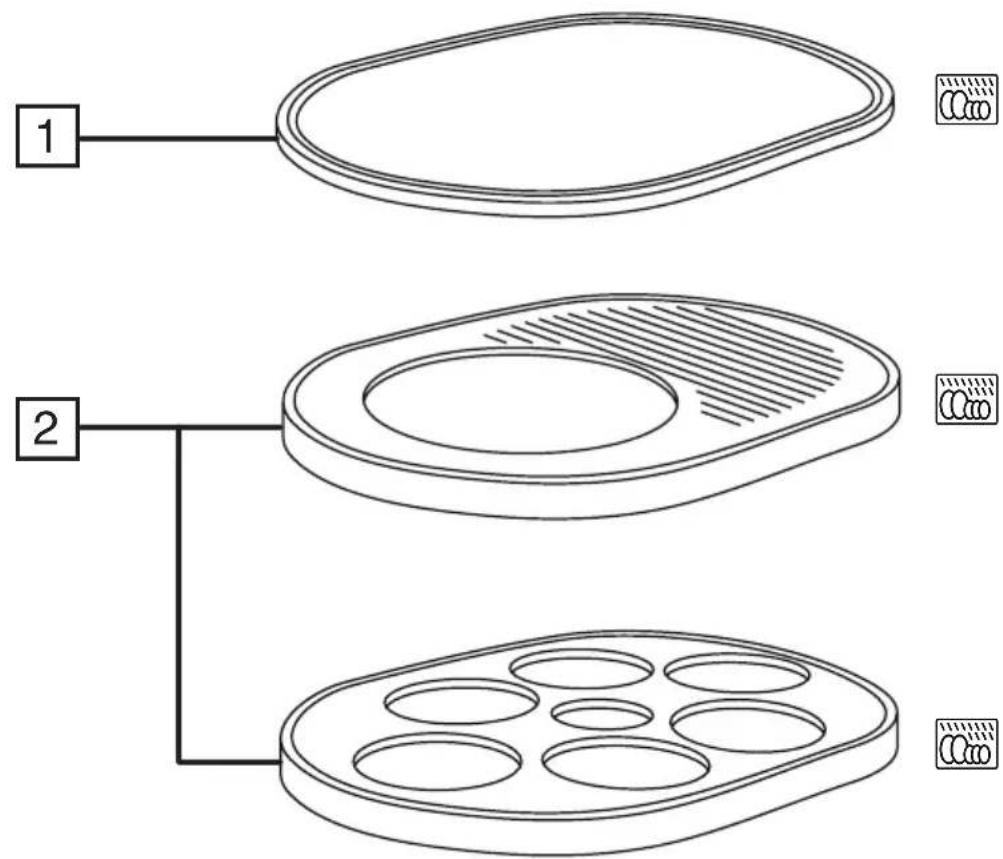

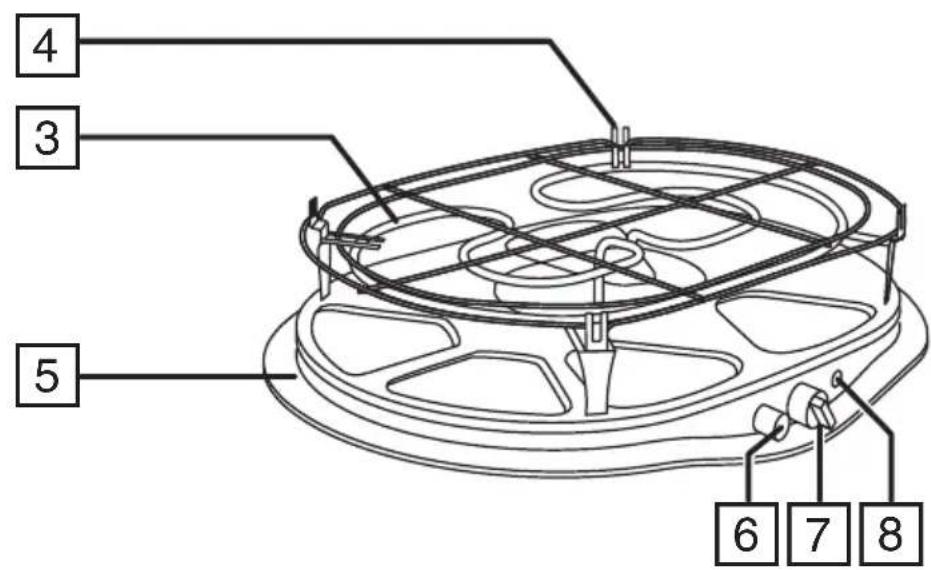

PARTS

1. Stone grill plate
2. Metal grill plate
3. Heating element
4. Support

5. Base

6. Button

7. Temperature control
8. Light
9. Raclette pans

Dishwasher safe

PREPARATION

1. Sit the appliance on a stable, level, heat-resistant surface.
2. Keep the appliance and cable away from the edges of worktops and out of reach of children.
3. Fit the metal grill plate over the tops of the supports.
4. Fit the stone grill plate inside the tops of the supports.
5. Remove the raclette pans from the base unit.

PREHEAT

1. Wipe the grill plate with a little cooking oil or butter.
2. Don't use low fat spread – it may burn on to the grill.
3. Put the plug into the power socket.
4. Set the temperature control to 5.
5. Press and release the button. The light will come on.
6. Let the metal grill plate heat for 3-4 minutes.
7. Let the stone grill plate heat for 25-30 minutes.

USING THE GRILL

The stone plate takes longer to heat up and therefore retains more heat during cooking. This makes it ideal for crisping up vegetables and breads, and also for searing the outside of meat. Because it retains heat for longer, and will remain hot for several minutes even after you have turned the appliance off, it's also perfect for keeping food warm.

1. Cut the meat or vegetables thinly and cook them on top of the grill.
2. About 5 minutes before the grilled food is ready, cook cheese in the raclette pans.
3. Allow one raclette pan per person.
4. Fill each raclette pan three-quarters full with cheese.
5. Place the raclette pans on the base, below the heating element.
6. Wait till the food has cooked, and the cheese has melted.
7. Remove the cooked food with wooden or plastic tools.
8. Press and release the button. The light will go off.
9. Serve the cheese with the cooked food.

CREPES

1. You may make crepes on the metal grill plates, large ones on the large circle, small ones on the small circles.
2. Pour a small amount of batter in the centre of the circle.
3. Spread it with a plastic spatula or the back of a wooden spoon.
4. Wait till the surface is no longer liquid and the crepe can be moved slightly.
5. Insert a spatula under a third of the crepe, and turn it over.
6. Lift the edge to check the underside of the crepe. It should be golden, rather than brown.
7. Move the crepe to a wire tray.
8. If the crepe is too brown, reduce the temperature slightly for the next one.
9. Each batch of batter will be different.

HINTS AND TIPS

• Thickness depends on the ratio of egg to liquid; more liquid = thinner crêpes, more egg = thicker crêpes.
• You can season the batter with sugar, herbs, spices, or a dash of beer.
• Adding sugar makes crêpes more likely to stick together when stacked, and likely to tear when handled.
• Try other types of flour (wholemeal flour will produce thicker batter).

RECIPES

ml = millilitres ⑥0 = egg, medium (53-63g) g = grams = pinch

Makes 12 crepes

• 250g plain flour
• 500ml milk
  • 3 ⑥0
  • 1 √ salt

Sift the flour into a bowl. Add the salt. Stir in the eggs. Stir in the milk. Stop adding liquid when the batter reaches a creamy consistency. Rest the batter for 1-2 hours before use.

Makes 40 crepes

• 1kg buckwheat flour
• 250ml milk
  • 3 ⑥0
  • 1 √ salt
• lukewarm water

Sift the flour into a bowl. Add the salt. Stir in the eggs. Stir in the milk. Stir in the water. Stop adding liquid when the batter reaches a creamy consistency. Rest the batter for 3-4 hours before use.

CARE AND MAINTENANCE

1. Press and release the button. The light will go off.
2. Unplug the appliance and let it cool.
3. Wipe all surfaces with a clean damp cloth.
4. Hand wash the removable parts.
5. You may wash these parts in a dishwasher.
6. If you use a dishwasher, the harsh environment inside the dishwasher will affect the surface finishes.
7. The damage should be cosmetic only, and should not affect the operation of the appliance.
8. You may notice cracking on the stone grill plate – don't worry, this is a natural consequence of heating.

ENERGY EFFICIENCY

These requirements have been calculated in accordance with European Regulation 66/2014/UE.

Energy Efficiency = EC _electric cooking < 210 (in Wh/kg)

RECYCLING

To avoid environmental and health problems due to hazardous substances, appliances and rechargeable and non-rechargeable batteries marked with one of these symbols must not be disposed of with unsorted municipal waste. Always dispose of electrical and electronic products and, where applicable, rechargeable and non-rechargeable batteries, at an appropriate official recycling/collection point.
