Product type	Active coaxial monitor
Brand	DB Technologies
Model	FMX15
Dimensions (W x H x D)	580 x 340 x 500 mm
Weight	16.9 kg
Power supply	220-240V~ / 100-120V~ (switchable)
Power consumption (1/3 power)	1.2 A (220-240V~) / 2 A (100-120V~)
Amplification	Class D, 600 W RMS, 1200 W peak
Frequency response	50 Hz - 15.5 kHz (-6 dB) / 46 Hz - 19 kHz (-10 dB)
Max SPL (1 m)	128 dB
Coverage	60° (H) x 90° (V)
Configuration	Coaxial (HF and LF drivers aligned)
DSP presets	8 presets: Live Monitor, Playback, Coupled, Male Singer, Female Singer, Antifeedback, Live on Stand, Playback on Stand
Cabinet material	Painted multiplex wood
Protective grille	Metal, CNC machined
Handles	Integrated
Audio inputs	1x balanced XLR IN (Mic/Line)
Audio output	1x balanced XLR link OUT (HPF)
Controls	Sensitivity, rotary Preset, Mic/Line selector
Limiter	Peak, RMS, Thermal (LED limiter)
Cooling	Natural convection (fanless)
Maintenance and cleaning	Clean with a soft, dry cloth. Do not use solvents or abrasive products. Periodically check the integrity of cables and connectors.
Safety	Do not open the amplifier. Use only cables with Neutrik® connectors. In case of malfunction, power off and contact an authorized repairer.
Spare parts and repairability	Contact an authorized DB Technologies service center for any repairs or part replacement. The warranty is detailed in the user manual section 2.

Frequently Asked Questions - FMX15 DB Technologies

How do I set the preset for stage monitor use?

Turn the Main Preset control to position 1 (Live Monitor). Use the Input Sens. selector to adjust input sensitivity. For vocal use, choose presets 4 (Male Singer) or 5 (Female Singer).

What should I do if the monitor does not power on?

First check that the power cable is properly connected and the mains outlet is live. Ensure the power switch is in the ON position. If the problem persists, check the fuse (holder on the rear panel) and replace if necessary. Contact an authorized repairer if the malfunction persists.

How do I connect a microphone directly to the speaker?

Connect the microphone to the Balanced audio Input (XLR) and set the Mic/Line selector to Mic. Adjust the input sensitivity using the Input Sens. control to avoid saturation. Use a suitable preset like Male Singer or Female Singer.

What is the difference between the Live Monitor and Playback presets?

The Live Monitor preset (1) is optimized for stage monitoring with a linear response and high gain margin. The Playback Monitor preset (2) offers a curve more suited for music reproduction, with an extended frequency response for recordings. Use Live for live performances and Playback for playing back recorded music.

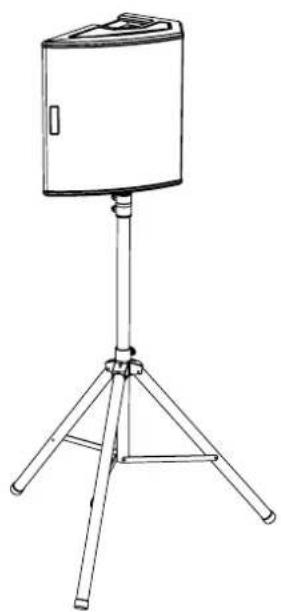

Can I use the FMX15 on a stand?

Yes, the FMX15 is designed for use on a tripod stand (vertical). Use the Live on Stand (7) or Playback on Stand (8) presets as appropriate. Ensure the center pole is positioned forward for stability. Additional securing (not supplied) may be required.

How do I avoid feedback (howling)?

Use the Antifeedback preset (6) which includes EQ designed to reduce the risk of feedback. Keep the microphone away from the speaker, reduce input gain, and orient the monitor to avoid direct acoustic coupling with the microphone.

What does the Limiter LED indicate?

The Limiter LED lights up when the internal limiter is active, indicating that the signal is being attenuated to protect the speaker. Cyclic flashing indicates a warning. If the LED stays on continuously, reduce the input volume to avoid distortion or damage.

How do I clean the speaker?

Use a soft, dry cloth to clean the cabinet and grille. Never use solvents, alcohol, or abrasive products that could damage the paint or grille. Regularly check the condition of cables and connectors.

Can I daisy chain multiple FMX15 monitors?

Yes, you can link several FMX15s using the Output/Link (XLR link OUT) of the first monitor to the input of the next. For a consistent setup, use the Coupled Monitors preset (3) which optimizes the response for group operation. Be careful not to exceed the power limits of the chain.

What safety precautions should I take?

Never open the amplifier: it contains no user-serviceable parts. Only use high-quality power and audio cables, preferably with Neutrik® connectors. Ensure the installation is stable and secure. In case of excessive overheating, the volume will be automatically reduced; if this happens, let the speaker cool down. In case of malfunction, immediately disconnect the power and contact an authorized repairer.

USER MANUAL FMX15 DB Technologies

FLEXSYS FMX10

FLEXSYS FMX12

FLEXSYS FMX15

Line drawing of three identical 3D-rendered storage or enclosure units with internal circular cutouts, shown from different angles (no text or symbols)

USER MANUAL - Section 1

The warnings in this manual must be observed together with the „USER MANUAL - Section 2“.

FCC CLASS B STATEMENT ACCORDING TO TITLE 47, CHAPTER I, SUBCHAPTER A, PART 15, SUBPART B

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

—Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

—Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to KLte the equipment.

WARNING

Make sure that the loudspeaker is securely installed in a stable position to avoid any injuries or damages to persons or properties. For safety reasons di not place one loudspeaker on top of another without proper fastenir systems. Before hanging the loudspeaker check all the components for damages, deformations, missing or damaged parts that may compromise safety during installation. If you use the loudspeakers outdoor avoid spots exposed to bad weather conditions.

Contact dBTechnologies for accessories to be used with the speakers. dBTechnologies will not accept any responsibility for damages caused by inappropriate accessories or additional devices.

ITALIANO

ENGLISH

DEUTSCH

FRANÇAIS

ESPAÑOL

INDICE

465 mm (L), 297 mm (A), 444 mm (P) [FMX12],

580 mm (L), 340 mm (A), 500 mm (P) [FMX15]

FMX MONITOR

Cod. 420120314 REV. 1.2

COPERTURA ACUSTICA

Technical line drawing of a mechanical housing or enclosure with internal components and directional arrows indicating movement (no text or symbols)

dB Technologies OPERATED & OPULATED IN ITALY 2 4 5 1 3 1 2 3 4 Main Live Monitor Playback Monitor Coupled Monitors Male Singer Female Singer Antifeedback Live on Stand Playback on Stand Power ON OFF Main Input Sens. Limiter ON/Signal EAC CE FC COMPLIANT ON/OFF OK OF SWITCH, 800Ω POWER/MPV FOR BE SENSIBLE POWER FUSE MAINS INPUT odB max Output/Link Output/Link Balanced Audio: Line Mic Input Output/Link Total Number: FMX 10 100 MHz 25

1. USCITA AUDIO ("Output/Link")

dB Technologies DESIGNO & ADVOCADO IN ITALY 6 POWER ON OFF COUNTER 350Ω OF SWITCHER INTUATION VOLTAGE SINGLE ORIANCE FUSE MAINS INPUT MALABE POWER ON SOURCE (RATING) (NOW) POWER ON SOURCE (RATING) Main Live Monitor Playback Monitor Coupled Monitors Male Singer Female Singer Antifeeback Live on Stand Playback on Stand Limiter ON/Signal o dB max The device complex will not be used for the PCB of the Operation is subject by the following: any sound signal in the device may not come from infectious interference, and 24 ms. Device must scope any interference levels, including it where it may cause under or upload other. Balanced Audio Line Mix Input Output/Link Single Number FMX 30 FMX 32 FMX 35 8 7

Line drawing of two curved storage units with internal compartments and ports (no text or symbols)

Line drawing of a portable air conditioner mounted on a tripod stand (no text or symbols)

FMX MONITOR

Cod. 420120314 REV. 1.2

CONFIGURAZIONE

PRODUCT OVERVIEW.... 19

USER REFERENCE.... 19

MECHANICAL AND ACOUSTICAL FEATURES.... 20

DIMENSIONS 20

SOUND COVERAGE.... 21

PACKAGE CONTENTS 21

FEATURES OF THE AMPLIFIER AND CONTROL SECTIONS.... 22

INPUT, OUTPUT AND CONTROL SECTION 23

POWER SUPPLY UNIT SECTION 24

2. INSTALLATION AND CONFIGURATION.... 26

INSTALLATION 26

CONFIGURATION 27

3. TROUBLESHOOTING.... 28

4. SPECIFICATIONS 29

GENERAL INFORMATION 29

ACOUSTICAL SPECIFICATIONS.... 29

AMPLIFIER.... 29

PROCESSOR.... 29

USER INTERFACE 30

INPUTS AND OUTPUTS.... 30

POWER SUPPLY SPECIFICATIONS (ABSORPTION) 30

MECHANICAL SPECIFICATIONS 31

FMX MONITOR

Code 420120314 REV. 1.2

1. GENERAL INFORMATION

WELCOME!

Thanks for purchasing a product designed and developed in Italy by dBTechnologies! These monitors are the product of a long experience in the sound reinforcement industry. They make use of optimised sound, electronic and material research solutions.

PRODUCT OVERVIEW

The FMX line, with its optimised acoustic performance over an extended frequency range, is a high-end line for stage monitors.

Its main features are:

• coaxial configuration
• enhanced versatility, offering two positions when used as a stage monitor or installed on a tripod stand as PA amplification system
• ease of handling and quick configuration thanks to presets that can be set from the amplifier panel to suit specific application

USER REFERENCE

To make the most of your VIO loudspeaker, we recommend that you:

• read the quick start user manual included in the package and this user manual thoroughly and keep this manual during the whole life of the product.
• Register your product at http://www.dbtechnologies.com under "SUPPORT".
• keep proof of purchase and WARRANTY (User manual "section 2").

FMX MONITOR Code 420120314 REV. 1.2

MECHANICAL AND ACOUSTICAL FEATURES

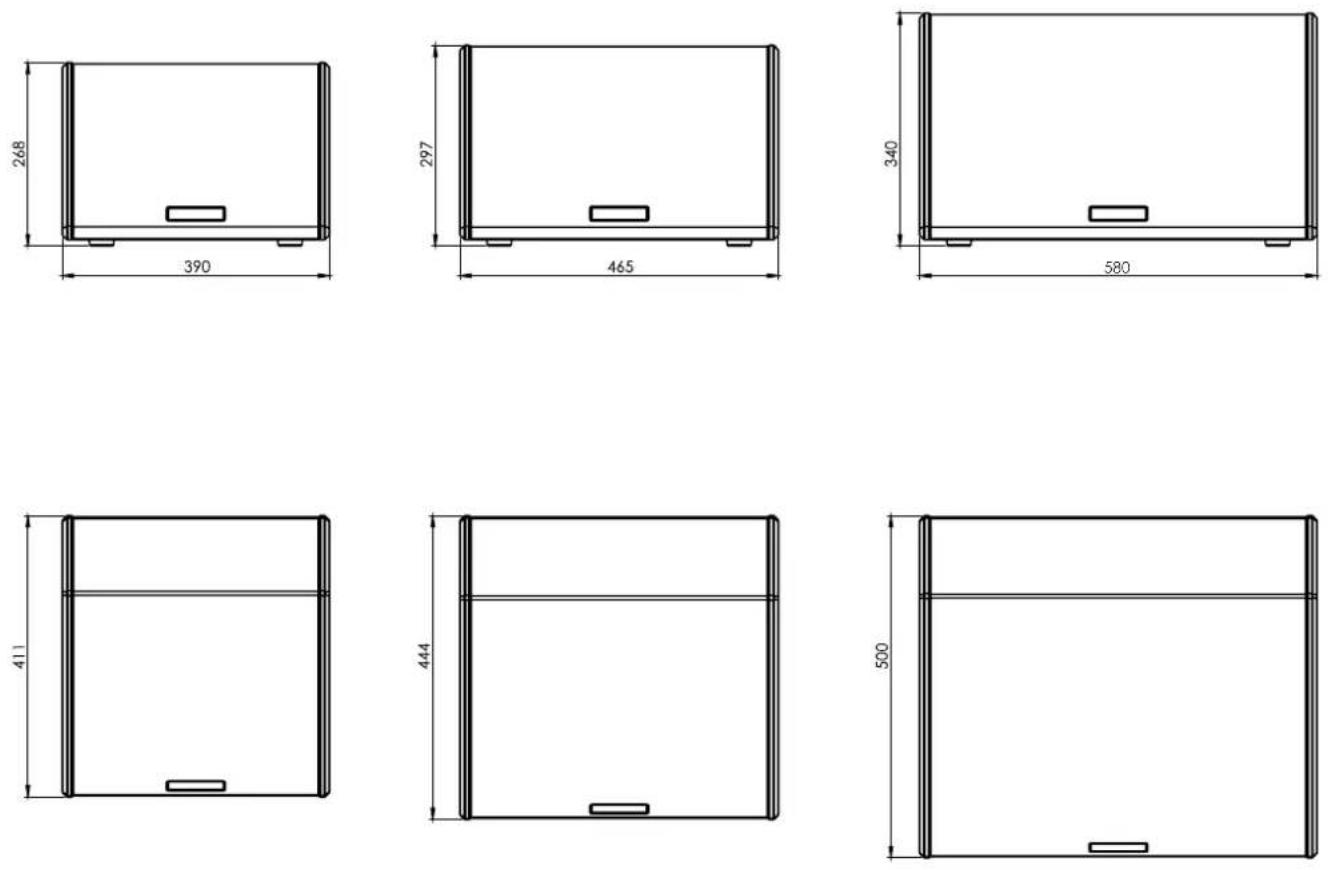

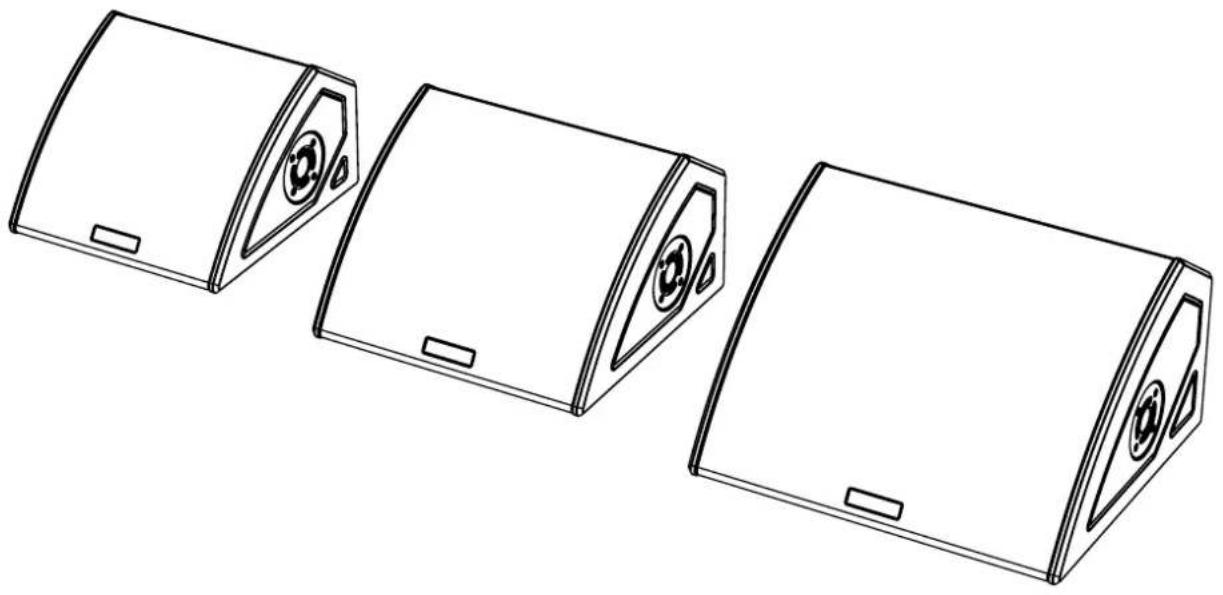

DIMENSIONS

The dimensions are:

390 mm (L), 268 mm (H), 411 mm (W) [FMX10],

465 mm (L), 297 mm (H), 444 mm (W) [FMX12],

580 mm (L), 340 mm (H), 500 mm (W) [FMX15]

FMX MONITOR

Code 420120314 REV. 1.2

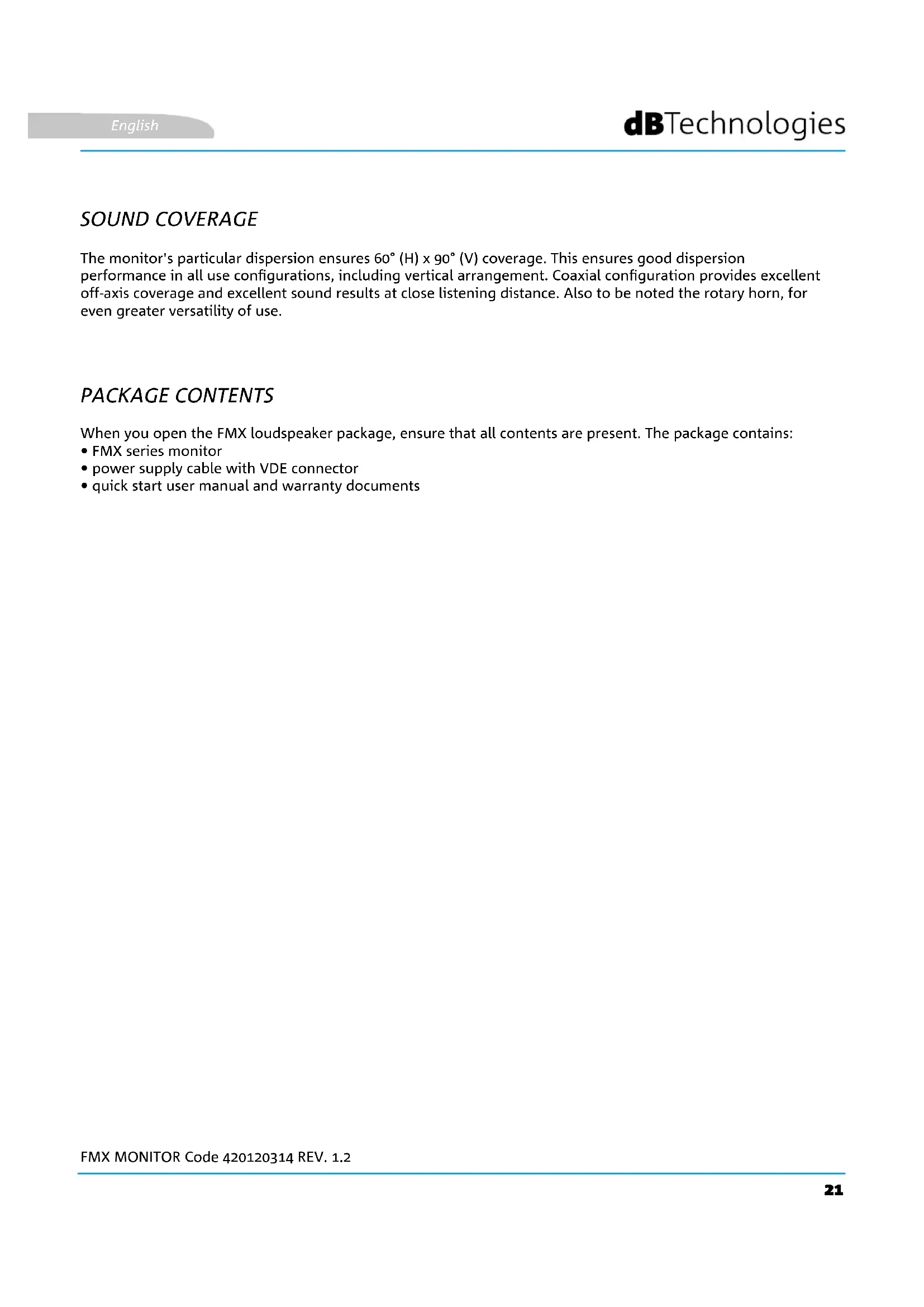

SOUND COVERAGE

The monitor's particular dispersion ensures 60^ (H) x 90^ (V) coverage. This ensures good dispersion performance in all use configurations, including vertical arrangement. Coaxial configuration provides excellent off-axis coverage and excellent sound results at close listening distance. Also to be noted the rotary horn, for even greater versatility of use.

PACKAGE CONTENTS

When you open the FMX loudspeaker package, ensure that all contents are present. The package contains:

• FMX series monitor
• power supply cable with VDE connector
- quick start user manual and warranty documents

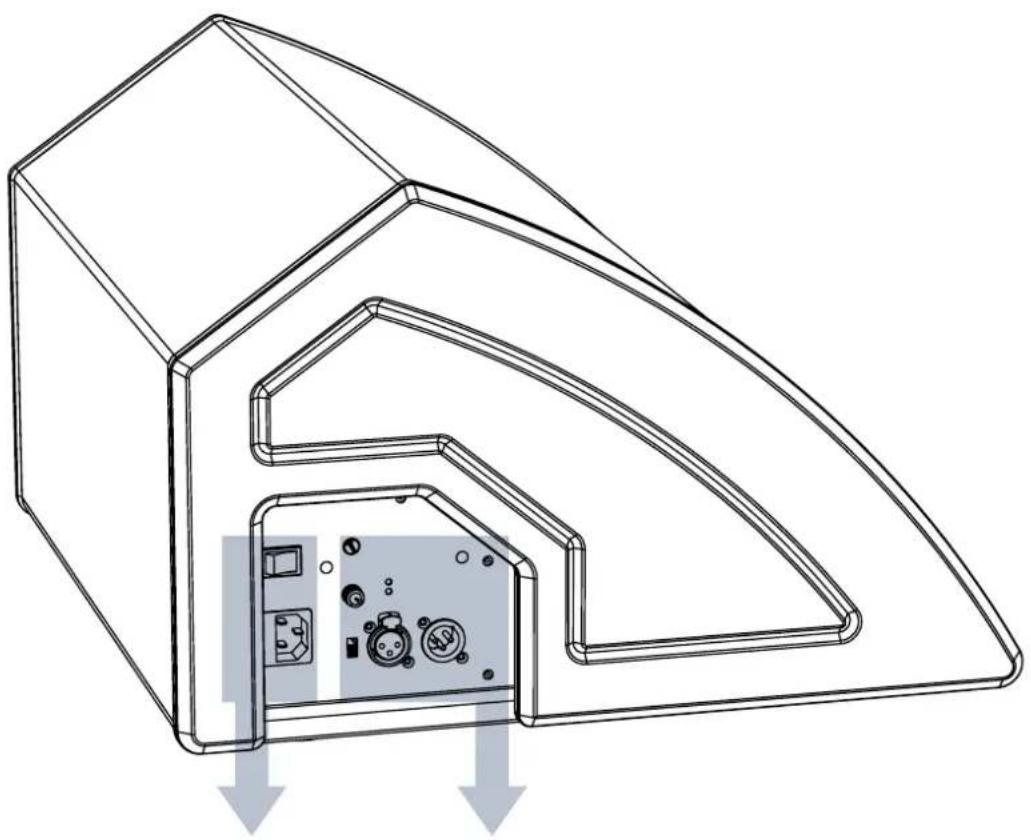

FEATURES OF THE AMPLIFIER AND CONTROL SECTIONS

The class D amplifier is the heart of the FMX monitor.

It allows delivering up to 400 W RMS [FMX 10] and 600 W RMS [FMX12-15]

The operation is silent and efficient, and does not require an active ventilation system.

System is controlled by a powerful DSP allowing an immediate and simple configuration in any context of use.

Technical line drawing of a mechanical housing or enclosure with internal components and directional arrows indicating movement (no text or symbols)

POWER SUPPLY SECTION
INPUT, OUTPUT AND CONTROL SECTION

The panel positioned on subwoofer back side is made up of:

• Input, Output and Control Section
  • Power Supply Unit Section

FMX MONITOR

Code 420120314 REV. 1.2

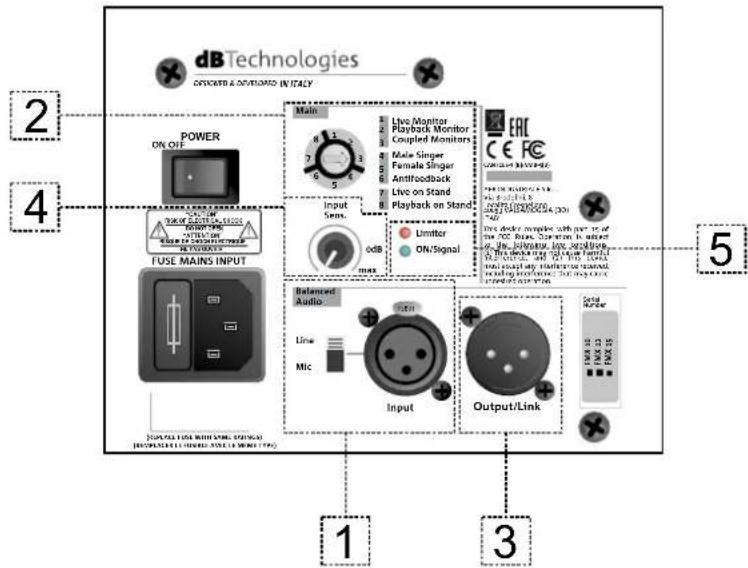

INPUT, OUTPUT AND CONTROL SECTION

1. AUDIO INPUT ("Balanced audio Input") with Mic/Line input selector. Input compatible with balanced XLR cables. Used for the input connection of the audio signal coming from the mixer (selector set to "Line") or from a microphone (selector set to "Mic").

2. MAIN PRESET Rotary switches to set the presets based on application and context of use.

3. AUDIO OUTPUT ("Output/Link") Connector compatible with balanced cables with XLR connectors. It is used for the output connection, both directly and with the link to another monitor (Link).

4. INPUT SENSITIVITY It allows adjusting the input sensitivity. Before starting monitor and system configuration, set at 0 dB.

5. STATUS LEDs ("Status") LEDs relating to module operation. Limiter: lights up in case of activation, and possibly provides a warning signal - to be checked - with cyclic flashing. ON/Signal: it lights up discontinuously/continuously signalling the presence of an input signal.

FMX MONITOR Code 420120314 REV. 1.2

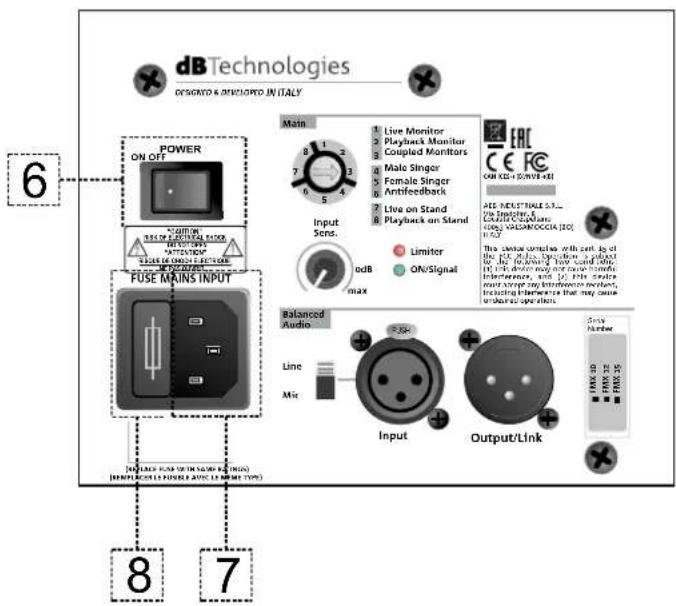

POWER SUPPLY UNIT SECTION

dB Technologies DESIGNO & ADVOCADO IN ITALY 6 POWER ON OFF COUNTER 350Ω OF SWITCHER INTUATION VOLTAGE SINGLE ORIANCE FUSE MAINS INPUT Main Live Monitor Playback Monitor Coupled Monitors Male Singer Female Singer Antifeeback Live on Stand Playback on Stand Input Sons. odB max Limiter ON/Signal The device consists with port, sp. of the PCB of the Operation set by the following: type 12.1.1.1.2.1.3.1.4.1.5.1.6.1.7.1.8.1.9.2.1.3.4.1.5.6.1.7.1.8.1.9.2.1.3.4.1.5.6.1.7.1.8.1.9.2.1.3.4.1.5.6.1.7.1.8.1.9.2.1.3.4.1.5.6.1.7.1.8.1.9.2.1.3.3 Balanced Audio Line Mix Input Output/Link Score Number FMX 30 FMX 32 FMX 35

1. POWER OFF

On/off switch.

1. VDE SOCKET

It allows the insertion of the cable with VDE connector.

1. FUSE HOUSING

Housing for the fuse.

WARNING!

• The connectors of this section are also used as power switches.
• Do not obstruct the rear heat sinks of the amplifier. If the module heats up excessively, the audio volume is gradually reduced until the module is thermally stabilized. The audio is automatically restored when the normal operating temperature is reached.
• In the event of a malfunction, remove power supply immediately and disconnect the module from the power mains. Contact an authorised repair centre.
• Never attempt to disassemble the amplifier in any way.
• Only use cables with original, high quality Neutrik® connectors. Periodically check their integrity.

FMX MONITOR

Code 420120314 REV. 1.2

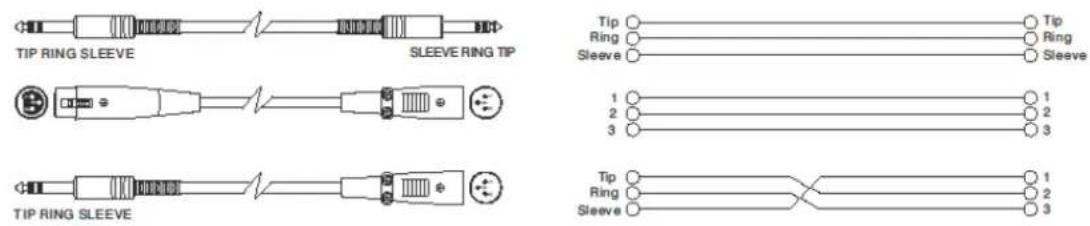

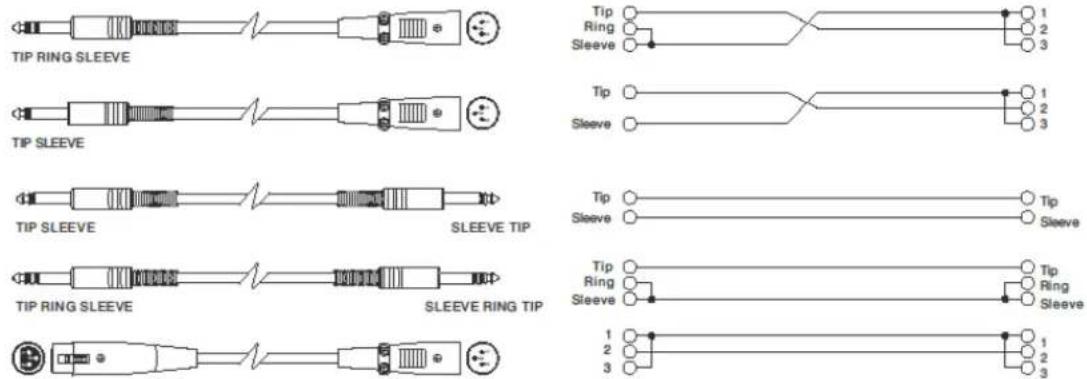

• Balanced

• Unbalanced


2. INSTALLATION AND CONFIGURATION

WARNING!

The product and accessories must be handled by experienced personnel only! Make sure that the installation is positioned in a stable and safe manner in order to avoid hazardous conditions for people, animals and/or objects.

The user is required to follow regulations and mandatory laws on safety of the country in which the product is used. For safe use, regularly check the operation of all parts and integrity before use.

Design, calculations, installation, testing and maintenance of suspended systems or professional audio stacks must be performed by authorised personnel only. AEB Industriale is not responsible for improper installations, non-compliant with safety requirements.

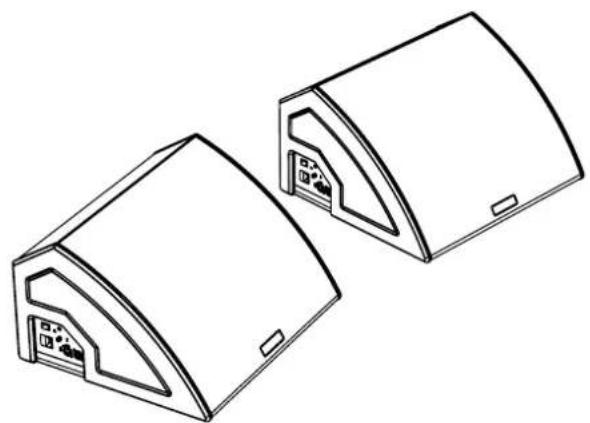

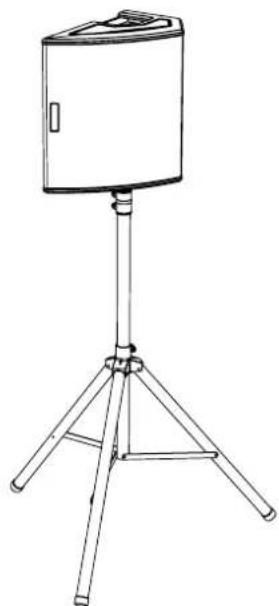

INSTALLATION

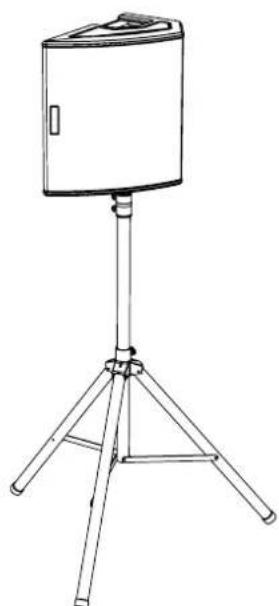

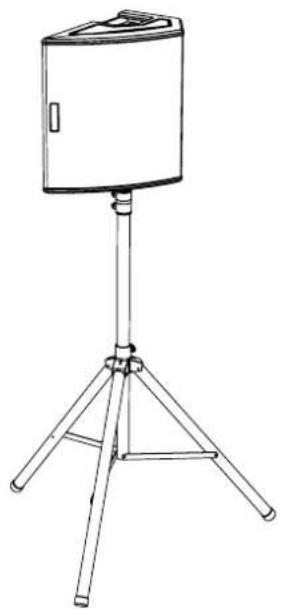

Monitor conventional floor installation is extended by the possibility of vertical configuration on a tripod stand. In the latter case, please ensure that the central foot is positioned forwards. For this type of installation, use an additional fastener (not supplied).

Line drawing of two curved storage units with internal compartments and ports (no text or symbols)

Line drawing of a portable air conditioner stand with tripod base (no text or symbols)

FMX MONITOR

Code 420120314 REV. 1.2

CONFIGURATION

The possible DSP configurations are:

1 Live Monitor, for the traditional live use on stage
2 Playback Monitor, for a music program playback
3 Coupled Monitors, to use several monitors at the same time
4 Male Singer, for the reproduction of male singing
5 Female Singer, for the reproduction of female singing
6 Antifeedback, with equalisation designed to prevent the Larsen effect
7 Live on Stand, for live use in stand configuration (vertical)
8 Playback on Stand, for a music program playback in stand configuration

Main

Input Sens.

1 Live Monitor
2 Playback Monitor
3 Coupled Monitors
4 Male Singer
5 Female Singer
6 Antifeedback
7 Live on Stand
8 Playback on Stand

3. TROUBLESHOOTING

The monitor does not turn on:

1. Check that power supply is present upstream of the installation.

The monitor turns on but produces no sound:

1. Check that the audio signal input connections or the audio signal re-links are properly carried out.
2. Check that the Input Sensitivity is set to 0 dB.
3. Check that the audio source (mixer) is properly connected and active.

4. SPECIFICATIONS

GENERAL INFORMATION

Type:

Active coaxial monitor

ACOUSTICAL SPECIFICATIONS

Frequency response [- 6 dB]: 65 - 16.5 kHz [10] / 56 - 15.5 kHz [12] / 50 - 15.5 kHz [15]

Frequency response [- 10 dB]: 57 - 19 kHz [10] / 52 - 19 kHz [12] / 46 - 19 kHz [15]

Max SPL (1 m): 125 dB [10] / 128 dB [12-15]

HF: 1” (V.C.: 1”) [10] / 1” (V.C.: 1.3”) [12-15] -

LF: 10” - 12” - 15” (V.C.: 2”)

Crossover frequency: 1800 Hz [10] - 1740 Hz [12-15]

Coverage: 60^ × 90^

AMPLIFIER

Amplification class: Class D
Amplification power (Peak) 800 W [10] - 1200 W [12-15]
Amplification power (RMS): 400 W [10] - 600 W [12-15]
Cooling technique: Convection

PROCESSOR

Internal controller: DSP 28/56 bit 48 kHz
Limiter: Peak, RMS, Thermal

FMX MONITOR Code 420120314 REV. 1.2

USER INTERFACE

Indicator LEDs:	Limiter, Signal, Mute/prot, Ready
Controls Sensitivity / Preset / Line-Mic switch

INPUTS AND OUTPUTS

Power supply inputs: VDE
Audio inputs: 1x XLR IN balanced (insulation: Floating ADC)
Audio outputs: 1x XLR link OUT balanced, HPF Xover audio

POWER SUPPLY SPECIFICATIONS (ABSORPTION)

Absorption at 1/3rd of power in maximum use conditions (**):

0.8 A (220-240V~) - 1.4 A (100-120V~) [10] / 1.2 A (220-240V~) - 2 A (100-120V~) [12-15]

** NOTE FOR INSTALLER: Values refer to 1/3rd of power, under heavy operating conditions (music programme with frequent clipping and limiter activation). In case of professional installations and tours we recommend sizing according to these values.

FMX MONITOR

Code 420120314 REV. 1.2

MECHANICAL SPECIFICATIONS

Material: cabinet made from painted plywood
Grille: full metal - CNC machining
Handles: integrated

Width: 390 mm [10] - 465 mm [12] - 580 mm [15]

Height: 268 mm [10] - 297 mm [12] - 340 mm [15]

Depth: 411 mm [10] - 444 mm [12] - 500 mm [15]

Weight: 11.3 kg - 13.9 kg - 16.9 kg

Product features, specifications and appearance are subject to changes without prior notice. dBTechnologies reserves the right to make changes or improvements in design or manufacture without any obligation to incorporate such changes or improvements in previously manufactured products.

AEB

A.E.B. Industriale Srl

Via Brodolini, 8

465 mm (L), 297 mm (A), 444 mm (P) [FMX12],

580 mm (L), 340 mm (A), 500 mm (P) [FMX15]

FMX MONITOR

Technical line drawing of a mechanical housing or enclosure with internal components and directional arrows indicating movement (no text or symbols)

dB Technologies OPERATED & OPULATED IN ITALY 2 4 5 1 3 1 2 3 4 Main Live Monitor Playback Monitor Coupled Monitors Male Singer Female Singer Antifeedback Live on Stand Playback on Stand Power ON OFF Main Input Sens. Limiter ON/Signal EAC CE FC COMPLIANT ON/OFF OK OF SWITCH, 800Ω POWER/MPV FOR BE SENSIBLE POWER/ FUSE MAINS INPUT odB max Output/Link Output/Link Balanced Audio: Line Mic Input Output/Link Total Number: FMX 10 100 MHz FMX 25

dB Technologies DESIGNO & ADVOCADO IN ITALY 6 POWER ON OFF COUNTER 350Ω OF CONTROL FLOOR INTUATION VOLTAGE SINGLE ORIANCE FUSE MAINS INPUT Main Live Monitor Playback Monitor Coupled Monitors Male Singer Female Singer Antifeeback Live on Stand Playback on Stand Input Sons. odB max Limiter ON/Signal The circuit consists with pin, up of the PCB of the Operation is subject by the following: new sound block in link device only may cause harmful interference, and IUI. This device must scope any manufacturer orders, including it where it may cause under or up others. Balanced Audio Line Mix Input Output/Link Score Number FMX 30 FMX 32 FMX 35 8 7

Line drawing of two curved storage units with internal components, no text or symbols present

Line drawing of a portable air conditioner stand with tripod base (no text or symbols)

FMX MONITOR

DONNÉES ACOUSTIQUES 57

AMPLIFICATEUR 57

PROCESSEUR 57

INTERFACE UTILISATEUR 58

ENTRÉES ET SORTIES.... 58

SPÉCIFICATIONS D'ALIMENTATION (ABSORPTION) 58

SPÉCIFICATIONS MÉCANIQUES 59

MONITEURS FMX

Code 420120314 RÉV. 1.2

1. INFORMATIONS GÉNÉRALES

BIENVENUS!

Technical line drawing of a mechanical housing or enclosure with internal components and directional arrows indicating movement (no text or symbols)

SECTION ALIMENTATION
SECTION D'ENTRÉE, SORTIE ET CONTRÔLE

dB Technologies DESIGNO & ADVOCADO IN ITALY 6 POWER ON OFF COUNTER 350Ω OF CONTROL FLOOR INTUATION VOLTAGE SINGLE ORIANCE FUSE MAINS INPUT Main Live Monitor Playback Monitor Coupled Monitors Male Singer Female Singer Antifeeback Live on Stand Playback on Stand Input Sons. odB max Limiter ON/Signal The device consists with port, up of the PCB of the Operation set. The device is also used by the following: type 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 100 Balanced Audio Line Mix Input Output/Link Score Number FMX-30 FMX-32 FMX-35

6. COUPURE D'ALIMENTATION

Line drawing of two curved storage units with internal components, no text or symbols present

Line drawing of a portable air conditioner stand with tripod base (no text or symbols)

MONITEURS FMX

Code 420120314 RÉV. 1.2

CONFIGURATION

SPÉCIFICATIONS D'ALIMENTATION (ABSORPTION)

465 mm (L), 297 mm (A), 444 mm (P) [FMX12],

580 mm (L), 340 mm (A), 500 mm (P) [FMX15]

MONITOR FMX

Cód. 420120314 REV. 1.2

COBERTURA DEL SONIDO

Technical line drawing of a mechanical housing or enclosure with internal components and directional arrows indicating movement (no text or symbols)

dB Technologies OPERATED & OPULATED IN ITALY 2 4 5 1 3 1 2 3 4 Main Live Monitor Playback Monitor Coupled Monitors Male Singer Female Singer Antifeedback Live on Stand Playback on Stand Power ON OFF Main Input Sens. Limiter ON/Signal EAC CE FC Cable Sounder (0.01) On Signal (0.01) On Signal (0.01) On Signal (0.01) On Signal (0.01) On Signal (0.01) On Signal (0.01) On Signal (0.01) On Signal (0.01) On Signal (0.01) On Signal (0.01) On Signal (0.01) On Signal (0.01) On Signal (0.1) On Signal (0.1) On Signal (0.1) On Signal (0.1) On Signal (0.1) On Signal (0.1) On Signal (0.1) On Signal (0.1) On Signal (0.1) On Signal (0.1) On Signal (0.1) On Signal (0.1) On Signal (0.1) On Signal (0.1) On Signal (0.1)

1. ENTRADA AUDIO ("Balanced audio Input") con selector de entrada Mic/Line.

dB Technologies DESIGNO & ADVOCADO IN ITALY 6 POWER ON OFF COUNTER 350Ω OF CONTROL FLOOR INTUATION VOLTAGE SINGLE ORIANCE FUSE MAINS INPUT Main Live Monitor Playback Monitor Coupled Monitors Male Singer Female Singer Antifeeback Live on Stand Playback on Stand Input Sons. odB max Limiter ON/Signal The device contains all ports, so of the PCB of the Operation is subject to the following: they are only one or more functional intersections, and 12% of this device must scope any overhead ports, including their use as may cause under or up others. Balanced Audio Line Mix Input Output/Link Score Number FMX 30 FMX 32 FMX 35 8 7

Line drawing of two curved storage units with internal components, no text or symbols present

Line drawing of a portable air conditioner stand with tripod base (no text or symbols)

MONITOR FMX

Cód. 420120314 REV. 1.2

CONFIGURACIÓN
