TV 411 - Measuring equipment Testboy - Free user manual and instructions

Product type	Non-contact rotating field and rotation tester
Brand	Testboy
Model	TV 411
Category	Measuring equipment
Dimensions (L × W × H)	110 × 70 × 30 mm
Weight	220 g (with battery)
Power supply	2 AA (Mignon) 1.5 V batteries
Main functions	Phase checking, rotating field check, rotation test
Test voltage	70 – 600 V AC, 50 – 60 Hz
Length of test leads	Approx. 500 mm
Maximum conductor cross-section	220 mm²
Operating temperature	-10 °C to +55 °C, relative humidity <80% (non-condensing)
Storage temperature	-20 °C to +60 °C, relative humidity <90% (without battery)
Measurement category	CAT III 600 V
Safety standards	EN 61010-1, EN 61010-31
Warranty	5 years (upon presentation of invoice)
Battery types	2 × AA (Mignon) 1.5 V
Included accessories	Colored insulated alligator clips (red, yellow, green)
Maintenance	Clean the housing with a damp cloth, without cleaning agent. Do not use abrasive cleaners or solvents.
Battery replacement	Open the compartment with a size 1 Phillips screwdriver and replace the Mignon (AA) cells.
Application areas	Repair work on motor installations, determination of rotation direction of motor shafts
LED indicators	Phase (A, B, C), rotation direction (L/R), availability

Frequently Asked Questions - TV 411 Testboy

How to turn the Testboy TV 411 on and off?

Briefly press the ON button to turn on the device; the availability LED (3) lights up. To turn off, briefly press the OFF button; the LED goes out.

What is the test voltage range?

The device detects an AC voltage between 70 and 600 V at a frequency of 50-60 Hz.

How to use the rotating field tester?

Connect the non-contact clips in order red (A), yellow (B), green (C) to conductors L1, L2, L3. The direction of the rotating field is indicated by the LEDs: L for left rotating field, R for right.

Can the rotation direction of a motor be tested without contact?

Yes, hold the tester directly on the motor housing, aligning the shaft outlet with the stylized symbol. The LEDs indicate the rotation direction of the motor shaft.

How to replace the battery?

Unscrew the Phillips screw under the battery compartment with a size 1 Phillips screwdriver, open the cover and replace the batteries with two AA (Mignon) 1.5 V batteries.

What are the important safety instructions?

Avoid using the device near welding stations or electromagnetic fields. Do not expose it to high temperatures, humidity or dust. Keep it out of reach of children.

How to clean the device?

Clean the housing regularly with a damp cloth without cleaning agent. Never use abrasive, scouring products or solvents to avoid damaging the device.

What to do in case of non-contact voltage detection without visible contact?

The phase LEDs may light up when clips are near conductive lines or electrostatic parts. This is not a defect, but due to the non-contact measurement process.

What is the measurement category and the standards complied with?

The device is classified CAT III 600 V and complies with standards EN 61010-1 and EN 61010-31.

What is the warranty period?

The warranty is 5 years upon presentation of the invoice, covering manufacturing and material defects, provided the device has not been opened or modified.

USER MANUAL TV 411 Testboy

A B C M SENSOR SENSOR OFF ON

Testboy® TV 411

Version 1.1

Testboy ^® TV 411 3

Bedienungsanleitung

Testboy® TV 411 11

Operating instructions

Testboy® TV 411 19

A B C L SENSOR M R SENSOR OFF ON 2 3

Gerät Einschalten

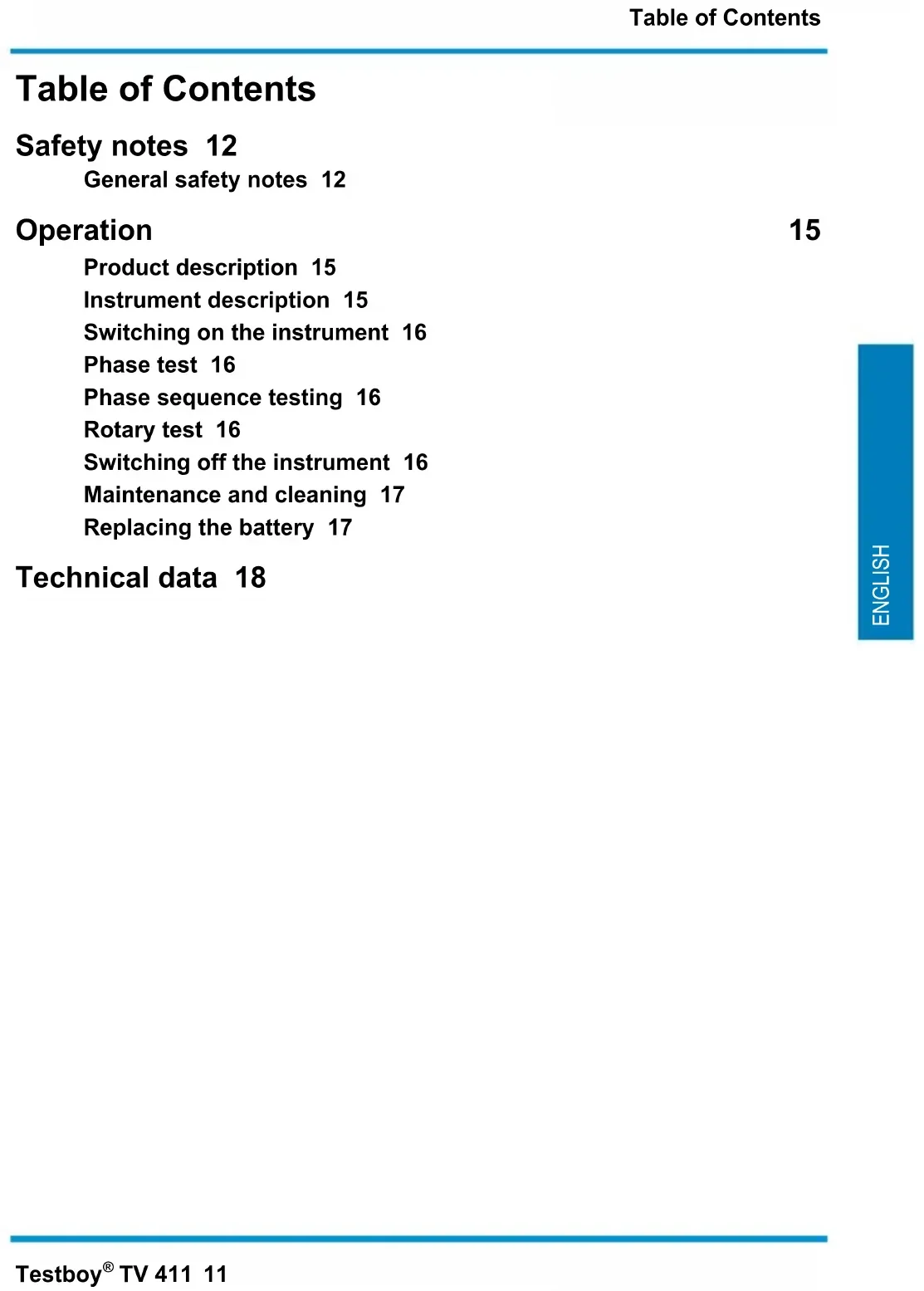

General safety notes 12

Operation

15

Product description 15

Instrument description 15

Switching on the instrument 16

Phase test 16

Phase sequence testing 16

Rotary test 16

Switching off the instrument 16

Maintenance and cleaning 17

Replacing the battery 17

Technical data 18

Safety notes

WARNING

Sources of danger are mechanical parts, for example, which can cause serious personal injury.

Objects are also at risk (e.g. damage to the instrument).

WARNING

An electric shock can result in death or serious personal injury, and also functional damage to objects (e.g. damage to the instrument).

General safety notes

WARNING

Unauthorised modification and/or changes to the instrument are not permitted, for reasons of safety and approval (CE). In order to ensure safe and reliable operation using the instrument, you must always observe the safety instructions, warnings and the information contained in the section "Intended use".

WARNING

Please observe the following information before using the instrument:

Do not operate the instrument anywhere near electrical welders, induction heaters or other electromagnetic fields.
Do not expose the instrument to high temperatures for a long period of time.
Avoid dusty and humid environments.
Measuring instruments and their accessories are not toys, and must be kept out of the reach of children!
In industrial facilities, the accident prevention regulations for electrical systems and equipment, established by the employer's liability insurance association, must be observed.

Intended use

The instrument is intended strictly for use in applications described in the operating instructions. Any other usage is considered improper and forbidden, and can result in accidents or the destruction of the instrument. Any such application will result in the immediate expiry of all guarantee and warranty claims on the part of the operator against the manufacturer.

Remove the batteries if the instrument is not in use for a long period of time, in order to protect the instrument from damage.

We assume no liability for damages to property or personal injury caused by improper handling or failure to observe the safety instructions. Any warranty claim expires in such cases. An exclamation mark in a triangle indicates safety notices in the operating instructions. Read the instructions completely before beginning the initial commissioning. This instrument is CE-approved and thus fulfils the required guidelines.

All rights reserved to alter specifications without prior notice.

© 2015 Testboy GmbH, Germany.

Disclaimer

The warranty claim expires in cases of damages caused by failure to observe the instructions! We assume no liability for any resulting damage!

Testboy is not responsible for damage resulting from

failure to observe the instructions
changes to the product that have not been approved by Testboy or
the use of spare parts that have not been manufactured or approved by Testboy
the use of alcohol, drugs or medication.

Accuracy of the operating instructions

These operating instructions have been compiled with due care and attention. No guarantee is given that the data, illustrations and drawings are complete or correct. All rights reserved with regard to changes, printing mistakes and errors.

Disposal

Dear Testboy customer: purchasing our product gives you the option of returning the instrument to suitable collection points for waste electrical equipment at the end of its lifespan.

The WEEE Directive (2002/96/EC) regulates the return and recycling of waste electrical and electronics equipment. As of 13.08.2005, manufacturers of electrical and electronics equipment are obliged to take back and recycle any electrical instruments sold after this date free of charge. After that date, electrical instruments must no longer be disposed of through the "normal" waste disposal channels. Electrical instruments must be recycled and disposed of separately. All instruments that fall under this directive must feature this logo.

Disposal of used batteries

As an end user, you are legally obliged (battery law) to return all used batteries; disposal with normal domestic waste is prohibited!

Batteries containing contaminant material are labelled with adjacent symbols indicating the prohibition of disposal with normal domestic waste.

The abbreviations used for the respective heavy metals are:

Cd = cadmium, Hg = mercury, Pb = lead.

You can return your used batteries free of charge to collection points in your community or anywhere where batteries are sold!

5-year warranty

Testboy instruments are subject to strict quality control standards. If, during the course of normal daily use, a fault should occur, we provide a 5-year warranty (valid only with invoice). We will repair production or material defects free of charge upon return, provided the instrument has not been tampered with and is returned to us unopened. Damages resulting from dropping or improper handling are not covered by the warranty.

Please contact:

Testboy GmbH Tel: [phone]

Certificate of quality

All activities and processes carried out within Testboy GmbH relating to quality are monitored permanently within the framework of a Quality Management System. Furthermore, Testboy GmbH confirms that the testing equipment and instruments used during the calibration process are subject to a permanent inspection process.

Declaration of conformity

The product conforms to the actual directives. For more detailed information go to www.testboy.de

Operation

Thank you for purchasing the Testboy® TV 411.

The Testboy® TV 411 has been constructed in accordance with current state-of-the-art technology. The instrument conforms to the current standards and the requirements of the applicable European and national directives.

Have fun with your new Testboy® TV 411!

Product description

The non-contact rotating field and rotary tester TV 411 indicates the direction of rotation in relation to the phase sequence of the external conductor and is particularly suitable for service tasks in engine installations.

Non-contact measurement with the coloured insulated terminals accelerates the service application and minimizes the risk of contacting energized electrically active conductors.

The integrated rotary tester can also be used to determine the direction of rotation of an engine shaft with no contact.

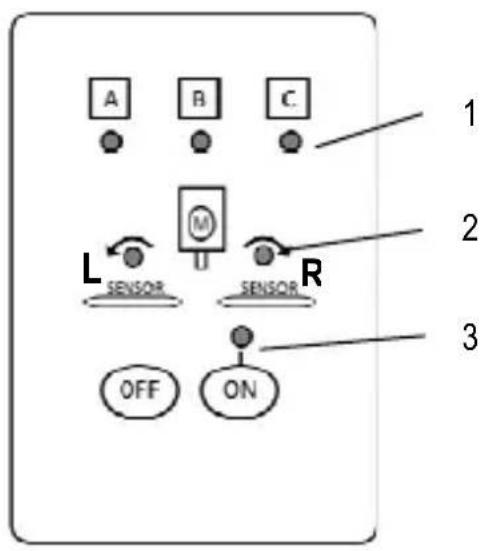

Instrument description

1 Phase indicator
2 Rotation direction indicator
3 Standby indicator

A B C 1 2 L M R SENSOR SENSOR 3 OFF ON

Switching on the instrument

To switch on the instrument, briefly press the ON button. The standby LED (3) stays lit once the instrument is switched on.

Phase test

The status LEDs (1) light up when an AC voltage between 70 and 600 V is detected at the respective connection A, B or C.

In some circumstances these light up when the test terminals are close to live conductors or electrostatically charged parts.

This is not an instrument defect, but is due to the non-contact measurement procedure.

Phase sequence testing

To test the direction of the rotating field (right or left) in relation to the phase sequence L1, L2 and L3, connect the non-contact terminals in the sequence red, yellow and green (A, B and C) to the respective external conductors.

The terminals can be connected directly via the insulated single conductors, with no need for any electrical contact with the connection cable. The arrow "▼" on the terminal should be located above the centre of the conductor.

The direction of the rotating field is indicated via the LEDs of the rotation direction indicator (2):

L= left rotating field R= right rotating field

Rotary test

To test the direction of rotation of an invisible engine shaft (e.g. in pumps or flange-mounted gearboxes), hold the Testboy® TV 411 directly on the housing of the electric motor.

Ensure that the output shaft is aligned with the symbol stylized to resemble the tester.

While the engine is running, the LEDs of the rotation direction indicator (2) now indicate the direction of rotation of the engine shaft.

Switching off the instrument

To switch off the instrument, briefly press the OFF button. The standby LED (3) goes out when the tester is switched off.

Maintenance and cleaning

To prevent electric shocks, do not allow moisture to ingress the housing.

Use a dry cloth, without cleaning agent, to clean the housing at regular intervals. Do not use any abrasive or scouring agents, or solvents.

Replacing the battery

To open the battery compartment on the bottom of the instrument, undo the Phillips screw with a Phillips screwdriver size 1. The lid can now be opened and the AA batteries replaced.

If the instrument is not going to be used for a long period of time, the batteries should be removed and the tester kept in an environment that is not too humid or too hot.

Do not leave any spent batteries in the measurement instrument, because even leak-proof batteries can corrode and, as a result, release chemicals that could damage your health and destroy the instrument.

Batteries must not be disposed of with normal domestic waste. There will be a collection point near you!

Technical data

Test voltage 70 – 600 V AC, 50 – 60 Hz
Test cable length approx. 500 mm
Max. conductor cross-section 220 mm^2
Operating temperature -10 - +55 °C, < 80 % relative humidity, non-condensing
Storage temperature -20 - +60 °C, < 90 % relative humidity, without batteries
Power supply 2 x 1.5 V AA batteries
Dimensions 110 x 70 x 30 mm
Weight 220 g including batteries
Measurement category CAT III 600 V
Standard EN 61010-1, EN 61010-31
