Product type	8-channel analog mixing console
Brand	Vonyx
Model	AM8A
Power supply	220-240 V~, 50 Hz
Power consumption	Approx. 30 W
Dimensions (approx)	350 x 300 x 100 mm
Weight (approx)	3.5 kg
Number of channels	8 channels
Microphone inputs	8 × XLR with +48 V phantom power
Line inputs	8 × 6.35 mm balanced jack
Additional inputs	USB, SD, Bluetooth (streaming)
Main outputs	Left / Right (XLR or jack)
Speaker outputs	2 × 6.35 mm jack (L/R)
Headphone output	6.35 mm jack
Recording output	Record connector (RCA or jack type)
Effects loop	Send / Return (EFX)
Per-channel EQ	3-band: HI (treble) and LOW (bass)
Graphic equalizer	Stereo 2 × 5-band
Internal effects	DSP with Echo and Repeat control
Monitoring functions	PFL, Peak LED, VU-meter
Faders	8 channel faders + 2 master faders (L/R)
Maintenance	Dry cloth, no chemicals
Repairability	Only by a qualified technician
Safety	Fuse 10-16 A, grounding, do not open

Frequently Asked Questions - AM8A Vonyx

How to connect a microphone to the mixing console?

Connect the microphone to an XLR input (MIC socket). Use a balanced XLR cable. If using a condenser microphone, activate the +48V phantom power via the PHANTOM switch on the rear panel. Adjust the channel GAIN for optimal level.

How to use the Bluetooth function?

Press the USB/SD button once to display 'BT' on the screen. The mixing console becomes visible to mobile devices. Enable Bluetooth on your smartphone or tablet and search for 'Vonyx AM8A' (or the displayed name). Connect. Volume is adjusted with the VOLUME MP3/AUX knob.

How to adjust the echo effect?

Use the REPETITION knob to adjust the echo repetition rate. Set the EFFECT LEVEL for effect volume. Press DSP to select the effect type (original, multi, etc.). The EFF control on each channel determines the amount of effect applied to that channel.

What is phantom power and when to use it?

The phantom power sends +48V voltage over XLR cables to power condenser microphones. Activate the PHANTOM switch only if using this type of mic. Do not activate with dynamic mics; it does not damage them but is unnecessary.

How to record a session?

Use the RECORD connector on the rear to connect a recording device (recorder, computer). Connect an RCA or jack cable depending on your device. The output level is that of the Main Mix.

How to connect passive speakers?

Connect the speakers to the SPEAKER OUTPUT sockets (6.35 mm jacks) marked LEFT and RIGHT. Ensure the speaker impedance is compatible with the built-in amplifier (check the manual). Use appropriate speaker cables.

What to do if the sound is clipped or distorted?

Check the GAIN setting of each channel: reduce it if the PEAK LED lights up. Lower the volume on the channel faders or Master faders. Ensure the equalizer does not boost certain frequencies too much. Avoid overloading the line input.

How to clean the mixing console?

Unplug the device from the mains. Use a dry soft cloth to wipe the surface. Never use chemicals, sprays, or liquids, as they may damage the controls and circuits.

What does the PEAK LED on a channel mean?

The PEAK LED indicates that the input signal level is too high and may cause distortion. If the LED lights, reduce the GAIN of that channel to avoid distortion.

What to do in case of humming or parasitic noise?

Check that all cables are properly connected and in good condition. Ensure the table is connected to ground. Keep audio cables away from power cables. Use balanced cables for long distances. Turn off unnecessary nearby devices.

USER MANUAL AM8A Vonyx

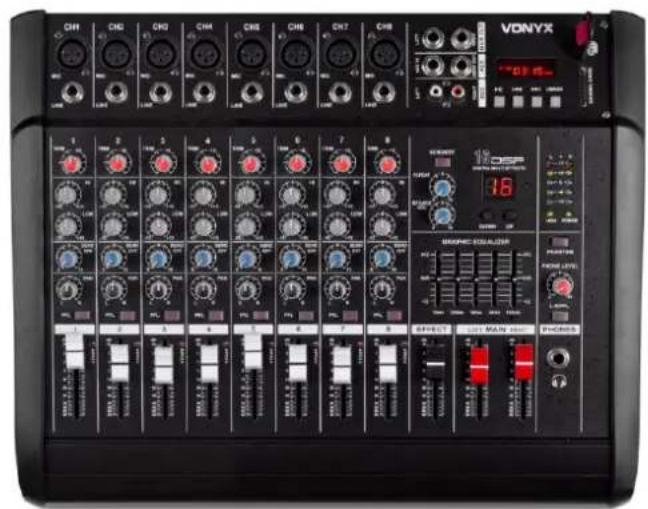

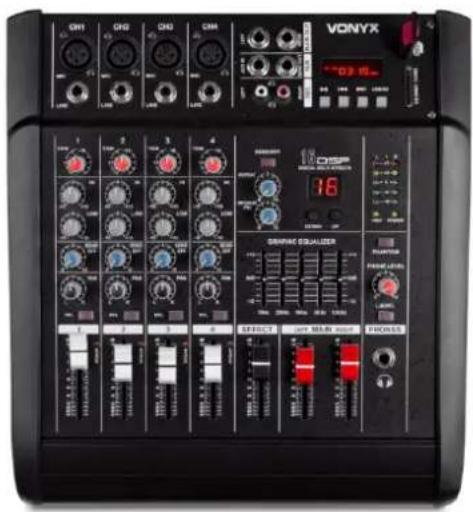

AM Series Amplified Mixer

Ref. nr.: 172.573; 172.574

INSTRUCTION MANUAL GEBRUIKSAANWIJZING GEBRAUCHSANLEITUNG MANUAL DE INSTRUCCIONES MANUEL D'INSTRUCTIONS INSTRUKCJA OBSŁUGI

V1.2

ENGLISH

Congratulations to the purchase of this Vonyx product. Please read this manual thoroughly prior to using the product in order to benefit fully from all features.

Read the manual prior to using the product. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the product, please ask advice from a specialist. When the product is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The product contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the product. This may cause electrical shock and malfunction.
• Do not place the product near heat sources such as radiators, etc. Do not place the product on a vibrating surface. Do not cover the ventilation holes.
• The product is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the product from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the product with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the product is damaged to such an extent that internal parts are visible, do NOT plug the product into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the product to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the product to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the product to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the product will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the product has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the product in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Do not repeatedly switch the product on and off. This shortens the life time.

• Keep the product out of the reach of children. Do not leave the product unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• If this product is with speaker inside which can cause magnetic field. Keep the product at least 60cm away from computer or TV.
• If this product have a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the product for a long period of time. Otherwise the battery may be permanently damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the product has fallen, always have it checked by a qualified technician before you switch the product on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the product with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the product off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the product.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this product.
• Keep the original packing material so that you can transport the product in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The product has been certified CE. It is prohibited to make any changes to the product. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the product will function normally, it must be used in rooms with a temperature between 5°C/41°F and 35°C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the product. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Vonyx cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Carefully unpack the box upon receipt. Check the contents to ensure that all parts are present and have been received in good condition. Notify the shipper immediately and retain packaging material if any parts appear damaged from shipping or the package itself shows signs of mishandling. Save the package and all packaging materials. If the product must be returned, it is important that the product is returned in the original factory box and packaging.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

POWERSUPPLY

On the label on the backside of the product is indicated on this type of power supply must be connected. Check that the mains voltage corresponds to this, all other voltages than specified, the light effect can be irreparably damaged. The product must also be directly connected to the mains and may be used. No dimmer or adjustable power supply.

Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate electrical ground to avoid the risk of electrocution or fire.

CONTROL ELEMENTS

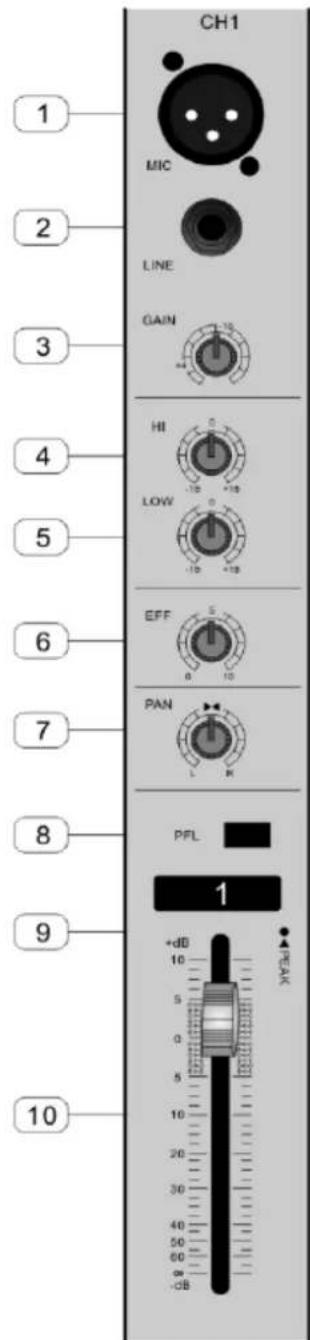

1. BALANCE MICROPHONE INPUT

Balanced XLR input jacks.

2. LINE INPUT

Balanced 6.3mm (1/4") jack line inputs. You can connect either balanced or unbalanced phone plugs to these jacks.

3. GAIN

Adjusts the input signal level.

4. HI EQ

Adjust the high tone each channel.

5. LOW EQ

Adjust the low tone each channel.

6. EFFECT

Use this control to set the effect level you want to achieve. The EFF control adjusts the input signal to give you a desired effect.

7. PAN

The PAN control determines the position of the channel signal within the stereo image. When working with subgroups, you can use the PAN control to assign the signal to just one output, which gives you additional flexibility in recording situations.

8. PFL

The PFL (Pre-Fader Listen) function allows the user to listen to the level before fader control. Used for headphone monitoring of each channel, regardless of the main mix

9. PEAK

This is the lamp which indicates the input signal level of this appliance (regardless of output) when GAIN volume is adjusted.

10. CHANNEL FADER

Adjusts the level if the channel signal. Use these faders to adjust the balance between the various channels.

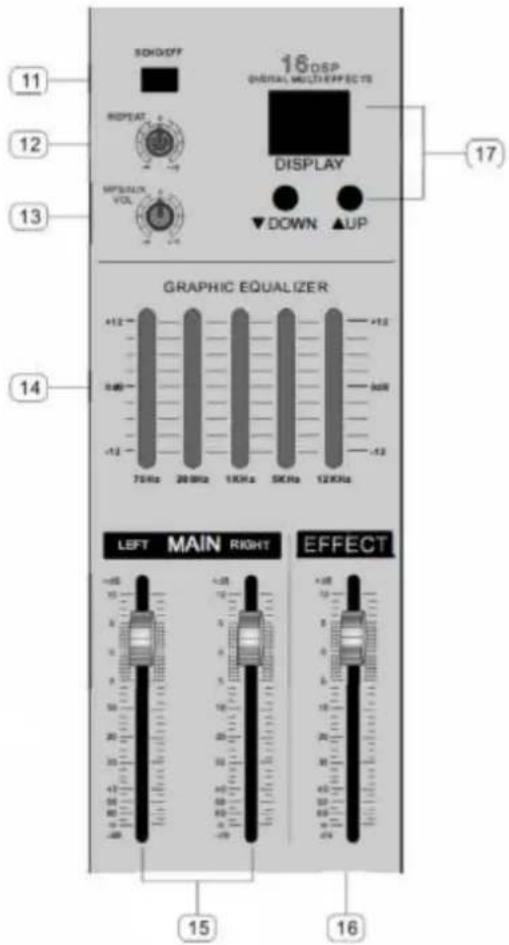

11. SEND / EFFECT

Press the button to send effect signal to the channels.

12. REPEAT

This is used for adjusting frequency of echo repeat. Since too much echo repeat may cause a howl, please adjust frequency properly.

13. MP3/AUX VOL

Volume control for AUX input, MP3 via USB or SD.

14. STEREO GRAPHIC EQUALIZER

2X5-band equalizer is provided for tone control over each frequency, and for precise high quality sound by final tone control.

15. OUTPUT MAIN FADER (LEFT/RIGHT)

This is a master fader for adjustment for volume of left / rig he output.

16. EFFECT LEVEL

Using by this control, you can adjust signal level of echo repeat & external effect.

17. DSP

Press the button to select an effect.

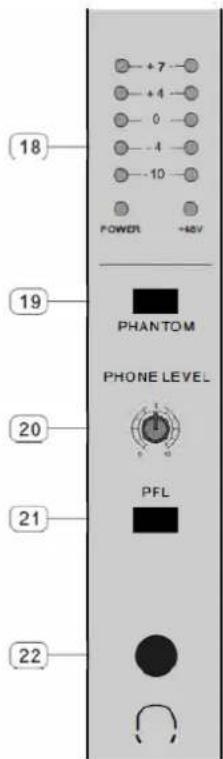

18. OUTPUTS LEVEL INDICATOR

Displays the signal of output.

19. PHANTOM POWER SWITCH

This switch toggles phantom power on and off. When the switch is on the mixer supplies +48V phantom power to all channels that have XLR input jacks. Turn this switch on when using one or more phantom-powered condenser microphones.

20. HEADPHONE LEVEL

Volume control for signal level of headphones.

21. PFL

With the PFL-switch, you can route an input channel to the headphone section

22. HEADPHONE JACK

6.3mm ( 14 ) input jack for connecting a headphone.

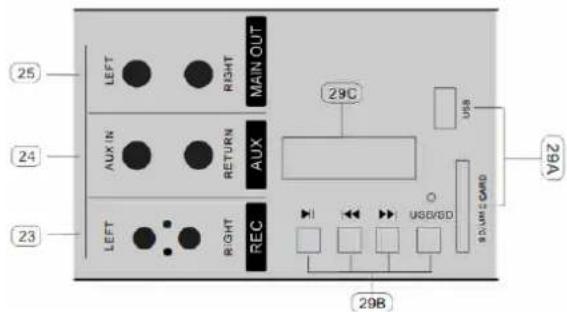

23. RECORD PIN JACK

This jack can be connected with record audiosource when recording the mixed input, CD signal.

24. EFX SEND RETURN

This connection can be used to connect all kinds of external effects.

25. OUTPUT JACK (LEFT / RIGHT)

Connecting audio sources with the master signal for amplifiers, active monitors, etc.

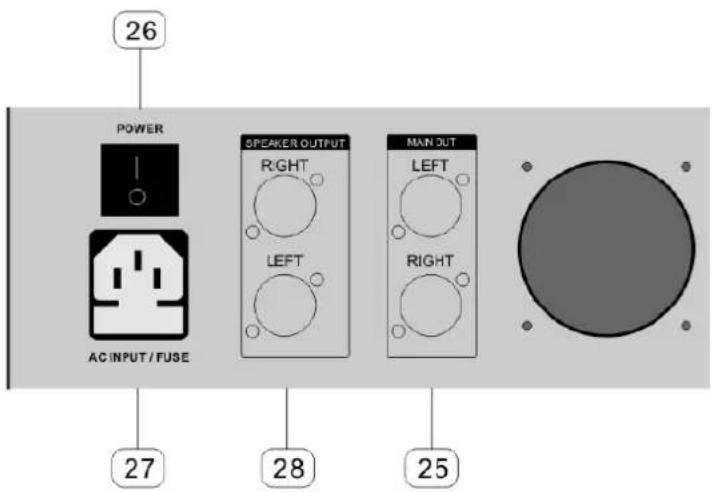

26. POWER SWITCH

Push marked (1). When you want to operate, the power LED will be turned on when working

27. POWER JACK

This is out of connect the power supply jack.

28. SPEAKER JACK LEFT, RIGHT

These 6.3 jacks are used to connect speakers.

29. A.USB or SD slot

B: USB or SD control with Start/Pause; Previous and Next and mode of exchange between USB or SD and BT. Press once to show "BT", now the mixer can be found by mobile device for streaming.

C: Display showing playing time and No.of Song playing etc ....

BT STREAMING

Press the USB/SD button once to show "BT" on the display. Now the mixer can be found by mobile device for the purpose of streaming.

NEDERLANDS

BT STREAMING

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

The products referred to in this manual is conforming European and UK legislation directives to which they are subject:

European Union

Tronios B.V.,

7602KR Almelo, The Netherlands

2014/35/EU

2014/30/EU

2011/65/EC

United Kingdom

Tronios Ltd.,

130 Harley Street,

London W1G 7JU, United Kingdom

S.I. 2016:1101

S.I. 2016:1091

S.I. 2012:3032

Specifications and design are subject to change without prior notice.

www.tronios.com

Copyright © 2022 by TRONIOS the Netherlands
