USER MANUAL VMA106 Vonyx

Black plastic case with open lid and two external black microphones beside it (no visible text or symbols)

INSTRUCTION MANUAL GEBRUIKSAANWIJZING GEBRAUCHSANLEITUNG MANUAL DE INSTRUCCIONES MANUEL D'INSTRUCTIONS INSTRUKCJA OBSŁUGI NÁVOD K POUŽITÍ

ENGLISH

Congratulations to the purchase of this Vonyx product. Please read this manual thoroughly prior to using the product in order to benefit fully from all features.

Read the manual prior to using the product. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the product, please ask advice from a specialist. When the product is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The product contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the product. This may cause electrical shock and malfunction.
• Do not place the product near heat sources such as radiators, etc. Do not place the product on a vibrating surface. Do not cover the ventilation holes.
• The product is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the product from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the product with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the product is damaged to such an extent that internal parts are visible, do NOT plug the product into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the product to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the product to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the product to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the product will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the product has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the product in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Do not repeatedly switch the product on and off. This shortens the life time.

• Keep the product out of the reach of children. Do not leave the product unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• If this product is with speaker inside which can cause magnetic field. Keep the product at least 60cm away from computer or TV.
• If this product have a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the product for a long period of time. Otherwise the battery may be permanently damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the product has fallen, always have it checked by a qualified technician before you switch the product on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the product with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the product off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the product.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this product.
• Keep the original packing material so that you can transport the product in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The product has been certified CE. It is prohibited to make any changes to the product. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the product will function normally, it must be used in rooms with a temperature between 5°C/41°F and 35°C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the product. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Vonyx cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Carefully unpack the box upon receipt. Check the contents to ensure that all parts are present and have been received in good condition. Notify the shipper immediately and retain packaging material if any parts appear damaged from shipping or the package itself shows signs of mishandling. Save the package and all packaging materials. If the product must be returned, it is important that the product is returned in the original factory box and packaging. If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

POWERSUPPLY

The label on the back/under side of the product indicates the mains voltage to which it must be connected. Check that the mains voltage corresponds to this. Any other voltage than the one indicated may cause irreparable damage to the unit. The unit must also be connected directly to the mains voltage and no dimmer or adjustable power supply may be used.

Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate electrical ground to avoid the risk of electrocution or fire.

CONTROLS

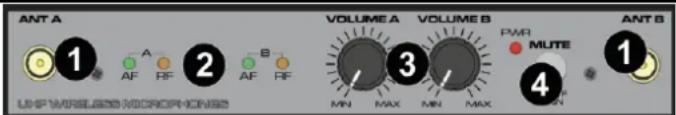

1. UHF ANTENNAS

2. UHF WIRELESS STATUS

LED's showing wireless connection (RF) and audio registration (AF).

3. VOLUME CONTROLS

Rotate to adjust the volume level for microphone A and B.

4. MUTE

Press to (un)mute the microphone input.

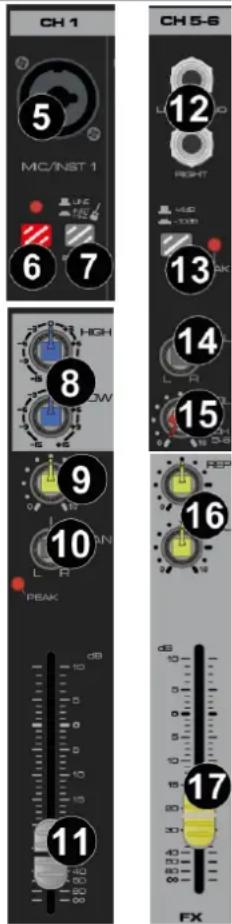

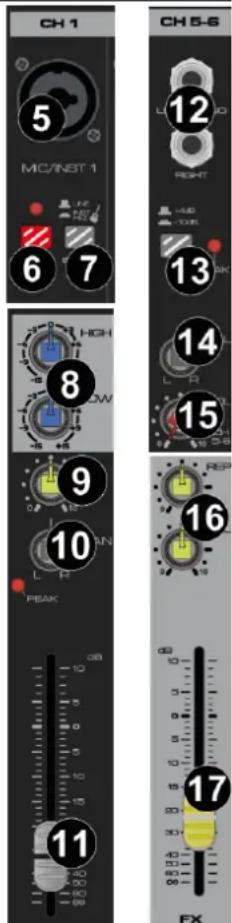

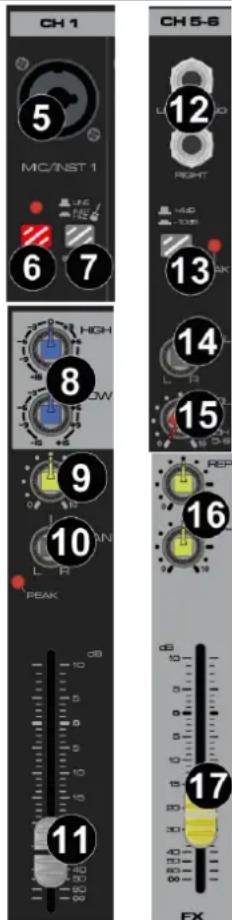

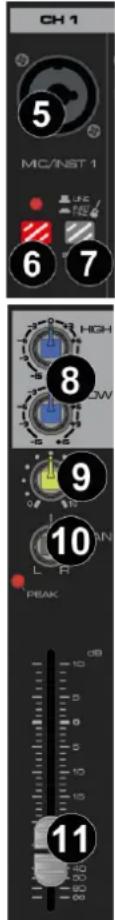

5. MICROPHONE/LINE/GUITAR INPUT

Balanced XLR and 6.3mm (1/4") combo input jacks for connecting microphone, musical instrument or audio device (channel 1-4).

6. +48V PHANTOM SWITCH

This switch toggles phantom power on and off. When the switch is on the mixer supplies +48V phantom power to that channel. Turn this switch on when using one or more phantom-powered condenser microphones (channel 1-4).

7. LINE/INSTRUMENT

Press to switch between instrument (high impedance; guitar) and line input (low impedance).

8. HIGH AND LOW

Rotate to adjust the low- (bass) and high (treble) frequency levels.

9. FX

Rotate to adjust the volume level of the corresponding channel that is fed to the effects processor.

10. PAN

Rotate to adjust the channel signal position to left or right in the stereo mix.

11. FADER

Slide to adjust the channel volume. Pay attention to the peak LED, showing the channel status. When the LED is illuminated, the input signal is too high. Lower the volume level immediately.

12. STEREO LINE INPUT

6.35mm stereo line input jacks (left and right).

13. STEREO LINE INPUT SENSITIVITY

Press to change the input sensitivity between +4dB and -10dB.

14. STEREO LINE INPUT BALANCE

Rotate to adjust the balance to left or right in the stereo mix.

15. STEREO LINE INPUT VOLUME

Rotate to adjust the volume level of the stereo line input.

16. FX CONTROLS

Rotate to adjust the effects parameters. REP: Repetitions. Adjust how many times the echo repeats. DEL: Delay. Adjust the time interval between each echo.

17. FX FADER

Slide to adjust the volume of DSP in main mix.

18. MAIN OUTPUT

XLR balanced output connectors for connecting to (for example) active speakers, power amplifiers or other audio devices.

19. HEADPHONE OUTPUT

6.3mm jack headphone monitor output.

20. VU METER

Main output volume meter. Pay attention to the peak LED, showing the channel status. When the LED is illuminated, the volume level is too high. Lower the main volume level immediately.

21. MP3 VOLUME

Rotate to adjust the MP3 player volume level.

22. HEADPHONE VOLUME

Rotate to adjust the headphone output volume.

23. USB

USB port interface for MP3 playback and recording.

ANT A 1 A 2 AF RF AF RF VOLUME A 3 VOLUME B PWR MUTE 4 ANT B 1 UHF WIRELESS MICROPHONE MN MAX MIN MAX

CH 1 5 MC/INST 1 6 7 CH 5-S 12 RIGHT 13 14 15 16 17 9 10 L R L R PEAK 11 12 13 14 15 16 17 FX

PEAK 20 -16 -24 USB MICA PLAYR/RECORDS 23 24 25 26 27 28 21 22 23 24 25 26 27

24. LCD DISPLAY

25. UP / PREVIOUS

Press to go up in menu. Press to jump back to previous track.

26. DOWN / NEXT

Press to go down in menu. Press to skip to next track.

27. ENTER / PLAY/PAUSE

Press to confirm input. Press to start/resume or pause playback.

28. MENU

Press to enter the menu.

29. MAIN OUTPUT FADER

Slide to adjust the volume of main output.

29 MAIN OUT

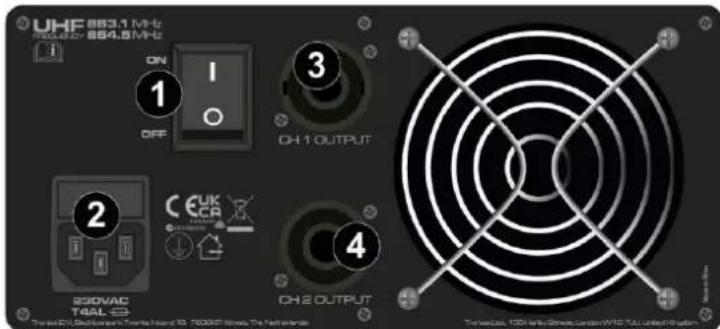

REAR PANEL

1. POWER ON/OFF

Switch to turn the device on/off.

2. AC POWER

Power input for connecting the supplied power cord.

3. CHANNEL 1 OUTPUT

NL-4 channel 1 output.

4. CHANNEL 2 OUTPUT

NL-4 channel 2 output.

UHF 863.1 MHz FRELLA 864.8 MHz ON OFF 1 I 3 CH-1 OUTPUT 2 C EUK CCR S20VAC T8AL CH-2 OUTPUT 4 TransUnion, 100MHz GHz, London WHS-TALL Limited System

SYSTEM SETUP

When no USB disk is inserted: press MENU to enter the main menu. Select "system setup" and press ENTER. Options:

Backlight time: adjust the duration of the backlight staying on after no input has been registered.

Contrast: adjust the contrast value to be able to suit different lighting conditions.

BT CONNECTION

When no USB disk is inserted: press MENU to enter the main menu. Select "BT mode" and press ENTER. Search on mobile device for "VONYX VMA" and make connection.

MP3

When a USB disk is inserted: press MENU to enter the mp3 menu. The following options will appear:

Repeat: choose repeat mode.

EQ: choose between different EQ presets.

Master disc directory: select the folder from which files will be played (source folder).

Delete: delete the currently selected audio file.

RECORD

While playing music: press and hold MENU to enter the record mode. Press PLAY to start or pause the recording. Press and hold PLAY to finish the recording, save the file and quit recording state. Recorded file format: MP3/48Khz sampling/128kbs.

COMPUTER

In the main menu, select "Computer" and enter. Connect the VMA106 with a USB port of a computer via a suitable USB cable. The mixer can be used as a USB sound card.

UHF

No license required (excluding geographical restrictions)

BE	DK	F	FI	DE
HU	IT	NL	NO	PL
PT	RO	SI	ES	SE
CH	GB

Belgium (BE), Denmark (DK), France (F), Finland (FI), Germany (DE), Hungary (HU), Italy (IT), Netherlands (NL), Norway (NO), Poland (PL), Portugal (PT), Romania (RO), Slovenia (SI), Spain (ES), Sweden (SE), Switzerland (CH), Great Britain (GB)

NEDERLANDS

ANT A 1 A 2 AF RF B AF RF VOLUME A 3 VOLUME B PWR MUTE 4 ANT B 1 UHF WIRELESS MICROPHONE MIN MAX MIN MAX

CH 1 5 MC/INST 1 6 7 CH 5-S 12 RIGHT 13 14 15 16 17 8 9 10 L R L R PEAK 11 12 FX

PEAK USB MIDI PLAYR/ORDER 20 15 -8k 23 24 21 25 26 27 28

22. VOLUME HOOFDTELEFOONUITGANG

29 MAIN OUT

ACHTERPANEEL

1. AAN/UIT

UHF 863.1 MHz RMS-024- 864.8 MHz ON OFF CH1 OUTPUT 2 C EUK CCR SIOVAC T6AL CH2 OUTPUT Targetless, CDD Mini Street London WHC7ALL United-9 system

SYSTEEMINSTELLINGEN

ANT A 1 A 2 AF RF B AF RF VOLUME A 3 VOLUME B PWR MUTE 4 ANT B 1 UHF WIRELESS MICROPHONE MIN MAX MIN MAX

CH 1 5 MC/INST 1 6 7 CH 5-S 12 RIGHT 13 14 15 16 17 8 9 10 PEAK 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

PEAK 20 -12 -84 USB MASC PLAYERS/RECOLES 23 21 22 24 25 26 27 28

ANT A 1 AF RF 2 AF RF VOLUME A 3 VOLUME B PWR MUTE 4 ANT B 1 UNF WIRELESS MICROPHONE

CH 1 5 MC/INST 1 6 7 CH 5-8 12 RIGHT 13 14 15 16 17 9 10 L R L R L R L R L R PEAK 11 10 dB 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 FX

PEAK 1 20 -16 -44 USB MEDIA PLAYER/RECORER 23 21 24 25 26 27 28

21. VOLUMEN MP3

29 MAIN OUT

PANEL TRASERO

1. ENCENDIDO/APAGADO

ANT A 1 AF RF 2 AF RF VOLUME A 3 VOLUME B PWR MUTE 4 ANT B 1 UNF WIRELESS MICROPHONE

CH 1 5 MC/INST 1 6 7 CH 5-8 12 RIGHT 13 14 15 16 17 9 10 PEAK 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

PEAK 20 -18 -24 USB MEDIA PLANS/RECORDS 23 21 24 25 26 27 28

23. USB

29 MAIN OUT

PANNEAU ARRIÈRE

1. MARCHE/ARRÊT

UHF 863.1 MHz Frequency 864.5 MHz ON OFF 1 I CH 1 OUTPUT 2 C EUK CCA 230VAC T4AL CH 2 OUTPUT TransD/EV, Discharge TransD found 10, 7000/87 Alness, The Netherlands TransD:LUL, 1000 link:Direct, London W16 Tull United Kingdom

ANT A 1 AF RF 2 AF RF VOLUME A VOLUME B PWR MUTE ANT B UN-F WIRELESS MICROPHONE MIN MAX MIN MAX 4

CH 1 5 MC/INST 1 6 7 CH 5-6 12 RIGHT 13 14 15 16 17 9 AN L R PEAK 10 dB 11 FX

PEAK 20 -12 -24 USB MERA PLAYERS/RECORDS 23 24 21 25 26 27 28

1. USB

29 MAIN OUT

TYLNY PANEL

ANT A 1 A 2 AF RF B AF RF VOLUME A 3 VOLUME B PWR MUTE 4 ANT B 1 UHF WIRELESS MICROPHONE MIN MAX MIN MAX

CH 1 5 MC/INST 1 6 7 8 HIGH JW 9 10 R L R PEAK 11 dB

CH 5-8 12 RIGHT 13 14 15 REP 16 17 FX

PEAK 20 -18 -84 USB MEGA PLAYERS/RECORDS 23 21 24 25 MSSIONAL/ 26 27 28

23. USB

29 MAIN OUT

ZADNÍ PANEL

1. ZAPNUTÍ/VYPNUTÍ NAPÁJENÍ

Belgium (BE), Denmark (DK), France (F), Finland (FI), Germany (DE), Hungary (HU), Italy (IT), Netherlands (NL), Norway (NO), Poland (PL), Portugal (PT), Romania (RO), Slovenia (SI), Spain (ES), Sweden (SE), Switzerland (CH), Great Britain (GB)

TECHNICAL SPECIFICATION / TECHNISCHE SPECIFICATIE / TECHNISCHE DATEN / ESPECIFICACIONES TÉCNICAS / SPÉCIFICATIONS TECHNIQUES / SPECYFIKACJA TECHNICZNA / TECHNICKÁ SPECIFIKACE

Playback options : BT streaming, USB, Line input, Microphone (input)

Input connections : 6.3mm Jack, USB, XLR (3-pin)

Output connections : 6.3mm Jack, NL-4, XLR (3-pin)

Output channels : 2

Output power: RMS @ 8 Ohm per channel : 600W

Frequency response : 20Hz - 20.000Hz

THD : <0,03%

Equalizer : 2-Bands

Equalizer: Low : 80Hz +15dB

Equalizer: High : 12KHz +15dB

Output level: Master : 3V

Power supply : 220-240VAC 50Hz

Dimensions (L x W x H) : 360 x 420 x 210mm

Weight : 6,85kg

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:

European Union

Tronios B.V.,

7602KR Almelo, The Netherlands

2014/35/EU

2014/30/EU

2011/65/EC

2014/53/EU

United Kingdom

Tronios Ltd.,

130 Harley Street,

London W1G 7JU, United Kingdom

S.I. 2016:1101

S.I. 2016:1091

S.I. 2012:3032

S.I. 2017:1206

Specifications and design are subject to change without prior notice.

www.tronios.com

Copyright © 2024 by TRONIOS the Netherlands
