STM2290 - Mixer Vonyx - Free user manual and instructions

USER MANUAL STM2290 Vonyx

STM2290 8-Channel Mixer Sound Effects

Ref. nr.: 172.985

VONYX BT USB 88:88 TM MIN MAX R dB +5 0 -5 -10 -15 L CUE VOL +12 100Hz 330Hz 1KHz 3.3KHz 10KHz 100Hz 330Hz 1KHz 3.3KHz 10KHz MIN MAX OFF ON POWER LINE1 CUE USB CHANNEL1 HIGH MAX -12dB +12dB LOW -12dB +12dB LINE2 CUE PHONO CHANNEL2 HIGH MAX -12dB +12dB LOW -12dB +12dB LINE3 CUE LINE4 CHANNEL3 HIGH MAX -12dB +12dB LOW -12dB +12dB LINE5 CUE LINE6 CHANNEL4 HIGH MAX -12dB +12dB LOW -12dB +12dB STUDIO MONO MASTER MAX MAX CH1 CH2 A B CH3 CH4 VOL SPEED HORN SIREN FLUSH GDDY LAUGH MIN MAX MIN MAX SCREAM CLAP EXPLODE BELL

INSTRUCTION MANUAL GEBRUIKSAANWIJZING GEBRAUCHSANLEITUNG MANUAL DE INSTRUCCIONES MANUEL D'INSTRUCTIONS INSTRUKCJA OBSŁUGI

ENGLISH

Congratulations to the purchase of this Vonyx product. Please read this manual thoroughly prior to using the product in order to benefit fully from all features.

Read the manual prior to using the product. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

- Prior to using the product, please ask advice from a specialist. When the product is switched on for the first time, some smell may occur. This is normal and will disappear after a while.

- The product contains voltage carrying parts. Therefore do NOT open the housing.

- Do not place metal objects or pour liquids into the product. This may cause electrical shock and malfunction.

- Do not place the product near heat sources such as radiators, etc. Do not place the product on a vibrating surface. Do not cover the ventilation holes.

- The product is not suitable for continuous use.

- Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.

- When unplugging the product from a mains outlet, always pull the plug, never the lead.

- Do not plug or unplug the product with wet hands.

- If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.

- If the product is damaged to such an extent that internal parts are visible, do NOT plug the product into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the product to a rheostat or dimmer.

- To avoid fire and shock hazard, do not expose the product to rain and moisture.

- All repairs should be carried out by a qualified technician only.

- Connect the product to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.

- During a thunderstorm or if the product will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.

- If the product has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the product in humid rooms or outdoors.

- To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

- Do not repeatedly switch the product on and off. This shortens the life time.

- Keep the product out of the reach of children. Do not leave the product unattended.

- Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.

- Do not force the controls.

- If this product is with speaker inside which can cause magnetic field. Keep the product at least 60cm away from computer or TV.

- If this product have a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the product for a long period of time. Otherwise the battery may be permanently damaged.

- If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.

- If the product has fallen, always have it checked by a qualified technician before you switch the product on again.

- Do not use chemicals to clean the unit. They damage the varnish. Only clean the product with a dry cloth.

- Keep away from electronic equipment that may cause interference.

- Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.

- Switch the product off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the product.

- Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!

- The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this product.

- Keep the original packing material so that you can transport the product in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The product has been certified CE. It is prohibited to make any changes to the product. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the product will function normally, it must be used in rooms with a temperature between 5^ C/ 41^ F and 35^ C/ 95^ F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the product. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Vonyx cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

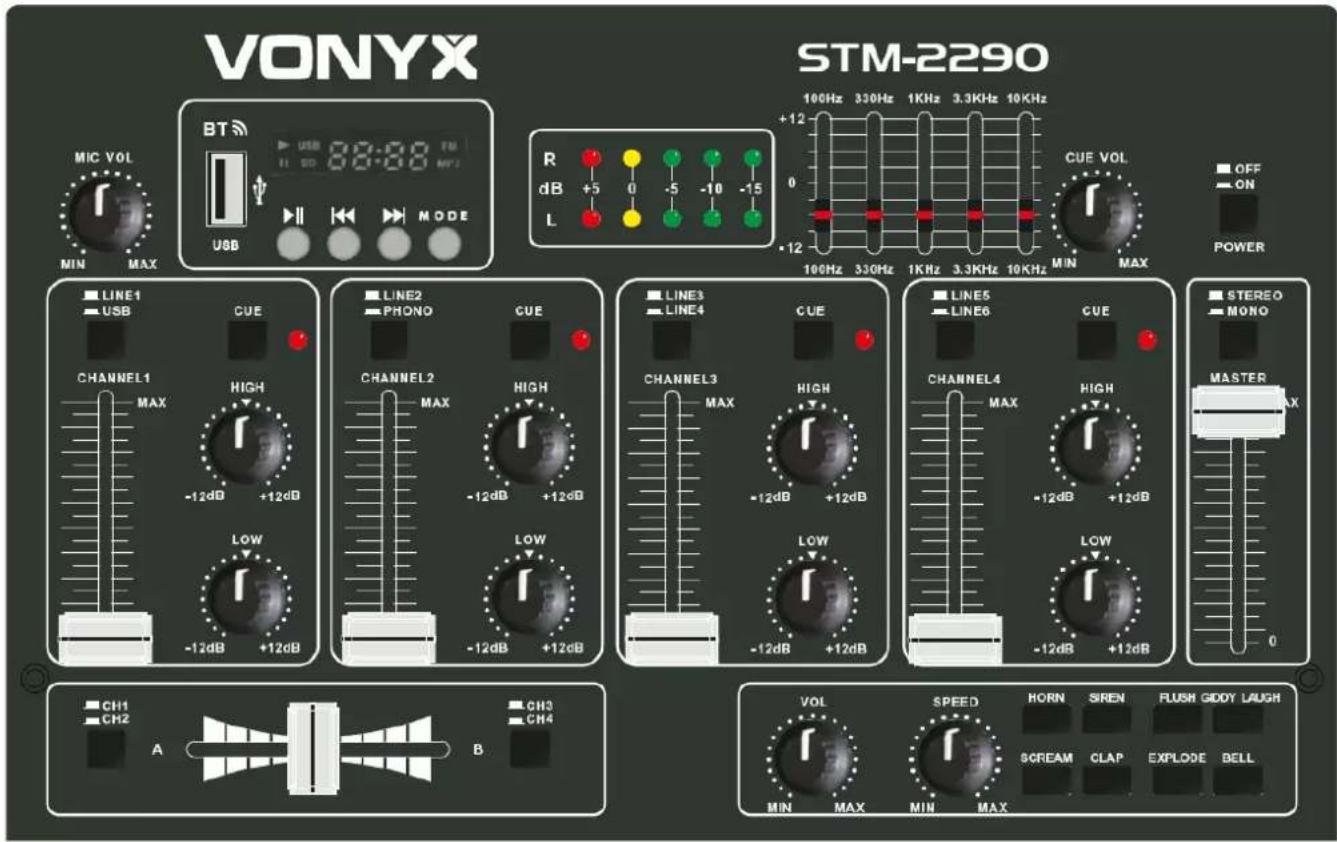

CONTROL PANEL

VONYX BTSA USB 88:88 75 MIN MAX R dB L STM-2290 100Hz 3.3kHz 1kHz 3.3kHz 10kHz +12 -12 CUE VOL OFF ON POWER LINE1 CUE USB CHANNEL1 HIGH MAX +12dB +12dB LOW CHANNEL2 HIGH MAX -11dB +12dB LOW CHANNEL3 CUE LINE4 CHANNEL4 HIGH MAX -12dB +12dB LOW CHANNEL4 MAX MAX -12dB +12dB LOW CHANNEL4 MAX MASTES MIN MAX MIN MAX VOL SPEED KORN SREND RUSH BODY LAUGH SCREAM CLAP EXPLODE BELL MIN MAX MIN MAX ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑬ ⑭ ⑮ ⑯

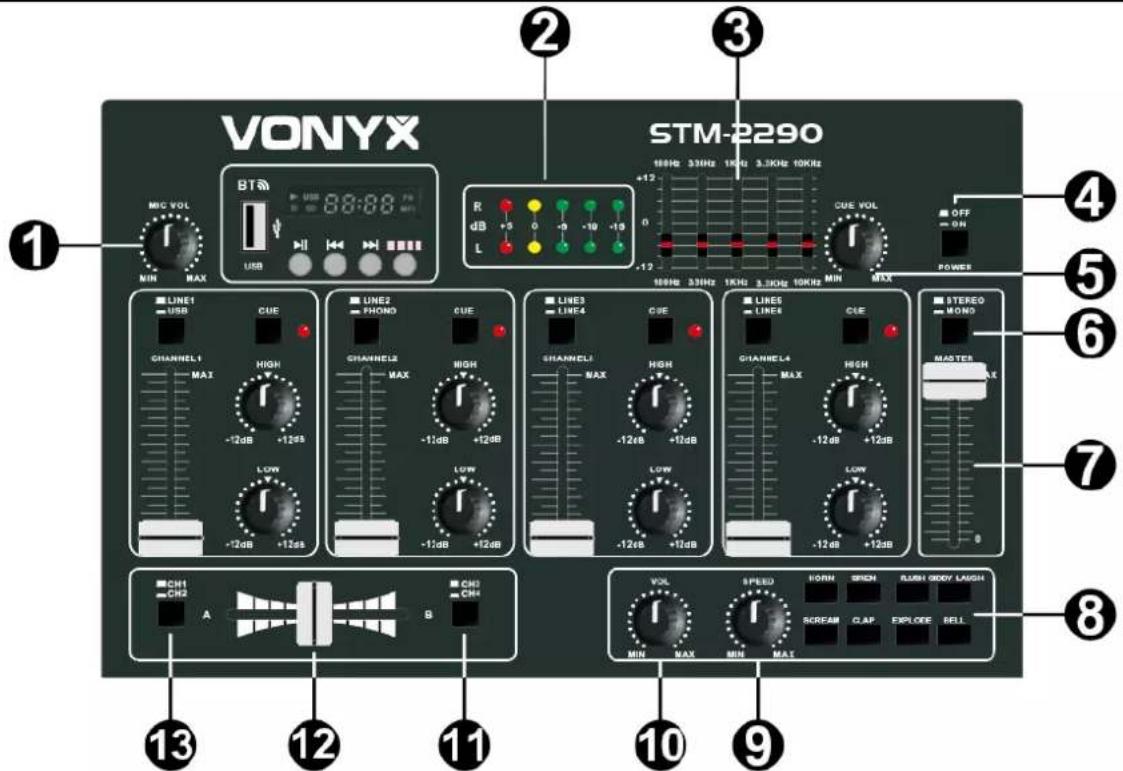

1. MIC VOLUME: Volume control of the microphone
2. OUTPUT METER: VU-meter with LED as indicators for the strength of the output signal
3. EQUALIZER: 5-band EQ
4. POWER: On/Off
5. CUE VOLUME: The CUE VOLUME ROTARY KNOB adjusts your headphone monitor output volume
6. SWITCH STEREO / MONO
7. MASTER VOLUME FADER

This fader will allow you to adjust the master volume of the unit

1. SOUND EFFECTS SECTION

Eight different sound effects may be added to your mixer by pressing the SOUND EFFECTS CONTROL BUTTONS. The volume of the effects can be adjusted using the rotary VOLUME knob

1. SPEED: Sound effect speed adjustment

2. VOLUME: Sound effect volume adjustment

3. CROSSFADER SELECTION: Crossfader selection for Channel 3 or Channel 4
4. CROSS-FADER: Slide for step less cross-fading from one to another assigned channel
5. CROSSFADER SELECTION: Crossfader selection Channel 1 or Channel 2

BACK PANEL

VONYX POWER CE Ω ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ MASTER OUTPUT LINE 6 LINE 5 LINE 4 LINE 3 PHONO/ LINE 2 LINE 1 Made in China VONYXAUDIO.COM Ref. No.: 12.985 MKI

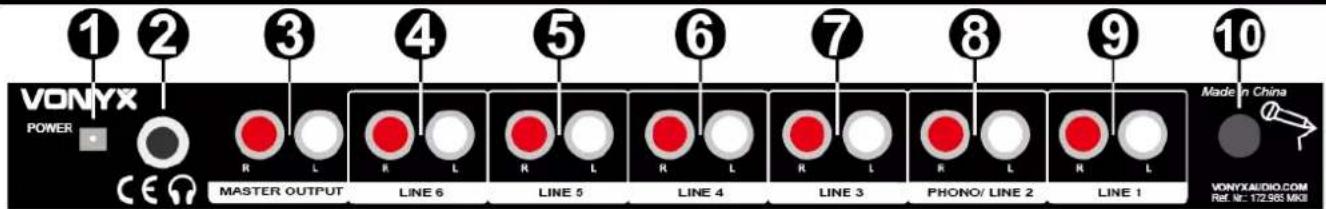

1. DC12V: Connector for a power supply
2. HEADPHONE: Use the headphone for pre-listening the output signal (6.35mm)
3. MASTER OUTPUT: The MASTER output jacks connect the mixer to your main amplifier using standard audio cables with RCA-type connector
4. LINE 6: Signal input
5. LINE 5: Signal input
6. LINE 4: Signal input
7. LINE 3: Signal input
8. PHONO/LINE 2: Signal input
9. LINE 1: Signal input
10. MICROPHONE: Microphone connector

DISPLAY

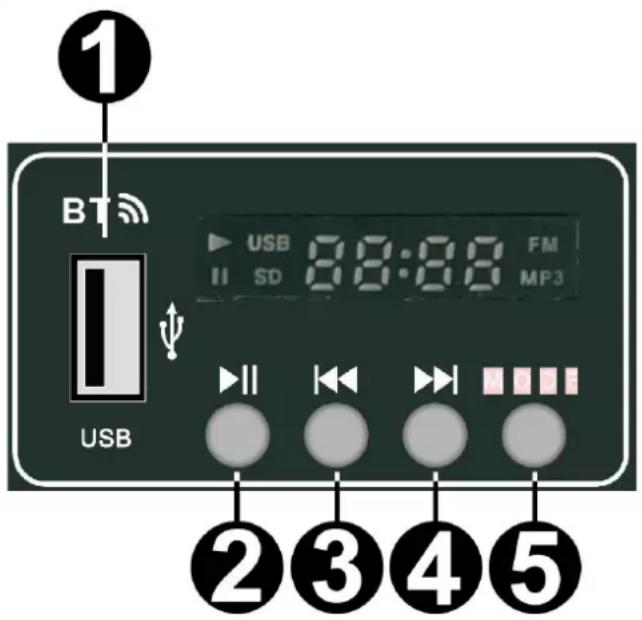

1 BT USB USB 3:0:3:0 FM II SD MP3 2 3 4 5

1. USB INPUT: Insert your USB flash drive into this slot. The unit will only read .mp3 file formats from the USB flash drive
2. MP3 PLAYER: Selects the previous track (short press) or volume decreasing (long press)
3. MP3 PLAYER: Starts the playback and pause function
4. MP3 PLAYER: Selects the next track (short press) or volume increasing (long press)
5. MODE SELECTOR: Select the input source

CONNECTING WITH BT

1. Activate the BT-function on your device (Mobile phone, tablet etc.) from which you want to play the music. See the operating instructions for that device.
2. Press the "MODE" button and activate BT-function.
3. Select "VONYX" on your BT-device and make the BT-connection.

If password is required, you can enter "0000".

Attention: The BT distance is approx. 10 meter without any barrier.

NEDERLANDS

VONYX POWER CE Ω MASTER OUTPUT R L LINE 6 ①②③④⑤⑥⑦⑧⑨⑩ R L R L R L R L R L R L R L R L R L R L R L R L R L R L R L R L R L R L R L R L R L R L R L R L R L R L R L R L R L R L R L R L R L R L

Signal-to-noise ratio: >75dB

Output level: Master: 2V

Equalizer: High: +/- 12dB

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:

European Union

Tronios B.V.,

7602KR Almelo, The Netherlands

2014/35/EU

2014/30/EU

2011/65/EC

United Kingdom

Tronios Ltd.,

130 Harley Street,

London W1G 7JU, United Kingdom

S.I. 2016:1101

S.I. 2016:1091

S.I. 2012:3032

Specifications and design are subject to change without prior notice.

www.tronios.com

Copyright © 2022 by TRONIOS the Netherlands
