Brand	Hartan
Model	Viva GTR
Product type	All-terrain stroller
Maximum child weight	22 kg
Recommended age	From 6 months (under 6 months with suitable carrycot)
Dimensions (L x W x H)	Approx. 95 x 60 x 105 cm (unfolded)
Stroller weight	Approx. 11 kg
Safety harness	5-point with magnetic buckle
Parking brake	Foot-operated lock brake, optional hand brake
Suspension	Adjustable spring (soft or sporty)
Wheels	Swivel and lockable wheels, front and rear suspension
Backrest	Adjustable to two levels, reclines to lying position
Footrest	Adjustable with red safety
Canopy and hoop	Removable, adjustable
Folding	Yes, with transport lock
Fabric care	Machine washable at 30°C (delicate wash)
Suspension maintenance	Cleaning and light lubrication every 4 weeks
Warranty	2 years
Standards	Öko-Tex 100, child safety compliant

Frequently Asked Questions - Viva GTR HARTAN

How to unfold the Hartan Viva GTR stroller?

Press the stop buttons on the tilt sliders on both sides, set the sliders horizontally, remove the sliders from the transport clips and pull the stroller upwards.

What is the maximum weight supported by the stroller?

The maximum child weight is 22 kg. For children under 6 months up to 9 kg, use a suitable carrycot.

How to maintain the wheels and suspension?

Clean and lightly lubricate the wheel axles every four weeks. Use a silicone spray for plastic moving parts. Never use a high-pressure cleaner.

How to adjust the stroller backrest?

Lift the adjustment lever at the back of the shell to place the backrest in a reclining position on two levels from the seat.

How to use the optional hand brake?

The hand brake is adjusted by turning the adjustment ring at the top. If the braking effect differs between the two rear wheels, adjust with the brake cable ring at the bottom.

Can I use the stroller for jogging or rollerblading?

No, it is forbidden to use this stroller for jogging or rollerblading as it poses a danger to the child.

How to wash the stroller fabrics?

All removable fabric parts can be machine washed at 30°C (delicate cycle). Avoid scrubbing and dry properly to prevent mold.

What is the warranty on the Hartan Viva GTR stroller?

The stroller has a 2-year warranty against material and manufacturing defects. Keep the warranty card and receipt.

How to attach the seat to the chassis?

Place the seat on the chassis so that the upper parts of the attachment rest on the locking bolts. Press the seat so that the locks close automatically. Check before each use that the seat is securely attached.

How to adjust the stroller suspension?

Turn the suspension adjustment handle to choose between a soft or more sporty suspension.

USER MANUAL Viva GTR HARTAN

Acceptance Certificate

Name / Name:

Straße / Road:

Phone (with area code):

e-mail:

Colour of fabric (design):

Zubehör / Accessories:

Kaufdatum / Date of purchase:

Salesperson (name in block letters)

Note: Signing this acceptance certificate does not restrict the legal rights of the purchaser.

Händler / Dealer:

01.2022/2000

6 GB United Kingdom (UK)

12 F La France

18 NL Nederlands

(1)

24 DK Danmark

30 N Norge

36 S Sverige

42 FIN Suomi

48 E España

54 I Italia

Close-up of a mechanical component with a numbered label '5' pointing to a specific part (no other text or symbols visible)

Close-up of a black mechanical component with a numbered label '10' pointing to a specific part (no other text or symbols visible)

Close-up of a mechanical wheel assembly with visible shaft and hub (no text or symbols)

Feststellbremse

Close-up of a hand pressing down on a dark object, with an arrow pointing to the top area (no text or symbols visible)

Close-up of hands installing or adjusting a circular component, possibly a mechanical part or device (no visible text or symbols)

14 D G E C A B F

Close-up of a mechanical component with diagonal lines and a curved base (no visible text or symbols)

Bedienungsanleitung

Close-up grayscale image of a human eye with two white arrows pointing to the cornea area (no text or symbols present)

Close-up of a mechanical device with directional arrows indicating movement or force (no visible text or symbols)

Black-and-white photo of a woman gently holding a baby, both looking over (no text or symbols visible)

GB United Kingdom (UK)

Hartan

VIVA GTR

Suitable from 6 months, up to 22kg

Under 6 months only in connection with an appropriate carrycot.

The product is not suitable to be used when jogging or skating.

1 Handle

2 Handlebar catch

3 Closure mechanism

3a Fuse buttons

4 Wheel retention

5 Lock-type-swivel wheel

6 Swivel wheel holder

6a Push button for removing the swivel wheels

7 Parking brake

8 Adjustable suspension system

9 Handle-folding lock button

10 Readjustment of hand brake (optional)

10a Silently adjustable hood (optional)

11 Safety bar adjustment

12 Hood bar and safety bar removal

13 Tilt-adjustable backrest

14 Safety belt

15 Adjustable footrest

16 Cover extension

17 Automatic lock for upper section

18 Sun visor

19 Unlock button for top

20 Front wheel suspension

Congratulations on your purchase

You want your baby to feel safe and secure, that's why you have purcha-sed a Harian high-quality product. You have made an excellent choice. Harian products are manufactured with the greatest possible care and monitored constantly by rigorous quality control assuring that your pram will rovide life-long satisfaction. The textiles used for our products have been tested for harmful substances (chemical residues) according to the industry's own, Öko-Tex-Standard 100 ^4 to guarantee that all the fabric parts of your pram are safe for your baby.

IMPORTANTLY! PLEASE DO NOT USE THIS PRAM BEFORE READING THE INSTRUCTIONS CAREFULLY, AND KEEP THESE INSTRUCTIONS FOR QUERIES OR FUTURE REFERENCE. YOUR CHILD'S SAFETY MAY BE AFFECTED IF YOU DO NOT FOLLOW THESE INSTRUCTIONS.

If you do not understand the instructions or if you require more detailed information, contact your dealer. Please ensure that other users are also informed about the functions of the carriage and the notes on safety.

For the safety of your child

WARNING! – Before using the pram, make sure all catches are locked.

WARNING! – Before use, conduct an initial check of the carriage, and do not use it if it is damaged or if parts are torn or broken.

WARNING! – Make sure when unfolding the pram and folding it together that your child is at a safe distance, to avoid any injuries

WARNING! – Never leave your child unattended in the pram.

WARNING! – Make sure before using it that the carrycot or the seat unit or the child's car seat is correctly latched into place.

WARNING! – Negotiating stairs or steps as well as overloading may damage the pram and endanger your child.

WARNING! – When parking the pram, make sure the brake is engaged. When using public transport, ensure the pram stands safely.

WARNING! – A pram, stroller or carrycot is not a substitute for a cradle or a bed. It is intended to be used exclusively as a means of transport.

WARNING! – Using this pram while jogging, skating, etc. can be dangerous and is therefore not allowed.

WARNING! – Do not allow children to play either near or with the pram.

WARNING! – Always use the restraint system.

WARNING! – Fix no bags, handbags or other loads to the handle, backrest or sides of the carriage, as this will affect its stability.

WARNING! - This model has been designed for 1 child.

WARNING! – A second child seat is not allowed for this model.

WARNING! – The seat unit and carrycot are not to be used for transporting in a car.

WARNING! – The rain cover may not be used when the hood is taken off (danger of suffocation). Never expose the rain cover hood to sun while the child is in the carriage (overheating).

WARNING! – Keep the carriage away from open fires or other sources of heat.

WARNING! – Remove immediately all film packaging, and do not allow your child to play with it (asphyxiation).

WARNING! – Accessories and spare or replacement parts not approved by the manufacturer must not be used.

Instructions for use

WARNING! When opening out and folding down the frame and when adjusting the back-rest, pinch-points may be caused in which fingers etc. can be trapped unless care is exercised. Ensure that your child has plenty of clearance space.

Unfolding the pushchair

Press the locking buttons of the handlebar hinge 9 on both sides and position the handlebar horizontally. Release the handlebar from the transport clips and pull the pushchair upwards.

Folding the pushchair

Remove the sports buggy insert!

Undo the locking devices 2 on both sides by pressing the release buttons 3a and pulling the locking mechanism 3 upwards.

Lift the frame and turn the front wheels inwards, so that the transport restraint can lock into position on both sides. Swing the handlebar inwards

Height-adjustable handlebar grip

Press the locking buttons of the handlebar hinge 9 on both sides and move the top part of the handlebar into the required position.

Changing the rear wheels

Release the parking brake 7. Depress push button 4 and pull the wheel off. Push the wheel right to the axle's stop. Please ensure that all wheels are locked in position correctly.

Changing the swivel wheels

To remove, press the pushbutton 6a on the inside of the swivel wheel bracket 6 and pull the wheel out of the bracket. To assemble the wheel, insert the fastening pin in the holding device, and engage it by a forcible push, which is indicated by a click sound.

Lock-type-swivel wheels

To lock the swivel wheels, fold the control lever 5 downwards, the wheels lock automatically on both sides as soon as they are in the direction of travel. To release, fold the control lever 5 into the horizontal position. On very uneven surfaces, and when going very fast, we recommend locking the swivel movement, to prevent the wheels from blocking.

Adjust the handbrake (optional)

Readjust the hand brake by means of the cable adjusting barrel 10 (above). A different brake effect on the two rear wheels can be corrected by means of the cable adjusting barrel 10a (below).

3a 3

6 6a

Close-up of a mechanical component with a numbered label '5' pointing to a detail (no readable text or symbols beyond the number)

Close-up of a black mechanical component with a numbered label '10' pointing to a specific part (no readable text or symbols beyond the number)

Close-up of a bicycle wheel assembly with visible shafts and wheels (no text or symbols)

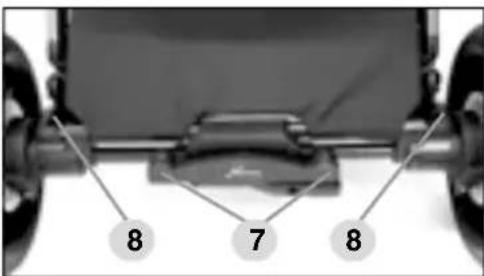

Parking brake

Push the red brake button 7 to engage the brake. Having parked the pram, try to push it to check the brake. Push the green brake button 7 to release the brake.

WARNING! Make sure the brake is always closed when placing the baby in the carriage or taking it out of it.

Adjustable suspension system

By turning the selector 8, a „hard“ or „soft“ position can be selected for suspension.

Hood and safety bar

By pressing the bayonet joint 12, the hood or the safety bar can be pulled out. When inserting it, make sure the safety bar locks into place correctly and be careful not to pinch any of the fabric parts. By pressing the buttons 11, the safety bar position can be changed.

WARNING! The hood bar of the sports buggy is not suitable for carrying the sports buggy.

Adjust the back rest to incline the seat frame

Tilt the adjustment lever 13 at the rear to bring the seat frame from the sitting to the lying position in two stages.

Adjusting the footrest

By pressing the two red safety buttons 15 at the same time, the footrest can be lowered. When lifting it, adjustment of positions is effected automatically.

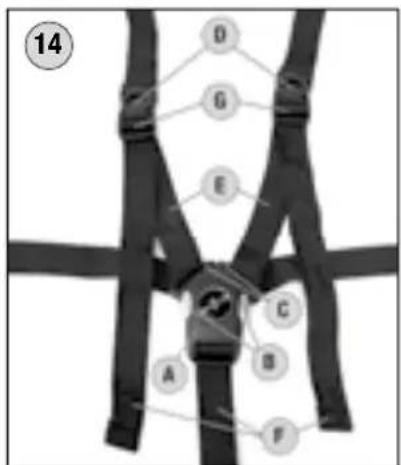

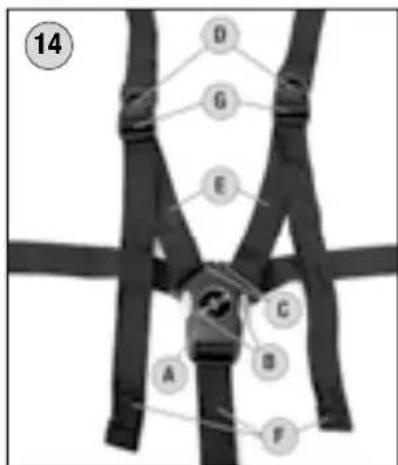

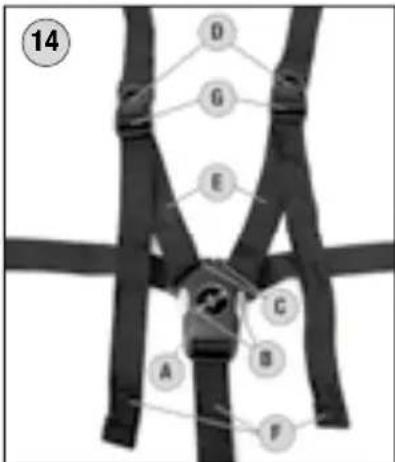

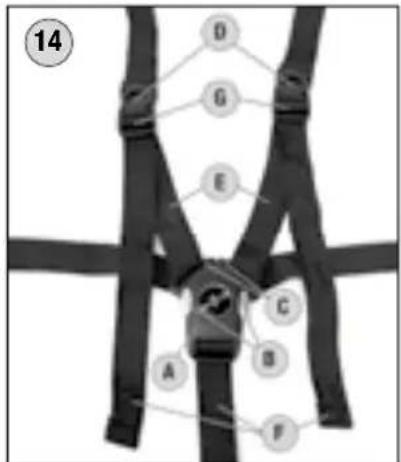

Safety harness WARNING!

Secure your child with the 5-point belt system 14.

Make sure that the shoulder belts D are inserted and the belt fits snugly against your child. You can adjust the length and tautness of the belts with the belt ends F. You can adjust the width of the shoulder and lap belts by tilting open the quick-release slider G and pulling on the belt E.

Opening the belt: Press the two buttons B at the same time and remove the magnetic closer A. The bottom fixing C can then be removed easily.

Closing the belt: Hold together the two fixings C and attach the magnetic closer A; the fastener locks automatically.

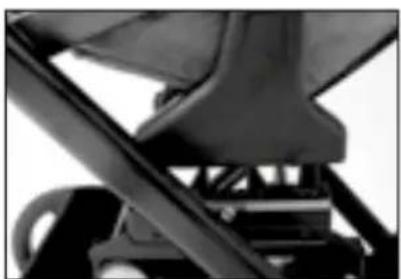

Automatic locking of the upper section

Place the seat frame on the chassis so that the two upper fastening components rest on the locking bolts provided for this purpose. Both sides of the lock mechanism 17 will automatically close when you press the seat frame down.

8 7 8

Close-up of a hand pressing down on a dark object, with an arrow pointing to the top area (no text or symbols visible)

Close-up of hands installing or adjusting a circular component, no visible text or symbols

14 D G E C A B F

Close-up of a mechanical component with diagonal lines and a curved base (no visible text or symbols)

Instructions for use

WARNING! Ensure that the seat frame is securely in place before use!

To release the lock mechanism, press the safety button to the right of the release button on the back of the inclining seat frame and then press the release button until the release is activated.

Grasp the hoop guard with your other hand to remove the seat frame.

Close-up grayscale image of a human eye with two white arrows pointing to the cornea area (no text or symbols present)

Close-up of a mechanical device with a curved canopy and directional arrows indicating movement (no text or symbols)

Suitability for the child

The seat unit is designed for a child from 6 months, and weighing up to 22 kg.

WARNING!

Only use this seat unit when your child can sit up on their own and from an age of 6 months.

For children under 6 months and with a maximum body weight of 9 kg who cannot yet sit up or roll onto their side or support themselves on their hands and knees, only use it in combination with an appropriate baby carrier.

Checking and care instructions

All the materials we use can easily be cared for.

Care of the fabric parts

Clean soiled fabrics when dry using a clothes-brush or lukewarm water (then use hair dryer). Do not rub fabrics extensively. Remove tenacious stains using a soft detergent. All removable fabric parts may be machine washed in lukewarm water at a gentle setting and reduced agitation, at 30 °C. Let's say you have encountered a heavy rain shower. Dry your carriage with the hood still on in a dry and airy room using a cloth. This prevents marking as well as the underlining fabrics from moist soaking in through the seams. As a guaranteed protection against rain, we recommend that you use our rain cover, which is either included or can be purchased at your dealer's. Our fabrics have quite a number of distinctive features. However, they are very sensitive to excessive sunlight. That's why you should park your carriage in the shade whenever possible.

Care of the chassis

The chassis requires regular care. You should clean and slightly lubricate the wheel axles at a regular 4-weeks interval. Before oiling the wheels and push-in axles, make sure these are absolutely clean and free of sand etc., in order not to compromise the proper working of the locking mechanism. Use a silicone based lubricant spray for all moving plastic parts to maintain them in an operative condition. Keep all coated and chrome-plated metal parts in dry condition, and use a finish restorer or chrome paste if necessary. Remove smaller chassis paint damages by means of a touch-up applicator. Do not use high-pressure cleaners when cleaning your carriage, due to risk of damaging the ball bearings of the wheels (greased) and other functional parts (grinding and creaking noise). Wheels: Overpressure may result in accidents and personal injuries. Replace worn plain wheel bearings and springs in time. Replace worn plain wheel bearings and springs in time. Little stones in the thread, etc. may just as well damage the floor covering. When parking the carriage in the blazing sun or cramming it in the boot at temperatures of above 40^ C, the semi pneumatic tires may flatten or become deformed.

2 YEARS warranty

This product is guaranteed for a period of 2 years by your contract partner. For possible submission of proof, please keep your receipt, the completed warranty card as well as the hand-over check bearing your signature for the length of the warranty period. These documents must be submitted to qualify for service under the warranty.

IN CASE OF WARRANTY CLAIM

This product is warranted against defects in materials and workmanship that existed at the time it was handed over.

THIS WARRANTY DOES NOT COVER .....

We disclaim liability for defects in the object of purchase that are beyond our control.

This especially applies to:

■ natural wear and tear (wear-related defects) and defects due to excessive stress
■ consequential defects, originally caused by neglect of defects/damages but developing into conditions necessitating a more difficult repair
■ defects due to improper or inappropriate use (see Instructions)
■ defects due to incorrect assembly or operation
■ defects due to negligent handling or lack of maintenance of the product
■ defects due to improper alteration of the product.

WARRANTY CLAIM — YES OR NO?

Rust: To provide a proper basic protection of the chassis, it has undergone a rust-proofing treatment. However, rust-stains may be found when lacking maintenance. This case will not be covered by the warranty.

Scratches: Scratches caused by wear and tear will not be covered by the warranty.

Mould formation: Fabric parts, having become wet, should be dried properly to prevent mould formation (see Instructions). Mould formation will not be covered by the warranty.

Bleaching of the fabrics: We confirm that the fabrics comply with the established standards. It cannot be ruled out that colours of the fabrics may fade while the parts are exposed to direct sunlight, washed too frequently, come into contact with sweat and detergents, or suffer abrasive wear (especially on those parts where the pram is handled). Consequently, colour fading is excluded from the warranty. It is unavoidable that colours sometimes differ slightly from one individual batch to the next, which is why this case will not be covered under the warranty.

Knob formation on fabrics: We recommend that you apply general clothes care. As with woollen sweaters, the knobs can easily be removed by using a clothes-brush or burling machine.

Tearing of seams, fabrics, press studs: At the time of purchase, please check carefully that all the fabric parts, seams and snap fasteners have properly been sewn and fastened. In case of a possible complaint concerning seams/defective snap fasteners, a claim must immediately be reported to your dealer after the defect has been discovered.

Wheels: As wheels used on prams will not be balanced, they may show slight run-outs („wobbles“). Worn tires will be regarded as natural wear and tear. No claim can be raised if your pram, using pneumatic tired wheels, has a „flat“. This will be attributed to extraneous causes — a small hole caused by a pointed object, or pushing the pram about when it has not got enough air in the tire. This case will not be covered by the warranty.

WHAT TO REMEMBER WHEN BUYING YOUR PRAM

Check that your pram is complete when it is handed over and no parts are missing. Check the function of all parts and confirm this by signing the hand-over check.

WHAT TO DO IN CASE OF A COMPLAINT

Call your dealer, from whom you bought the pram, to file the complaint and to discuss how to handle the matter. In case of defects concerning safety regulations, your complaint must be filed at your dealer within a 30 days period from the date the defects have occurred, otherwise these defects will not be warranted for. When handling your warranty claims, we will apply product-specific depreciation rates. We refer you to our general terms and conditions displayed at our premises.

Make sure that the pram is in a clean condition before being sent in for repair. Repairs will not be carried out on prams which are in a dirty condition.

USE, CARE AND MAINTENANCE

To maintain the original quality of your pram as a means of transportation for your child, it requires care and maintenance according to the instructions.

Black-and-white photo of a woman gently holding a baby, both looking over (no text or symbols visible)

La France

Hartan

VIVA GTR

Lock-type-swivel wheels

Close-up of a mechanical component with a numbered label '5' pointing to a specific part (no other text or symbols visible)

Close-up of a black mechanical component with a numbered label '10' pointing to a specific part (no other text or symbols visible)

Close-up of a mechanical wheel assembly with visible shaft and hub (no text or symbols)

Frein de blocage

Close-up of a hand pressing down on a dark object, with an arrow pointing to the top area (no text or symbols visible)

Close-up of hands installing or adjusting a circular component, no visible text or symbols

14 D G E C A B F

Close-up of a mechanical component with diagonal lines and a curved base (no visible text or symbols)

Mode d'emploi

Close-up grayscale image of a human eye with two white arrows pointing to the cornea area (no text or symbols present)

Close-up of a mechanical device with directional arrows indicating movement or force (no visible text or symbols)

Black-and-white photo of a woman gently holding a baby's face, both resting on a bed (no text or symbols visible)

Nederlands

Hartan

VIVA GTR

Close-up of a mechanical component with a numbered label '5' pointing to a specific part (no other text or symbols visible)

Close-up of a mechanical component with a numbered label '10' pointing to a specific part (no readable text or symbols beyond the number)

Close-up of a mechanical assembly with wheels and shafts, labeled '10a' (no readable text or symbols beyond label)

Parkeerrem

Close-up of a hand pressing down on a dark object, with an arrow pointing to the top area (no text or symbols visible)

Close-up of hands installing or adjusting a circular component, possibly a device or machine (no visible text or symbols)

14 D G E C A B F

Close-up of a mechanical component with diagonal lines and a curved base (no visible text or symbols)

Gebruiksaanwijzing

Close-up grayscale image of a human eye with two white arrows pointing to the cornea area (no text or symbols present)

Close-up of a mechanical device with directional arrows indicating movement or force (no visible text or symbols)

Black-and-white photo of a woman gently holding a baby, both looking over (no text or symbols visible)

Danmark

Hartan

VIVA GTR

Close-up of a mechanical component with a numbered label '5' pointing to a specific part (no readable text or symbols beyond the number)

Close-up of a black mechanical component with a numbered label '10' pointing to a specific part (no other text or symbols visible)

Close-up of a mechanical assembly with wheels and shafts, labeled '10a' (no readable text or symbols beyond label)

Parkeringsbremse

Close-up of a hand pressing down on a dark object, with an arrow pointing to the top area (no text or symbols visible)

Close-up of hands installing or adjusting a circular component on a mechanical part (no visible text or symbols)

14 D G E C A B F

Close-up of a mechanical component with diagonal lines and a curved base (no visible text or symbols)

Close-up grayscale image of a human eye with two white arrows pointing to the cornea area (no text or symbols present)

Close-up of a mechanical device with directional arrows indicating movement or force (no visible text or symbols)

Egnethed til barnet

Black-and-white photo of a woman lying on her back while holding a baby's face (no text or symbols visible)

Norge

Hartan

VIVA GTR

Close-up of a mechanical component with a numbered label '5' pointing to a specific part (no readable text or symbols beyond the number)

Close-up of a black mechanical component with a numbered label '10' pointing to a specific part (no other text or symbols visible)

Close-up of a mechanical wheel assembly with visible shaft and hub (no text or symbols)

Parkeringsbremse

Ved å trykke på den røde bremsetasten 7 går bremsen i lås. Prøv alltid om vognen kan skyves når den er parkert. Ved å trykke på den grønne bremsetasten 7 løsnes bremsen.

Close-up of a hand pressing down on a dark object, with an arrow pointing to the top area (no text or symbols visible)

Close-up of hands installing or adjusting a circular component, no visible text or symbols

Sikkerhetssele ADVARSEL!

Sikre barnet ditt med 5-punkt-beltesystemet 14.

Close-up of a mechanical component with diagonal lines and a curved base (no visible text or symbols)

Medical scan image showing a cross-sectional view with two white arrows pointing to a dark region (no text or symbols present)

Close-up of a mechanical device with directional arrows indicating movement or force (no visible text or symbols)

Egnet for barnet

TA HENSYN TIL F∅LGENDE VED KJ∅PET

Black-and-white photo of a woman gently holding a baby, both looking over the distance (no text or symbols visible)

Sverige

Hartan

VIVA GTR

Close-up of a mechanical component with a numbered label '5' pointing to a specific part (no other text or symbols visible)

Close-up of a black mechanical component with a numbered label '10' pointing to a specific part (no other text or symbols visible)

Close-up of a mechanical wheel assembly with visible shaft and hub (no text or symbols)

Parkeringsbroms

Close-up of a hand pressing down on a dark object, with an arrow pointing to the top area (no text or symbols visible)

Close-up of hands installing or adjusting a circular component, no visible text or symbols

14 D G E C A B F

Close-up of a mechanical component with diagonal lines and a curved base (no visible text or symbols)

Bruksanvisning

Medical scan image showing a cross-sectional view with two white arrows pointing to a dark region (no text or symbols present)

Close-up of a mechanical device with directional arrows indicating movement or force (no visible text or symbols)

Black-and-white photo of a woman gently holding a baby, both looking over (no text or symbols visible)

Suomi

Hartan

VIVA GTR

Close-up of a mechanical component with a numbered label '5' pointing to a specific part (no other text or symbols visible)

Close-up of a black mechanical component with a numbered label '10' pointing to a specific part (no other text or symbols visible)

Close-up of a mechanical wheel assembly with visible shaft and hub (no text or symbols)

Pysäköintijarru

Close-up of a hand pressing down on a dark object, with an arrow pointing to the top area (no text or symbols visible)

Close-up of hands installing or adjusting a circular component, no visible text or symbols

14 D G E C A B F

Close-up of a mechanical component with diagonal lines and a curved base (no visible text or symbols)

Käyttöohje

Close-up grayscale image of a biological structure with two white arrows pointing to a dark region (no text or symbols)

Close-up of a mechanical device with directional arrows indicating movement or force (no visible text or symbols)

Soveltuvuus lapselle

Black-and-white photo of a woman lying on her back while holding a baby's face (no text or symbols visible)

España

Hartan

VIVA GTR

Close-up of a black mechanical component with a numbered label '10' pointing to a curved edge (no other text or symbols visible)

Close-up of a mechanical wheel assembly with visible shaft and hub (no text or symbols)

Close-up of a hand pressing down on a dark object, with an arrow pointing to the top area (no text or symbols visible)

Close-up of hands installing or adjusting a circular component, no visible text or symbols

14 D G E C A B F

Close-up of a mechanical component with diagonal lines and a curved base (no visible text or symbols)

Close-up grayscale image of a curved object with two white arrows pointing to a dark region (no text or symbols)

Close-up of a mechanical device with a curved cover and directional arrows indicating movement or force (no text or symbols visible)

Black-and-white photo of a woman lying on her back while holding a baby's face (no text or symbols visible)

Italia

Hartan

VIVA GTR

Close-up of a mechanical component with a numbered label '5' pointing to a specific part (no other text or symbols visible)

Close-up of a mechanical component with a numbered label '10' pointing to a specific part (no other text or symbols visible)

Close-up of a mechanical assembly with wheels and shafts, labeled '10a' (no readable text or symbols beyond label)

Close-up of a hand pressing down on a dark object, with an arrow pointing to the top area (no text or symbols visible)

Close-up of hands cleaning a car interior with a cloth cover (no visible text or symbols)

14 D G E C A B F

Close-up of a mechanical component with diagonal lines and a curved base (no visible text or symbols)

Close-up grayscale image of a human eye with two white arrows pointing to the cornea area (no text or symbols present)

Close-up of a mechanical device with directional arrows indicating movement or force (no visible text or symbols)

Black-and-white photo of a woman gently holding a baby, both looking over (no text or symbols visible)

Ceská republika

Hartan

VIVA GTR

Close-up of a mechanical component with a numbered label '5' pointing to a specific part (no other text or symbols visible)

Close-up of a black mechanical component with a numbered label '10' pointing to a specific part (no other text or symbols visible)

Close-up of a mechanical wheel assembly with visible shaft and hub (no text or symbols)

Parkovací brzda

Close-up of a hand pressing down on a dark object, with an arrow pointing to the top area (no text or symbols visible)

Close-up of hands installing or adjusting a circular component, no visible text or symbols

14 D G E C A B F

Close-up of a mechanical component with diagonal lines and a curved base (no visible text or symbols)

Návod k použití

Close-up grayscale image of a curved object with two white arrows pointing to a dark region (no text or symbols)

Close-up of a mechanical device with directional arrows indicating movement or force (no visible text or symbols)

Black-and-white photo of a woman gently holding a baby, both looking over (no text or symbols visible)

Slovensko

Hartan

VIVA GTR

Close-up of a mechanical component with a numbered label '5' pointing to a specific part (no readable text or symbols beyond the number)

Close-up of a black mechanical component with a numbered label '10' pointing to a curved edge (no other text or symbols visible)

Close-up of a mechanical wheel assembly with visible shaft and hub (no text or symbols)

Parkovacia brzda

Close-up of a hand pressing down on a dark object, with an arrow pointing to the top area (no text or symbols visible)

Close-up of hands installing or adjusting a circular component, no visible text or symbols

14 D G E C A B F

Close-up of a mechanical component with diagonal lines and a curved base (no visible text or symbols)

Návod na obsluhu

Close-up grayscale image of a curved, dark object with two white arrows pointing to features (no text or symbols)

Close-up of a mechanical device with directional arrows indicating movement or force (no visible text or symbols)

Vhodnost' pre dieta

Black-and-white photo of a woman gently holding a baby, both looking over (no text or symbols visible)

Hrvatska

Hartan

VIVA GTR

Close-up of a mechanical component with a numbered label '5' pointing to a specific part (no other text or symbols visible)

Close-up of a mechanical component with a numbered label '10' pointing to a specific part (no other text or symbols visible)

Close-up of a mechanical assembly with wheels and shafts, labeled '10a' (no readable text or symbols beyond label)

Kočnica

Pritiskom na crvenu kočnu tipku 7 uklopite kočnicu. Pri zaustavljanju molimo izvršite probu guranja. Pritiskom na zelenu kočnu tipku 7 otpustite kočnicu.

UPOZORENJE! Pazite na to, da je prije stavljanja i vađenja djeteta kočnica uvijek zatvorena.

Close-up of a hand pressing down on a dark object, with an arrow pointing to the top area (no text or symbols visible)

Close-up of hands installing or adjusting a circular component, no visible text or symbols

14 D G E C A B F

Close-up of a mechanical component with diagonal lines and a curved base (no visible text or symbols)

Uputstvo za uporabu

Close-up grayscale image of a curved object with two white arrows pointing to a dark region (no text or symbols)

Close-up of a mechanical device with directional arrows indicating movement or force (no visible text or symbols)

Podobnost za dijete

O CEMU MORATE VODITI RACUNA PRILIKOM KUPNJE

Provjerite da li su kolica kompletna prilikom isporuke i da li nedostaju neki dijelovi. Provjerite da li sve funkcije kolica funkcioniraju u potpunosti i potvrdite ovo na listi o primopredaji.

POSTUPAK KOD REKLAMACIJE

Black-and-white photo of a woman gently holding a baby, both looking over (no text or symbols visible)

Ukraine

Hartan

VIVA GTR

Close-up of a mechanical component with a numbered label '5' pointing to a specific part (no other text or symbols visible)

Close-up of a mechanical component with a numbered label '10' pointing to a specific part (no readable text or symbols beyond the number)

Close-up of a mechanical assembly with wheels and shafts, labeled '10a' (no readable text or symbols beyond label)

Гальма

Close-up of a hand pressing down on a dark object, with an arrow pointing to the top area (no text or symbols visible)

Close-up of hands installing or adjusting a circular component, no visible text or symbols

14 D G E C A B F

Close-up of a mechanical component with diagonal lines and a curved base (no visible text or symbols)

Close-up grayscale image of a human eye with two white arrows pointing to the cornea area (no text or symbols present)

Close-up of a mechanical device with directional arrows indicating movement or force (no visible text or symbols)

Black-and-white photo of a woman gently holding a baby, both looking over (no text or symbols visible)

Slovenija

Hartan

VIVA GTR

Close-up of a mechanical component with a numbered label '5' pointing to a specific part (no readable text or symbols beyond the number)

Close-up of a black mechanical component with a numbered label '10' pointing to a specific part (no other text or symbols visible)

Close-up of a mechanical wheel assembly with visible shaft and hub (no text or symbols)

Zapora ob ustavljanju

Ko pritisnite na rdečo zavorno tipko 7, se zavora zaskoči. Ko voziček ustavite, preverite z rahlim potiskom naprej, će zavora deluje. Zavoro popustite tako, da pritisnete na zeleno tipko 7.

Close-up of a hand pressing down on a dark object, with an arrow pointing to the top area (no text or symbols visible)

Close-up of hands cleaning a car interior with a cloth cover (no visible text or symbols)

14 D G E C A B F

Close-up of a mechanical component with diagonal lines and a curved base (no visible text or symbols)

NAVODILO ZA UPORABO

Close-up grayscale image of a curved, eye-like structure with two white arrows pointing to a dark region (no text or symbols)

Close-up of a mechanical device with directional arrows indicating movement or force (no visible text or symbols)

Primernost za otroka

Black-and-white photo of a woman lying on her back while holding a baby's face (no text or symbols visible)

Türkiye

Hartan

VIVA GTR

Close-up of a mechanical component with a numbered label '5' pointing to a specific part (no readable text or symbols beyond the number)

Close-up of a black mechanical component with a numbered label '10' pointing to a specific part (no other text or symbols visible)

Close-up of a mechanical wheel assembly with visible shaft and hub (no text or symbols)

Sabitleyici fren

Close-up of a hand pressing down on a dark object, with an arrow pointing to the top area (no text or symbols visible)

Close-up of hands installing or adjusting a circular component, no visible text or symbols

14 D G E C A B F

Close-up of a mechanical component with diagonal lines and a curved base (no visible text or symbols)

Kalite anlaşması

Medical scan image showing a cross-sectional view with two white arrows pointing to a dark region (no text or symbols present)

Close-up of a mechanical device with directional arrows indicating movement or force (no visible text or symbols)

Çocuk için uygunluk

Black-and-white photo of a woman lying on her back while holding a baby's hand (no text or symbols visible)

Polska

Hartan

VIVA GTR

Close-up of a mechanical component with a numbered label '5' pointing to a specific part (no readable text or symbols beyond the number)

Close-up of a black mechanical component with a numbered label '10' pointing to a specific part (no other text or symbols visible)

Close-up of a mechanical wheel assembly with visible shaft and hub (no text or symbols)

Hamulec postojowy

Close-up of a hand pressing down on a dark object, with an arrow pointing to the top area (no text or symbols visible)

Close-up of hands installing or adjusting a circular component, no visible text or symbols

14 D G E C A B F

Close-up of a mechanical component with diagonal lines and a curved base (no visible text or symbols)

Instrukcja obsługi

Medical scan image showing a cross-sectional view with two white arrows pointing to a dark region (no text or symbols present)

Close-up of a mechanical device with directional arrows indicating movement or force (no visible text or symbols)

WADY OBJETE GWARANCJA

GWARANCJA NIE OBEJMUJE...

Black-and-white photo of a woman gently holding a baby, both looking over (no text or symbols visible)

Hartan

VIVA GTR

Close-up of a mechanical component with a numbered label '5' pointing to a specific part (no other text or symbols visible)

Close-up of a black mechanical component with a numbered label '10' pointing to a specific part (no other text or symbols visible)

Close-up of a mechanical wheel assembly with visible shaft and hub (no text or symbols)

Close-up of a hand pressing down on a dark object, with an arrow pointing to the top area (no text or symbols visible)

Close-up of hands installing or adjusting a circular component on a mechanical part (no visible text or symbols)

14 D G E C A B F

Close-up of a mechanical component with diagonal lines and a curved base (no visible text or symbols)

Close-up grayscale image of a biological structure with two white arrows pointing to a dark region (no text or symbols)

Close-up of a mechanical device with directional arrows indicating movement or force (no visible text or symbols)

1. Completeness	○ checked/OK	○ not applicable
2. Function check
■ Folding mechanism	○ checked/OK	○ not applicable
■ Read behaviour	○ checked/OK	○ not applicable
■ Wheels	○ checked/OK	○ not applicable
■ Adjusting mechanism	○ checked/OK	○ not applicable
■ Brakes check	○ checked/OK	○ not applicable
■ Suspension check	○ checked/OK	○ not applicable
3. Intactness
■ Frame check	○ checked/OK	○ not applicable
■ Fabric check	○ checked/OK	○ not applicable
■ Plastic parts check	○ checked/OK	○ not applicable
○ I have checked the product and have ascertained that it is supplied complete, has no external, visible faults and that all functions are intact.
○ I have received sufficient information concerning the product and its functions before purchase and have been instructed on care and maintenance.
