Product type	Stroller
Brand	Hartan
Model	Rock it GTR
Recommended age (seat)	From 6 months, up to 22 kg
Age with adapted carrycot	Less than 6 months, up to 9 kg
Maximum child weight	22 kg
Restraint system	5-point harness with magnetic buckle
Backrest adjustment	Yes, two tilt levels
Footrest adjustment	Yes, with child safety
Handlebar adjustment	Yes, height adjustable
Suspension	Adjustable spring suspension (soft or sporty)
Parking brake	Yes, with red/green push button
Hand brake	Yes, adjustable
Swivel wheels	Yes, lockable
Canopy	With removable sun visor, adjustable
Protection bar	Yes, removable
Folding	Yes, with half-turn safety lock
Use for jogging/rollerblading	Not allowed
Textile standards	Öko-Tex 100
Fabric care	Machine wash at 30°C, delicate cycle
Suspension maintenance	Lubricate every 4 weeks
Warranty	2 years

Frequently Asked Questions - Rock it GTR HARTAN

From what age can I use the Rock it GTR stroller?

The seat is suitable from 6 months up to 22 kg. For children under 6 months, use an adapted carrycot up to 9 kg.

What is the maximum weight supported by the stroller?

The maximum child weight is 22 kg.

Can I use this stroller for jogging or rollerblading?

No, this stroller is not designed for jogging or rollerblading. This could be dangerous.

How do I clean the stroller fabrics?

The removable fabric parts can be machine washed at 30°C on a delicate cycle. Avoid rubbing and air dry.

How do I adjust the hand brake?

Turn the adjustment ring (9) at the top to adjust the hand brake. If the braking effect is different on the rear wheels, adjust the brake cable ring (9a) at the bottom.

How do I fold and unfold the stroller?

To unfold, press the locking buttons (4) and pull the handlebar up. To fold, turn the half-turn lock (3) and push the handlebar down. Make sure the locks are fully closed before use.

How do I adjust the suspension?

Turn the adjustment handle (8) to select a soft or more sporty suspension.

How do I properly install the safety harness?

The 5-point harness must be fastened with the straps inserted. Tighten the straps by pulling on the ends (F) and adjust the width via the quick-release loop (G). The magnetic buckle closes automatically.

What is the warranty period?

The stroller has a warranty of 2 years from the date of delivery by the retailer, subject to presentation of the receipt and the duly completed warranty card.

Can I use a car seat on the Rock it GTR chassis?

No, the seat unit, bassinet and carrycot are not designed for car transport. Only use accessories approved by Hartan.

USER MANUAL Rock it GTR HARTAN

Acceptance Certificate

Name / Name:

Straße / Road:

Phone (with area code):

e-mail:

Colour of fabric (design):

Zubehör / Accessories:

Kaufdatum / Date of purchase:

Salesperson (name in block letters)

Note: Signing this acceptance estimate would not restrict the legal rights of the purchaser.

Händler / Dealer:

12.2023/2000

Black-and-white photo of a woman gently holding a baby's face, both looking upward (no text or symbols visible)

Rock it GTR

7 GB United Kingdom (UK)

1. Completeness	○ checked/OK	○ not applicable
2. Function check
■ Folding mechanism	○ checked/OK	○ not applicable
■ Read behaviour	○ checked/OK	○ not applicable
■ Wheels	○ checked/OK	○ not applicable
■ Adjusting mechanism	○ checked/OK	○ not applicable
■ Brakes check	○ checked/OK	○ not applicable
■ Suspension check	○ checked/OK	○ not applicable
3. Intactness
■ Frame check	○ checked/OK	○ not applicable
■ Fabric check	○ checked/OK	○ not applicable
■ Plastic parts check	○ checked/OK	○ not applicable
○ I have checked the product and have ascertained that it is supplied complete, has no external, visible faults and that all functions are intact.
○ I have received sufficient information concerning the product and its functions before purchase and have been instructed on care and maintenance.

Black-and-white photo of a woman gently holding a baby, both looking at each other (no text or symbols visible)

Deutschland

Hartan

Rock it GTR

Close-up of a bicycle lever handle and grip (no text or symbols visible)

Close-up of a mechanical assembly with labeled component '9a' (no readable text or symbols beyond label)

8 7 8 9a9a

Bedienungsanleitung

Black-and-white photo of a woman gently holding a baby, both looking at each other (no text or symbols visible)

United Kingdom (UK)

Hartan

Rock it GTR

Suitable from 6 months, up to 22 kg

Under 6 months only in connection with an appropriate carrycot.

The product is not suitable to be used when jogging or skating.

Suitability for your child

The Rock it GTR stroller unit is designed to carry a child from the age of 6 months, and up to 22 kg in weight.

WARNING!

Only use this seat unit when your child can sit up on their own and from an age of 6 months.

For children under 6 months and with a maximum body weight of 9 kg who cannot yet sit up or roll onto their side or support themselves on their hands and knees, only use it in combination with an appropriate baby carrier.

1 Handlebar
2 Handlebar catch
3 Safety turn lock
4 Handle-folding lock button
5 Wheel retention
6 Lock-type-swivel wheel
7 Parking brake
8 Adjustable suspension system
9 Readjustment of hand brake
9a Silently adjustable hood
10 Silently adjustable hood
11 Sun canopy

12 Hood and safety bar lock
13 Tilt-adjustable backrest
14 Safety belt
15 Adjustable footrest
16 Automatic lock for upper section
17 Ventilation zone
18 unlock button
19 Telescopic shock absorbers
20 Sun visor
21 Canopy attachment

Congratulations on your purchase

You want your baby to feel safe and secure, that's why you have purchased a Hartan high-quality product. You have made an excellent choice. Hartan products are manufactured with the greatest possible care and monitored constantly by rigorous quality control assuring that your pram will provide life-long satisfaction. The textiles used for our products have been tested for harmful substances (chemical residues) according to the indu-stry's own ,Öko-Tex-Standard 100' to guarantee that all the fabric parts of your pram are safe for your baby.

Importantly! Please do not use this pram before reading the instructions carefully, and keep these instructions for queries or future reference. Your child's safety may be affected if you do not follow these instructions.

If you do not understand the instructions or if you require more detailed information, contact your dealer. Please ensure that other users are also informed about the functions of the carriage and the notes on safety.

For the safety of your child

WARNING! – Before using the pram, make sure all catches are locked.

WARNING! – Before use, conduct an initial check of the carriage, and do not use it if it is damaged or if parts are torn or broken.

WARNING! – Make sure when unfolding the pram and folding it together that your child is at a safe distance, to avoid any injuries

WARNING! – Never leave your child unattended in the pram.

WARNING! – Make sure before using it that the carrycot or the seat unit or the child's car seat is correctly latched into place.

WARNING! – Negotiating stairs or steps as well as overloading may damage the pram and endanger your child.

WARNING! – When parking the pram, make sure the brake is engaged. When using public transport, ensure the pram stands safely.

WARNING! – A pram, stroller or carrycot is not a substitute for a cradle or a bed. It is intended to be used exclusively as a means of transport.

WARNING! – Using this pram while jogging, skating, etc. can be dangerous and is therefore not allowed.

WARNING! – Do not allow children to play either near or with the pram.

WARNING! – Always use the restraint system.

WARNING! – Fix no bags, handbags or other loads to the handle, backrest or sides of the carriage, as this will affect its stability.

WARNING! – This model has been designed for 1 child.

WARNING! – A second child seat is not allowed for this model.

WARNING! – The seat unit and carrycot are not to be used for transporting in a car.

WARNING! – The rain cover may not be used when the hood is taken off (danger of suffocation). Never expose the rain cover hood to sun while the child is in the carriage (overheating).

WARNING! – Keep the carriage away from open fires or other sources of heat.

WARNING! – Remove immediately all film packaging, and do not allow your child to play with it (asphyxiation).

WARNING! – Accessories and spare or replacement parts not approved by the manufacturer must not be used.

WARNING! When opening out and folding down the frame and when adjusting the back-rest, pinch-points may be caused in which fingers etc. can be trapped unless care is exercised. Ensure that your child has plenty of clearance space.

Unfolding the pram

By pushing the lock buttons 4, unfold the upper section to bring the handle in horizontal position. Pull handle 1 upwards until handle catch 2 has engaged.

WARNING! Before using the pram, make sure all catches are locked.

Folding the pram

Turn safety turn-lock 3 inward until the handle's catch 1 has released. Push handle downwards to fold the pram. By pushing the lock buttons 4, fold the handle's upper section inward.

Height adjustment of handlebar

Press the two handle-folding lock buttons 4 to bring the upper section of the handlebar 1 in the desired position.

Removing the wheels

Release the parking brake 7. To remove or replace the wheels, press button 5. If replacing the wheel, make sure that it is correctly latched into place.

Lock-type-swivel wheels

Turn the cap 6 so that the red point is visible to pre-select the straight-line motion mode, which will be activated the moment the wheels point in forward direction. Turn the cap 6 so that the green point is visible to release the swivel lock. To remove, press the button in the centre of the cap 6 and withdraw the wheel from its seating. To fix the wheel in place, push the wheel with its fixing pin into the seating until it audibly clicks into place.

Sun canopy

The sun shade can be folded down or removed using the zipper.

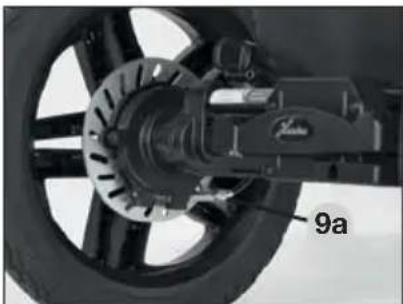

Adjust the handbrake

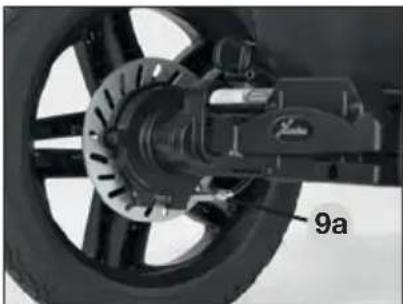

Readjust the hand brake by means of the cable adjusting barrel 9 (above). A different brake effect on the two rear wheels can be corrected by means of the cable adjusting barrel 9a (below).

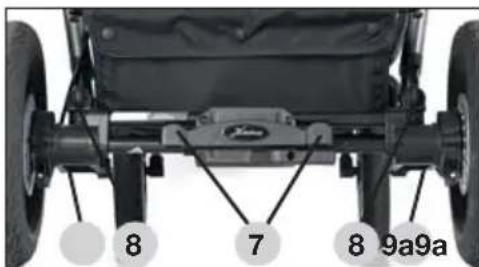

Adjustable suspension system

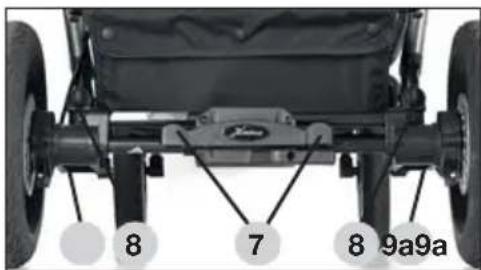

By turning the selector 8, a „hard“ or „soft“ position can be selected for suspension.

Parking brake

Push the red brake button 7 to engage the brake. Having parked the pram, try to push it to check the brake. Push the green brake button 7 to release the brake.

WARNING! Make sure the brake is always closed when placing the baby in the carriage or taking it out of it.

Hood and safety bar

By pressing the bayonet joint 12, the hood or the safety bar can be pulled out. When inserting it, make sure the safety bar locks into place correctly and be careful not to pinch any of the fabric parts. By pressing the buttons, the safety bar position can be changed.

WARNING! The hood bar of the stroller and the safety bar are not suitable for carrying the pram.

Close-up of a bicycle lever handle and grip (no text or symbols visible)

Close-up of a mechanical assembly with labeled component '9a' (no readable text or symbols beyond label)

8 7 8 9a9a

Instructions

Adjust the back rest to incline the seat frame

Tilt the adjustment lever 13 at the rear to bring the seat frame from the sitting to the lying position in two stages.

Adjusting the footrest

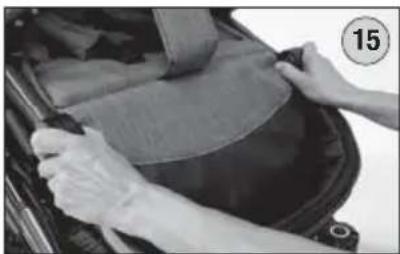

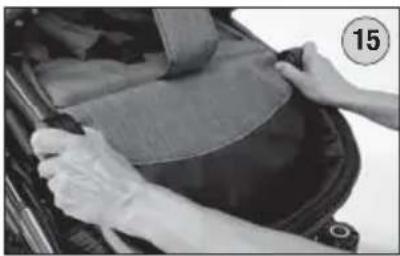

By pressing the two red safety buttons 15 at the same time, the footrest can be lowered. When lifting it, adjustment of positions is effected automatically.

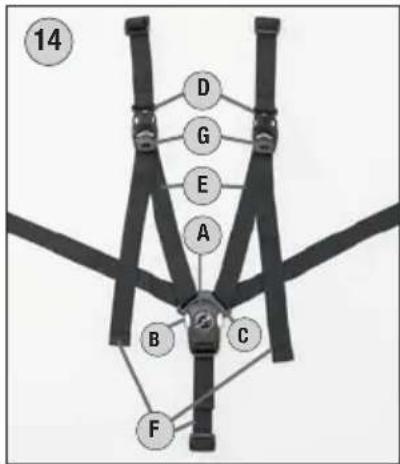

Safety harness WARNING!

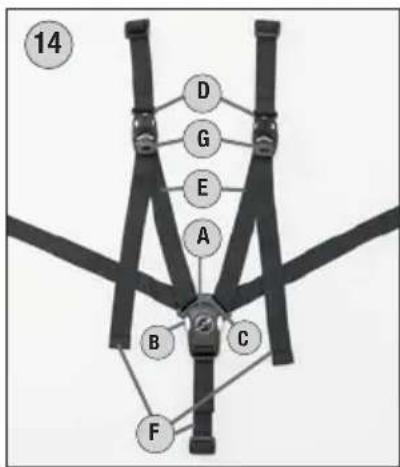

Secure your child with the 5-point belt system 14.

Make sure that the shoulder belts D are inserted and the belt fits snugly against your child. You can adjust the length and tautness of the belts with the belt ends F. You can adjust the width of the shoulder and lap belts by tilting open the quick-release slider G and pulling on the belt E.

Opening the belt: Press the two buttons B at the same time and remove the magnetic closer A. The bottom fixing C can then be removed easily.

Closing the belt: Hold together the two fixings C and attach the magnetic closer A; the fastener locks automatically.

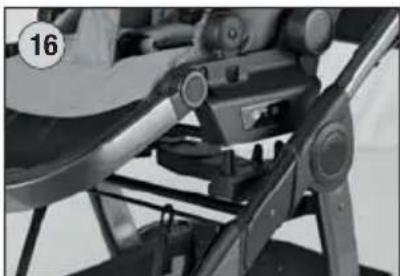

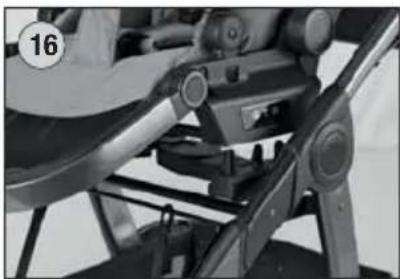

Automatic locking of the upper section

Place the seat frame on the chassis so that the two upper fastening components rest on the locking bolts provided for this purpose. Both sides of the lock mechanism 16 will automatically close when you press the seat frame down.

WARNING! Ensure that the seat frame is securely in place before use!

To release the lock mechanism, press the safety button to the right of the release button on the back of the inclining seat frame and then press the release button until the release is activated.

Grasp the hoop guard with your other hand to remove the seat frame.

Checking and care instructions

All the materials we use can easily be cared for.

Care of the fabric parts

Clean soiled fabrics when dry using a clothes-brush or lukewarm water (then use hair dryer). Do not rub fabrics extensively. Remove tenacious stains using a soft detergent. All removable fabric parts may be machine washed in lukewarm water at a gentle setting and reduced agitation, at 30 °C. Let's say you have encountered a heavy rain shower. Dry your carriage with the hood still on in a dry and airy room using a cloth. This prevents marking as well as the underlining fabrics from moist soaking in through the seams. As a guaranteed protection against rain, we recommend that you use our rain cover, which is either included or can be purchased at your dealer's. Our fabrics have quite a number of distinctive features. However, they are very sensitive to excessive sunlight. That's why you should park your carriage in the shade whenever possible.

Care of the chassis

The chassis requires regular care. You should clean and slightly lubricate the wheel axles at a regular 4-weeks interval. Before oiling the wheels and push-in axles, make sure these are absolutely clean and free of sand etc., in order not to compromise the proper working of the locking mechanism. Use a silicone based lubricant spray for all moving plastic parts to maintain them in an operative condition. Keep all coated and chrome-plated metal parts in dry condition, and use a finish restorer or chrome paste if necessary. Remove smaller chassis paint damages by means of a touch-up applicator.

Do not use high-pressure cleaners when cleaning your carriage, due to risk of damaging the ball bearings of the wheels (greased) and other functional parts (grinding and creaking noise).

Wheels: Overpressure may result in accidents and personal injuries. Replace worn plain wheel bearings and springs in time. Replace worn plain wheel bearings and springs in time. Little stones in the thread, etc. may just as well damage the floor covering. When parking the carriage in the blazing sun or cramming it in the boot at temperatures of above 40^ C, the semi pneumatic tires may flatten or become deformed.

Quality agreement

2 YEARS warranty

This product is guaranteed for a period of 2 years by your contract partner. For possible submission of proof, please keep your receipt, the completed warranty card as well as the hand-over check bearing your signature for the length of the warranty period. These documents must be submitted to qualify for service under the warranty.

IN CASE OF WARRANTY CLAIM

This product is warranted against defects in materials and workmanship that existed at the time it was handed over.

THIS WARRANTY DOES NOT COVER .....

We disclaim liability for defects in the object of purchase that are beyond our control.

This especially applies to:

■ natural wear and tear (wear-related defects) and defects due to excessive stress
■ consequential defects, originally caused by neglect of defects/damages but developing into conditions necessitating a more difficult repair
■ defects due to improper or inappropriate use (see Instructions)
■ defects due to incorrect assembly or operation
■ defects due to negligent handling or lack of maintenance of the product
■ defects due to improper alteration of the product.

Quality agreement

WARRANTY CLAIM — YES OR NO?

Rust: To provide a proper basic protection of the chassis, it has undergone a rust-proofing treatment. However, rust-stains may be found when lacking maintenance. This case will not be covered by the warranty.

Scratches: Scratches caused by wear and tear will not be covered by the warranty.

Mould formation: Fabric parts, having become wet, should be dried properly to prevent mould formation (see Instructions). Mould formation will not be covered by the warranty.

Bleaching of the fabrics: We confirm that the fabrics comply with the established standards. It cannot be ruled out that colours of the fabrics may fade while the parts are exposed to direct sunlight, washed too frequently, come into contact with sweat and detergents, or suffer abrasive wear (especially on those parts where the pram is handled). Consequently, colour fading is excluded from the warranty. It is unavoidable that colours sometimes differ slightly from one individual batch to the next, which is why this case will not be covered under the warranty.

Knob formation on fabrics: We recommend that you apply general clothes care. As with woollen sweaters, the knobs can easily be removed by using a clothes-brush or burling machine.

Tearing of seams, fabrics, press studs: At the time of purchase, please check carefully that all the fabric parts, seams and snap fasteners have properly been sewn and fastened. In case of a possible complaint concerning seams/defective snap fasteners, a claim must immediately be reported to your dealer after the defect has been discovered.

Wheels: As wheels used on prams will not be balanced, they may show slight run-outs („wobbles“). Worn tires will be regarded as natural wear and tear. No claim can be raised if your pram, using pneumatic tired wheels, has a „flat“. This will be attributed to extraneous causes — a small hole caused by a pointed object, or pushing the pram about when it has not got enough air in the tire. This case will not be covered by the warranty.

WHAT TO REMEMBER WHEN BUYING YOUR PRAM

Check that your pram is complete when it is handed over and no parts are missing. Check the function of all parts and confirm this by signing the hand-over check.

WHAT TO DO IN CASE OF A COMPLAINT

Call your dealer, from whom you bought the pram, to file the complaint and to discuss how to handle the matter. In case of defects concerning safety regulations, your complaint must be filed at your dealer within a 30 days period from the date the defects have occurred, otherwise these defects will not be warranted for. When handling your warranty claims, we will apply product-specific depreciation rates. We refer you to our general terms and conditions displayed at our premises.

Make sure that the pram is in a clean condition before being sent in for repair. Repairs will not be carried out on prams which are in a dirty condition.

USE, CARE AND MAINTENANCE

To maintain the original quality of your pram as a means of transportation for your child, it requires care and maintenance according to the instructions.

Black-and-white photo of a woman gently holding a baby, both looking at each other (no text or symbols visible)

La France

Hartan

Rock it GTR

Close-up of a bicycle lever handle with a numbered label (9) pointing to the lever (no text or symbols on the lever itself)

Close-up of a car wheel assembly with visible components and a labeled part '9a' (no text or symbols beyond label)

Black-and-white photo of a woman gently holding a baby, both looking over the distance (no text or symbols visible)

Nederlands

Hartan

Rock it GTR

Close-up of a bicycle brake lever with handle and keyway (no text or symbols visible)

Close-up of a mechanical assembly with labeled component '9a' (no readable text or symbols beyond label)

Black-and-white photo of a woman gently holding a baby, both looking at each other (no text or symbols visible)

Danmark

Hartan

Rock it GTR

Close-up of a bicycle lever handle with a numbered label (9) pointing to the lever (no text or symbols on the lever itself)

Close-up of a car wheel assembly with visible components and a labeled part '9a' (no text or symbols beyond label)

8 7 8 9a9a

Brugsanvisning

Close-up of a hand adjusting a dark object with an arrow pointing to it, no visible text or symbols

Close-up of hands cleaning a car interior with fabric and cloth (no visible text or symbols)

14 D G E A B C F

Close-up of a baby stroller with mechanical components and a numbered label (16) in the corner, no readable text or symbols on the device itself.

Close-up of a hand holding a dark object with two white arrows pointing to it, labeled '18' in the corner (no readable text or symbols beyond labels)

Mechanical device with a triangular fan and lever mechanism, no visible text or symbols

Black-and-white photo of a woman gently holding a baby, both looking at each other (no text or symbols visible)

Norge

Hartan

Rock it GTR

Close-up of a bicycle brake lever with handle and keyway (no text or symbols visible)

Close-up of a mechanical assembly with labeled component '9a' (no readable text or symbols beyond label)

8 7 8 9a9a

Bruksanvisning

TA HENSYN TIL F∅LGENDE VED KJ∅PET

Black-and-white photo of a woman gently holding a baby, both looking at each other (no text or symbols visible)

Sverige

Hartan

Rock it GTR

Close-up of a bicycle lever handle with a numbered label (9) pointing to the lever (no text or symbols on the lever itself)

Close-up of a car wheel assembly with visible components and a labeled part '9a' (no readable text or symbols beyond label)

8 7 8 9a9a

Bruksanvisning

Black-and-white photo of a woman gently holding a baby's face, both looking over the distance (no text or symbols visible)

Suomi

Hartan

Rock it GTR

Close-up of a bicycle lever handle and grip (no text or symbols visible)

Close-up of a mechanical assembly with a labeled component '9a' (no readable text or symbols beyond label)

8 7 8 9a9a

Käyttöohje

Close-up of a hand adjusting a dark object with an arrow pointing to it, no visible text or symbols

Close-up of hands cleaning a car interior with fabric and cloth (no visible text or symbols)

14 D G E A B C F

Close-up of a baby stroller with visible mechanical components and a numbered label (16) in the corner (no text or symbols on the device itself)

Close-up of a hand holding a dark object with two white arrows pointing to it, labeled '18' in the corner (no readable text or symbols beyond labels)

Mechanical device with a triangular fan and lever mechanism, no visible text or symbols

Black-and-white photo of a woman gently holding a baby's face, both looking over the distance (no text or symbols visible)

Italia

Hartan

Rock it GTR

Close-up of a bicycle lever handle with a numbered label (9) pointing to the lever (no text or symbols on the lever itself)

Close-up of a bicycle wheel assembly with visible components and a labeled part '9a' (no text or symbols beyond label)

8 7 8 9a9a

Black-and-white photo of a woman gently holding a baby, both looking at each other (no text or symbols visible)

España

Hartan

Rock it GTR

Close-up of a bicycle lever handle with a numbered label (9) pointing to the lever (no text or symbols on the lever itself)

Close-up of a bicycle wheel assembly with visible components and a labeled part '9a' (no text or symbols beyond label)

8 7 8 9a9a

Black-and-white photo of a woman gently holding a baby, both looking at each other (no text or symbols visible)

Ceská republika

Hartan

Rock it GTR

Close-up of a bicycle lever handle with a numbered label (9) pointing to the lever (no text or symbols on the lever itself)

Close-up of a mechanical assembly with labeled component '9a' (no readable text or symbols beyond label)

Close-up of a hand adjusting a dark object with an arrow pointing to it, no visible text or symbols

Close-up of hands cleaning a car interior with fabric and cloth (no visible text or symbols)

14 D G E A B C F

Close-up of a baby stroller with visible mechanical components and a numbered label (16) in the corner (no text or symbols on the device itself)

Close-up of a hand holding a dark object with two white arrows pointing to it, labeled '18' in the corner (no readable text or symbols beyond labels)

Mechanical device with a triangular fan and lever mechanism, no visible text or symbols

Black-and-white photo of a woman gently holding a baby's face, both looking at each other (no text or symbols visible)

Slovensko

Hartan

Rock it GTR

Close-up of a bicycle brake lever with handle and wrist strap (no text or symbols visible)

Close-up of a mechanical assembly with labeled component '9a' (no readable text or symbols beyond label)

8 7 8 9a9a

Návod na obsluhu

Black-and-white photo of a woman gently holding a baby, both looking at each other (no text or symbols visible)

Hrvatska

Hartan

Rock it GTR

Close-up of a bicycle lever handle and grip (no text or symbols visible)

Close-up of a mechanical assembly with labeled component '9a' (no readable text or symbols beyond label)

8 7 8 9a9a

Uputstvo za uporabu

O CEMU MORATE VODITI RACUNA PRILIKOM KUPNJE

Provjerite da li su kolica kompletna prilikom isporuke i da li nedostaju neki dijelovi. Provjerite da li sve funkcije kolica funkcioniraju u potpunosti i potvrdite ovo na listi o primopredaji.

POSTUPAK KOD REKLAMACIJE

Black-and-white photo of a woman gently holding a baby, both looking at each other (no text or symbols visible)

Ukraine

Hartan

Rock it GTR

Close-up of a bicycle lever handle with a numbered label (9) pointing to the lever (no text or symbols on the lever itself)

Close-up of a car wheel assembly with visible components and a labeled part '9a' (no text or symbols beyond label)

8 7 8 9a9a

Close-up of a hand holding a small object over a dark surface, with an arrow pointing to a detail (no text or symbols visible)

Close-up of hands cleaning a car interior with a circular fabric patch (no visible text or symbols)

14 D G E A B C F

Close-up of a baby stroller with mechanical components and a numbered label (16) in the corner, no readable text or symbols on the device itself.

Medical X-ray image showing a cross-sectional view of a shoulder with an arrow pointing to a specific area (no text or symbols present)

Mechanical device with a triangular fan and lever mechanism, no visible text or symbols

Black-and-white photo of a woman gently holding a baby's face, both looking over (no text or symbols visible)

Slovenija

Hartan

Rock it GTR

Close-up of a bicycle brake lever with handle and keyway (no text or symbols visible)

Close-up of a mechanical assembly with labeled component '9a' (no readable text or symbols beyond label)

8 7 8 9a9a

NAVODILO ZA UPORABO

O CEMU MORATE VODITI RACUNA PRILIKOM KUPNJE

Provjerite da li su kolica kompletna prilikom isporuke i da li nedostaju neki dijelovi. Provjerite da li sve funkcije kolica funkcioniraju u potpunosti i potvrdite ovo na listi o primopredaji.

POSTUPAK KOD REKLAMACIJE

Black-and-white photo of a woman gently holding a baby, both looking at each other (no text or symbols visible)

Türkiye

Hartan

Rock it GTR

Close-up of a bicycle brake lever with handle and labeled part (no text or symbols on the lever itself)

Close-up of a mechanical assembly with labeled component '9a' (no readable text or symbols beyond label)

Black-and-white photo of a woman gently holding a baby's face, both lying on a bed (no text or symbols visible)

Россия

Hartan

Rock it GTR

Close-up of a bicycle lever handle with a numbered label (9) pointing to the lever (no text or symbols on the lever itself)

Close-up of a mechanical assembly with labeled component '9a' (no readable text or symbols beyond label)

8 7 8 9a9a

Close-up of a hand adjusting a dark object with an arrow pointing to it, no visible text or symbols

Close-up of hands cleaning a car interior with fabric and cloth (no visible text or symbols)

14 D G E A B C F

Close-up of a baby stroller with visible mechanical components and a numbered label (16) in the corner (no text or symbols on the device itself)

Close-up of a hand holding a dark object with two white arrows pointing to it, labeled '18' in the corner (no readable text or symbols beyond labels)

Mechanical device with a triangular fan and lever mechanism, no visible text or symbols

Black-and-white photo of a woman gently holding a baby's face, both looking over the distance (no text or symbols visible)

Polska

Hartan

Rock it GTR

Close-up of a bicycle brake lever with handle and keyway (no text or symbols visible)

Close-up of a mechanical assembly with labeled component '9a' (no readable text or symbols beyond label)

8 7 8 9a9a

Instrukcja obsługi

WADY OBJETE GWARANCJA

GWARANCJA NIE OBEJMUJE...

O CEMU MORATE VODITI RACUNA PRILIKOM KUPNJE

Provjerite da li su kolica kompletna prilikom isporuke i da li nedostaju neki dijelovi. Provjerite da li sve funkcije kolica funkcioniraju u potpunosti i potvrdite ovo na listi o primopredaji.

POSTUPAK KOD REKLAMACIJE
