USER MANUAL Foggia Audizio

MANUEL D'INSTRUCTIONS

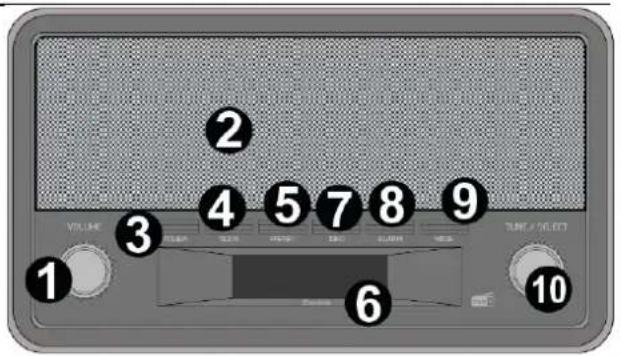

Rotate to adjust the volume level

Press to scan for stations automatically

Press and hold to save a channel as preset Press to recall saved presets

Press to show channel information Press and hold to enter the settings menu

Press to set an alarm

Press to change modes

Rotate to tune Press to select

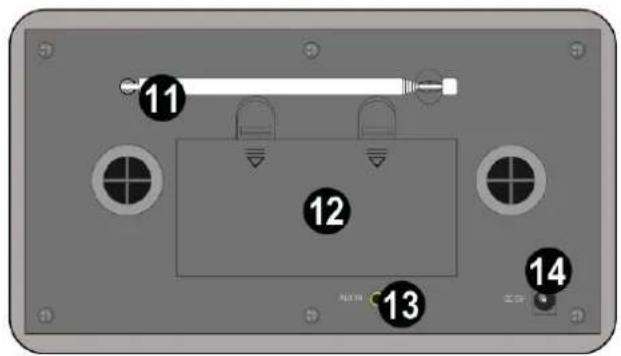

12. Battery compartment (4x size “C”)

• Remove the radio from the package box.

• Plug in the power adapter or insert the correct batteries and press the [Power] button. Caution: Use only the adaptor supplied with the radio. Connecting a power supply with a different rating can cause permanent damage to the radio and may be hazardous. When powering the radio by batteries, make sure to disconnect the power adapter from the mains. Close the battery compartment correctly before use. Check the batteries regularly. Remove the batteries from the compartment when not in use to avoid possible leakage. If there is Digital Audio Broadcasting (DAB) in your area, the Radio can pick up the DAB stations as well (no internet connection is required). The radio supports both DAB and DAB+. Place the radio close to the window and extend the antenna as far as it can go to get the best reception. Sometimes you may need to adjust the direction of the antenna to improve reception. Press [Mode] to select DAB mode. Auto select: Press [Scan], “SCANNING” will appear on the display. The number of found stations will show in the top right corner of the display. The radio will start to play the first found station automatically after completing the scan. Rotate the [Tune/Select] knob to select another DAB station. Press [Tune/Select] to confirm.6 Manual select: Press and hold [Info]. Turn the [Tune/Select] knob until “MANUAL TUNE” appears on the display. Turn the [Tune/Select] knob to choose a station. Press [Tune/Select] to confirm. Station presetting: While playing in DAB mode, press and hold [Preset]. “Preset Store” “<1: (Empty)>” will appear on the display. Turn the [Tune/Select] knob to select the desired preset slot (1-10), press [Tune/Select] to store. Press [Preset] to recall memory. Turn the [Tune/Select] knob to select the stored station you want to listen to. Press [Tune/Select] to confirm. Show channel information: Press [Info] to show various forms of information regarding the station that is being played. The radio has a DAB settings sub-menu to set the radio to your preference. Press and hold [Info] in DAB mode and rotate [Tune/Select] to see the available settings, press [Info] to return.

• Full Scan Perform a full DAB radio scan.

• Manual Scan Scan for DAB radio channels manually.

• Dynamic Range Compression (DRC) (Off/ High/ Low) This function allows for reducing the difference between the loudest and quietest audio being broadcasted. Effectively, this makes quiet sounds comparatively louder, and loud sounds comparatively quieter. Note: DRC only works if it is enabled by the broadcaster of the specific station.

• Station Order The station order can be set to alphanumeric or ensemble.

• Prune / Trim Invalids (Yes/ No) Yes- Remove all invalid stations. No- Keep all stations.

• System Setup Time Setup o Set Time/Date o Set 12/24 hour format o Set Date format o Auto Update Backlight o Timeout o On level o Dimmer level Languages Factory Reset SW version To receive the ordinary FM stations (no internet connection is required), place the radio close to the window and extend the antenna as far as it can go to get the best reception. You may need to adjust the direction of the antenna to improve reception. Press [Mode] to select FM mode. Press [Scan], the radio will start searching for channels. When a channel has been found, it will be played automatically. If reception is not as desired, use the [Tune/Select] knob to manually fine tune frequency. Station presetting: While playing in FM mode, press and hold [Preset]. “Preset Store” “<1: (Empty)>” will appear on the display. Turn the [Tune/Select] knob to select the desired preset slot (1-10), press [Tune/Select] to store. Press [Preset] to recall memory. Turn the [Tune/Select] knob to select the stored station you want to listen to. Press [Tune/Select] to confirm. Show channel information: Press [Info] to show various forms of information regarding the station that is being played. The radio has an FM settings sub-menu to set the radio to your preference. Press and hold [Info] in FM mode and rotate [Tune/Select] to see the available settings, press [Info] to return.

• Scan Setting Select to receive only strong stations or to receive all stations.

• Audio Setting To select “Forced mono” or “Stereo allowed”.

• System Setup Time Setup o Set Time/Date o Set 12/24 hour format7 o Set Date format o Auto Update Backlight o Timeout o On level o Dimmer level Languages Factory Reset SW version Before transmission between your BT device and the radio is possible, both devices must be coupled. This process is called "pairing". The radio is served as a receiver, to receive the music stream to be played on the radio. If you have already coupled to a BT device before, this connection will be restored automatically when both devices are in range and BT operation has been selected on the radio. "Pairing" does not have to be repeated. This function may need to be activated in your BT device, however.

• Press [Mode] until “BT” shows on the display.

• Turn on BT streaming on your device. The device will scan for pairable BT devices in the reception range.

• Select “Audizio Foggia” from the list with found devices.

• Start playback on your BT device. Playback now takes place emitting sound from the radio. You can listen to the music stored in other audio device or smart phone via the radio, through the connection to the 3.5 mm aux-in jack on the rear side. Use a cable with 3.5 mm pins at both ends, one end connected to the aux-in jack on the radio, the other end connected to the earphone jack on the audio device (or line out socket if available). Press [Mode] until “Auxiliary Input” shows on the display. Play music on the connected device, the sound will be emitted from the radio. Alarms will only sound when the unit is “ON” (mains or battery power) or in “STANDBY” (mains power only). Alarms can be switched on or off in standby mode, however, the alarm parameters can only be set when the unit is turned on. To set alarms: Turn the unit on. To set or change alarm 1, press [Alarm] once, then press [Tune/Select]. To set or change alarm 2, press [Alarm] twice, then press [Tune/Select]. To exit the alarm setting mode, press [Alarm] again. The alarm setup prompts you for the following parameters. Select a value for each parameter by turning the [Tune/Select] knob and press [Tune/Select] to confirm and prompt the next parameter.

• On time - hours and minutes

• Duration - 15, 30, 45, 60, 90 minutes In case the alarm is not cancelled, the unit returns to standby mode automatically after this time period.

• Source - Buzzer, DAB or FM If DAB or FM is chosen as the audio source, you will also be prompted to select the last played station or one of the preset stations (if set).

• Daily, Once, Weekends, Weekdays Choose the days on which the alarm is active. Note: if you choose ‘Once’, you are prompted to enter the date.

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice. The products referred to in this manual conform to the European Community Directives to which they are subject:

European Union United Kingdom

Tronios Ltd., 130 Harley Street, London W1G 7JU, United Kingdom

2014/30/EU S.I. 2016:1091 2011/65/EC S.I. 2012:3032 2014/53/EU S.I. 2017:1206 Specifications and design are subject to change without prior notice. www.audizio.com Copyright © 2022 by Tronios The Netherlands
