USER MANUAL Phantom F3 Cameo

CONNECTIONS, CONTROL, AND DISPLAY ELEMENTS 5

SETUP AND INSTALLATION 7

TECHNICAL SPECIFICATIONS 8

MANUFACTURER’S DECLARATIONS 8

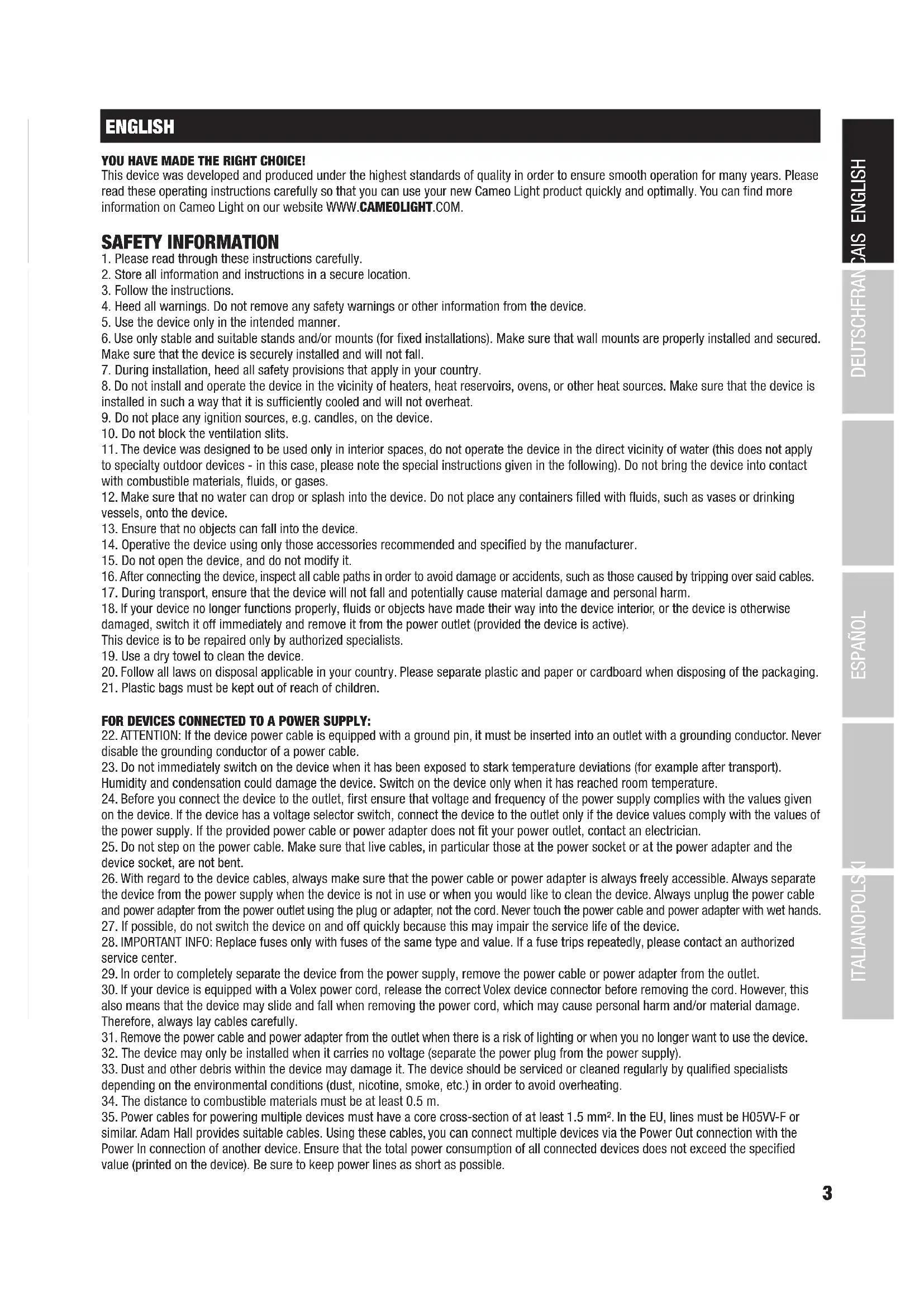

DEUTSCHFRANCAIS ESPAÑOL ENGLISH ITALIANO POLSKI ENGLISH YOU HAVE MADE THE RIGHT CHOICE! This device was developed and produced under the highest standards of quality in order to ensure smooth operation for many years. Please read these operating instructions carefully so that you can use your new Cameo Light product quickly and optimally. You can find more information on Cameo Light on our website WWW.CAMEOLIGHT.COM. SAFETY INFORMATION

1. Please read through these instructions carefully.

2. Store all information and instructions in a secure location.

3. Follow the instructions.

4. Heed all warnings. Do not remove any safety warnings or other information from the device.

5. Use the device only in the intended manner.

6. Use only stable and suitable stands and/or mounts (for fixed installations). Make sure that wall mounts are properly installed and secured. Make sure that the device is securely installed and will not fall.

7. During installation, heed all safety provisions that apply in your country.

8. Do not install and operate the device in the vicinity of heaters, heat reservoirs, ovens, or other heat sources. Make sure that the device is installed in such a way that it is sufficiently cooled and will not overheat.

9. Do not place any ignition sources, e.g. candles, on the device.

10. Do not block the ventilation slits.

11. The device was designed to be used only in interior spaces, do not operate the device in the direct vicinity of water (this does not apply to specialty outdoor devices - in this case, please note the special instructions given in the following). Do not bring the device into contact with combustible materials, fluids, or gases. 12. Make sure that no water can drop or splash into the device. Do not place any containers filled with fluids, such as vases or drinking vessels, onto the device.

13. Ensure that no objects can fall into the device.

14. Operative the device using only those accessories recommended and specified by the manufacturer.

15. Do not open the device, and do not modify it.

16. After connecting the device, inspect all cable paths in order to avoid damage or accidents, such as those caused by tripping over said cables.

17. During transport, ensure that the device will not fall and potentially cause material damage and personal harm.

18. If your device no longer functions properly, fluids or objects have made their way into the device interior, or the device is otherwise damaged, switch it off immediately and remove it from the power outlet (provided the device is active). This device is to be repaired only by authorized specialists.

19. Use a dry towel to clean the device.

20. Follow all laws on disposal applicable in your country. Please separate plastic and paper or cardboard when disposing of the packaging.

21. Plastic bags must be kept out of reach of children.

FOR DEVICES CONNECTED TO A POWER SUPPLY: 22. ATTENTION: If the device power cable is equipped with a ground pin, it must be inserted into an outlet with a grounding conductor. Never disable the grounding conductor of a power cable. 23. Do not immediately switch on the device when it has been exposed to stark temperature deviations (for example after transport). Humidity and condensation could damage the device. Switch on the device only when it has reached room temperature. 24. Before you connect the device to the outlet, first ensure that voltage and frequency of the power supply complies with the values given on the device. If the device has a voltage selector switch, connect the device to the outlet only if the device values comply with the values of the power supply. If the provided power cable or power adapter does not fit your power outlet, contact an electrician. 25. Do not step on the power cable. Make sure that live cables, in particular those at the power socket or at the power adapter and the device socket, are not bent. 26. With regard to the device cables, always make sure that the power cable or power adapter is always freely accessible. Always separate the device from the power supply when the device is not in use or when you would like to clean the device. Always unplug the power cable and power adapter from the power outlet using the plug or adapter, not the cord. Never touch the power cable and power adapter with wet hands.

27. If possible, do not switch the device on and off quickly because this may impair the service life of the device.

28. IMPORTANT INFO: Replace fuses only with fuses of the same type and value. If a fuse trips repeatedly, please contact an authorized service center. 29. In order to completely separate the device from the power supply, remove the power cable or power adapter from the outlet. 30. If your device is equipped with a Volex power cord, release the correct Volex device connector before removing the cord. However, this also means that the device may slide and fall when removing the power cord, which may cause personal harm and/or material damage. Therefore, always lay cables carefully. 31. Remove the power cable and power adapter from the outlet when there is a risk of lighting or when you no longer want to use the device.

32. The device may only be installed when it carries no voltage (separate the power plug from the power supply).

33. Dust and other debris within the device may damage it. The device should be serviced or cleaned regularly by qualified specialists depending on the environmental conditions (dust, nicotine, smoke, etc.) in order to avoid overheating.

34. The distance to combustible materials must be at least 0.5 m.

35. Power cables for powering multiple devices must have a core cross-section of at least 1.5 mm². In the EU, lines must be H05VV-F or similar. Adam Hall provides suitable cables. Using these cables, you can connect multiple devices via the Power Out connection with the Power In connection of another device. Ensure that the total power consumption of all connected devices does not exceed the specified value (printed on the device). Be sure to keep power lines as short as possible.4 ITALIANO POLSKI ESPAÑOL FRANCAIS DEUTSCHENGLISH 36. The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge.

37. Children must be instructed not to play with the device.

38. If the power cord of the device is damaged, do not use the device. The power cord must be replaced by an adequate cable or assembly from an authorized service center. CAUTION: To reduce the risk of electric shock, do not remove cover (or back). There are no user serviceable parts inside. Maintenance and repairs should be exclusively carried out by qualified service personnel. The warning triangle with lightning symbol indicates dangerous uninsulated voltage inside the unit, which may cause an electrical shock. The warning triangle with exclamation mark indicates important operating and maintenance instructions. Warning! This symbol indicates a hot surface. Certain parts of the housing can become hot during operation. After use, wait for a cool-down period of at least 10 minutes before handling or transporting the device. Warning! This device is designed for use below 2000 metres in altitude. Warning! This product is not intended for use in tropical climates. CAUTION! IMPORTANT INFORMATION ON FOG MACHINES! 1. The device is specially developed for professional use in the area of event technology and is not suitable for household use!

2. Use only Cameo fog fluid (water-based) and never fill the canister with combustible fluids! Risk of explosion!

3. Disconnect the fog machine from the power supply before changing or filling the canister with fog fluid!

4. Only use the fog machine in well-ventilated spaces!

5. Never operate the fog machine unattended!

6. Separate the fog machine from the power supply before setup and installation, and make sure that the fog machine has

7. The fog output nozzle becomes very hot during use. Do not touch the output nozzle during use and keep a minimum

distance of 50 cm! Before cleaning and transport, make sure that the device has cooled completely!

8. The discharged fog is very hot! Never aim the output nozzle at people or animals! BURN HAZARD!

9. Ensure that no people and animals are located directly below the fog machines! BURN HAZARD!

10. Never aim the fog outlet nozzle at open flames and combustible materials!

11. Ensure that other electrical devices and outlets are never directly exposed to the fog jet.

12. Fluid may collect via condensation in front of the fog outlet nozzle during use. Caution, slipping hazard!

13. Occasionally, small amounts of fog may escape during use even when not triggered, as well as a short time after switching off the fog machine.

14. Never expose persons with respiratory diseases (such as allergies, asthma) to artificial fog.

15. When using fog machines, ensure that visibility within the room does not sink below approx. 2 meters so that people can still safely orient themselves within the space.

16. Empty the fluid canister before transport.

17. The fog released can trigger smoke alarms.

18. Keep away from children!5

DEUTSCHFRANCAIS ESPAÑOL ENGLISH ITALIANO POLSKI INTRODUCTION FOG MACHINE CLPHANTOMF3 CONTROL FUNCTIONS Cable remote control RF remote control PROPERTIES Fog machine for water-based fog fluid. Includes cable remote control and RF remote control. Operating voltage: 230 V AC / 50 Hz. 970 W power consumption.

CONNECTIONS, CONTROL, AND DISPLAY ELEMENTS

POWER IN Permanently connected power cable with CEE 7/7 power plug.

FUSE Fuse holder for 5 x 20 mm micro fuses. IMPORTANT NOTE: Replace the fuse only with a fuse of the same type and values (see inscription on housing). If a fuse trips repeatedly, please contact an authorized service center.

REMOTE Female 5-pin DIN socket for connecting the cable remote control and the RF remote control radio receiver (included).

HEAT/READY Indicator LEDs to signal the operating status. When the red HEAT LED is lit, the fog machine is in the heat-up phase. Once the green READY LED lights up, the fog machine is ready for use.

CANISTER Fluid canister with screw cap and intake hose. The sinter filter on the end of the intake hose ensures that contaminant particles do not get into the system and that the hose end is always at the lowest point of the canister. Before filling the canister, disconnect the fog machine from the power supply (remove the power plug). To prevent burns, let the fog machine cool down sufficiently. Unscrew the cap from the canister and fill it with suitable fog fluid, making sure that no fog fluid can get into the device (take the canister out of the fog machine). Insert the intake hose back into the canister and close it carefully with the cap. Never operate the fog machine without fog fluid.

The fog output nozzle is located on the front side of the fog machine. Caution, very hot! When setting up and assembling the fog machine, follow the information under “CAUTION! IMPORTANT INFORMATION ON FOG MACHINES!” in the safety instructions.

HANDLE SCREWS Handle screws for adjusting the mounting bracket.

VENTILATION SLOTS Ventilation slits are located on the top side of the device. Ensure that the ventilation slits are not covered and that air can circulate freely.

SAFETY POINT Safety point for securing the device on crossbeam installations.

• Remove the protective film from the front of the fog machine before first use.

• After connecting to the mains, the evaporator will start to heat up (for approx. 4 minutes), during which time the HEATING LED will be lit and the fog output cannot be started. When the heat-up phase is over, the READY LED lights up and the fog machine is ready for use.

• Do not operate the fog machine without fog fluid! Check the level at regular intervals and refill fog fluid if necessary (unplug the device before filling). In order to remove fluid residue in the vaporizer system of your fog machine and thus ensure a long service life, clean the vaporizer system regularly (approx. every 60 operating hours). To do so, use the special Cameo cleaning fluid for fog machines and follow the instruction on the bottle label.7 DEUTSCHFRANCAIS ESPAÑOL ENGLISH ITALIANO POLSKI

OPERATION VIA CABLE REMOTE CONTROL

Connect the cable remote control to the fog machine (REMOTE DIN socket), press and hold the release button on the remote control to start the fog output, and stop the fog output by releasing the release button again. As soon as the red indicator LEDs light up, the heat-up phase is complete and the fog machine is ready for use.

OPERATION VIA RF REMOTE CONTROL

Connect the RF remote control radio receiver to the fog machine (REMOTE DIN socket) and give the fog machine an address from 1 to 4 by pressing the corresponding dip switch on the side of the receiver down into the ON po- sition (no. 1 in the example). The fog output of the fog machine can now be started by pressing and holding the corresponding button on the RF remote control. Stop the fog output by releasing the button again. While holding down one of the buttons, the indicator LED above the no. 1 button lights up. The operating status of the fog machine is indicated by the display LEDs in the radio receiver (red = heat-up phase, green = ready for operation). Up to four fog machines of this type can be controlled independently with an RF remote control. The RF remote control requires a 12 V 23 A battery (included).

SETUP AND INSTALLATION

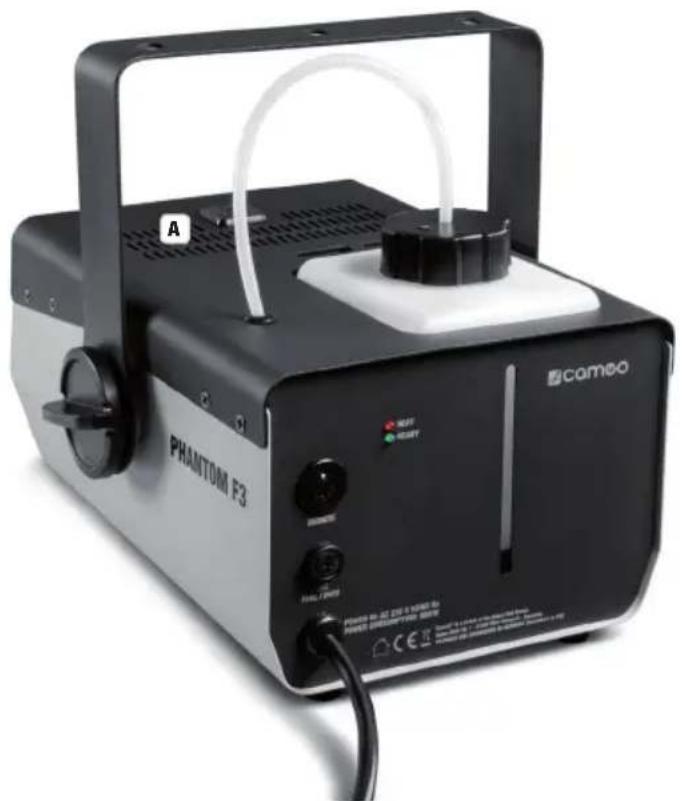

Place the fog machine in a suitable location on its preinstalled rubber feet. Install on a crossbeam using an optionally available traverse clamp that is attached to the mounting bracket of the fog machine. Make sure that the device is firmly attached and secure it using a suitable safety cable on the designated location (A). The maximum permitted incline of the fog machine is 30°. During setup and installation, follow the information under "CAUTION! IMPORTANT INFORMATION ON FOG MACHINES!" in the safety instructions. Important safety information: Overhead installation requires extensive experience, including the calculation of workload limits and installed equipment, and periodic safety checks of all installation materials and devices. If you do not have these qualifica- tions, do not attempt to carry out the installation yourself; contact a professional company.

ITALIANO POLSKI ESPAÑOL FRANCAIS DEUTSCHENGLISH TECHNICAL SPECIFICATIONS Article number: CLPHANTOMF3 Product type: Fog machine Type: Fog generator per vaporization principle Heat-up time: Approx. 4 minutes Heating element power: 950 W Output volume: Approx. 180-240 m³/min Fog output reach: Approx. 4 m Output duration: Approx. 14 s Reheating time: Approx. 8 s Fluid consumption: Approx. 40 ml/min Controller: Cable remote control with 4.3 m cable, RF remote control with radio receiver Remote control connection: 5-pin DIN, female Display elements: HEAT LED, READY LED Power supply connection: Permanently connected power cable with CEE 7/7 power plug Operating voltage: 230V AC / 50Hz Fuse: F5AL 250 V (5x20 mm) Power consumption: 970 W Ambient temperature (running): 5°C - 40°C Relative humidity: < 85%, non-condensing Housing material: Metal Housing color: Black/gray Dimensions (W x H x D): 190 x 142 x 270 mm Weight (without canister): 4.4 Kg Accessories (included): 4 rubber feet. Canister, and cable and RF remote control included.

MANUFACTURER´S DECLARATIONS

CORRECT DISPOSAL OF THIS PRODUCT

(valid in the European Union and other European countries with a differentiated waste collection system) This symbol on the product, or on its documents indicates that the device may not be treated as household waste. This is to avoid environmental damage or personal injury due to uncontrolled waste disposal. Please dispose of this product separately from other waste and have it recycled to promote sustainable economic activity. Household users should contact either the retailer where they purchased this product, or their local government office, for details on where and how they can recycle this item in an environmentally friendly manner. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial waste for disposal. FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation CE Compliance Adam Hall GmbH states that this product meets the following guidelines (where applicable): R&TTE (1999/5/EC) or RED (2014/53/EU) from June 2017 Low voltage directive (2014/35/EU) EMV directive (2014/30/EU) RoHS (2011/65/EU) The complete declaration of conformity can be found at www.adamhall.com. Furthermore, you may also direct your enquiry to [e-mail].9 DEUTSCHFRANCAIS ESPAÑOL ENGLISH ITALIANO POLSKI DEUTSCH SIE HABEN DIE RICHTIGE WAHL GETROFFEN! Dieses Gerät wurde unter hohen Qualitätsanforderungen entwickelt und gefertigt, um viele Jahre einen reibungslosen Betrieb zu gewähr- leisten. Bitte lesen Sie diese Bedienungsanleitung sorgfältig, damit Sie Ihr neues Produkt von Cameo Light schnell und optimal einsetzen können. Weitere Informationen über Cameo Light erhalten Sie auf unserer Website WWW.CAMEOLIGHT.COM. SICHERHEITSHINWEISE
