USER MANUAL Sirona Gi iSize CYBEX

61 – 105 cm, approx. 3 M – approx. 4 Y max. 20 kg	76 – 105 cm, > 15 M – approx. 4 Y max. 20 kg

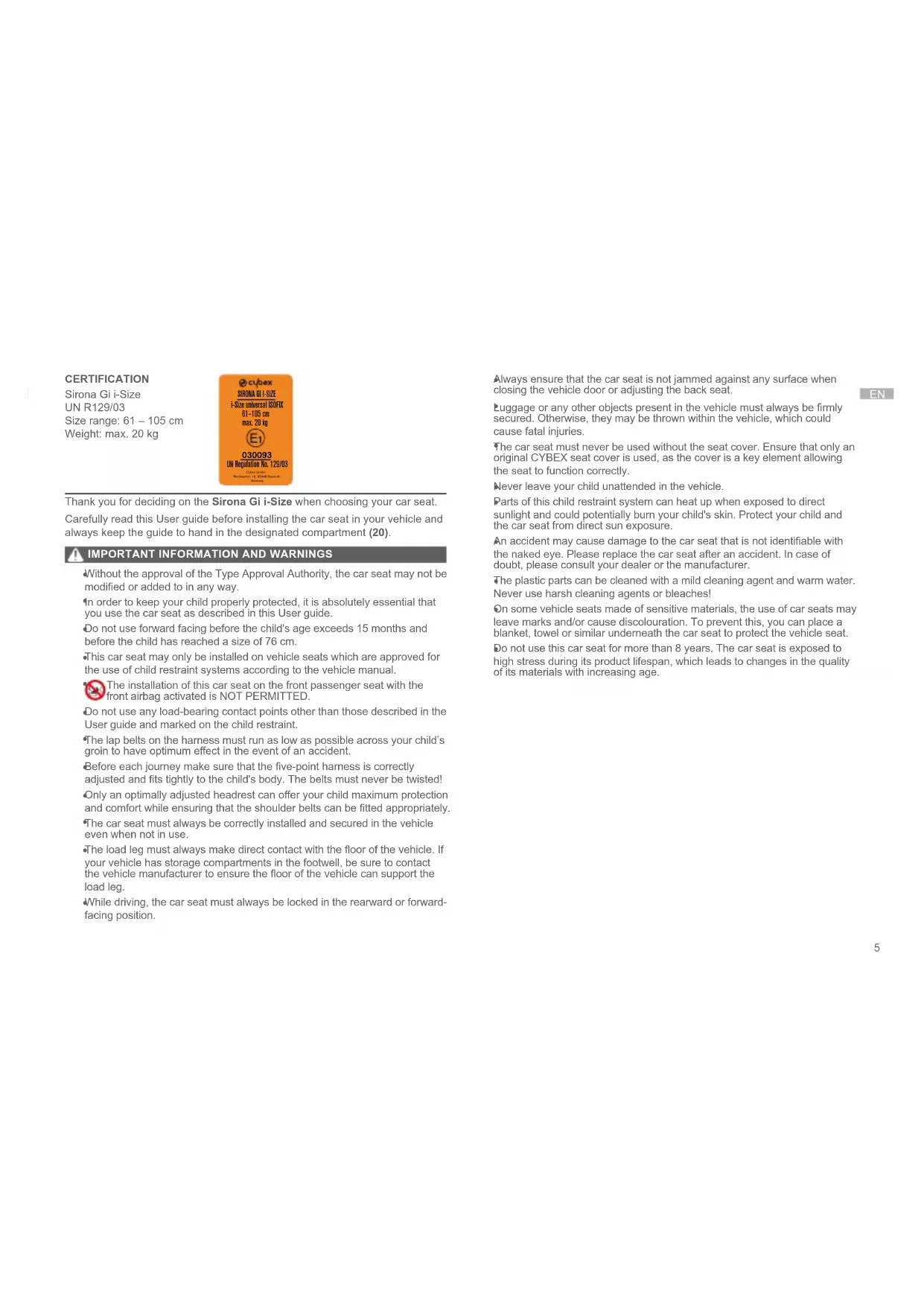

Thank you for deciding on the Sirona Gi i-Size when choosing your car seat.

Carefully read this User guide before installing the car seat in your vehicle and always keep the guide to hand in the designated compartment (20).

IMPORTANT INFORMATION AND WARNINGS

Without the approval of the Type Approval Authority, the car seat may not be modified or added to in any way.
In order to keep your child properly protected, it is absolutely essential that you use the car seat as described in this User guide.
- Do not use forward facing before the child's age exceeds 15 months and before the child has reached a size of 76 cm.
This car seat may only be installed on vehicle seats which are approved for the use of child restraint systems according to the vehicle manual.

The installation of this car seat on the front passenger seat with the front airbag activated is NOT PERMITTED.

Do not use any load-bearing contact points other than those described in the User guide and marked on the child restraint.
The lap belts on the harness must run as low as possible across your child's groin to have optimum effect in the event of an accident.
Before each journey make sure that the five-point harness is correctly adjusted and fits tightly to the child's body. The belts must never be twisted!
Only an optimally adjusted headrest can offer your child maximum protection and comfort while ensuring that the shoulder belts can be fitted appropriately.
The car seat must always be correctly installed and secured in the vehicle even when not in use.
The load leg must always make direct contact with the floor of the vehicle. If your vehicle has storage compartments in the footwell, be sure to contact the vehicle manufacturer to ensure the floor of the vehicle can support the load leg.
While driving, the car seat must always be locked in the rearward or forward-facing position.

Always ensure that the car seat is not jammed against any surface when closing the vehicle door or adjusting the back seat.

Luggage or any other objects present in the vehicle must always be firmly secured. Otherwise, they may be thrown within the vehicle, which could cause fatal injuries.
The car seat must never be used without the seat cover. Ensure that only an original CYBEX seat cover is used, as the cover is a key element allowing the seat to function correctly.
Never leave your child unattended in the vehicle.
Parts of this child restraint system can heat up when exposed to direct sunlight and could potentially burn your child's skin. Protect your child and the car seat from direct sun exposure.
An accident may cause damage to the car seat that is not identifiable with the naked eye. Please replace the car seat after an accident. In case of doubt, please consult your dealer or the manufacturer.
The plastic parts can be cleaned with a mild cleaning agent and warm water. Never use harsh cleaning agents or bleaches!
On some vehicle seats made of sensitive materials, the use of car seats may leave marks and/or cause discolouration. To prevent this, you can place a blanket, towel or similar underneath the car seat to protect the vehicle seat.
Do not use this car seat for more than 8 years. The car seat is exposed to high stress during its product lifespan, which leads to changes in the quality of its materials with increasing age.

PRODUCT PARTS

EN	Newborn inlay (1)	Headrest (11)
	(separately available)	Headrest adjustment handle (12)
	Size indicator (2)	Position adjustment handle (13)
	Load leg (3)	Belt adjustment button (14)
	ISOFIX-Release buttons (4)	Shoulder belt (15)
	ISOFIX-Locking arms (5)	Belt buckle (16)
	ISOFIX-Anchorage points (6)	Buckle tongues (17)
	ISOFIX-Indicators (7)	Lap belts (18)
	Load leg adjustment button (8)	Central adjustment belt (19)
	Load leg indicators (9)	User guide compartment (20)
	Seat locking indicators (10)	Seat rotation handles (21)

DIFFERENT USES OF THE SEAT

61 – 105 cm, approx. 3 M – approx. 4 Y max. 20 kg	76 – 105 cm, > 15 M – approx. 4 Y max. 20 kg

A Newborn inlay (1) can be purchased as a separate accessory and allows for usage of Sirona Gi i-Size from 40 cm on. It should be removed if your child is taller than 60 cm. The Size indicator (2) shows the minimum size your child must reach before it is permitted to convert the seat for forward-facing use.

THE CORRECT POSITION IN THE VEHICLE

This is an i-Size Enhanced Child Restraint System. It is approved according to UN Regulation No. R129/03, for use in i-Size compatible vehicle seating positions as indicated by vehicle manufacturers in their vehicle user manuals. If your vehicle does not have an i-Size seating position, please check the vehicle Type List. You can obtain the most up-to-date version of the Type List from www.cybex-online.com.

INSTALLATION IN THE VEHICLE

Always ensure that...

• the backrests in the vehicle are locked in their upright position.

• when installing the car seat on the front passenger seat, adjust the vehicle seat as far back as possible.

• Fold out the Load leg (3) until it locks into its foremost position.

• Release the ISOFIX-Release buttons (4) to extend the ISOFIX-Locking arms (5) on both sides.

The ISOFIX-Release buttons can both be released independently allowing the ISOFIX-Locking arms to be adjusted independently.

1. Push the ISOFIX-Locking arms (5) out of the car seat to their furthest extent.
2. Place the car seat on an appropriate seat in the vehicle.
3. Push the ISOFIX-Locking arms (5) into the ISOFIX-Anchorage points (6) until these lock into place with an audible "CLICK". The two ISOFIX-Indicators (7) will switch from RED to GREEN.
4. Ensure the car seat is secure by trying to pull it out of the ISOFIX-Anchorage points (6).
5. Push the car seat towards the backrest of the vehicle seat until it is fully aligned with the backrest.
   Moving the car seat from side to side will also brace it against the vehicle backrest.
6. Press the Load leg adjustment button (8) and extend the load leg until it touches the vehicle floor.
7. Pull the Load leg (3) out to the next locking position to ensure optimal force transmission.
8. The Load leg indicator (9) switches to GREEN when the load leg is correctly positioned on the vehicle floor.

REMOVAL FROM THE VEHICLE

1. Unlock the ISOFIX-Locking arms (5) on both sides by pressing the ISOFIX-Release buttons (4) and at the same time pulling them back.
2. Pull out the car seat from the ISOFIX-Anchorage points (6).
3. Remove the car seat and slide the ISOFIX-Locking arms (5) completely back into their transport positions.
4. Push the Load leg (3) back into its original position and then fold it in to save space.

ADJUSTING THE HEADREST

The adjustable Headrest (11) can be adjusted by using the Headrest adjustment handle (12) at the back of the Headrest (11). When adjusting the headrest ensure that no more than 2 cm (approx. 2 finger's width) remain between the child's shoulders and the headrest.

ROTATION FUNCTION

Pull the seat rotation handle (21) on the base to turn the car seat.

Before starting your journey, make sure that the seat is properly locked into place.

To adjust the car seat to the desired recline position, press the Position adjustment handle (13) on the front of the car seat.

We recommend using the flattest recline position for children who are not ye able to sit upright independently.

Always make sure that the car seat audibly clicks into place when adjusting it to either the lying or sitting position.

SECURING THE CHILD

1. Rotate the seat to the boarding position.
2. Press the Belt adjustment button (14) and pull both Shoulder belts (15) at the same time to loosen them.
3. Undo the Belt buckle (16) by pressing the red button firmly.
4. The Buckle tongues (17) can now be attached to the indicated places on the cover using the integrated loops.
5. Put your child in the car seat with their buttocks at the back.
6. Place the Shoulder belts (15) directly over your child's shoulders.
7. Place both Buckle tongues (17) together and lock them in place in the Belt buckle (16). You should hear an audible "CLICK".
8. If you are using a seat with a SensorSafe Clip, push the clip closed until you hear an audible "CLICK" and slide the closed clip down towards the Belt buckle (16).
9. Tighten the Lap belts (18) and then pull on the Central adjustment belt (19) to tighten the Shoulder belts (15) until they rest snug against your child's body.

The harness should be fitted tight enough so that it is not possible to put a fold in any of the straps.

1. When using the SensorSafe clip, position the clip directly below the shoulder pads.

REMOVING AND REATTACHING THE SEAT COVER

The car seat cover consists of 4 parts. These are fastened to the car seat at several places. Once unfastened, the individual parts of the cover can be removed. To reattach the cover, follow the removal instructions in the reverse order.

The cover may only be washed at 30^ with a delicate wash program otherwise it may result in discolouration of the cover fabric. Please wash the cover separately from other laundry and do not dry it in the dryer or in direct sunlight!

MANUFACTURER'S WARRANTY AND DISPOSAL REGULATION

CYBEX GmbH (Riedingerstr. 18, 95448 Bayreuth, Germany) gives you 3 years warranty on this product. The warranty is valid in the country where this product was initially sold by a retailer to a customer. The contents of the warranty and all essential information required for the assertion of the warranty can be found on our homepage:

go.cybex-online.com/manufacturer-warranty-car-seats. If a warranty is shown in the article description, your legal rights against us for defects remain unaffected.

Please observe the waste disposal regulations in your country.

CERTIFICAZIONE

Sirona Gi i-Size

UN R129/03

Misure: 61 – 105 cm

Peso: max. 20 kg

61 – 105 cm, circa 3 M – circa. 4 A max. 20 kg	76 – 105 cm, > 15 M – circa 4 A max. 20 kg

61 – 105 cm, approx. 3 M – approx. 4 Y max. 20 kg	76 – 105 cm, > 15 M – approx. 4 Y max. 20 kg

61 – 105 cm, approx. 3 M – approx. 4 Y max. 20 kg	76 – 105 cm, > 15 M – approx. 4 Y max. 20 kg

61 – 105 cm, approx. 3 M – approx. 4 Y max. 20 kg	76 – 105 cm, > 15 M – approx. 4 Y max. 20 kg

61 – 105 cm, approx. 3 M – approx. 4 Y max. 20 kg	76 – 105 cm, > 15 M – approx. 4 Y max. 20 kg

61 – 105 cm, approx. 3 M – approx. 4 Y max. 20 kg	76 – 105 cm, > 15 M – approx. 4 Y max. 20 kg

61 – 105 cm, approx. 3 M – approx. 4 Y max. 20 kg	76 – 105 cm, > 15 M – approx. 4 Y max. 20 kg

61 – 105 cm, approx. 3 M – approx. 4 Y max. 20 kg	76 – 105 cm, > 15 M – approx. 4 Y max. 20 kg

61 – 105 cm, approx. 3 M – approx. 4 Y max. 20 kg	76 – 105 cm, > 15 M – approx. 4 Y max. 20 kg

61 – 105 cm, approx. 3 M – approx. 4 Y max. 20 kg	76 – 105 cm, > 15 M – approx. 4 Y max. 20 kg

61 – 105 cm, approx. 3 M – approx. 4 Y max. 20 kg	76 – 105 cm, > 15 M – approx. 4 Y max. 20 kg

61 – 105 cm, approx. 3 M – approx. 4 Y max. 20 kg	76 – 105 cm, > 15 M – approx. 4 Y max. 20 kg

61 – 105 cm, approx. 3 M – approx. 4 Y max. 20 kg	76 – 105 cm, > 15 M – approx. 4 Y max. 20 kg

61 – 105 cm, approx. 3 M – approx. 4 Y max. 20 kg	76 – 105 cm, > 15 M – approx. 4 Y max. 20 kg

61 – 105 cm, approx. 3 M – approx. 4 Y max. 20 kg	76 – 105 cm, > 15 M – approx. 4 Y max. 20 kg

61 – 105 cm, approx. 3 M – approx. 4 Y max. 20 kg	76 – 105 cm, >15 M – approx. 4 Y max. 20 kg

61 – 105 cm, approx. 3 M – approx. 4 Y max. 20 kg	76 – 105 cm, > 15 M – approx. 4 Y max. 20 kg

61 – 105 cm, approx. 3 M – approx. 4 Y max. 20 kg	76 – 105 cm, > 15 M – approx. 4 Y max. 20 kg

61 – 105 cm, approx. 3 M – approx. 4 Y max. 20 kg	76 – 105 cm, > 15 M – approx. 4 Y max. 20 kg

61 – 105 cm, approx. 3 M – approx. 4 Y max. 20 kg	76 – 105 cm, > 15 M – approx. 4 Y max. 20 kg

approx. 3 M – approx. 4 Y

max. 20 kg

61 – 105 cm, approx. 3 M – approx. 4 Y max. 20 kg	76 – 105 cm, > 15 M – approx. 4 Y max. 20 kg

61 – 105 cm, approx. 3 M – approx. 4 Y max. 20 kg	76 – 105 cm, >15 M – approx. 4 Y max. 20 kg

Umetak za novorođenčad (1) može se kupiti kao zaseban dodatak i omogućuje upotrebu od 40 cm nadalje. Trebalo bi ga ukloniti ako je vaše dete više od 60 cm. Indikator veličine (2) pokazuje koju veličinu vaše dete mora da dostigne da bi bilo dozvoljeno okrenuti sedište da gleda unapred.

ISPRAVNA POZICIJA U VOZILU

Ovo je poboljšani sistem za vezivanje dece i-Size. On je odobren u skladu sa Uredbom UN-a br. R129/03, za upotrebu na mestima za sedenje u vozilu kompatibilnim sa veličinom i, kako su ih naznačili proizvođači vozila u svojim korisničkim priručnicima za vozila. Ako vaše vozilo nema poziciju za sedište i-Size, proverite priloženu listu tipova vozila. Možete dobiti najnoviju verziju liste tipova na www.cybex-online.com.

INSTALACIJA U VOZILU

Uvek se pobrinite da...

• nasloni za leđa u vozilu budu zaključani u uspravnoj poziciji.

• kod instalacije dečjeg sedišta na prednje putničko sedište, podesite sedište u vozilu što je moguće više unazad.

• Rasklopite potpornu nožicu (3) dok se ona ne zaključa u svom najistaknutijem položaju.

• Otpustite ISOFIX-dugmad za otpuštanje (4) da biste proširili ISOFIX-ručke za blokiranje (5).

Oba ISOFIX-dugmeta za otpuštanje mogu se otpuštati nezavisno, čime se omogućuje nezavisno podešavanje ISOFIX-ručki za zaključavanje.

1. Pritisnite ISOFIX-ručke za blokiranje (5) van auto sedišta do njihovog krajnjeg položaja.
2. Postavite auto sedište na odgovarajuće sedište u vozilu.
3. Pritisnite ISOFIX-ručke za blokiranje (5) u ISOFIX-usidrenja (6) dok se one ne uklope uz zvučni "KLIK". Dva ISOFIX-indikatora (7) preći će iz CRVENE u ZELENU boju.
4. Pobrinite se da auto sedište bude učvršćeno tako što ćete pokušati da ga izvučete iz ISOFIX-usidrenja (8).
5. Pogurajte auto sedište prema naslonu sedišta vozila dok ono ne bude u potpunosti poravnato sa naslonom.
   Romicanje auto sedišta sa jedne na drugu stranu će ga takođe učvrstiti uz naslon sedišta vozila.
6. Pritisnite dugme za podešavanje potporne nogice (8) i produžite potpornu nogicu dok ona ne dotakne pod vozila.
7. Izvucite potpornu nožicu (3) napolje na sledeću poziciju zaključavanja da biste imali optimalnu snagu prenosa.
8. Indikator potporne nogice (9) prelazi na ZELENO kada je potporna nogica ispravno postavljena na pod vozila.

UKLANJANJE IZ VOZILA

1. Odblokirajte ISOFIX-ručke za blokiranje (5) na obe strane pritiskom na ISOFIX-dugmad za otpuštanje (4) i istovremeno ih povucite unazad.
2. Izvucite auto sedište iz ISOFIX-usidrenja (6).

3. Uklonite auto sedište i gurnite ISOFIX-ručke za blokiranje (5) potpuno unazad u njihove transportne pozicije.

4. Gurnite potpornu nožicu (3) unazad u njenu originalnu poziciju i onda je sklopite radi uštede prostora.

PODEŠAVANJE NASLONA ZA GLAVU

Podesivi naslon za glavu (14) može da se podesi pomoću ručke za podešavanje naslona za glavu (15) na zadnjoj strani naslona za glavu (14). Kod podešavanja naslona za glavu pobrinite se da ne ostane više od 2 cm (približno širina 2 prsta) između dečjih ramena i naslona za glavu.
