Product type	Domestic espresso machine
Brand	La Pavoni
Model	LPSGEG03EU
Usage	Domestic and similar (staff kitchens, holiday rentals, hotels, etc.)
Power supply	230 V ~ 50/60 Hz (check the rating label)
Pump pressure	8/9 bar (manually adjustable)
Boiler type	Double independent boiler (coffee and steam)
Temperature control	Adjustable Termopid (80°C to 133°C)
Pressure control	BPPC (Brewing Pressure Profiling Control) with adjustment lever
Water connection	Removable tank or direct water connection (hose included)
Functions	Espresso, hot water, steam for cappuccino
Cup warmer	Passive, top grid
Included accessories	Dosing cup, plastic/steel tamper, filters (single, double, Competition 16/20g), portafilters (single spout/double spout/Fascino), blind filter, brush, water hose, silicone hose
User manual	193 pages, available in multiple languages
Cleaning	Steam wand, brew group, filters, drip tray
Maintenance	Descaling with blind filter and detergent, replacement of group gasket
Safety	Automatic shut-off if water shortage, overheat protection

Frequently Asked Questions - LPSGEG03EU LA PAVONI

How to adjust the brew pressure on my La Pavoni LPSGEG03EU?

The brew pressure is adjusted by turning the pump adjustment screw (F) located under the machine. Turn clockwise to increase, counterclockwise to decrease. The optimal pressure is 8/9 bar, readable on the pump pressure gauge (5).

What to do if coffee does not flow?

First check the water level in the tank (2). Make sure the grind is not too fine (use a coarser grind). Decrease the coffee dose or tamp less. If the circuit is not primed, follow the initial startup procedure (section 4). Clean the shower screen if it is clogged.

How to clean the steam wand?

After each use, clean the wand with a damp cloth. Then let a small burst of steam escape to remove residues. If the hole is blocked, use a needle.

What is the ideal temperature for coffee?

The default coffee boiler temperature is set to 92°C. You can change it via the Termopid (29) between 80°C and 133°C. Above 103°C, the screen flashes to warn you that the coffee may be altered.

How to use the BPPC system?

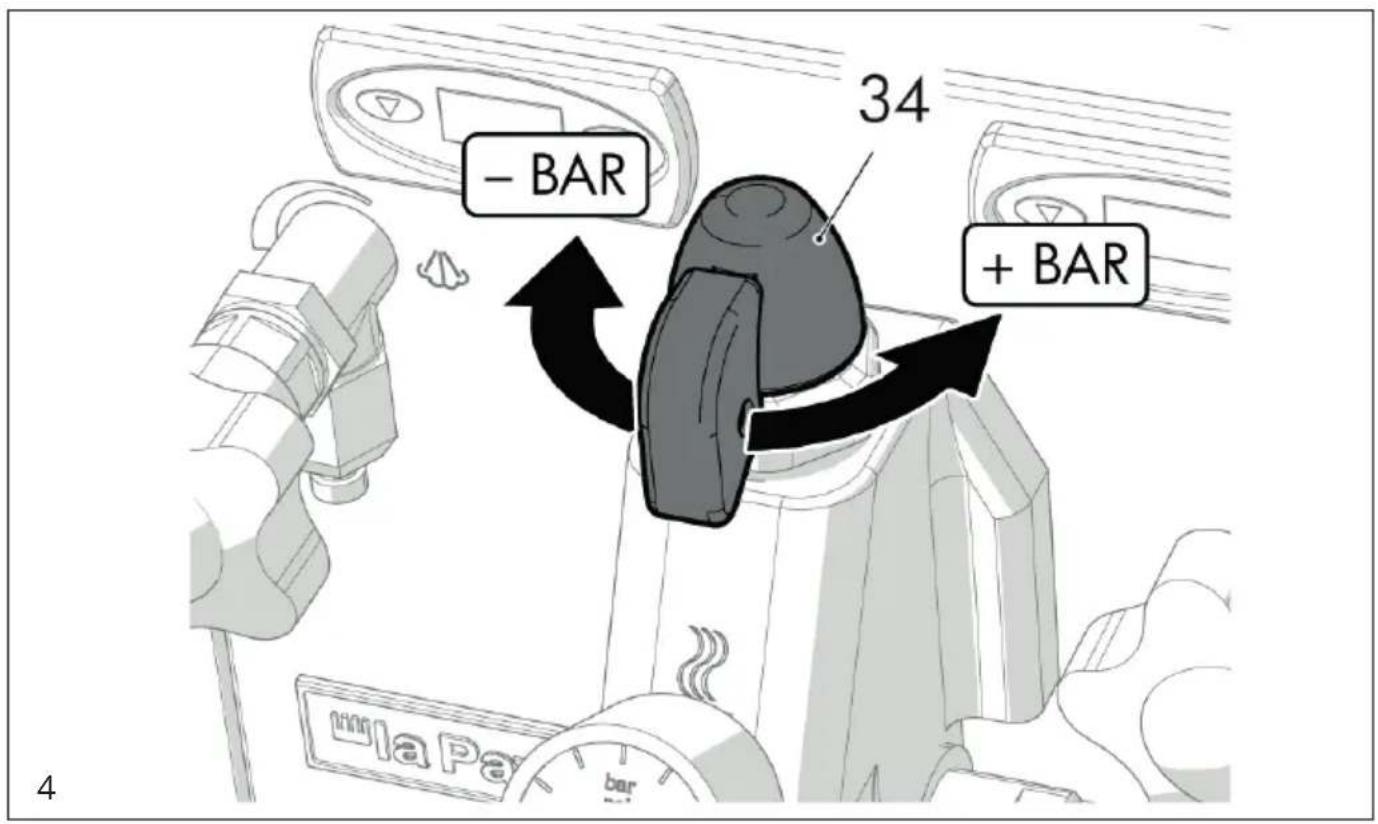

The BPPC lever (34) allows you to modulate pressure in real time during extraction. Turn it to the right to increase pressure (up to 8-9 bar) or to the left to reduce it. This allows you to adapt the extraction to each type of coffee.

Can I connect the machine directly to the water supply?

Yes. Set the bypass switch (C) to II (machine off), connect the supplied hose (17) to the fitting (D) under the machine and then to the water supply. The inlet pressure must not exceed 0.65 MPa; if it is above 0.5 MPa, install a pressure reducer.

How to descale my machine?

Use the blind filter (27). Place it in the portafilter, add a spoonful of coffee machine detergent. Attach the portafilter to the group and activate the brew in intervals of 15-20 seconds until the water runs clear. Then rinse by brewing several times with clean water.

What does the flashing green light mean?

The green light (14) flashes to indicate a water shortage in the tank (2). Fill the tank to make the machine operational again. Without water, all functions are blocked.

How to replace the group gasket?

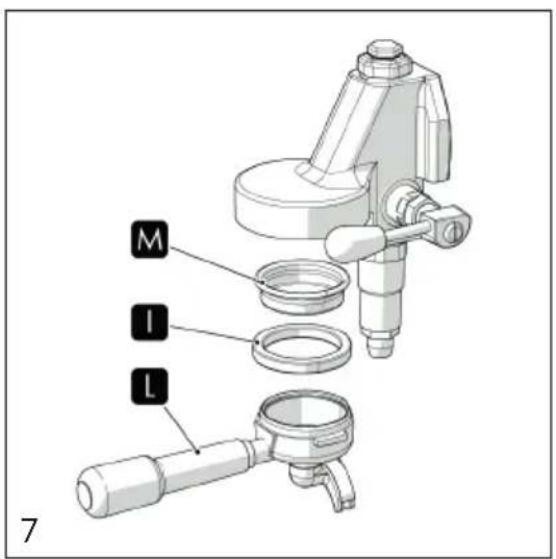

Turn off and unplug the machine. Remove the old gasket (I) and shower screen (M) with a flat screwdriver. Clean the housing. Insert the new components, then lock the portafilter without a filter to set the gasket in place.

The brew pressure is below 8 bar, what to do?

This may indicate a grind that is too coarse, insufficient tamping, or too low a dose. Check the grind and dose. You can also increase the pressure via the pump adjustment screw (F). If the problem persists, contact customer service.

USER MANUAL LPSGEG03EU LA PAVONI

la Pavoni®

Interior view of a modern espresso machine with visible gauges and control knobs (no text or symbols)

Technical diagram of a mechanical device with numbered components for identification

Technical diagram of medical or laboratory equipment with numbered parts labeled for identification

Technical diagram of a mechanical device with numbered components for identification

Technical diagram of a medical or laboratory device with numbered parts labeled for identification.

A B C D 1

E 2 POS. I E POS. II

Technical diagram of an electronic device casing with labeled component 'F' (no text or symbols beyond label)

- BAR 34 + BAR

G 90° ≠90° H 5

M I L 7

3D rendering of a rectangular electronic device with two circular buttons and a central display (no text or symbols)

5. USO DELLA MACCHINA

PROBLEMA CAUSA SOLUZIONE

Instructions for use of models

LPSGEG03

LPSGEV03

Dear Customer,

Thank you for having purchased one of our products, which has been manufactured using the latest technological innovations. By carefully following some simple instructions regarding the correct use of our product in compliance with the essential safety instructions indicated in this manual, you will be able to obtain the best performance and enjoy the remarkable reliability of this product over the years. In case of faults, please contact one of our Service Centres that are at your disposal from now on.

SYMBOLS USED IN THIS MANUAL

Important information is indicated by these symbols. It is imperative that you comply with these instructions.

Please read the instructions manual carefully before using the appliance.

Caution! Particularly important and / or dangerous operations.

Information (useful for using the appliance).

Advice.

Operations that can be carried out by the user.

Operations that should only be carried out by a qualified technician.

CONTENTS

1. INTRODUCTION TO THE MANUAL

2. INSTRUCTIONS

2-1. SAFETY INSTRUCTIONS 18
2-2. INTENDED USE OF THE MACHINE 19
2-3. DISPOSAL 20
2-4. RESIDUAL RISKS 20

1. DESCRIPTION

3-1. PRODUCT DESCRIPTIAON 20

1. STARTING THE MACHINE FOR THE FIRST TIME 21

4-1. CONNECTING TO THE WATER SUPPLY 21
4-2. ELECTRICAL CONNECTION AND FIRST USE 21
4-3. MANUAL BREWING PRESSURE ADJUSTMENT 22
4-4. SETTING THE TEMPERATURE 22

1. USING THE MACHINE

5-1. PREPARING AND DISPENSING COFFEE 23
5-2. BREWING PRESSURE PROFILING CONTROL 24
5-3. DISPENSING HOT WATER 25
5-4. DISPENSING STEAM 25

1. CLEANING AND MAINTENANCE

6-1. CLEANING THE STEAM AND HOT WATER NOZZLES 25
6-2. CLEANING THE GROUP HEAD AND SHOWER SCREENS 26
6-3. CLEANING THE FILTERS AND FILTER HOLDERS 26
6-4. CLEANING THE LOWER DRIP TRAY 26
6-5. CLEANING THE OUTSIDE OF THE MACHINE 26
6-6. REPLACING THE GROUP HEAD GASKET 26

1. TROUBLESHOOTING

27

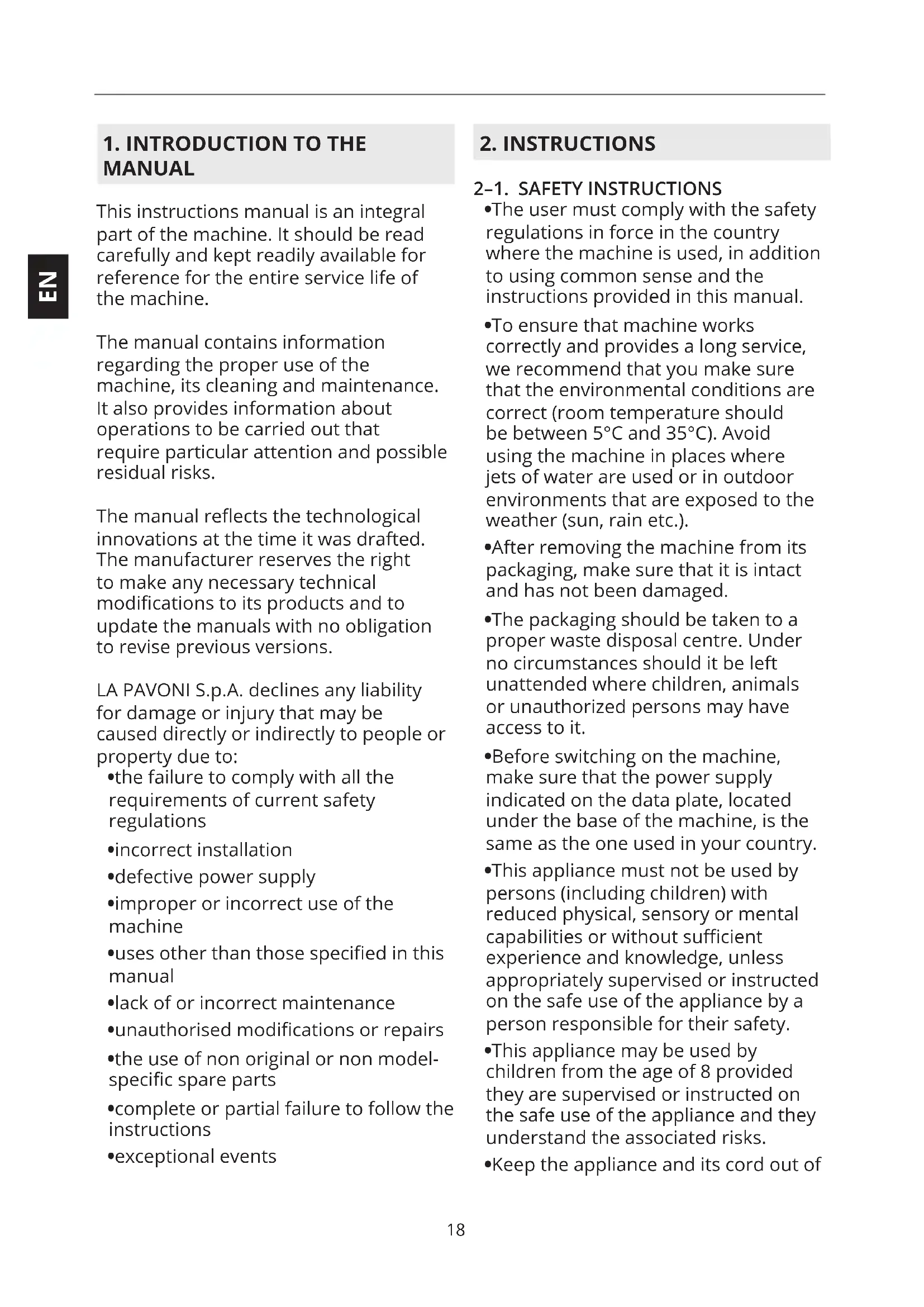

1. INTRODUCTION TO THE MANUAL

This instructions manual is an integral part of the machine. It should be read carefully and kept readily available for reference for the entire service life of the machine.

The manual contains information regarding the proper use of the machine, its cleaning and maintenance. It also provides information about operations to be carried out that require particular attention and possible residual risks.

The manual reflects the technological innovations at the time it was drafted. The manufacturer reserves the right to make any necessary technical modifications to its products and to update the manuals with no obligation to revise previous versions.

LA PAVONI S.p.A. declines any liability for damage or injury that may be caused directly or indirectly to people or property due to:

•the failure to comply with all the requirements of current safety regulations
- incorrect installation
•defective power supply
- improper or incorrect use of the machine
- uses other than those specified in this manual
- lack of or incorrect maintenance
- unauthorised modifications or repairs
- the use of non original or non model-specific spare parts
- complete or partial failure to follow the instructions
- exceptional events

2. INSTRUCTIONS

2-1. SAFETY INSTRUCTIONS

• The user must comply with the safety regulations in force in the country where the machine is used, in addition to using common sense and the instructions provided in this manual.
  •To ensure that machine works correctly and provides a long service, we recommend that you make sure that the environmental conditions are correct (room temperature should be between 5°C and 35°C). Avoid using the machine in places where jets of water are used or in outdoor environments that are exposed to the weather (sun, rain etc.).
  •After removing the machine from its packaging, make sure that it is intact and has not been damaged.
• The packaging should be taken to a proper waste disposal centre. Under no circumstances should it be left unattended where children, animals or unauthorized persons may have access to it.
• Before switching on the machine, make sure that the power supply indicated on the data plate, located under the base of the machine, is the same as the one used in your country.
• This appliance must not be used by persons (including children) with reduced physical, sensory or mental capabilities or without sufficient experience and knowledge, unless appropriately supervised or instructed on the safe use of the appliance by a person responsible for their safety.
• This appliance may be used by children from the age of 8 provided they are supervised or instructed on the safe use of the appliance and they understand the associated risks.
• Keep the appliance and its cord out of

reach of children under the age of 8 years.

- Children must never play with the appliance.

•The appliance may be used by people with reduced physical, sensory or mental capabilities or who lack experience and knowledge if they are supervised or instructed on the safe use of the appliance by someone who is responsible for their safety and if they understand the hazards involved.

- Do not immerse the machine in water.

- Put the machine in a safe position on a solid surface, away from heat sources and out of the reach of children.

- The machine must not be used in a recess.

- Before connecting or disconnecting the machine, make sure that the ON/OFF switch is in the OFF position.

- Do not use the machine if it is not working properly or if the power cable or plug is damaged. If the power cable is damaged, contact an authorised service centre.

- Do not touch the hot surfaces (boiler, group head, filter holder, steam supply nozzle) to avoid burns.

- Do not remove the filter holder while coffee is being dispensed to avoid possible burns.

• Under no circumstances place your hands under the group head or the steam supply nozzle as the liquids or steam delivered are hot and may cause burns.

- Do not use the coffee machine with parts or accessories of other manufacturers.

- Only use original spare parts. The use of spare parts not approved by the manufacturer could lead to fires, electric shocks or personal injury.

•Make sure there is water in the

reservoir before using the coffee machine to avoid damaging the heating element.

- In the case of faults or malfunction, switch of the machine. Do not attempt to repair it yourself. Contact an authorised service centre to have any worn or damaged parts replaced with original spare parts.

- Unauthorised repairs or the use of non-original spare parts will void the warranty and relieve the manufacturer of all liability.

- Do not use the machine outdoors.

- Do not use the machine for uses other than the one for which it was designed.

• In case of fire, use carbon dioxide (CO2) fire extinguishers. Do not use water or steam extinguishers.

- Before carrying out cleaning or maintenance, switch off the machine by placing the ON/ OFF switch on the OFF position and remove the plug from the power socket without pulling the power cable.

- Never use harsh detergents or sharp tools to clean the machine. Only use a soft damp cloth.

2-2. INTENDED USE OF THE MACHINE This machine has been designed for the home preparation of espresso coffee using coffee blends, the production of hot water and/or steam, and the preparation of hot milk.

In order to use the machine properly, the user must carefully read and understand the instructions provided in this manual.

This appliance is intended for household use and similar applications such as: - in staff kitchens in

shops, offices, and other professional environments;
- in farms/farm accommodation
– by guests in hotels, motels and other types of residential accommodation;
- in bed and breakfast accommodation

Any improper use of the machine will void the warranty and relieve the manufacturer of all liability for damage to property and / or injury to persons.

Improper use includes:

• any use other than the one specified in the instructions manual
• any intervention carried out on the appliance that does not comply with the instructions given in this manual;
• any use following unauthorized modifications to components or safety devices
  •use of the appliance outdoors.

2-3. DISPOSAL

Electrical appliances must not be disposed of together with household waste. Devices marked with this symbol are subject to European Directive 2012/19/EU All waste electrical and electronic appliances must be disposed of separately from domestic waste and taken to authorised waste disposal facilities. Disposing of the used appliance correctly, will help to safeguard the environment and human health. For further information regarding the disposal of used appliances, please contact your local authority waste disposal department or the shop where the appliance was purchased.

2-4. RESIDUAL RISKS

It is not possible to safeguard the

user against direct jets of steam or hot water. He/she should therefore be extremely careful when using the machine to avoid scalds or burns.

The manufacturer declines any liability for damage to property or injury to people or animals, due to interventions on the machine by unqualified or unauthorized persons.

3. DESCRIPTION

3-1. PRODUCT DESCRIPTION

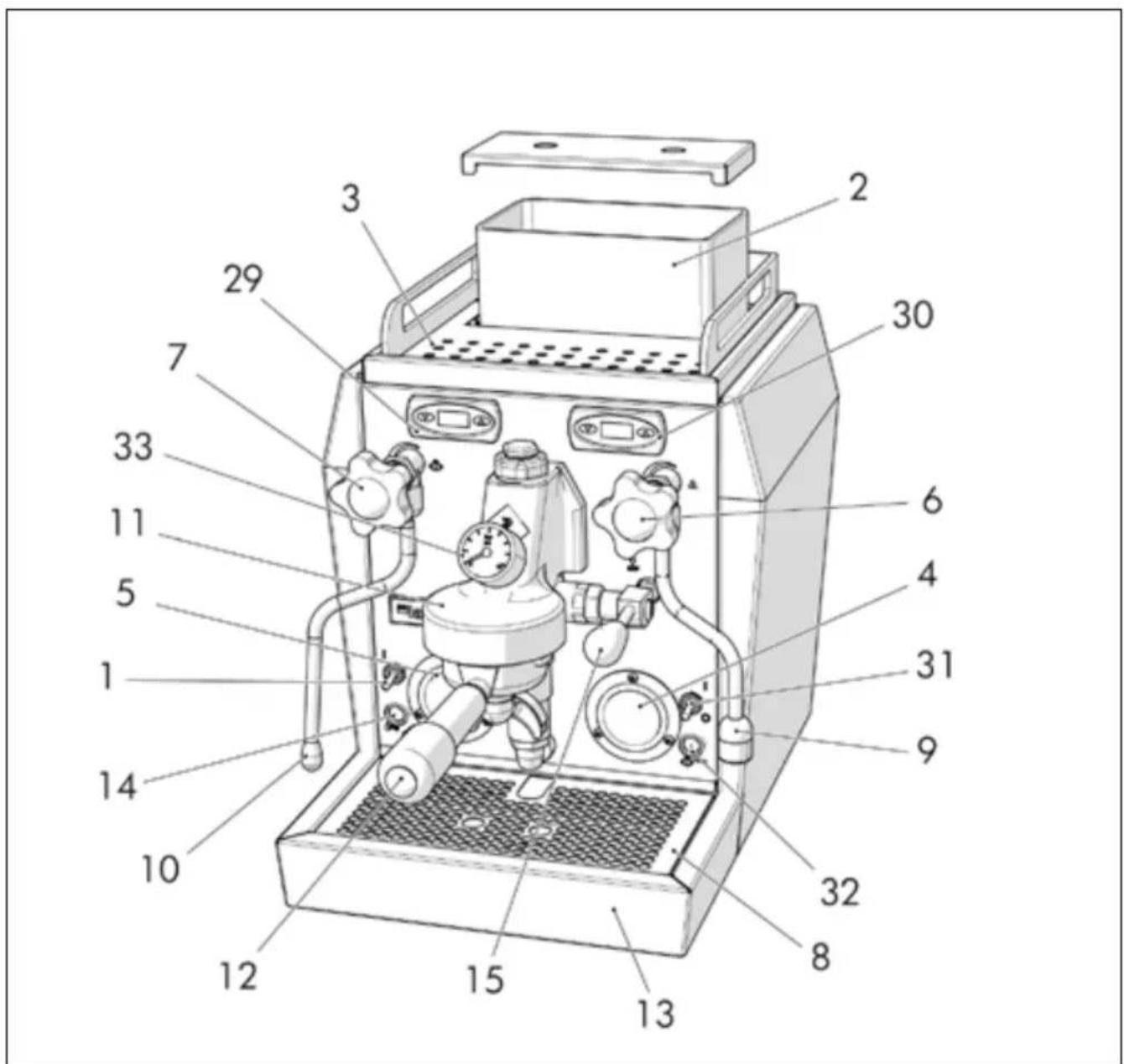

1. ON/OFF switch (coffee boiler)
2. Water tank
3. Cup warmer
4. Boiler pressure gauge
5. Pump pressure gauge
6. Hot water knob
7. Steam knob
8. Drip tray grid
9. Hot water nozzle
10. Steam nozzle
11. Group head
12. Filter holder
13. Drip tray
14. ON/OFF light and water tank level indicator
15. Group head lever
16. Cleaning brush
17. Tube for connecting to the water supply
    18a. Tamper (plastic)**
    18b. Tamper (steel)*
18. Coffee scoop
19. Filter - 1 cup**
20. Filter - 2 cups**
21. "Competition" filter 16 g*
22. "Competition" filter 20 g*
23. Filter holder - one spout**
24. Filter holder - two spouts
25. Fascino* filter holder
26. Blind filter
27. Silicone water drainage hose
28. Coffee boiler PID temperature

controller

1. Service boiler PID temperature controller

2. Service boiler ON / OFF switch

3. Service boiler ON/OFF indicator light

4. Pressure gauge - BPPC (Brewing Pressure Profiling Control)

5. "BPPC" adjustment lever*

*standard on LPSGEG03 models

**standard on LPSGEV03 models

4. STARTING THE MACHINE FOR THE FIRST TIME

4-1. CONNECTING TO THE WATER SUPPLY

The LPSGEG03 and LPSGEV03 machines can either be used with a water tank (2) or connected to the mains water supply using the hose provided (17).

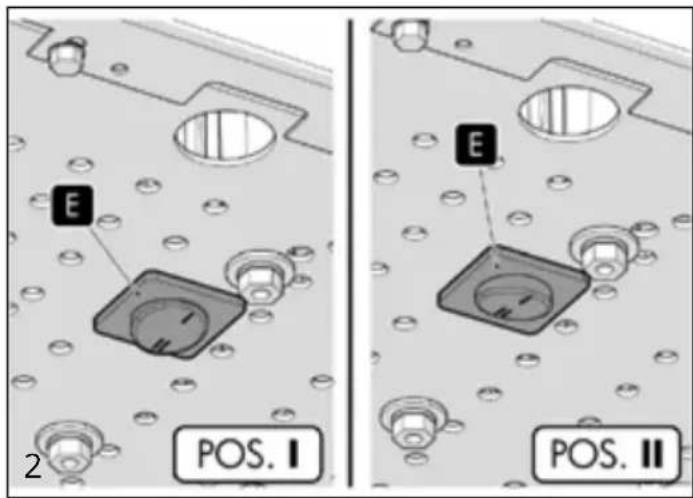

In order to use the machine with a water tank (2), the switch (C) has to be in position "I"" (this should be done with the machine switched off) (Fig. 1-2).

To use the machine connected to the water supply:

- Place the switch (C) to position "II" (this should be done with the machine switched off) (Fig. 1-2).

- Connect the hose (17) to the fitting (D) located under the machine and then connect it to the water supply (Fig. 1).

- It is recommended that you install a water softener on the machine water supply system.

- Make sure that the water in the water supply that you will be connecting the machine to is potable.

•This appliance should be connected to the water supply in compliance with the national Legislation of the country in which

it is used.

- The maximum inlet pressure to the machine from the water supply must not exceed 0.65 MPa. If it is higher than 0.5 MPa (5 bar), it is recommended that you install a balanced pressure regulator for high pressures.

4-2. ELECTRICAL CONNECTION AND FIRST USE

To start the espresso coffee machine, carefully follow the instructions below:

• Open the package, take out the machine and make sure that it is not damaged.
• Place the machine on a level surface, remove the cover, take out the water tank (2) and rinse it.
• Fill the tank with clean water, put it back in its seat, and insert the silicone tubes. Close the machine cover.
• If you connect the machine to the water supply, make sure that the water supply tap is open before switching on the machine.
  •Water can be drained directly into a drainage outlet by removing the plug (A) from the drip tray (13) and connecting the silicon tube (28) to the tray (B) (Fig. 1).

Before connecting the machine, make sure that the mains power voltage is the same as the one indicated on the data plate located under the base of the machine.

• Insert the plug into the power socket.
• Before starting the machine, place the filter holder (12) into the group head (11); place a container under the group head and move the lever (15) upwards in order to fill the coffee boiler.
• Turn on the machine by placing the on / off switch (1) to position "I". Wait

for approximately 2 seconds to allow the circuit to perform a check. The lamp (14) lights up to indicate that the machine is powered.

• As soon as water starts to come out of the group head (11) move the lever (15) downwards to stop delivery.
• Wait until the coffee boiler reaches the set temperature (92°) shown on the PID temperature controller (29).

- Then turn on the service boiler by placing the switch (31) to position "I". The light (32) turns on to indicate that the boiler is powered.

- The automatic water level device will start filling the service boiler with water until it reaches the pre-set level; the level of water in the boiler is monitored automatically and will be topped up automatically to the required level.

- During start-up: when the boiler pressure gauge (4) indicates approximately 0.5 bar, slowly open the steam knob (7) to discharge any air that may be contained in the service boiler. Wait until steam starts to come out of the steam nozzle (10) before closing it.

- Wait for the service boiler to reach the working pressure (1.1 – 1.3 bar), checking the boiler pressure on the pressure gauge (4). The PID temperature controller (29) is factory set to 122^ .

• Once the working pressure has been reached, use the group head lever (15).
• Move the group head control lever (15) fully downwards to stop delivery.
  •The machine is now ready for use.

• The machine is fitted with a safety device that checks the amount of water in the tank. The green light (14) flashes to indicate

there is insufficient water in the tank (2). If the water level is too low, the device automatically stops all machine functions.

- As the tank is filled, the warning light switches off and the machine is ready to dispense coffee again.

Coffee cannot be dispensed and the boiler heating element is not powered when the water tank light (14) is flashing.

4-3. MANUAL BREWING PRESSURE ADJUSTMENT

The brewing pressure can be adjusted manually by turning the pump pressure adjustment screw (F) (Fig. 3).

To check the pressure during delivery:

• Insert the filter holder full of properly ground, dosed and pressed coffee into the group head.
• Move the group head control lever (15) and read the pressure on the pump pressure gauge (4). The correct pressure is 8/9 bar.
• If the pressure indicated on the pressure gauge is not correct, turn the pump pressure adjustment screw (F) (Fig. 3) clockwise to increase the pump pressure or anticlockwise to decrease the pump pressure.

4-4. SETTING THE TEMPERATURE

The LPSGEG03 and LPSGEV03 models are fitted with two PID temperature controllers (29, 30).

The PID temperature controllers regulate the temperature of both boilers, which are programmable and can be independently controlled.

This system makes it possible to brew coffee at different temperatures.

The PID temperature controller for the

coffee boiler (29) is factory set to 92^ C. To adjust the setting proceed as follows (Fig. 6):

- press the button ▼ as soon as "PRG" appears on the display, press the button ▲;

- when the temperature of the boiler appears on the display, press the

and ▲ buttons to increase or decrease the temperature from a minimum of 80°C to a maximum of 133°C.

- 3 seconds after having pressed the last button, the value is memorized and the display indicates the temperature.

The PID temperature controller for the service boiler (30) is factory set to 122°C. To adjust the setting proceed as follows:

- press the button ▼; as soon as "PRG" appears on the display, press the button ▲;

- when the temperature of the boiler appears on the display, press the and buttons to increase

or decrease the temperature from a minimum of 80^ C to a maximum of 133^ C.

- 3 seconds after having pressed the last button, the value is memorized and the display indicates the temperature.

- The PID temperature controller has been factory set to the right temperature for making an excellent espresso.

- If the temperature of the coffee boiler is set higher than 103^ , the display (29) will start to flash. This warns the user that the coffee will not be good if it is delivered at such a high temperature.

5. USING THE MACHINE

5-1. PREPARING AND DISPENSING COFFEE

Once you have carried out the operations described in section 4.1-4.2, the machine is ready for use.

Do not cover the cup-warming shelf with fabrics, felt etc.

- Once switched on, the machine takes about 15 minutes to heat up. The outside temperature can affect heating times.

- It is recommended that you place the filter holder in the group head before switching the machine on. This allows the filter holder to reach a perfect temperature.

To prepare coffee, proceed as follows:

- Place the required filter (20-21-22-23) into the filter holder (24-25-26).

- Fill the filter with the required amount of coffee for 1 or 2 cups (7-8 g – 14-16 g) according to the filter selected (20-21-22-23).

- Level the coffee and compact it using the tamper (18a-18b). Remove any coffee residues from the edge of the filter using the palm of your hand and insert the filter holder into the group head (11), moving it towards the right to secure it.

- Place the cups under the spouts and start to dispense coffee using the group head control lever (15). The coffee is dispensed by moving the group head lever (15) located on the control panel upwards.

- Once the required amount of coffee has been dispensed, move the group head lever (15) down to stop delivery.

•To dispense additional cups of coffee,

remove the filter holder (12) from the group head (11) by moving it towards the left, empty the coffee grounds and repeat the steps described above.

Do not touch the group heads or the steam and hot water nozzles when the machine is in operation and do not place your hands under the group heads or pipes during delivery in order to avoid possible scalding.

When the machine is new, the filter holder may not be aligned (perpendicular to the machine) as shown in Figure 5. However, this does not prevent the machine from working properly. After being used for a short time, the filter holder will gradually become settled in the correct position. G = Position of the closed filter holder when the machine is new H = Position of the closed filter holder after the machine has been in use for a short time.

•Coffee should be ground just before it is used. Once ground, coffee loses its flavour very quickly. If the coffee is too coarsely ground, the coffee will be light coloured and weak without froth and if the coffee is too finely ground the espresso will be dark and strong with little froth.

- Warm cups help maintain the coffee at the right temperature. We therefore recommended that before using them, you place the cups on the cup warmer shelf (3), which will be warmed by the heat given off from the boiler.

• The pump pressure can be read on the respective pressure gauge (5) during delivery.
  •The correct pressure for making

coffee is 8/9 bar.

5-2. BREWING PRESSURE PROFILING CONTROL

- The pressure gauge (33) mounted on the group head, allows the brewing pressure profile of the espresso to be read.

- This allows the user to make sure that the grinding, pressing and the amount of the coffee in the filter is correct.

- If the brewing pressure is lower than the pump calibration pressure (9 bar factory setting), it means that the coffee has been ground too coarsely, that the coffee has not been compacted correctly, or the amount of coffee is insufficient.

- The LPSGEG03 models are also equipped with the BPPC (Brewing Pressure Profiling Control) system and relative lever (34).

- The "BPPC" adjustment lever (33) allows you to modify the pressure exerted on the coffee in real time as it is being dispensed.

•To modify the pressure profile during brewing, move the adjustment lever (34) to the right or left respectively to increase or decrease the pressure exerted (Fig. 4).

- This allows you to control the coffee brewing process manually and to obtain the best possible result with every kind of coffee or blend.

If the adjustment lever (34) is facing towards the right (as in Fig. 5), the coffee brewing pressure will be the same as the pressure exerted by the pump (8-9 bar), seen on the relative pressure gauge (5).

It is not recommended to close the adjustment lever completely as the gauge pressure would indicate 0 bar and delivery would

stop.

5-3. DISPENSING HOT WATER

- Before dispensing hot water, make sure that the service boiler is on (Switch (31) in position "I") and under pressure (Pressure gauge (4) indicates 1.1 -1.3 bar)

- Place a container under the nozzle (9).

- Turn the hot water knob (6) anticlockwise to dispense hot water.

- When you have enough hot water, turn the knob (6) clockwise to stop delivery.

We recommend that you dispense a maximum of 200 ml of water.

To protect the heating element, the machine has a filling time-out of 25 seconds. If the filling time exceeds 25 seconds, both PID temperature controllers (29 - 30) are disabled until the service boiler has been completely filled.

5-4. DISPENSING STEAM

- Before dispensing steam, make sure that the service boiler is on (Switch (31) in position "I") and under pressure (Pressure gauge (4) indicates 1.1 -1.3 bar)

- Before heating any drinks, carefully dispense a small amount of steam from the steam nozzle (10) by turning the knob (7) anticlockwise to eliminate any condensation that may have formed in the boiler.

- Place the liquid to be prepared in a container, immerse the steam nozzle (10) into the liquid and slowly turn the steam knob (7) anticlockwise. The amount of steam delivered is proportional to how much you turn the knob. The more you open it, the greater will be the amount of steam delivered.

- When the required amount has been

dispensed, turn the knob clockwise to stop delivery. Remove the container and clean the steam nozzle with a damp cloth.

To froth milk for a cappuccino:

- Fill a container with cold semi-skimmed milk.

- Place the container with milk under steam nozzle (10) then immerse it a few millimetres into the milk.

- Turn the steam knob (7) anticlockwise and slowly move the container upwards to obtain a creamier froth.

- Once the volume of milk has doubled, immerse the frothing nozzle completely and heat the milk.

- Stop the steam by turning the steam knob (7) clockwise.

Danger of burns! Spurts of hot water may be ejected when you first start to dispense steam. The nozzle can become extremely hot. Do not touch it directly with your hands.

After heating the liquid, it is recommended that you purge the steam pipe by opening the valve for a few seconds.

6. CLEANING AND MAINTENANCE

6-1. CLEANING THE STEAM AND HOT WATER NOZZLES

•To avoid altering the taste of the drinks to be heated and to prevent the holes at the end of the nozzles from becoming clogged, clean thoroughly with a damp cloth after each use and dispense a small amount of steam.

6-2. CLEANING THE GROUP HEAD AND SHOWER SCREENS

• Remove the filter holder from the group head and clean the group's gasket using the brush (16) provided.
• Place the blind filter (27) provided in the filter holder (24-25-26)
• Add a spoonful of coffee machine cleaning powder and insert the filter holder into the group head.
• Use the group head control (15) to start dispensing and stop delivery after approximately 15-20 seconds.
• Start and stop delivery several times until clean water is dispensed, in order to remove coffee and limescale deposits.
• Remove the blind filter (27) and start dispensing several times in order to rinse the group head and eliminate any residues from the shower screens and the group head.

If hot water has remained in the pipes for a long time, we recommend that you allow water to flow out to remove any deposits.

6-3. CLEANING THE FILTERS AND FILTER HOLDERS

• Regularly check the holes in the filters in order to remove any coffee deposits.
• Place approximately one litre of boiling water and four teaspoons of coffee machine cleaner in a suitable container. Immerse the filters and filter holders in the solution for 20-30 minutes. Then rinse thoroughly under running water.

Remove the drip tray grid (8) and the drip tray (13). Remove any coffee residues from it by rinsing it under

running water.

6-5. CLEANING THE OUTSIDE OF THE MACHINE

To keep the outer surface of the coffee machine in good condition, it should be cleaned regularly after use. Let the appliance cool down first. Clean with a soft, damp cloth.

6-6. REPLACING THE GROUP HEAD GASKET (Fig. 7)

If coffee leaks from around the edges of the filter holder (L) when it is dispensed, it may be due to an obstruction in the delivery hole of the filter-holder, in which case the hole should be cleaned.

If the problem persists or if the filter holder moves significantly beyond the centre of the group head when it is being fitted, the group head gasket should be replaced.

To replace it, proceed as follows:

• Make sure that the machine is switched off and disconnect the power cable.
• Remove the gasket (I) and the shower screen (M), using a flat screwdriver as a lever.
  •After having removed the gasket and shower screen, clean the seat properly before installing the new components.
• Once the new components have been installed, insert the filter holder, without the filter, into the group head and move it in order to seat the gasket.

7. TROUBLESHOOTING

PROBLEM CAUSE SOLUTION

The machine does not work and the ON/OFF switch light does not turn on	1. No power to the machine2. The machine is not plugged in correctly3. The power cable is damaged	1. Switch the power on2. Insert the plug correctly into the power socket3. Contact an authorised service centre for replacement
The light on the ON/OFF switch is lit but the water does not heat up	1. The service thermostats are not working2. The heating element is broken or burnt out	1. Contact an authorised service centre2. Contact an authorised service centre
No coffee is dispensed	1. No water in the tank2. The coffee is too finely ground3. There is too much coffee4. The coffee has been compacted too much5. The circuit has not been filled6. Shower screen dirty	1. Put water in the tank2. Replace with a coarser coffee blend3. Reduce the amount of coffee in the filter basket4. Tamp the coffee less5. See section 4 “Starting the machine for the first time”6. Clean or replace the shower screen
Loud noise coming from the pump	1. The pump is not primed	1. See section 4 “Starting the machine for the first time”
The coffee is dispensed too quickly	1. The coffee is too coarsely ground2. There is not enough coffee3. The coffee has not been compacted enough4. The coffee is stale or unsuitable	1. The coffee should be ground more finely2. Increase the amount of coffee3. Tamp the coffee more4. Replace the coffee
The coffee is dispense in drops	1. The coffee is too finely ground2. There is too much coffee3. The coffee has been compacted too much	1. The coffee should be ground more coarsely2. Reduce the amount of coffee3. Tamp the coffee less

Coffee leaks between the group head and the filter holder	1. The filter holder is not inserted correctly2. There is too much coffee in the filter basket3. The edge of the filter holder has not been cleaned4. The group head gasket is worn	1. Insert it properly2. Reduce the amount of coffee3. Remove coffee residues from the edge of the filter holder and clean the group head gasket4. Contact an authorised service centre
No froth forms on the coffee	1. The coffee blend is not suitable for this type of machine2. The grinding is unsuitable3. There is not enough coffee	1. Replace the coffee2. Adjust the coffee grind3. Increase the amount of coffee and compact it properly
The coffee is too cold	1. The machine had not reached the correct temperature2. The filter holder had not been pre-heated3. The cups have not been preheated4. The thermostat is not working within the required range5. The PID temperature controller (29) is not working within the required range	1. Follow the instructions given in section 4.1- 4.22. The filter holder should be heated at the same time as the water, see section 4.1- 4.23. Heat the cups properly on the cup warmer (2)4. Contact an authorised service centre5. Set the values for the PID temperature controller (29)
The coffee is too hot 1. The PID temperature controller (29) is not working within the required range		1. Set the values for the PID temperature controller (29)
The machine does not dispense steam	1. The circuit has not been filled2. The hole at the end of the steam nozzle is clogged3. No water in the tank	1. See section 42. Clean the hole with a needle3. See section 4

1. INTRODUCTION AU MANUEL

2. AVERTISSEMENTS

2-1. AVERTISSEMENTS DE SÉCURITÉ 32
2-2. USAGE PRÉVU DE LA MACHINE 34
2-3. ÉLIMINATION 34
2-4. RISQUES RÉSIDUELS 34

1. DESCRIPTION

3-1. DESCRIPTION DU PRODUIT 34

1. PREMIÈRE MISE EN SERVICE

4-1. RACCORDEMENT À L'EAU 35
4-2. BRANCHEMENT ÉLECTRIQUE ET PREMIÈRE UTILISATION 35
4-3. RÉGLAGE MANUEL DE LA PRESSION DE DISTRIBUTION 37
4-4. PROGRAMMATION DE LA TEMPÉRATURE 37

1. UTILISATION DE LA MACHINE

5-1. PRÉPARATION ET DISTRIBUTION DE CAFÉ 38
5-2. CONTRÔLE DU PROFIL DE PRESSION DE DISTRIBUTION 39
5-3. DISTRIBUTION D'EAU CHAUDE 39
5-4. DISTRIBUTION DE VAPEUR 39

1. NETTOYAGE ET ENTRETIEN

6-1. NETTOYAGE DES BUSES DE DISTRIBUTION DE VAPEUR ET EAU CHAUDE 40
6-2. NETTOYAGE CORPS GROUPE ET DOUCHETTES 40
6-3. NETTOYAGE DES FILTRES ET DES PORTE-FILTRES 41
6-4. NETTOYAGE BASSINE INFÉRIEURE VIDANGE 41
6-5. NETTOYAGE DU CORPS 41
6-6. REMPLACEMENT DU JOINT D'ÉTANCHÉITÉ SOUS CORPS 41

1. CAUSES DE DYSFONCTIONNEMENT OU ANOMALIES 42

1. INTRODUCTION AU MANUEL

PROBLÈME CAUSE SOLUTION

2-1. VEILIGHEIDSWAARSCHUWINGEN

- in bed and breakfast-omgevingen.

3-1. BESCHRIJVING VAN HET PRODUCT

PROBLEEM OORZAAK OPLOSSING

PROBLEMA CAUSA SOLUÇÃO

INNEHÅLLSFÖRTECKNING

1. INTRODUKTION TILL BRUKSANVISNINGEN 104

2. FÖRESKRIFTER

104

2-1. SÄKERHETSFÖRESKRIFTER 104
2-2. AVSEDD ANVÄNDNING AV MASKINEN 106
2-3. BORTSKAFFANDE 106
2-4. KVARSTÅENDE RISKER 106

3. BESKRIVNING

106

3-1. BESKRIVNING AV PRODUKTEN 106

4. FÖRSTA BRUKTAGNINGEN

4-1. ANSLUTNING TILL VATTENSYSTEMET 107
4-2. ELEKTRISK ANSLUTNING OCH FÖRSTA ANVÄNDNINGSTILLFÄLLE 107
4-3. MANUELL JUSTERING AV DISPENSERINGSTRYCK 108
4-4. PROGRAMMERING AV TEMPERATUREN 109

5. ANVÄNDNING AV MASKINEN

5-1. TILLAGA OCH BRYGGA KAFFE 109
5-2. KONTROLLERA BRYGGTRYCKET 110
5-3. DISPENSERA VARMT VATTEN 111
5-4. DISPENSERA ÅNGA 111

6. RENGÖRING OCH UNDERHÅLL

6-1. RENGÖRING AV MUNSTYCKEN FÖR ÅNGA OCH VARMVATTEN 112
6-2. RENGÖRING AV BRYGGRUPP OCH MUNSTYCKEN 112
6-3. RENGÖRING AV FILTER OCH FILTERHÅLLARE 112
6-4. RENGÖRING AV DET NEDRE TRÅGET 112
6–5. RENGÖRING AV HÖLJET 112
6-6. BYTE AV TÄTNINGEN 112

7. ORSAKER TILL FELFUNKTION OCH ANOMALIER 114

1. INTRODUKTION TILL BRUKSANVISNINGEN

•felaktig installation;
