Product type	Actuator-switch for instabus EIB system
Number of channels	4, 6 or 8 channels depending on variant (model 75318002 – see label)
Supply voltage	21‑32 V DC via instabus EIB bus
Power consumption (bus)	150 mW typical
Mounting width	72 mm (4 modules) for standard 4/6/8 channel versions; 144 mm (8 modules) for 8 channel C load version
Weight	Approx. 0.2 kg (depending on variant)
Contact type	Floating normally open contact (μ-contact)
Max. switching voltage	230 V AC / 400 V AC depending on output
Max. breaking current (230 V)	16 A (AC1) / 10 A (AC3) for outputs A1‑A4; 6 A (AC1) for outputs A5‑A8
Switching power (incandescent lamps)	Up to 3680 W depending on version
Main functions	Switching of electrical loads via EIB bus, switching position indicators, manual relay operation independent of bus
Position indicators	LED or mechanical indicator depending on variant (inverted for C load versions)
Bus connection	Instabus terminal (screw terminal block)
Mains connection	Wire terminals – single wire 1.5‑4 mm², stranded 0.75‑4 mm² (without ferrule) or 0.5‑2.5 mm² (with ferrule)
Ambient temperature	-5 °C to +45 °C
Storage temperature	-25 °C to +70 °C
Maintenance and cleaning	Clean with a dry cloth; do not use abrasive products. Disconnect the power supply before any intervention.
Safety	Installation and mounting reserved for qualified electricians. Disconnect the circuit breaker before intervention. Do not connect three-phase motors or mix 230 V and SELV on separate outputs.
Spare parts and repairability	The device contains no user-serviceable parts. In case of defect, send to the central customer service with description.
General information	Product of the instabus‑EIB system compliant with EIBA directives. Operation depends on the loaded software. CE marking.

Frequently Asked Questions - 75318002 BERKER

What is the product type of the Berker 75318002 model?

It is an actuator-switch for instabus EIB system, available in 4, 6 or 8 channel versions. The exact model can be identified on the device label.

How to power the device?

Power is supplied only via the instabus EIB bus (21‑32 V DC). No additional mains power supply is required.

What are the mounting dimensions?

The mounting width is 72 mm (4 modules) for standard versions, except the 8 channel C load actuator which occupies 144 mm (8 modules). Height and depth are standard for the modular system.

Can I use this actuator to control three-phase motors?

No, connecting three-phase motors is prohibited. The device is designed for single-phase or two-phase loads up to 400 V.

How to perform manual switching in case of bus failure?

The switching position indicators (② in the manual) also serve as push buttons to manually operate each relay, independently of the EIB bus. Note: this does not change the communication objects.

What do the 'C load' variants mean?

The 'C load' versions are specially designed for capacitive loads (e.g. electronic transformers, LED lamps with high capacitance) and support high inrush currents.

Can I connect different phases to the outputs?

Yes, the device allows connecting different phases (L1, L2, L3) to different outputs, provided the maximum voltages are respected.

What are the essential safety precautions?

Installation must be carried out by a qualified electrician. Always disconnect the mains power via the circuit breaker before intervention. Do not mix 230 V and safety extra-low voltage (SELV) on separate outputs.

How to clean the device?

Use a dry, soft cloth. Never use abrasive cleaning products or solvents. Disconnect the power supply before cleaning.

What to do in case of malfunction?

The device contains no user-serviceable parts. Send it postage paid to the manufacturer's central customer service with a detailed description of the defect.

USER MANUAL 75318002 BERKER

L1 L2 L3 N A ② ① + instabus

L1 L2 L3 N A1' A2' A3' A4' ② A1 0 I A2 0 I A3 0 I A4 0 ① + instabus

Anschluss

D

L1 L2 L3 N A1 A2 A3 A4 C ① + instabus

L1 L2 L3 N A5* A6* A7* A8* A1* A2* A3* A4* D ② A1 1 0 A2 1 0 A3 1 0 A4 1 0 ① + instabus

Anschluss

D

Hand holding a tool interacting with a mechanical component (no visible text or symbols)

G

Hand holding a mechanical component with directional arrows indicating movement (no text or symbols)

Operating Instructions

4-channel switching actuator

4-channel switching actuator, C-load

4-channel switching actuator, C-load

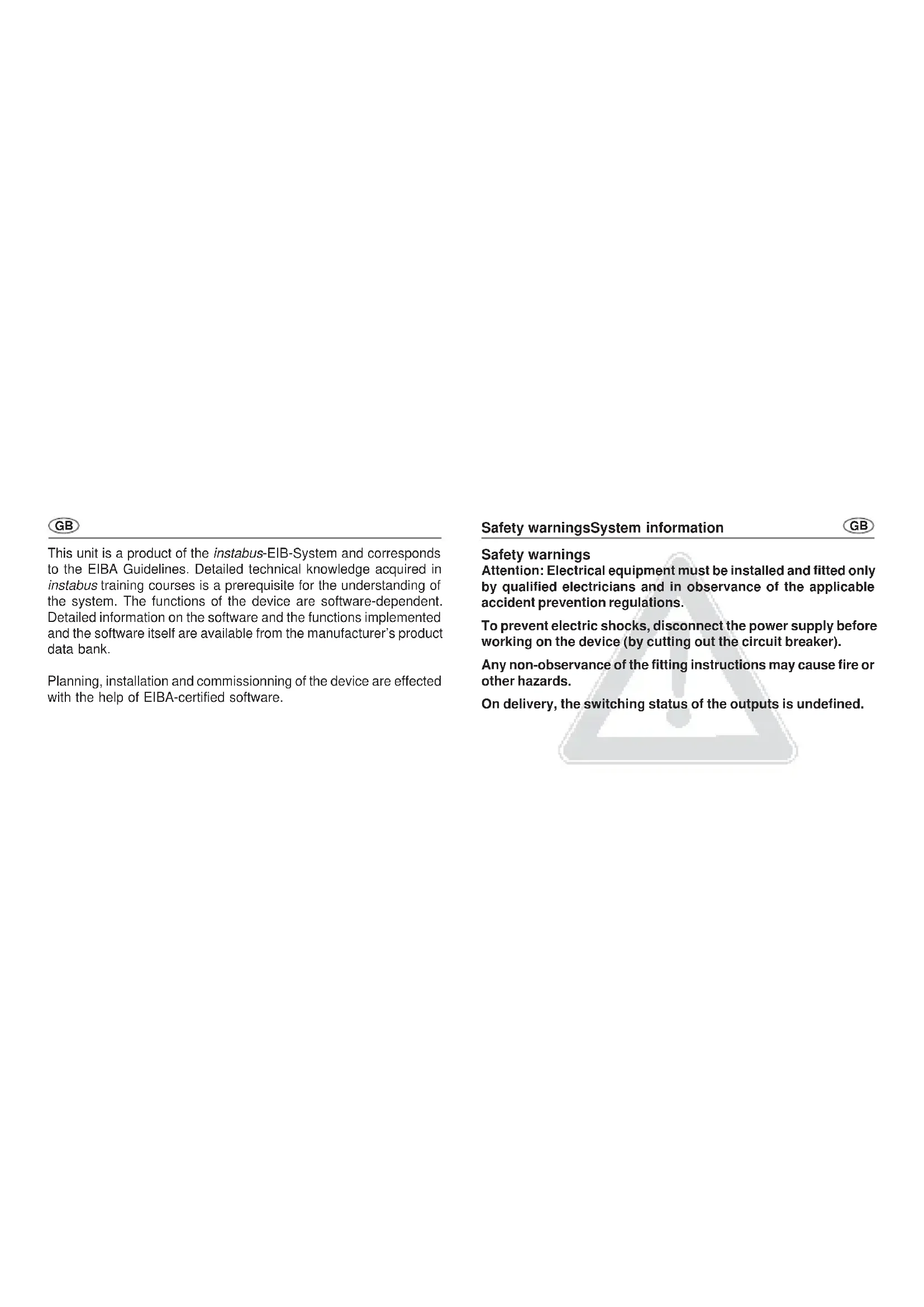

This unit is a product of the instabus-EIB-System and corresponds to the EIBA Guidelines. Detailed technical knowledge acquired in instabus training courses is a prerequisite for the understanding of the system. The functions of the device are software-dependent. Detailed information on the software and the functions implemented and the software itself are available from the manufacturer's product data bank.

Planning, installation and commissioning of the device are effected with the help of EIBA-certified software.

Safety warningsSystem information

GB

Safety warnings

Attention: Electrical equipment must be installed and fitted only by qualified electricians and in observance of the applicable accident prevention regulations.

To prevent electric shocks, disconnect the power supply before working on the device (by cutting out the circuit breaker).

Any non-observance of the fitting instructions may cause fire or other hazards.

On delivery, the switching status of the outputs is undefined.

GB

The 4-channel, 4-channel C-load, 6-channel, 8-channel and 8-channel C-load switching actuators with potential-free contacts can be used for switching electrical consumers via the instabus EIB. The switching commands come from touch sensors or from binary inputs of the instabus EIB system.

The 4 channel, 4 channel C-load, 8-channel C-load and 8-channel switching actuators (outputs A1 - A4) are equipped with switching status indicators which are used at the same time for manual operation of the relays independent of the instabus EIB.

The switching contacts of C-load switching actuators are designed especially for capacitive loads and the corresponding high inrush currents (see technical specifications).

The devices do not require an additional power supply.

InstructionsFunction

GB

• The outputs A1 - A4 and A5 - A8 of the 8-channel actuator have different maximum switching capacities.
• In the event of control from a central telegram, the relay outputs of an actuator switch with a slight delay.
• Do not connect three-phase motor to the actuators.
• Manual operation of the relays is independent of bus conditions and not affecting the switching objects. For this reason, a software-disabled output can nevertheless be switched by hand.
• The use of 230 V and SELV at different outputs of an actuator is not permitted.

GB

Connection

L1 L2 L3 N A ② ① + instabus

L1 L2 L3 N A1' A2' A3' A4' ② A1 0 I A2 0 I A3 0 I A4 0 ① + instabus

Connection

GB

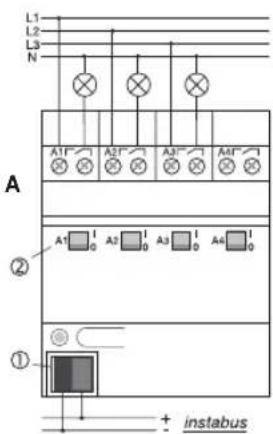

4-channel switching actuator (fig. A), 4-channel C-load switching actuator (fig. B).

Connection to the bus is by means of the bus connector ①.

The switching statuses of the relays are indicated by the switch position indicators ②. They are used at the same time for manual operation of the relays independent of the EIB.

Important: Observe that switch status indicators ② in the C-load actuator (shown on the right) are inverted for constructional reasons.

The actuators are connected as shown in the schematic.

The actuator outputs can be connected to different phase conductors.

GB

Connection

L1 L2 L3 N A1F A2F A3F A4F C ① + instabus

L1 L2 L3 N A5" A6" A7" A8" A1" A2" A3" A4" D ② A1 1 0 A2 1 0 A3 1 0 A4 1 0 ① + instabus

Connection

GB

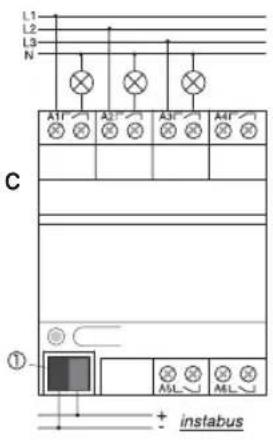

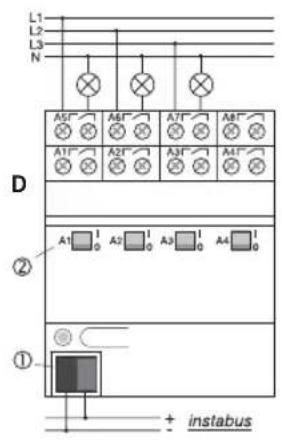

6-channel actuator (fig. C), 8-channel actuator (fig. D).

Bus connection is by means of the bus connector ①.

In the 8-channel actuator, the switching statuses of the relays of outputs A1 - A4 are indicated by the switch position indicators ②. They are used at the same time for manual operation of the relay outputs A1 - A4 of the 8-channel actuator independent of the EIB.

The actuators are connected as shown in the schematic.

The actuator outputs can be connected to different phase conductors.

GB

Connection

E

L1 L2 L3 N A1 A2 A3 A4 A5 A6 A7 A8 ② ①

Connection

GB

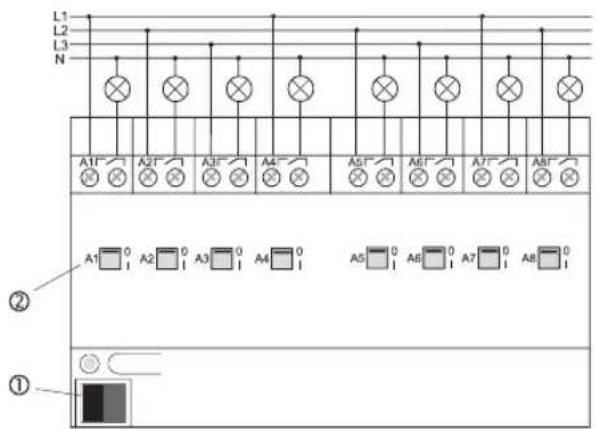

8-channel C-load switching actuator (fig. E).

Bus connection is by means of the bus connector ①.

In the 8-channel actuator, the switching statuses of the relays are indicated by the switch position indicators ②. These are used at the same time for manual operation of the relays independent of the EIB

Important: Observe that the switching status indicators ② in the C-load actuator are inverted for constructional reasons.

The actuators are connected as shown in the schematic.

The actuator outputs can be connected to different phase conductors.

GB

Cap

F

Illustration of a hand using a tool to adjust or install a document (no text or symbols visible)

G

Illustration of a hand using a tool to adjust or install a component, with arrows indicating motion direction (no text or symbols present)

Slide the cap over the bus terminal with the bus line at the bottom (fig. F) until it is heard to engage.

Remove the cap by pressing against the sides and by pulling it out at the same time (fig. E).

Technical characteristics

GB

General

instabus EIB supply voltage :21 - 32 V DC

instabus EIB power rating :typically 150 mW

instabus EIB Connection

: instabus connector

Mains connection : screw terminals

1.5 – 4 mm ^2 solid wire or 2 x 01.5 – 2.5 mm ^2 solid wire 0.75 – 4 mm ^2 stranded without wire end ferrule or 0.5 – 2.5 mm ^2 stranded with wire end ferrule

GB

General

Output contact type : potential-free n.o. contacts

(μ-Contact)

Ambient temperature : -5 °C ... +45 °C

Storage temperature : -25 °C ... +70 °C

Mounting width

only 8-channel C-load

switching actuator : 144 mm (4 modules)

all other actuator : 72 mm (4 modules)

Technical characteristics Technical characteristics

GB

Switching actuator outputs, 4-channel and 8-channel (outputs A1 – A4)

Switched voltage : 230 V AC, 400 V AC

Switched current at 230 V AC : 16 A / AC1; 10 A / AC3

Switched current at 400 V AC : 10 A / AC1; 6 A / AC3

Switching capacity

incandescent lamps : 2500 W

fluorescent lamps

non-compensated : 2500 W

parallel compensation : 1300 W / 140 μF

lead-lag circuit : 2 x 2500 W

HV halogen lamps : 2500 W

LV halogen lamps : 500 VA

Tronic transformers : 1300 VA

GB

Switching actuator outputs, 6-channel and 8-channel (outputs A5 – A8)

Switched voltage : 230 V AC

Switched current at 230 V AC : 6 A / AC1

Switching capacity

incandescent lamps : 1000 W

fluorescent lamps

non-compensated, cos φ=0.5:500 W

parallel compensation, = 1 : 2 × 58 W / 14 F

3 x 36 W / 14 μF

6 x 18 W / 14 μF

lead-lag circuit, cos φ = 1 : 1000 W

Siemens electronic ballast

58 W fluorescent lamp : 10 units

36 W fluorescent lamp : 15 units

18 W fluorescent lamp : 15 units

Technical Data Technical Data

GB

4-channel C-load and and 8-channel C-load switching actuator outputs

Switched voltage : 230 V AC, 400 V AC

Switched current at 230 V AC : 16 A / AC1; 10 A / AC3

Switched current at 400 V AC : 10 A / AC1; 6 A / AC3

Switching capacity

incandescent, HV halogen lamps : 3680 W

LV halogen lamps : 2000 VA

Tronic transformers : 2500 W

fluorescent lamps

non-compensated, cos φ = 0.5 : 3680 W

parallel compensation, cos φ = 1 : 2500 W / 200 μF

lead-lag circuit, cos φ = 1 : 2 x 3680 W

Mercury / sodium vapour lamp

non-compensated; parallel compensation : 3680 W / 200 μF

Technical specifications subject to change

GB

Acceptance of guarantee

Our products are under guarantee within the scope of the statutory provisions.

Please return the unit postage paid to our central service department giving a brief description of the fault:

CE The CE-sign is a free trade sign addressed exclusively to the authorities and does not include any warranty of any properties.

L1 L2 L3 N A ② ① + instabus

L1 L2 L3 N A1' A2' A3' A4' ② A1 0 A2 0 A3 0 A4 0 ① + instabus

Aansluiting

NL

L1 L2 L3 N A5' A6' A7' A8' A1' A2' A3' A4' ② A1 1 0 A2 1 0 A3 1 0 A4 1 0 ① + instabus

Aansluiting

NL

Illustration of a hand holding a tool over a document or paper (no text or symbols visible)

G

Illustration of a hand using a tool to adjust or install a component, with arrows indicating motion (no text or symbols present)

Voeding instabus EIB :21 - 32 V DC

Vermogensopname instabus EIB :typ. 150 mW

Aansluiting instabus EIB

Duo-schakeling, cos φ = 1 : 1000 W

L1 L2 L3 N A ② ① + instabus

L1 L2 L3 N A1' A2' A3' A4' ② ① + instabus

ConnexionConnexion

F

L1 L2 L3 N A1 A2 A3 A4 C ① + instabus

L1 L2 L3 N A5* A6* A7* A8* A1* A2* A3* A4* D ② A1 1 0 A2 1 0 A3 1 0 A4 1 0 ① + instabus

ConnexionConnexion

F

Illustration of a hand using a tool to adjust or install a document (no text or symbols visible)

G

Illustration of a hand inserting a component into a device (no text or symbols visible)

couplage duo : 2 x 2500 W

L1 L2 L3 N A ② ① + instabus

L1 L2 L3 N A1' A2' A3' A4' ② A1 0 A2 0 A3 0 A4 0 ① + instabus

Tilkopling

N

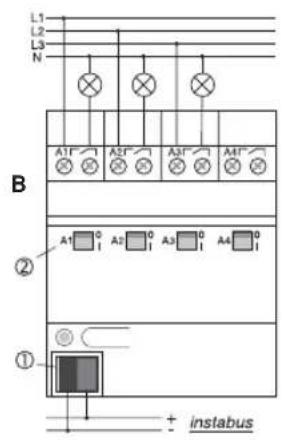

Koplingsaktuator 4-dobbelt (figur A), koplingsaktuator 4-dobbelt C-last (figur B).
