Product type	Active 2-way speaker
Model	Opera 12
Brand	DB Technologies
Dimensions (W x H x D)	349 x 642 x 350 mm
Weight	14.3 kg
Cabinet material	Reinforced PP polypropylene
Protection grille	Painted steel / CNC machining
Amplification	Class D, 600 W RMS, 1200 W peak
Frequency response [-10 dB]	52 - 20,000 Hz
Frequency response [-3 dB]	67 - 19,600 Hz
Max SPL	129 dB
Woofer	12" (2" voice coil)
Tweeter	1" compression driver (1.4" exit)
Crossover frequency	2000 Hz (24 dB/oct)
Directivity	Asymmetric vertical, differentiated horizontal
Coverage (H x V)	85°/120° x 80° (+15°/-65°)
Inputs	2 x Combo (XLR/Jack) balanced/unbalanced
Outputs	1 x XLR balanced (Link Out)
Power supply	220-240 V~ 50-60 Hz, 0.92 A (230 V)
Standby consumption	14 W
DSP presets	5 modes (Club, Vocal, Bass Reduction, Playback, Bass Boost) + 2 Wedge modes + FLAT
Controls	CH1/CH2 levels, Ground Lift selector, 8-position DSP rotary
Protection functions	Peak, RMS, thermal limiter
Package contents	Speaker, VDE power cable, quick guide, warranty document
Safety	Do not open amplifier, do not remove grille, use quality cables
Maintenance and cleaning	Dust with a soft dry cloth; avoid moisture
Spare parts and repairability	Contact an authorized repairer; do not repair yourself
Installation	On stand (max height 130 cm), wall mount, on truss, monitoring (wedge)

Frequently Asked Questions - Opera 12 DB Technologies

How to connect a microphone to the Opera 12?

Connect your microphone to the CH1 input (Combo XLR/Jack). Set the impedance selector to Mic and adjust the level with the appropriate Sens. control.

How to use DSP presets?

Turn the DSP Preset knob on the rear panel to choose from 8 positions: S1 Club, S2 Vocal, S3 Bass Reduction, S4 Playback, S5 Bass Boost, W1 Wedge Vocal, W2 Wedge Playback or FLAT (no equalization).

What are the monitoring (wedge) modes?

The W1 Wedge Vocal and W2 Wedge Playback modes are designed for stage monitor use (tilted horizontal position). They optimize equalization for voice or music playback in monitoring.

How to daisy-chain two speakers?

Connect the Balanced Out (XLR) of the first speaker to the CH1 or CH2 input of the second. Use the Out Routing Selector to choose CH1 Link (CH1 signal only) or Mix Out (mix of both channels).

What to do if the speaker does not power on?

Check that the power cable is properly connected to the MAINS INPUT and a working wall outlet. Ensure the POWER switch is in the ON position. If the issue persists, contact an authorized repairer.

How to adjust Ground Lift?

The Ground Lift selector is on the rear panel, in the Main section. In case of hum due to a ground loop, move this selector to the other position to break the ground connection.

What is the maximum height for a stand?

For the Opera 12, the maximum allowed height between the base of the speaker and the floor is 130 cm when mounted on a standard stand (35 mm pole).

Can I hang the speaker by the handles?

No, the handles are intended only for transport. It is forbidden to use the handles for hanging the speaker. Use the M10 mounting points and optional accessories (wall bracket, eyebolts) for suspended installation.

How to clean the speaker?

Dust the cabinet and grille with a soft dry cloth. Do not use liquid or abrasive products. Protect the amplifier module from moisture.

What to do if the sound is distorted?

First reduce the source volume, then adjust the gains of the CH1 and CH2 inputs. Check that cables are not damaged and that the impedance selectors (Mic/Line, Line/Instr) are correct. If the Limiter indicator remains constantly lit, reduce the level to avoid distortion.

USER MANUAL Opera 12 DB Technologies

Line drawing of a rectangular electronic device with a handle and mounting feet (no text or symbols)

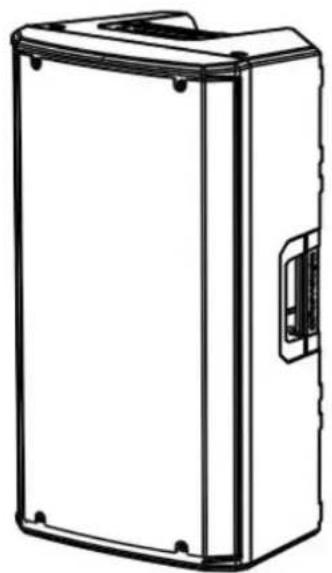

OPERA10

Line drawing of a rectangular enclosure with a lid and mounting holes (no text or symbols)

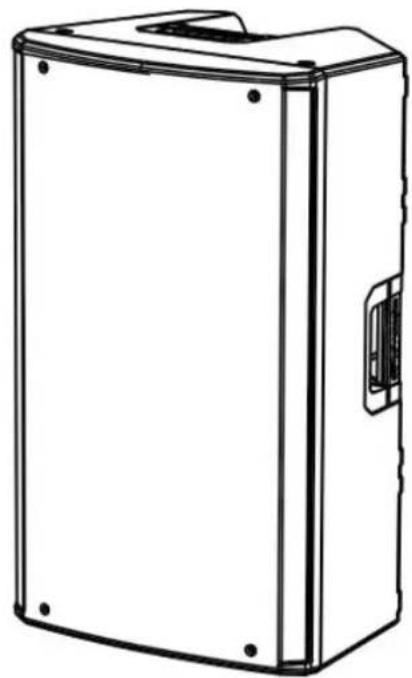

OPERA12

Line drawing of a rectangular electronic device with mounting holes and a side panel (no text or symbols)

OPERA15

USER MANUAL - Section 1

The warnings in this manual must be observed together with the "User Manual - Section 2".

According to the standards EN 55103 this equipment is designed and suitable to operate in E3 (or lower E2, E1) Electromagnetic environments.

FCC CLASS B STATEMENT ACCORDING TO TITLE 47, CHAPTER I, SUBCHAPTER A, PART 15, SUBPART B

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

WARNING

Make sure that the loudspeaker is securely installed in a stable position to avoid any injuries or damages to persons or properties. For safety reasons di not place one loudspeaker on top of another without proper fastening systems. Before hanging the loudspeaker check all the components for damages, deformations, missing or damaged parts that may compromise safety during installation. If you use the loudspeakers outdoor avoid spots exposed to bad weather conditions.

Contact dBTechnologies for accessories to be used with the speakers. dBTechnologies will not accept any responsibility for damages caused by inappropriate accessories or additional devices.

OPERA10 - OPERA12 - OPERA 15 Cod. 420120247 REV. 1.1

ITALIANO

ENGLISH

DEUTSCH

FRANÇAIS

ESPAÑOL

INDICE

2. PRIMA ACCENSIONE.... 10

INGRESSI E USCITE 18

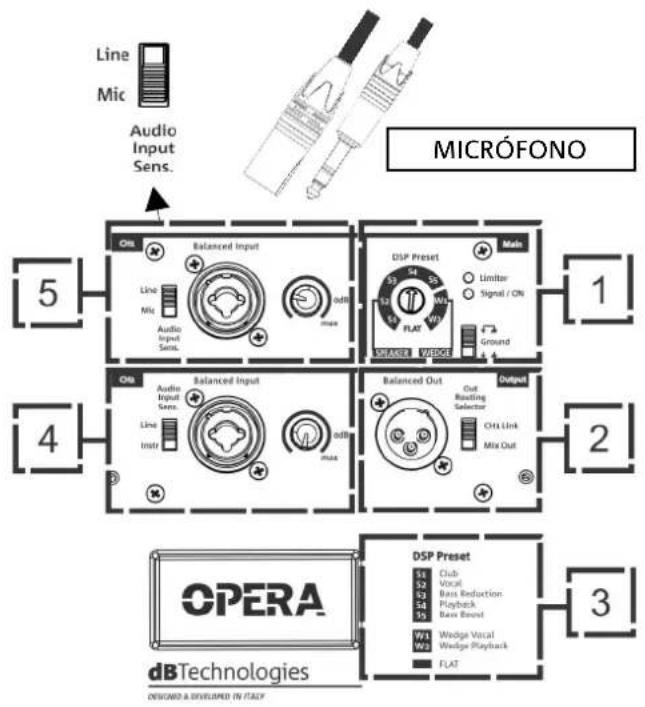

Line Mic Audic Input Sens. MICROFONO 1 CHL Balanced input Line Mic Audio Input Sens. DSP Preset Main 3 S2 Signal / ON FLAT Ground 2 Chl Balanced input Line Instr DSP Preset Club Vocal Bass Reduction Playback Base Board W1 Vedge Vocal W2 Vedge Playback FLAT 4 OPEA dB Technologie. DESIGNED & DEVELOPED IN ITALY Audio Input Sens. Line Instr STRUMENTO (IMPEDENZA DI LINEA) LINEA

1 2 Ch1 Balanced Input Line Mio Audio Input Sets. Max Balanced Input Line Mio Audio Input Sets. Max Balanced Input Line Mio

Simple line drawing of two connected devices with a double line, no text or symbols present

Line drawing of a tripod-mounted device with a rectangular box on top (no text or symbols)

INSTALLAZIONE SU SUBWOOFER

Line drawing of a mechanical device with a top component and a side panel (no text or symbols)

INSTALLAZIONE SU SUBWOOFER CON PALO

Technical line drawing of a mechanical device with a vertical support and base housing (no text or symbols)

OPERA10 - OPERA12 - OPERA 15 Cod. 420120247 REV. 1.1

UTILIZZO WEDGE (MONITORING)

Line drawing of a mechanical device with triangular supports and a base plate (no text or symbols)

Line drawing of two identical tripod-mounted scientific instruments or support poles (no text or symbols)

SSB2 (COPPIA DI TREPPIEDI)

Line drawing of a vertical metal frame with a cylindrical base and mounting holes (no text or symbols)

OP-WB (STAFFE A MURO)

Simple line drawing of a rectangular frame with two horizontal panels, no text or symbols present.

RC-M1 (RAIN COVER)

ATTENZIONE!

PRODUCT OVERVIEW.... 21

USER REFERENCE 21

MECHANICAL AND ACOUSTICAL FEATURES.... 22

DIMENSIONS 22

SOUND COVERAGE.... 22

FEATURES OF THE AMPLIFIER AND CONTROL SECTIONS.... 23

INPUT, OUTPUT AND CONTROL SECTION 24

POWER SUPPLY UNIT SECTION 25

2. FIRST POWER-UP 26

PACKAGE CONTENTS 26

USAGE 26

INPUT CONNECTIONS.... 26

POWER SUPPLY CONNECTION 28

CONNECTING THE OUTPUTS OF MULTIPLE MODULES (audio daisy chain) 28

3. USAGE EXAMPLES.... 29

USAGE ON STAND 29

USAGE ON SUBWOOFER.... 29

INSTALLATION ON SUBWOOFER WITH POLE 29

WEDGE (MONITORING) INSTALLATION 30

WALL-MOUNTING WITH BRACKETS 30

INSTALLATION ON TRUSS WITH BRACKETS AND ALISCAFF COUPLERS 30

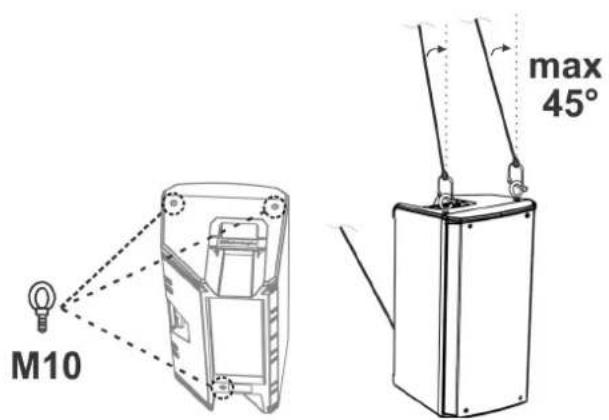

INSTALLATION WITH EYEBOLTS 30

4. ACCESSORIES.... 31

5. TROUBLESHOOTING 32

6. SPECIFICATIONS 33

GENERAL 33

ACOUSTICAL SPECIFICATIONS.... 33

AMPLIFIER 33

PROCESSOR.... 34

INPUTS.... 34

USER INTERFACE 34

POWER SUPPLY SPECIFICATIONS 34

DIMENSIONS 35

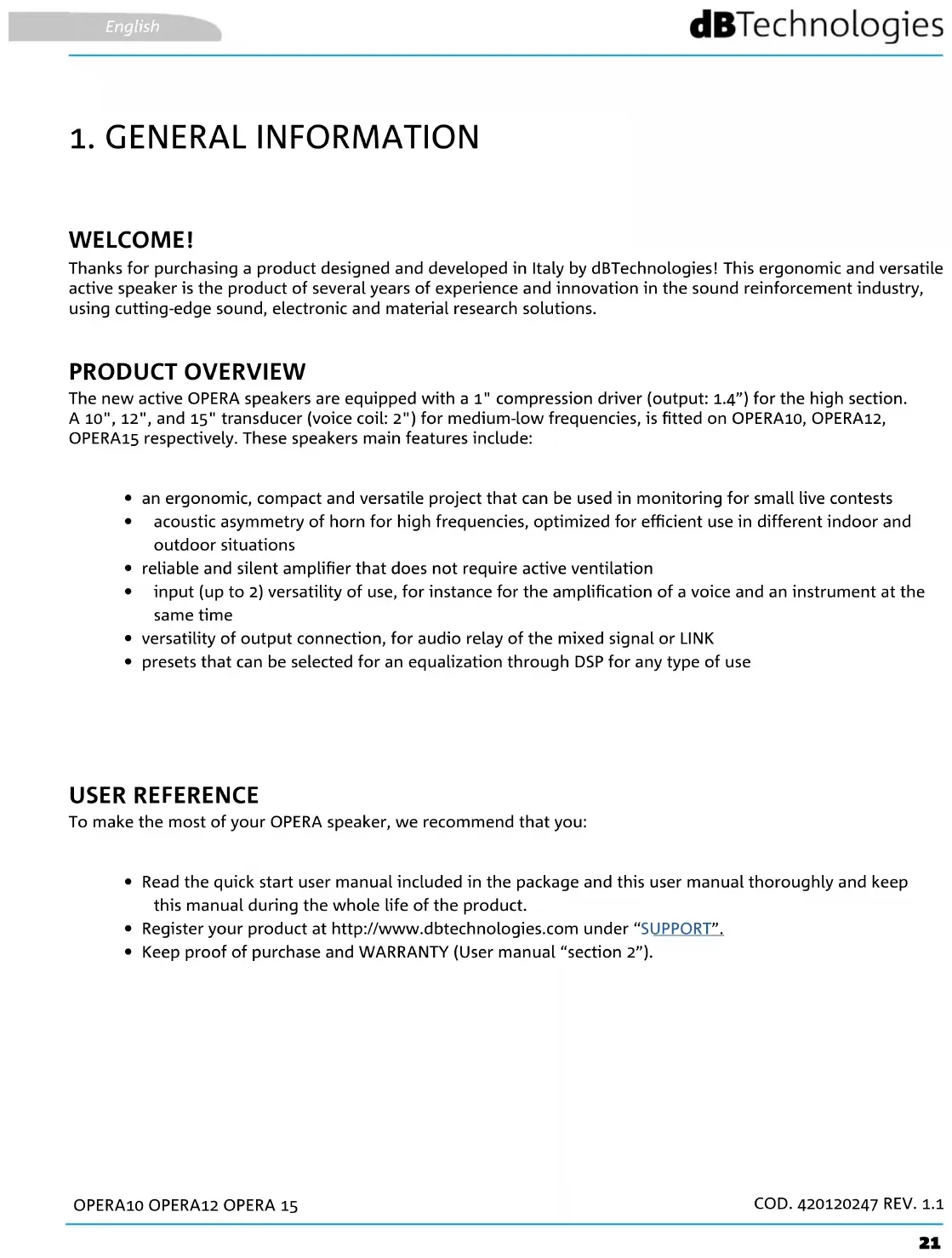

Thanks for purchasing a product designed and developed in Italy by dBTechnologies! This ergonomic and versatile active speaker is the product of several years of experience and innovation in the sound reinforcement industry, using cutting-edge sound, electronic and material research solutions.

PRODUCT OVERVIEW

The new active OPERA speakers are equipped with a 1" compression driver (output: 1.4") for the high section. A 10", 12", and 15" transducer (voice coil: 2") for medium-low frequencies, is fitted on OPERA10, OPERA12, OPERA15 respectively. These speakers main features include:

• an ergonomic, compact and versatile project that can be used in monitoring for small live contests
• acoustic asymmetry of horn for high frequencies, optimized for efficient use in different indoor and outdoor situations
• reliable and silent amplifier that does not require active ventilation
• input (up to 2) versatility of use, for instance for the amplification of a voice and an instrument at the same time
• versatility of output connection, for audio relay of the mixed signal or LINK
• presets that can be selected for an equalization through DSP for any type of use

USER REFERENCE

To make the most of your OPERA speaker, we recommend that you:

• Read the quick start user manual included in the package and this user manual thoroughly and keep this manual during the whole life of the product.
• Register your product at http://www.dbtechnologies.com under "SUPPORT".
• Keep proof of purchase and WARRANTY (User manual "section 2").

MECHANICAL AND ACOUSTICAL FEATURES

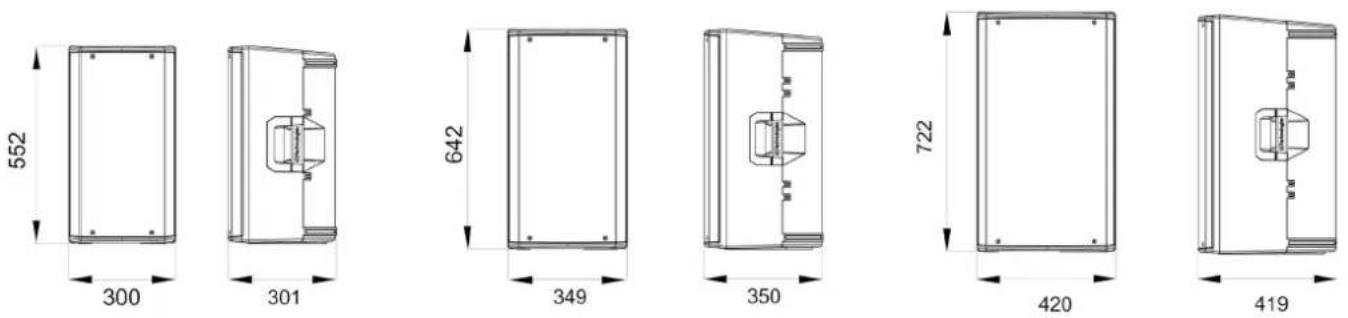

DIMENSIONS

The OPERA series has been designed with the intent to optimise weight and dimensions.

The cabinet is lighter but more resistant, and features 2 handles, one on the side and one at the top, for easy handling.

For a quick comparison of the 3 models, the overall dimensions are the following:

OPERA10 - 300 mm (L), 552 mm (H), 301 mm (W)

OPERA12 - 349 mm (L), 642 mm (H), 350 mm (W)

OPERA15 - 420 mm (L), 772 mm (AH), 419 mm (W)

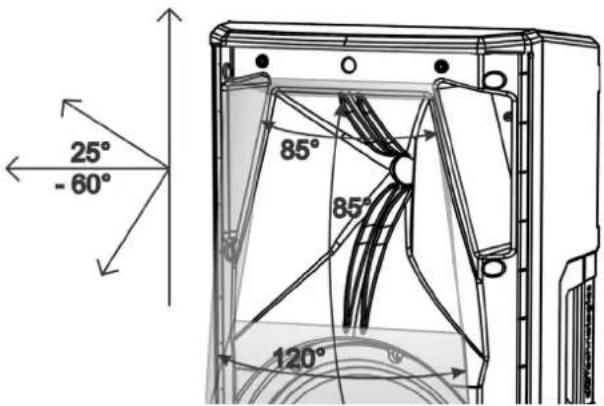

SOUND COVERAGE

The special design of the horn, shown in the figure, is common for all 3 models.

In horizontal, the coverage is differentiated between the value of 85^ (upper part) and 120^ (lower part).

This is to optimise sound emission, for example during vertical installation in reverberant environments.

The special design of the horn, shown in the figure, is common to the 3 models. The overall vertical opening (85°) is asymmetrical, to increase the sound pressure of the horn at long distance.

In case of use with monitoring function or in case of horizontal positioning (wall-mounted) of the speaker, take these data into account so as to calculate the correct coverage of the environment.

25° -60° 85° 85° 120°

Class D digital amplifier is at the heart of the OPERA series. The system is silent and does not require a fan cooling. The system is controlled by a dedicated powerful DSP that manages the different parameters.

The sound amplification power is 600 W RMS for all models.

WARNING!

• Protect the unit from moisture.
• Never attempt to disassemble the amplifier in any way.
• In the event of a malfunction, remove power supply immediately by disconnecting the unit from the power mains and contact an authorised repair centre.

Technologies Power Control DCI Control DCI Control DCI Control DCI Control DCI Control DCI Control DCI Control DCI Control DCI Control DCI Control DCI Control DCI Control DCI Control DCI Control DCI Control DCI Control DCI Control DCI Control DCI Control DCI Control DCI Control DCI Control DCI Control DCI Control DCI Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DC i Control DC i Control DC i Control DC i Control DC i Control DC i Control DC i Control DC i Control DC i Control DC i Control DC i Control DC i Control DC i Control DC i Control DC i Control DC i Control DC i Control DC i Control DC i Control DC i Control DC i Control DC i Control DC i Control DC i Control DC i Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DCi Control DC_i Control DC_i Control DC_i Control DC_i Control DC_i Control DC_i Control DC_i Control DC_i Control DC_i Control DC_i Control DC_i Control DC_i Control DC_i Control DC_i Control DC_i Control DC_i Control DC_i Control DC_i Control DC_i Control DC_i Control DC_i Control DC_i Control DC_i Control DC_i Control DC_i Control DC_{10} - DC_{11} - DC_{12} - DC_{13} - DC_{14} - DC_{15} - DC_{16} - DC_{17} - DC_{18} - DC_{19} - DC_{20} - DC_{21} - DC_{22} - DC_{23} - DC_{24} - DC_{25} - DC_{26} - DC_{27} - DC_{28} - DC_{29} - DC_{30} - DC_{31} - DC_{32} - DC_{33} - DC_{34} - DC_{35} - DC_{36} - DC_{37} - DC_{38} - DC_{39} - DC_{40} - DC_{41} - DC_{42} - DC_{43} - DC_{44} - DC_{45} - DC_{46} - DC_{47} - DC_{48} - DC_{49} - DC_{50} - DC_{51} - DC_{52} - DC_{53} - DC_{54} - DC_{55} - DC_{56} - DC_{57} - DC_{58} - DC_{59} - DC_{60} - DC_{61} - DC_{62} - DC_{63} - DC_{64} - DC_{65} - DC_{66} - DC_{67} - DC_{68} - DC_{69} - DC_{70} - DC_{71} - DC_{72} - DC_{73} - DC_{74} - DC_{75} - DC_{76} - DC_{77} - DC_{78} - DC_{79} - DC_{80} - DC_{81} - DC_{82} - DC_{83} - DC_{84} - DC_{85} - DC_{86} - DC_{87} - DC_{88} - DC_{89} - DC_{90} - DC_{91} - DC_{92} - DC_{93} - DC_{94} - DC_{95} - DC_{96} - DC_{97} - DC_{98} - DC_{99} - DC_000

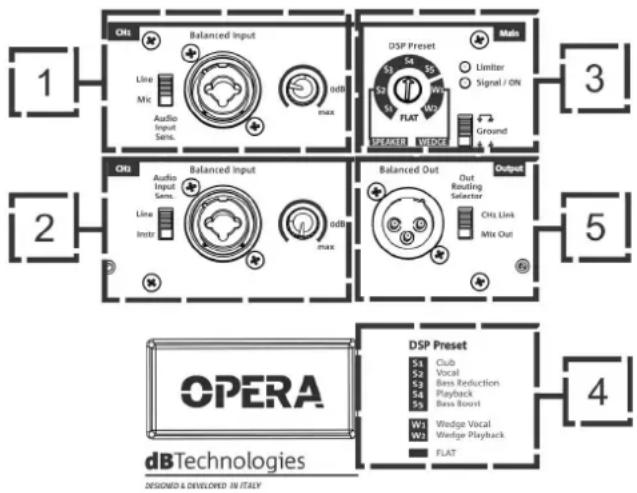

The DIGIPRO G3 panel is made up of:

• Input, Output and Control Section
  • Power Supply Unit Section

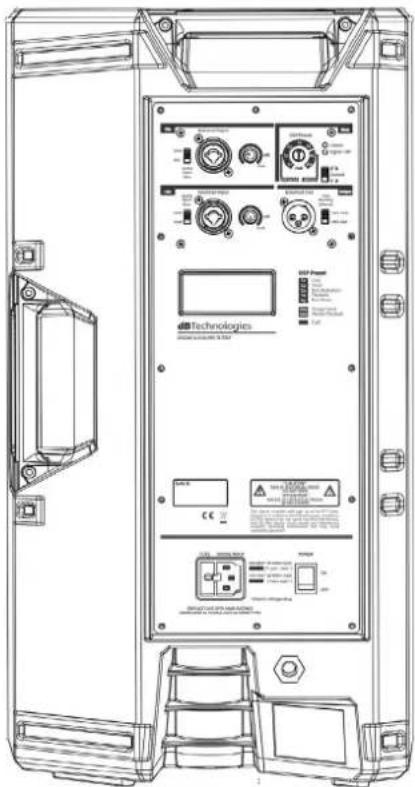

WARNING!

- Never remove the product's front protection mesh. In order to prevent electric shock hazard, in the event of accidental damage or replacement of the protection mesh (which must be carried out by a service center), disconnect the power supply immediately. Do not connect to the power supply while the mesh has been removed.

Equipped with a Combo connector to connect cables with both XLR and TRS connectors (balanced and unbalanced), it includes the regulation of the channel level and a switch to adapt the impedance to line level ("Line"), or to microphone level ("Mic").

2. "CH2" INPUT SECTION

Provided with Combo connector to connect cables with XLR and TRS (balanced and unbalanced) connectors, includes channel level adjustment and a switch to adjust input impedance (“Line” or “Instr”). “Instr” refers to a high impedance such as that of a guitar or bass.

3. "Main" GENERAL SETUP SECTION

It includes the 8-position "DSP Preset" rotary switch, the "Limiter" and "Signal / ON" LED indicators and the "ground lift" switch.

4. DSP PRESET - TABLE

The selectable presets are shown in this table as a reminder.

S1 - Club, suitable for a medium-small indoor environment
S2 - Vocal, optimises for vocal playback and performance
S3 - Bass reduction, with attenuation of low frequencies, for use in reverberant environments
S4 - Playback, optimised for music playback (such as MP3 reader)
S5 - Bass boost, suitable to emphasise low frequencies

Recommended presets for monitor use (wedge):

W1 - Wedge Vocal, to be used with monitor (wedge) position and vocal performance

W2 - Wedge Playback, to be used in monitor (wedge) position and playback of a music programme

Preset that excludes any equalization:

FLAT - to be set if no equalization is required

5. "Output" SECTION

Equipped with connector for balanced cable (XLR), it also includes the

"Out Routing Selector", required to differentiate the output inputs in case of connection to a second speaker.

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

Input for VDE connector for connection to the mains.

1. ON/OFF SWITCH

Switch for turning device ON or OFF.

WARNING!

Do not use the speaker for long periods of time when the Limiter LED is steady on or constantly blinking, as this indicates that the module is operating under excessive stress under distortion conditions.

Use only high quality and in good condition cables. The use of poor quality or damaged cables could affect speaker operation.

2. FIRST POWER-UP

PACKAGE CONTENTS

Check that the package content of the OPERA 10 \ OPERA 12 \ OPERA 15 speaker is complete. The package contains:

• OPERA speaker
• VDE power cable
- quick start user manual and warranty documents

USAGE

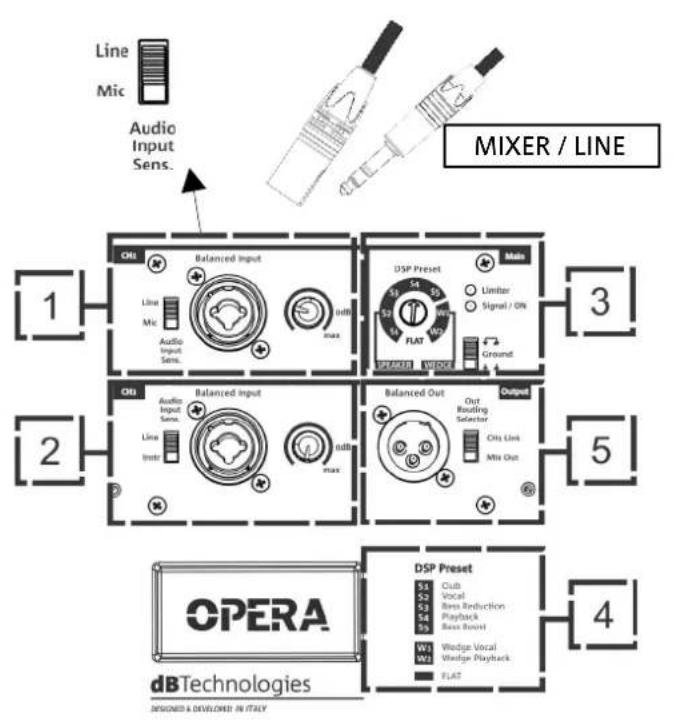

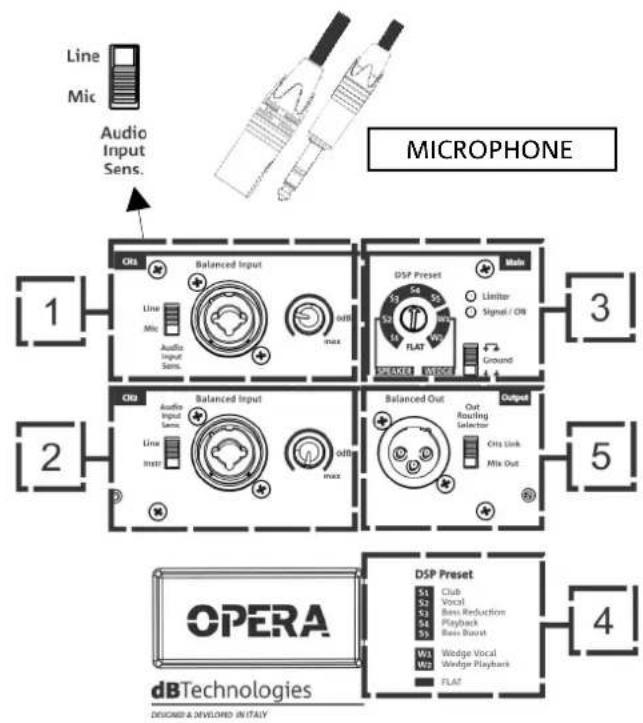

INPUT CONNECTIONS

Line Mic Audio Input Sens. MIXER / LINE 1 2 3 4 5 DSP Preset Main Limiter Signal / ON Ground DSP Preset Balanced Input Line Mic Audio Input Sens. Max 0.50 0.50 0.50 0.50 0.50 0.50 0.50 0.50 0.50 0.50 0.50 0.50 0.50 0.50 0.50 Balanced Out Output Audio Input Sens. Line Instr Max 0.50 0.50 0.50 0.50 0.50 0.50 Out Routing Selector City Link Mix Out DSP Preset S1 Club S2 Vocal S3 Bass Reduction S4 Playback S9 Bass Boost W1 Wedge Vocal W2 Wedge Playback FLAT OPERA dBTechologies DESIGNED & DEVELOPED IN ITALY

Line Mic Audio Input Sens. MICROPHONE 1 2 3 4 5 OPERA dBTechnologies DESIGNED A DEVELOPED IN ITALY DSP Preset S1 Club S2 Vocal S3 Bass Reduction S4 Playback S5 Bass Burst W03 Wedge Vocal W2 Wedge Playback FLAT

It is possible to connect up to 2 inputs in the input and control section at the back of the speaker. Following are only few examples of configuration used (1 input and 2 inputs).

CH1 (1): it is possible to connect a source through a cable with balanced or unbalanced connector (TRS, XLR). Select the input type using the Input Sensitivity Switch. In particular, in case of microphone input, select "MIC".

CH2 (2): it is possible to connect a source through a cable with balanced or unbalanced connector (TRS, XLR). Select the input type using the Input Sensitivity Switch. In particular, in case of input with high impedance, such as the one of a guitar or a bass guitar, select "Instr". Instruments or devices with line impedance (such as a keyboard or a stereo player) require instead a "LINE" setting.

Adjust the level of each connected channel.

Once inputs are connected, select the correct DSP preset (1).

In case of problems related to ground loops, it is possible to solve the problem by setting the relevant selector (3) to the correct position, as shown below.

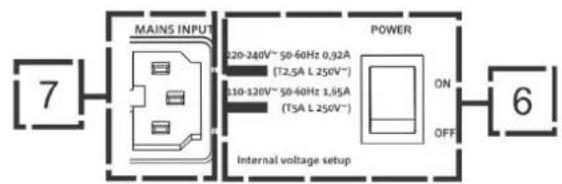

POWER SUPPLY CONNECTION

- Connect the power cable to the socket (7), then set the turning on selector (6) to ON. The Limiter LED (3) blinks briefly.

POWER SUPPLY

MAINS INPUT 120-240V~ 50-60Hz 0,92A (T2,5A L 250V~) 110-120V~ 50-60Hz 1,85A (T5A L 250V~) POWER ON OFF 7 6 Internal voltage setup

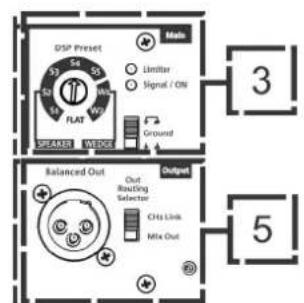

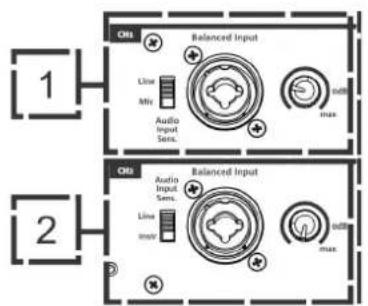

CONNECTING THE OUTPUTS OF MULTIPLE MODULES (audio daisy chain)

DSP Preset Main Limitar Signal / ON FLAT Ground SEATED SOURCE Balanced Out Output Out Routing Selector CHs Link Mix Out 3 5

1 2 Chl Balanced Input Line Mhz Audio Input Sens. max Chl Balanced Input Line Mhz Audio Input Sens. max

Simple line drawing of two connected devices with a double line (no text or symbols)

OPERA dbTechnologies DESIGNED & DEVELOPED IN ITALY

It is possible to connect the output of an OPERA speaker to a second speaker using a cable with XLR balanced connector, which connects the output (2) of the first speaker to the input (5) or (4) of the second speaker. Set the relevant selector to "LINE".

The Out Routing Selector (2) in "CH1 link" position allows providing the output of the second speaker with only the signal coming from the CH1 (5) channel. In the "Mix Out" position, it allows the CH1 (5) and CH2 (1) channel mixing.

WARNING!

Use only good quality cables.

Replace any damaged cable to prevent malfunctioning and sound poor quality.

• Types of installation other than those here described are not allowed.
• Never use the handles to suspend the speaker
• Always check that the positioning is stable and that the installation does not pose a danger to people, animals or property
• Install on horizontal surface not inclined, otherwise an additional mechanical fastening or a belt fastening is required to correctly fix the installation.

USAGE ON STAND

1 OPERA speaker can be installed on a tripod stand, coming as standard option with a 35 mm diameter pole. The maximum allowed height between the speaker base and the floor is 160 cm.

WARNING!

- Use a suitably sized stand with the central leg pointing forward to provide appropriate stability.

Line drawing of a portable electronic device mounted on a tripod stand (no text or symbols)

USAGE ON SUBWOOFER

Through the installation with the DS-2S accessory, it is possible to use 1 OPERA directly on subwoofer provided with M20 hole.

Technical line drawing of a mechanical device with a rectangular base and a square housing, featuring a small inset view (no text or symbols)

INSTALLATION ON SUBWOOFER WITH POLE

It is possible to use only one speaker mounted on a 35 mm diameter pole. The maximum allowed height between the speaker base and the floor is 160 cm. In case of use of DVA S08DP or SUB28D an additional mechanical fastening or a belt fastening is required to correctly fix the installation.

Line drawing of a mechanical device with a vertical support and base housing (no text or symbols)

In some cases the OPERA series speakers can be used as monitors for small live contests. In this case, lay them horizontally on the tilted side. Be reminded of the sound coverage features reported in the relevant section. Use the suitable DSP settings as indicated in the "DSP preset" table in wedge mode (W1, W2, or FLAT).

WALL-MOUNTING WITH BRACKETS

The OPERA models can be wall-mounted in vertical or horizontal position through the WB-OP10, WB-OP12, WB-OP15 accessory, to be used with OPERA10, OPERA12, OPERA15, respectively.

For further details refer to the instructions relevant to this accessory.

INSTALLATION ON TRUSS WITH BRACKETS AND ALISCAFF COUPLERS

The OPERA models can be installed on a truss in vertical or horizontal position, through the WB-OP10, WB-OP12, WB-OP15 accessory, to be used with OPERA10, OPERA12, OPERA15, respectively. This accessory allows the use of aliscaff couplers (not included) for this special configuration.

For further details refer to the instructions relevant to this accessory.

Line drawing of a mechanical device with support structures above a truss structure (no text or symbols)

INSTALLATION WITH EYEBOLTS

Is it possible to install the speaker using eyebolts. Positioning is represented in the opposite figure, in which the rear eyebolt allows to adjust the final angle (MAX 45°).

M10 max 45°

The following optional accessories are available to complete the series:

• SSB2
  • Wall bracket OP-WB10, OP-WB12, OP-WB15, for OPERA10, OPERA12, OPERA15, respectively
  • Rain Cover RC-M1, valid for all models

Line drawing of a tripod-mounted scientific instrument with a stand (no text or symbols)

SSB2

Line drawing of a tripod-mounted scientific instrument with adjustable arms (no text or symbols)

BRACKETS

Simple line drawing of a rectangular frame with two horizontal panels and a top panel (no text or symbols)

RAIN COVER

WARNING!

- Never suspend the speaker from the handles!

Please read the corresponding manuals for more details.

The speaker will not turn on:

1. Check that power supply is present upstream of the installation.
2. Ensure that the power supply cable with VDE connector is properly plugged in.

The speaker turns on but produces no sound:

1. Check that the input connections of the audio signal (CH1 and/or CH2) are carried out correctly.
2. Check the cables for damage.
3. Ensure that the mixer or audio source is on and an output signal is present.
4. Check that the input levels (CH1 and/or CH2) are appropriate.

Speaker sound is distorted or not sufficient:

1. Adjust the first source volume, then set the input (CH1 and/or CH2) gain to an adequate level. Check the cables for damage and replace them as required (a damaged cable may lead to signal loss or alteration).
2. Check that the input selection settings (CH1 -> Mic/Line, CH2 -> Line/Instr) are correct with respect to the source
3. Check that the "DSP preset" settings are suitable for the use selected.

A background hum can be heard:

1. Disconnect all connected devices and turn power supply off.
2. Check that the Ground Lift switch is correctly set.
3. Check the connection cables for damage.
4. Connect cables again and turn speaker on.

Type:

2-way active speaker

ACOUSTICAL SPECIFICATIONS

Frequency response [-10dB]:	58 - 20k Hz (OPERA10) / 52 - 20k Hz (OPERA12) / 50 - 20k Hz (OPERA15)
Frequency response [-3dB]:	70 - 19.6k Hz (OPERA10) / 67 - 19.6k Hz (OPERA12) / 56 - 19.6k Hz (OPERA15)
Max SPL:	128 dB (OPERA10) / 129 dB (OPERA12) / 130 dB (OPERA15)
HF voice coil:	1.4”
HF compression driver (output):	1”
LF:	10” (OPERA10) / 12” (OPERA12) / 15” (OPERA15)
LF Voice coil:	2”
Crossover frequency (24 dB/oct):	2000 Hz
Directivity:	Asymmetrical vertical - Differentiated horizontal
Coverage (HxV):	85°- 120° x 80° (+25°/-60°)

AMPLIFIER

Type:	AMP SMPS
Amplification class:	Class D
Power supply:	1 x VDE

RMS amplifier power:	600 W
Peak power:	1200 W

PROCESSOR

Internal controller:	56-bit DSP
A/D D/A converter:	24 bit/48 kHz
Limiter:	Peak, RMS, Thermal

INPUTS

Inputs:	1x balanced/unbalanced Combo (XLR/Jack)
Outputs:	1x XLR link OUT

USER INTERFACE

Controls: Level control, ground lift switch, 8-position DSP preset rotary switch

POWER SUPPLY SPECIFICATIONS

Draw at 1/8 of full power in average use conditions (*):	0,92 A (230 V) - 1,65 A (115 V)
Draw at 1/3 of full power in maximum use conditions (**):	2,25 A (230 V) - 4,05 A (115 V)
Draw with speaker turned on without signal (idle): :	14 W
Inrush current:	14,07 A

* INSTALLER NOTES: The values refer to 1/8 of full power, in average operating conditions (music program with infrequent or no clipping). It is recommended to consider them the minimum sizing values for any type of configuration.
** INSTALLER NOTES: The values refer to 1/3 of full power, in heavy operating conditions (music program with frequent clipping or activation of the limiter). We recommend sizing according to these values in case of professional installations and tours.

Product features, specifications and appearance are subject to changes without prior notice. dBTechnologies reserves the right to make changes or improvements in design or manufacture without any obligation to incorporate such changes or improvements in products manufactured before their introduction.

A B

A.E.B. Industriale Srl

Via Brodolini, 8

Audiosignals).... 44

INSTALLATION AUF EINEM SUBWOOFER 45

INSTALLATION AUF EINEM SUBWOOFER MIT 45

PFOSTEN 45

WEDGE INSTALLATION (MONITORING) 46

WANDINSTALLATION MIT BEFESTIGUNGSBÜGELN 46

INSTALLATION AN TRAVERSEN MIT BÜGELN UND 46

ALISCAFF-KUPPLUNGEN 46

INSTALLATION MIT EYEBOLT-HAKEN 46

4. ZUBEHÖR 47

5. PROBLEMABHILFE 48

INSTALLATION AUF EINEM SUBWOOFER

INSTALLATION AUF EINEM SUBWOOFER MIT PFOSTEN

Line drawing of a portable electronic device mounted on a tripod stand (no text or symbols)

Line drawing of a mechanical device with a top component and a side panel (no text or symbols)

Technical line drawing of a mechanical device with a vertical support and base housing (no text or symbols)

OPERA10 OPERA12 OPERA 15 COD. 420120247 REV. 1.1

WEDGE INSTALLATION (MONITORING)

Line drawing of a mechanical device with mounting brackets and a triangular frame above (no text or symbols)

INSTALLATION MIT EYEBOLT-HAKEN

Two identical line drawings of a tripod-mounted stand with metal legs and support brackets (no text or symbols)

SSB2

Technical line drawing of a vertical metal bracket with mounting holes and a small protrusion, labeled 'BEFESTIGUNGSBÜGEL' below (no other text or symbols)

RAIN COVER

ACHTUNG!

DONNÉES ACOUSTIQUES 65

AMPLIFICATEUR 65

PROCESSEUR 66

INTERFACE UTILISATEUR 66

ENTRÉES 66

SPÉCIFICATIONS D'ALIMENTATION (ABSORPTION / INSTALLATION).... 66

DIMENSIONS 67

OPERA10 OPERA12 OPERA 15 Code 420120247 RÉV. 1.1

1. GÉNÉRALITÉS

BIENVENUS!

Line drawing of a portable electronic device mounted on a tripod stand (no text or symbols)

INSTALLATION SUR SUBWOOFER

Technical line drawing of a mechanical device with a rectangular base and a small circular opening (no text or symbols)

INSTALLATION SUR SUBWOOFER AVEC POTEAU

Technical line drawing of a mechanical device with a vertical support and base housing (no text or symbols)

OPERA10 OPERA12 OPERA 15 Code 420120247 RÉV. 1.1

INSTALLATION WEDGE (MONITORING)

Line drawing of a mechanical device with mounting brackets and a triangular frame above (no text or symbols)

INSTALLATION AVEC EYEBOLTS

Two identical line drawings of a tripod-mounted stand with metal legs and support brackets (no text or symbols)

SSB2

ÉTRIERS

Simple line drawing of a rectangular frame with two horizontal panels, no text or symbols present.

HOUSSE ANTI-PLUIE

ATTENTION!

5 Balanced Input Line Mic Audio Input Sens. dB max DSP Preset Main Limiter Signal / ON 1 4 Balanced Input Line Instr Audio Input Sens. dB max Flat VSPRERE WROCK Output Out Routing Selector Chls Link Mix Out 3 OPERA dBTechologies SPECIFIED DEVELOPED IN ITALY DSP Preset S1 Club S2 Vocal S3 Bass Reduction S4 Playback S5 Bass Boost W1 Wedge Vocal W2 Wedge Playback FLAT

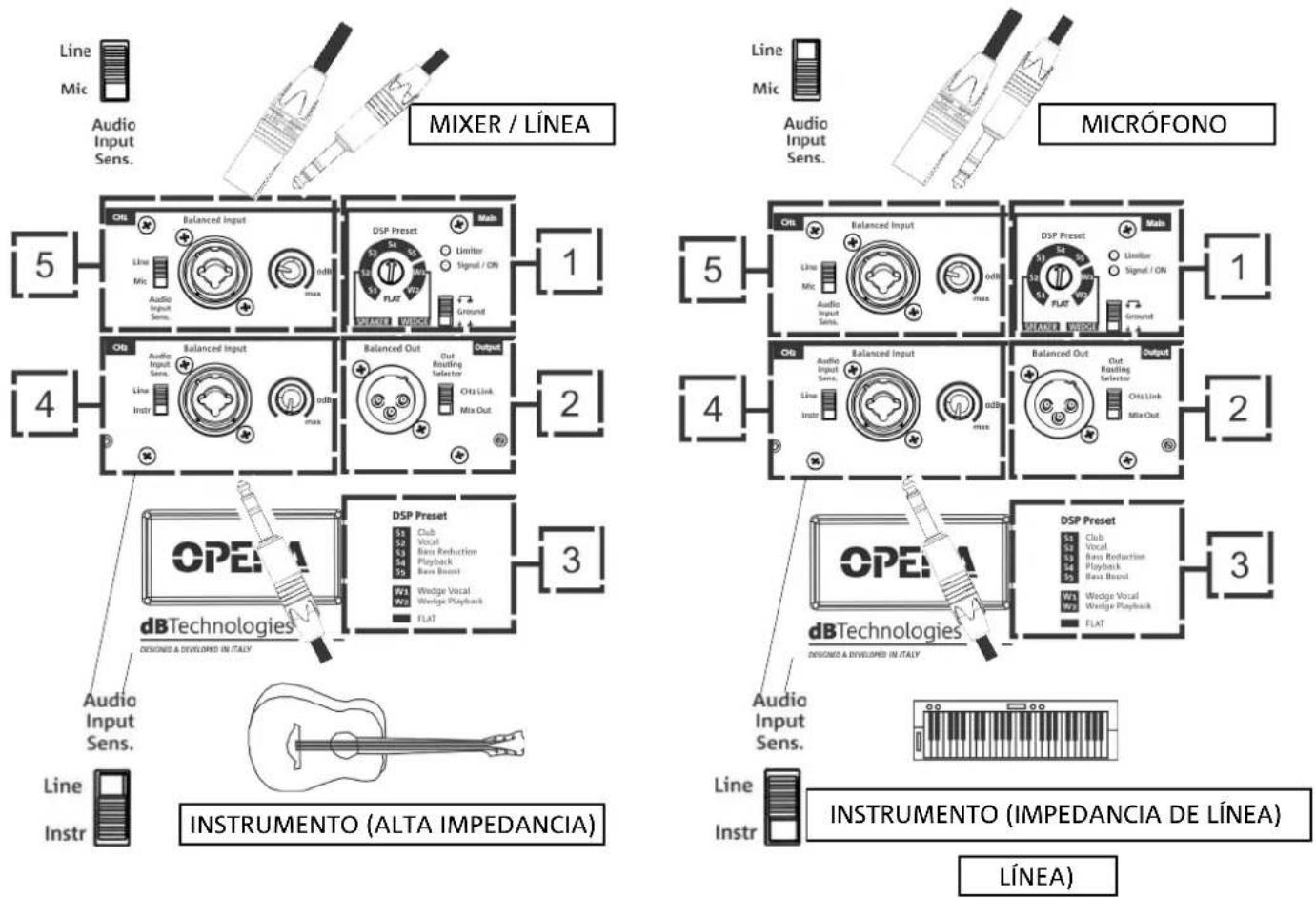

2. SECCIÓN "Output"

Line Mic Audio Input Sens. MIXER / LÍNEA 5 Balanced Input Line Mic Audio Input Sens. Diff Diff Diff DSP Preset Main Limitar Signal / ON Ground 1 Balanced Input Line Instr Balanced Out Output Out Resulting Selector Ots Link Mix Out 2 DSP Preset 3 Club Vocal Bass Reduction Playback Bass Boost W11 W22 Wedge Vocal Wedge Playback FLAT 3 OPERA dBTechologies DESIGNED & DEVELOPED IN ITALY

OPERA10 OPERA12 OPERA 15 Cód. 420120247 REV. 1.1

Line drawing of a portable electronic device mounted on a tripod stand (no text or symbols)

Line drawing of a mechanical device with a rectangular housing and a square vent, no text or symbols present.

Technical line drawing of a mechanical device with a vertical support and rectangular base (no text or symbols)

OPERA10 OPERA12 OPERA 15 Cód. 420120247 REV. 1.1

Line drawing of a mechanical device with a triangular frame above it (no text or symbols)

Line drawing of two identical tripod-mounted scientific instruments or support poles (no text or symbols)

SSB2

Technical line drawing of a vertical metal frame with mounting holes and a cylindrical base (no text or symbols)

SOPORTES

Simple line drawing of a rectangular frame with two horizontal panels, no text or symbols present.

RAIN COVER

¡ATENCIÓN!

Stylized logo or emblem with stylized text and curved design elements

A.E.B. Industriale Srl

Via Brodolini, 8
