Brand	CasaFan
Model	FBIR Basic
Product type	Radio remote control for ceiling fan
Product code	85210
Rated voltage	230 V ~ 50 Hz
Max. motor power	115 W
Max. lighting power	300 W
Protection class	I
Number of speeds	3
Power supply	2 AA batteries (not included)
Weight	Approx. 0.24 kg
Package contents	1 transmitter with wall mount, 1 receiver
Functions	3 speeds (low, medium, high), stop, light on/off
Compatibility	CasaFan ceiling fans with or without light
Installation	Mounting in ceiling suspension or on mounting plate
Safety	Disconnect power before connection; do not use outdoors or in damp rooms
Maintenance	Clean with a dry cloth; replace batteries if necessary
Recycling	Do not dispose of with household waste; comply with WEEE directive

Frequently Asked Questions - FBIR Basic CasaFan

How do I install the FBIR Basic remote control on my ceiling fan?

Installation depends on the fan type. For a rod suspension fan, mount the receiver in the ceiling suspension according to diagrams 1 and 2. For a flat fan (FLAT, GLASHAUS FLAT, OFFICE FAN), attach the receiver to the ceiling with adhesive pads or cable ties. Make sure the fan pull switch is set to the highest speed before restoring power.

What type of batteries should I use for the transmitter?

The transmitter operates with 2 AA batteries (not included). Use good quality alkaline batteries.

How do I change the fan speeds with the remote control?

Use buttons 1 (low speed), 2 (medium speed), 3 (high speed), and 0 to stop the motor.

Can I use the remote control with any ceiling fan?

The FBIR Basic remote control is designed exclusively for CasaFan ceiling fans with or without light. Its use with other brands is not guaranteed.

What should I do if the remote control does not work?

First check the batteries (insert them correctly). Ensure the receiver is properly connected and the fan pull switch is set to the highest speed. If the problem persists, check the electrical connections.

Can I control the light independently of the motor?

Yes, the "Light" button allows turning the light on and off even when the motor is off (on the FBIR Basic oD model).

Is the remote control compatible with fans with direction switch?

Yes, but only operate the direction change when the blades are stationary (motor off) to avoid damaging the motor and remote control.

What safety precautions should be followed?

Before installation, disconnect the power supply at all poles. Ensure the mains voltage matches that indicated on the rating plate. Do not use the remote control in damp rooms, garages, or outdoors.

How do I clean the remote control?

Clean the transmitter and receiver with a soft, dry cloth. Do not use abrasive products or solvents.

How do I dispose of the remote control at the end of its life?

This product is subject to the WEEE directive (2002/96/EC). Do not dispose of it with household waste. Take it to a collection point for electrical and electronic equipment or return it to your retailer when purchasing a new device.

USER MANUAL FBIR Basic CasaFan

Before using the CasaFan fan, read the operating instructions carefully. Keep the operating instructions within reach. Never pass the fan onto another person without the operating instructions.

Explanation of symbols:

Dangerous electric voltage

Warn the user of the dangers caused by electricity.

eful

Particular note for the user.

Describing the remote control FB-IR Basic

The CasaFan remote control FB-IR Basic is developed exclusively for controlling ceiling fans with and without light kits. The motor can be switched between 3 speeds and off. If present, a light kit could be switched independently from motor function on and off.

Technical data:	FB-IR Basic
Code	85210
Mains voltage 230 Volt ~ 50 Hz
Motor max power 115 Watt
Protection class I
No. of speeds 3
Power light kit max. 300 Watt
Weight app. 0,24 kg
Subject to change without notice

Content of packing box:

FB-IR Basic

1 Transmitter with holder

1 receiver

Batteries are not included.

Caution

• Unpack the CasaFan fan, check if everything is contained and for signs of damage.
• Keep the packing out of reach of children and take the environment into account when disposing.

Caution

The pull chain switch of your fan must be set on highest speed. Damages as a result of disregarding this rule are not covered by any warranty!

Only operate the unit when completely assembled!

Installation advice

Caution

rding to VDE 0100 rule this device should only be installed by a qualified technician.

The voltage details on the nameplate are obliged to be conform with the available mains voltage. The building mains must be earthed!
- Do not damage the wires during the installation.
- The handling of the AC power line should ensure that it can not be damaged or pinched.
- Do not use this remote control in humid or wet rooms or rooms in danger of fire or explosion.
- Only for use with ceiling fans -

Do not divert from its intended use!

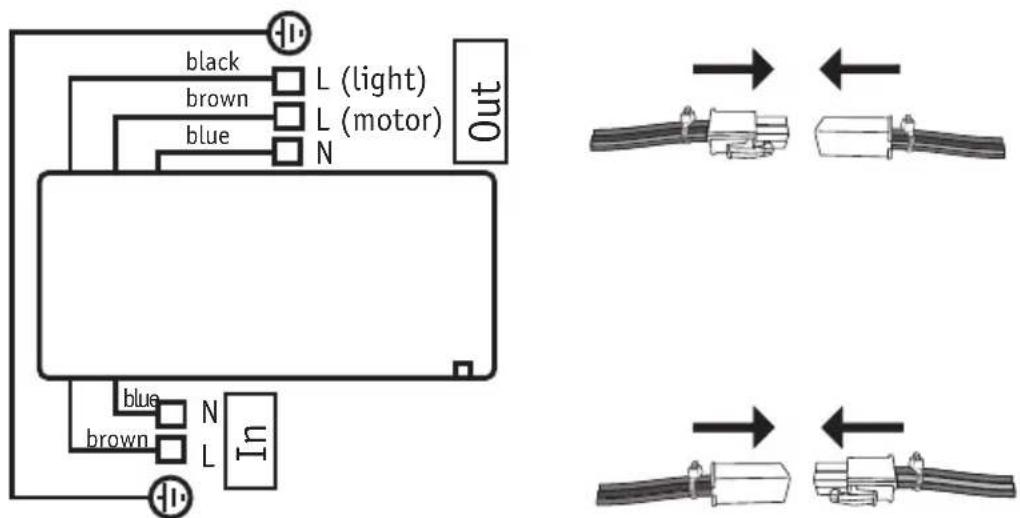

Electric wiring diagramm

CAUTION: Please follow the printing on the receiver!

Installation

Caution

connect the electricity before working on the electrics.

Prevent an accident switch on through a third party!

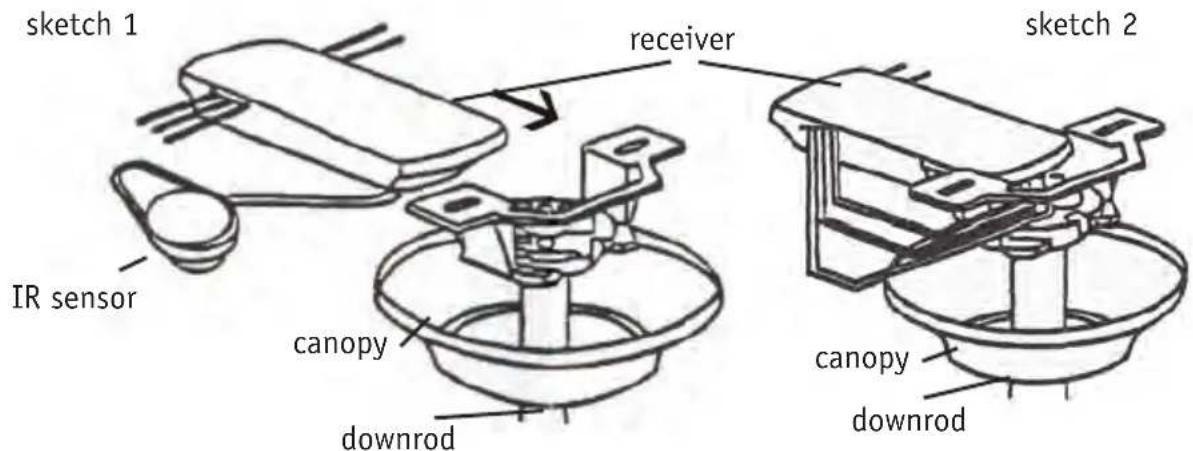

Positioning the remote control at fans with downrod

1. Place the receiver as shown in sketch 1 and 2 into the mounting bracket. Bring the infrared sensor outside the canopy without damaging the wires.
2. Make the electrical connection to your fan as per wiring diagram on page 7. The handling of the AC power line should ensure that it can not be damaged or pinched! If the live to motor (L-motor) and live fan light (L-light) of your ceiling fan are connected combined, they must be separated BEFORE installing your remote control receiver.
3. Install the canopy on the monting bracket.

The pull chain switch of your ceiling fan must be set on highest speed.

After setting the mains supply back on your ceiling fan with the remote control it is ready to be used.

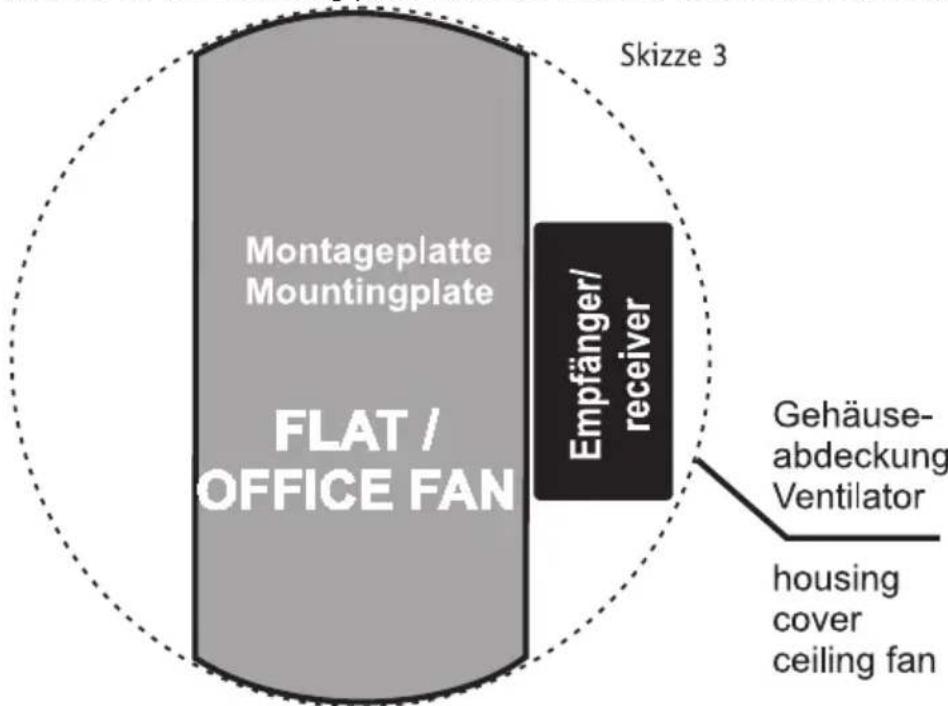

Positioning the remote control at CasaFan low profi le fans as i.e. FLAT, GLASHAUS FLAT or OFFICE FAN

Please install the receiver of your remote control as shown schematically in sketch 3. After the electrical connection has been set up, use the self-adhesive stickers to attach the receiver onto the ceiling. If this is not possible, i.e. due to a rendering coat, cable straps need to be used for the mounting plate to assure that the receiver can not crash off the ceiling. Bring the

infrared receiver eye outside the housing without damaging the wires. The pull chain switch of your ceiling fan must be set on highest speed. After setting the mains supply back on your ceiling fan with the remote control it is ready to be used.

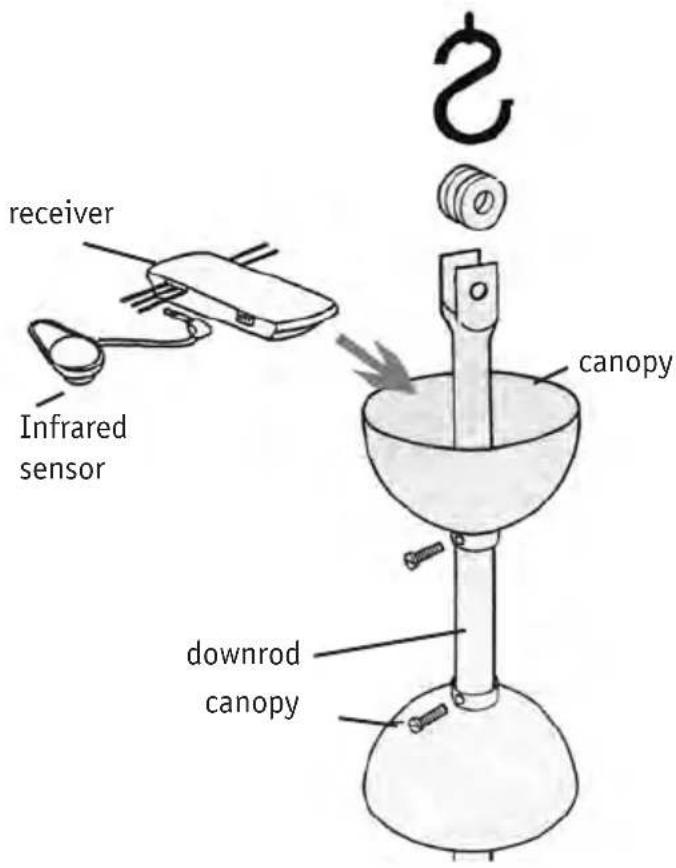

Positioning the remote control at Vortice ceiling fans of the NORDIK Series

For ceiling fans of Vortices NORDIK Series simply put the receiver into the upper canopy. Bring the infrared sensor outside the canopy without damaging the wires. Please secure the canopy against sliding downwards. Your ceiling fan with remote control is ready to be used.

Functions of the remote control FB-IR Basic

Motor speeds: button 1 - lowest fan speed

button 2 - medium fan speed

button 3 - highest fan speed

Light kit:

button 0 - motor off

button - Light on/off

StrictLY

Caution

If your ceiling fan has a reverse function by slide switch, only reverse the fan while not in operation (motor OFF)! In case of nonobservance damages on the motor and/or the receiver they are not covered by the warranty.

Battery Type: 2 × AA

This product conforms to EU Directive 2002/96/EC. This appliance bears the symbol of the barred waste bin. This indicates that, at the end of its useful life, it must not be disposed of as domestic waste, but must be taken to a collection centre for waste electrical and electronic equipment, or returned to a retailer on purchase of a replacement.

It is the user's responsibility to dispose of this appliance trough the appropriate channels at the end of its useful life. Failure to do so may incur the penalties established by laws governing waste disposal. Proper differential collection, and the subsequent recycling, processing and environmentally compatible disposal of waste equipment avoids unnecessary damage to the environment and possible related health risks, and also promotes recycling of the materials used in the appliance. For further information on waste collection and disposal, contact your local waste disposal service, or the shop from which you purchased the appliance. Manufacturers and importers fulfil their responsibilities for recycling, processing and environmentally compatible disposal either directly or by participating in collective systems.
