CSOLBF - Lighting Perel - Free user manual and instructions

Product Type	LED solar light with motion detector
Brand	Perel
Model	CSOLBF
Dimensions (L x W x D)	144.5 x 96 x 79 mm
Power Supply	Built-in rechargeable battery, solar panel
Light Source	LED SMD2835
Color Temperature	4000 K (neutral white)
Luminous Flux	220 lumens
Protection Class	IP54 (dust and splash water resistant)
Sensor	PIR (passive infrared)
Sensor Range	± 6 m
Detection Angle	120°
Lighting Modes	Mode A: 100% brightness then reduction after 10 s; Mode B: off after 10 s
Charging Time	6 hours
Maximum Installation Height	4 m
Operating Temperature	-20 °C to +50 °C
Maintenance	Clean with a damp cloth; avoid aggressive chemicals
Safety	Use by children ≥8 years with supervision; battery and light source non-replaceable
Package Contents	Lamp, nylon plugs, screws, drilling template
Warranty	24 months (see manual for conditions)

Frequently Asked Questions - CSOLBF Perel

How to install the Perel CSOLBF?

Use the template to drill two holes. Insert the nylon plugs, then partially screw in the bottom screw. Slide the notch of the lamp onto this screw, straighten and tighten the top screw. Orient the solar panel southward for optimal charging.

How to select lighting modes?

Press the Mode button: once for mode A (100% brightness then reduction after 10 s), twice for mode B (off after 10 s), three times to turn off the device.

What is the battery life?

Battery life depends on sunlight. After a full charge of 6 hours, the lamp can light all night in economy mode. In full power mode, duration is reduced.

What to do if the lamp does not turn on?

Check that the solar panel is clean and well exposed to sunlight. Ensure the lamp is not installed near a stray light source (e.g., streetlight). Press the Mode button three times to reset.

How to clean the solar panel?

Clean occasionally with a damp cloth. Do not use aggressive chemicals, solvents, or strong detergents.

Can I replace the battery or LED?

No, the rechargeable battery and light source are built-in and are not replaceable. At end of life, the device must be disposed of in accordance with regulations.

What is the range of the motion detector?

The range is approximately ± 6 meters with a detection angle of 120°.

What does IP54 rating mean?

IP54 means the device is protected against splashing water and dust deposits. It can be used outdoors but not immersed.

How to ensure optimal charging?

Place the solar panel in a sunny spot, oriented south if possible, without shade. Avoid nearby light sources (streetlights) that could confuse the sensor.

The lamp turns off too soon, what to do?

This may be due to insufficient battery charge. Ensure the solar panel receives enough direct sunlight. Lighting duration varies with season and sun angle.

USER MANUAL CSOLBF Perel

White portable smart home device with solar panel and ventilation grilles (no visible text or symbols)

USER MANUAL 4

HANDLEIDING 8

MODE D'EMPLOI 12

MANUAL DEL USUARIO 16

Diagram illustrating a hand interacting with a device, showing labeled parts and directional arrows on a circular diagram above it.

CSOLBF

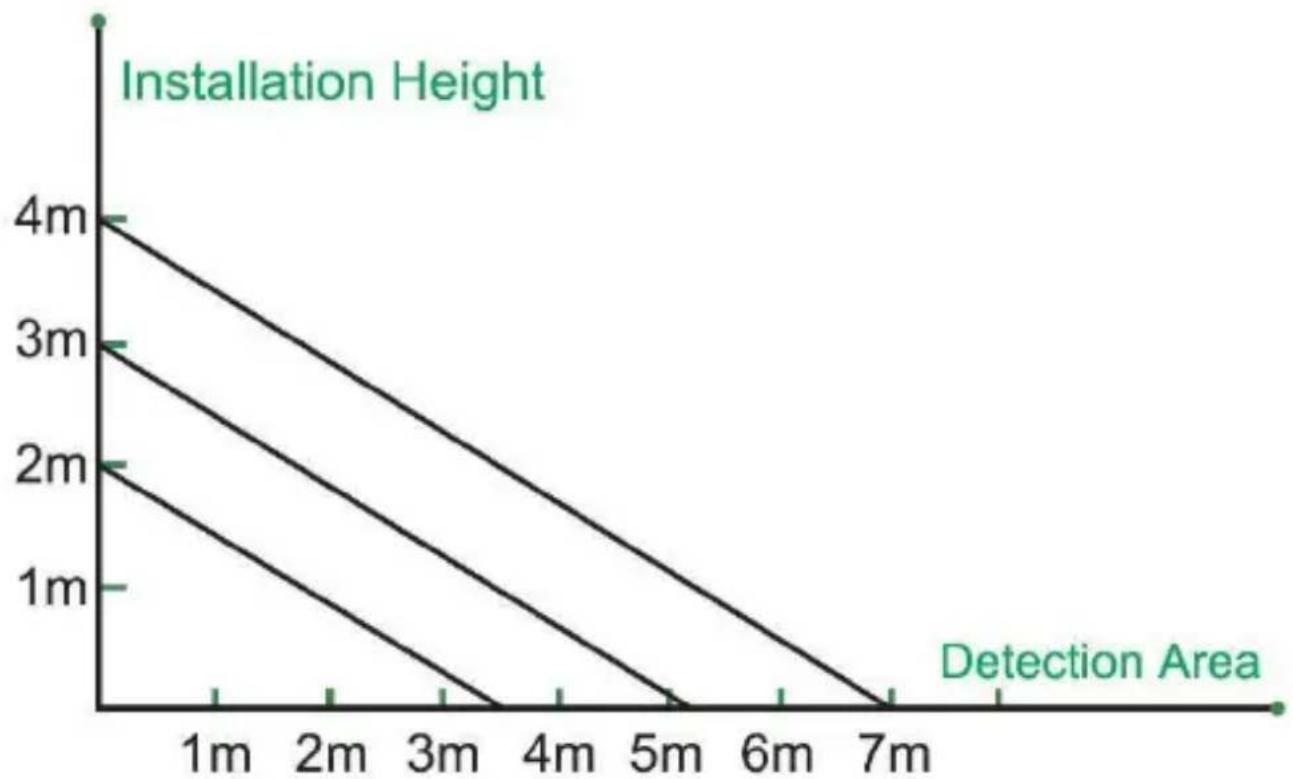

Installation height – Montagehoogte – Hauteur d'installation – Altura de instalación Montagehöhe – Wysokość montażu – Altura de instalação

6m ≤4m 6m 10m

V. 01 - 03/04/2019 3 ©Velleman nv

USER MANUAL

1. Introduction

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

IP54

Read and understand this manual and all safety signs before using this appliance.

IP class 54.

• This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.
• This device contains an internal rechargeable battery. When the device reaches end-of-life, it must be disposed of in accordance with local regulations. The internal rechargeable battery is not replaceable.
• The light source in this appliance is not replaceable.
  • Install the appliance at a height of ≤ 4 m from the ground.

3. General Guidelines

• Refer to the Velleman ® Service and Quality Warranty on the last pages of this manual.
• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
• Nor Velleman nv nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) – of any nature (financial, physical...) arising from the possession, use or failure of this product.
• Keep this manual for future reference.

4. Overview

Refer to the illustrations on page 2 of this manual.

1	hole
2	nylon plug
3	screw

4	mounting hole
5	mode button

5. Installation

Mounting Location

When the lamp is installed in a location that receives less sunlight, it will operate for fewer hours per night. Night lighting time can also vary depending on how bright the sky is on any given day. Insufficient charging of the battery will affect performance and may result in premature switching-off due to an insufficient battery charge. Install the solar panel as much as possible towards the south in order to maximize exposure to direct sunlight. Please note that the four different seasons (and the sun's angle in these periods) can affect the lighting time of the lamp. Select a location that is not located close to other light sources, such as street lighting, because this enables the lamp to switch off automatically. Maximum lighting time depends on sunlight and daytime charging.

Installation

1. Use the card to measure the position of the holes correctly. Drill two holes.
2. Insert a nylon plug in each hole.
3. Insert a screw in the lower nylon plug and tighten slightly. Insert the lower notch of the lamp onto the screw.
4. Straighten the lamp and fasten the upper screw.
5. Press the mode button to adjust the working mode.

Working Mode

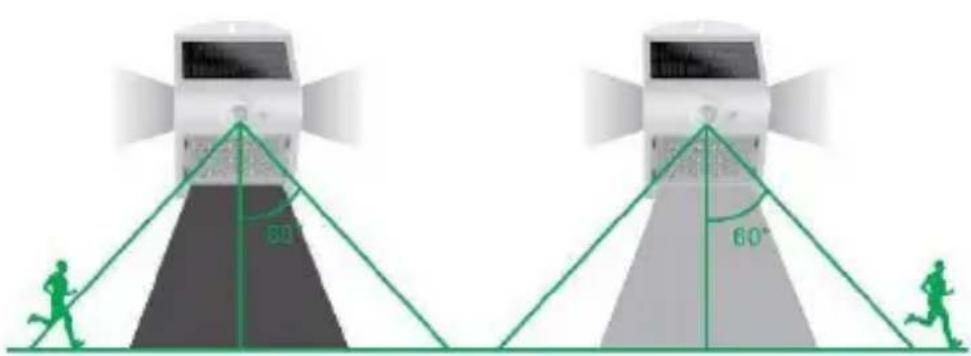

1. Press the mode button once to enter mode A. This mode automatically switches on to full brightness when a motion has been detected. It switches to weak brightness for 10 seconds after the last motion detection.

80° 60°

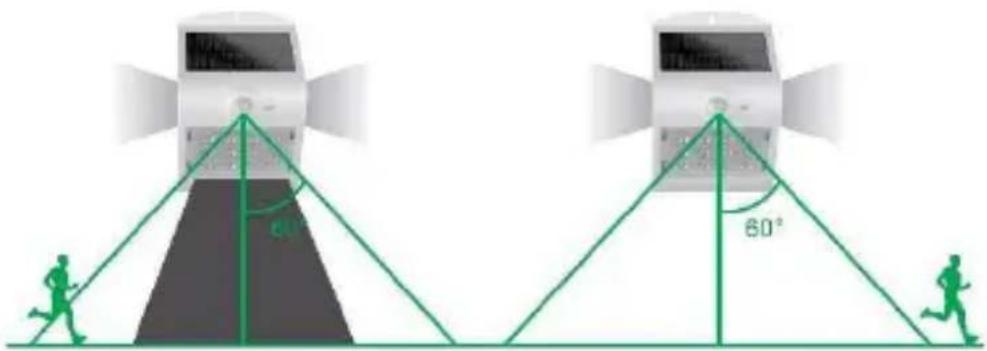

1. Press the mode button twice to enter mode B. This mode automatically switches on to full brightness when a motion has been detected. It switches off 10 seconds after the last motion detection.

Diagram showing two identical satellite dishes with 60° angles and a person running on the ground, illustrating camera positioning and distance measurement.

1. Press the mode button three times to switch off the appliance.

6. Care and Maintenance

Dirty solar panels may not fully charge the battery. This can lead to premature aging if the battery and may result in unreliable operation.

Occasionally wipe with a damp cloth to keep it looking new. Do not use harsh chemicals, cleaning solvents or strong detergents.

7. Technical Specifications

power consumption....1.5 W

battery type....Li-Ion 18650, 3.7 V, 1200 mAh

material...... ABS + PC

charging time.... 6 h

LED type.... SMD2835

light temperature....4000 K

luminous flux 220 lm

PIR sensor

detection area .... ± 6 m

detection angle.... 120°

CRI > 80 Ra

IP rating IP54

working temperature....-20 °C to +50 °C

dimensions 144.5 x 96 x 79 mm

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.perel.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

HANDLEIDING

1. Inleiding

Diagram illustrating two scenarios of a spacecraft with 60-degree angles and human silhouettes, showing motion paths.

consommation....1.5 W

type de batterie.... Li-ion 18650, 3.7 V, 1200 mAh

matériau....ABS + PC

Diagram showing two identical camera setups with 60-degree viewing angles and a person running on the ground.

Velleman® Service and Quality Warranty

Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.

All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).

General Warranty Conditions Concerning Consumer Products (for EU):

• All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.
• Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.
  You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

- Not covered by warranty:

• all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;
• consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);
• flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....;
• flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer's instructions;
• damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);
• damage resulting from an inappropriate packing and shipping of the article;
• all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.
• Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.
• Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.
• Repairs occurring after warranty expiration are subject to shipping costs.
• The above conditions are without prejudice to all commercial warranties.

The above enumeration is subject to modification according to the article (see article's manual).

NL
