LEDC27 - Lighting Perel - Free user manual and instructions

Brand	Perel
Model	LEDC27
Product type	LED dimmer with RF remote
Category	Lighting
Dimensions (dimmer)	31 x 13 x 8 mm
Dimensions (remote)	86 x 40 x 7 mm
Weight	25 g
Power supply	12 - 24 VDC
Maximum power	60 W (12 V) / 120 W (24 V)
Maximum load	3 x 2 A
PWM frequency	± 190 Hz
RF frequency	433 MHz
Functions	On/off, dimming (5 levels), 20 static colors, 17 dynamic modes
Demo mode	Yes (cycle through dynamic modes)
Memory function	Yes (saves last state after power outage)
Number of pairable remotes	Multiple (simultaneous control)
Maintenance	Clean with a damp cloth
Safety	Do not disassemble, do not short-circuit
Spare parts	Not user-repairable, contact dealer
Warranty	24 months for consumer use
Usage	Ideal with LED strips

Frequently Asked Questions - LEDC27 Perel

How to pair the remote with the dimmer?

Disconnect the power supply of the dimmer, then reconnect it after 5 seconds. Wait 5 seconds, point the remote at the dimmer and simultaneously press and hold the SPEED- and SPEED+ buttons for 5 seconds. The remote is then paired.

How to pair the remote with multiple dimmers?

Disconnect the power supply of the dimmer, then reconnect it after 5 seconds. Wait 5 seconds, point the remote at the dimmer and simultaneously press and hold the on-off and MODE+ buttons for 5 seconds. The dimmer will recognize all paired remotes.

How to change the color sequence?

Disconnect the power supply of the dimmer, then reconnect it after 5 seconds. Wait 5 seconds, point the remote at the dimmer and simultaneously press and hold the red and blue buttons for 5 seconds. The color sequence will cycle through the 6 possible combinations.

Which power supply to use for the dimmer?

Use a 12 V (max. 60 W) or 24 V (max. 120 W) power supply. Ensure the output current does not exceed 5 A.

What happens in case of a power outage?

The dimmer has a memory function: in case of a power outage, the last used function is saved and will be automatically activated after power is restored.

How to clean the dimmer and the remote?

Occasionally clean the device with a damp cloth. Do not use corrosive chemicals, solvents, or strong detergents.

What to do if the device is damaged?

Do not use the device if the housing or wiring is damaged. Do not attempt to repair it yourself; contact your dealer.

Can I repair the device myself?

No, never disassemble the housing. There are no user-serviceable parts. For spare parts, contact your dealer.

How many static colors are available?

The remote allows you to select 20 different static colors.

How many dynamic modes are integrated?

The dimmer integrates 17 autonomous dynamic modes, including color transitions and flashing animations.

USER MANUAL LEDC27 Perel

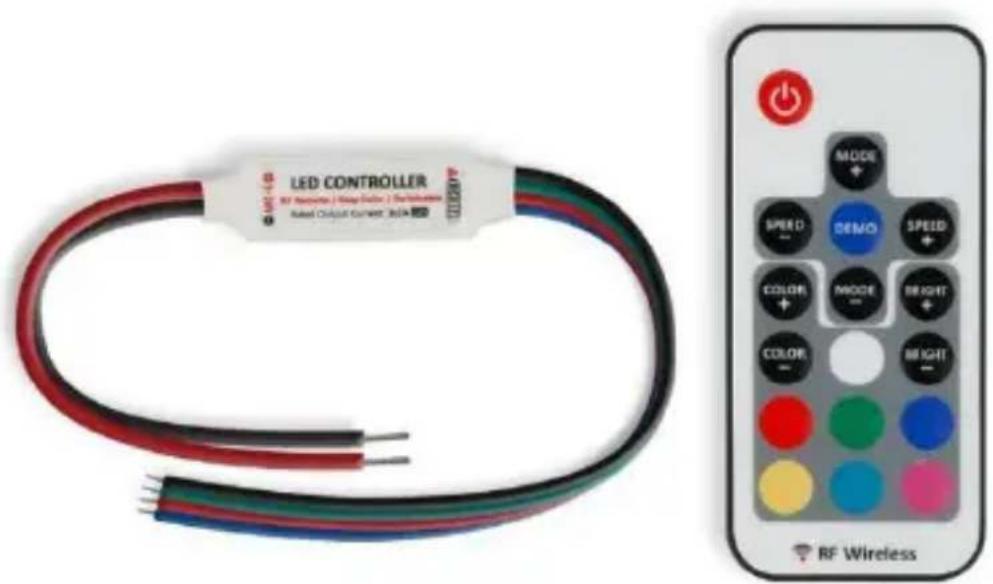

MINI SINGLE-CHANNEL LED DIMMER

MINI LED-DIMMER - 1 KANAAL

MINI VARIATEUR LED - 1 CANAL

MINI DIMMER LED - 1 CANAL

MINI LED-DIMMER - 1 KANAL

MINI DIMMER LED DE UM SÓ CANAL

LED CONTROLLER RF Wireless (High Cable) / Transmission Rated CIRCUIT Current: 30mA MODE + SPEED DEMO SPEED + COLOR MODE RIGHT + COLOR RIGHT - RF Wireless

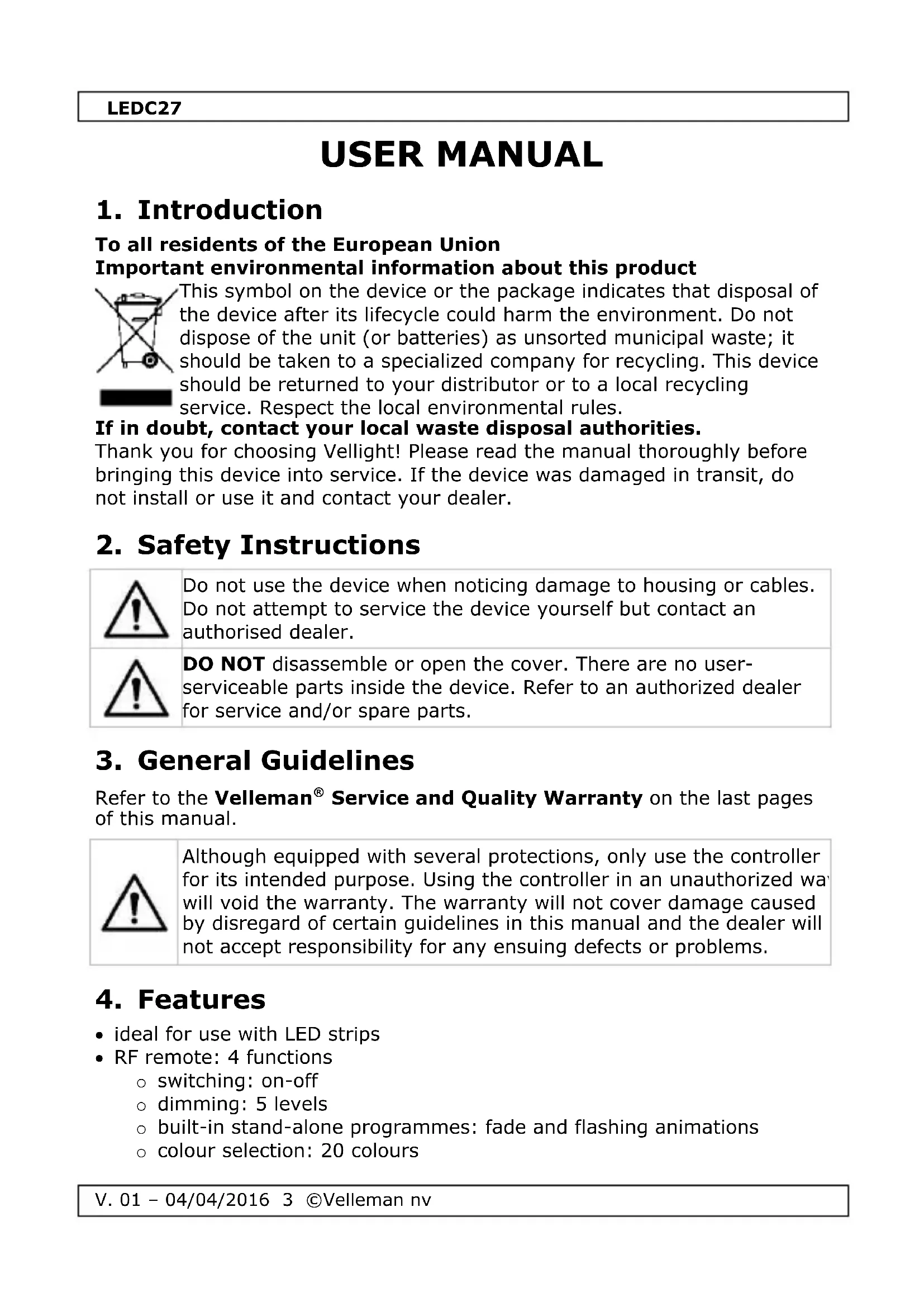

USER MANUAL 3

HANDLEIDING 7

MODE D'EMPLOI 11

MANUAL DEL USUARIO 15

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Vellight! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

Do not use the device when noticing damage to housing or cables. Do not attempt to service the device yourself but contact an authorised dealer.

DO NOT disassemble or open the cover. There are no user-serviceable parts inside the device. Refer to an authorized dealer for service and/or spare parts.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

Although equipped with several protections, only use the controller for its intended purpose. Using the controller in an unauthorized way will void the warranty. The warranty will not cover damage caused by disregard of certain guidelines in this manual and the dealer will not accept responsibility for any ensuing defects or problems.

4. Features

• ideal for use with LED strips
  • RF remote: 4 functions

○ switching: on-off

○ dimming: 5 levels

○ built-in stand-alone programmes: fade and flashing animations

○ colour selection: 20 colours

LEDC27

• memory function: the device remembers the last used function on power loss. On power restore, the last used function is automatically activated.
• use only with a power supply of max. 60 W / 12 V or 120 W / 24 V

5. Overview

Refer to the illustrations on page 2 of this manual.

1. on-off/standby: press to switch the dimmer on or off, or to switch to standby mode.
2. • 1. dynamic mode: switch to dynamic mode or between different dynamic modes
3. • 1. speed: dynamic mode speed adjustment
4. • 1. static colour adjustment: switch to dynamic mode or between static colours
5. direct colour: direct colour selection
6. • 1. brightness: static mode brightness adjustment

7. demo mode: demo mode with 17 dynamic modes in loop repeated for 3 times

6. Installation

Connect the power supply and LED strip according to the correct polarity. Do not short circuit the LED output as this may permanently damage the dimmer! Please do not install the dimmer in a metal casing or near large metal objects.

7. Operation

7.1 Pairing the Remote Control

The dimmer and included remote control are paired by default. To pair a new remote:

1. Remove the power supply to the dimmer, and reapply the power supply after 5 seconds.
2. Wait for 5 seconds, aim the remote control to the dimmer. Simultaneously hold [SPEED-] and [SPEED+] pressed for 5 seconds.
3. The remote control is paired to the dimmer.

LEDC27

7.2 Pairing the Remote Control to Several Dimmers

One remote can also be used to control several dimmers simultaneously. To do so:

1. Remove the power supply to the dimmer, and reapply the power supply after 5 seconds.
2. Wait for 5 seconds, aim the remote control to the dimmer. Simultaneously hold [on-off] and [MODE+] pressed for 5 seconds.
3. The dimmer will recognize any remote control.

7.3 Colour Sequence

To change the default output signal:

1. Remove the power supply to the dimmer, and reapply the power supply after 5 seconds.
2. Wait for 5 seconds, aim the remote control to the dimmer. Simultaneously hold the red and blue keys pressed for 5 seconds. The output sequence will switch between six possible combinations.

8. Cleaning and Maintenance

This controller does not need any particular maintenance. Occasionally wipe the controller with a damp cloth to keep it looking new. Do not use harsh chemicals, cleaning solvents or strong detergents to clean the detector.

9. Technical Specifications

power supply 12-24 VDC
maximum load 3 x 2 A
PWM frequency ....± 190 Hz
RF frequency 433 MHz dimensions
RF remote 86 x 40 x 7 mm
LED dimmer.... 31 x 13 x 8 mm
weight 25 g

LEDC27

Caution

The output current of the power supply must not exceed 5 A. Suitable power supplies: 60 W / 12 V or 120 W / 24 V.

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

HANDLEIDING

1. Inleiding

Velleman® Service and Quality Warranty

Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.

All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).

General Warranty Conditions Concerning Consumer Products (for EU):

• All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.
• Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion. You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

• Not covered by warranty:

- all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;

- consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);

- flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....;

- flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer's instructions:

- damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);

- damage resulting from an inappropriate packing and shipping of the article;

- all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.

- Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.

- Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.

- Repairs occurring after warranty expiration are subject to shipping costs.

- The above conditions are without prejudice to all commercial warranties.

The above enumeration is subject to modification according to the article (see article's manual).

NL
