LEDS11SRGB - Lighting Perel - Free user manual and instructions

Product type	Flexible RGB LED strip with controller
Brand	Perel
Model	LEDS11SRGB
Length	5 m
Width	10 mm
Weight	480 g
Number of LEDs	150 (type 5050)
Colors	Red, green, blue (RGB)
Wavelength	Red 615-630 nm, Green 520-530 nm, Blue 465-470 nm
Power consumption	23.8 W (red 8.8 W, green 7.5 W, blue 7.5 W)
Power supply	12 VDC 24 W (charger included)
Protection rating	IP61
Coating	Silicone
Viewing angle	120°
LED spacing	33 mm
Functions	Fixed color, animations, music-driven programs, fade, strobe, automatic change
Control	Infrared remote control (CR2025 battery included)
Cut spacing	Every 3 LEDs (10 cm)
Installation	Self-adhesive, indoor use only
Safety distance	0.5 m from illuminated objects
Protection class	III
Maintenance	Protect from dust, extreme temperatures, shocks, and humidity
Spare parts	No user-serviceable parts. Contact dealer.
Warranty	24 months (consumer) according to Velleman conditions
Environmental information	Do not dispose of with household waste. Recycle at a waste disposal facility.

Frequently Asked Questions - LEDS11SRGB Perel

How to cut the LED strip to the correct length?

The strip can be cut every 3 LEDs (10 cm) at the marked lines. Use sharp scissors and never cut while the strip is powered.

Can I use this LED strip outdoors?

No, this model is designed for indoor use only. The IP61 rating offers limited protection against dust, but not against rain or moisture.

How to connect multiple LED strips together?

Use connectors (not included) to join strips while respecting polarities (black = ground, red = 12 VDC, colored wires for RGB). Ensure no short circuits.

What to do if the remote control does not work?

Check the battery (CR2025) and remove the protective tab. Point the remote at the IR eye of the controller. If the problem persists, replace the battery.

What is the total power consumption?

Maximum consumption is 23.8 W (red 8.8 W, green 7.5 W, blue 7.5 W). The included adapter delivers 12 VDC 24 W.

How to clean the LED strip?

Disconnect power. Clean with a dry, soft cloth. Do not use chemical or abrasive products. Avoid moisture.

Can I use the LED strip while coiled?

No, never use the strip coiled as it may cause overheating and damage the LEDs. Unroll it completely before use.

What are the remote control modes?

The remote allows selecting fixed colors, animations, music-driven programs, a fade effect, white strobe, automatic 7-color change, and adjustment of brightness and speed.

How to replace the remote control battery?

Press the tab and pull to remove the battery holder. Insert a CR2025 battery respecting polarity, then reinsert the holder.

What to do if a section of the strip does not light up?

Check connections and polarity. Ensure the strip is not damaged and that cut ends are protected against short circuits. If the problem persists, contact your dealer.

USER MANUAL LEDS11SRGB Perel

SOUND-CONTROLLED LED STRIP, CONTROLLER AND POWER SUPPLY

MUZIEKGESTUURDE LEDSTRIP, CONTROLLER EN VOEDING FLEXIBLE LED PILOTÉ PAR MUSIQUE, CONTRÔLEUR ET ALIMENTATION

CINTA DE LEDs FLEXIBLE, CONTROLADOR Y ADAPTADOR DE RED FLEXIBLER LED-LEISTE, CONTROLLER UND NETZTEIL TAŚMA LED STEROWANA DŻWIĘKIEM, STEROWNIK I ZASILACZ FAIXA LED CONTROLADA POR SOM, CONTROLADOR E FONTE DE ALIMENTAÇÃO

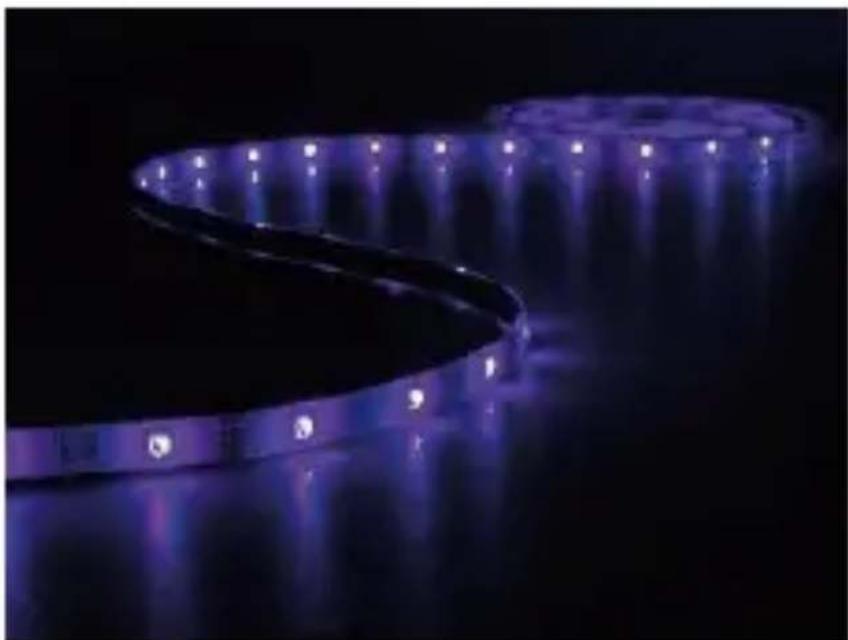

A glowing purple waveguide structure with illuminated nodes, reflected in a dark liquid surface (no text or symbols visible)

USER MANUAL 4

RUGGEBRUIKERSHANDLEIDING 9

MODE D'EMPLOI 14

MANUAL DEL USUARIO 19

Technical line drawing of mechanical components and assembly (no text or symbols)

A2

Line drawing of electrical components including a fuse, plug-in connector, and connected plug-in device (no text or symbols)

A4

Pure electrical circuit lines without any symbols

LEDS11SRGB

B1

B2

1 2 3 4 5 6 7 8 9

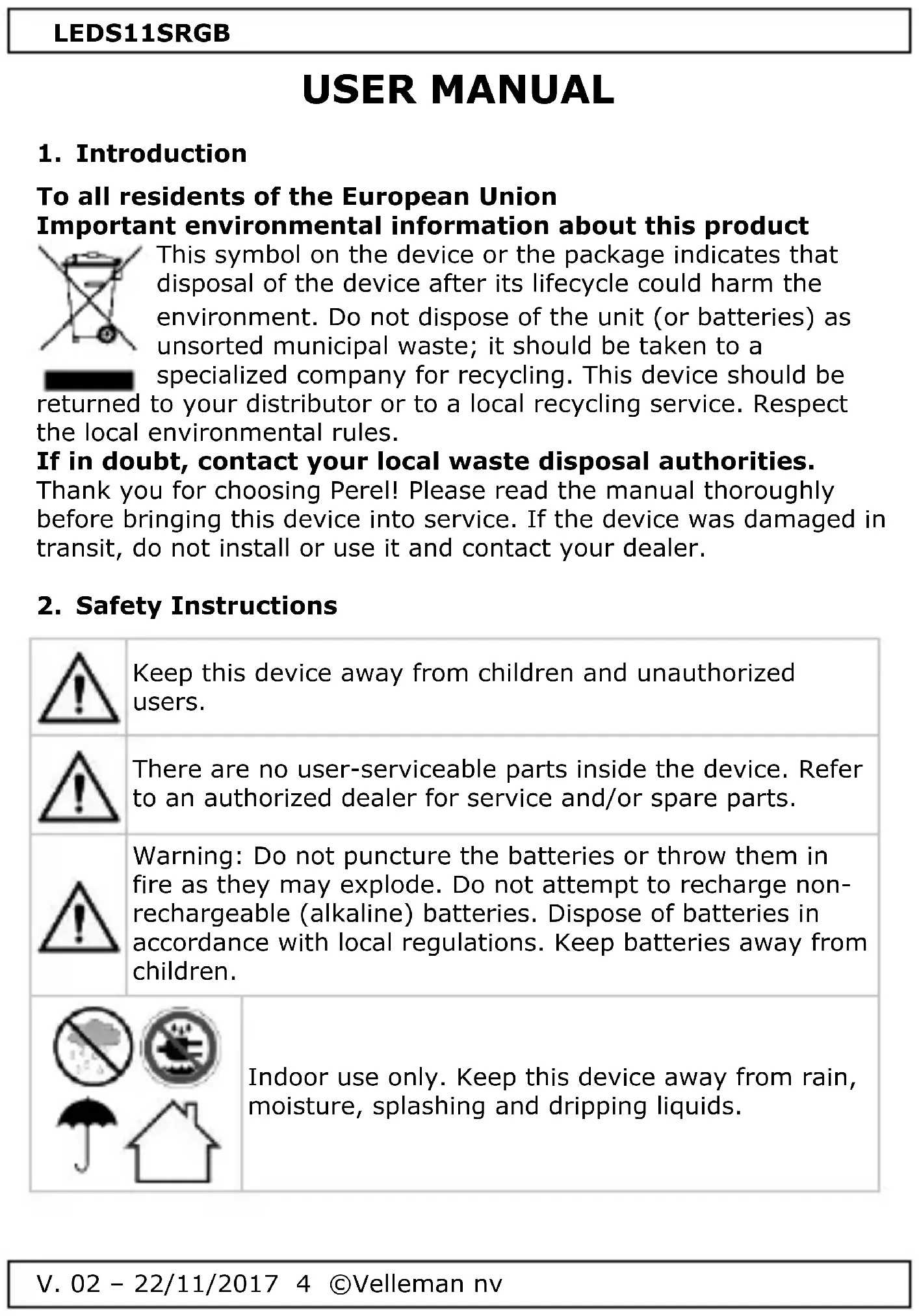

USER MANUAL

1. Introduction

To all residents of the European Union Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

Keep this device away from children and unauthorized users.

There are no user-serviceable parts inside the device. Refer to an authorized dealer for service and/or spare parts.

Warning: Do not puncture the batteries or throw them in fire as they may explode. Do not attempt to recharge non-rechargeable (alkaline) batteries. Dispose of batteries in accordance with local regulations. Keep batteries away from children.

Indoor use only. Keep this device away from rain, moisture, splashing and dripping liquids.

LEDS11SRGB

	Keep at a distance of at least 0,5 m from any illuminated object.
	This is a Safety Class III device.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

• Keep away from dust and extreme temperatures.
• Protect form shocks and abuse. Avoid brute force when operating.
• Familiarise yourself with the functions of the device before actually using it.
• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
• Keep this manual for future reference.

4. Features

• flexible PCB (white)
• contains 150 high brightness LEDs (type 5050)
• RGB controller with different programs:
• fixed colour
  ○ animated programs
• sound-controlled programs

• controlled through infrared remote (incl.)

- common anode:

• black wire: ground
• red wire: 12 VDC

• can be cut every 3 LEDs (10 cm)

• power supply included

• for illuminated advertising and marking

- self-adhesive

V. 02 - 22/11/2017 5 ©Velleman nv

LEDS11SRGB

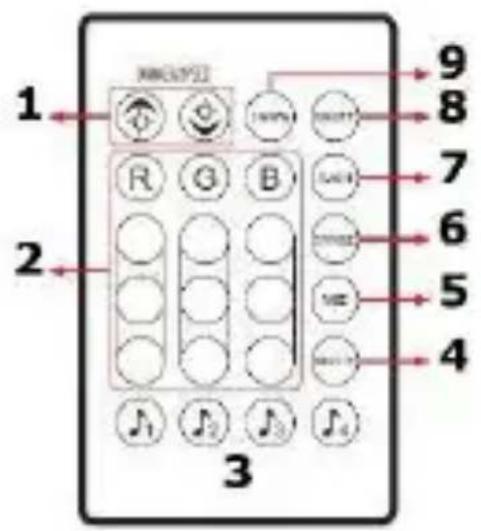

5. Remote Control Overview

Refer to illustration [B2] on page 3 of this manual.

1	dimming and speed setting
2	colour selection
3	sound-controlled programmes
4	7-colour smooth fade in and fade out effect
5	RGB fade in and fade out effect
6	white strobe
7	automatic 7-colour change
8	on/off
9	warm/cold white

6. Installation

Guidelines

• Avoid installing the LED strips near heat sources such as ovens, toasters, etc.
• Never use the LED strip when it is coiled up as this can cause overheating.
• Before mounting, ensure the desired surface is flat and clean of any grease, dirt or debris.
• Avoid tight bends in the LED strip.
• Observe the correct polarity when re-joining cable sections. The polarity is marked at regular intervals along the LED strip.
• Cut the strip using sharp scissors or a craft knife with a fresh blade. Cut directly on the marked line. Never cut the LED strip when it is pugged in.

Installation

Refer to the illustrations on page 2 of this manual.

1. Mount the LED strip in the desired location. The LED strip can be cut every 10 cm (see [A1]). Protect the cut ends to avoid short-circuits.

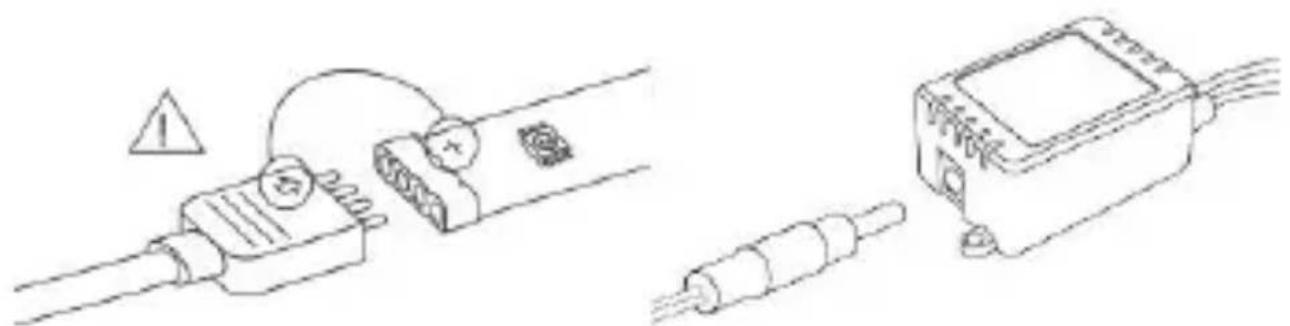

2. Connect the LED strips to the controller (see [A2]). Make sure to connect matching wire colours and do not short-circuit any wires. Connecting tools are not included.

LEDS11SRGB

1. Connect the included power adapter to the controller (see [A3]).

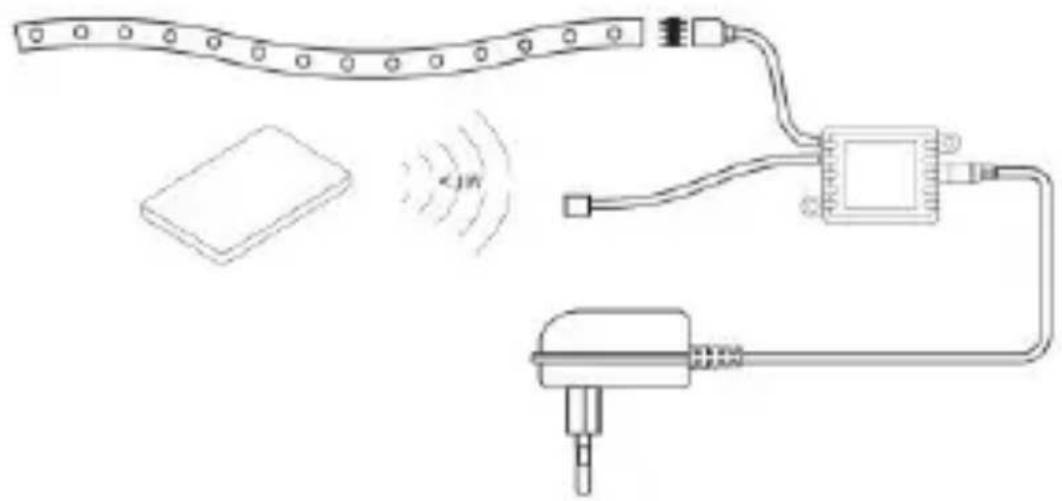

2. Plug the adapter into the mains. Refer to illustration [A4] for a general connection scheme.

7. Remote Control

Battery

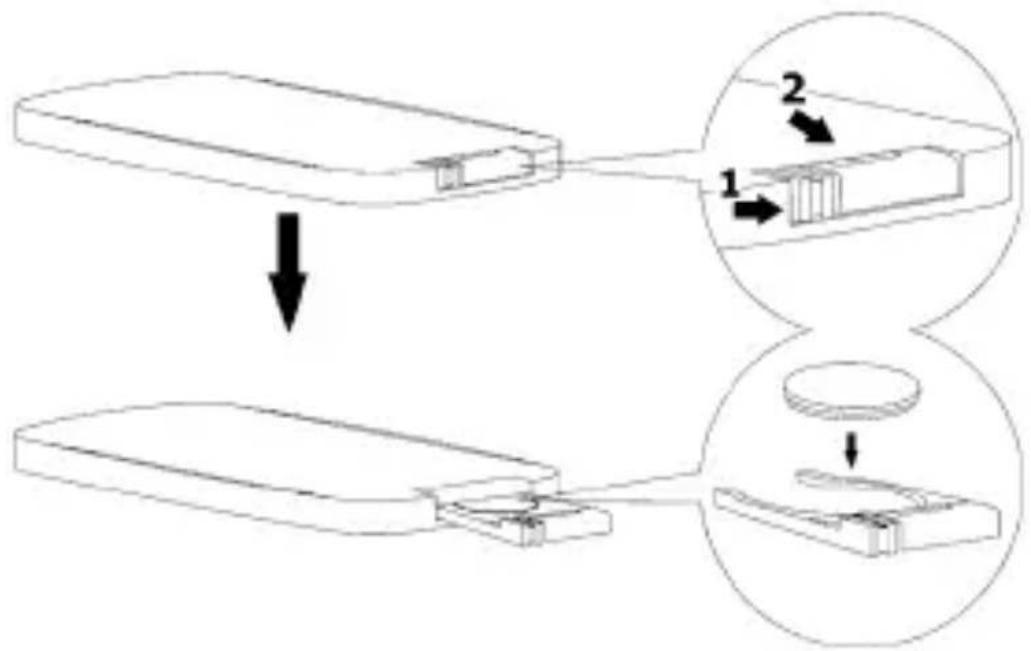

Refer to illustration [B1] on page 3 of this manual.

The remote control uses 1 battery type 3 V lithium CR2025 (included). Remove the tag from the battery compartment before use.

1. To (re)place a battery, press on the side of the battery cover and pull to slide open.
2. Insert the battery with the correct polarity and close the battery compartment by pushing back into the housing of the remote control until it snaps into place.

Operation

1. Aim the remote control towards the IR LED of the controller to control the output of the LED strip.
2. Switch on the LED strip with the ON button on the remote control. To switch it off again, press the OFF button.
3. Refer to chapter 5. Overview for more information about operating the remote control.

8. Technical Specifications

IP rating	IP61
coating	silicone
colour	red/green/blue
wavelength	red	green	blue
	615-630 nm	520-530 nm	465-470 nm
power consumption viewing angle	23,8 W (red 8,8 W/green 7,5 W/blue 7,5 W)
	120°
LED spacing	33 mm

LEDS11SRGB

power supply	12 VDC 24 W (adapter incl.)
dimensions	5 m x 10 mm
weight	480 g

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.perel.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.
