USER MANUAL LEDC26 Perel

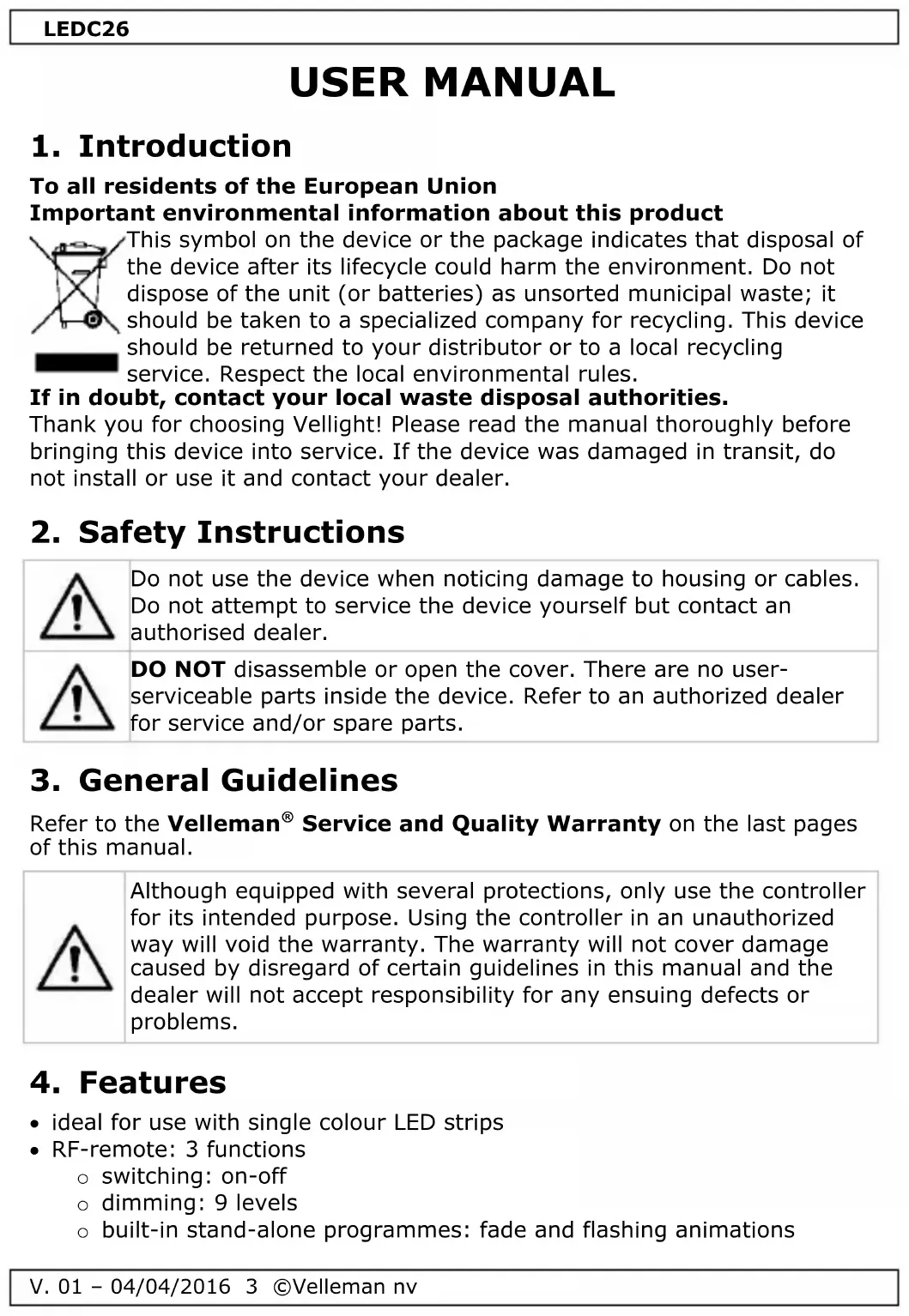

To all residents of the European Union Important environmental information about this product This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules. If in doubt, contact your local waste disposal authorities. Thank you for choosing Vellight! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

Do not use the device when noticing damage to housing or cables. Do not attempt to service the device yourself but contact an authorised dealer.

DO NOT disassemble or open the cover. There are no user- serviceable parts inside the device. Refer to an authorized dealer for service and/or spare parts.

3. General Guidelines

Refer to the Velleman

Service and Quality Warranty on the last pages of this manual.

Although equipped with several protections, only use the controller for its intended purpose. Using the controller in an unauthorized way will void the warranty. The warranty will not cover damage caused by disregard of certain guidelines in this manual and the dealer will not accept responsibility for any ensuing defects or problems.

ideal for use with single colour LED strips RF-remote: 3 functions o switching: on-off o dimming: 9 levels o built-in stand-alone programmes: fade and flashing animationsLEDC26

V. 01 – 04/04/2016 4 ©Velleman nv

memory function: the device remembers the last used function on power loss. On power restore, the last used function is automatically activated. use only with a power supply of max. 60 W / 12 V or 120 W / 24 V

Refer to the illustrations on page 2 of this manual.

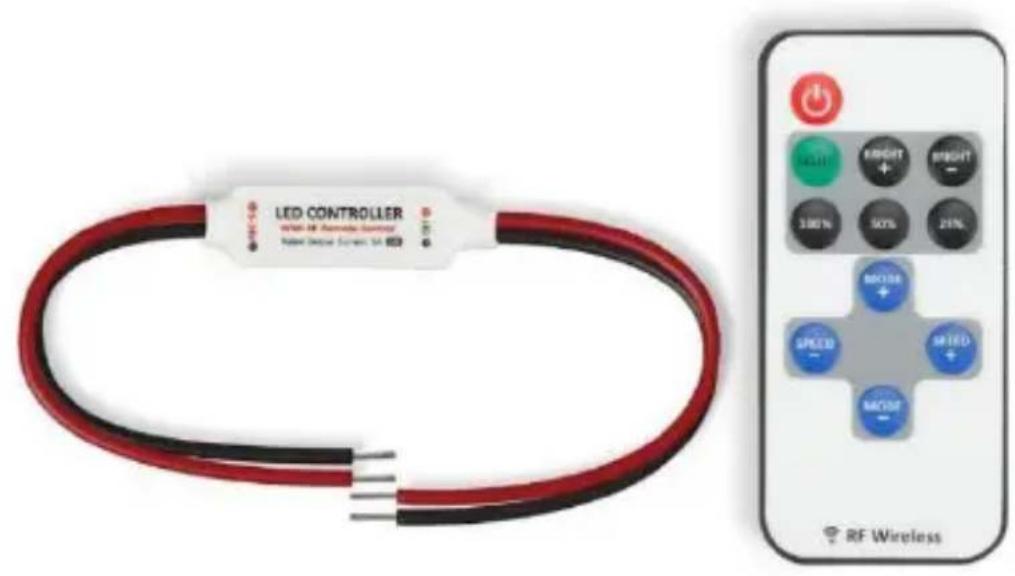

1. on-off/standby: press to switch the dimmer on or off, or to switch to

2. light mode: switch to light mode

3. + 8. + 9. dimmer pre-sets

4. + 6. dynamic mode: switch to dynamic mode or between different

5. + 7. speed: dynamic mode speed adjustment

10. + 11. brightness: light mode brightness adjustment

Connect the power supply and LED strip according to the correct polarity. Do not short circuit the LED output as this may permanently damage the dimmer! Please do not install the dimmer in a metal casing or near large metal objects.

7.1 Pairing the Remote Control

The dimmer and included remote control are paired by default. To pair a new remote:

1. Remove the power supply to the dimmer, and reapply the power

supply after 5 seconds.

2. Wait for 5 seconds, aim the remote control to the dimmer.

Simultaneously hold [100%] and [25%] pressed for 5 seconds.

3. The remote control is paired to the dimmer.

7.2 Pairing the Remote Control to Several Dimmers

One remote can also be used to control several dimmers simultaneously. To do so:

1. Remove the power supply to the dimmer, and reapply the power

supply after 5 seconds.

2. Wait for 5 seconds, aim the remote control to the dimmer.

Simultaneously hold [on-off] and [BRIGHT+] pressed for 5 seconds.

This dimmer is protected against overheating. If the dimmer’s temperature runs too high, the dimmer will automatically switch off and be operable after 15 minutes. Ensure sufficient air circulation around the dimmer and make sure not to exceed the maximum load.

8. Cleaning and Maintenance

This controller does not need any particular maintenance. Occasionally wipe the controller with a damp cloth to keep it looking new. Do not use harsh chemicals, cleaning solvents or strong detergents to clean the detector.

9. Technical Specifications

power supply .......................................................12-24 VDC maximum load ............................................................... 5 A PWM frequency ...................................................... ± 330 Hz RF frequency .......................................................... 433 MHz dimensions RF remote ................................................. 86 x 40 x 7 mm LED dimmer............................................... 31 x 13 x 8 mm weight ........................................................................ 25 g option extension cable (2 m) ........................................... LCON14 Caution The output current of the power supply must not exceed 5 A. Suitable power supplies: 60 W / 12 V or 120 W / 24 V. Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice. © COPYRIGHT NOTICE The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.LEDC26
