USER MANUAL LEDS15RGB Perel
CE
A
B


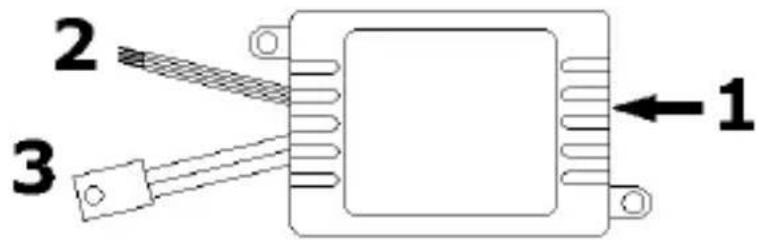

2 3 1| 1 | 2 | 3 |
| power input | to LED strip | IR LED |
| voedingsingang | naar ledstrip | infraroodled |
| entrée d'alimentation | vers ruban LED | LED infrarouge |
| entrada de alimentación | hacia la cinta con LEDs | LED infrarrojo |
| Netzeingang | zu LED-Leiste | IR-LED |
| entrada da alimentação | para faixa LED | LED IR |
C


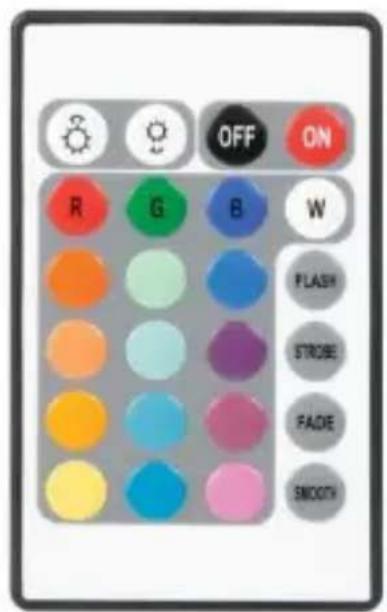

OFF ON R G B W FLASH STROSE FADE SMOOTHD
USER MANUAL
1. Introduction
To all residents of the European Union
Important environmental information about this product
This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.
If in doubt, contact your local waste disposal authorities.
Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.
2. Safety Instructions
Keep this device away from children and unauthorized users.
There are no user-serviceable parts inside the device. Refer to an authorized dealer for service and/or spare parts.
3. General Guidelines
Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.
- Keep this device away from dust and extreme temperatures.
- Protect this device from shocks and abuse. Avoid brute force when operating the device.
- Familiarise yourself with the functions of the device before actually using it.
- All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
- Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
- Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
- Keep this manual for future reference.
4. Features
- flexible PCB (white)
- contains 150 high brightness LEDs (type 5050)
- RGB controller with different programs: 44 keys
- fixed colour
○ animated program - fixed colour
- animated program
- controlled through infrared remote (incl.)
• can be cut every 3 LEDs (10 cm)
• power supply included - self-adhesive
5. Operation
Refer to the illustrations on page 2 of this manual.
Installation

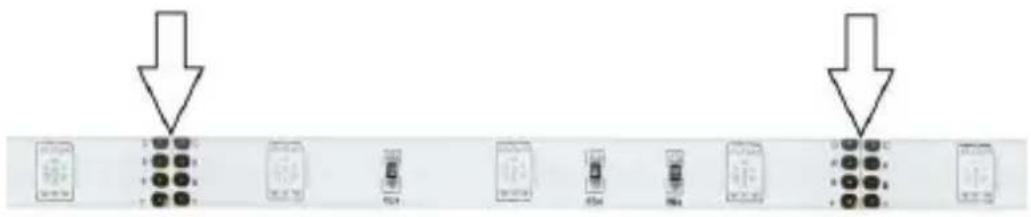

- Mount the LED strip in the desired location. The LED strip can be cut every 10 cm (see [A]). The cut ends must be protected to avoid short-circuits.
- Connect the LED strip to the controller [B2] (connecting tools not included). Make sure to connect matching wire colours. Do not short-circuit any wires.
- Connect the included power adaptor to the controller [B1]. Plug the other end into the mains.
Use
- Aim the remote control [C] towards the IR LED [B3] of the controller to control the output of the LED strip.
- Switch the LED strip on with the ON button on the remote control. To switch it off again, press the OFF button.
- Select the desired light output colour by pressing the corresponding colour button on the remote control.
- To increase or decrease output brightness, press the ⏻ or ⏱ button.
- Press the effect buttons to generate different effects:
| button | effect |
| FLASH | red, green, blue colours switching, fast |
| STROBE | red, green, blue colours switching, slow |
| FADE | colours fading, fast |
| SMOOTH | colours fading, slow |
6. Battery

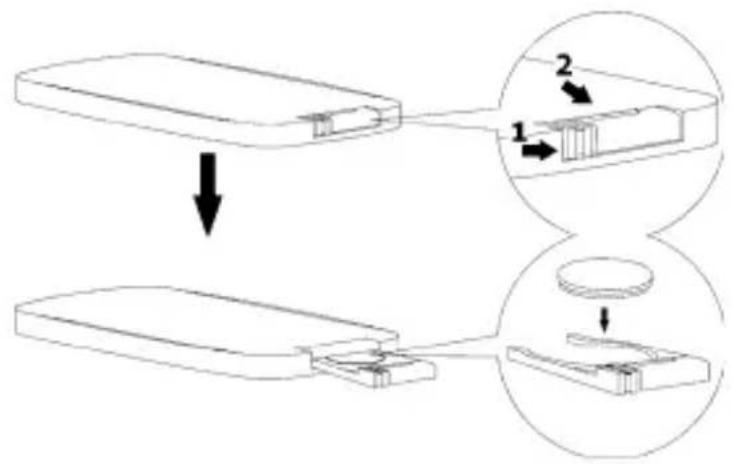

Refer to illustration D on page 2 of this manual.
The remote control uses 1 battery type 3 V lithium CR2025 (included).
- To (re)place the battery, press on the side of the battery cover [D1] and pull [D2] to slide it open.
- Insert the battery with the correct polarity and close the battery compartment by pushing it back into the housing of the remote control until it snaps into place.
Warning: Do not puncture batteries or throw them in fire as they may explode. Do not attempt to recharge non-rechargeable batteries (alkaline). Dispose of batteries in accordance with local regulations. Keep batteries away from children.
7. Technical Specifications
| LEDS15RGB | LEDS18RGB | LEDS19RGB | |
| IP rating | IP61 | IP20 | IP61 |
| coating | PU glue | / | PU glue |
| colour | red-green-blue | ||
| wavelength | R=625 nm, G=525 nm, B=475 nm | ||
| light output | ± 300 lm/m | ± 370 lm/m | ± 300 lm/m |
| viewing angle | 120° | ||
| LED spacing | 33 mm | ||
| power supply | 12 VDC/24 W (adapter included) | ||
| dimensions | 3 m x 10 mm | 5 m x 10 mm | 5 m x 10 mm |
Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.perel.eu. The information in this manual is subject to change without prior notice.
© COPYRIGHT NOTICE
The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.
GEBRUIKERSHANDLEIDING
1. Inleiding
Velleman® Service and Quality Warranty
Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.
All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).
General Warranty Conditions Concerning Consumer Products (for EU):
- All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.
- Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.
You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.
• Not covered by warranty:
- all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;
- consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);
- flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....;
- flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer's instructions;
- damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);
- damage resulting from an inappropriate packing and shipping of the article;
- all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.
- Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.
- Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.
- Repairs occurring after warranty expiration are subject to shipping costs.
- The above conditions are without prejudice to all commercial warranties.
The above enumeration is subject to modification according to the article (see article's manual).
