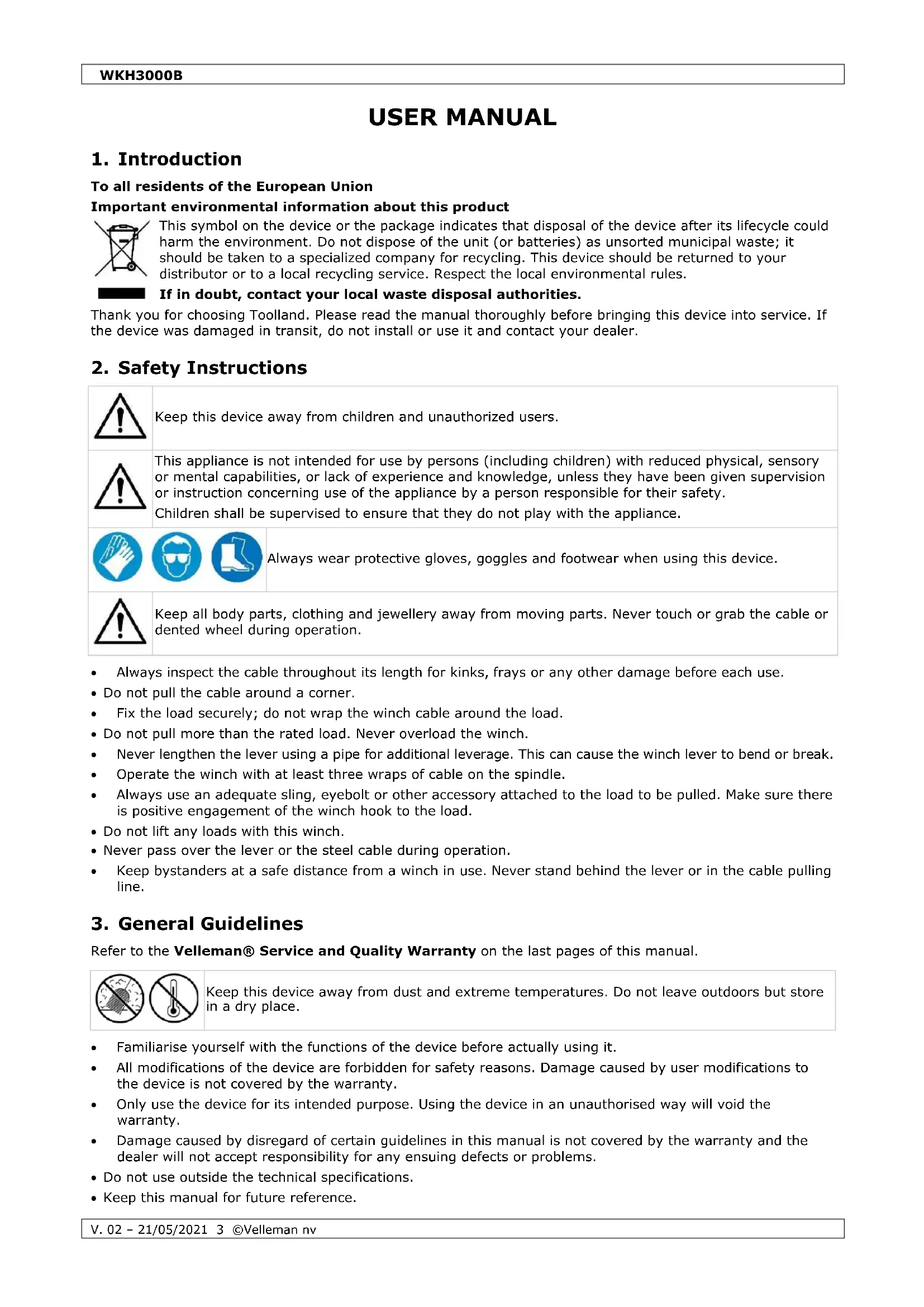

USER MANUAL WKH3000B Toolland

To all residents of the European Union Important environmental information about this product This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules. If in doubt, contact your local waste disposal authorities. Thank you for choosing Toolland. Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

Keep this device away from children and unauthorized users.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children shall be supervised to ensure that they do not play with the appliance.

Always wear protective gloves, goggles and footwear when using this device.

Keep all body parts, clothing and jewellery away from moving parts. Never touch or grab the cable or dented wheel during operation.

• Always inspect the cable throughout its length for kinks, frays or any other damage before each use.

• Do not pull the cable around a corner.

• Fix the load securely; do not wrap the winch cable around the load.

• Do not pull more than the rated load. Never overload the winch.

• Never lengthen the lever using a pipe for additional leverage. This can cause the winch lever to bend or break.

• Operate the winch with at least three wraps of cable on the spindle.

• Always use an adequate sling, eyebolt or other accessory attached to the load to be pulled. Make sure there is positive engagement of the winch hook to the load.

• Do not lift any loads with this winch.

• Never pass over the lever or the steel cable during operation.

• Keep bystanders at a safe distance from a winch in use. Never stand behind the lever or in the cable pulling line.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

Keep this device away from dust and extreme temperatures. Do not leave outdoors but store in a dry place.

• Familiarise yourself with the functions of the device before actually using it.

• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.

• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.

• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.

• Do not use outside the technical specifications.

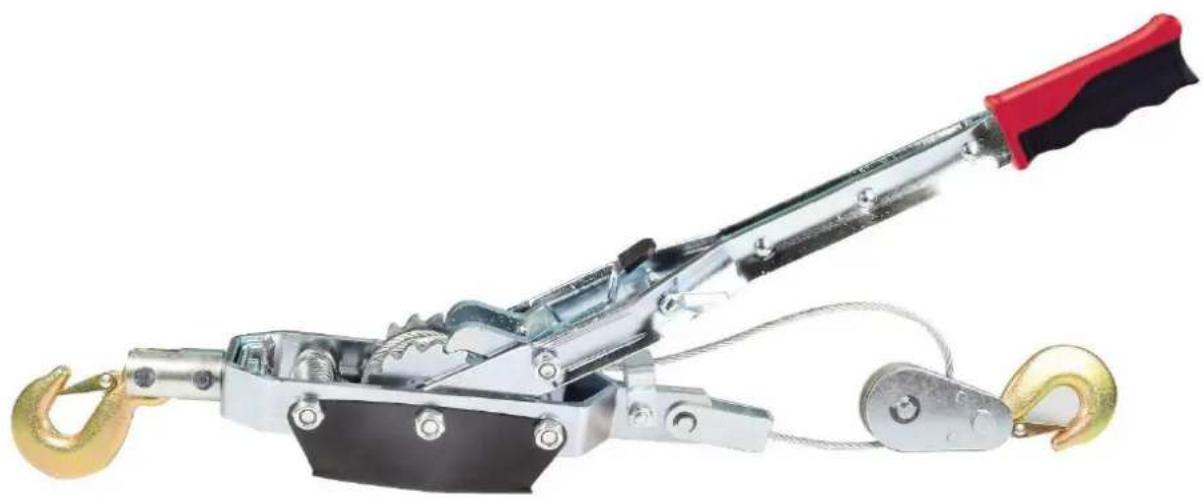

For tightening fences, freeing stuck vehicles, pulling tree-stumps...

• automatic let-down safety latch

Check the winch for damage before every use. Do not use a winch with visible damage.

5.1 Operation Procedure for Pulling a Vehicle

1. Block the vehicle’s wheels to prevent the vehicle from rolling.

2. Put the vehicle in neutral gear and release the hand brake.

3. Pull out the winch cable to the required length. Always leave three wraps of cable on the spindle.

4. Hook the winch to an anchor point.

5. Before hooking the vehicle, make sure the distance between the vehicle and the winch is minimal. Hook the

vehicle using a tow strap. Do not wrap the cable around the anchor point.

6. Move the lever up and down to pull the vehicle. Pull with great care as the cable should be tightened and

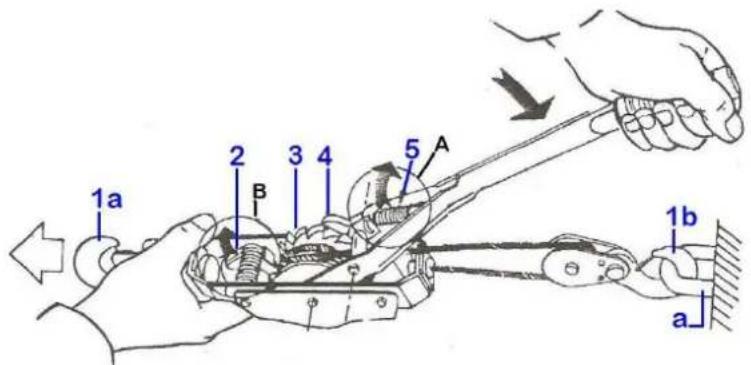

1. Secure the hook [1b] to a solid and rigid anchor point [a]. Pull the spring [5] in the direction of the

2. Release the latch [4] on the ratchet [3] by pushing the lever. Firmly hold the lever.

3. Press the stop pawl [2] (see B). Pull on the winch to slacken the cable to the required length.

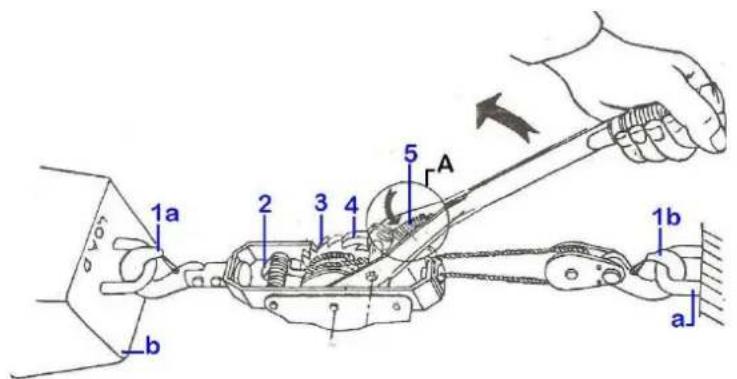

2. Press the spring [5] in the direction of the arrow (see A) to place the latch [4] onto the ratchet [3].

3. Secure the second hook [1a] to the load to pull [b].

4. Each stroke of the lever will wind the cable and pull the load.WKH3000B

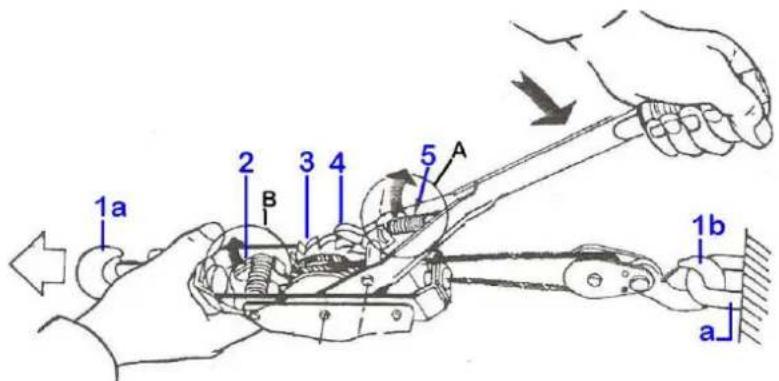

1. Pull the spring [5] in the direction of the arrow (see A).

2. Steadily push the lever until the drive pawl pushes and disengages the stop pawl [2] to clear the

ratchet [3]. This will release the load one notch.

3. Repeat this motion as required until the cable is sufficiently slackened.

When releasing the load, avoid abrupt movements. Apply a steady pressure to the handle.

6. Cleaning and Maintenance

There are no user-serviceable parts inside the device. Refer to an authorized dealer for service and/or spare parts. Occasionally wipe with a damp cloth to keep it looking new. Do not use harsh chemicals, cleaning solvents or strong detergents.

7. Technical Specifications

• max. cable length p. 3
• m cable diameter p. 5
• mm hook dimensions p. 103
• mm working capacity kg Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice. © COPYRIGHT NOTICE The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.WKH3000B p. 1500
