LEDA3003CWG - Lighting Perel - Free user manual and instructions

Product type	LED outdoor projector
Brand	Perel
Model	LEDA3003CWG
Housing color	Grey
Total power	31 W
Rated voltage	230 V AC
Energy consumption	31 kWh/1000h
Luminous flux	1800 lm
Colour temperature	6500 K (cold white)
Beam angle	120°
Colour rendering index (CRI)	70
Nominal lifetime	30,000 h
Number of switching cycles	15,000
Protection rating	IP65 (outdoor use)
Dimensions (W x H x D)	225 x 183 x 108 mm
Weight	1750 g
Cable length	30 cm (without plug)
Housing material	Die-cast aluminium with tempered glass
Bracket	Adjustable
Maintenance	Wipe with a non-fluffy damp cloth
Warranty	2 years for consumer products

Frequently Asked Questions - LEDA3003CWG Perel

What is the colour temperature of the LEDA3003CWG?

The LEDA3003CWG emits a cold white light with a colour temperature of 6500 K.

Is this projector suitable for outdoor use?

Yes, it has an IP65 protection rating, making it resistant to dust and water jets.

What is the electrical power of the projector?

The total rated power is 31 W at a voltage of 230 V AC.

How to install the LEDA3003CWG projector?

Installation must be carried out by a qualified technician. Attach the mounting bracket, connect the cable to a junction box (blue neutral, yellow/green earth, brown phase). Maintain a safety distance of at least 1 m between the light output and the illuminated surface.

Can I use this projector with a dimmer?

No, this device is not suitable for use with a dimmer.

How to clean the projector?

Disconnect the power supply, then wipe the device with a non-fluffy damp cloth. Do not use alcohol or solvents.

What to do if the protection glass is damaged?

Immediately disconnect the device from the mains and have it repaired by a qualified technician. Do not use the device if the glass is cracked or broken.

What is the lifetime of the LED module?

The nominal lifetime is 30,000 hours with a number of switching cycles of 15,000.

What are the dimensions and weight of the LEDA3003CWG?

Dimensions: 225 x 183 x 108 mm (W x H x D). Weight: 1750 g.

Is the projector under warranty?

Yes, the warranty is 2 years for consumer products, subject to Velleman®'s general terms and conditions.

USER MANUAL LEDA3003CWG Perel

Four black square floodlights with LED lights, arranged in ascending size from 10W to 50W (no text or symbols on the dish itself)

USER MANUAL 3

GEBRUIKERSHANDLEIDING 9

MODE D'EMPLOI 16

MANUAL DEL USUARIO 23

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

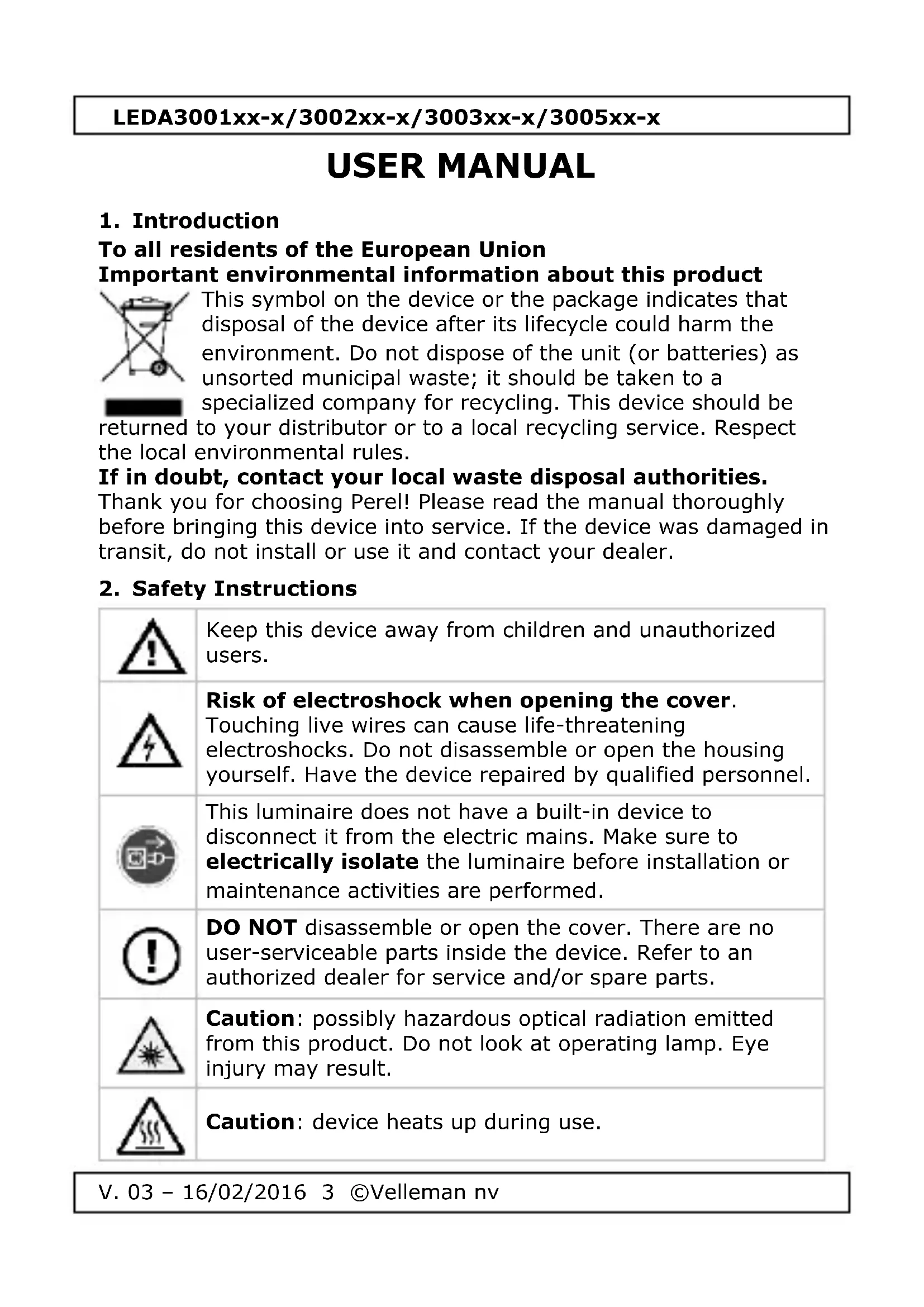

Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

	Keep this device away from children and unauthorized users.
	Risk of electroshock when opening the cover.Touching live wires can cause life-threatening electroshocks. Do not disassemble or open the housing yourself. Have the device repaired by qualified personnel.
	This luminaire does not have a built-in device to disconnect it from the electric mains. Make sure toelectrically isolatethe luminaire before installation or maintenance activities are performed.
	DO NOTdisassemble or open the cover. There are no user-serviceable parts inside the device. Refer to an authorized dealer for service and/or spare parts.
	Caution: possibly hazardous optical radiation emitted from this product. Do not look at operating lamp. Eye injury may result.
	Caution: device heats up during use.

Respect a minimum distance of 1 m between the device's light output and any illuminated surface.

• A qualified technician should install and service this device.
• Make sure that the available voltage does not exceed the voltage stated in the specifications of this manual.
• Do not crimp the power cord and protect it against damage. Have an authorised dealer replace it if necessary.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

	Keep this device away from extreme temperatures.
	Protect this device from shocks and abuse. Avoid brute force when operating the device.
	This device is not suitable for dimming.
		Do not use the luminaire with a cracked or broken protective glass. Disconnect immediately from the mains and have it repaired by a qualified technician.

• Familiarise yourself with the functions of the device before actually using it.
• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
• Only use the device for its intended purpose. All other uses may lead to short circuits, burns, electroshocks, lamp explosion, crash, etc. Using the device in an unauthorised way will void the warranty.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
• Use the original packaging if the device is to be transported.
• Keep this manual for future reference.

4. Features

• floodlight for commercial or residential use
  • die-cast aluminium housing with tempered glass
• ribbed for maximum heat dissipation
  • with adjustable bracket
• suited for outdoor use (IP65)
  • with 30 cm unterminated cable.

5. Overview

Refer to the illustrations on page 2 of this manual.

1	mounting bracket	3	protective glass
2	hinge	4	LED

6. Installation

Guidelines

• A qualified technician should install and service this device.
• The construction to which the device is attached should be able to support 4 times the weight of the device for one hour without deformation.
• Never stand directly below the device when it is being mounted, removed or serviced. Have a qualified technician check the device once a year and once before you bring it into service.
• Overhead mounting requires extensive experience: calculating workload limits, determining the installation material to be used... Have the material and the device itself checked regularly. Do not attempt to install the device yourself if you lack these qualifications as improper installation may result in serious injuries.
• This device is not suitable for dimming.

Distances

• Keep at least 50 cm distance at the top and 30 cm on either side.
• Respect a minimum distance of 1 m between the device's light output and any illuminated surface.

Mounting the lamp

1. This luminaire does not have a built-in device to disconnect it from the electric mains. Make sure to electrically isolate the luminaire before installation or maintenance activities are performed.

LEDA3001xx-x/3002xx-x/3003xx-x/3005xx-x

1. Use the mounting bracket [1] to determine the location of the mounting holes.

2. Drill the holes and secure the bracket using screws and wall plugs.

3. Connect the power cable to a suitable junction box (not incl.). Make sure the connection is properly earthed. Make sure there is no strain on the cable; leave sufficient slack.

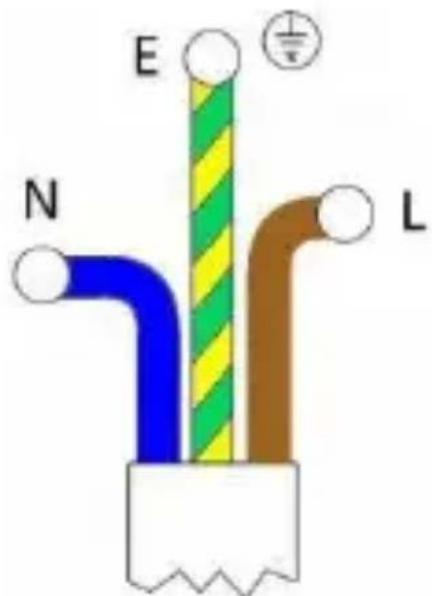

E N L

N = neutral, blue

E = earth, yellow/green

L = line, brown

Warning: if the power cable is damaged, it must be replaced by the manufacturer, his service agent, or a similar qualified person in order to avoid any hazard.

1. To point the lamp in the desired direction: loosen the hinges [2] using a spanner.

2. Tilt the lamp in the desired angle and tighten the hinges.

7. Cleaning and maintenance

• All screws should be tight and free of corrosion.
• The housing, the visible parts, the mounting supports and the installation location (e.g. ceiling, suspension, trussing) should not be deformed, modified or tampered with; e.g. do not drill extra holes in mounting supports, do not change the location of the connections...
• Mechanically moving parts must not show any signs of wear and tear.
• The electric power supply cables must not show any damage. Have a qualified technician maintain the device.

LEDA3001xx-x/3002xx-x/3003xx-x/3005xx-x

• If the protective glass [3] is damaged, disconnect the lamp immediately from the mains. Have it repaired immediately by a qualified technician. Do not use the lamp with a cracked or broken protective glass.
• This luminaire does not have a built-in device to disconnect it from the electric mains. Make sure to electrically isolate the luminaire before installation or maintenance activities are performed.
• Wipe the device regularly with a moist, lint-free cloth. Do not use alcohol or solvents.
• There are no user-serviceable parts.
• Contact your dealer for spare parts if necessary.

8. Technical Specifications

body colour
	LEDA300xxx-B	black
	LEDA300xxx-G	grey
	LEDA300xxx-W	white
electrical data
	power LED module
	LEDA3001xx-x	1 x 10 W COB Epistar
	LEDA3002xx-x	1 x 20 W COB Epistar
	LEDA3003xx-x	1 x 30 W COB Epistar
	LEDA3005xx-x	1 x 50 W COB Epistar
total nominal power
	LEDA3001xx-x	10.5 W
	LEDA3002xx-x	21 W
	LEDA3003xx-x	31 W
	LEDA3005xx-x	52 W
nominal voltage driver		230 VAC
nominal voltage LED module		30-36 V
power factor		0.9
energy consumption
	LEDA3001xx-x	10.5 kWh/1000h
	LEDA3002xx-x	21 kWh/1000h
	LEDA3003xx-x	31 kWh/1000h
	LEDA3005xx-x	52 kWh/1000h
cable		HO5RN-F 3G1.0 - 30 cm

LEDA3001xx-x/3002xx-x/3003xx-x/3005xx-x

light technical data
	colour
	LEDA300xCW-x	cold white
	LEDA300xWW-x	warm white
	colour temperature
	LEDA300xCW-x	6500 K
	LEDA300xWW-x	3000 K
	beam angle	120°
	luminous intensity	- cd
	luminous flux
	LEDA3001xx-x	600 lm
	LEDA3002xx-x	1200 lm
	LEDA3003xx-x	1800 lm
	LEDA3005xx-x	3000 lm
	colour rendering index	70
	starting time	< 0.5 s
	warm-up time (60 %)	< 1 s
lifespan
	nominal life time	30000 h
	number of switching cycles	15000
dimensions and weight
	dimensions (W x H x D)
	LEDA3001xx-x	115 x 85 x 75 mm
	LEDA3002xx-x	180 x 140 x 93 mm
	LEDA3003xx-x	225 x 183 x 108 mm
	LEDA3005xx-x	285 x 235 x 138 mm
weight
	LEDA3001xx-x	400 g +/- 20 g
	LEDA3002xx-x	900 g +/- 50 g
	LEDA3003xx-x	1750 g
	LEDA3005xx-x	2500 g
cable length		30 cm

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.perel.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.
