Product type	LED floodlight with motion sensor
Brand	Perel
Model	LEDA7001NWBP
Housing color	Black
Usage	Outdoor (IP65)
Light source	Built-in LED, non-replaceable
Color temperature	4000 K (neutral white)
Luminous flux	700 lm
Beam angle	120°
Rated power	10 W
Supply voltage	220-240 V~, 50 Hz
Energy consumption	0.01 kWh/1000 h
Color Rendering Index (CRI)	>80
Rated lifetime	25,000 h
Start-up time	<0.5 s
Dimensions (W x D x H)	127.9 x 113.4 x 64.4 mm
Motion sensor	PIR, angle 120°
Settings	LUX (day/night threshold), TIME (10 s - 9 min), SENS (sensitivity)
Recommended mounting height	0.5 - 3.0 m
Safety distance	1 m from the illuminated surface
Protection rating	IP65
Warranty	2 years (24 months)
Maintenance	Clean with a soft cloth and mild detergent
Repairability	No user-serviceable parts; power cable replaceable by a professional

Frequently Asked Questions - LEDA7001NWBP Perel

How to install the LEDA7001NWBP floodlight?

Attach the mounting bracket to a stable outdoor wall at a height of 0.5-3.0 m. Pass the power cable through the gasket and connect it to the connector block (N: blue, E: yellow/green, L: brown). Ensure the cable is not too tight. Tilt the device in the desired direction and tighten the hinges.

How to adjust the motion sensor?

Use the potentiometers LUX (day/night threshold), TIME (lighting duration from 10 s to 9 min) and SENS (sensitivity). Turn LUX towards 'sun' for daytime operation, towards 'moon' for night. Adjust SENS according to the area to be covered.

Can the LED bulb be replaced?

No, the light source is built-in and non-replaceable. When the LED reaches its end of life (25,000 h), replace the entire device.

What is the detection range?

The range is not precisely specified, but it depends on the set sensitivity (SENS) and mounting height. The sensor is more sensitive to lateral movements than to direct approaches.

Can the floodlight be used with a dimmer?

No, this device is not suitable for use with a dimmer. Use only with a mains supply of 220-240 V~.

What to do if the sensor does not work properly?

First check the LUX setting (too low for ambient light) and SENS (too low). Make sure the detection window is not obstructed. If the problem persists, contact a qualified technician.

How to clean the floodlight?

Disconnect the device and let it cool down. Clean the housing with a soft cloth dampened with a mild detergent. Never immerse the device in water and do not use harsh solvents.

Is the floodlight waterproof?

Yes, it has an IP65 protection rating, making it suitable for outdoor use, sheltered from direct weather and direct sunlight.

What is the warranty for the Perel LEDA7001NWBP?

Velleman offers a 24-month warranty against manufacturing and material defects. Damage due to misuse or incorrect installation is excluded.

Can I install the floodlight upside down?

No, do not install the device upside down to ensure weatherproofing. Preferably fix it at an angle of 60° and under a roof to protect it from the elements.

USER MANUAL LEDA7001NWBP Perel

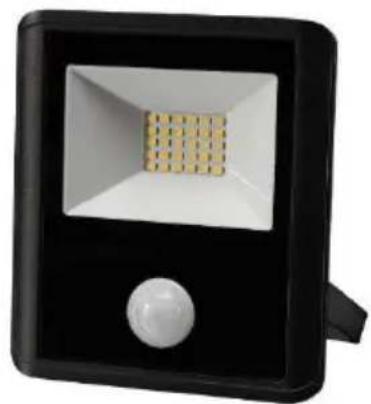

Black square LED light fixture with a white spherical base and grid of 12 gold dots (no text or symbols visible)

Black square light fixture with a grid pattern and a white circular button at the bottom (no text or symbols visible)

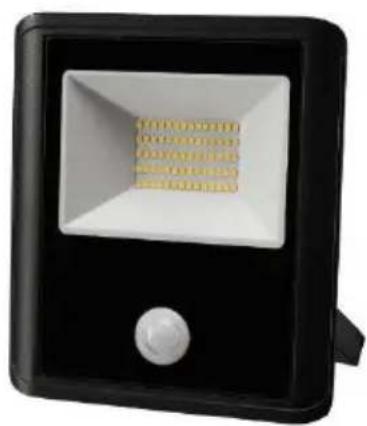

Black square light fixture with a grid-patterned central panel and a white spherical base (no text or symbols visible)

Black LED light fixture with a white panel and a small circular button (no text or symbols visible)

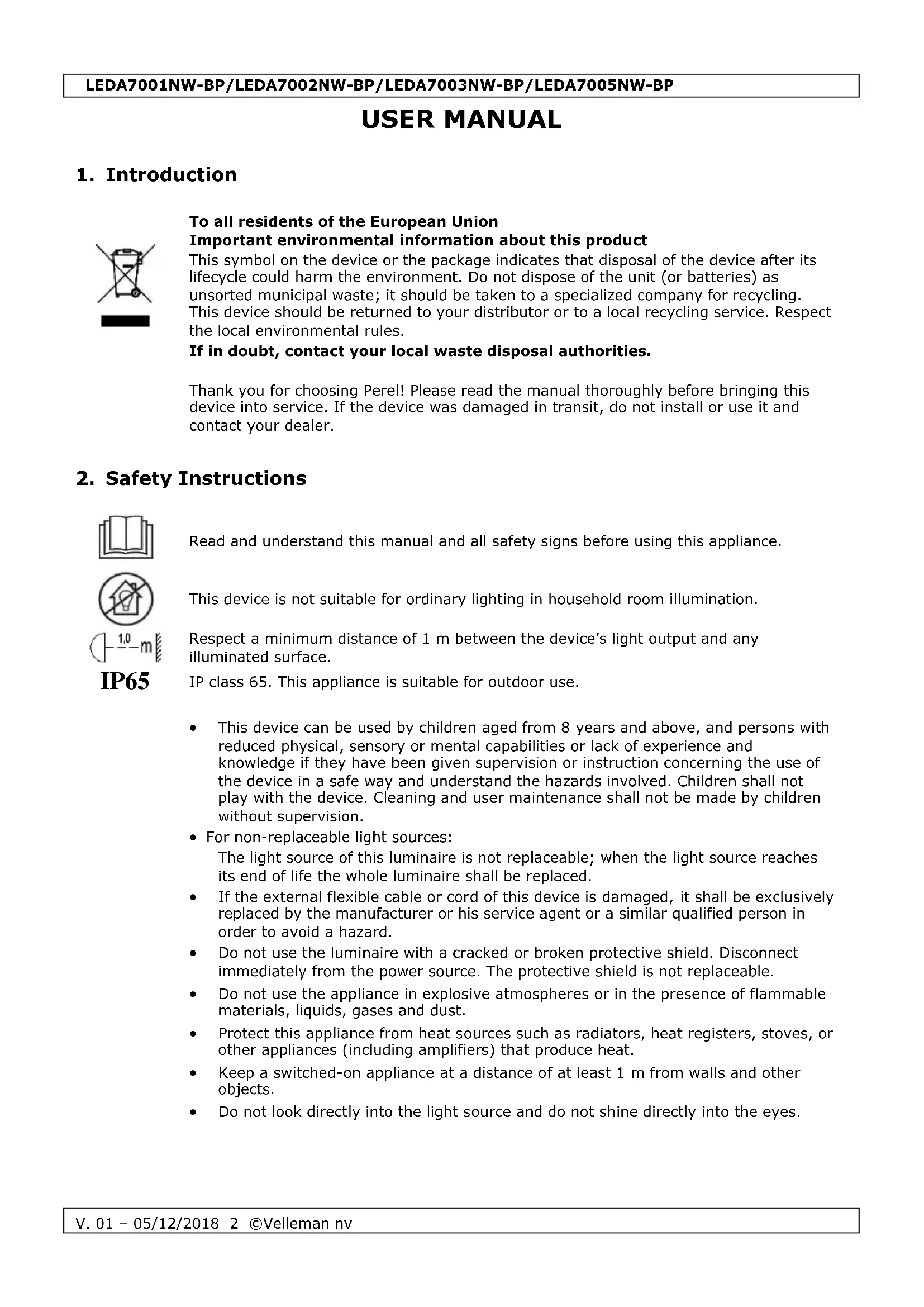

USER MANUAL 2

HANDLEIDING 7

MODE D'EMPLOI 12

MANUAL DEL USUARIO 17

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

Read and understand this manual and all safety signs before using this appliance.

This device is not suitable for ordinary lighting in household room illumination.

Respect a minimum distance of 1m between the device's light output and any illuminated surface.

IP65

IP class 65. This appliance is suitable for outdoor use.

• This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.
• For non-replaceable light sources:
  The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced.
• If the external flexible cable or cord of this device is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
• Do not use the luminaire with a cracked or broken protective shield. Disconnect immediately from the power source. The protective shield is not replaceable.
• Do not use the appliance in explosive atmospheres or in the presence of flammable materials, liquids, gases and dust.
• Protect this appliance from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.
• Keep a switched-on appliance at a distance of at least 1 m from walls and other objects.
• Do not look directly into the light source and do not shine directly into the eyes.

3. General Guidelines

• Refer to the Velleman ^® Service and Quality Warranty on the last pages of this manual.
• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
• Nor Velleman nv nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) – of any nature (financial, physical...) arising from the possession, use or failure of this product.
• Keep this manual for future reference.

4. Installation

Guidelines

• The construction to which the device is attached should be able to support 4 times the weight of the device for one hour without deformation.
• Never stand directly below the device when it is being mounted, removed or serviced. Have a qualified technician check the device once a year and once before you bring it into service.
• Overhead mounting requires extensive experience: calculating workload limits, determining the installation material to be used... Have the material and the device itself checked regularly. Do not attempt to install the device yourself if you lack these qualifications as improper installation may result in serious injuries.
• This device is not suitable for dimming.

Distances

• Keep at least 20 cm distance at the top and 30 cm on either side.
• Respect a minimum distance of 1 m between the device's light output and any illuminated surface.

Location

• You can adjust the detection area according to your needs: turn the device to the left or right and aim it up or down. Note that the detector is much more sensitive to objects moving across the detection area than it is to objects coming straight at it. This is a very important consideration when selecting the mounting location.
• Please avoid installing the floodlight upside-down in order to ensure its watertightness.
• The floodlight should be fixed to a stable outdoor wall made of a non-flammable material approximately between 0.5-3.0 m above the ground and at an angle of ±60^ , preferably in a location under eaves where the unit is protected from the elements and shielded from direct sunlight.
• Do not block the front of the detection window and make sure the detection area holds no moving objects.
• Do not install the device close to air conditioning vents, radiators, etc.

Mounting

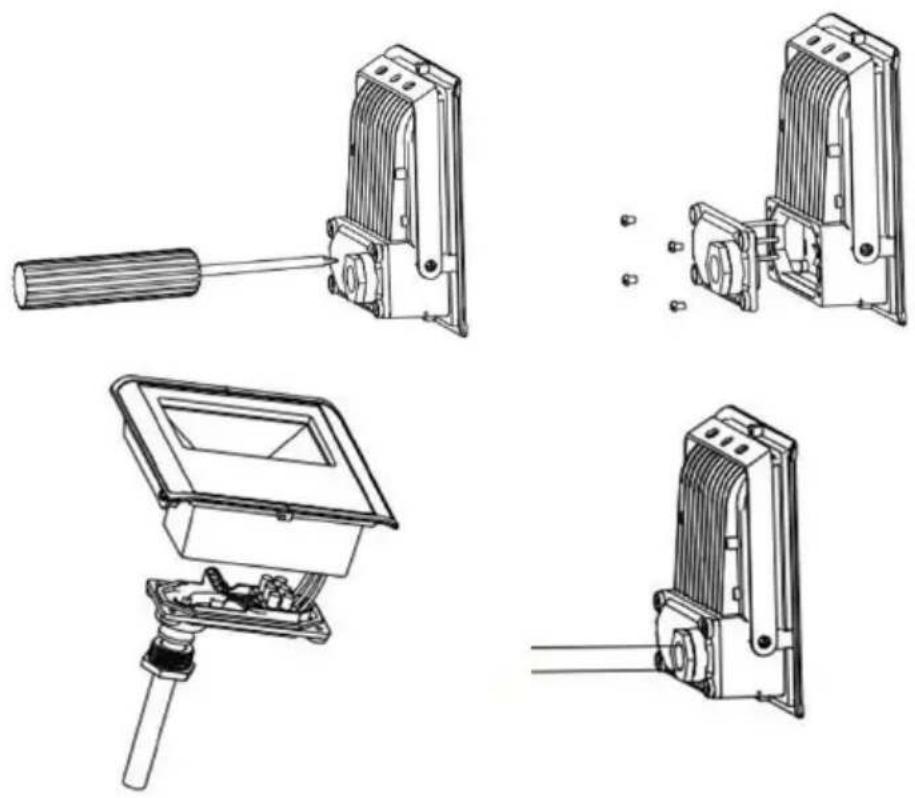

1. This luminaire does not have a built-in device to disconnect it from the electric mains. Make sure to electrically isolate the luminaire before installation or maintenance activities are performed. Use the mounting bracket to determine the location of the mounting holes.

2. Drill the holes and secure the bracket using screws and wall plugs.

3. Connect the power cable to the screw terminal. Make sure there is no strain on the cable; leave sufficient slack.

E N L

N = neutral, blue

E = earth, yellow/green

L = line, brown

If the power cable is damaged, it must be replaced by the manufacturer, his service agent, or a similar qualified person in order to avoid any hazard.

1. To point the lamp in the desired direction: loosen the hinges using a screwdriver.

2. Tilt the lamp in the desired angle and tighten the hinges.

Sensor Controls

LUX:

The device can distinguish between day and night thanks to the adjustable ambient light setting. The device can work in the daytime when the "sun" (max.) position is selected with the selector. When set to "moon", the sensor remains inactive during daylight. To set the sensitivity level, wait until it gets darker and set the sensitivity you want.

TIME:

Use the time adjustment control to set how long the floodlight will stay on after the motion has been detected (10 seconds (+/- 3 seconds) to 9 minutes (+/- 3 minutes)).

SENS:

Use the sensitivity adjustment control to set the sensitivity of the floodlight. Turn to the left to decrease the sensitivity, turn to the right to increase.

5. Care and Maintenance

Storage

Store the appliance and its accessories in a clean and dry area.

Cleaning

Before starting any cleaning or maintenance activities, unplug the appliance from its power source and let it cool down.

Wipe all exterior surfaces of the appliance clean with a soft cloth dampened with a soap and water solution. Do not immerse or submerge any part of the appliance in water or any other liquid. Never use solvents or cleaning agents containing petroleum (petrol, kerosene, oil), paint thinner, turpentine, alcohol, or ammonia.

Maintenance

All repairs should only be carried out by qualified service personnel. Do not open exterior casing of the appliance. There are no user-serviceable parts inside. Opening or visible attempts to open or repair the appliance may void any guarantee and/or cause damage to the product or personal injury.

6. Technical Specifications

	LEDA7001NW-BP	LEDA7002NW-BP
body colour	black
electrical data
total nominal power	10 W	20 W
nominal voltage driver	220-240 V~, 50 Hz
power factor	>0.5
energy consumption	0.01 kWh/1000 h	0.02 kWh/1000 h
light technical data
colour	neutral white
colour temperature	4000 K
beam angle	120°
luminous flux	700 lm	1400 lm
colour rendering index	>80
starting time	<0.5 s
warm-up time (60 %)	<1 s
lifespan
nominal life time	25000 h
number of switching cycles	<1 s
dimensions	127.9 x 113.4 x 64.4 mm	147.1 x 130.8 x 64.4mm
	LEDA7003NW-BP	LEDA7005NW-BP
body colour	black
electrical data
total nominal power	30 W	50 W
nominal voltage driver	220-240 V~, 50 Hz
power factor	>0.9
energy consumption	0.03 kWh/1000 h	0.05 kWh/1000 h
light technical data
colour	neutral white
colour temperature	4000 K
beam angle	120°
luminous flux	2100 lm	3500 lm
colour rendering index	>80
starting time	<0.5 s
warm-up time (60 %)	<1 s
lifespan
nominal life time	25000 h
number of switching cycles	<1 s
dimensions	166.3 x 147.6 x 67.5 mm	188 x 166.8 x 56.3 mm

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.perel.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.
