USER MANUAL DB500AC REV

White smartwatch with textured back panel and connected button (no visible text or symbols)

REV Ritter GmbH

Frankenstr. 1-4 • 63776 Mömbris • Deutschland • www.rev.de

E-Mail: [e-mail] • D AT Service-Telefon: [phone]*

QR code image containing encoded data, no visible human-readable text

GB

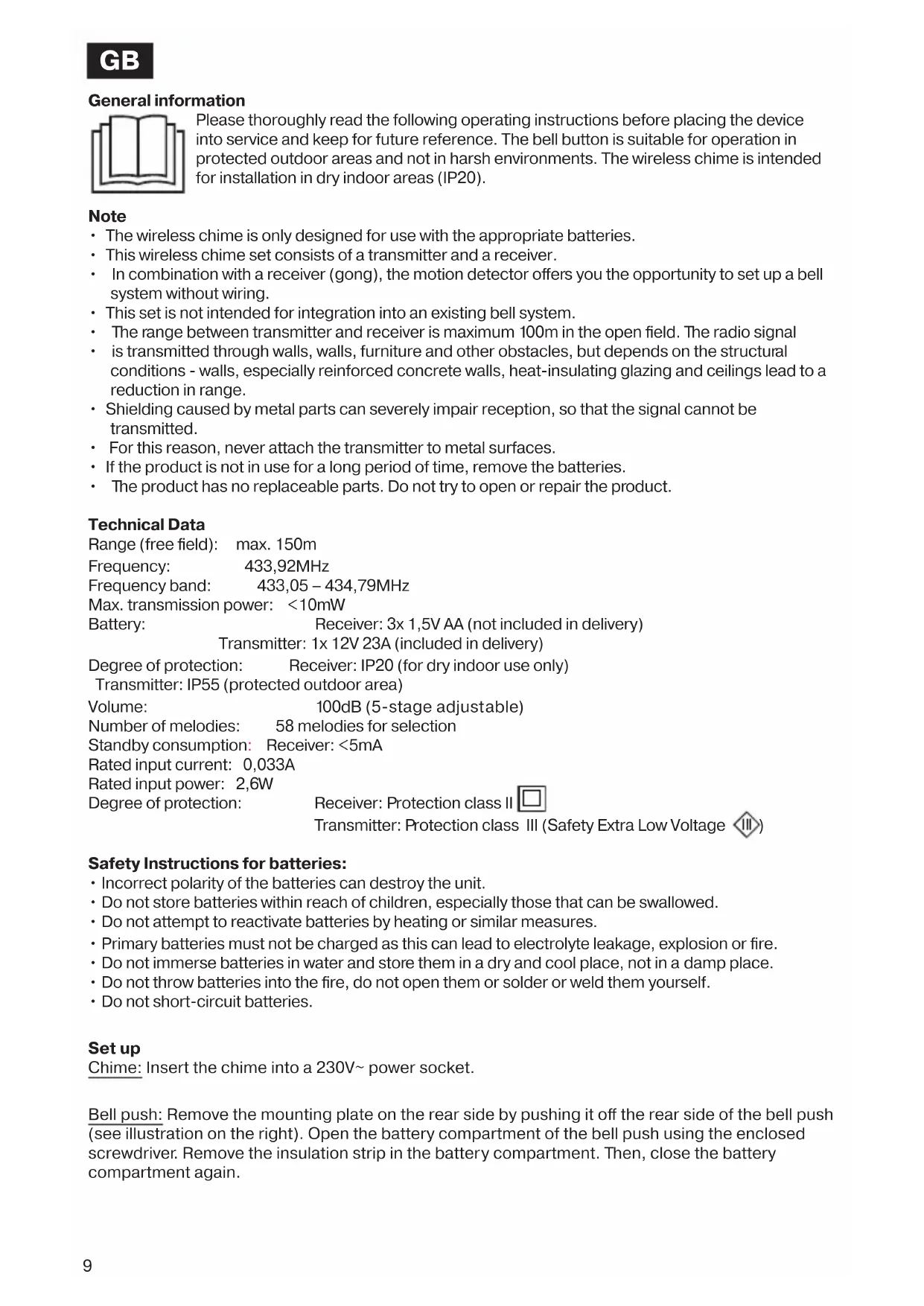

General information

Please thoroughly read the following operating instructions before placing the device into service and keep for future reference. The bell button is suitable for operation in protected outdoor areas and not in harsh environments. The wireless chime is intended for installation in dry indoor areas (IP20).

Note

• The wireless chime is only designed for use with the appropriate batteries.
  • This wireless chime set consists of a transmitter and a receiver.
• In combination with a receiver (gong), the motion detector offers you the opportunity to set up a bell system without wiring.
  • This set is not intended for integration into an existing bell system.
  • The range between transmitter and receiver is maximum 100m in the open field. The radio signal
• is transmitted through walls, walls, furniture and other obstacles, but depends on the structural conditions - walls, especially reinforced concrete walls, heat-insulating glazing and ceilings lead to a reduction in range.
• Shielding caused by metal parts can severely impair reception, so that the signal cannot be transmitted.
  • For this reason, never attach the transmitter to metal surfaces.
• If the product is not in use for a long period of time, remove the batteries.
  • The product has no replaceable parts. Do not try to open or repair the product.

Technical Data

Range (free field): max. 150m

Frequency: 433,92MHz

Frequency band: 433,05 - 434,79MHz

Max. transmission power: <10mW

Battery: Receiver: 3x 1,5V AA (not included in delivery)

Transmitter: 1x 12V 23A (included in delivery)

Degree of protection: Receiver: IP20 (for dry indoor use only)

Transmitter: IP55 (protected outdoor area)

Volume: 100dB (5-stage adjustable)

Number of melodies: 58 melodies for selection

Standby consumption: Receiver: <5mA

Rated input current: 0,033A

Rated input power: 2,6W

Degree of protection:

Receiver: Protection class II

Transmitter: Protection class III (Safety Extra Low Voltage

Safety Instructions for batteries:

• Incorrect polarity of the batteries can destroy the unit.
• Do not store batteries within reach of children, especially those that can be swallowed.
• Do not attempt to reactivate batteries by heating or similar measures.
  • Primary batteries must not be charged as this can lead to electrolyte leakage, explosion or fire.
• Do not immerse batteries in water and store them in a dry and cool place, not in a damp place.
• Do not throw batteries into the fire, do not open them or solder or weld them yourself.
• Do not short-circuit batteries.

Set up

Chime: Insert the chime into a 230V\~ power socket.

Bell push: Remove the mounting plate on the rear side by pushing it off the rear side of the bell push (see illustration on the right). Open the battery compartment of the bell push using the enclosed screwdriver. Remove the insulation strip in the battery compartment. Then, close the battery compartment again.

Creating/deleting coding

Chime and bell push in this set were already coded in the factory. If you want to renew the coding or add additional chimes/bell pushes, please proceed as follows.

Coding the chime and bell button::

1. Before coding, select your preferable bell tone (refer to "Volume setting/Melody selection").
2. Press the "Volume" button on the chime for 5 seconds. You will hear a ding-dong and the LED starts blinking, to signalise that the coding mode is active.
3. Press the bell push, to send a signal to the chime. If the coding was successful, the chime will automatically play back the bell tone.

Note:

• The coding mode is automatically terminated after concluding the coding.
  • The coding mode is only active for 5 seconds.
• The coding mode is always only available for one receiver (chime) and transmitter (bell push, motion detector, window contact) simultaneously. Repeat the above-mentioned coding if you would like to code multiple receivers/transmitters.
• You can assign a different bell tone to each transmitter when coding and in doing so, create a call differentiation.
• Up to 20 receivers (chime) can be assigned to one transmitter (bell push, motion detector, window contact). Refer to "Compatible Products".
• Up to 20 transmitters (bell pushes, motion sensors, window contacts) can be assigned to one receiver (chime). Refer to “Compatible Products”.

Deleting the coding:

Press the "Melody forward" button for 5 seconds, to reset the chime to the factory settings. When the chime plays back ding-dong and the LED blinks, resetting was successful.

Note: The coding between chime and window contact exists, until you delete the coding as described above. Even if you remove the batteries.

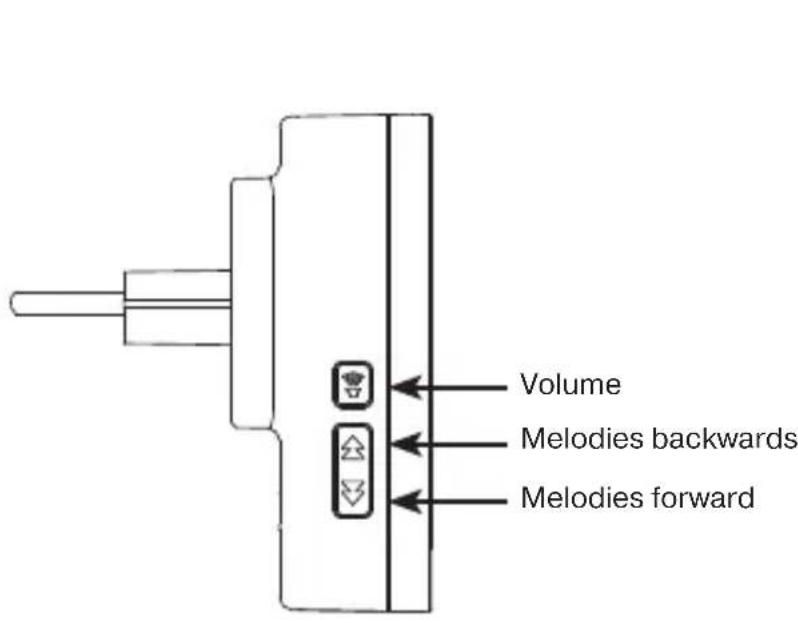

Chime side elevation

Volume Melodies backwards Melodies forward

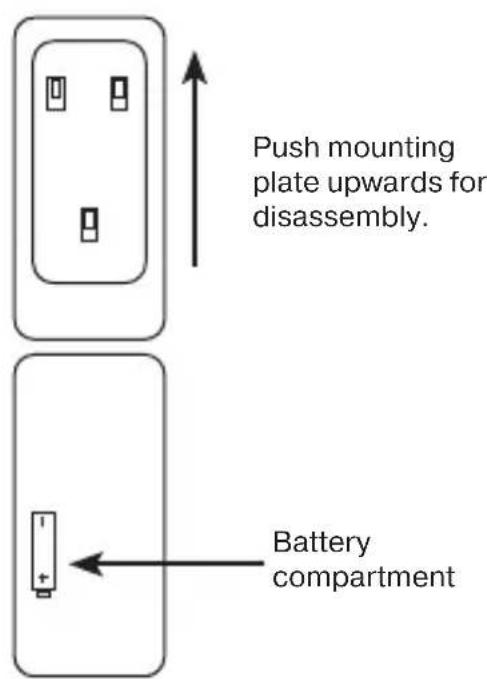

Bell push rear side

Push mounting plate upwards for disassembly. Battery compartment

Volume setting/Melody selection

Press the “Volume”/”melody forward/backward” button until you hear the required volume/melody. You can change the volume at any time and this is independent of the corresponding transmitter. The last selected volume is automatically saved.

You can still replay different bell tones by pressing “Melody forward/backward”. This does not effect the saved bell tone when coding between transmitter and receiver.

Installation

Choose a suitable location for the chime and bell push. Check the selected location for wiring before drilling any holes.

Tip: Test the desired function before ultimately installing the device at the place of installation you chose.

Chime: Insert the chime into a 230V\~ power socket. The recommended installation height is 1.1m.

Bell push: Mount the mounting plate using the enclosed screws. Push the bell push onto the mounting plate or use the enclosed double-sided tape for mounting.

Troubleshooting

Error description	Error correction
The chime does not sound	Check the batteries of the receiver (chime) and the transmitter (bell push, motion detector, window contact). Change the batteries if necessary.Check whether the distance between the receiver (chime) and transmitter (bell push, motion detector, window contact) is too far. If necessary, reduce the distance, to get back within the range.Check whether the receiver (chime) is coded with the transmitter (bell push, motion detector, window contact). If necessary, code the receiver and transmitter as described above.Check the volume setting of the receiver (chime). Increase the volume if necessary.
Range is low · Check	the mounting surface and the surroundings. Metal surfaces can reduce the range. Avoid installation on or near metal.Structural conditions (e.g. concrete walls or ceilings) can have an effect on the range.Other wireless products in the vicinity can have an effect on the range. Change the location of the receiver (chime) and/or transmitter (bell push, motion detector, window contact) or the other wireless product.Check the batteries of the receiver (chime) and transmitter (bell push, motion detector, window contact). Change the batteries if necessary.

Compatible Products

article number type number designation
0082600103 DB50	0 + DB50 Wireless chime	Orchestra square white + bell push Orchestra white
0082610103 DB50	0AC + DB50 Wireless chime	Orchestra square for socket white + bell push Orchestra white
0082620103 DB40	0 + DB50 Wireless chime	Orchestra rectangle white + bell push Orchestra white
0082630103 DB40	0AC + DB50 Wireless chime	Orchestra rectangle for socket white + bell push Orchestra white
0083950103 DB50	Wireless bell push Orchestra white
0083960103 SA-IR07-NWX03-D Wireless motion detector Orchestra white
0083970103 SA-MC08-N04-D Wireless window contact Orchestra white
0082650103 B6 (AC) + B6 (DC) + DB50		Wireless chime set Orchestra Gong Q + Gong Q socket white + bell push white
0082640103 B7 (DC) + SA-IR07-NWX03-D + DB50		Wireless chime set Orchestra Gong Q + wireless motion detector white + bell push white

WEEE Disposal Notice

According to the European regulations, used electrical and electronic equipment may no longer be put out into unsorted rubbish. The symbol on the wheeled rubbish bin points out the necessity for separated collection. Help us to protect the environment and ensure that this unit is put out in the appropriate systems for separate collection once you do not use it any longer. DIRECTIVE OF THE EUROPEAN PARLIAMENT AND COUNCIL of 4th July 2012 concerning used electrical and electronic equipment.

Battery disposal instructions

Batteries and rechargeable batteries must not be disposed of with household waste. Every consumer is legally obliged to dispose of all batteries and rechargeable batteries, whether or not they contain harmful substances, to a suitable commercial or municipal collection point municipality/district so that they can be disposed of in an environmentally friendly manner. Batteries and rechargeable batteries should only be returned in a discharged state!

CE Conformity Statement

REV Ritter GmbH hereby declares that it complies with radio equipment type DB500AC + DB50 according to DIRECTIVE 2014/53/EU. The complete CE Declaration of Conformity can be found under: www.rev.de under the corresponding article or type number.
