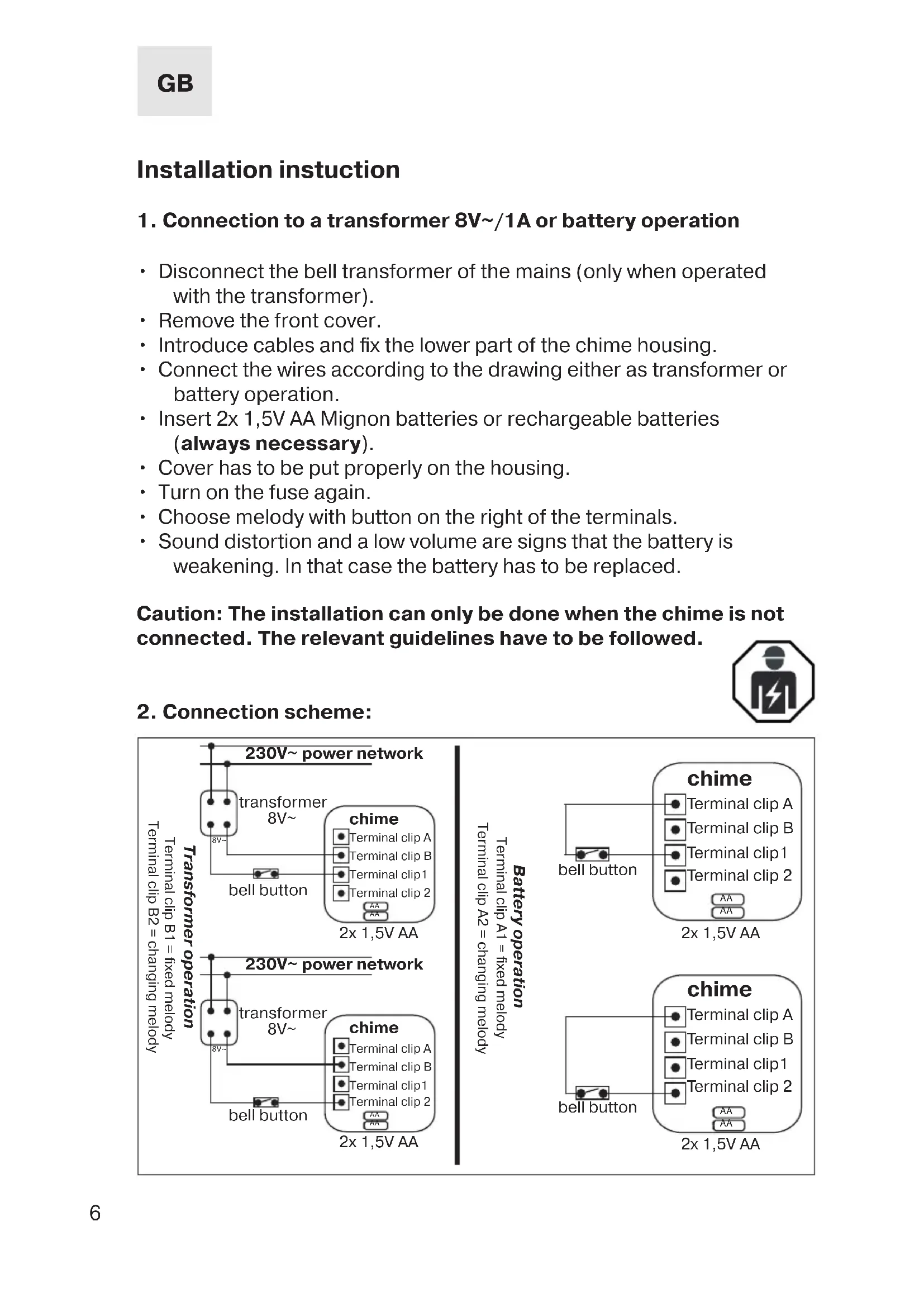

Notice REV 880 - page 6
6 / 32
View the manual : Français FR English EN
Pick your language and provide your email: we'll send you a specifically translated version.

User questions about 880 REV

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Doorbells in PDF format for free! Find your manual 880 - REV and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 880 by REV.

USER MANUAL 880 REV

natural_image Exterior view of a modern office building (no signage)

Typ 880

REV 880 - 1

natural_image Modern LED display with two metallic speakers and a central screen (no visible text or symbols)

Typ 810
Typ 820

GB Operating Instructions 6-7

FR Instructions de montage 8

Installation instruction

1. Connection to a transformer 8V\~/1A or battery operation

  • Disconnect the bell transformer of the mains (only when operated with the transformer).
  • Remove the front cover.
  • Introduce cables and fix the lower part of the chime housing.
  • Connect the wires according to the drawing either as transformer or battery operation.
  • Insert 2x 1,5V AA Mignon batteries or rechargeable batteries (always necessary).
    • Cover has to be put properly on the housing.
  • Turn on the fuse again.
  • Choose melody with button on the right of the terminals.
  • Sound distortion and a low volume are signs that the battery is weakening. In that case the battery has to be replaced.

Caution: The installation can only be done when the chime is not connected. The relevant guidelines have to be followed.

REV 880 - Connection to a transformer 8V\~/1A or battery operation - 1

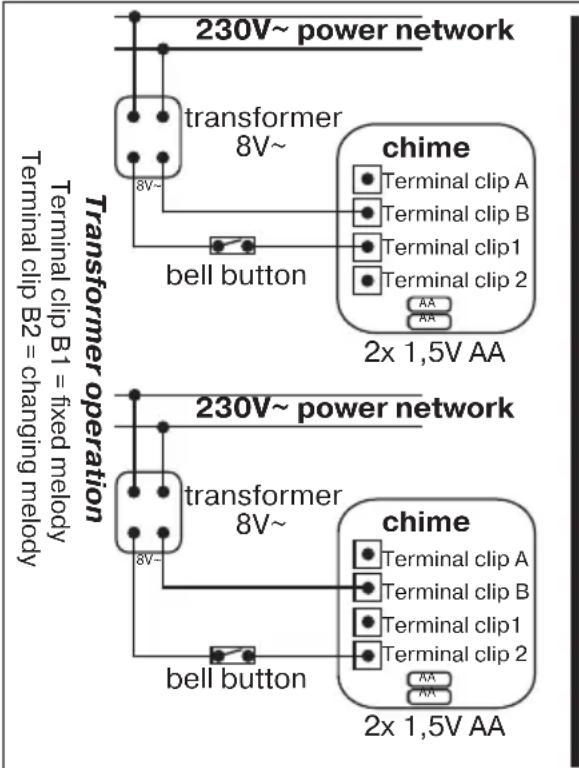

  1. Connection scheme:
    REV 880 - Connection to a transformer 8V\~/1A or battery operation - 2
text_image 230V~ power network transformer 8V~ bell button chime Terminal clip A Terminal clip B Terminal clip1 Terminal clip 2 AA AA 2x 1,5V AA Transformer operation Terminal clip B1 = fixed melody Terminal clip B2 = changing melody 230V~ power network transformer 8V~ bell button chime Terminal clip A Terminal clip B Terminal clip1 Terminal clip 2 AA AA 2x 1,5V AA

Terminal clip A2 = changing melody
Terminal clip A1 = fixed melody

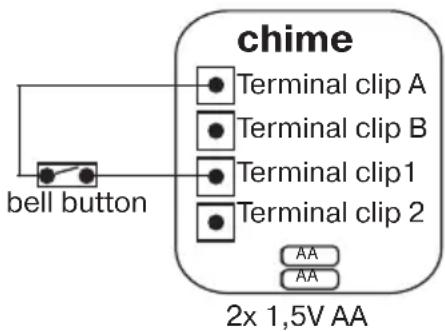

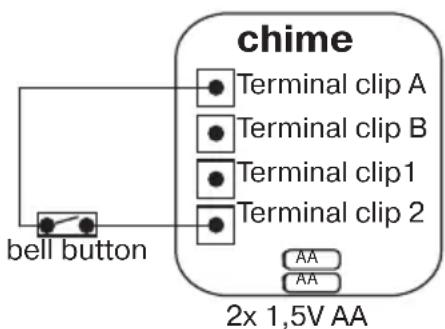

Battery operation
REV 880 - Connection to a transformer 8V\~/1A or battery operation - 3

text_image chime Terminal clip A Terminal clip B Terminal clip1 Terminal clip 2 bell button AA AA 2x 1,5V AA

REV 880 - Connection to a transformer 8V\~/1A or battery operation - 4

text_image chime Terminal clip A Terminal clip B Terminal clip1 Terminal clip 2 bell button AA AA 2x 1,5V AA

3. WEEE-reference of disposal

REV 880 - WEEE-reference of disposal - 1

In accordance with European defaults used electrical and electronics devices may no more be given to the unsorted waste. The symbol of the waste bin on wheels refers to the necessity of separate collection. Please help with environmental protection and see to it that this device is

given to the for this purpose designated systems of waste sorting if you do not use it any longer. DIRECTIVE 2012/19/EU of the EUROPEAN PARLIAMENT AND OF the COUNCIL of 4 July 2012 on waste electrical and electronic equipment (WEEE).
