ProSeries HB - Water filter HAYWARD - Free user manual and instructions

Product Type	Pool Sand Filter
Brand	Hayward
Model	ProSeries HB
Usage	Pool water filtration
Valve Positions	Filter, Backwash, Rinse, Waste, Closed
Backwash Trigger Pressure	+10 PSI (0.7 bar) from initial pressure
Maximum Installation Height	1.5 m above water level
Tank Material	Polyethylene
Tank Warranty	5 years
Product Warranty	2 years
Spare Parts	Use genuine Hayward parts
Routine Maintenance	Regular backwash as per pressure
Winterizing	Drain completely, leave valve between two positions
Safety	Stop pump before changing valve position
Installation	Requires filtration sand and pump connection
Initial Pressure	Note pressure at start for reference
Pre-filter Cleaning	Clean pump and skimmer pre-filters regularly
Recommended Filtration Duration	10 to 14 hours per day
Pressure Gauge	Included
Drain Plug	Yes, at the base of the tank

Frequently Asked Questions - ProSeries HB HAYWARD

How to install the Hayward ProSeries HB sand filter?

Place the filter on a flat, clean surface, no more than 1.5 m above the water level. Assemble the pump according to the instructions. Fill the tank with special sand after placing the diffuser and air relief tube. Connect the multi-port valve and pool hoses (skimmers, return, waste). Tighten connections and proceed with the pump electrical connection.

What type of sand to use for the ProSeries HB filter?

Use special pool filtration sand, typically with a grain size of 0.4 to 0.8 mm. The exact quantity is indicated on the filter label. Fill the tank halfway with water before adding sand.

How to perform a backwash?

Stop the pump. Set the valve to BACKWASH (lower the handle before turning). Restart the pump and let it run until the water is clear in the sight glass (about 2 minutes). Stop the pump, set to RINSE for 1 minute, then return to FILTER.

When should I clean the filter?

Clean the filter when the pressure gauge reads 10 PSI (0.7 bar) above the initial pressure (clean filter). Perform a backwash to remove impurities trapped in the sand.

What to do if the pressure is too high?

If pressure exceeds 10 PSI above start pressure, stop the pump and perform a backwash (BACKWASH position) for about 2 minutes, followed by a rinse (RINSE) for 1 minute. If pressure remains high, check that the sand is not clogged or that the pump is working properly.

How to winterize the ProSeries HB filter?

Completely drain the filter by unscrewing the drain plug at the base of the tank. Do not replace the plug during winter. Position the valve handle between two positions to prevent damage from freezing. Also drain the pump according to the manufacturer's instructions.

Can I use the CLOSED position with the pump running?

No, never use the CLOSED position with the pump running. This cuts off circulation between the filter and pump and can cause severe damage or injury. Always stop the pump before selecting this position.

What is the maximum installation height of the filter?

The top of the filter must be at a maximum height of 1.5 m above the pool water level for proper operation.

Where to find spare parts for the Hayward filter?

Use only genuine Hayward spare parts. Consult your authorized Hayward dealer. Do not use non-compliant parts, as this will void the warranty.

What is the warranty on the Hayward ProSeries HB sand filter?

The product is warranted for 2 years against manufacturing and material defects. The polyethylene tank has an extended warranty of 5 years. Keep your invoice as proof of purchase.

USER MANUAL ProSeries HB HAYWARD

Abstract geometric logo with stylized letter H inside a circular frame (no text or symbols)

HAYWARD®

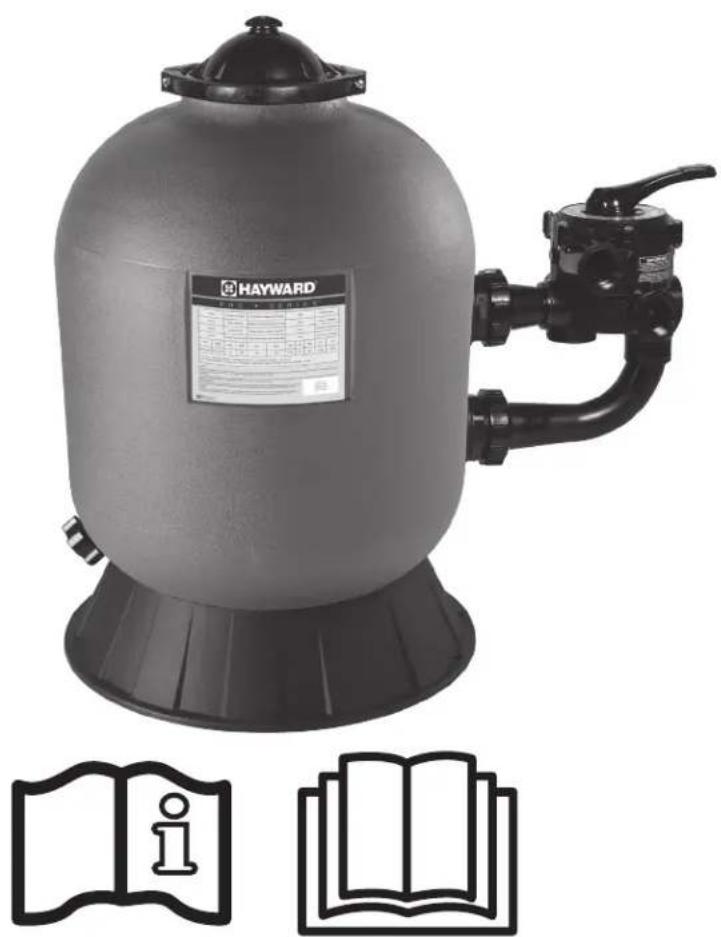

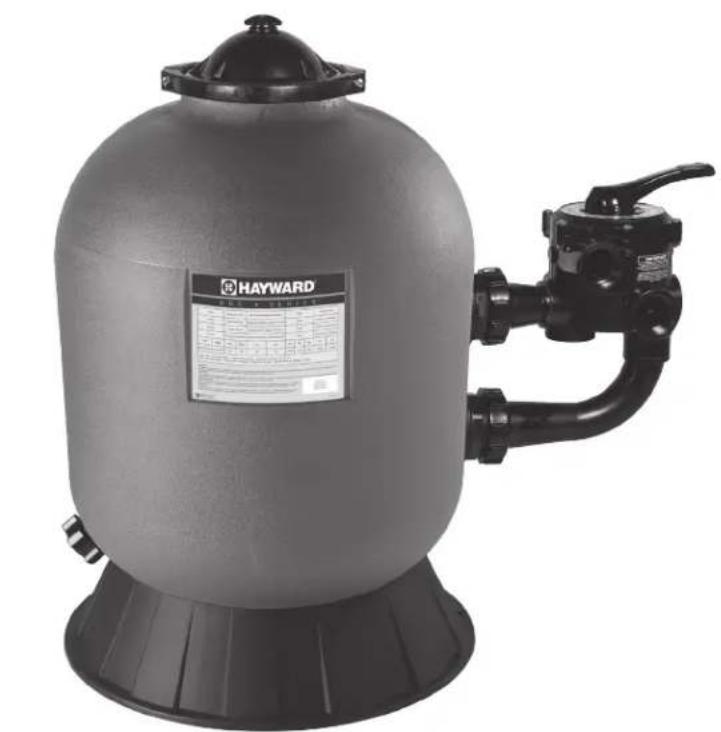

Exterior view of a large industrial water pool pressure vessel (no visible text or symbols on the device body)

Simple line icon of an open book with an information symbol inside (no text or numbers)

Simple line drawing of an open book with no text or symbols visible

GUIDE DE L'UTILISATEUR

OWNER'S MANUAL

MANUAL DEL USUARIO

MANUAL DO UTILIZADOR

ANWENDER - HANDBUCH

GEBRUIKERSHANDBOEK

MANUALE PER L'USO

Abstract geometric logo with stylized letter H inside a circular frame (no text or symbols)

HAYWARD®

HAYWARD water polo pool pressure regulator with a handle and control panel, accompanied by an open book icon (no text or symbols on the device itself)

FILTRES À SABLE

GUIDE DE L'UTILISATEUR

CONSERVEZ CE MANUEL POUR UNE CONSULTATION ULTÉRIEURE

Fig 2 R S W

Fig 3 SP0710X62E P R W P R

1 S	SX200G 7 SX244G	10a S	SX200QN (21) 12b CX	1100Z4 (24) 17	SX200Z4
2	SX200Z5	8a	SX210CD1FW (21)	10b	SX240DN (24)	13	SX200Z2	18
3	SX244K	8b	SX244CD1FW (24)	11a	SX242MA (21)	14	SX180LA	19
4	GMX600F	9a	SX210CD2FW (21)	11b	SX242MA1 (24)	15	SX200J	20
5	GMX600NM	9b	SX244CD2FW (24)	12a	CX3000Z2 (21)	16	SP0710X62E	21

a = S210SXE (21) b = S244SXE (24)

N'UTILISEZ QUE DES PIÈCES DÉTACHÉES D'ORIGINE HAYWARD

Abstract geometric logo with stylized letter H inside a circular frame (no text or symbols)

HAYWARD®

HAYWARD water polo pool pressure regulator with a handle and control panel, accompanied by an open book icon (no text or symbols on the main body)

SAND FILTERS

OWNER'S MANUAL

SAVE THIS OWNER'S MANUAL

WARNING - Read and follow all instructions in this owner's manual and on the equipment. Failure to follow instructions can cause injury.

WARNING – This document should be given to the owner of the swimming pool and must be kept by the owner in a safe place.

WARNING – This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

WARNING – Children should be supervised to ensure that they do not play with the appliance.

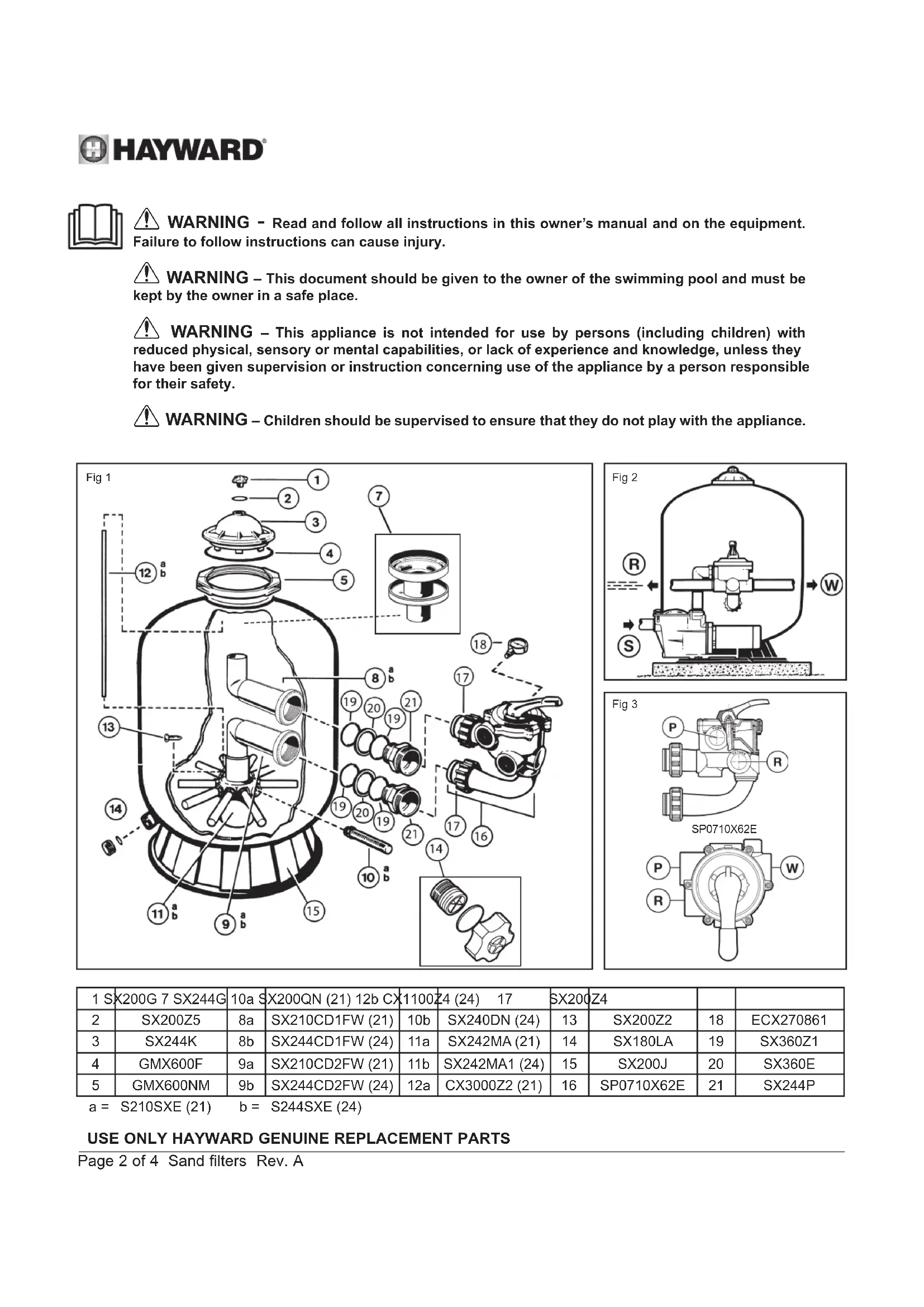

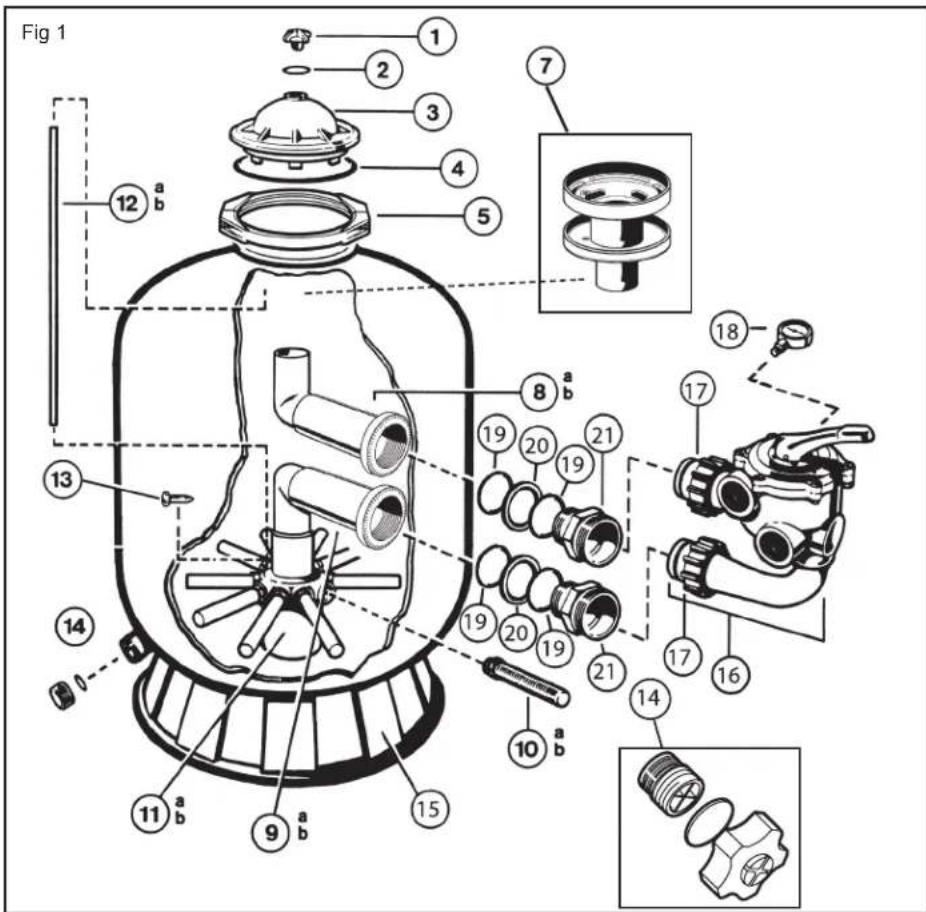

Fig 1 1 2 3 4 5 7 12 a b 8 a b 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

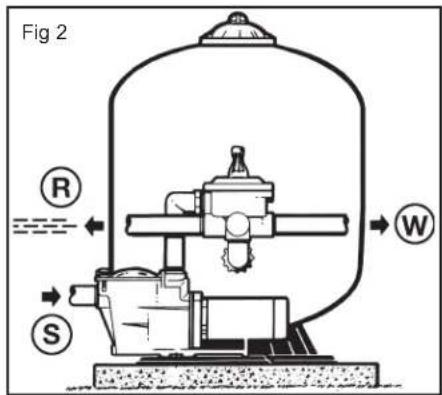

Fig 2 R S W

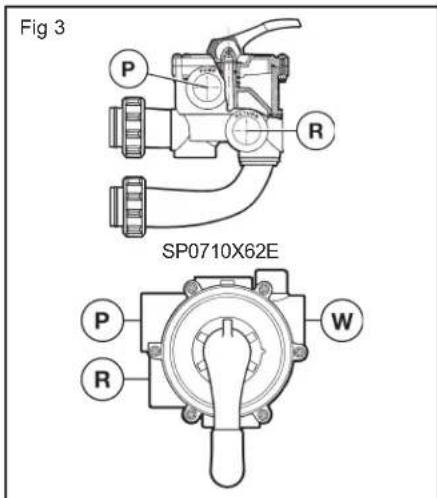

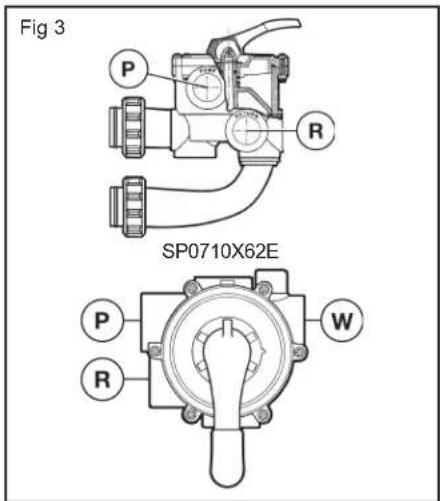

Fig 3 SP0710X62E P R W P R

1 S	X200G 7 SX244G	10a S	X200QN (21) 12b CX	1100Z4 (24) 17		SX200Z4
2	SX200Z5	8a	SX210CD1FW (21)	10b	SX240DN (24)	13	SX200Z2	18
3	SX244K	8b	SX244CD1FW (24)	11a	SX242MA (21)	14	SX180LA	19
4	GMX600F	9a	SX210CD2FW (21)	11b	SX242MA1 (24)	15	SX200J	20
5	GMX600NM	9b	SX244CD2FW (24)	12a	CX3000Z2 (21)	16	SP0710X62E	21

a = S210SXE (21) b = S244SXE (24)

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS

You have just become the owner of a sand filter, his base and his valve (see figure 1).

OPERATION

Your filtration system uses a special sand designed to trap impurities in the pool water. The sand is poured into the tank and acts as a permanent filtration system. The pump draws in the unfiltered pool water, which contains impurities in suspension, and feeds it to the multi-way control valve. When the water flows through the sand, the impurities are trapped there and the water that returns to your pool is filtered.

INSTALLATION

1. Locating the filter

Find a clean, level spot. The top of the filter must be at least 1.5 m distant from the water level. Place the filter so that the piping, the valve (16), and the drain plug (14) are easy to reach. This will make servicing and winterizing easier.

1. Assembling the pump

Assemble the pump and its mount with the filter as indicated by the manufacturer's instructions.

1. Filling the filter

The sand is put in through the opening in the top of the filter.

a. Remove diffuser (7) and pull aside air relief tube (12). Cover the opening in the top of the elbow (8) with the cap provided for this purpose, to prevent any sand getting in it during filling. Make sure that the drain plug (14) is in place. All laterals (10) must be in the down position.

b. Half-fill the filter with water, then pour in the required quantity of sand (Cf. table on label).

The surface of the sand should be levelled and reach the middle of the filter.

c. Remove the cap.

d. Replace diffuser (7) on top elbow.

e. Replace air relief tube (12). Place O-Ring (4) on dome (3), install manual air relief cap (1) with his O-Ring (2) and place dome, once complete, on top of the filter.

f. Fix dome (3) on valve with the clamp (5). There should be around 5 mm of space left between the two parts of the clamp.

1. Assembling the valve

a. Make sure that the «PUMP» outlet of the valve its towards the pump. Align the two valve pipe connections, with O-Rings in place, with the two openings in the side of the filter tank and press in firmly. Secure the assembly to the tank connections with the two bulkhead locknuts (17).

b. Remove the black plastic screw on the side of the valve and replace it with the pressure gauge (18). Screw in by hand without forcing.

c. Connect the «PUMP» outlet (P) of the valve to the top outlet of the pump as indicated by the manufacturer's instructions.

1. Connecting the valve

Then simply connect the pipes from the pool (cf. fig. 2) and from the skimmers (S) to the bottom port of the pump, on the prefilter side, the discharge pipes to the valve port marked «RETURN» (R), and the drain connection to the valve port marked «WASTE» (W).

1. Make the electrical connections of the pump as indicated by the manufacturer's instructions.

2. To avoid leaks, make sure that the drain plug (14) in place and that all connections are tight.

Note 1: Do not force when screwing the connection end fittings into the valve unions.

Note 2: Coat the male threads with Teflon.

STARTING UP

IMPORTANT: ALWAYS STOP THE PUMP BEFORE OPERATING THE MULTI-WAY VALVE.

1. Check that all connections are tight and that the filter contains just the right amount of sand.

2. Set the valve to «BACKWASH». Always lower the handle before turning.

3. Start the pump as indicated by the manufacturer's instructions. Check that water flows normally in the circuit.

WARNING: All suction and discharge valves must be open when the pump is started. Otherwise, there is a risk of property damage, grave injury, or death.

Once the water flows smoothly, let the pump run for at least another 2 minutes. This backwash is recommended to elimi-

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS

nate any impurities or fine particles from the filtering sand.

1. Stop the pump and set the valve to «RINSE». Restart the pump and let run until the water becomes clear in the valve circulation telltale (about a minute).
2. Stop the pump and set the valve to «FILTER». Restart the pump and filtering starts.

Adjust the inlet and outlet valves for the desired water flow.

1. Carefully note the pressure reading at that time and the position of the needle on the pressure gauge. As the filter operates, impurities are retained and the pressure increases in the tank.

When it exceeds the initial pressure (clean filter) by 10 PSI (0.7 bars or kg/cm2), the filter must be backwashed.

Note 1: When your pool's water is cleaned for the first time, it may be necessary to backwash the filter frequently: the quantity of impurities is likely to be large.

Note 2: Clean the pre-filters of the pump and skimmers regularly to ensure trouble-free operation of your filtration system.

Note 3: Installations including heaters or cleaning systems with nozzles or tentacles protruding from the walls are highly sensitive to hydraulic rams because they operate at high pressure. The installer must do everything necessary to prevent hydraulic rams in the installation.

FUNCTIONS OF VALVE AND FILTER

FILTER

Set the valve to "Filter" for normal filtration (10 to 14 hours a day).

BACKWASH

For cleaning filter. When filter pressure gauge rises 10 PSI (0.7 bars or kg/cm2) above start-up (clean pressure).

Run the pump until the water in the sight glass is clear. Stop the pump about 2 minutes later and set the valve to "Rinse".

RINSE

With the valve set to “Rinse”, run the pump for about one minute. This evacuates the dirty backwash water to a drain, not the pool. Stop the pump, set back to “Filter”, and restart.

WASTE

The water is discharged directly to the sewer without going through the filter: to lower the pool water level and directly eliminate very dirty water when using the vacuum.

RECIRCULATE

The water bypasses the filter, for rapid dispersion of chemicals or for massive chlorination.

CLOSED

Cuts off circulation between the filter and the pump. NEVER USE THIS POSITION WITH THE PUMP RUNNING.

WINTERIZING

1. Completely drain tank by unscrewing drain cap at base of filter tank. Leave cap off during winter.
2. Rotate and leave the valve handle between any position.
3. Drain and winterize pump according to pump instructions.

SERVICE AND REPAIRS

Consult your local dealer. No return may be made directly to the factory without the express written authorization of Hayward Pool Europe.

If malfunctioning continues, or for any other operating fault, contact your retailer-installer.

It is expressly stipulated that HAYWARD cannot be held responsible for any damage caused by its equipment if such damage is caused by non-conforming repairs whenever, during the replacement of parts, HAYWARD original parts were not used and if repair was not performed in conformity with HAYWARD instructions or if the information in this guide was not complied with. This is also valid for any addition of parts and accessories other than those recommended by HAYWARD.

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS

Abstract geometric logo with stylized letter H inside a circular frame (no text or symbols)

HAYWARD®

HAYWARD water polo pool pressure regulator with a handle and control panel, accompanied by an open book icon (no text or symbols on the device itself)

FILTROS DE ARENA

MANUAL DEL USUARIO

CONSERVE ESTE MANUAL DE INSTRUCCIONES

Fig 2 R S W

Fig 3 SP0710X62E P R W P R

1	SX200G	7	SX244G	10a	SX200QN (21)	12b	CX1100Z4 (24)	17	SX200Z4
2	SX200Z5	8a	SX210CD1FW (21)	10b	SX240DN (24)	13	SX200Z2	18	ECX270861
3	SX244K	8b	SX244CD1FW (24)	11a	SX242MA (21)	14	SX180LA	19	SX360Z1
4	GMX600F	9a	SX210CD2FW (21)	11b	SX242MA1 (24)	15	SX200J	20	SX360E
5	GMX600NM	9b	SX244CD2FW (24)	12a	CX3000Z2 (21)	16	SP0710X62E	21	SX244P

a = S210SXE (21) b = S244SXE (24)

USE SOLO PIEZAS DE REPUESTO ORIGINALES DE HAYWARD

Abstract geometric logo with stylized letter H inside a circular frame (no text or symbols)

HAYWARD®

HAYWARD water polo pool pressure regulator with a handle and control panel, accompanied by an open book icon (no text or symbols on the main body)

FILTROS DE AREIA

MANUAL DO UTILIZADOR

GUARDE ESTE MANUAL DE INSTRUCCÕES

Fig 2 R S W

Fig 3 SP0710X62E P R W P R

1 S	X200G 7 SX244G	10a S	X200QN (21) 12b CX	1100Z4 (24) 17 SX200Z4
2	SX200Z5	8a	SX210CD1FW (21)	10b	SX240DN (24)	13	SX200Z2	18	ECX270861
3	SX244K	8b	SX244CD1FW (24)	11a	SX242MA (21)	14	SX180LA	19	SX360Z1
4	GMX600F	9a	SX210CD2FW (21)	11b	SX242MA1 (24)	15	SX200J	20	SX360E
5	GMX600NM	9b	SX244CD2FW (24)	12a	CX3000Z2 (21)	16	SP0710X62E	21	SX244P

a = S210SXE (21) b = S244SXE (24)

UTILIZE APENAS PEÇAS SOBRESSELENTES ORIGINAIS HAYWARD

Acaba de adquirir um filtro de areia, com suporte e válvula (Fig. 1).

FUNCIONAMENTO

Abstract geometric logo with stylized letter H inside a circular frame (no text or symbols)

HAYWARD®

HAYWARD water polo pool pressure regulator with a handle and control panel, accompanied by an open book icon (no text or symbols on the main body)

SANDFILTER

ANWENDER - HANDBUCH

Fig 2 R S W

Fig 3 SP0710X62E P R W P R

1 S	X200G 7 SX244G	10a S	X200QN (21) 12b CX	1100Z4 (24) 17		SX200Z4
2	SX200Z5	8a	SX210CD1FW (21)	10b	SX240DN (24)	13	SX200Z2	18
3	SX244K	8b	SX244CD1FW (24)	11a	SX242MA (21)	14	SX180LA	19
4	GMX600F	9a	SX210CD2FW (21)	11b	SX242MA1 (24)	15	SX200J	20
5	GMX600NM	9b	SX244CD2FW (24)	12a	CX3000Z2 (21)	16	SP0710X62E	21

a = S210SXE (21) b = S244SXE (24)

VERWENDEN SIE NUR ORIGINAL-ERSATZTEILE VON HAYWARD

Abstract geometric logo with stylized letter H inside a circular frame (no text or symbols)

HAYWARD®

HAYWARD water polo pool pressure regulator with a handle and control panel, accompanied by an open book icon (no text or symbols on the main body)

Simple line icon of an open book with an information symbol inside (no text or numbers)

Simple line drawing of an open book with no text or symbols visible

ZANDFILTERS

GEBRUIKERSHANDBOEK

BEWAAR DEZE HANDLEIDING

Fig 2 R S W

Fig 3 SP0710X62E P R W P R

1	SX200G	7	SX244G	10a	SX200QN (21)	12b	CX1100Z4 (24)	17	SX200Z4
2	SX200Z5	8a	SX210CD1FW (21)	10b	SX240DN (24)	13	SX200Z2	18	ECX270861
3	SX244K	8b	SX244CD1FW (24)	11a	SX242MA (21)	14	SX180LA	19	SX360Z1
4	GMX600F	9a	SX210CD2FW (21)	11b	SX242MA1 (24)	15	SX200J	20	SX360E
5	GMX600NM	9b	SX244CD2FW (24)	12a	CX3000Z2 (21)	16	SP0710X62E	21	SX244P

a = S210SXE (21) b = S244SXE (24)

GEBRUIK UITSLUITEND ORIGINELE HAYWARD-WISSELSTUKKEN

KLEP- EN FILTERFUNCTIES

FILTER (FILTER)

Abstract geometric logo with stylized letter H inside a circular frame (no text or symbols)

HAYWARD®

HAYWARD water polo pool pressure regulator with a handle and control panel, accompanied by an open book icon (no text or symbols on the main body)

FILTRI A SABBIA
MANUALE PER L'USO

CONSERVARE ACCURATAMENTE IL PRESENTE MANUALE D'USO

Fig 2 R S W

Fig 3 SP0710X62E P R W P R

1	SX200G	7	SX244G	10a	SX200QN (21)	12b	CX1100Z4 (24)	17	SX200Z4
2	SX200Z5	8a	SX210CD1FW (21)	10b	SX240DN (24)	13	SX200Z2	18	ECX270861
3	SX244K	8b	SX244CD1FW (24)	11a	SX242MA (21)	14	SX180LA	19	SX360Z1
4	GMX600F	9a	SX210CD2FW (21)	11b	SX242MA1 (24)	15	SX200J	20	SX360E
5	GMX600NM	9b	SX244CD2FW (24)	12a	CX3000Z2 (21)	16	SP0710X62E	21	SX244P

a = S210SXE (21) b = S244SXE (24)

UTILIZZARE ESCLUSIVAMENTE PARTI DI RICAMBIO ORIGINALI HAYWARD

Abstract geometric logo with stylized letter H inside a circular frame (no text or symbols)

HAYWARD®

HAYWARD water polo pool pressure regulator with a handle and control panel, accompanied by an open book icon (no text or symbols on the main body)

ПЕСОЧНЫЕ ФИЛЬТРЫ

Рис. 3 SP0710X62E P R P W R

1 S	X200G 7 SX244G	10a S	X200QN (21) 12b CX	1100Z4 (24) 17 SX200Z4
2	SX200Z5	8a	SX210CD1FW (21)	10b	SX240DN (24)	13	SX200Z2	18	ECX270861
3	SX244K	8b	SX244CD1FW (24)	11a	SX242MA (21)	14	SX180LA	19	SX360Z1
4	GMX600F	9a	SX210CD2FW (21)	11b	SX242MA1 (24)	15	SX200J	20	SX360E
5	GMX600NM	9b	SX244CD2FW (24)	12a	CX3000Z2 (21)	16	SP0710X62E	21	SX244P

a = S210SXE (21) b = S244SXE (24)

All HAYWARD products are covered for manufacturing defects or material defects for a warranty period of 2 years as of date of purchases. Any warranty claim should be accompanied by evidence of purchase, indicating date of purchase. We would therefore advise you to keep your invoice.

The HAYWARD warranty is limited to repair or replacement, as chosen by HAYWARD, of the faulty products, provided that they have been subjected to normal use, in compliance with the guidelines given in their user guides, provided that the products have not been altered in any way, and provided that they have been used exclusively with HAYWARD parts and components. The warranty does not cover damage due to frost and to chemicals. Any other costs (transport, labour, etc.) are excluded from the warranty.

HAYWARD may not be held liable for any direct or indirect damage resulting from incorrect installation, incorrect connection, or incorrect operation of a product.

In order to claim on a warranty and in order to request repair or replacement of an article, please ask your dealer.

No equipment returned to our factory will be accepted without our prior written approval.

Product with warranty extension : Polyethylene tank (sand filter) 5 year.

Wearing parts are not covered by the warranty.

GARANTÍA LIMITADA

BESCHRÄNKTE GARANTIE
