Product Type	Folding Transport Cart
Brand	Black & Decker
Model	BDCWBK01
Dimensions (L x H x D)	80 x 54 x 56 cm
Weight	2.1 kg
Maximum Load Capacity	80 kg
Intended Use	Garden and transport of objects
Frame Material	Steel
Bag Material	Polyester fabric
Carrying Handle	With lock button and safety strap
Number of Wheels	4
Brake	Yes, on one wheel
Assembly	Manual unfolding, automatic locking
Folding	Manual folding with Velcro fastening
Care and Cleaning	Clean with a soft, slightly damp cloth; do not use corrosive detergent
Safety	Do not overload, do not use to transport people, do not use on steep slopes
Warranty	24 months
Storage	In a dry, ventilated place, out of reach of children
Included Accessories	Handle, safety strap, clip, brake

Frequently Asked Questions - BDCWBK01 BLACK & DECKER

How to assemble the BDCWBK01 cart?

Remove the cart from the packaging, open the Velcro on the carrying handle, fully unfold the frame, push the bottom down, release the handle by pressing the lock button, unfold the handle to the desired position, secure it with the safety strap and clip.

What is the maximum load capacity?

The maximum load capacity is 80 kg. Never exceed this limit and distribute the load evenly.

How to fold and store the cart?

Fold the cart completely by reversing the unfolding steps: remove the strap, fold the handle, fold the frame, then close the Velcro around the carrying handle.

Can I use the cart on slopes?

It is not recommended to use the cart on steep slopes or uneven surfaces that could cause it to tip over. Always check the wheels before loading/unloading on a slope.

How to maintain and clean the cart?

Clean with a soft, slightly damp cloth. Never use corrosive detergent, wire brush, or abrasive. Do not machine wash the fabric.

Is the cart suitable for children?

No, this cart is not a toy. Do not let children use it. Supervise closely when used near children.

What to do if a part is damaged?

Do not use the cart if a part is damaged. Have defective parts replaced by an authorized repairer. Do not attempt to remove or replace parts not mentioned in the instructions.

How to use the brake?

Use the brake (5) to lock or brake the cart. It is located on one wheel. Push it down to lock the wheel.

What is the warranty on the cart?

Black & Decker offers a 24-month warranty from the date of purchase. It is valid in the EU, EEA, and UK. Keep the proof of purchase.

Can I transport the cart in a vehicle?

Yes, but it must be placed in the trunk or properly secured to prevent movement due to changes in direction or speed.

USER MANUAL BDCWBK01 BLACK & DECKER

BLACK+ DECKER™

1 2 3 4 5 BLACK & DECKER

English (original instructions) 4

Illustration of a hand adjusting a garment with a curved arrow indicating rotation (no text or symbols present)

Technical line drawing of a person wearing a wheelchair with two wheels and overhead arm joints (no text or symbols)

Diagram showing a hand holding a mechanical component with labeled parts and an arrow indicating motion direction.

Diagram showing a hand operating a tool with an arrow indicating direction, labeled with number 2 and letter D.

③ E

④ F

G ⑤

Intended use

Your BLACK+DECKER BDCWBK01 Collapsible wagon has been designed for Gardening and transporting goods. This wagon is intended for consumer use only.

Safety instructions

IMPORTANT! It is essential that you read the instructions in this manual before assembling, operating and maintaining this product.

• Always check for damaged or worn out parts before using the wagon. Broken parts will affect the wagon operation. Replace or repair damaged or worn parts immediately.
• Always check all four wheels when loading or unloading the wagon on an incline.
• Keep parts and screws out of the reach of children.
• Tighten screws and bolts periodically.
• Distribute load evenly in wagon.
• This wagon is designed to carry goods, DO NOT use it as personal transportation.

Technical illustration of a person wearing a wheelchair with two wheels and overhead arm joints (no text or symbols)

• DO NOT modify the wagon in any way. Unauthorized modification may impair the function and/or safety and could affect the life of the equipment. There are specific applications for which the cart was designed.
• DO NOT operate if any part is damaged or broken.
• DO NOT use on steep inclines or uneven ground where tipping may occur.
• DO NOT allow children to use this wagon. IT IS NOT A TOY! It is not designed or intended to be used for play.
• DO USE care when unfolding and folding. Be aware of finger placement as pinching can occur.
• DO NOT exceed the maximum load capacity of 80KG. This must be evenly distributed. Serious personal injury can result if the wagon is overloaded.

• DO NOT overfill the wagon. It can become unstable and tip.

• DO NOT lift or carry product by handle. Use fabric carry straps only.
  ♦ DO NOT lift when loaded.

• DO NOT place any sharp items inside the product.
• Make sure the wagon is locked in the open or collapsible state before usage.

Using your wagon

Always take care when using the wagon.

• Never allow children or people unfamiliar with the instructions to use the wagon.
• Close supervision is necessary when the wagon is used near children.
• This wagon is not intended for use by young or infirm persons without supervision.
• Only use the wagon in daylight or good artificial light.
• Use in a dry location only. Do not allow the wagon to become wet.
• Do not immerse the wagon in water.

After use

• When not in use, the wagon should be stored in a dry, well ventilated place out of reach of children.
• Children should not have access to stored wagons.
• When the wagon is stored or transported in a vehicle it should be placed in the boot or restrained to prevent movement following sudden changes in speed or direction.

Inspection and repairs

- Before use, check the wagon for

damaged or defective parts. Check for breakage of parts and any other conditions that may affect its operation.

• Do not use the wagon if any part is damaged or defective.
• Have any damaged or defective parts repaired or replaced by an authorised repair agent.
• Never attempt to remove or replace any parts other than those specified in this manual.

Labels on wagon

The following pictograms are shown on the tool along with the date code:

Warning! To reduce the risk of injury, the user must read the instruction manual.

Maximum Load 80Kg

DO NOT allow children to use this cart. IT IS NOT A TOY!

DO NOT tow behind vehicle

Avoid Injury to fingers

Do Not Overfill

Make sure the wagon is locked

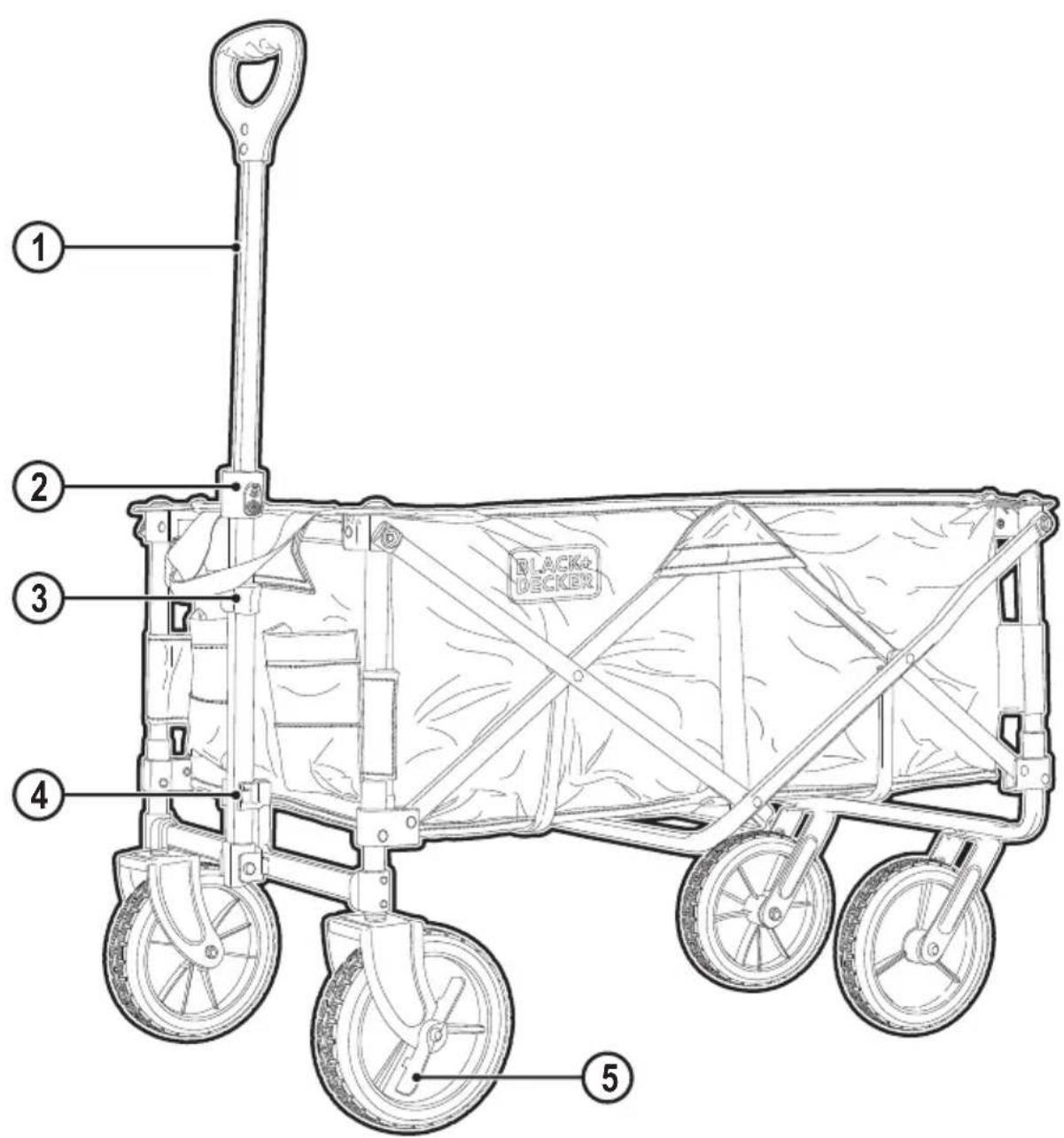

Features

This machine includes some or all of the following features.

1. Main handle
2. Handle lock
3. Handle secutring strap
4. Handle stow clip
5. Brake

Assembly and Use

Warning! Read and understand the Collapsible wagon manual,

◆ Remove the wagon from the shipping carton and stand upright on its wheels. Save the carton for storage.
- Undo Velcro closure on handle wrap, as shown in figure A.

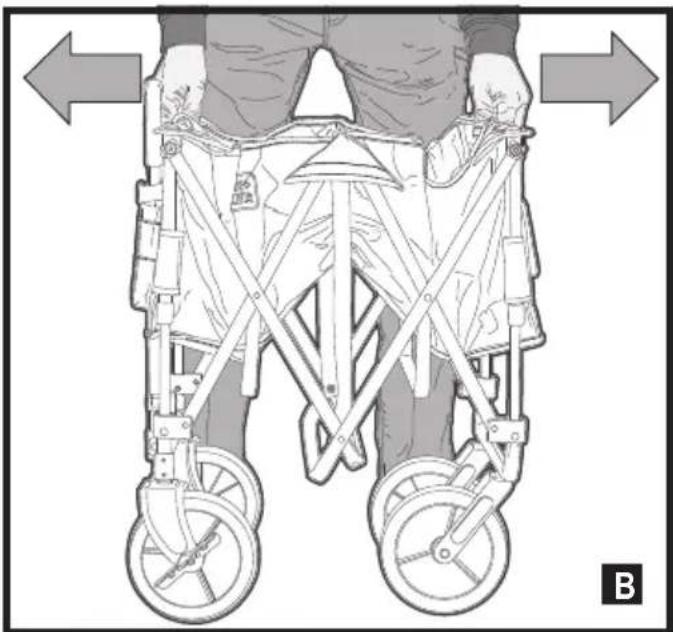

◆ Spread the wagon frame open and allow it to come to a fully expanded position, as shown in figure B.
◆ Push down on the middle of the base to ensure wagon is full extended.

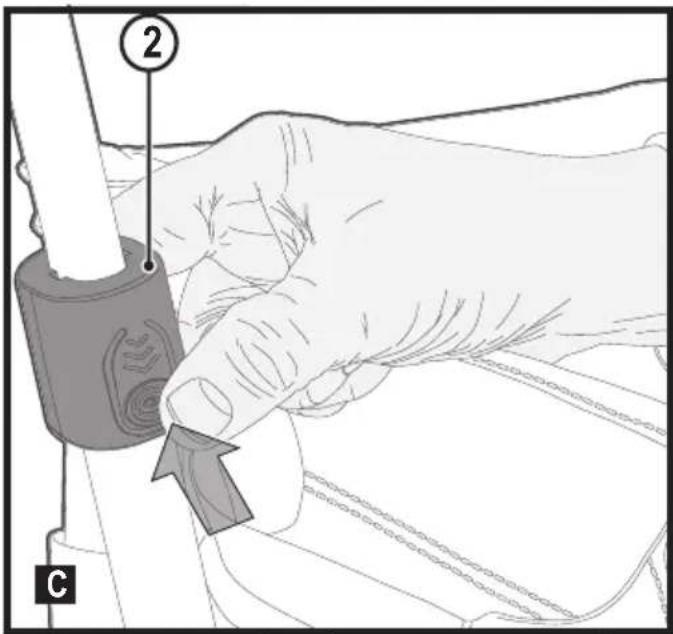

◆ Release the handle (1) by pushing the button on the handle lock (2), as shown in figure C.

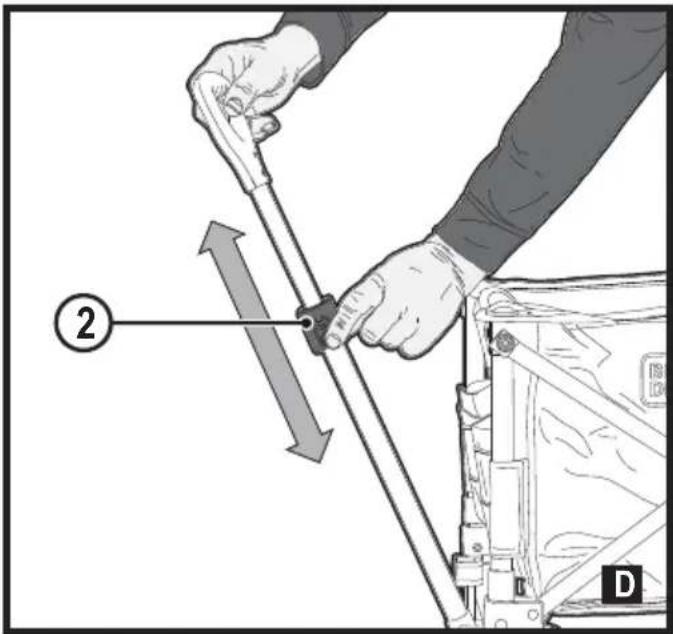

◆ Extend the handle (1) to the required position, as shown in figure D.

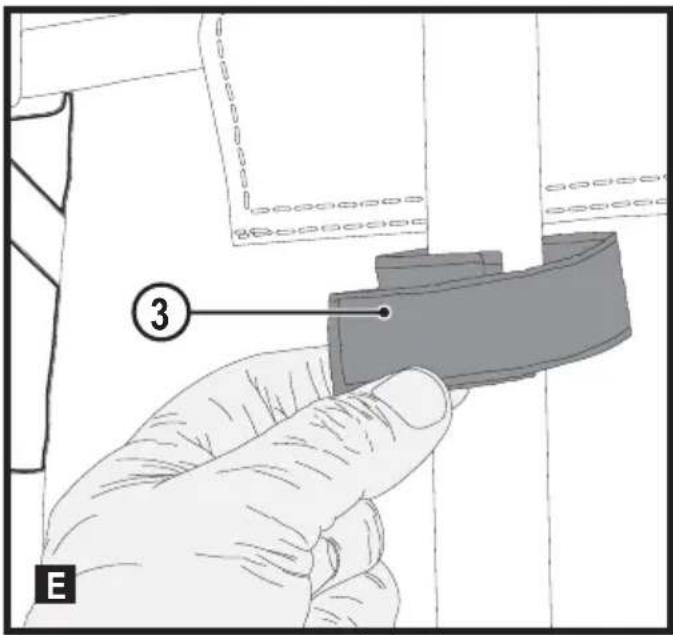

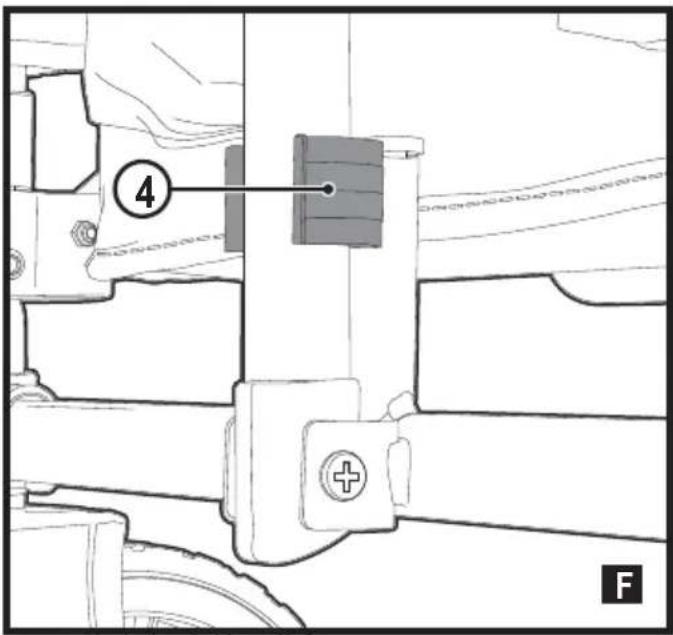

◆ Secure the handle (1) with the handle securing strap (3) and the handle stow clip (4) as shown in figure E and F.

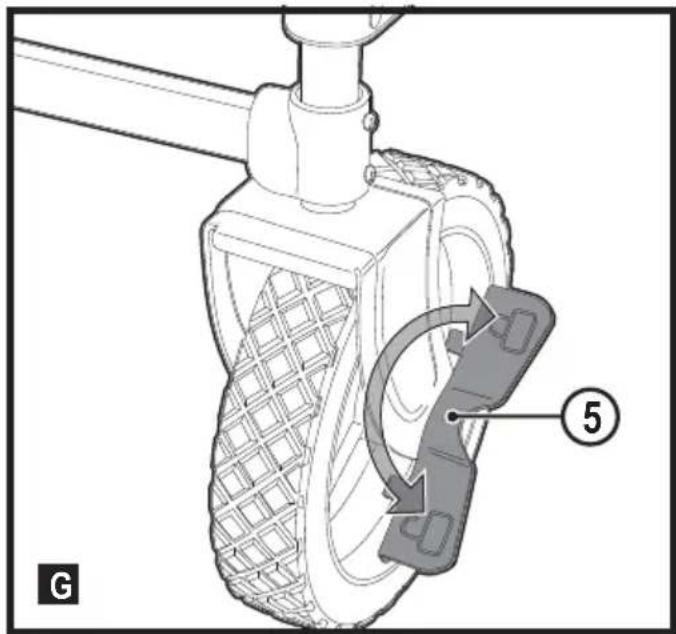

◆ To lock/stop the wagon, use the brake (5) as shown in figure G.

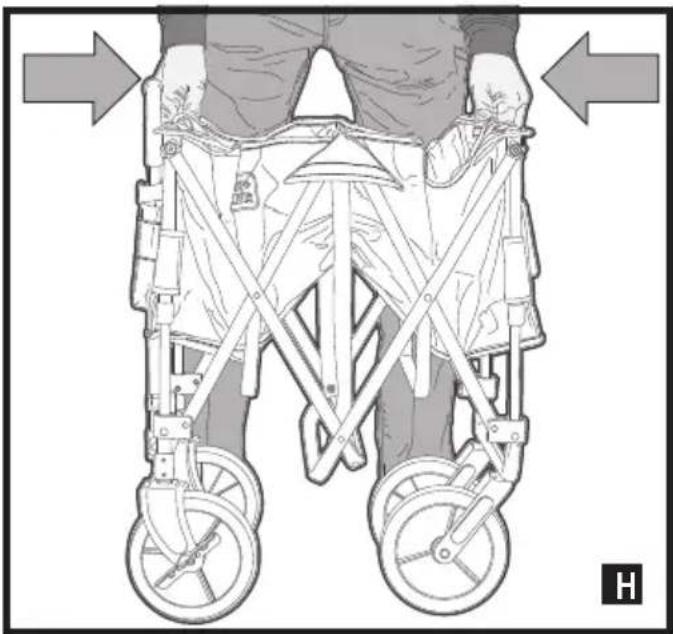

◆ Fold the wagon by closing the frame tightly and secure the handles with the Velcro, as shown in figure H.

Maintenance

Your BLACK+DECKER wagon has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool/machine care and regular cleaning.

◆ To clean the product, wipe with a soft, slightly moist cloth.
- Never use corrosive detergents, wire brushes, abrasive scourers, metal or sharp utensils to clean the product.
◆ Do not machine wash the fabric.

Protecting the environment

Separate collection. Products and batteries marked with this symbol must not be disposed of with normal household waste

Products and batteries contain materials that can be recovered or recycled reducing the demand for raw materials. Please recycle electrical products and batteries according to local provisions. Further information is available at www.2helpU.com

Technical data

		BDCWBK01
Weight	kg	2.1
Maximum load capacity:	Kg	80
Dimensions (W x H x D)	Cm	80 x 54 x 56 cm

Guarantee

Black & Decker is confident of the quality of its products and offers consumers a 24 month guarantee from the date of purchase. This guarantee is in addition to and in no way prejudices your statutory rights. The guarantee is valid within the territories of the Member States of the European Union, European Free Trade area and the United Kingdom.

To claim on the guarantee, the claim must be in accordance with Black & Decker Terms and Conditions and you will need to submit proof of purchase to the seller or an authorised repair agent. Terms and conditions of the Black & Decker 2 year guarantee and the location of your nearest authorised repair agent can be obtained on the Internet at www.2helpU.com, or by contacting your local Black & Decker office at the address indicated in this manual:

Please visit our website www.blackanddecker.co.uk to register your new BLACK+DECKER product and receive updates on new products and special offers.
