Product Type	Ultrasonic and pressure wave repellent device
Brand	Gardigo
Model	62318
Intended Use	Repel mice, rats, ants and silverfish
Power Supply	9 V DC / 200 mA adapter
Ultrasonic Frequency	25,000 - 65,000 Hz (variable)
Main Functions	4 modes: TEST, ULTRA, TRANS, DUO
Number of Speakers	2 piezoelectric speakers + 1 pressure wave driver
Dimensions	120 x 70 mm (H x D)
Operating Temperature	-20°C to +50°C, ≤90% RH
Storage Temperature	0°C to +50°C, ≤90% RH
Indicator Lights	Red LED (ultrasound) and Green LED (pressure wave)
Care and Cleaning	Clean with a damp cloth; do not use abrasive or solvent-based products
Safety	Use only with the provided adapter; do not use outdoors or in the presence of flammable gases
Repairs	Use only original spare parts; contact a professional
Warranty	Against material and manufacturing defects; excludes liability for consequential damages
Package Contents	Device, 9V adapter, manual
Compliance	CE
Environment	Do not dispose of with household waste; electrical recycling

Frequently Asked Questions - 62318 Gardigo

What is the Gardigo 62318 device used for?

This device is designed to repel mice, rats, ants and silverfish by emitting ultrasound and pressure waves.

How does it work?

It combines variable ultrasound (25,000 - 65,000 Hz) and pressure waves that annoy pests and drive them away.

Which animals does it repel?

It is effective against mice, rats, ants and silverfish.

What modes are available?

Four modes via a switch: TEST (audible sound test), ULTRA (ultrasound only), TRANS (pressure wave only), DUO (both combined).

How to turn on the device?

Plug the provided 9V adapter into the socket under the device, then plug the adapter into a 230V outlet. Select the desired mode with the quadruple switch.

How long does it take to see results?

Initial effects may appear after a few days or weeks. It is recommended to leave the device on continuously for 4 to 6 weeks after elimination to treat eggs and larvae.

Are there risks for humans or pets?

Ultrasound is inaudible to humans and has no harmful effects. Pets (dogs, cats) may be annoyed but can leave the room. The TEST mode emits an audible sound to check operation.

How to clean the device?

Clean with a damp cloth. Do not use abrasive or solvent products.

What to do in case of malfunction?

Check the power supply and adapter. If the problem persists, contact customer service at [e-mail]. Repairs must be carried out by a professional using original parts.

How to dispose of the device at end of life?

Do not dispose of it with household waste. Take it to a collection center for electrical and electronic equipment in accordance with environmental regulations.

USER MANUAL 62318 Gardigo

Technical line drawing of a cylindrical mechanical component with internal compartments and mounting holes (no text or symbols)

thank you for deciding on one of our quality products. In this manual we will explain the functions and the handling of our device. Please take your time to read through the manual and follow all safety and operational instructions in order to achieve best results. If you have suggestions or questions about this product please contact your dealer or our service team.

We would be delighted if you would recommend us and wish you success with the use of this device.

1. Designated Use

The Mouse-Ant-Repeller Duo is designed to repel mice, rats, ants and silverfish. The device emits ultrasonic tones through piezo loudspeakers and, as an additional measure, pressure waves. Animals perceive both functions as uncomfortable and threatening. The device is powered using a 9 V power supply. Any use for other purposes is not permitted!

2. Important Notices

• The device uses varying ultrasonic frequencies and pressure waves which will make the animals and insects feel uncomfortable and threatened.
• The Mouse-Ant-Repellent, Duo does not hinder the animals from being in the area. It makes them feel uncomfortable and the animals will move to other areas, which appear more pleasant and quieter. The changing frequencies prevent the animals from getting used to the noise. It may take a few days or weeks until the effect fully takes place.
  • In the first two days of use you may observe increased animal activity as they start

looking for the cause of the disturbance and then for quieter places to move their nests to.

• When insects leave their nests they will leave behind eggs and larvae. It is therefore necessary to keep the device in use for at least 4 to 6 weeks, even if you can't see any insects. As a preventive measure, the repellent can be used throughout the whole year.
• The dispersion of the sound depends on the local surroundings.

3. Safety Instructions

• Electrical appliances, packaging materials, etc. do not belong in the hands of children.
- The device may only be used with the stated voltage: 9 V DC power supply.
- If repairs are needed, only original spare parts may be used to avoid serious damage.
- This device is not designed to be used by persons with reduced physical, sensory or mental capabilities, lack of experience or knowledge or children under the age of 8 years unless they are supervised or have been instructed in the use of the device by a person responsible for their safety.
- Keep these instructions in a safe place and pass them on when giving the device to a third person.
- This unit is suitable for indoor use only.
- Make sure that the device is placed onto a dry floor. The device must be protected from dampness, extreme cold and heat.
- In schools, training centres, clubs and workshops, the operation the device must be monitored by trained personnel.
- The accident prevention regulations of the professional associations for electrical systems and equipment should be strictly followed when using this device in commercial buildings.
- Make sure that the power cord will never be squashed, subjected to sharp edges or damaged in any other way. Ensure that the cable does not become a tripping hazard.
- Do not use this device in the vicinity of explosive gases, vapours or excessive dust.
- Do not connect the device if the power cord or the device is damaged. Disconnect the device immediately from the mains.
- The power supply may only be connected to a properly installed power socket. The voltage must match the specifications depicted on the nameplate of the power supply.
- Do not remove any stickers from this device. The sticker may contain important safety information.
- Should there be any questions on the installation, connection, functions, mainte -

nance or safety of this device, please contact a qualified person or our service centre.

4. Contents

• Gardigo Mouse-Ant- Repellent, Duo
- 6 V DC/200 mA power supply
- Instruction manual

5. Getting Started

The Mouse-Ant- Repellent, Duo offers two different functions:

The device can emit ultrasound in the frequency range between 25.000 - 65.000 Hz and pressure waves. The frequency of the ultrasonic signal varies automatically, preventing the animals from getting used to the irritating sound, and is emitted through the two speakers at the side of the device [3]. The variation of the frequencies is required, so that the animals do not get accustomed to the irritating sound. Pressure waves are emitted through an additional driver at the front of the repeller [4]. Animals perceive ultrasound and pressure pulses subconsciously at first, but after a short period of time they will begin to feel uncomfortable and threatened. This will make them leave the area to look for a more pleasant place to settle down. The two functions can be activated individually or concurrently using the 4-position switch at the bottom of the device.

Setting up the device:

• Connect the repellent to the supplied power supply by using the input at the bottom of the device [1].
• Insert the power supply into a 230 V mains plug. The repellent is now active.
• Choose the mode you wish to use with the 4-position switch.

4-position switch [2]:

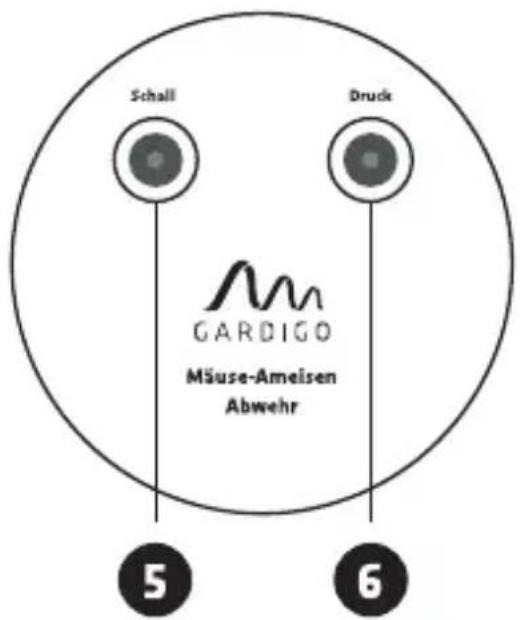

TEST (2.1): The TEST position allows you to check the function of the device. You will hear an audible tone and the red LED lights up [5].

ULTRA (2.2): This position activates the varying ultrasonic sound. Ultrasonic frequencies are not audible to the human ear. The activation is confirmed when the red LED lights up.

TRANS (2.3): This position activates the compressed impulse waves. These are barely audible to the human ear. The activation is confirmed when the green LED [6] lights up.

DUO (2.4): This mode allows you to use the ultrasonic frequencies as well as the compressed impulse waves. In this mode the green and the red LED will light up.

Attention: Install the device so that the sound can distribute itself throughout the room. Make sure that the cables on the floor to not become a hazard.

6. Specifications

• Power supply: 9 V DC/200mA

- 4-function switch

• Frequency response: 25.000 - 65.000 Hz

- Working temperature - 20 °C to + 50 °C at ≤ 90 % R.H.

• Storage temperature: 0 °C to + 50 °C at ≤ 90 % R.H.

• Dimensions: 120 x 70 mm

7. General Notices

• The CE conformity has been declared. All documents are at our office and can be viewed.
• For safety and conformity reasons it is not permitted to rebuild or modify the device and/or use it in any other way than described above.
• As Gardigo has no control of the correct of appropriate installation and use of the device the warranty can only be applied to a fully equipped device in prime condition. We assume neither warranty nor liability for damages or following damages related to this product. This applies especially if it has been modifications or repairs have been made by the customer, if the circuitry has been modified or components have been used other than the original components and/or if the operation of the device has been incorrect, careless or abusive.
• The device may be cleaned with a damp cloth. Do not use any solvents or detergents.
• If you have any questions or suggestions about this product, please contact your local dealer or our service centre.

8. Guarantee

The guarantee covers the elimination of all shortcomings, which can be attributed to imperfect materials or manufacturing errors. As Gardigo has no influence on the correct

and proper assembly or operation, we can only guarantee the quality of the components – and that the product is complete. We assume neither a guarantee nor liability for damage or resulting damage in connection with this product. This applies in particular when amendments or attempts to repair the product have been conducted, circuits have been modified or other components have been used or damage has been caused through operator errors, negligent handling or misuse.

Service Hotline: Phone [phone] Your Gardigo-Team

Environmental protection notice

At the end of its life span this product may not be disposed as normal household waste but must be disposed of at a collecting place for recycling of electrical and electronic equipment. The icon on the product, in the manual, or on the packing points to this fact. The materials are recyclable according to their labelling. Through reusing, material recycling, or other forms of utilisation of old devices you make an important contribution to the protection of the environment. Please ask the local administration for the responsible waste disposal centre.

Do not throw batteries or rechargeable batteries into household waste!

Consumers are legally obligated to return used and rechargeable batteries, whether they contain harmful substances* or not, to designated recycling areas, disposal sites, or stores where batteries/rechargeable batteries can be bought. By doing so, you are fulfilling all legal battery recycling and disposal obligations and are contributing to a better environment. Make sure batteries are completely discharged before disposing!

*marked with: Cd = cadmium, Hg = mercuric, Pb = lead
