E03T - E-reader Billow - Free user manual and instructions

Brand	Billow
Model	E03T
Product type	Electronic reader (eBook)
Screen size	6 inches (15.24 cm)
Screen technology	Touch E-Ink
Screen resolution	800 x 600 pixels
Internal memory	4 GB (flash)
Removable storage	Micro SD up to 32 GB
Functions	Reading ebooks, music, photo, calendar, file browser, settings
Power supply	Rechargeable lithium-ion battery via USB (5V)
Charging time	Approximately 8 hours for the first charge
Connection	Mini USB port
Materials	Plastic and glass (estimation)
Dimensions (estimation)	170 x 117 x 8 mm
Weight (estimation)	180 g
Package contents	E03T, quick installation guide, Mini USB cable
Care and cleaning	Use a dry cloth; do not use solvents (benzene, alcohol)
Safety	Avoid heat sources, liquid contact, drops; do not disassemble; recycle according to WEEE directive
Spare parts and repairability	Internal battery not user-replaceable; contact customer service for replacement

Frequently Asked Questions - E03T Billow

How to turn the E03T reader on and off?

Press and hold the power button for 5 seconds to turn the device on or off.

How to charge the reader for the first time?

Before first use, charge the battery for 8 hours by connecting the provided USB cable between the PC and the eBook. Do not use a mains adapter.

How to copy files to the reader?

Connect the eBook to the PC with the USB cable. The device appears as a storage device. Copy files like on a USB flash drive.

How to use the touch screen to turn pages?

Lightly tap the right side or top of the screen to go to the next page, and the left side or bottom to go back. A long press (2 seconds) opens reading options.

How to adjust the front light?

Press and hold the front light button (button 1 or 2 on the diagram) for a few seconds to adjust the lighting.

What to do if the device freezes or stops responding?

Use the Reset button located on the back (hole) to restart the device.

What file formats are supported?

The manual does not specify exact formats, but E-Ink readers generally support EPUB, PDF, TXT, MOBI, etc. Check the manufacturer's website for details.

Can I listen to music on this reader?

Yes, the reader has a music player. From the main menu, select Music, then choose an audio file. Use the buttons to play/pause and change tracks.

How to reset to factory settings?

Go to the Settings (Configuration) menu. Look for the reset option. If not found, contact technical support.

Where to find technical support?

Visit the website www.billowtechnology.com to access the manufacturer's technical support section.

USER MANUAL E03T Billow

electronic ink ebook-touch

06"

E03T | user guide vi.o

Solid green rectangular shape with no text, symbols, or markings

mr

g billow

TECHNOLOGY

Solid green rectangular shape with no text, symbols, or patterns

billowtechnology.com

mr or

EBOOK

Въведение

Pure geometric diagram of a rectangular frame with rounded corners and internal lines, no text or symbols present.

Thank you for choosing the E-Book E03T touch panel

Product description

E-ink 6 "touch panel EBook with which you read more than 2,800 books, view images at a resolution of 800x600 pixels.

Its compact and elegant design offers a pleasing and lightweight appearance, and along with its hotkeys everything is at your fingertips.

Its processor is optimized for multitasking capabilities and quick response to load books and reading.

This E-Book has an internal flash memory of 4 GB and also includes a Micro SD card reader that lets you expand your storage options up to 32GB.

Its E-ink screen uses the best PVI technology, showing a clearer and more defined electronic ink for your reading, and its new touch screen will make it faster and easier to use.

This E-Book has music player.

Billow's commitment to the ideal solution for the good reader. Read your books as if they were paper!

Package contents

· E03T touch panel
· Quick installation guide
- Mini USB Cable

Note: Make sure your package contains the elements described above. If you find any items are missing or damaged, please contact your dealer.

Systems Requirements

• 1 USB 2.0 port
• Windows Operating System

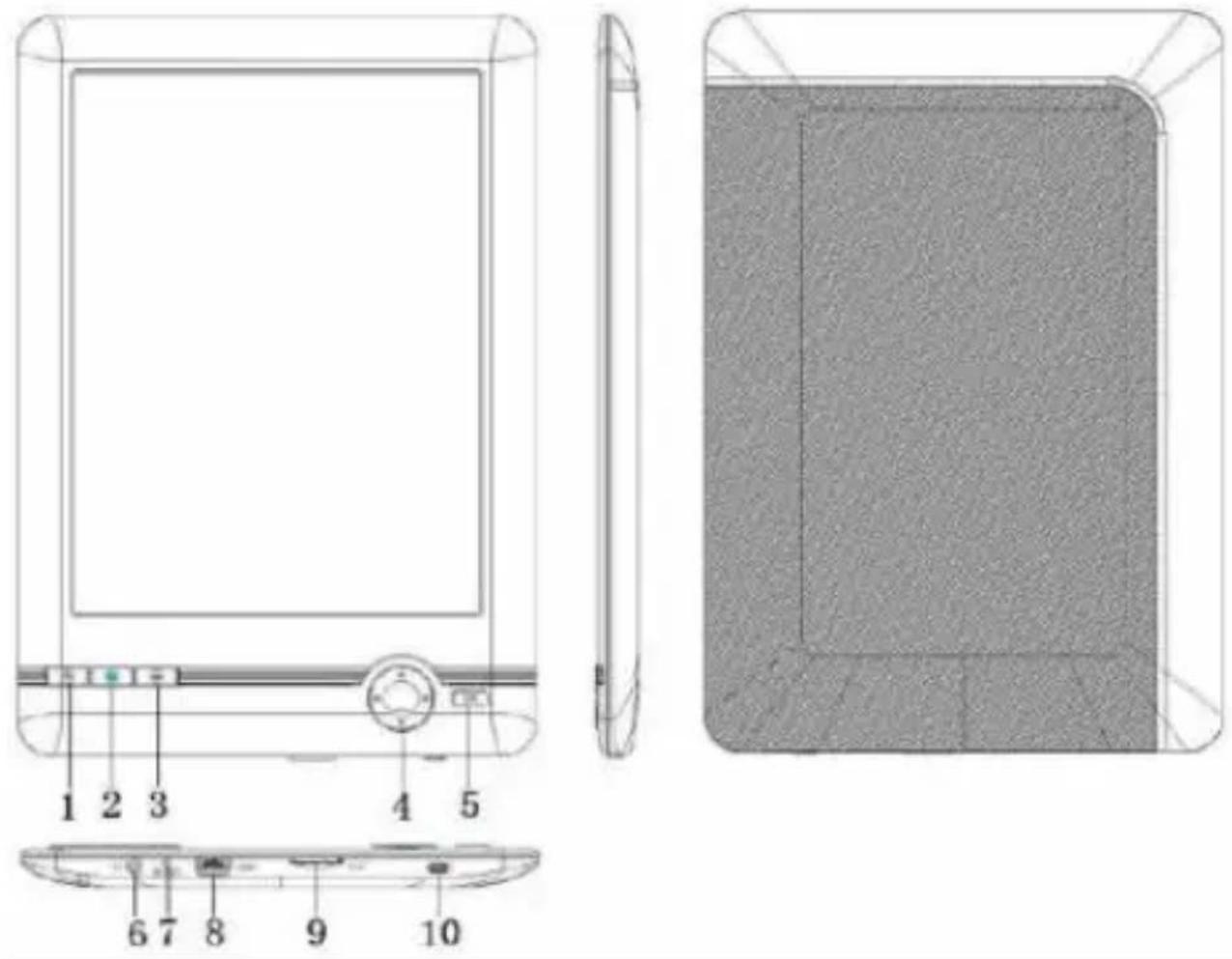

Parts description

1 2 3 4 5 6 7 8 9 10

1. Previous page
2. Search button
3. Menu
4. Navigation buttons: up: previous page, down: next page, left: before, right: next.
5. OK: Confirm, Enter

6. Jack 3.5mm. input

7. Reset button

8. Mini USB port

9. Micro USB slot

10. Power button: Press for 5 seconds to turn on or off the device

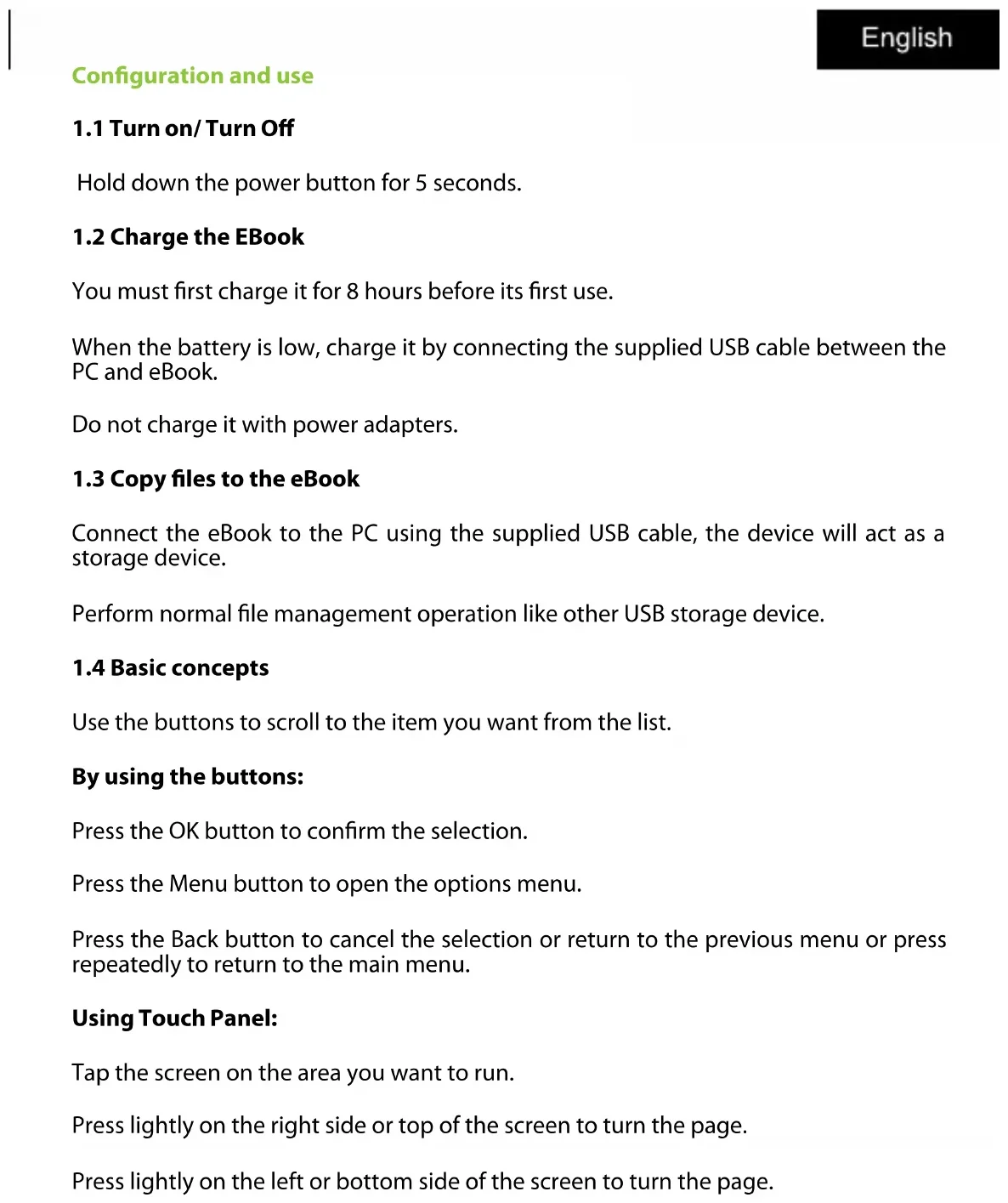

Configuration and use

1.1 Turn on/ Turn Off

Hold down the power button for 5 seconds.

1.2 Charge the EBook

You must first charge it for 8 hours before its first use.

When the battery is low, charge it by connecting the supplied USB cable between the PC and eBook.

Do not charge it with power adapters.

1.3 Copy files to the eBook

Connect the eBook to the PC using the supplied USB cable, the device will act as a storage device.

Perform normal file management operation like other USB storage device.

1.4 Basic concepts

Use the buttons to scroll to the item you want from the list.

By using the buttons:

Press the OK button to confirm the selection.

Press the Menu button to open the options menu.

Press the Back button to cancel the selection or return to the previous menu or press repeatedly to return to the main menu.

Using Touch Panel:

Tap the screen on the area you want to run.

Press lightly on the right side or top of the screen to turn the page.

Press lightly on the left or bottom side of the screen to turn the page.

If you perform the same action by pressing for 2 seconds, you will open the reading options.

Press lightly in the upper left corner to go back.

1.5 Reading History

From the main menu, select Reading History and press the OK button.

You can select your last 10 readings quickly.

1.6 EBook

From the main menu, select eBook, press the OK button to enter in your book library.

From the book library, use the buttons to select a book and press the OK button to open the book desired

When reading, press the directional buttons to change pages.

In reading page, press the Menu button to use the option menu.

1.7 Music

From the main menu, select Music, press the OK button to select the audio file from your library.

Press OK button to play or pause your music and buttons to select previous or next track.

1.8 Photography

Press the main menu, select Photo and press the OK button to enter the viewer.

Select an image and press the OK button to view full screen.

Press the Menu button to use the option menu.

1.9 Configuration

From the main menu, select Settings and press the OK button.

Use the direction buttons and OK to set the language and system time or other

adjustments

1.10 Browser

Press the menu button, select Explorer and click the OK button to enter the file browser.

• Select a folder or file to open it.
• Press the Menu button to use the option menu.

1.11 Calendar

From the main menu, select Calendar and press the OK button.

Use the direction buttons and OK to display year, month and day.

1.12 User manual

From the main menu, select User Manual and press the OK button.

The user manual of the eBook will open.

Technical Support

For more information about this product please visit our support section on our website www.billowtechnology.com.

Introducción

Aceasta carte are music player-ul.

Pure geometric diagram of a rectangular frame with rounded corners and internal lines, no text or symbols present.

To use this ebook in a fully secure manner, please read the following safety tips carefully:

1. Children: Pay special attention to children.

Ebooks contain many individual parts, so you should pay special attention when a child is in contact with a Ebook.

This product contains small parts that may be swallowed or cause choking if swallowed.

If your Ebook has a camera or lighting device, do not use them too close to the eyes of children or animals.

1. Fire Hazards: Do not let your ebook next to heat sources such as radiators or gas stove. Do not charge your ebook near flammable materials (risk of fire is unquestionable).

2. Contact with liquid: Avoid all contact with liquid or handle tablet with wet hands. The water can cause irreparable damage.

3. Use only accessories approved by Billow. The use of non-approved accessories may damage or endanger your Ebook.

4. Do not manipulate the battery and charger.

Never use a damaged battery or charger.

Do not place in contact the tablet's battery with magnetized objects, as this can result in short-circuits between the + and - terminals of the batteries as well as damage the battery or Ebook.

In general terms, do not expose the batteries to very cold or very high (below 0 ^ or above 45 ^ ) temperatures. These differences in temperature can reduce the autonomy and operational life of the batteries.

1. Falls or impacts, Handle your Ebook with great care.

Protect your tablet from falls or impacts that could damage it. Some elements of your ebook are made of glass, so it may break if dropped. Never touch the screen with sharp objects.

1. Electric shock: Do not try to disassemble your ebook. It could give you an electric shock.

2. Maintenance: If you want to clean your ebook, use a dry cloth (never solvents such as benzene or alcohol).

3. Charge your ebook in a well ventilated area. The charger should remain close to the electrical outlet and easily accessible during the charging process.

Do not charge if placed on a fabric.

Important Notice use

1. In order to increase the operating life of your battery, use only Billow batteries and chargers. Replacing the original battery with a non-compliant battery can cause it to explode.
2. Never dispose of batteries in fire. Respect the laws into place on the recycling of used batteries and Ebooks.
3. Pay attention to not damage or crush the battery. This would lead to the risk of internal short circuit and overheating.
4. Do not disassemble the battery.
5. The battery can be charged hundreds of times prior to replacement. When the battery performance diminishes, contact your service representative for replacement.
6. If you are not going to use your tablet for a long time, do not forget to recharge your battery and optimize its operational life.
7. Do not throw batteries along with household waste. Consider recycling and follow the manufacturer's guidelines. If the battery is damaged, take it to customer service or the nearest Billow dealer.
8. In order to reduce power consumption, disconnect the charger from the socket once the tablet has finished charging.
9. Do not leave the battery on charge for days as it could generate an overload and reduce the operating life of the product.

AEE REI-RAEE 5548 In this manual, the container (bin) symbol indicates that the product is subject to the European directive 2002/96 / EC, electrical and electronic products, batteries, and batteries and other accessories must necessarily be subject to a selective collection.

At the end of the life of the device, make use of the recycling bins. This gesture will help reduce the health risks and preserve the environment.

Municipalities and distributors, will provide essential details on recycling your old device. If this device carries an internal battery, it must be removed and deposited separately for proper management.

Recyclage

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Importado por / Imported by:

APPROX IBERIA S. L.

CIF: B-91202499

Soporte técnico / Technical support:

[e-mail]

MADE IN PRC

The content of this guide is subject to typographical errors
