USER MANUAL RX797 YAMAHA

1 To assure the finest performance, please read this manual carefully. Keep it in a safe place for future reference.
2 Install this sound system in a well ventilated, cool, dry, clean place – away from direct sunlight, heat sources, vibration, dust, moisture, and/or cold. Allow ventilation space of at least 30 cm on the top, 20 cm on the left and right, and 20 cm on the back of this unit.
3 Locate this unit away from other electrical appliances, motors, or transformers to avoid humming sounds.
4 Do not expose this unit to sudden temperature changes from cold to hot, and do not locate this unit in an environment with high humidity (i.e. a room with a humidifier) to prevent condensation inside this unit, which may cause an electrical shock, fire, damage to this unit, and/or personal injury.
5 Avoid installing this unit where foreign objects may fall onto this unit and/or this unit may be exposed to liquid dripping or splashing. On the top of this unit, do not place:
- Other components, as they may cause damage and/or discoloration on the surface of this unit.
– Burning objects (i.e. candles), as they may cause fire, damage to this unit, and/or personal injury.
- Containers with liquid in them, as they may fall and liquid may cause electrical shock to the user and/or damage to this unit.
6Do not cover this unit with a newspaper, tablecloth, curtain, etc. in order not to obstruct heat radiation. If the temperature inside this unit rises, it may cause fire, damage to this unit, and/or personal injury.
7 Do not plug in this unit to a wall outlet until all connections are complete.
8Do not operate this unit upside-down. It may overheat, possibly causing damage.
9Do not use force on switches, knobs and/or cords.
10 When disconnecting the power cable from the wall outlet, grasp the plug; do not pull the cable.
11Do not clean this unit with chemical solvents; this might damage the finish. Use a clean, dry cloth.
12 Only voltage specified on this unit must be used. Using this unit with a higher voltage than specified is dangerous and may cause fire, damage to this unit, and/or personal injury.
YAMAHA will not be held responsible for any damage resulting from use of this unit with a voltage other than specified.
13To prevent damage by lightning, keep the power cord and outdoor antennas disconnected from a wall outlet or the unit during a lightning storm.
14 Do not attempt to modify or fix this unit. Contact qualified YAMAHA service personnel when any service is needed. The cabinet should never be opened for any reasons.

15 When not planning to use this unit for long periods of time (i.e. vacation), disconnect the AC power plug from the wall outlet.
16 Install this unit near the AC outlet and where the AC power plug can be reached easily.
17Be sure to read the “TROUBLESHOOTING” section on common operating errors before concluding that this unit is faulty.
18Before moving this unit, press MASTER ON/OFF to release it outward to the OFF position, and disconnect the AC power plug from the wall outlet.
19VOLTAGE SELECTOR (Asia and General models only) The VOLTAGE SELECTOR on the rear panel of this unit must be set for your local main voltage BEFORE plugging into the AC main supply. Voltages are: General model.....AC 110/120/220/230–240 V, 50/60 Hz Asia model.....AC 220/230–240 V, 50/60 Hz

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if you turn off this unit by MASTER ON/OFF, or MAIN ZONE ON/OFF and ZONE 2 ON/OFF. In this state, this unit is designed to consume a very small quantity of power.

CONTENTS

INTRODUCTION

FEATURES....2

SUPPLIED ACCESSORIES .... 2

CONTROLS AND FUNCTIONS ....3

Front panel 3

Front panel display 5

Rear panel 6

Remote control....7

Zone 2 remote control....9

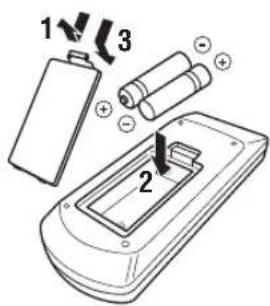

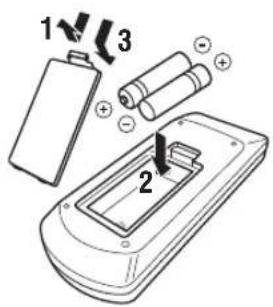

Installing batteries in the remote controls.... 10

Using the remote controls.... 10

PREPARATION

CONNECTIONS 11

Connecting speakers.... 11

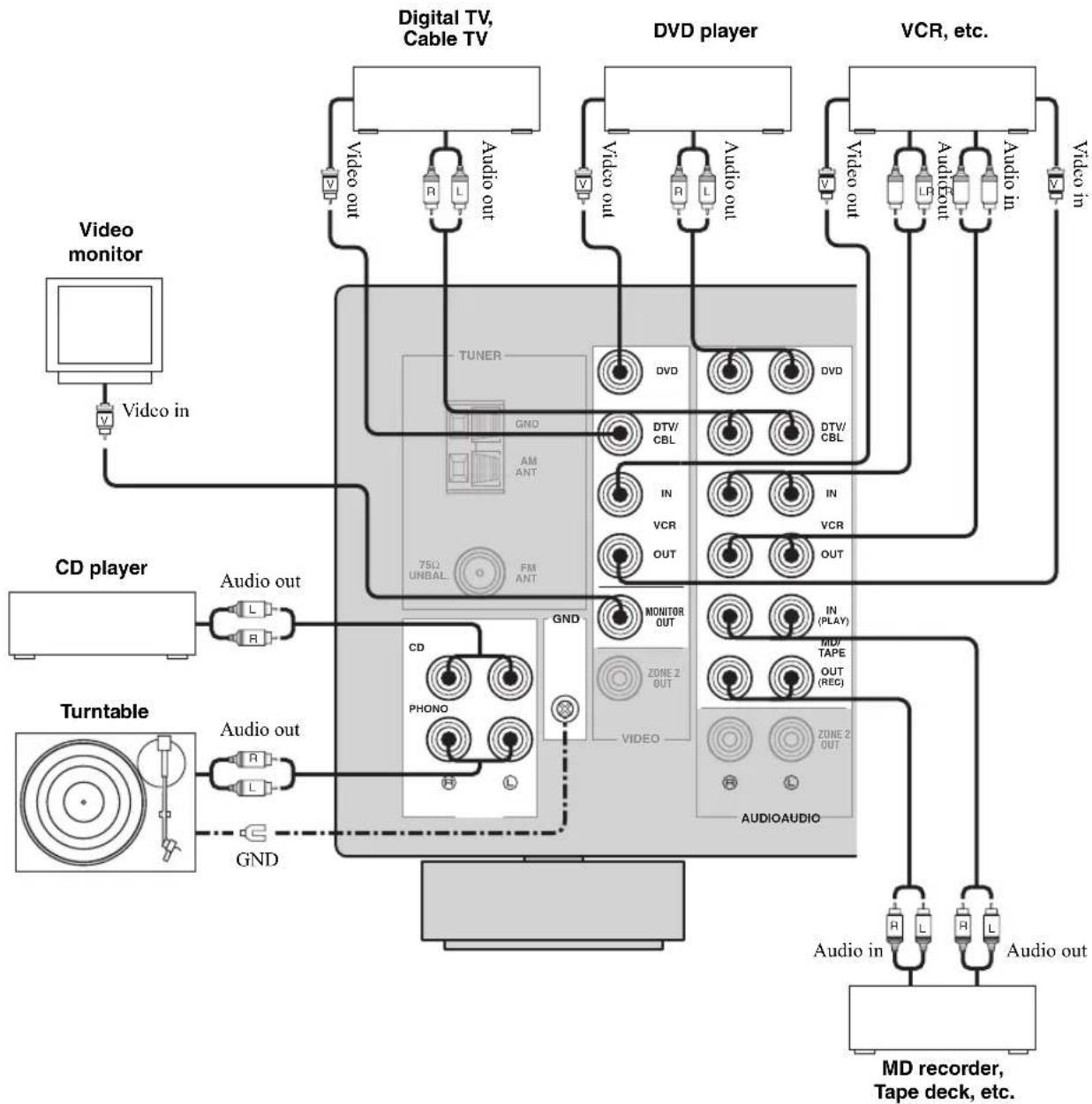

Connecting audio and video components 12

Connecting the AM and FM antennas.... 13

Connecting the power supply cord 15

Turning on and off this unit.... 16

BASIC OPERATION

PLAYING AND RECORDING 17

Playing a source.... 17

Adjusting the tonal quality.... 19

Recording a source 20

Using the sleep timer 21

Muting the sound output.... 22

FM/AM TUNING 23

Automatic tuning 23

Manual tuning.... 24

Automatic preset tuning.... 25

Manual preset tuning 27

Selecting preset stations.... 28

Exchanging preset stations 28

RADIO DATA SYSTEM

(EUROPE MODEL ONLY) 29

Receiving Radio Data System stations.... 29

Changing the Radio Data System mode 29

PTY SEEK function 30

EON function.... 31

ADVANCED OPERATION

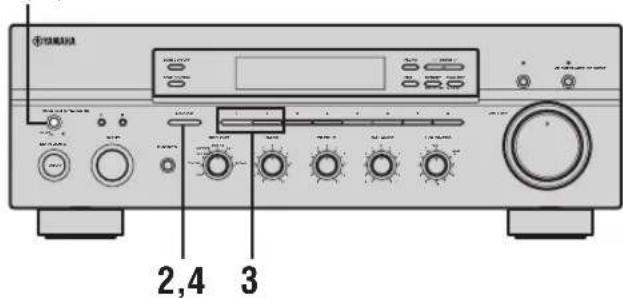

ADVANCED SETUP....32

Changing the ADVANCED SETUP menu

parameters 32

Switching the remote control ID 33

ZONE 2 ....34

Connecting the Zone 2 components .... 34

Controlling Zone 2....35

REMOTE CONTROL FEATURES ....36

Control area 36

Controlling other components 37

Setting remote control codes 38

ADDITIONAL INFORMATION

TROUBLESHOOTING ....39

SPECIFICATIONS......42

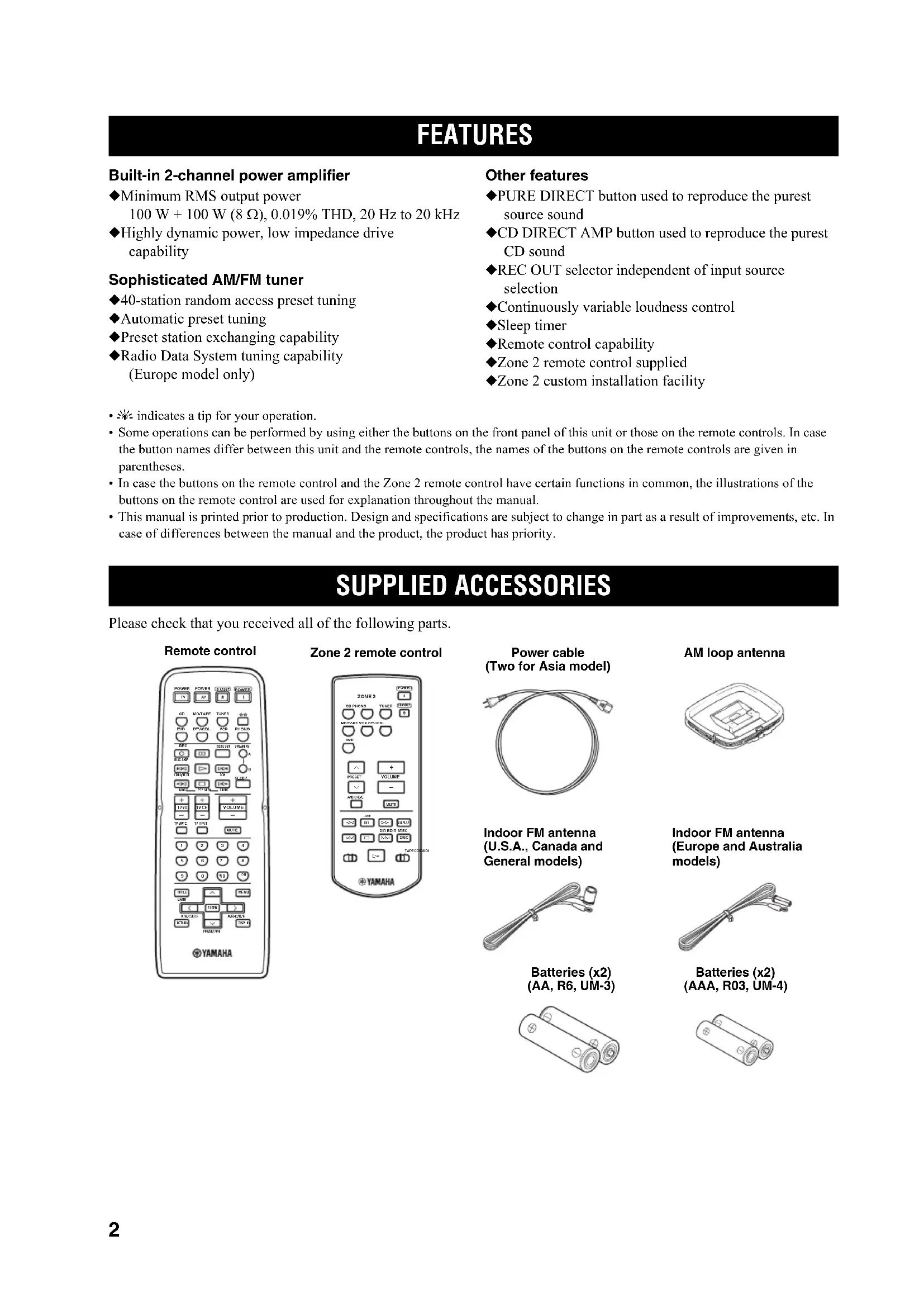

FEATURES

Built-in 2-channel power amplifier

◆Minimum RMS output power 100 W + 100 W (8 Ω), 0.019% THD, 20 Hz to 20 kHz
◆Highly dynamic power, low impedance drive capability

Sophisticated AM/FM tuner

◆40-station random access preset tuning
◆Automatic preset tuning
◆Preset station exchanging capability
◆Radio Data System tuning capability (Europe model only)

Other features

◆PURE DIRECT button used to reproduce the purest source sound
◆CD DIRECT AMP button used to reproduce the purest CD sound
◆REC OUT selector independent of input source selection
◆Continuously variable loudness control
◆Sleep timer
◆Remote control capability
◆Zone 2 remote control supplied
◆Zone 2 custom installation facility

• indicates a tip for your operation.

- Some operations can be performed by using either the buttons on the front panel of this unit or those on the remote controls. In case the button names differ between this unit and the remote controls, the names of the buttons on the remote controls are given in parentheses.

- In case the buttons on the remote control and the Zone 2 remote control have certain functions in common, the illustrations of the buttons on the remote control are used for explanation throughout the manual.

- This manual is printed prior to production. Design and specifications are subject to change in part as a result of improvements, etc. In case of differences between the manual and the product, the product has priority.

SUPPLIED ACCESSORIES

Please check that you received all of the following parts.

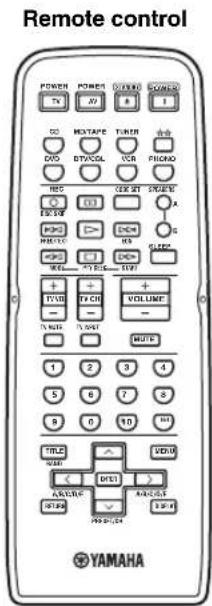

Remote control POWER POWER VOLUME SCORE TV AU B I GO MIXTAPE TURN 合并 DVD BTVCOI VCR PICO REC CCK SET GREEN C A ECON + HOLD + HOLD + HOLD + HOLD + HOLD + HOLD + HOLD + HOLD + HOLD + HOLD + HOLD + HOLD + HOLD + HOLD + HOLD + HOLD + HOLD + HOLD + HOLD + HOLD + HOLD + HOLD + HOLD + HOLD + HOLD + HOLD + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + -

Zone 2 remote control

ZONE 2 +VOLUME - +VOLUME - YAMAHA

Power cable (Two for Asia model)

Coiled electrical cable with two terminal connectors (no text or symbols)

Indoor FM antenna (U.S.A., Canada and General models)

Batteries (x2) (AA, R6, UM-3)

AM loop antenna

Indoor FM antenna (Europe and Australia models)

Batteries (x2) (AAA, R03, UM-4)

CONTROLS AND FUNCTIONS

Front panel

YAMAHA ZONE 2 ON/OFF ZONE CONTROL POWER OUT TURS MODE OUTPUT CD DIRECT ANPPONE DIRECT MASTER SPEAKERS ON/MT MAIN ZONE ON/OFF INPUT AVOCODE 1 2 3 4 5 6 7 8 RRC OUT MUSH WHOLE 20 20 THIRLE BALANCE LOUDINER PHONES 27VDD, 100V 27VDD, 100V 27VDD, 100V 27VDD, 100V 27VDD, 100V 27VDD, 100V 27VDD, 100V 27VDD, 100V 27VDD, 100V 27VDD, 100V

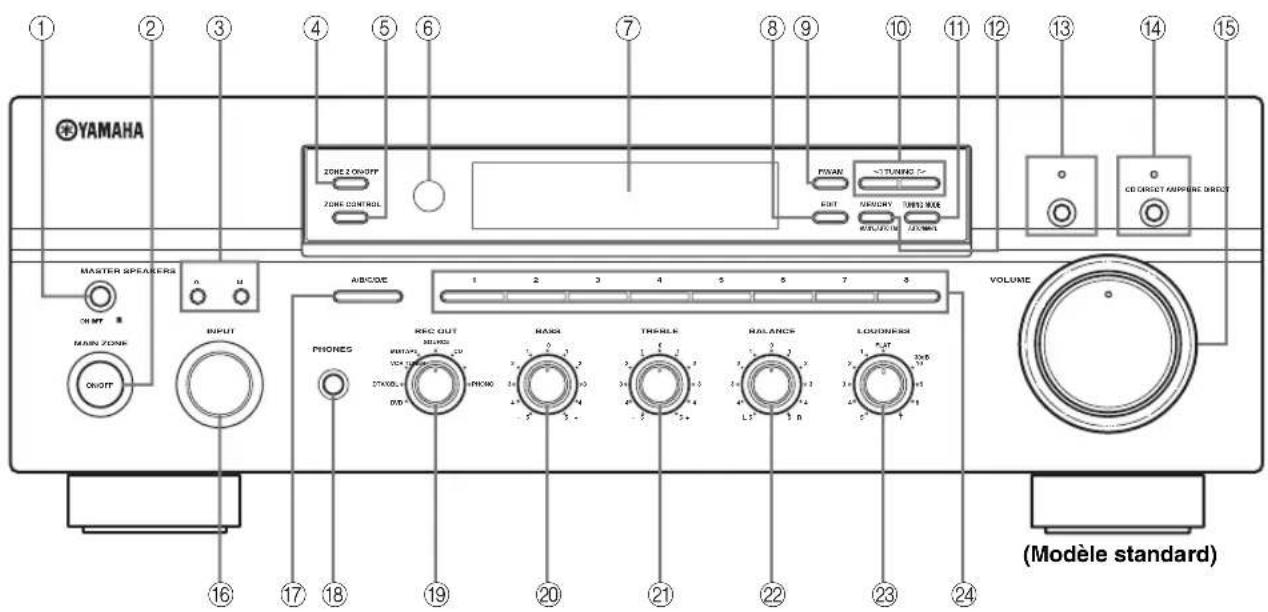

①MASTER ON/OFF

Press inward to the ON position to turn on the power of this unit. Press again to release it outward to the OFF position to turn off this unit.

See page 16 for details.

Note

Even when this unit is turned off, this unit consumes a small amount of power to preserve the memory.

Memory back-up

The memory back-up circuit prevents the stored data from being lost. However, the stored data will be lost if the power cord is disconnected from the AC wall outlet for more than one week.

②MAIN ZONE ON/OFF

Turns on Main Zone of this unit or sets it to the standby mode.

See page 16 for details.

Notes

• This switch is operational only when MASTER ON/OFF is pressed inward to the ON position.
• In the standby mode, this unit consumes a small amount of power to receive infrared signals from the remote control.

③SPEAKERS A/B

Turns on or off the speaker set connected to the SPEAKERS A and/or SPEAKERS B terminals on the rear panel each time the corresponding button is pressed (see page 17).

④ZONE 2 ON/OFF

Turns on Zone 2 or set it to the standby mode. When Zone 2 is turned on, signals are output at the ZONE 2 OUT jacks.

Note

This switch is operational only when MASTER ON/OFF is pressed inward to the ON position.

⑤ZONE CONTROL

Press to control the input source of Zone 2.

Notes

• This button is operational only when Zone 2 is turned on.
• When you press this button, the ZONE 2 indicator flashes in the front panel display for approximately 5 seconds. Select the input source of Zone 2 while the indicator is flashing.
• You can select the preset station when TUNER is selected as the input source of Zone 2.

⑥ Remote control sensor

Receives infrared signals from the remote control.

Note

Switch the remote control ID between ID1 and ID2 when using multiple YAMAHA receivers or amplifiers (see pages 9, 32 and 33).

⑦Front panel display

Shows information about the operational status of this unit.

CONTROLS AND FUNCTIONS

⑧EDIT

Exchanges the assignment of two preset stations with each other when TUNER is selected as the input source (see page 28).

⑨FM/AM

Switches the reception band between AM and FM when TUNER is selected as the input source (see page 23).

⑩TUNING ◀/▶

Selects the tuning frequency when TUNER is selected as the input source (see page 23).

⑪TUNING MODE

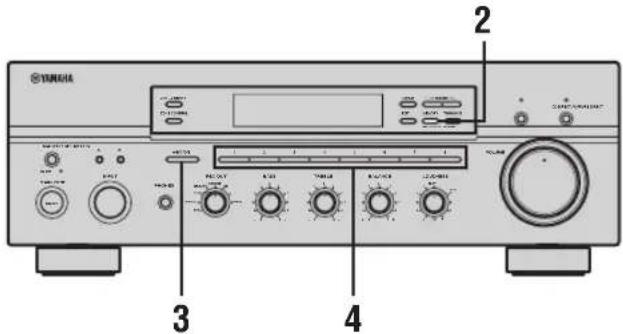

Switches the tuning mode between automatic (the AUTO indicator turns on as a result) and manual (the AUTO indicator turns off as a result) when TUNER is selected as the input source.

⑫MEMORY

Stores a station in the system memory (see page 27). Sets this unit to the automatic preset tuning mode (see page 25).

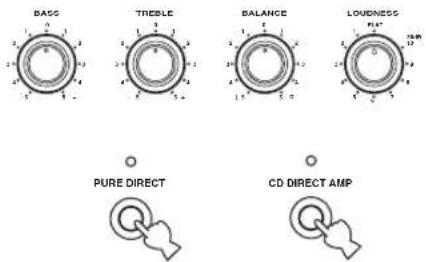

⑬PURE DIRECT and indicator

Allows you to listen to a source in the purest possible sound. The indicator above it lights up when this function is turned on.

See page 19 for details.

⑭CD DIRECT AMP and indicator

Allows you to listen to a CD source in the purest possible sound. The indicator above it lights up and the front panel display turns off when this function is turned on.

See page 19 for details.

⑮VOLUME

Increases or decreases the sound output level.

Note

This does not affect the OUT (REC) level.

⑯INPUT selector

Selects the input source you want to listen to or watch.

⑰A/B/C/D/E

Selects the preset station group (A to E) when TUNER is selected as the input source (see page 26).

⑱PHONES jack

Outputs audio for private listening with your headphones.

Note

Press SPEAKERS A/B so that the SP A/B indicators turn off before you connect your headphones to the PHONES jack.

⑲REC OUT selector

Selects a source for recording to the MD recorder or the tape deck independently of the INPUT selector setting, allowing you to record the selected source while listening to another source (see page 20).

⑳BASS

Increases or decreases the low frequency response. The 0 position produces a flat response (see page 19).

②1TREBLE

Increases or decreases the high frequency response. The 0 position produces a flat response (see page 19).

⑳BALANCE

Adjusts the sound output balance of the left and right speakers to compensate for sound imbalances caused by speaker locations or listening room conditions (see page 19).

②3LOUDNESS

Retains a full tonal range at any volume level to compensate for the human ears' loss of sensitivity to high and low-frequency ranges at a low volume level (see page 19).

②4Preset station number buttons (1 to 8)

Selects the preset station number (1 to 8) directly when TUNER is selected as the input source (see page 28).

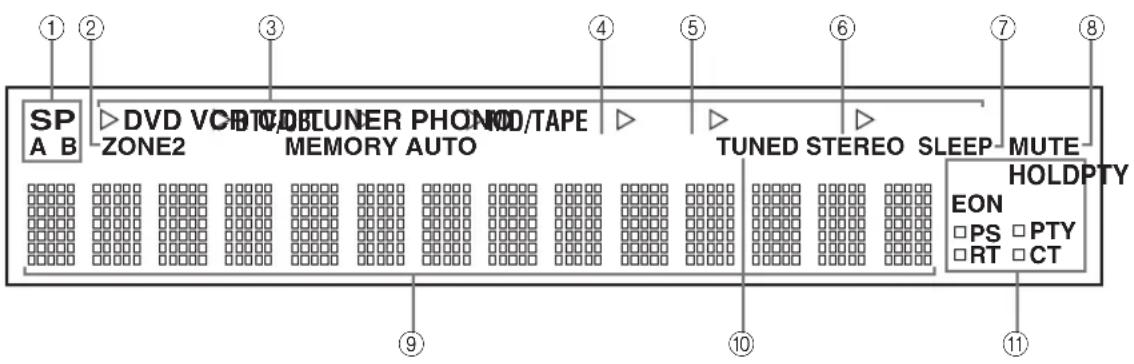

Front panel display

SP A B DVD VCD/DBTUNER PHON/TO/TAPE ZONE2 MEMORY AUTO TUNED STEREO SLEEP MUTE HOLDPTY EON PS PTY RT CT

①SP (SPEAKERS) A/B indicators

Light up according to the set of speakers selected. Both indicators light up when both sets of speakers are selected.

②ZONE 2 indicator

Lights up when Zone 2 is turned on.

③Input source indicators

Light up when this unit is in the corresponding mode.

④MEMORY indicator

Flashes for approximately 5 seconds after MEMORY on the front panel is pressed. While the MEMORY indicator is flashing, store the displayed station in the system memory by using A/B/C/D/E and one of the preset station number buttons on the front panel.

⑤AUTO indicator

Lights up when this unit is in the automatic tuning mode.

⑥STEREO indicator

Lights up when this unit is receiving a strong signal for an FM stereo broadcast while the AUTO indicator is lit.

⑦SLEEP indicator

Lights up when the sleep timer is turned on.

⑧MUTE indicator

Flashes while the MUTE function is turned on.

⑨Multi-information display

Shows information when adjusting or changing settings.

⑩ TUNED indicator

Lights up when this unit is tuned into a station.

■Europe model only

⑪ Radio Data System indicators

The box-shaped indicator beside the name of each Radio Data System mode lights up when the corresponding Radio Data System mode is selected.

PTY HOLD indicator

Lights up while searching for stations in the PTY SEEK mode.

EON indicator

Lights up when the Radio Data System station that offers the EON data service is being received.

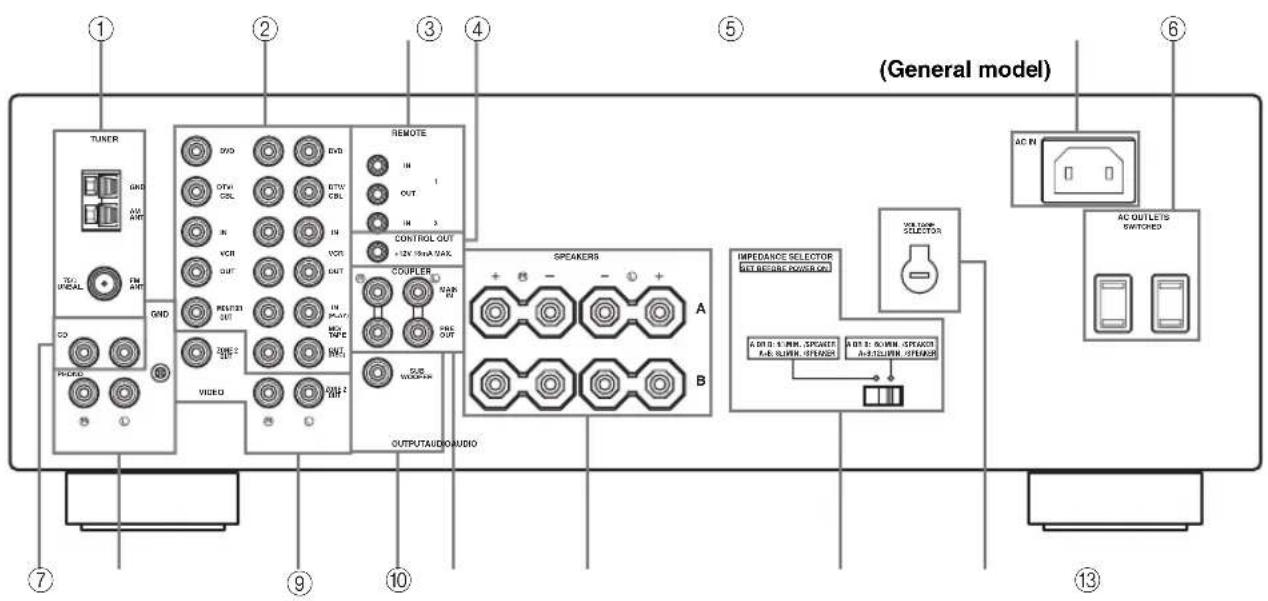

Rear panel

(General model) TUNER GND AVG ANT TCO Poidal FM ATP GND CO VIDEO VIDEO VDD DV0 DVB DTW CBL BTW CBL IN VCR OUT IN OUT CONTROL OUT +2V 19mA STAX COUPLER MAIN MAIN PLANT MAIN TAPE MAIN SUS WOMEN OUTPUTAUDIO AUDIO SPEAKERS A B IMPEDANCE SELECTOR SET BEARIE DIVISION AC IN: 1. MIN. SPEAKER R.E. SLIMIN. SPREADS A OUT: 2. DOWN. SPEAKER A OUT: 3. DOWN. SPREADS AC OUTLETS SWITCHED

①Antenna terminals

Connect FM and AM antennas.

See page 13 for connections information.

②AUDIO/VIDEO jacks

Connect audio and video components.

See page 12 for connection information.

③REMOTE jacks

These jacks are used to input/output remote control signals.

See page 34 for connection information.

④CONTROL OUT jack

This is a control expansion jack. Consult your nearest authorized YAMAHA dealer or service center about this jack.

⑤AC IN

Use to plug in the supplied power cable.

See page 15 for connection information.

⑥AC OUTLET(S) (SWITCHED)

Use to supply power to your other audio and video components.

See page 15 for details.

⑦CD jacks

Connect a CD player.

See page 12 for connection information.

⑧PHONO jacks and GND terminal

Connect a turntable.

See page 12 for connection information.

⑨ZONE 2 jacks

Connect a Zone 2 component.

See page 34 for connection information.

⑩SUBWOOFER OUTPUT jack

Connect a subwoofer with built-in amplifier.

⑪COUPLER jacks

Connect an external unit.

See page 15 for connection information.

⑫SPEAKERS terminals

Connect speakers.

See page 11 for connection information.

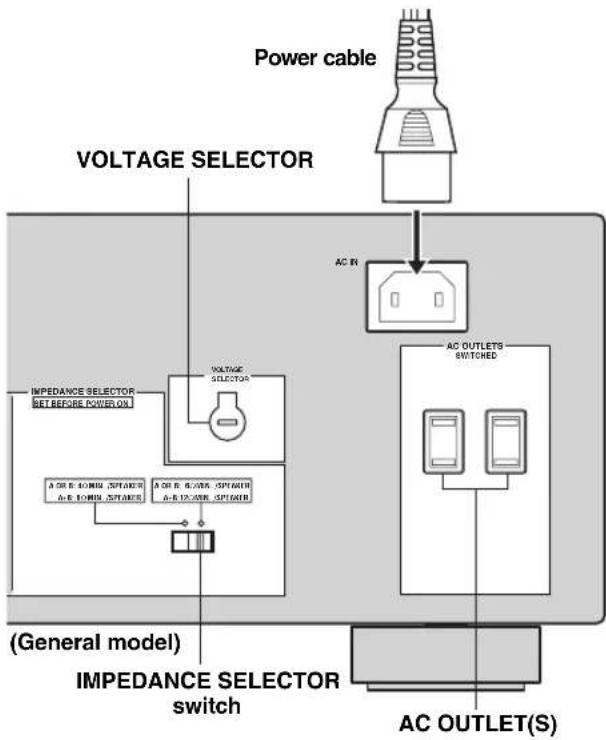

⑬IMPEDANCE SELECTOR switch

Switches the impedance setting.

See page 15 for details.

■Asia and General models only

⑭ VOLTAGE SELECTOR

See page 15 for details.

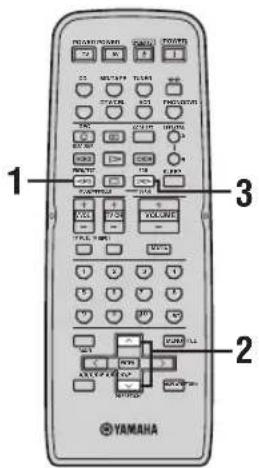

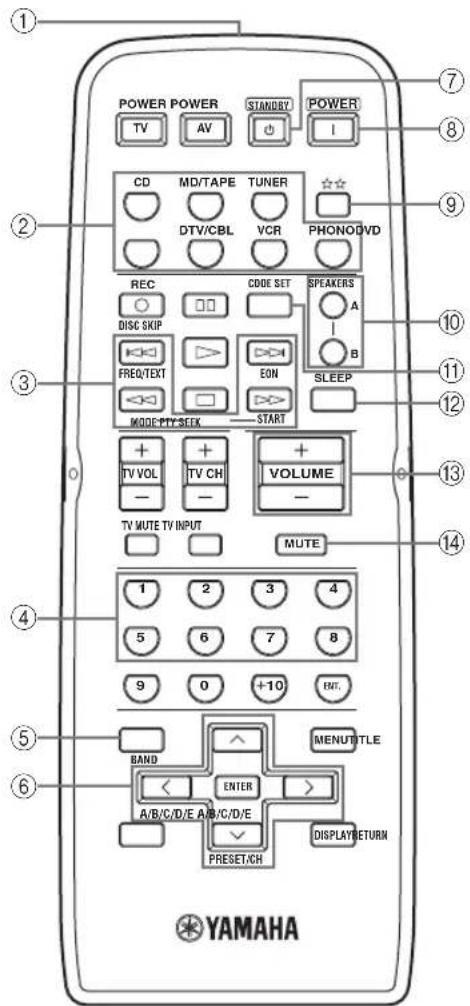

Remote control

This section describes the function of each button on the remote control used to control this unit or other components made by YAMAHA or other manufacturers. The functions of the buttons used to control your other audio and video components are the same as those of the corresponding buttons on those components. Refer to those components' instruction manuals for details. To operate other components using this remote control, see "REMOTE CONTROL FEATURES" on page 36.

POWER POWER STANDRY POWER TV AV I CD MD/TAPE TUNER DTV/CBL VCR PHONODVD REC CODE SET SPEAKERS DISC SKIP A B FREQ/TEXT EON SLEEP MODE PTY SEEK START + TV VOL + VOLUME - - - TV MUTE TV INPUT MUTE 1 2 3 4 5 6 7 8 9 0 +10 ENT. BAND MENUTITLE < ENTER > A/B/C/D/E A/B/C/D/E PRESET/CH DISPLAYRETURN YAMAHA

(Europe model)

①Infrared signal transmitter

Sends infrared signals.

②Input selector buttons

Select the desired input source and change the control area (see page 36).

③Radio Data System control buttons

Controls the Radio Data System features.

Note

The Radio Data System features (FREQ/TEXT, EON, PTY SEEK MODE and PTY SEEK START) are only applicable to the Europe model and are operational only when TUNER is selected as the input source. For details, see “Receiving Radio Data System stations” on page 29.

④Numeric buttons (1 to 8)

Select the preset station number (1 to 8) when TUNER is selected as the input source.

⑤BAND

Switches to the previously used reception band (FM or AM) when TUNER is selected as the input source.

Note

The frequency of the previously received station is automatically recalled.

⑥A/B/C/D/E < I >

Selects the preset station group (A to E) when TUNER is selected as the input source (see page 28).

PRESET/CH ∧ I ∨

Selects the preset station number (1 to 8) when TUNER is selected as the input source (see page 28).

⑦STANDBY

Sets this unit to the standby mode.

Notes

• This button is operational only when MASTER ON/OFF on the front panel is pressed inward to the ON position.
• In the standby mode, this unit consumes a small amount of power to receive infrared signals from the remote control.
• This button does not set Zone 2 to the standby mode.

⑧ POWER

Turns on this unit.

Notes

• This button is operational only when MASTER ON/OFF on the front panel is pressed inward to the ON position.
  • This button does not turn on Zone 2.

⑨ ☆☆

Changes the control area (see page 36).

⑩SPEAKERS A/B

Turns on or off the set of speakers connected to the SPEAKERS A and/or SPEAKERS B terminals on the rear panel of this unit when the corresponding button is pressed each time.

⑪CODE SET

Use to set up remote control codes (see page 38).

⑫SLEEP

Sets the sleep timer.

⑬VOLUME +/-

Increases or decreases the sound output level.

Notes

• This does not affect the OUT (REC) level.
• When you press VOLUME +/- to control the sound output level of this unit, VOLUME on the front panel rotates.

⑭MUTE

Mutes the sound output. Press again to restore the sound output to the previous volume level (see page 22).

Note

The sound output to Zone 2 is not muted.

Zone 2 remote control

This section describes the function of each button on the Zone 2 remote control used to control Zone 2. You can also use the Zone 2 remote control to control YAMAHA CD players and YAMAHA cassette tape deck.

ZONE 2 CD PHONO TUNER MD/TAPE VCR DTV/CBL DVD POWER STANDBY PRESET VOLUME A/B/C/D/E - MUTE A/B DISPLAY DIR BDIR AREC DISC TAPECDDXID1 (YAMAHA (Europe model)

①Infrared signal transmitter

Sends infrared signals.

②Input selector buttons

Select the desired input source of Zone 2.

③PRESET ∧ I ∨

Selects the preset station number (1 to 8) when TUNER is selected as the input source.

④A/B/C/D/E

Selects the preset station group (A to E) when TUNER is selected as the input source.

⑤CD/TAPE control buttons

Controls YAMAHA CD players or YAMAHA cassette tape deck.

⑥ID1/ID2 switch

Switches the remote control ID between ID1 and ID2 (see page 33).

⑦ POWER

Turns on Zone 2.

⑧STANDBY

Sets Zone 2 to the standby mode.

⑨VOLUME +/-

Increases or decreases the sound output level of Zone 2.

Note

This does not affect the OUT (REC) level.

⑩MUTE

Mutes the sound output to Zone 2. Press again to restore the sound output to the previous volume level.

⑪CD/TAPE switch

Switches the function of the control buttons numbered ⑤ between controlling YAMAHA CD players and controlling YAMAHA cassette tape deck.

Installing batteries in the remote controls

■Notes on batteries

• Change all of the batteries if the operation range of the remote controls decreases.
• Use AA, R6, UM-3 batteries for the remote control and AAA, R03, UM-4 batteries for the Zone 2 remote control.
• Make sure that the polarities are correct. See the illustration inside the battery compartment of each remote control.
• Remove the batteries if the remote controls are not used for an extended period of time.
• Do not use old batteries together with new ones.
• Do not use different types of batteries (such as alkaline and manganese batteries) together. Read the packaging carefully as these different types of batteries may have the same shape and color.
  • We strongly recommend using alkaline batteries.
• If the batteries have leaked, dispose of them immediately. Avoid touching the leaked material or letting it come into contact with clothing, etc. Clean the battery compartment thoroughly before installing new batteries.
• Do not throw away batteries with general house waste; dispose of them correctly in accordance with your local regulations.

Remote control Zone 2 remote control

Diagram of a device with labeled parts including battery, switch, and casing

1 2 3

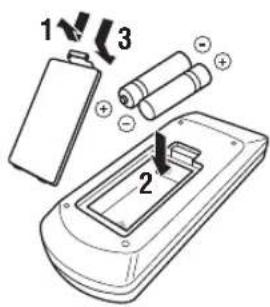

1 Open the battery compartment cover.

2 Insert the supplied batteries in each remote control according to the polarity markings (+ and -) on the inside of the battery compartment.

3 Close the cover back.

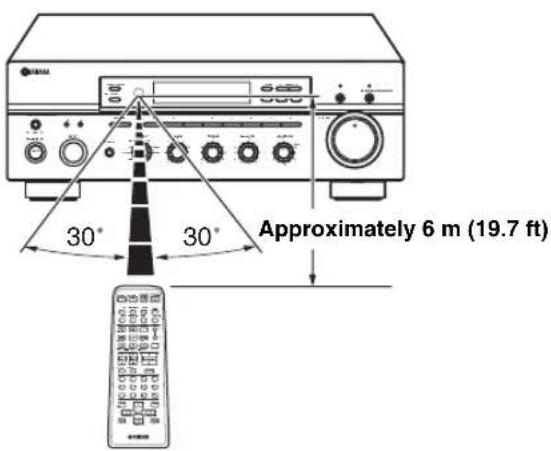

Using the remote controls

The remote controls transmit a directional infrared beam.

Be sure to aim the remote controls directly at the remote control sensor on the front panel of this unit or on the infrared signal receiver in Zone 2 during operation.

Approximately 6 m (19.7 ft)

■Handling the remote controls

• The area between the remote controls and this unit (or the infrared signal receiver in Zone 2) must be clear of large obstacles.
• Do not spill water or other liquids on the remote controls.
• Do not drop the remote controls.
• Do not leave or store the remote controls in the following types of conditions:
• places of high humidity, such as near a bath
• places of high temperature, such as near a heater or a stove
• places of extremely low temperatures
• dusty places
• Do not expose the remote control sensor to strong lighting, in particular, an inverter type fluorescent lamp; otherwise, the remote controls may not work properly. If necessary, position this unit away from direct lighting.

CONNECTIONS

Connecting speakers

Be sure to connect the left channel (L), right channel (R), “+” (red) and “-” (black) properly. If the connections are faulty, no sound will be heard from the speakers, and if the polarity of the speaker connections is incorrect, the sound will be unnatural and lack bass.

CAUTION

• Before connecting the speakers, make sure that the power of this unit is turned off.
• Do not let the bare speaker wires touch each other or do not let them touch any metal part of this unit. This could damage this unit and/or the speakers.
• Use magnetically shielded speakers. If this type of speakers still creates the interference with the monitor, place the speakers away from the monitor.

1 Remove approximately 10 mm (3/8 in) of insulation from the end of each speaker cable and twist the exposed wires of the cable together to eliminate the risk of a short-circuit.

10 mm (3/8 in)

2 Unscrew the knob.

Diagram of three cylindrical mechanical connectors arranged in a V-shape with a black arrow indicating rotation (no text or symbols)

Red: positive (+) Black: negative (−)

3 Insert one bare wire into the hole in the side of each terminal.

Diagram of three cylindrical connectors with a connecting rod pointing to one (no text or symbols)

Red: positive (+) Black: negative (−)

4 Tighten the knob to secure the wire.

Diagram of three cylindrical mechanical components with a curved arrow indicating rotation or assembly (no text or symbols)

Red: positive (+) Black: negative (−)

■Notes on the speaker cord

A speaker cord is actually a pair of insulated cables running side by side. One cable is colored or shaped differently, perhaps with a stripe, groove or ridge. Connect the striped, grooved or ridged cable to the “+” (red) terminals on this unit and your speaker. Connect the plain cable to the “-” (black) terminals on this unit and your speaker.

■Connecting the banana plug

(U.S.A., Canada, Australia and General models only)

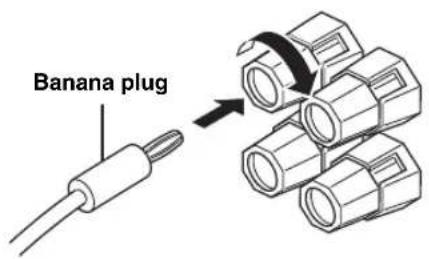

First, tighten the knob and then insert the banana plug into the end of the corresponding terminal.

Banana plug

Notes

• One or two speaker sets can be connected to this unit. If you use only one speaker set, connect it to either the SPEAKERS A or SPEAKERS B terminals.
- Use speakers with the specified impedance shown on the rear panel of this unit.

Connecting audio and video components

CAUTION

• Do not connect this unit or other components to the main power until all connections between components are complete.
• All connections must be correct: L (left) to L, R (right) to R, “+” to “+” and “−” to “−”. Also, refer to the owner’s manual for each of your components.
• Use the RCA type pin plug cables for audio and video components except speakers.

#

- The PHONO jacks are designed to connect a turntable with an MM or high-output MC cartridge. If you have a turntable with a low-output MC cartridge, use an in-line boosting transformer or an MC-head amplifier when connecting your turntable to the PHONO jacks.

- Connect your turntable to the GND terminal to reduce noise in the signal. However, you may hear less noise without the connection to the GND terminal for some record players.

Connecting the AM and FM antennas

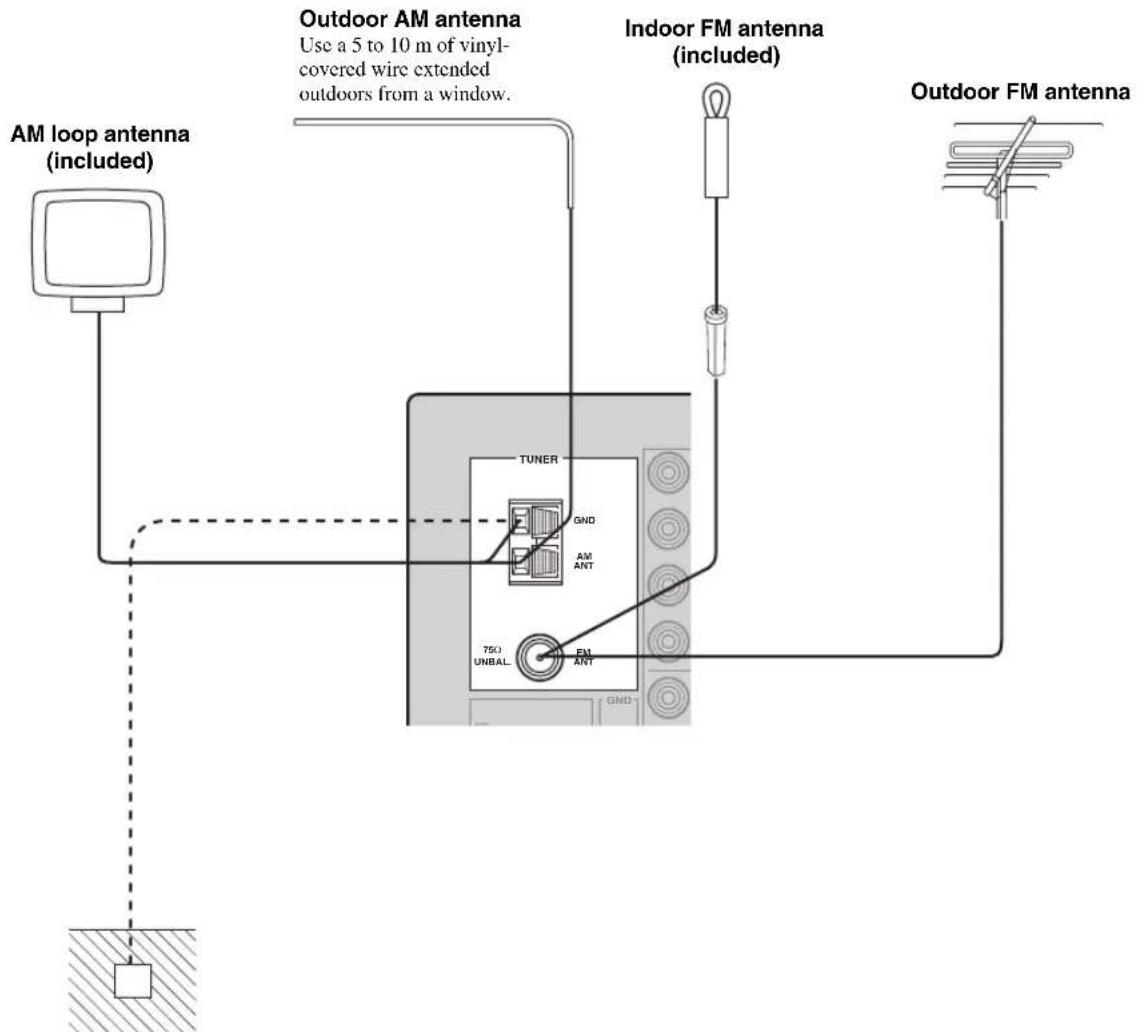

Both AM and FM indoor antennas are included with this unit. In general, these antennas should provide sufficient signal strength. Connect each antenna correctly to the designated terminals.

Outdoor AM antenna Use a 5 to 10 m of vinyl- covered wire extended outdoors from a window. Indoor FM antenna (included) AM loop antenna (included) TUNER GND AM ANT 75Ω UNBAL FM ANT GND Outdoor FM antenna

Ground (GND terminal)

For maximum safety and minimum interference, connect the antenna GND terminal to a good earth ground. A good earth ground is a metal stake driven into moist earth.

Notes

• A properly installed outdoor antenna provides clearer reception than an indoor one. If you experience poor reception quality, an outdoor antenna may improve the quality. Consult your nearest authorized YAMAHA dealer or service center about outdoor antennas.
• If you connect an outdoor FM antenna to this unit, do not connect the indoor FM antenna to this unit.
• To minimize interference from automobile ignition, locate the antenna as far from heavy traffic as possible.
• Keep the feeder cable or coaxial cable as short as possible. Do not bundle or roll up excess cable.
• The antenna should be placed at least 2 meters from reinforced concrete walls or metal structures.

CONNECTIONS

■Connecting the AM loop antenna

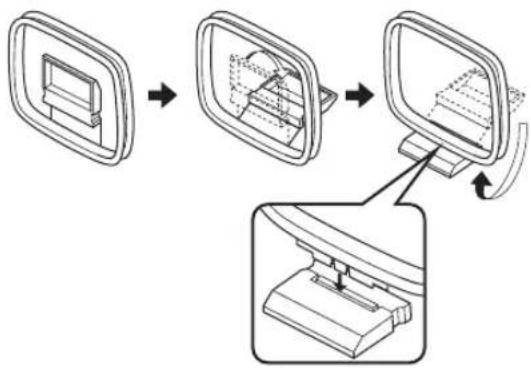

1 Set up the AM loop antenna.

2 Press and hold the tab.

3 Insert the AM loop antenna lead wires into the AM ANT terminal.

Line drawing of a hand inserting a cable into a two-hole cabinet (no text or symbols)

4 Release the tab.

Line drawing of a hand inserting a cable into a two-hole connector (no text or symbols)

5 Repeat steps 2 to 4 to insert the AM loop antenna lead wires into the GND terminal.

6 Orient the AM loop antenna for the best reception.

Simple line drawing of a computer monitor with three curved arrows indicating rotation or navigation (no text or symbols)

Notes

• The AM loop antenna should be placed away from this unit.
- A properly installed outdoor antenna provides clearer reception than an indoor one. If you experience poor reception quality, an outdoor antenna may improve the quality. It is recommended that you should connect a 5 to 10m of vinyl-covered wire to the AM ANT terminal and extend it outdoors from a window. Consult your nearest authorized YAMAHA dealer or service center about outdoor antennas.
- The AM loop antenna should always be connected, even if an outdoor AM antenna is connected to this unit.

Connecting the power supply cord

Plug the power cable into the AC IN on the rear panel of this unit and then plug the power supply cord into the AC wall outlet after all other connections are complete.

■COUPLER jacks

Removing the jumper pins from the PRE OUT/MAIN IN jacks enables this unit to operate separately as a control amplifier or a power amplifier. These jacks are used to connect a signal-processing system such as a graphic equalizer or a surround-sound processor to this unit. If such an external unit is connected to these jacks, the VOLUME control of this unit can be used to adjust the overall sound output level.

To connect an external unit, first remove the jumper pins from the PRE OUT/MAIN IN jacks and then connect the input jacks of that external unit to the PRE OUT jacks or its output jacks to the MAIN IN jacks. For details, refer to the owner's manual included with the external unit to be connected.

Notes

• When you do not use the COUPLER jacks, never remove the jumper pins from these jacks. If removed, no sound will be output from this unit.
• When you use this unit with an external unit connected to the COUPLER jacks, make sure that the CD DIRECT AMP button and the PURE DIRECT button on the front panel are turned off.
• When you use this unit as a power amplifier, connect the output jacks of an external control amplifier, etc. to the MAIN IN jacks of this unit. In this case, the controls of this unit will not function except the PHONES jack and the SPEAKERS A/B buttons. Use the controls on the external control amplifier to make volume adjustments, etc.

■AC OUTLET(S) (SWITCHED)

Australia model ....1 outlet Other models .... 2 outlets

Use these outlets to connect the power supply cords from your other components to this unit. The outlets supply power to any connected components whenever the power of this unit is turned on. For information on the maximum power (total power consumption of components), see "SPECIFICATIONS" on page 42.

■VOLTAGE SELECTOR

(Asia and General models only)

VOLTAGE SELECTOR on the rear panel of this unit must be set for your local main voltage BEFORE plugging the power supply cord into the AC wall outlet.

Voltages are as follows:

Asia model .... AC 220/230–240 V, 50/60 Hz General model..... AC 110/120/220/230–240 V, 50/60 Hz

■IMPEDANCE SELECTOR switch

CAUTION

Do not slide the IMPEDANCE SELECTOR switch while the power of this unit is turned on, as doing so may damage the unit.

Select the switch position (left or right) according to the impedance of the speakers in your system.

Switch position	Impedance level
Right	If you use one set (A or B), the impedance of each speaker must be 6 Ω or higher.
	If you use two sets (A and B), the impedance of each speaker must be 12 Ω or higher.
Left	If you use one set (A or B), the impedance of each speaker must be 4 Ω or higher.
	If you use two sets (A and B), the impedance of each speaker must be 8 Ω or higher.

Notes

• The Canada model cannot use two separate speaker sets (A and B) simultaneously when the IMPEDANCE SELECTOR switch is slid to the 6 position.
• If this unit fails to turn on, the IMPEDANCE SELECTOR switch may not be fully slid to either position. If this is the case, slide the switch all the way to either position when the power supply to this unit is completely cut off.

Turning on and off this unit

When all connections are complete, turn on the power of this unit.

1 CD-ROM DC: 200V DC: 200V DC: 200V DC: 200V DC: 200V DC: 200V DC: 200V DC: 200V DC: 200V DC: 200V DC: 200V DC: 200V DC: 200V DC: -1.5V DC: -1.5V DC: -1.5V DC: -1.5V DC: -1.5V DC: -1.5V DC: -1.5V DC: -1.5V DC: -1.5V DC: -1.5V DC: -1.5V DC: -1.5V DC: -1.5V DC : 200V DC : 200V DC : 200V DC : 200V DC : 200V DC : 200V DC : 200V DC : 200V DC : 200V DC : 200V DC : 200V DC : 200V DC : 200V DC: -1.5V DC: -1.5V DC: -1.5V DC: -1.5V DC: -1.5V DC: -1.5V DC: -1.5V DC: -1.5V DC: -1.5V DC: -1.5V DC: -1.5V DC: -1.8V DC: -1.8V DC: -1.8V DC: -1.8V DC: -1.8V DC: -1.8V DC: -1.8V DC: -1.8V DC: -1.8V DC: -1.8V DC: -1.8V DC: -1.8V DC: -1.8V DC : 200V DC : 200V DC : 200V DC : 200V DC : 200V DC : 200V DC : 200V DC : 200V DC : 200V DC : 200V

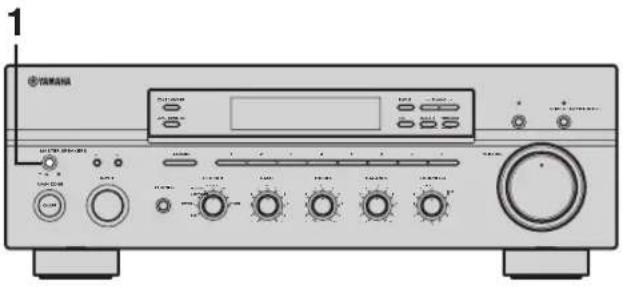

1 Press MASTER ON/OFF on the front panel inward to the ON position to turn on the power of this unit.

Main Zone of this unit turns on.

You can set Main Zone of this unit to the standby mode by pressing MAIN ZONE ON/OFF on the front panel or STANDBY on the remote control.

Press MAIN ZONE ON/OFF on the front panel or POWER on the remote control to turn Main Zone of this unit on again.

Press MASTER ON/OFF on the front panel again to release it outward to the OFF position to turn off this unit.

While MASTER ON/OFF on the front panel is pressed inward to the ON position, you can turn on Zone 2 or set it to the standby mode independently (see page 35).

PLAYING AND RECORDING

CAUTION

Extreme caution should be exercised when you play back CDs encoded in DTS.

If you play back a CD encoded in DTS on a DTS-incompatible CD player, you will only hear some unwanted noise that may damage your speakers. Check whether your CD player supports CDs encoded in DTS. Also, check the sound output level of your CD player before you play back a CD encoded in DTS.

Playing a source

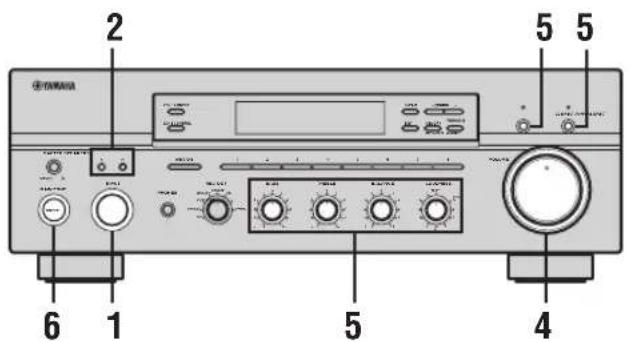

CD-ROM 2 5 5 6 1 5 4

6 1 2 4

1 Rotate the INPUT selector on the front panel (or press one of the input selector buttons on the remote control) to select the desired input source.

INPUT or

Front panel Remote control

2 Press SPEAKERS A and/or SPEAKERS B on the front panel or on the remote control to select speakers A and/or speakers B.

Front panel
or

Remote control

Notes

• Both SPEAKERS A and B can be selected.
• Make sure that the IMPEDANCE SELECTOR switch is correctly set (see page 15).

3 Play the source.

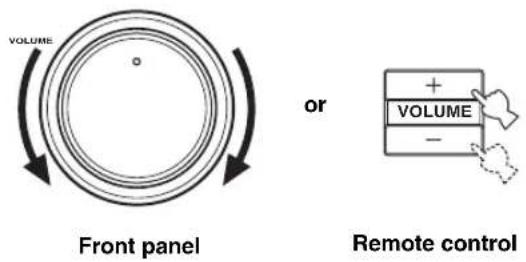

4 Rotate VOLUME on the front panel (or press VOLUME +/- on the remote control) to adjust the sound output level.

VOLUME

Front panel
or

Remote control

5 Adjust the tonal quality by using the BASS, TREBLE, BALANCE and LOUDNESS controls or the CD DIRECT AMP and the PURE DIRECT buttons on the front panel.

6 Press MAIN ZONE ON/OFF on the front panel again (or press STANDBY on the remote control) to finish using this unit and set it to the standby mode.

Front panel

or

Remote control

Adjusting the tonal quality

■Adjusting the BALANCE control

Adjusts the sound output balance of the left and right speakers to compensate for sound imbalance caused by speaker locations or listening room conditions.

■Using the CD DIRECT AMP button

Routes input signals from your CD player directly to the specially built-in amplifier for the CD player. As a result, the input signals bypass the INPUT selector and the BASS, TREBLE, BALANCE and LOUDNESS controls and then sent to the power amplifier, thus eliminating any alterations to the CD signals and creating the purest possible sound. The CD DIRECT AMP indicator lights up and the front panel display turns off after a few seconds.

■Using the PURE DIRECT button

Routes input signals from your audio sources so that the input signals bypass the BASS, TREBLE, BALANCE and LOUDNESS controls, thus eliminating any alterations to the audio signals and creating the purest possible sound.

Note

If both the CD DIRECT AMP and the PURE DIRECT buttons are turned on, only the CD DIRECT AMP button will function.

■Adjusting the BASS and TREBLE controls

Adjust the high and low frequency response.

BASS

Increases or decreases the low frequency response.

TREBLE

Increases or decreases the high frequency response.

■Adjusting the LOUDNESS control

Retains a full tonal range at any volume level, thus compensating for the human ears' loss of sensitivity to high and low-frequency ranges at a low volume level.

CAUTION

If the CD DIRECT AMP or the PURE DIRECT button is turned on with the LOUDNESS control set at a certain level, the input signals bypass the LOUDNESS control, resulting in a sudden increase in the sound output level. To prevent your ears or the speakers from being undesirably damaged, be sure to press the CD DIRECT AMP or the PURE DIRECT button after lowering the sound output level or after checking that the LOUDNESS control is properly set.

1 Rotate the LOUDNESS control on the front panel to the FLAT position.

2 Rotate VOLUME on the front panel (or press VOLUME +/- on the remote control) to set the sound output level to the loudest listening level that you would listen to.

VOLUME

Front panel
or

Remote control

3 Rotate the LOUDNESS control until the desired volume is obtained.

Recording a source

Notes

• The VOLUME, BASS, TREBLE, BALANCE and LOUDNESS controls and the CD DIRECT AMP and the PURE DIRECT buttons have no effect on the source being recorded.
• Check the copyright laws in your country to record from records, CDs, radio, etc. Recording copyright-protected material may infringe on copyright laws.

YUMA 3 1 4

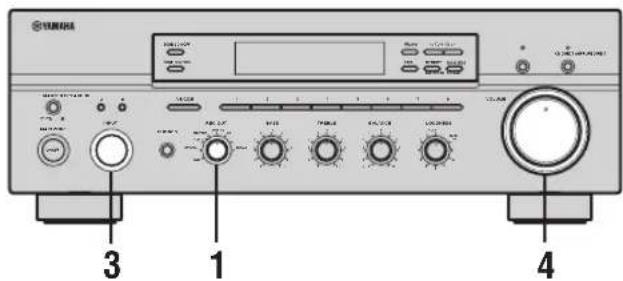

1 Rotate the REC OUT selector on the front panel to select the source you want to record from.

To record the current input source that you are watching or listening to, set the REC OUT selector to SOURCE.

To record a source other than the one that you are watching or listening to, set the REC OUT selector to the source you want to record.

2 Play the selected source to record from.
3 Rotate the INPUT selector on the front panel to confirm the selected source to record from.

4 Rotate VOLUME on the front panel (or press VOLUME +/- on the remote control) to adjust the sound output level of the selected source to record from.

VOLUME or VOLUME Front panel Remote control

5 Begin recording on the MD recorder, the tape deck or the VCR connected to this unit.

Note

If you set the REC OUT selector to a source other than the one that you are watching or listening to, selecting another source with the INPUT selector on the front panel (or the corresponding input selector button on the remote control) while recording is in progress will not affect the recording.

You can monitor the sound and/or picture being recorded by rotating the INPUT selector on the front panel (or pressing MD/TAPE or VCR on the remote control) to select the MD recorder, the tape deck or the VCR used for recording.

Using the sleep timer

Use this feature to automatically set this unit to the standby mode after a certain amount of time. The sleep timer is useful when you are going to sleep while this unit is playing or recording a source. The sleep timer also automatically turns off any external components connected to the AC OUTLET(S).

POWER-POWER 1 CORN 3 VOLTAGE 1 VOLTAGE 2 VOLTAGE 3 VOLTAGE 4 VOLTAGE 5 VOLTAGE 6 VOLTAGE 7 VOLTAGE 8 VOLTAGE 9 VOLTAGE 10 VOLTAGE 11 VOLTAGE 12 VOLTAGE 13 VOLTAGE 14 VOLTAGE 15 VOLTAGE 16 VOLTAGE 17 VOLTAGE 18 VOLTAGE 19 VOLTAGE 20 VOLTAGE

Notes

• The sleep timer can only be set with the remote control.
- The sleep timer automatically turns off Zone 2. However, the power of Zone 2 components are not turned off.

1 Press one of the input selector buttons on the remote control to select an input source.

2 Start playback on the selected input source.
3 Press SLEEP repeatedly to set the amount of time before this unit is set to the standby mode.

Each time you press SLEEP, the front panel display changes as shown below.

The SLEEP indicator flashes while switching the amount of time for the sleep timer.

SLEEP 120min SLEEP

4 Press SLEEP repeatedly so that SLEEP OFF appears in the front panel display.

SLEEP → SLEEP OFF

After a few seconds, SLEEP OFF disappears from the front panel display, and the SLEEP indicator turns off.

The sleep timer setting can also be canceled by pressing STANDBY on the remote control (or MAIN ZONE ON/OFF or MASTER ON/OFF on the front panel) to set this unit to the standby mode.

Muting the sound output

1 Press MUTE on the remote control to mute the sound output.

The MUTE indicator flashes in the front panel display and MUTE ON appears in the front panel display.

MUTE ON MUTE

After a few seconds, MUTE ON disappears from the front panel display.

2 Press MUTE on the remote control again to resume the sound output.

The MUTE indicator disappears from the front panel display.

FM/AM TUNING

There are 2 tuning methods; automatic and manual. Select either method according to your preference and the strength of station signals.

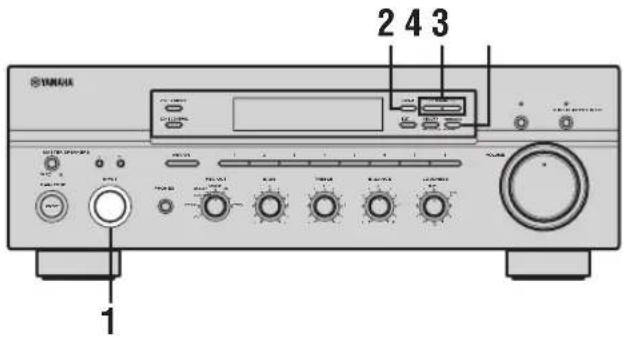

Automatic tuning

Automatic tuning is effective when station signals are strong and there is no interference.

2 4 3 TUNUA 1

1 Rotate the INPUT selector (or press TUNER on the remote control) to select TUNER as the input source.

Front panel
or

Remote control

2 Press FM/AM on the front panel to select the reception band (FM or AM).

FM or AM appears in the front panel display.

3 Press TUNING MODE on the front panel so that the AUTO indicator lights up in the front panel display.

AUTO Lights up

4 Press TUNING ◀/▷ once to begin automatic tuning.

Press to tune into a higher frequency.

Press to tune into a lower frequency.

Notes

• When you tune into a station, the frequency of the received station is shown in the front panel display.
• To search for another station, press TUNING ◀/▷ once more.
• If the tuning search does not stop at the desired station because the station signals are weak, try using the manual tuning method.

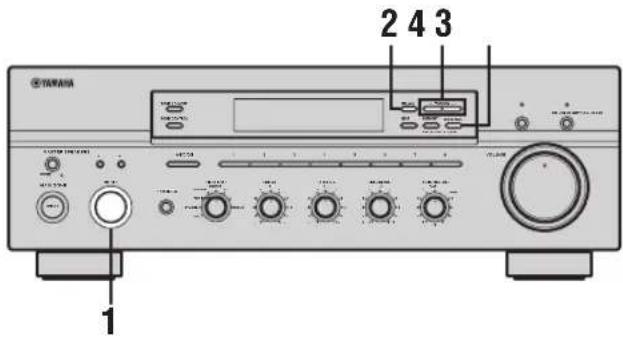

Manual tuning

Manual tuning is effective when station signals are weak.

YARAN 2 4 3 1

1 Rotate the INPUT selector (or press TUNER on the remote control) to select TUNER as the input source.

Front panel
or

Remote control

2 Press FM/AM on the front panel to select the reception band (FM or AM).

FM or AM appears in the front panel display.

3 Press TUNING MODE on the front panel so that the AUTO indicator disappears from the front panel display.

AUTO Disappears

4 Press TUNING ◀/▷ to manually tune into the desired station.

Hold down the button to continue tuning search.

Notes

• When you tune into a station, the frequency of the received station is shown in the front panel display.
• If you tune into an FM station, it is automatically received in the monaural mode to increase signal quality.

Automatic preset tuning

You can use the automatic preset tuning method to automatically store FM stations. This function enables this unit to automatically tune into FM stations with strong signals and store up to 40 (8 stations in each of the 5 groups, A1 to E8) of those received stations in order. You can then easily recall any preset stations by selecting the preset station numbers where they are stored.

Notes

• Any station data stored under a preset station number is cleared when you store a new station under that preset station number.
• If the number of received stations does not reach 40 (E8), automatic preset tuning automatically stops once searching all available stations are tuned into and stored.
• Only FM stations with sufficient signal strength are stored automatically by automatic preset tuning. If the station you want to store is weak in signal strength, try using the manual preset tuning method.

YAMIA 1 2 3 4

1 Rotate the INPUT selector (or press TUNER on the remote control) to select TUNER.

Front panel
or

Remote control

2 Press FM/AM on the front panel to select FM as the reception band.

FM appears in the front panel display.

3 Press and hold MEMORY on the front panel for more than 3 seconds.

The preset station group and the MEMORY and AUTO indicators flash in the front panel display.

4 Press TUNING ◀/▷ once to begin automatic preset tuning.

Press ▷ to tune into higher frequencies.

Press to tune into lower frequencies.

When automatic preset tuning is complete, the frequency of the last preset station is shown in the front panel display.

Notes

• If TUNING / is not pressed within approximately 5 seconds while the MEMORY and AUTO indicators are flashing, automatic preset tuning automatically begins from the currently displayed frequency and proceeds toward higher frequencies.
• Received stations are sequentially programmed to 8 stations in each preset station group. If 8 stations are all programmed in a preset station group, another 8 stations are sequentially programmed in the next preset station group.

■Customized automatic preset tuning

You can specify a preset station group and a preset station number from which this unit stores the FM stations received by automatic preset tuning.

1 Press and hold MEMORY on the front panel for more than 3 seconds.

2 Press A/B/C/D/E and then press one of the preset station number buttons on the front panel to select the preset station group and the preset station number where the first received station will be stored.

For example, if you select C5, the first received station is automatically programmed to C5 and the next received stations are sequentially programmed to C6, C7, etc.

A/B/C/D/E 1 2 3 4 5 6 7 8

3 Press TUNING ◀/▷ on the front panel to begin automatic preset tuning.

Press to tune into higher frequencies.

Press to tune into lower frequencies.

When automatic preset tuning is complete, the frequency of the last preset station is shown in the front panel display.

Note

Automatic preset tuning stops when the received stations have all been stored up to E8.

Manual preset tuning

You can also manually store up to 40 stations (8 stations in each of the 5 groups, A1 to E8). You can then easily recall any preset stations by selecting the preset station numbers where they are stored.

TUNIYA 2 3 4

1 Repeat steps 1 to 4 in "Automatic tuning" or in "Manual tuning" to tune into a station.

When you tune into a station, the frequency of the received station is shown in the front panel display.

2 Press MEMORY on the front panel.

The MEMORY indicator flashes in the front panel display for approximately 5 seconds.

MEMORY Flashes

3 Press A/B/C/D/E on the front panel repeatedly to select a preset station group (A to E).

The selected preset station group is shown in the front panel display.

4 Press one of the preset station number buttons on the front panel to select a preset station number (1 to 8) where you want to store the station.

Note

This operation must be done within 5 seconds while the MEMORY indicator is flashing in the front panel display. Otherwise, the manual preset tuning process is automatically canceled.

5 Press MEMORY on the front panel to store the station.

6 Repeat steps 1 to 5 to store other stations.

Notes

• Any station data stored under a preset station number is cleared when you store a new station under that preset station number.
• The reception mode (stereo or monaural) is stored along with the station frequency.

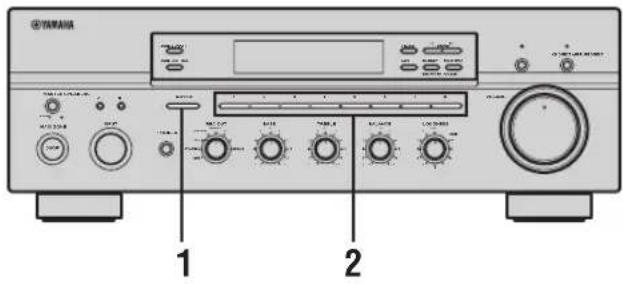

Selecting preset stations

You can tune into the desired station simply by selecting the preset station number where it is stored.

YAWA50 1 2

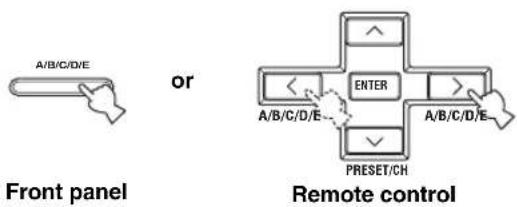

1 Press A/B/C/D/E on the front panel repeatedly (or press A/B/C/D/E < / > on the remote control) to select a preset station group (A to E).

The selected preset station group is shown in the front panel display.

A/B/C/D/E or Enter A/B/C/D/E PRESET/CH A/B/C/D/E Front panel Remote control

2 Press one of the preset station number buttons on the front panel (or PRESET/CH ∧ / ∨ on the remote control) to select a preset station number (1 to 8).

The preset station number appears in the front panel display along with the reception band and the frequency.

1 2 3 4 5 6 7 8 Front panel

Exchanging preset stations

You can exchange the assignment of two preset stations with each other. The following procedure describes an example where a preset station E1 is exchanged with another preset station A5.

TANANA 2,4

1 Repeat steps 1 and 2 in "Selecting preset stations" to select a preset station E1.

2 Press EDIT on the front panel.

E1 and the MEMORY indicator flash in the front panel display.

3 Repeat steps 1 and 2 in "Selecting preset stations" to select another preset station A5.

A5 and the MEMORY indicator flash in the front panel display.

MEMORY Flashes

4 Press EDIT on the front panel again.

E1-A5 appears in the front panel display, indicating that the two preset station assignments have been exchanged.

RADIO DATA SYSTEM (EUROPE MODEL ONLY)

Receiving Radio Data System stations

Radio Data System is a data transmission system used by FM stations in many countries. The Radio Data System function is carried out among the network stations.

This unit can receive various Radio Data System data such as PS (Program Service name), PTY (Program Type), RT (Radio Text), CT (Clock Time), EON (Enhanced Other Networks) when receiving Radio Data System broadcasting stations.

■PS (Program Service name) mode

The name of the Radio Data System station being received is displayed.

■PTY (Program Type) mode

There are 15 program types to classify Radio Data System stations.

NEWS News
AFFAIRS Current affairs
INFO General information
SPORT Sports
EDUCATE Education
DRAMA Drama
CULTURE Culture
SCIENCE Science
VARIED	Light entertainment
POP M	Pops
ROCK M	Rock
M.O.R. M	Middle-of-the-road music (easy-listening)
LIGHT M	Light classics
CLASSICS	Serious classics
OTHER M	Other music

■RT (Radio Text) mode

Information about the program (such as the title of the song or name of the singer) on the Radio Data System station being received is displayed using a maximum of 64 alphanumeric characters, including the umlaut symbol. If other characters are used for RT data, they are displayed with an underbar (_).

■CT (Clock Time) mode

The current time is displayed and updated every minute. If the data are accidentally cut off, “CT WAIT” may appear.

■EON (Enhanced Other Networks)

See "EON function" on page 31.

Changing the Radio Data System mode

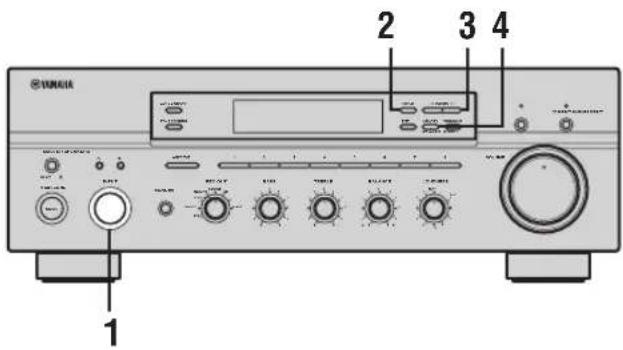

Four modes are available for displaying Radio Data System data. The PS, PTY, RT and/or CT indicators that correspond to the Radio Data System data services offered by the station light up in the front panel display.

1 Press TUNER on the remote control to set this unit to tuner mode.

2 Press FREQ/TEXT repeatedly on the remote control to display the various Radio Data System data offered by the transmitting station.

Notes

• Do not press FREQ/TEXT until a Radio Data System indicator lights up in the front panel display. You cannot change the mode if you press the button prior to this. This is because this unit has not finished receiving all of the Radio Data System data from the station.
• Radio Data System data not offered by the station cannot be selected.
• This unit cannot utilize the Radio Data System data source if the signal received is not strong enough. In particular, the RT mode requires a large amount of data, so it is possible that the RT mode may not be displayed even if other Radio Data System modes (PS, PTY, etc.) are displayed.
• Radio Data System data may not be received under poor reception conditions. In such cases, press TUNING MODE (AUTO/MAN'L MONO) so that the AUTO indicator disappears from the front panel display. Although this will change the reception mode to manual, Radio Data System data may be displayed when you change the display to Radio Data System mode.
• If the signal strength is weakened by external interference during the reception of a Radio Data System station, the Radio Data System data service may be cut off suddenly and “...WAIT” will appear in the front panel display.

PTY SEEK function

If you select the desired program type, this unit automatically searches all preset Radio Data System stations that are broadcasting a program of the required type.

1 2 3 YAMAHA

When performing this operation with the remote control, first press TUNER to set the remote to tuner mode.

1 Press PTY SEEK MODE on the remote control to set this unit in the PTY SEEK mode.

The program type of the station being received or "NEWS" flashes in the front panel display. To exit from the PTY SEEK mode, press PTY SEEK MODE again.

MODE -PTT SEX Remote control NEWS Flashes

2 Press PRESET/CH ∧ / ∨ on the remote control to select the desired program type.

The selected program type appears in the front panel display.

3 Press PTY SEEK START on the remote control to begin searching all preset Radio Data System stations.

The selected program type flashes and the PTY HOLD indicator lights up in the front panel display while searching for stations.

To cancel searching, press PTY SEEK START again.

• The unit stops searching when it finds a station broadcasting the selected type of program.
• If the found station is not the one you desire, press PTY SEEK START again. This unit resumes searching for another station broadcasting the same type of program.

This function uses the EON data service on the Radio Data System station network. If you select the desired program type (NEWS, INFO, AFFAIRS or SPORT), this unit automatically searches for all preset Radio Data System stations that are scheduled to broadcast the selected type of program and switches from the station currently being received to the new station when the broadcast starts.

POWER USB 12 VOUT USB USB COLDEN USB USB COLDEN USB USB COLDEN USB USB COLDEN USB USB COLDEN USB USB COLDEN USB USB COLDEN USB USB COLDEN USB USB COLDEN USB USB COLDEN USB USB COLDEN USB USB COLDEN USB USB COLDEN USB COLDEN USB USB COLDEN USB USB COLDEN USB USB COLDEN USB USB COLDEN USB USB COLDEN USB USB COLDEN USB USB COLDEN USB USB COLDEN USB USB COLDEN USB USB COLDEN USB USB COLDEN USB USB cOLDEN USB USB cCOLDEN USB USB cCOLDEN USB

When performing this operation with the remote control, first press TUNER to set the remote to tuner mode.

Note

This function can only be used when a Radio Data System station that offers the EON data service is being received. When such a station is being received, the EON indicator lights up in the front panel display.

1 Check that the EON indicator is lit in the front panel display.

If the EON indicator is not lit up, tune into another Radio Data System station so that the EON indicator lights up.

2 Press EON repeatedly on the remote control to select the desired program type (NEWS, INFO, AFFAIRS or SPORT).

The selected program type name appears in the front panel display.

• If a preset Radio Data System station type starts broadcasting the selected type of program, the unit automatically switches from the program being received to that program. (The EON indicator flashes.)
• When broadcasting of the selected program ends, the unit returns to the previous station (or another program on the same station).

■To cancel this function

Press EON repeatedly until no program type name is shown in the front panel display.

ADVANCED SETUP

■ADVANCED SETUP menu parameters

Change the initial settings (indicated in bold under each parameter) to reflect the needs of your listening environment.

Factory presets PRESET

Use to reset all parameters to the factory presets.

Choices: CANCEL, RESET

• Select CANCEL if you do not want the parameters of this unit to be initialized when you reset the factory presets.
• Select RESET if you want all of the parameters of this unit to be initialized when you reset the factory presets.

Notes

• This setting does not affect the parameters in the ADVANCED SETUP menu.
• The resetting process starts next time you turn on the power of this unit.

Remote REMOTE

Use to switch the remote control ID of this unit.

Choices: ID1, ID2

• Select ID1 to operate this unit using an alternative code.
• Select ID2 to operate this unit using the default code.

Note

You must also make settings for the remote control (see page 33) and the Zone 2 remote control (see page 9).

Tuner TU

(Asia and General models only)

Use to switch the frequency step selection according to the frequency spacing in your area.

Choices: AM10/FM100, AM9/FM50

• North, Central and South America: AM10/FM100 (kHz)
• Other areas: AM9/FM50 (kHz)

Changing the ADVANCED SETUP menu parameters

The ADVANCED SETUP menu is displayed in the front panel display.

• During the ADVANCED SETUP procedure, audio output is muted.
• During the ADVANCED SETUP procedure, only MASTER ON/OFF, A/B/C/D/E and the preset station number buttons (1 and 2) on the front panel are operational.

1,2,5

2,4 3

1 Press MASTER ON/OFF on the front panel to release it outward to the OFF position.

2 Press and hold A/B/C/D/E on the front panel and then press MASTER ON/OFF inward to the ON position.

The power of this unit is turned on, and the ADVANCED SETUP menu appears in the front panel display.

While holding down, press

3 Press the preset station number buttons (1 and 2) on the front panel repeatedly to move through the menu and select the parameter you want to adjust.

See page 32 for a complete list of available parameters.

4 Press A/B/C/D/E on the front panel repeatedly to toggle between the available parameters.

5 Press MASTER ON/OFF to release it outward to the OFF position to confirm your setting.

Note

The settings you made are reflected next time you turn on the power of this unit.

Switching the remote control ID

You can select the unit you want to operate with the remote control by switching the remote control ID.

1 Press and hold CODE SET on the remote control and then press TUNER on the remote control.

CODE SET →

2 While holding down CODE SET on the remote control, use the numeric buttons on the remote control to enter the three-digit code number listed in the table below.

CODE SET YAMAHA

Remote control ID* (this unit's setting)	Function Code number
ID1	To operate this unit using an alternative code.
ID2 (default setting)	To operate this unit using the default code.

* When you change the remote control ID, you must switch the remote control ID of this unit (see page 32).

When using multiple YAMAHA receivers or amplifiers with the same default code setting, you may unwantedly operate those components simultaneously. In this case, set one of the alternative codes for this unit to operate this unit separately.

Note

Also change the remote control ID of the Zone 2 remote control (see page 9).

ZONE 2

Connecting the Zone 2 components

This unit allows you to configure a multi-room audio and video system. The Zone 2 feature enables you to set this unit to reproduce separate input sources in the main room and in Zone 2 (the second room) simultaneously. You can also control this unit from the second room using the supplied Zone 2 remote control.

You need the following additional equipment to use the multi-room system of this unit:

• An infrared signal receiver for the second room.
• An infrared emitter for the main room. This emitter transmits the infrared signals sent by the Zone 2 remote control in Zone 2 to the components in the main room.
• An amplifier and speakers for the second room.
• A video monitor for the second room.

Some YAMAHA models are able to connect directly to the REMOTE OUT jack on the rear panel of this unit. If you own these products, you may not need to use an infrared emitter. Up to six YAMAHA components can be connected as shown below.

■Multi-room configuration and connections

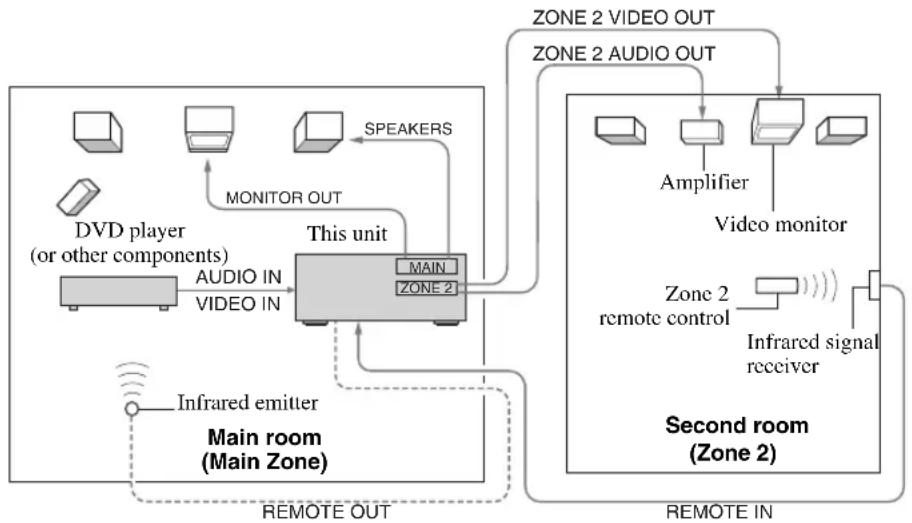

The following illustration shows an example of the multi-room system configuration and connections.

Since there are many possible ways to connect and use this unit in a multi-room configuration, we recommend that you consult with your nearest authorized YAMAHA dealer or service center for the Zone 2 connections that best meet your requirements.

Note

If you want to adjust the Zone 2 volume level by using the amplifier in the second room, we recommend setting the Zone 2 volume level to or near -16 dB.

Controlling Zone 2

Use the supplied Zone 2 remote control to control the input source or adjust the sound output level of Zone 2 independently of the listening conditions in the main room.

1 Press POWER on the Zone 2 remote control (or ZONE 2 ON/OFF on the front panel) to turn on Zone 2.

Zone 2 remote control

or

Front panel

2 Press one of the input selector buttons on the ZONE 2 remote control to select the input source of Zone 2.

You can also control the input source by using the control buttons on the front panel.

Press ZONE CONTROL on the front panel, and then rotate the INPUT selector on the front panel to select the desired input source of Zone 2.

3 Press VOLUME +/- on the Zone 2 remote control to adjust the sound output level of Zone 2.

You can mute the sound output to Zone 2 by pressing MUTE on the ZONE 2 remote control. Press again to restore the sound output to the previous volume level.

REMOTE CONTROL FEATURES

Control area

■Controlling this unit

The shaded areas below can be used to control this unit.

POWER POWER TV AV POWER GO MD/TAPE TUNER 十分 DTV/CDL VCH PNDOM/MD REQ SIZE 00 MTR/HD DISC SRP A FREE/REF EIN SLIPP VOL VOUT INPUT THMUTE TH INPUT 1 2 3 4 5 6 7 8 9 0 10 HARD MENU/TLE AN/CORF ANGLOW > SIRI/BACK/THM PRESIGN ON

■Controlling other components

The shaded areas below can be used to control other audio and video components made by YAMAHA and other manufacturers. Each button has a different function depending on the selected component. Select the component you want to control by pressing one of the input selector buttons. The name of the selected component appears in the front panel display.

The input selector buttons switch the function of the component control area below. Component control area You can control up to 7 different components by setting the appropriate remote control codes (see page 38). YAMAHA

You can use the button to control other components regardless of whether they are connected to this unit.

Controlling other components

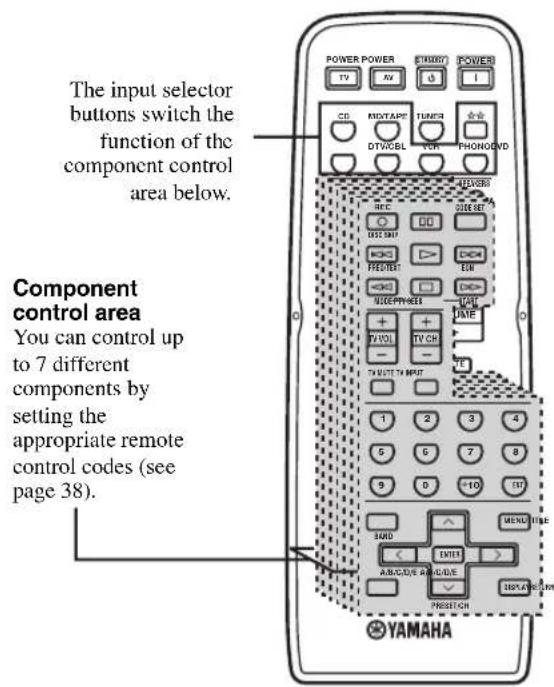

In addition to controlling this unit, you can also control other audio and video components made by YAMAHA and other manufacturers using the supplied remote control. To control other components, you must set the appropriate remote control codes.

① ② POWER POWER STRAWB POWER TV AV d I CD MDTAPE TUNER OTV/CDL VCR PHONODVD REC COLD SET SPACING DSC SFP A TRENGTH TV B RISK TIME SNOW SLEEP + + + TV VOL TV OR VOLUME - - -

TV/MUT TV/MUT MUTE 1 2 3 4 5 6 7 8 9 0 10 PM BAND POTR C/O/E PRESER DISPLAY/SMR YAMAHA

	DVD player VCR		Digital TV/Cable TV	TV	CD player	Tape deck	MD recorder	Tuner
1 AV POWER	Power *1	Power *1	Power *1	VCR power	Power *1	Power *1	Power *1	Power *1
2 TV POWER	TV power TV power TV power			Power *1	TV power TV power	TV power TV power
3 ◀◀	Search backward	Search backward	VCR search backward	VCR search backward	Search backward	Search backward	Search backward	PTY SEEK MODE *2
▷▷	Search forward	Search forward	VCR search forward	VCR search forward	Search forward	Search forward	Search forward	PTY SEEK START *2
◀◀	Skip backward				Skip backward	Direction A	Skip backward	FREQ/TEXT *2
▷▷	Skip forward				Skip forward	Direction B	Skip forward	EON *2
REC/DISC SKIP	Disc skip	Rec	VCR rec	VCR rec	Disc skip	Rec	Rec
□	Stop	Stop	VCR stop	VCR stop	Stop	Stop	Stop
|||	Pause	Pause	VCR pause	VCR pause	Pause	Deck A/B	Pause
▷	Play	Play	VCR play	VCR play	Play	Play	Play
4 TV VOL +	TV volume +	TV volume +	TV volume +	Volume +	TV volume +	TV volume +	TV volume +	TV volume +
TV VOL -	TV volume -	TV volume -	TV volume -	Volume -	TV volume -	TV volume -	TV volume -	TV volume -
5 TV CII +	TV channel +	Channel +	Channel +	Channel +	TV channel +	TV channel +	TV channel +	TV channel +
TV CII -	TV channel -	Channel -	Channel -	Channel -	TV channel -	TV channel -	TV channel -	TV channel -
6 TV MUTE	TV mutc	TV mutc	TV mutc	Mutc	TV mutc	TV mutc	TV mutc	TV mutc
7 TITLE	Title	Title	Title	Title				Band
8 ENTER	Menu enter		Menu select	Menu select
PRESET/CII^	Menu up		Menu up	Menu up				Preset up (1 to 8)
PRESET/CII∨	Menu down		Menu down	Menu down				Preset down (1 to 8)
A/B/C/D/E <	Menu left		Menu left	Menu left				Preset down (A to E)
A/B/C/D/E >	Menu right		Menu right	Menu right				Preset up (A to E)
9 RETURN	Return	Return	Return	Return

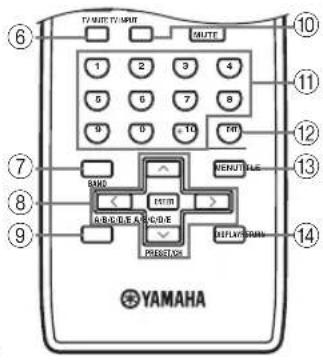

10 TV INPUT	TV input	TV input	TV input	Input	TV input	TV input	TV input	TV input
11 1-9, 0,+10	Numeric buttons	Numeric buttons	Numeric buttons	Numeric buttons	Numeric buttons		Numeric buttons	Preset stations (1-8)
12 ENT.		Enter	Enter/recall	Enter/numeric button			Index
13 MENU	Menu		Menu	Menu
14 DISPLAY	Display		Display	Display	Display		Display

*1 This button functions only when the original remote control of the component has the POWER button.
*2 These buttons function for Europe model only.

Setting remote control codes

You can control other components by setting the appropriate remote control codes. Codes can be set up for each input source. For a complete list of available remote control codes, refer to “LIST OF REMOTE CONTROL CODES” at the end of this manual.

The following table show the default component category (library) and the remote control code for each input source.

Remote control code default settings

Input source	Default component category (library)	Manufacturer	Default YAMAHA code
CD CD Y	AMAHA 199
MD/TAPE TA	APE YAMAHA 499
DVD DVD	YAMAHA 699
DTV/CBL*	—	—	—
VCR —	—	—
PHONO —	—	—
☆☆	—	—	—

* You can only set the TV remote control codes for the DTV/CBL button. However, other remote control codes can be set for any input selector buttons except DTV/CBL.

Note

You may not be able to operate your other YAMAHA components even if the YAMAHA remote control code is initially set as listed above. In this case, try setting other YAMAHA remote control codes.

1 Press and hold CODE SET on the remote control and then press one of the input selector buttons on the remote control to select the input source you want to set up.

CODE SET →

Note

You must press and hold CODE SET throughout this operation.

2 While holding down CODE SET on the remote control, use the numeric buttons on the remote control to enter the three-digit remote control code for the selected input source.

When the setting succeeds, "PRESET OK" appears; however, when it does not, "PRESET NG" appears in the front panel display.

To reset the code, enter the default code for each input source listed in the remote control code default settings table.

CODE SET YAMAHA

Notes

• If the manufacturer of your component has more than one code, try setting each of them until you find the correct one.
• You can only assign one remote control code to each input selector button.

TROUBLESHOOTING

Refer to the chart below if this unit does not function properly. If the problem you are experiencing is not listed below or if the instructions below do not help, set this unit to the standby mode, disconnect the power cord, and contact the nearest authorized YAMAHA dealer or service center.

■General

Problem Cause	Remedy		See page
This unit fails to turn on.	The power supply cord is not connected or the plug is not completely inserted.	Connect the power supply cord firmly.	—
	The impedance setting is incorrect. Set the impedance to match your speakers.		15
	The protection circuitry has been activated because of a short circuit, etc.	Check that the speaker wires are not touching each other and then turn the power of this unit back on.	11
	The IMPEDANCE SELECTOR switch on the rear panel is not set to either end.	Set the IMPEDANCE SELECTOR switch to either end when the power of this unit is turned off.	15
	This unit has been exposed to a strong external electric shock (such as lightning or strong static electricity).	Set this unit to the standby mode, disconnect the power supply cord, plug it back in after 30 seconds, then use it normally.	—
No sound Incorrect input or output cable connections.		Connect the cables properly. If the problem persists, the cables may be defective.	12
		Select an appropriate input source with the INPUT selector on the front panel (or one of the input selector buttons on the remote control).	17
		Turn on the corresponding SPEAKERS A or SPEAKERS B.	17
		Speaker connections are not secure. Secure the connections.	11
The sound suddenly goes off.	The protection circuitry has been activated because of a short circuit, etc.	Check that the IMPEDANCE SELECTOR setting is correct.	15
		Check that the speaker wires are not touching each other and then turn the power of this unit back on.	11
Only the speaker on one side can be heard.	Incorrect cable connections. Connect the cables properly. If the problem persists, the cables may be defective.		11, 12
	Incorrect setting for the BALANCE control.	Set the BALANCE control to the appropriate position.	19
There is a lack of bass and no ambience.	The + and – wires are connected in reverse at the amplifier or the speakers.	Connect the speaker wires to the correct + and – phase.	11
A “humming” sound can be heard.	Incorrect cable connections. Connect the audio plugs firmly. If the problem persists, the cables may be defective.		12
	No connection from the turntable to the GND terminal.	Make the GND connection between the turntable and this unit.	12
The volume level is low while playing a record.	The record is being played on a turntable with an MC cartridge.	The turntable should be connected to this unit through the MC head amplifier.	—
The volume level cannot be increased, or the sound is distorted.	The component connected to the MD/TAPE OUT jacks of this unit is turned off.	Turn on the power of the component.	—

TROUBLESHOOTING

The sound is degraded when listening with the headphones connected to the CD player or the tape deck connected to this unit.	The power of this unit is turned off, or this unit is set to the standby mode.	Turn on the power of this unit.	16
The sound level is low.	The LOUDNESS control is functioning. Set the LOUDNESS control to the FLAT position.		19
The input source cannot be changed although the INPUT selector is rotated.	The CD DIRECT AMP button is turned on.	Turn off the CD DIRECT AMP button.	19
Using the BASS, TREBLE, BALANCE and LOUDNESS controls does not affect the tonal quality.	The CD DIRECT AMP or the PURE DIRECT button is turned on.	The CD DIRECT AMP or the PURE DIRECT button must be turned off to use those controls.	19

Tuner

Problem Cause		Remedy		See page
FM	FM stereo reception is noisy.	The particular characteristics of the FM stereo broadcasts being received may cause this problem when the transmitter is too far away or the antenna input is poor.	Check the antenna connections.Try using a high-quality directional FM antenna.	13
			Try using the manual tuning method.	24
	There is distortion, and clear reception cannot be obtained even with a good FM antenna.	There is multipath interference. Adjust the antenna position to eliminate the multipath interference.		—
	The desired station cannot be tuned in with the automatic tuning method.	The signal is too weak. Try using a high-quality directional FM antenna.		13
				Try using the manual tuning method.	24
	Previously preset stations can no longer be tuned in.	This unit has been disconnected for a long period.	Preset the stations again.	25
AM	The desired station cannot be tuned in with the automatic tuning method.	The signal is weak or the antenna connections are loose.	Tighten the AM loop antenna connections and orient it for the best reception.	—
			Try using the manual tuning method.	24
	There are continuous crackling and hissing noises.	The noises may result from lightning, fluorescent lamps, motors, thermostats or other electrical equipment.	Try using an outdoor antenna and a ground wire.This will help somewhat, but it is difficult to eliminate all noise.	—
	There are buzzing and whining noises.	A TV set is being used nearby. Move this unit away from the TV set.		—

■Remote control

Problem Cause	Remedy		See page
The remote control does not work nor function properly.	Wrong distance or angle. The remote control	will function within a maximum range of 6 m (19.7 ft) and no more than 30 degrees off-axis from the front panel.	10
	Direct sunlight or lighting (from an inverter type of fluorescent lamp, etc.) is striking the remote control sensor of this unit.	Reposition this unit.	—
	The batteries are weak. Replace all batteries.		10
	The remote control ID and this unit's ID do not match.	Switch the remote control ID or this unit's ID.	9,32,33
	The remote control code was not correctly set.	Try setting another code of the same manufacturer using “LIST OF REMOTE CONTROL CODES” at the end of this manual.	38
	Even if the remote control code is correctly set, there are some models that do not respond to the remote control.	Use the supplied remote control for the components.	—

SPECIFICATIONS

AUDIO SECTION

- Minimum RMS Output Power (8 Ω, 20 Hz to 20 kHz, 0.019% THD) .... 100 W + 100 W (6 Ω, 20 Hz to 20 kHz, 0.03% THD) .... 120 W + 120 W

• Dynamic Power (IHF) (8/6/4/2 Ω) 140/170/220/290 W

• Maximum Output Power [Europe model only] (1 kHz, 0.7% THD, 4 Ω) 160 W

- IEC Output Power [Europe model only] (1 kHz, 0.019% THD, 8 Ω) .... 115 W

• Power Band Width (0.03% THD, 50 W, 8 Ω) ..... 10 Hz to 50 kHz

• Damping Factor (SPEAKERS A) 20 Hz to 20 kHz, 8 Ω ....240 or more

• Maximum Output Power (EIAJ) [Asia and General models only] (1 kHz, 10% THD, 8/6 Ω) 145/170 W

• Maximum Input Signal PHONO (1 kHz, 0.019% THD) .... 70 mV or more CD, etc. (1 kHz, 0.019% THD) .... 2.2 V or more

- Frequency Response CD, etc. (20 Hz to 20 kHz) .... 0 ± 0.5 dB CD DIRECT AMP ON (10 Hz to 100 kHz) .... 0 ± 1.0 dB

- RIAA Equalization Deviation PHONO .... ± 0.5 dB

- Total Harmonic Distortion PHONO to OUT (REC) (20 Hz to 20 kHz, 3 V) .... 0.008% or less CD, etc. to SP OUT (20 Hz to 20 kHz, 50 W, 8 Ω) .... 0.012% or less

- Signal to Noise Ratio (IIIF-A Network) PHONO (5 mV input shorted) ....87 dB or more CD DIRECT AMP (200 mV input shorted) .... 110 dB or more

- Residual Noise (IHF-A Network) CD DIRECT AMP ON .... 30 μV PURE DIRECT ON .... 110 μV

- Gain Tracking Error (0 to -60 dB) 2 dB or less

- Input Sensitivity/Input Impedance PHONO 3.0 mV/47 kΩ CD, etc. 200 mV/47 kΩ MAIN IN 1 V/30 kΩ

- Output Level/Output Impedance OUT (REC).... 200 mV/1.2 kΩ or less PRE OUT .... 1 V/1.2 kΩ SUB WOOFER OUTPUT .... 4 V/1.2 kΩ ZONE 2 OUT .... 1 V/1.2 kΩ

- Headphone Output/Impedance (Input 1 kHz, 200 mV, 8 Ω, 0.015% THD) CD, etc. 0.47 V/470 Ω

- Channel Separation CD, etc. (5.1 kΩ input shorted, 1/10 kHz) ...... 65/50 dB or more

- Tone Control Characteristics BASS Boost/Cut (20 Hz) ±10 dB Turnover Frequency 350 Hz TREBLE Boost/Cut (20 kHz) ±10 dB Turnover Frequency 3.5 kHz

- Continuous Loudness Control Attenuation (1 kHz) .... -30 dB

VIDEO SECTION

- Video Signal Type [U.S.A., Canada and General models] .... NTSC [Other models] .... PAL

- Signal to Noise Ratio 50 dB or more

- Frequency Response (MONITOR OUT) Composite.... 5 Hz to 10 MHz, -3 dB

FM SECTION

- Tuning Range [U.S.A. and Canada models] 87.5 to 107.9 MHz [Asia and General models] 87.5/87.50 to 107.9/108.00 MHz [Other models] 87.50 to 108.00 MHz

- Usable Sensitivity (IHF).... 1.0 μV (11.2 dBf)

- Signal to Noise Ratio (IHF) Mono/Stereo 76 dB/70 dB

- Harmonic Distortion (1 kHz) Mono/Stereo 0.2%/0.3%

- Stereo Separation (1 kHz) 45 dB

- Frequency Response 20 Hz to 15 kHz, +0.5/-2 dB

AM SECTION

- Tuning Range [U.S.A. and Canada models] .... 530 to 1710 kHz [Asia and General models] .... 530/531 to 1710/1611 kHz [Other models] .... 531 to 1611 kHz

- Usable Sensitivity 300 μV/m

GENERAL

• Power Supply [U.S.A. and Canada models] ..... AC 120 V, 60 Hz [Asia model] ..... AC 220/230-240 V, 50/60 Hz [General model]..... AC 110/120/220/230-240 V, 50/60 Hz [Australia model] ..... AC 240 V, 50 Hz [Europe model] ..... AC 230 V, 50 Hz

• Power Consumption [U.S.A. and Canada models] .... 260 W, 360 VA [Other models] .... 260 W

- Standby Power Consumption 0.1 W

• Maximum Power Consumption [General model only] (6 Ω, 1 kHz, 10% THD) 650 W

- AC Outlets [Australia model] .... 1 (Total 100 W maximum) [General model] .... 2 (Total 50 W maximum) [Other models] .... 2 (Total 100 W maximum)

- Dimensions (W x H x D) .... 435 x 151 x 389 mm (17-1/8" x 5-15/16" x 15-5/16")

• Weight 10.9 kg (24 lbs.)

* Specifications are subject to change without notice.

ATTENTION: VEUILLEZ LIRE CE QUI SUIT AVANT D'UTILISER L'APPAREIL.

ACCESSOIRES FOURNIS....2

COMMANDES ET FONCTIONS.... 3

Face avant .... 3

Service PTY SEEK.... 30

Service EON 31

OPÉRATIONS DÉTAILLÉES

RÉGLAGES APPROFONDIS....32

Modification des paramètres du menu ADVANCED SETUP .... 32

Coiled electrical plug with two terminal connectors (no text or symbols)

Piles (x2) (AAA, R03, UM-4)

COMMANDES ET FONCTIONS

Face avant

YAMAHA ZONE 2 ON/OFF ZONE CONTROL POWER OUT TURUS WIRE OUTPUT CD DIRECT ANPPURE DIRECT MASTER SPEAKERS ON/MT MAIN ZONE ON/OFF INPUT AID/CODE 1 2 3 4 5 6 7 8 RRC OUT MUSH WHOLE 20 2 3 THIRLE 1 2 3 BALANCE 1 2 LOAD/RIME 1 2 30V 30V L1 1 B 1 23 24 (Volome standard) PHONES 27VXDL-1 DVO RRC OUT MUSH WHOLE 20 2 3 THIRLE 1 2 3 BALANCE 1 2 30V 30V L1 1 B 1 23 24

①MASTER ON/OFF

Diagram of a remote control device with labeled components including battery, switch, and battery pack

1 2 3

Diagram of three cylindrical mechanical components with a curved arrow indicating rotation or assembly (no text or symbols)

Diagram of three cylindrical connectors with a black arrow indicating rotation (no text or symbols)

Diagram of three cylindrical connectors with a connecting rod pointing to one (no text or symbols)

Line drawing of a cable inserted into a double door with a pointer, showing no text or symbols

Line drawing of a hand inserting a cable into a two-hole cabinet (no text or symbols)

Simple line drawing of a computer monitor with two curved arrows indicating rotation or refresh (no text or symbols)

Remarques

SLEEP 12:00min SLEEP

SLEEP → SLEEP OFF

■EON (Enhanced Other Networks)

CODE SET POWER POWER TIME GROUP 72 W 11 TC MCM/PLA PAM MCC PAM/PLA PAM PAM/PLA

CODE SET →

Remarque

Coiled electrical cable with two terminal connectors (no text or symbols)

YAMAHA ZONE 2 ON/OFF ZONE CONTROL POWER START MEMORY TURSD MODE OUTPUT ON/OFF MASTER SPEASERS INPUT AVOCIDE 1 2 3 4 5 6 7 8 RHO OUT RHOO MAGA THREEK BALANCE LOUDERS VOLUME MAIN ZONE WHIPOL 20 21 22 23 24 WHIPOL 20 21 22 23 WHIPOL 20 21 22 WHIPOL 20 21 WHIPOL 20 21 WHIPOL 20 21 WHIPOL 20 21 WHIPOL 20 21 WHIPOL 20 21 WHIPOL 20 21 WHIPOL 20 21 WHIPOL 20 21 WHIPOL 20 21 WHIPOL 20 20 WHIPOL 20 20 WHIPOL 20 20 WHIPOL 20 20 WHIPOL 20 20 WHIPOL 20 20 WHIPOL 20 20 WHIPOL 20 20 WHIPOL 20 20 WHIPOL 20 20 WHIPOL 20 21 WHIPOL 20 20 WHIPOL 20 20 WHIPOL 20 20 WHIPOL 20 20 WHIPOL 20 20 WHIPOL 20 20 WHIPOL 20 20

①MASTER ON/OFF

Diagram of a remote control device with labeled components including batteries, battery pack, and switch

Diagram of three identical cylindrical connectors arranged in a coiled structure with a central black arrow (no text or symbols)

Rot: positiv (+) Schwarz: negativ (−)

Diagram of three cylindrical connectors with a connecting rod inserted, no text or symbols present

Rot: positiv (+) Schwarz: negativ (−)

Diagram of three cylindrical connectors with a curved arrow indicating rotation or assembly (no text or symbols)

Rot: positiv (+) Schwarz: negativ (−)

Line drawing of a hand inserting a cable into a two-hole cabinet (no text or symbols)

Line drawing of a hand inserting a cable into a two-hole cabinet (no text or symbols)

Simple line drawing of a computer monitor with two curved arrows indicating rotation or refresh (no text or symbols)

Hinweise

SLEEP 120min SLEEP

SLEEP → SLEEP OFF

CODE SET →

Hinweis

Coiled electrical cable with two terminal connectors (no text or symbols)

AM-ramantenn

FM-inomhusantenn (Modeller till U.S.A., Kanada samt allmän modell)

Diagram of a battery pack with labeled components including battery, switch, and casing

1 Öppna luckan till batterifacket.

2 Skruva loss knoppen.

Diagram of three cylindrical connectors with a black arrow indicating rotation (no text or symbols)

Diagram of three cylindrical connectors with a cable inserted, no text or symbols present

Diagram of three cylindrical mechanical components with a curved arrow indicating rotation or assembly (no text or symbols)

Line drawing of a hand inserting a cable into a two-hole cabinet (no text or symbols)

4 Släpp upp tabben.

Simple line drawing of a double door with a handle, showing an arrow pointing to the handle (no text or symbols)

Simple line drawing of a computer monitor with curved arrows indicating rotation or movement (no text or symbols)

Anmärkningar

SLEEP 120min SLEEP

SLEEP → SLEEP OFF

MUTE ON MUTE

■EON (Enhanced Other Networks)

CODE SET →

Anmärkning

(8/6/4/2 Ω) 140/170/220/290 W

- Maximal uteffekt [Gäller endast modell till Europa]

(1 kHz, 0,7% övertonsdistorsion, 4 Ω) 160 W

- Uteffekt enligt IEC [Gäller endast modell till Europa]

(1 kHz, 0,019% övertonsdistorsion, 8 Ω) 115 W

- Effektbandbredd

SUB WOOFER OUTPUT 4 V/1.2 kΩ

ZONE 2 OUT 1 V/1,2 kΩ

WEERGAVE EN OPNAME 17

Coiled electrical outlet cable with two terminal connectors (no text or symbols)

Diagram of a remote control device with labeled components including batteries, battery pack, and switch

1 2 3

Diagram of three connected cylindrical mechanical components with a central black arrow indicating rotation (no text or symbols)

Diagram of three cylindrical connectors with a connecting rod inserted, no text or symbols present

Diagram of three cylindrical mechanical components with a curved arrow indicating rotation or assembly (no text or symbols)

Line drawing of a hand inserting a cable into a two-hole refrigerator (no text or symbols)

Line drawing of a hand inserting a card into a folder (no text or symbols)

Simple line drawing of a computer monitor with two curved arrows indicating rotation or refresh (no text or symbols)

Opmerkingen

VOLUME of Voorpaneel + VOLUME - Afstandsbediening

SLEEP 120min SLEEP

SLEEP → SLEEP OFF

■EON (Enhanced Other Networks;

CODE SET →

CODE SET →

Opmerking

Coiled electrical cable with two terminal connectors (no text or symbols)

Diagram of a remote control device with labeled components including battery, switch, and battery pack

1 2 3

Diagram of three cylindrical pipe fittings arranged in a coiled structure with an arrow indicating direction (no text or symbols)

Diagram of three connected cylindrical connectors with a cable inserted, no text or symbols present

Diagram of three cylindrical mechanical components with a curved arrow indicating rotation or assembly (no text or symbols)

Line drawing of a hand inserting a cable into a two-hole cabinet (no text or symbols)

4 Опустите защелку.

Line drawing of a hand inserting a cable into a two-hole cabinet (no text or symbols)

Simple line drawing of a computer monitor with two curved arrows indicating rotation or refresh (no text or symbols)

Примечания

SLEEP 120min SLEEP

SLEEP → SLEEP OFF

MUTE ON MUTE

Front panel of a vintage audio recording device with labeled buttons and dials

POWER V2 IN R I 10 M S A L B D E F G H I J K L M N O P Q R S T U V W X Y Z V A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

#

TV/MUT TV/MUT MUTE 1 2 3 4 5 6 7 8 9 0 -10 TEN BASO RUMS RUMS RUMS RUMS RUMS RUMS RUMS RUMS RUMS RUMS RUMS RUMS RUMS RUMS RUMS RUMS RUMS RUMS RUMS RUMS RUMS RUMS RUMS RUMS RUMS RUM S RUM S RUM S RUM S RUM S RUM S RUM S RUM S RUM S RUM S RUM S RUM S RUM S RUM S RUM S RUM S RUM S RUM S RUM S YAMAHA

CODE SET →

Примечание

JC Penny 293, 297, 234, 237

JVC 296, 246, 247, 286

Kendo 298

KTV 297, 239

Loewe 298, 248

LXI 293, 297, 225,

226, 233

Magnavox 297, 225, 239

Marantz 298

Matsui 295

Memorex 297

Mitsubishi 299, 297, 259, 287

NEC 297, 252, 282

Nokia 244, 245

Nokia Oceanic 245

Nordmende 265, 266

Onwa 296

Panasonic 234, 235, 236,

253, 288, 211

Philco 297, 225, 239

Philips 225, 298

Pioneer 226, 235, 254,

255, 268

Portland 297, 256

Proscan 293

Proton 297

Quasar 234, 235

Radio Shack 299, 293, 297

RCA 293, 297, 234,

256, 257, 258

SABA 223, 269, 265, 266

Sampo 297

Samsung 297, 239, 248,

262, 275

Sanyo 295, 233, 279,

272, 273, 274, 212

Schneider 296

Scott 297

Sharp 292, 239, 232,

213, 216

Siemens 229

Signature 292

Sony 263, 214

Sylvania 297, 225

Telefunken 269, 264, 265, 266

Thomson 223, 266

Toshiba 292, 226, 267, 215

Videch 297, 242

Wards 297, 239, 232

Yamaha 299, 292, 253, 242

VCR

Admiral 395

Aiwa 396, 397, 398, 329

Akai 322, 323, 324

Audio Dynamic 392,394

Bell&Howell 393

Blaupunkt 325, 326

Brocsonic 327

Bush 322

Canon 325.328

CGM 396,332

Citizen 396

Craig 396,363

Curtis Mathis 397, 328, 333

Daewoo 328, 334, 335

DBX 392,394

Dimensia 333

Dynatech 397

Emerson 327, 334, 396, 397

Fisher 393,336

Funai 397

GE 328,333,387

Go Video 353

LG/Goldstar 396, 388

Goodmans 334, 337

Grundig 332, 338

Hitachi 325, 333, 349,

342, 343

Instant Replay 325, 328

Itt/Nokia 393

JC Penny 392, 393, 394,

328, 333, 349,

396, 363

JVC 392, 394, 344,

345, 346, 347

Kendo 396

Kenwood 392, 394, 396

Loewe 396, 337

Luxor 395

393, 396, 397,

336, 349

Magnavox 325, 326, 328

Marantz 392, 394

Marta 396

Matsui 396

Memorex 328, 336, 396, 397

Minolta 333,349

Mitsubishi 399, 344, 348,

359, 353

MTC 363, 397

Multitech 397, 348, 354

NEC 392, 394, 344, 383

Nokia 393,395

Nokia Oceanic 395

Okano 323

Olympic 325,328

Orion 327

Panasonic 325, 328, 355,

378, 384, 385, 386

Pentax 333, 349

Philco 325, 328, 397

Philips 325, 326, 328,

337, 356, 357

Phonola 337

Pilot 396

Pioneer 325

Quasar 325, 328

RCA/PROSCAN 325, 326,

328, 333, 335,

349, 358, 363, 397

Realistic 393, 397, 328,

336, 359, 396, 363

Samsung 354, 358, 363,

364, 366

Sansui 394

Sanyo 393, 336, 367

Schneider 337

Scott 399, 335, 336,

348, 359, 354, 358

Seleco 322

Sharp 395,382

Siemens 393

Signature 2000 395, 397

Sony 368, 379, 372,

373, 374, 375

Sylvania 397, 325, 326, 328

Symphonic 397

Tandberg 334

Tandy 397

Tashiro 396

Tatung 392,394

Teac 392, 394, 397

Technics 325, 328

Teknika 396

Telefunken 376, 377

Thomas 397

Thorn 393,396

Toshiba 335,389

Totevison 363, 396

Unitech 363

Universum 396, 327, 376

Videosonic 363

W.WHouse 396

Wards 395, 396, 336

Yamaha 399, 392, 393, 394

Zenith 344, 368, 379,

396, 397

DVD player

DENON 623, 624

Funai 625

HITACHI 626

JVC 627

KENWOOD 628

Mitsubishi 629

Onkyo 632, 633, 634

Panasonic 623, 635

Philips 699,647

Pioneer 636, 637, 638

RCA 639

Samsung 642

Sharp 643

Sony 644

Toshiba 634

LG/GOLD STAR 645

THOMSON 646

Yamaha 699, 622, 623

CD player

Yamaha 199

CD recorder

Yamaha 499

MD recorder

Yamaha 599

Tape deck

Yamaha 799

YAMAHA

© 2005 YAMAHA CORPORATION All rights reserved.
